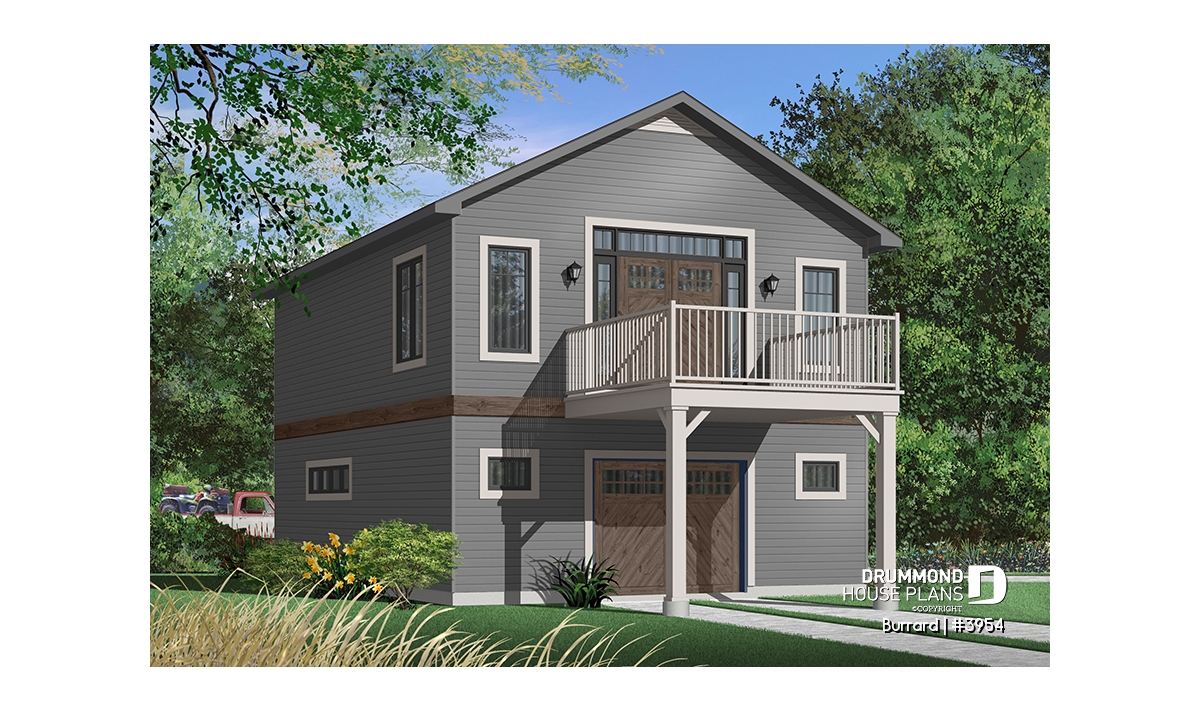

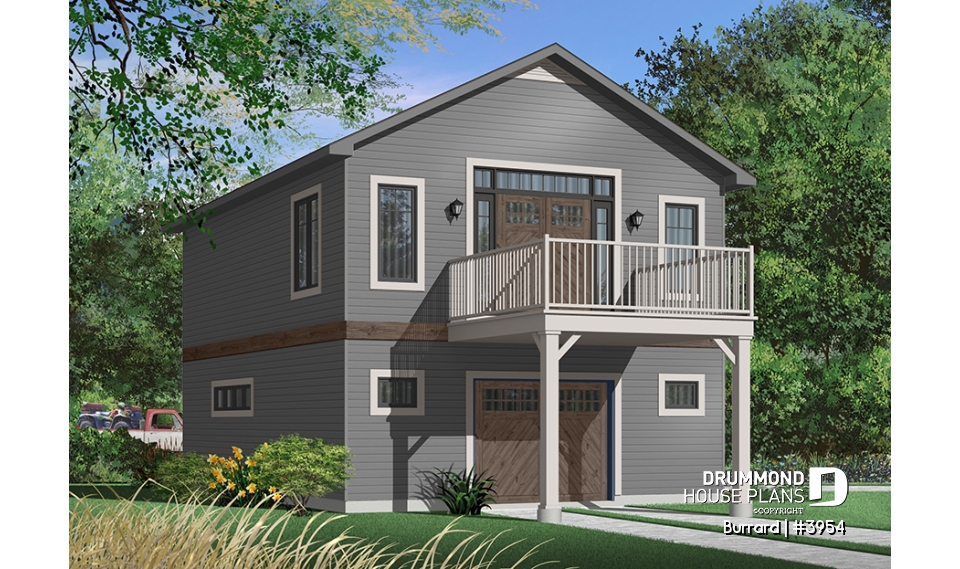

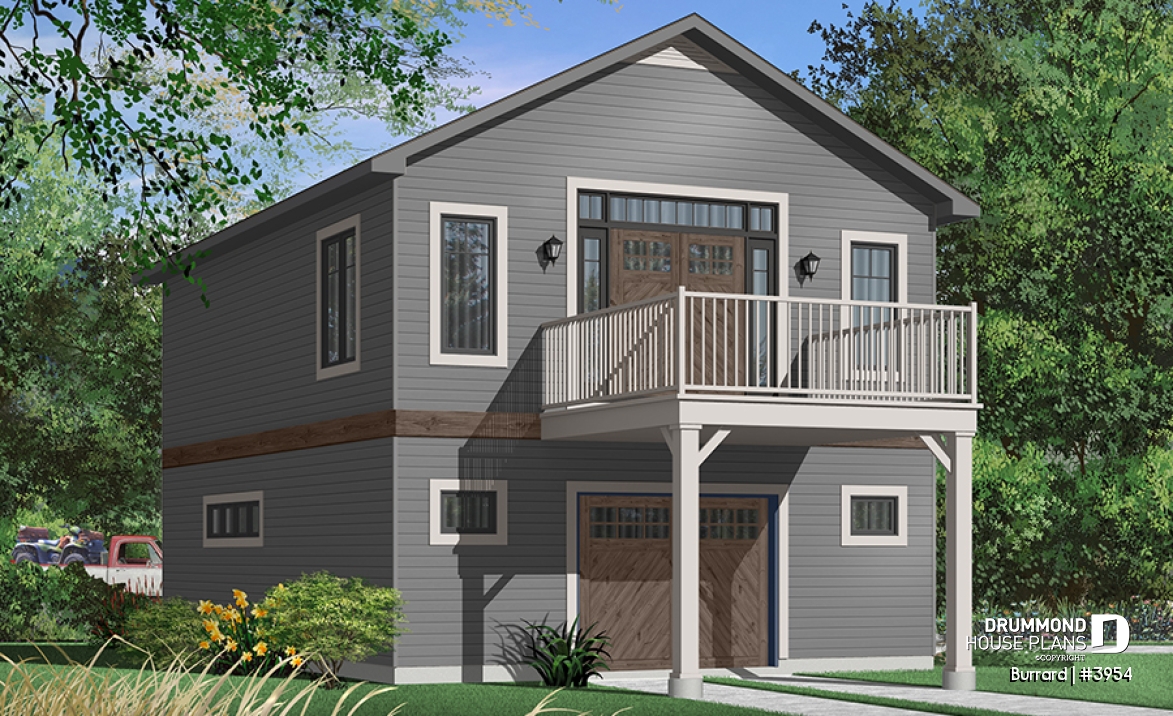

Color version 7 - Rear
1st level
2nd level

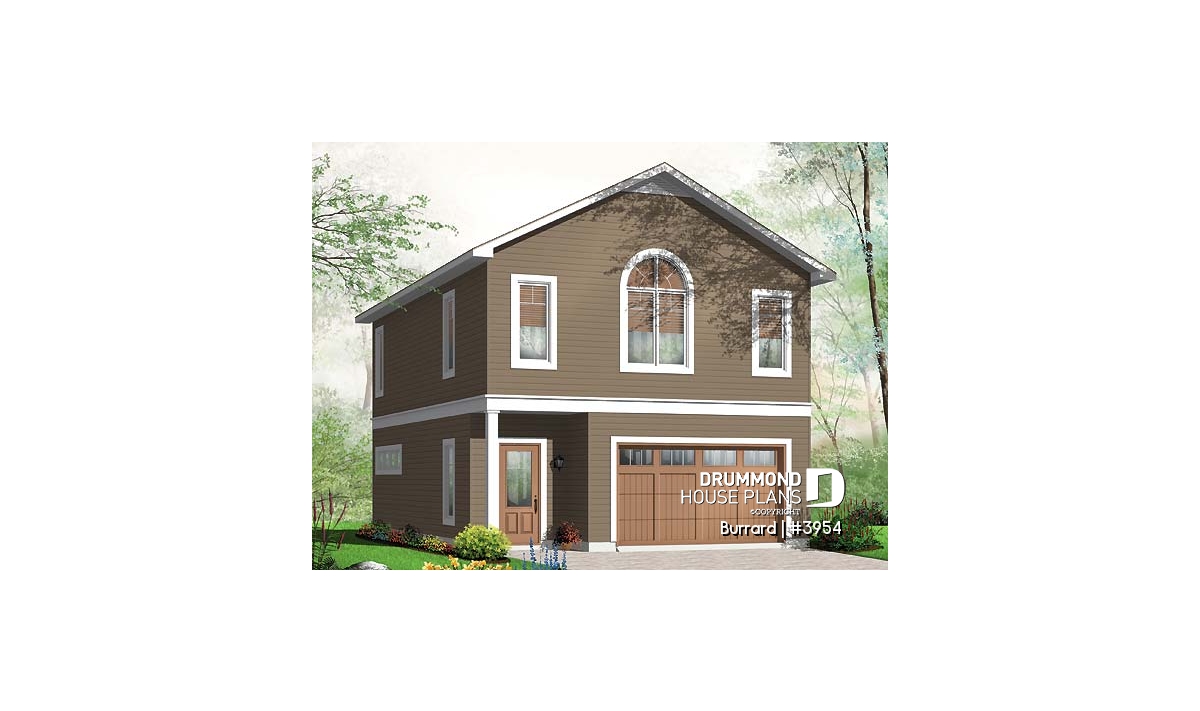

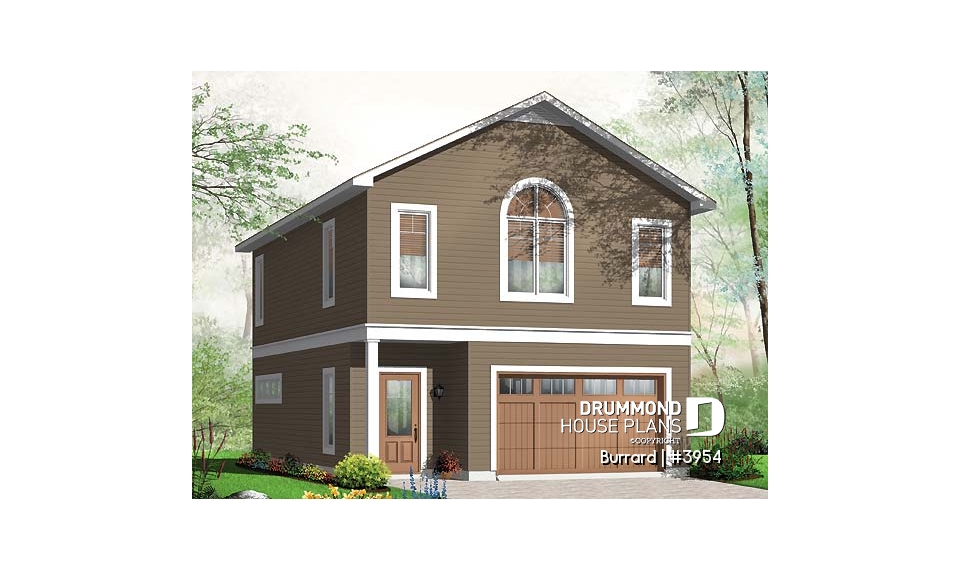

front - ORIGINAL MODEL

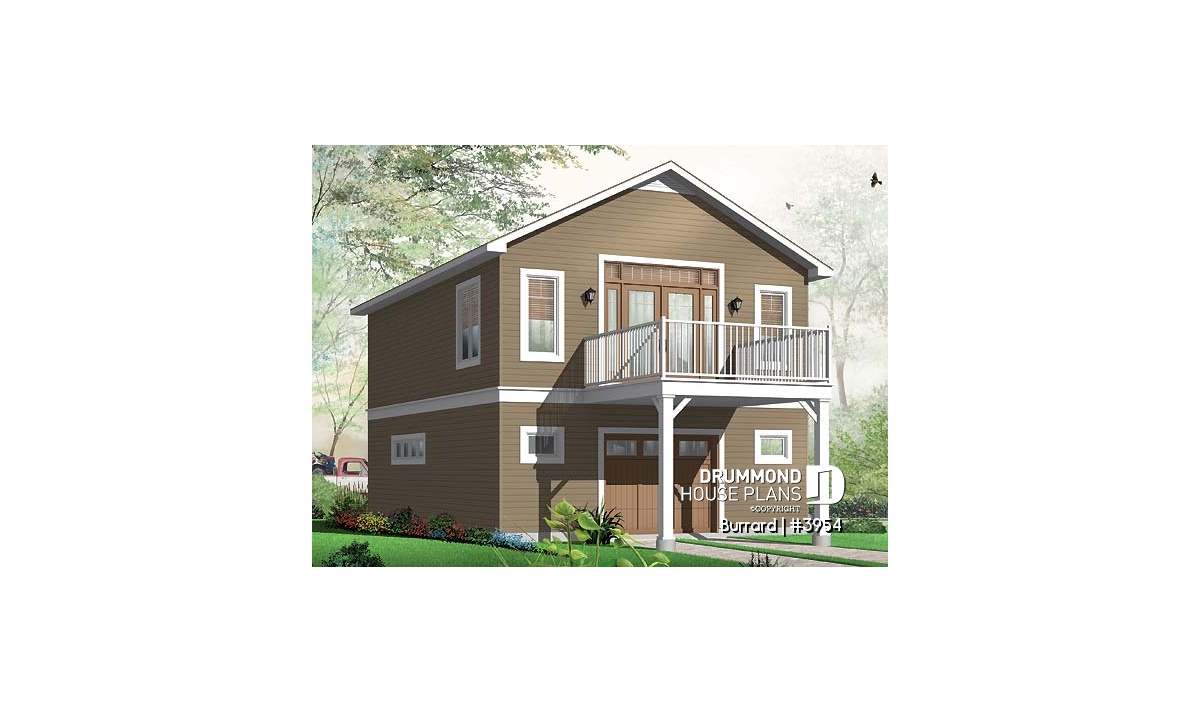

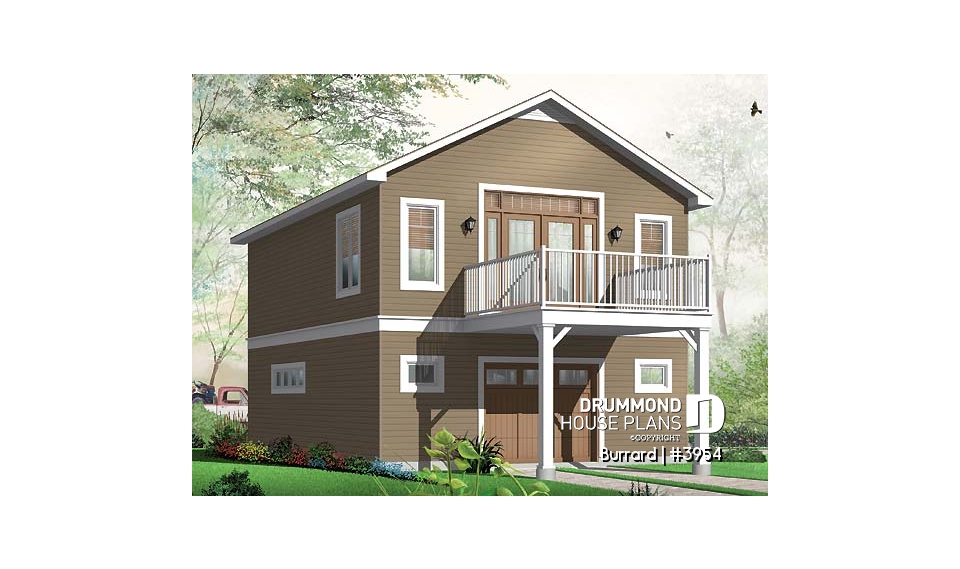

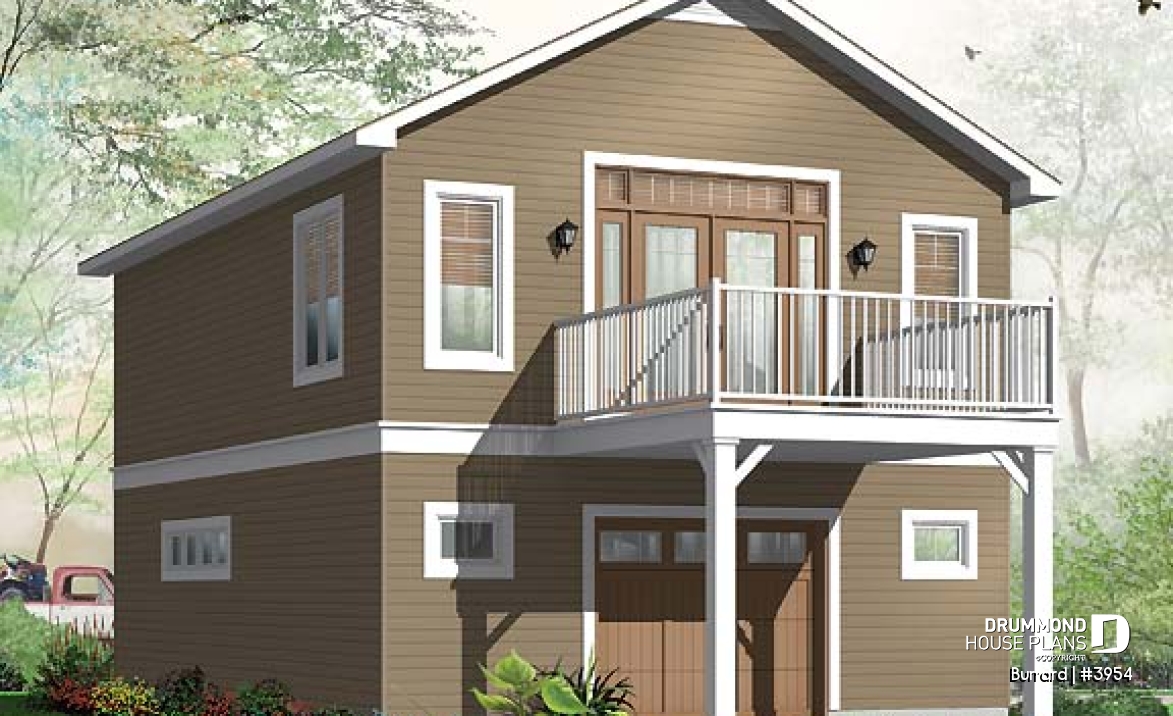

Rear view - ORIGINAL MODEL

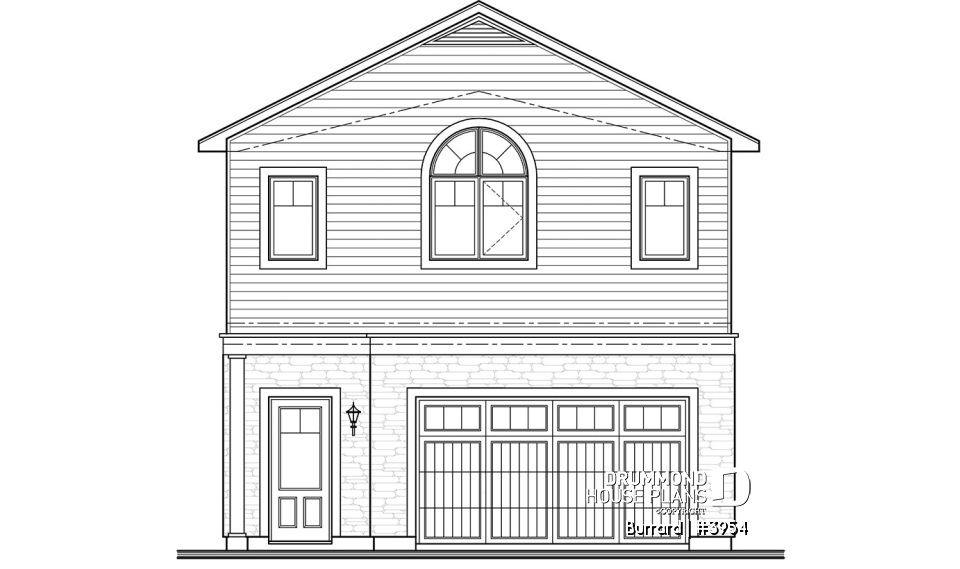

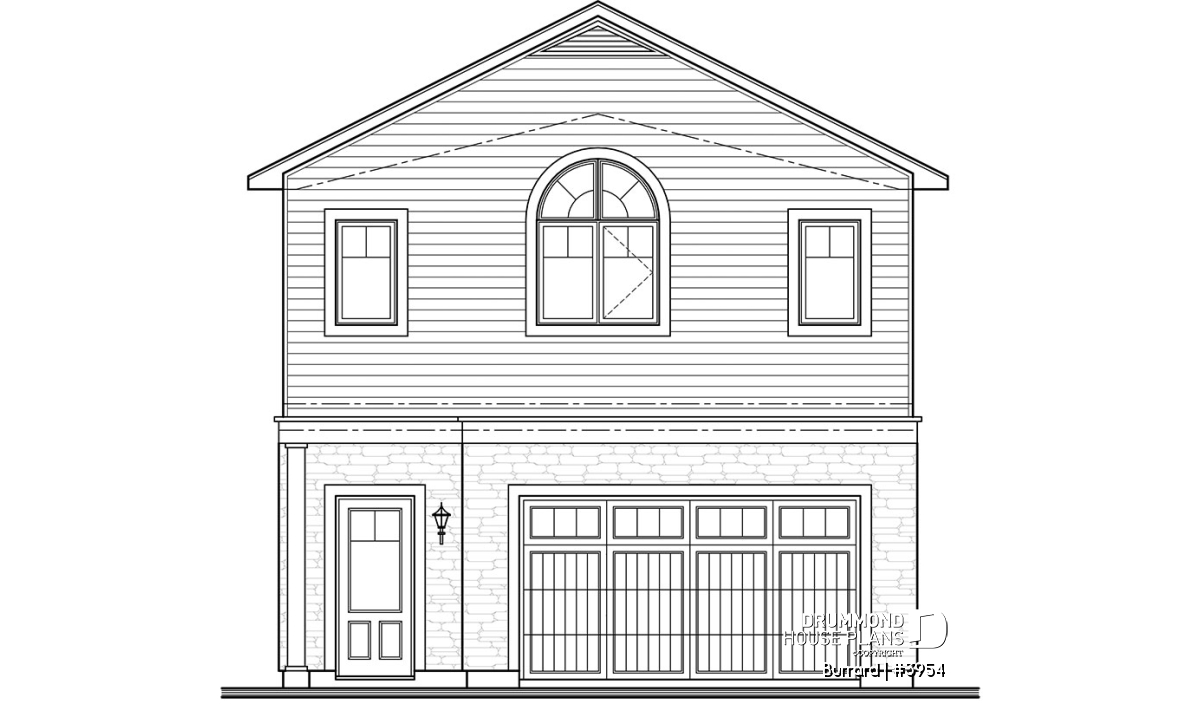

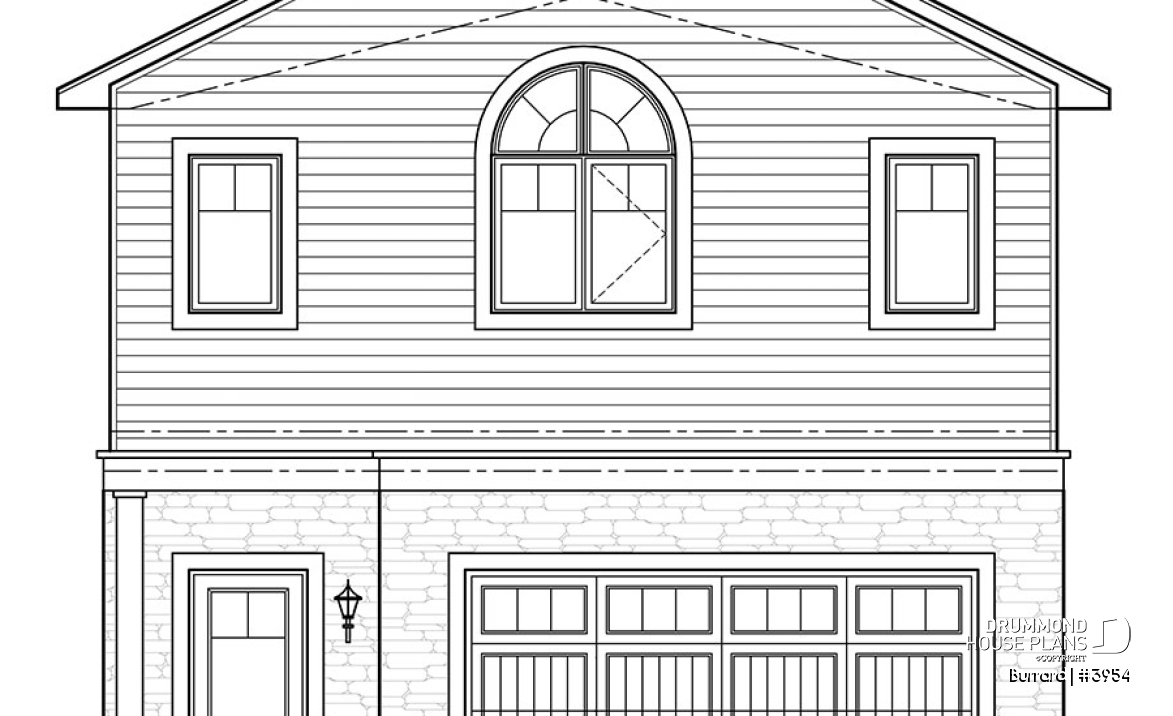

front elevation

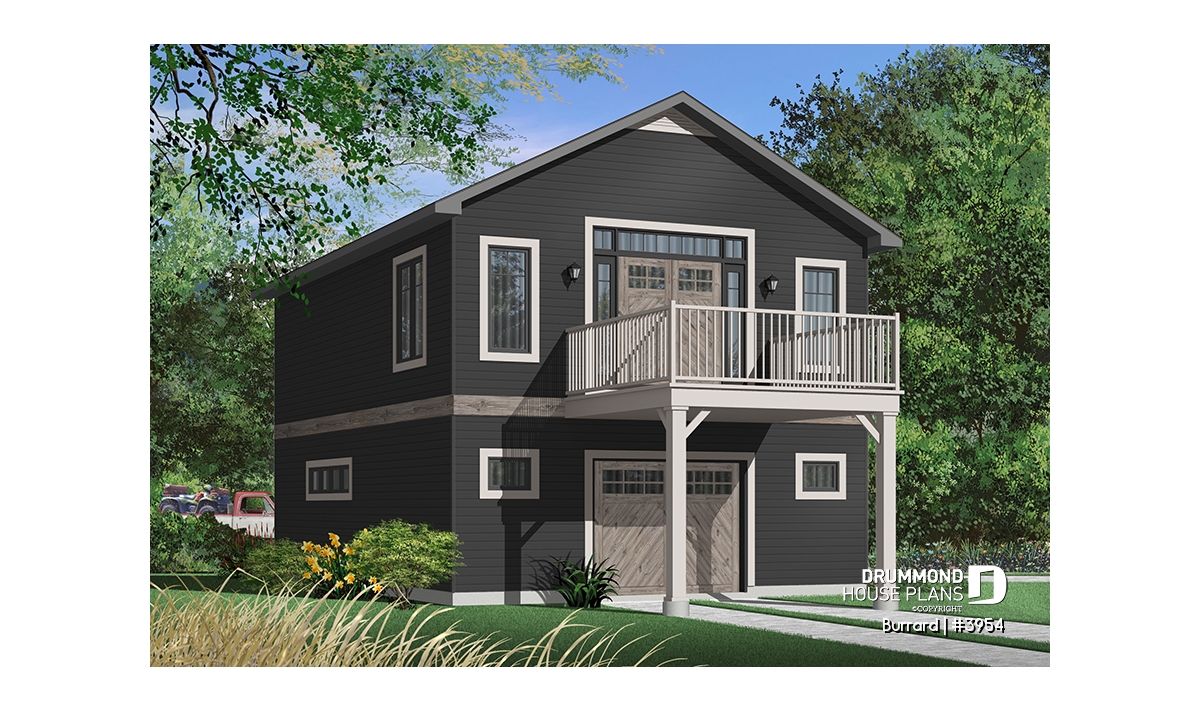

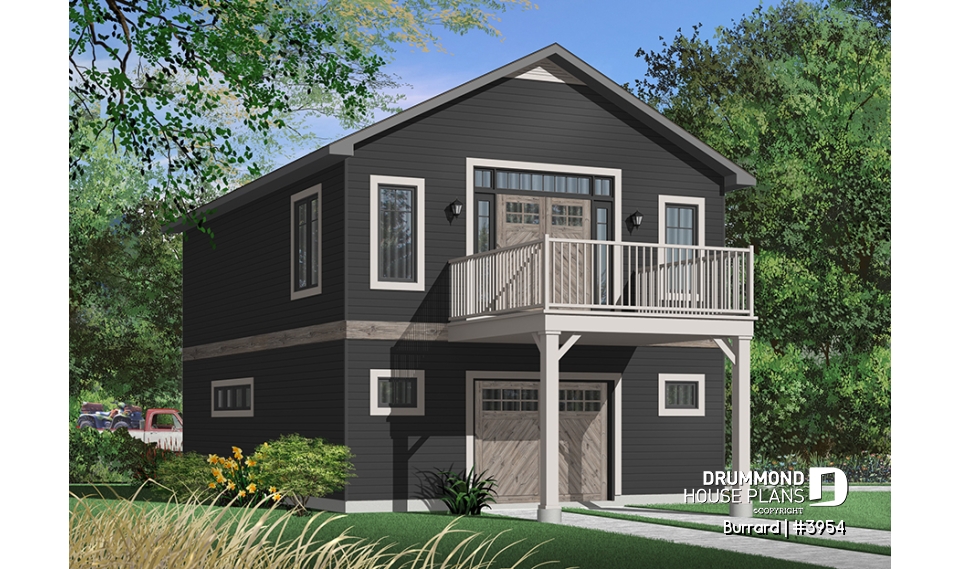

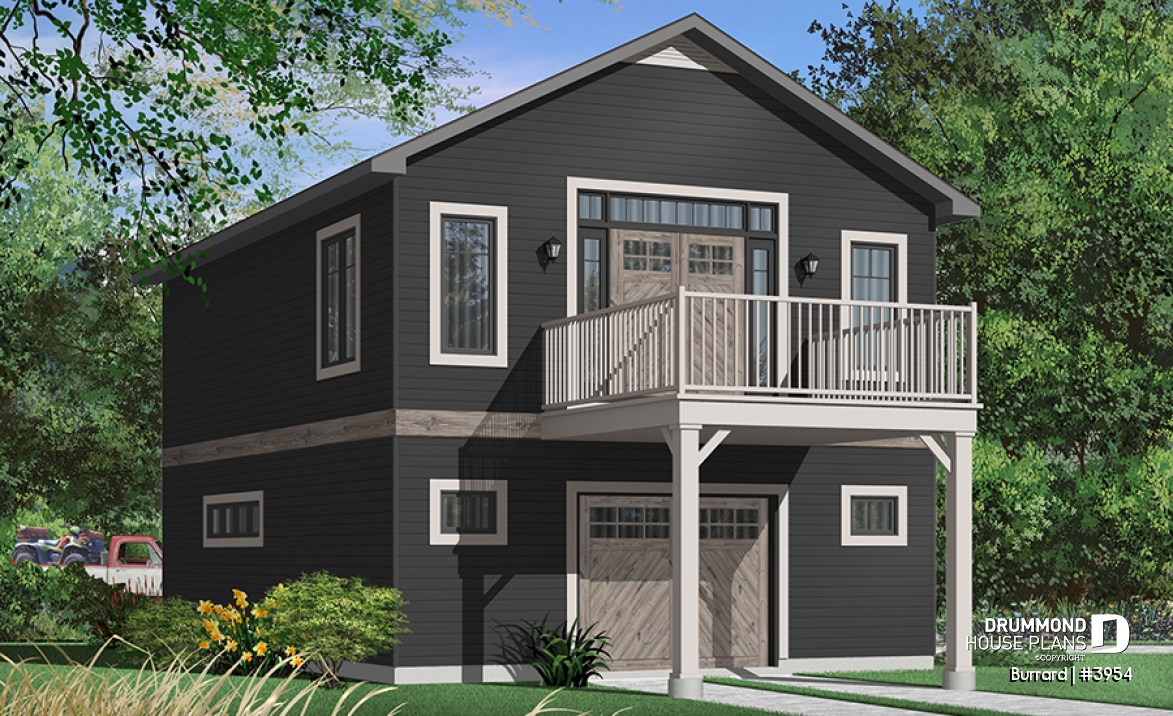

Color version 1 - Rear

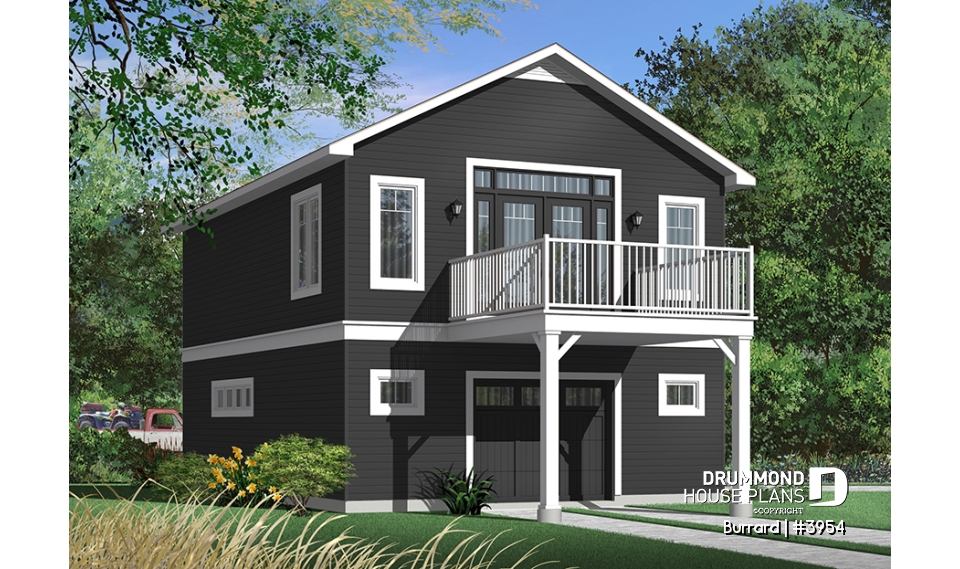

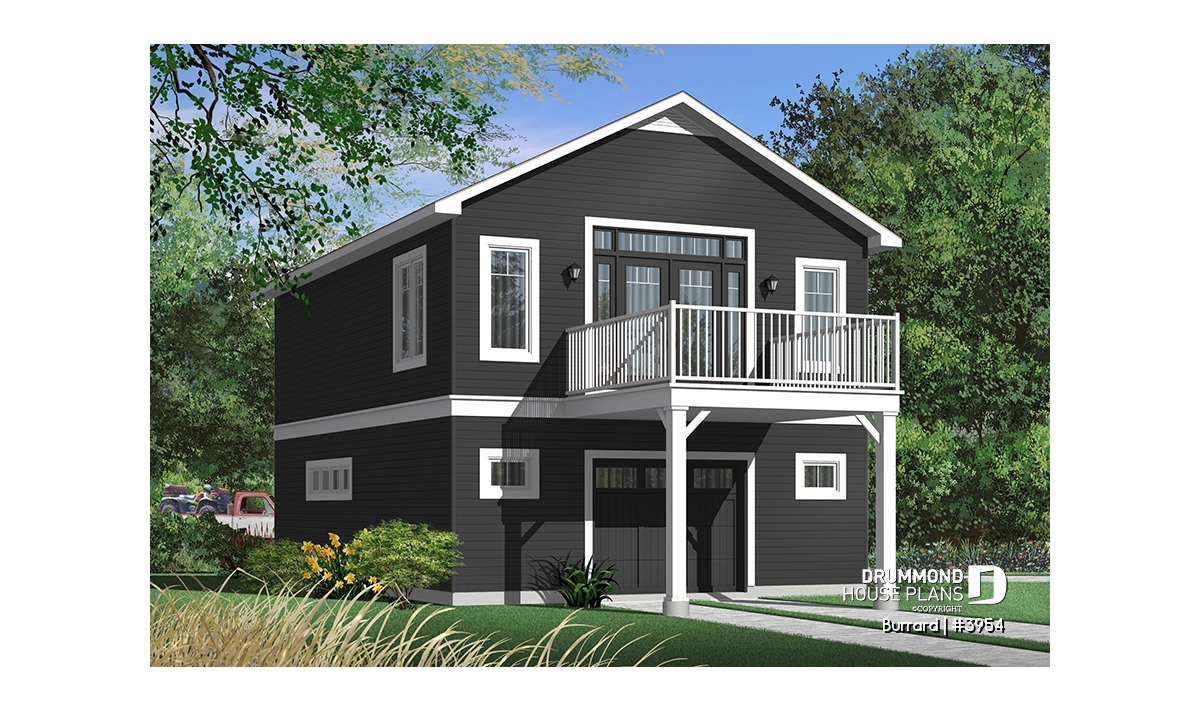

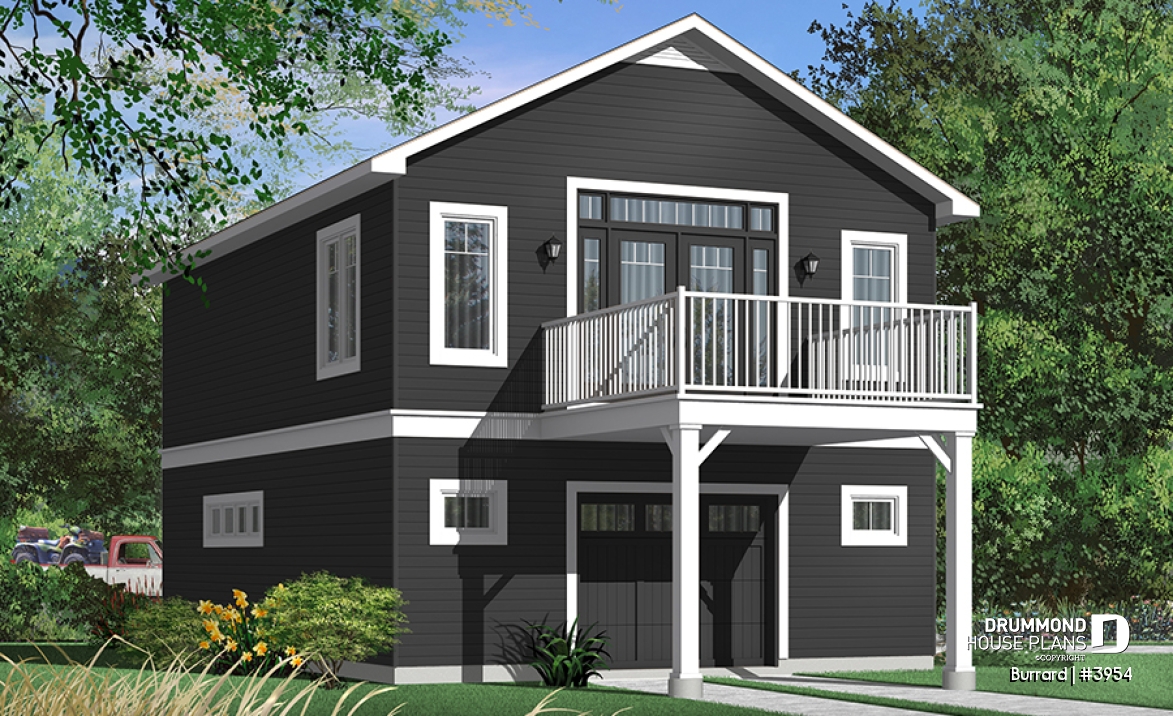

Color version 2 - Rear

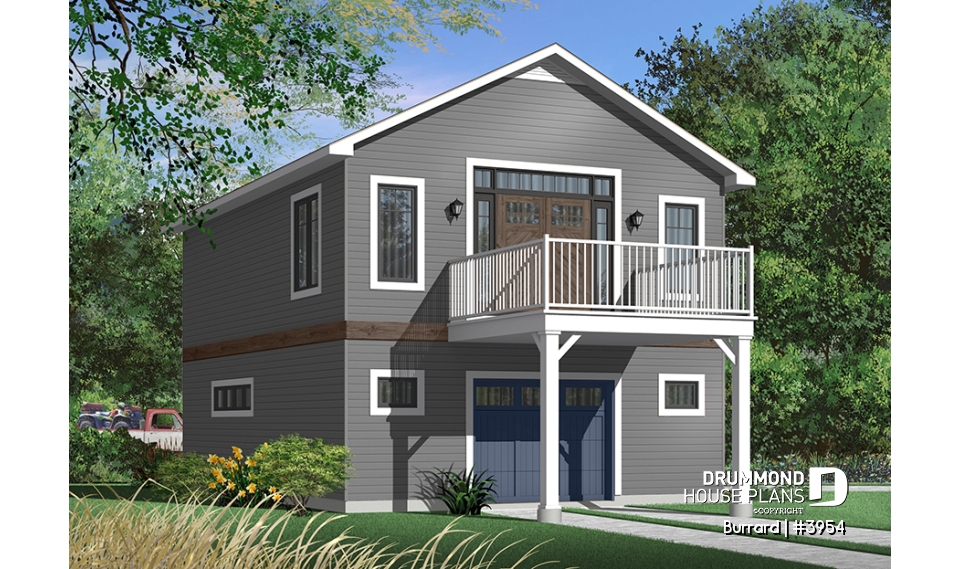

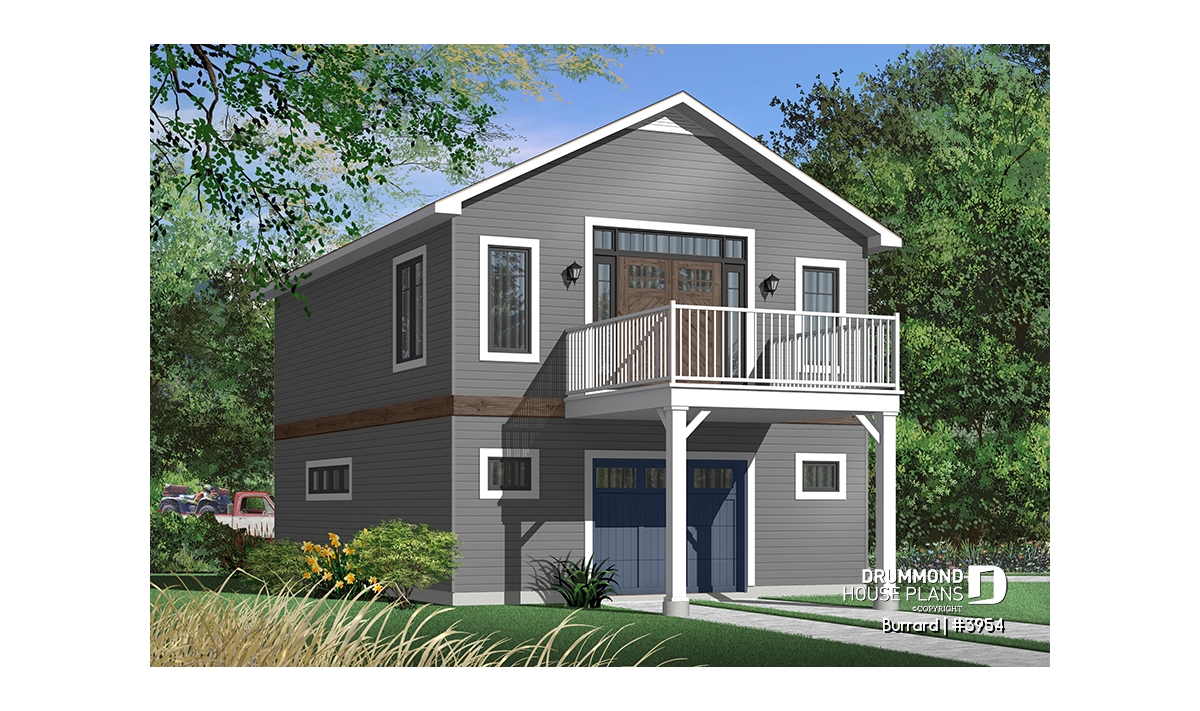

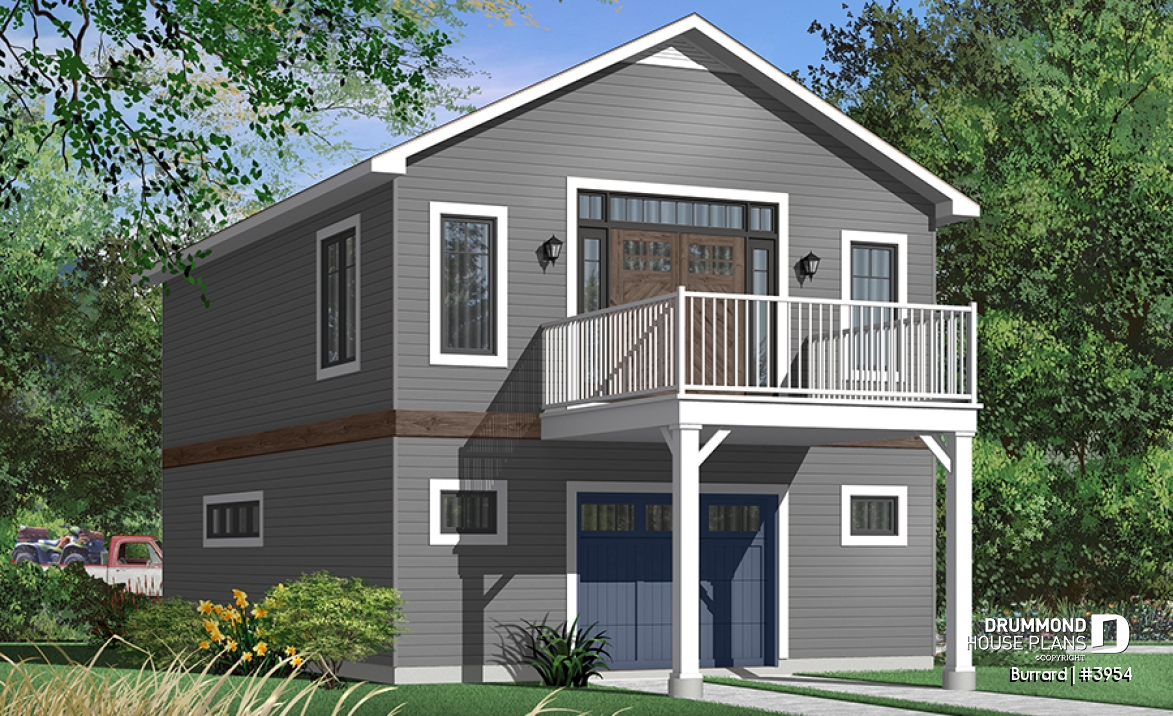

Color version 3 - Rear

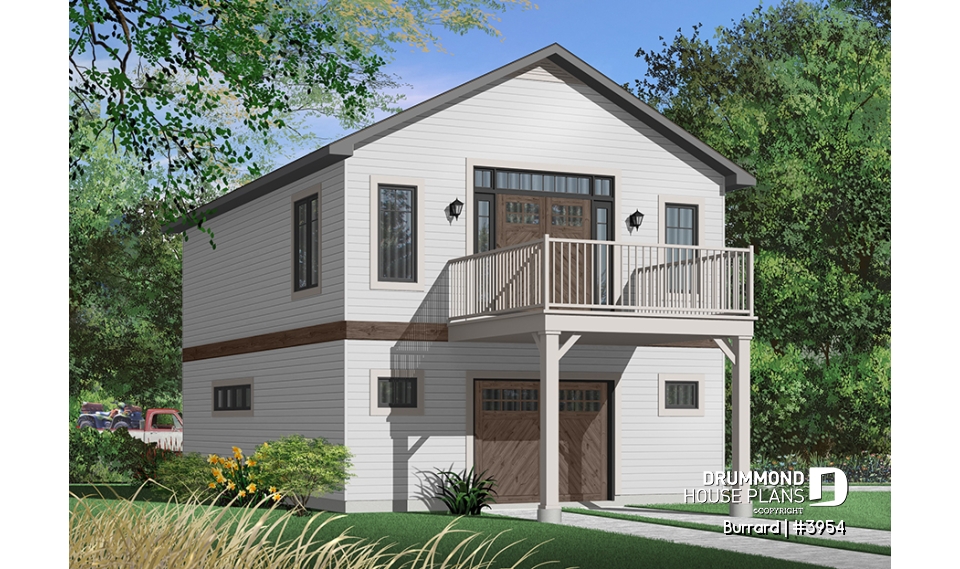

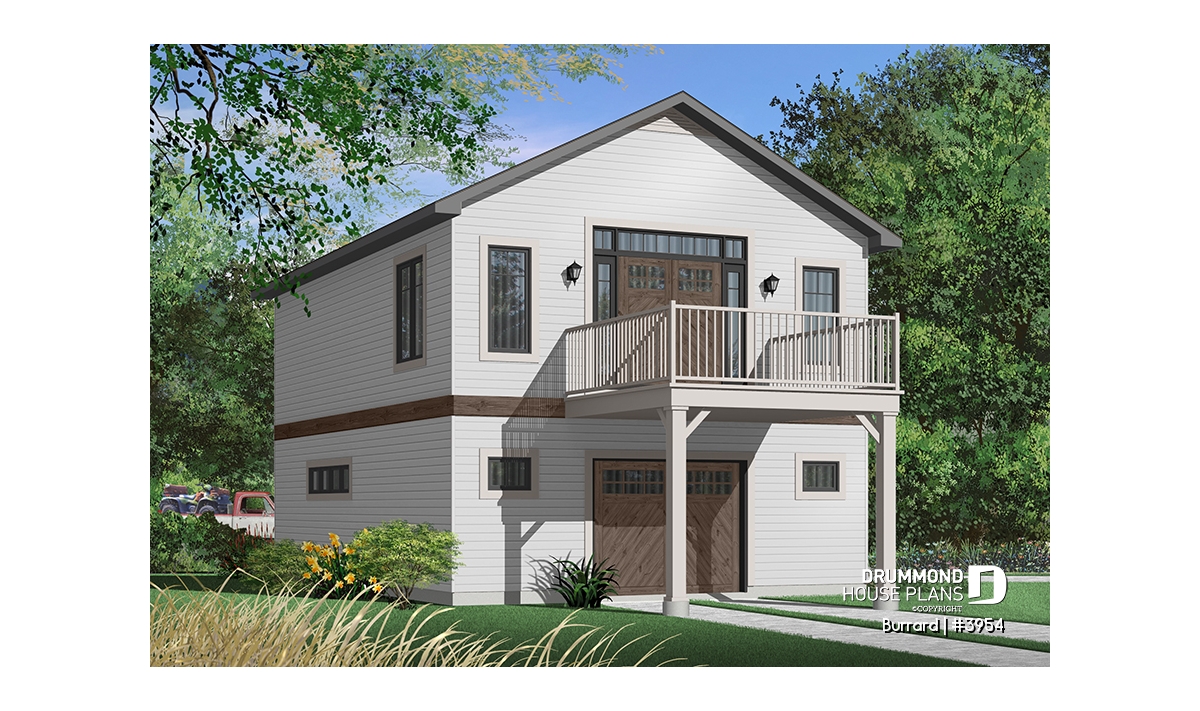

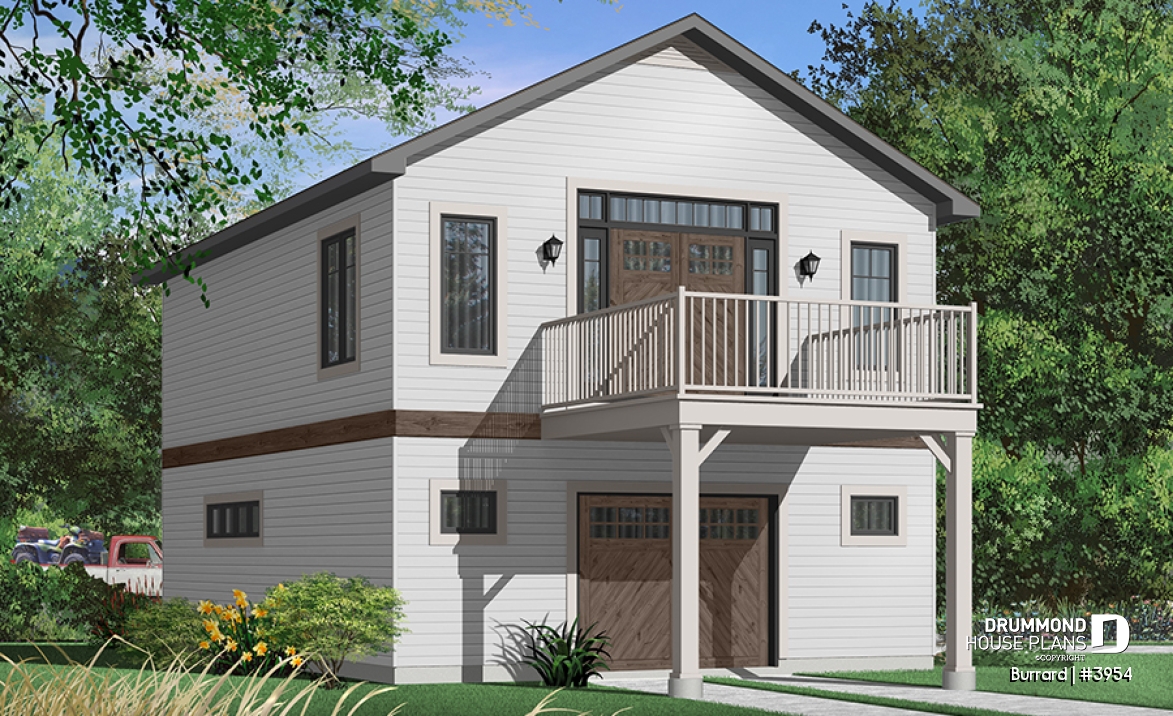

Color version 4 - Rear

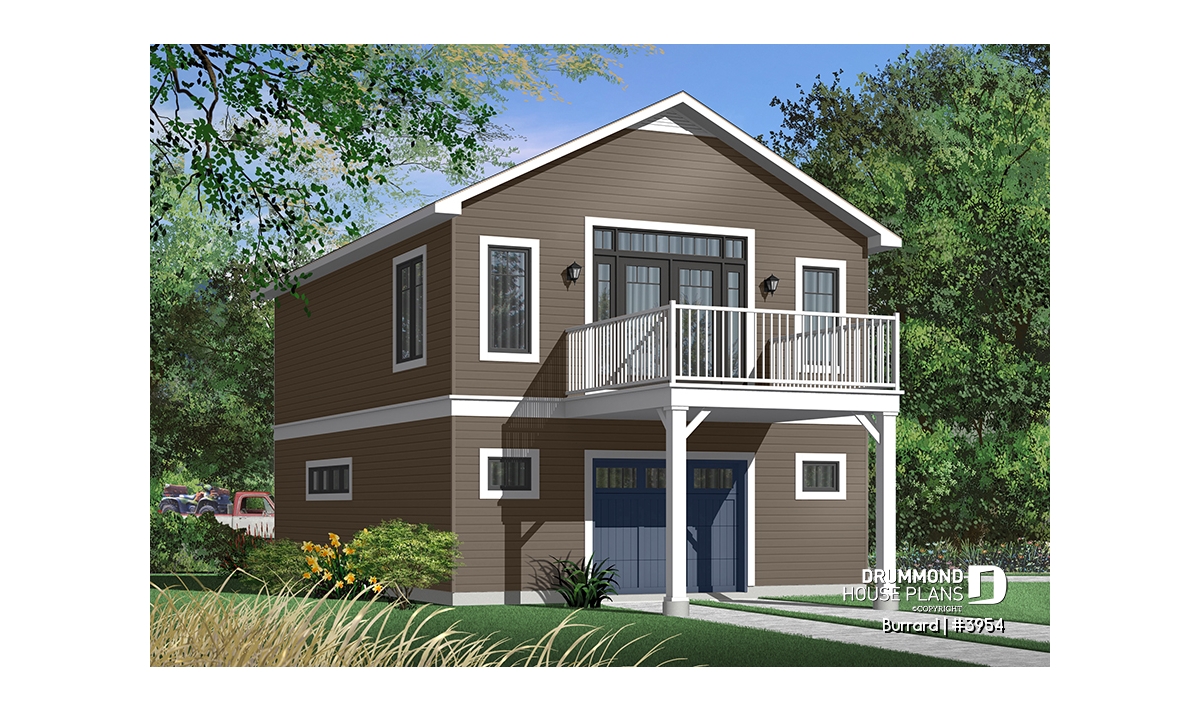

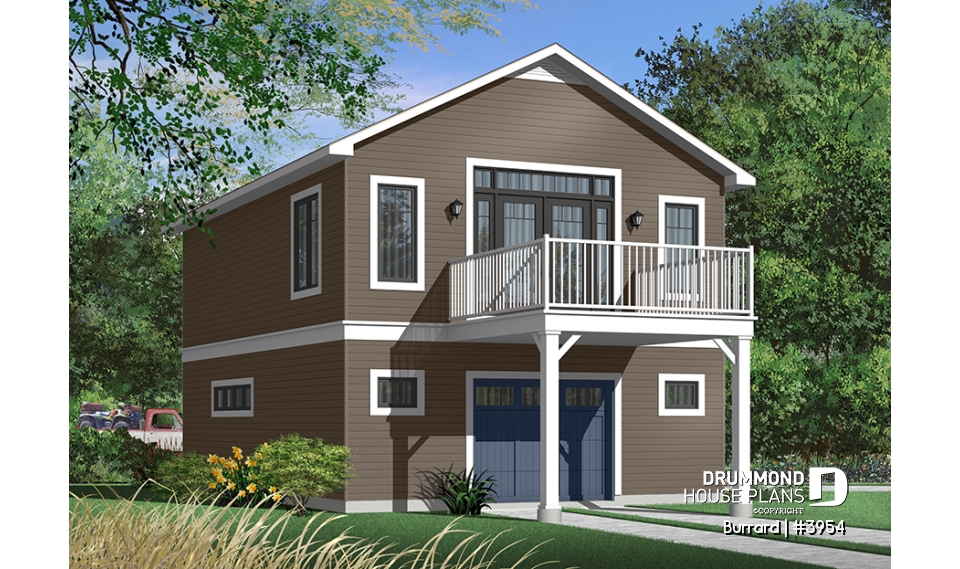

Color version 5 - Rear

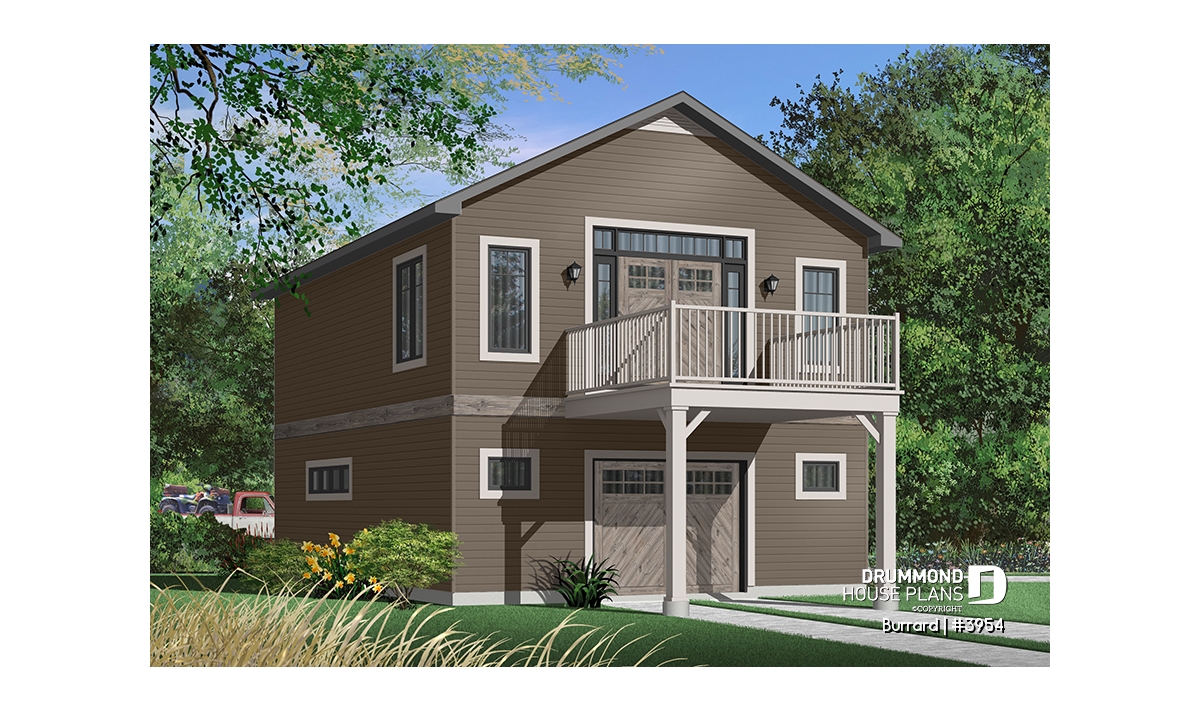

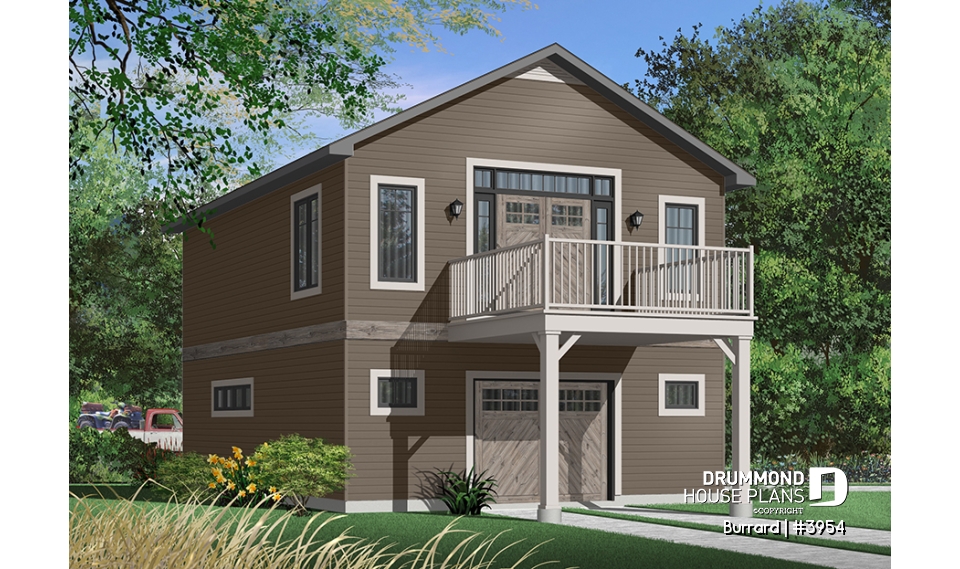

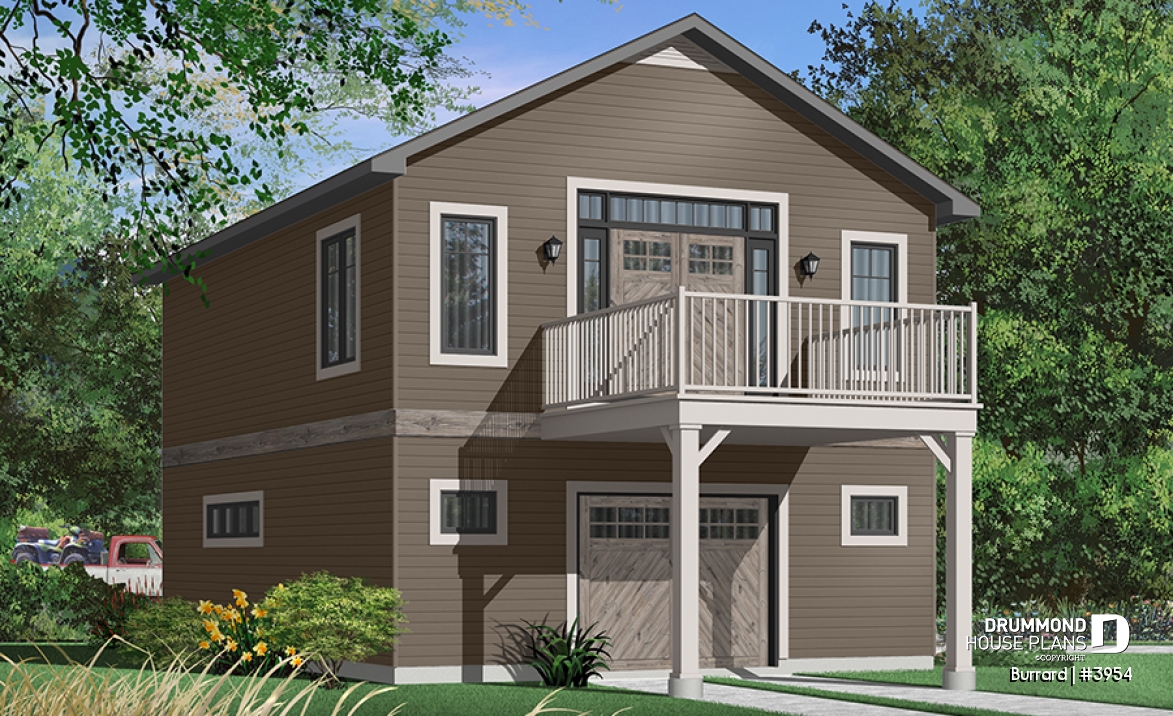

Color version 6 - Rear
Burrard House plan 3954
Garage plan with apartment on second floor, tandem style garage + workshop, cathedral ceiling in apartment
Starting from
1450$
| Technical details summary | Plan #3954 | ||
|---|---|---|---|
| Total living area | 1015 sq.ft. | Bedroom | 1 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Floating Slab | Garage | Two-car garage |
| Width | 24'0" | Depth | 36'0" |
Additional details
General specifications
Total living area
1015 sq.ft.
1st level
151 sq.ft.
2nd level
864 sq.ft.
Width
24'0"
Depth
36'0"
Ridge height from top of foundation
25'6"
Exterior wall
2 X 6
Floating Slab
Other available foundations (a fee may apply)
Monolithic Slab
Builder price code
B
Rooms specifications
Bedroom(s)
1
Full baths
1
Half baths
1
Garage type
Two-car garage (685 sq.ft.)
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Garage
15'8" x 34'8"
~ 9'4"
Storage
2'10" x 7'0"
~ 9'4"
Foyer
3'10" x 7'10"
~ 9'4"
2nd level
Rooms
Sizes
Ceiling
Kitchen
10'8" x 9'4"
~ 11'0"
Pantry
1'10" x 2'0"
~ 11'0"
Living room/dining room
11'4" x 12'0"
~ 11'0"
Full bathroom
6'0" x 10'8"
~ 11'0"
Bedroom
14'0" x 13'0"
~ 11'0"
Powder/laundry room
5'0" x 7'10"
~ 11'0"
Balcony
12'0" x 12'0"
N/D
Versatile carriage house
Popular as a cottage with room for “toys”, as an interim dwelling while the main house is being built or as a guest suite or mortgage helper, this little dwelling unit packs a lot of features into a small footprint.
The ground floor features a nice size garage with workshop and interior or exterior access to the staircase.
At the top lies a pleasant surprise – an open concept living area with a cathedral ceiling, a pleasing island kitchen, dining area, living room and a charming 12 x 12 ft deck. A half bath is combined with a laundry room for efficient use of space and then... the master suite. What a pleasant surprise to find a good-sized bedroom with his and hers closets and a four-fixture bathroom!
Exterior finishes could be dressed up further and this dwelling would be very acceptable in a high-density development.
Distinctive elements
Cathedral ceiling on 2nd level. Totally open activity area facing the back. Kitchen with island/lunch counter, and bedroom with private bathroom. Attractive garage-workshop space on 1st level.
Plan feature(s)
Cathedral ceiling, Balcony 2nd floor, Second floor laundry room, Master suite upstairs, Open floor layout, Island
Plan architectural style(s)
Cottage, chalet, cabin, Country, Vacation and waterfront, Traditional, Modern rustic, Rustic, Cabin plans
The plan Burrard is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
