House plan California (2893)
Floor plan including a small home gym, home office, cathedral ceiling, and more!
View the size of the rooms and height of the ceilings

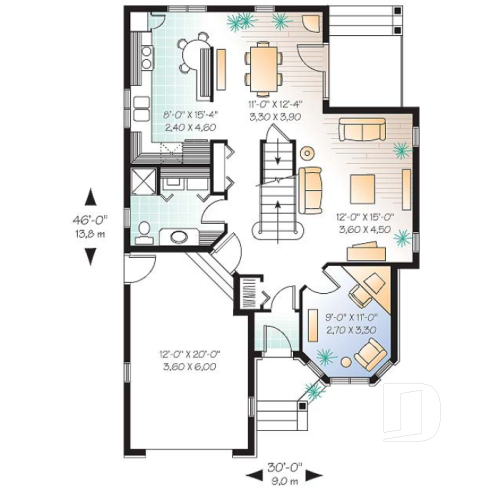

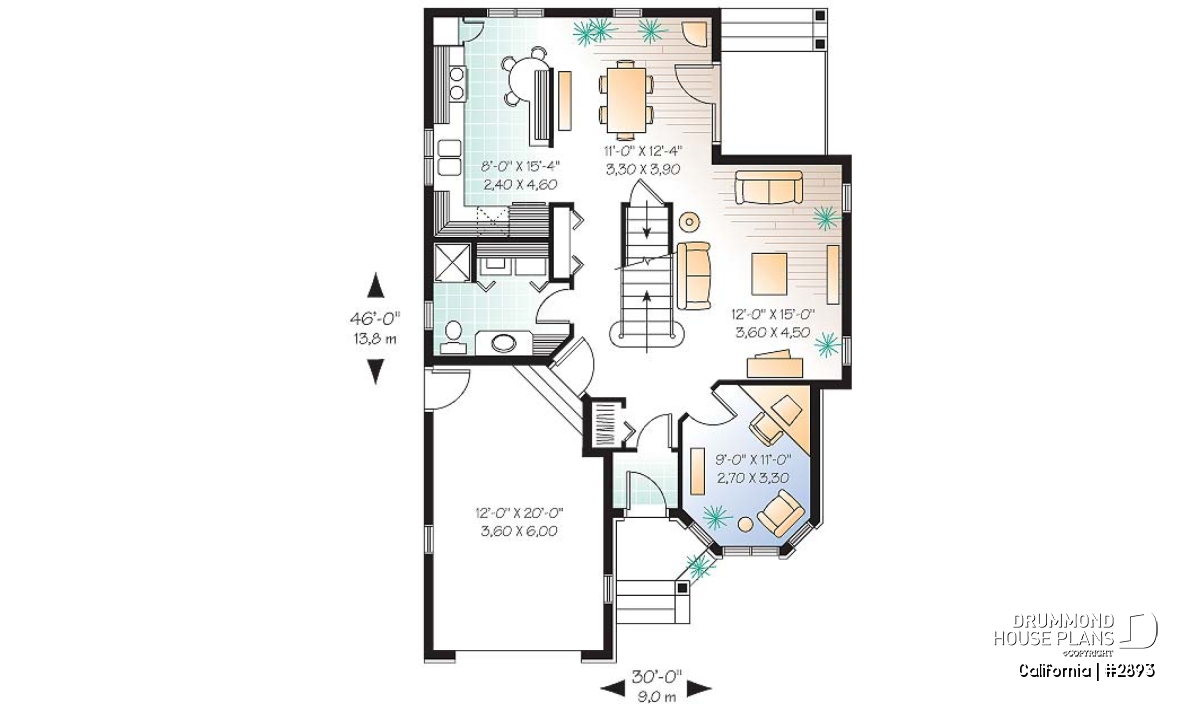

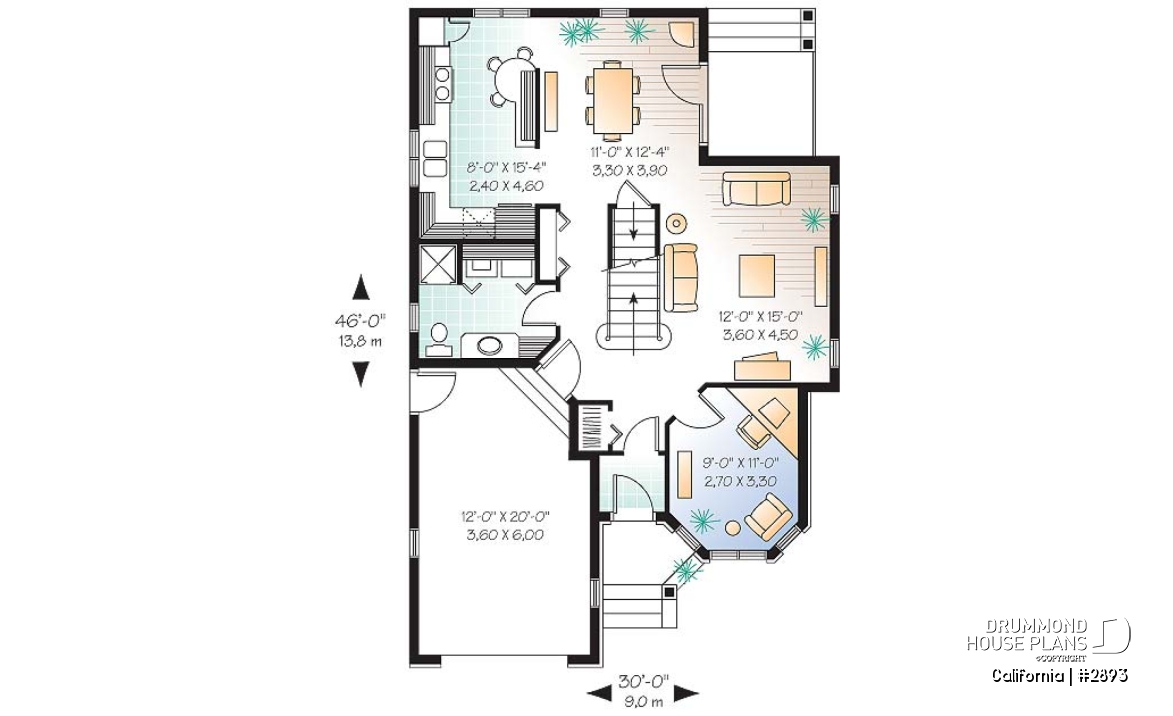

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Dining room | 10'10" x 12'2" | ~ 8'0" |
| Living room | 12'0" x 15'0" | ~ 8'0" |
| Home office | 9'2" x 11'4" | ~ 8'0" |
| Foyer | 4'6" x 4'0" | ~ 8'0" |
| Garage | 12'0" x 20'0" | ~ 10'4" |
| Storage | 1'0" x 4'8" | ~ 8'0" |
| Porch | 4'0" x 4'6" | N/A |
| Terrace | 7'8" x 7'10" | N/A |
| Shower/laundry room | 9'6" x 7'10" | ~ 8'0" |
| Kitchen | 8'2" x 15'4" | ~ 8'0" |

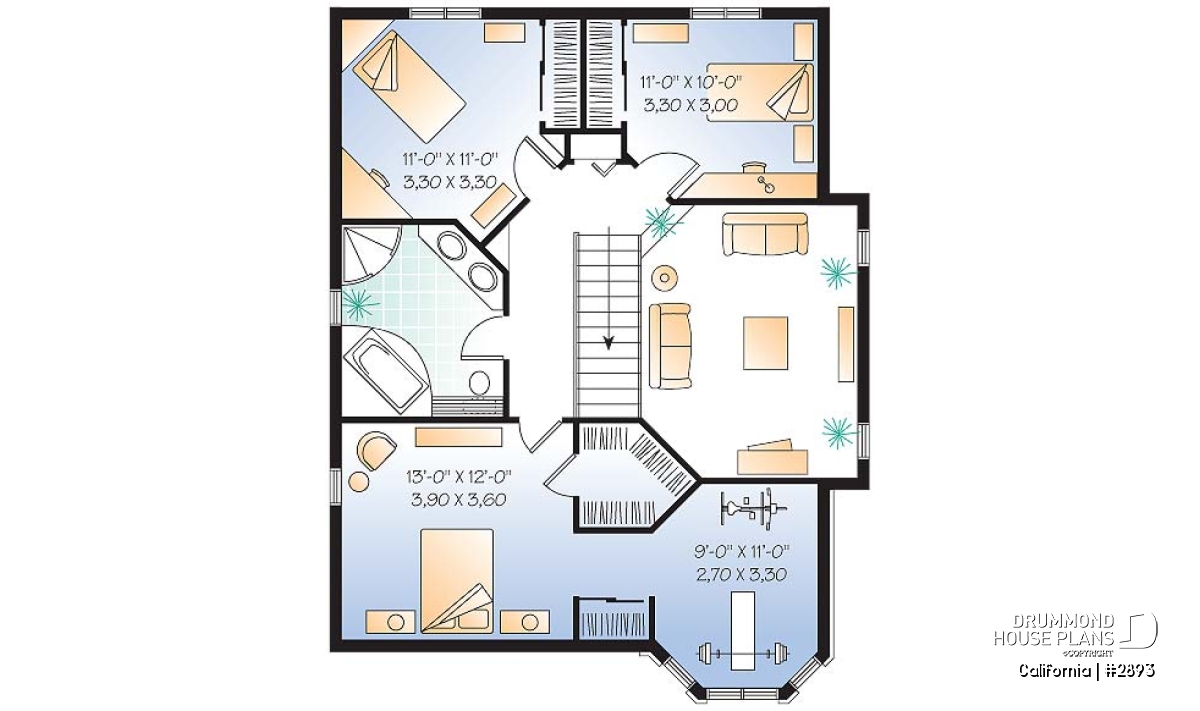

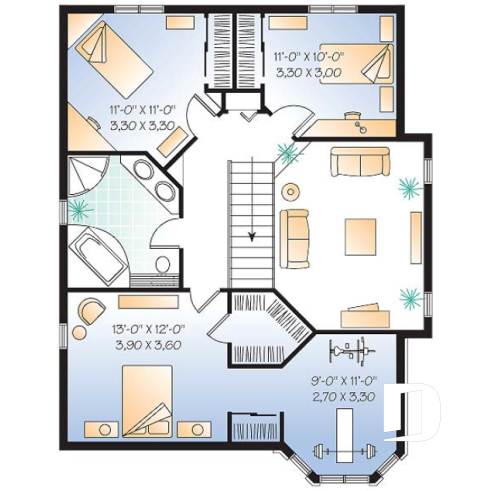

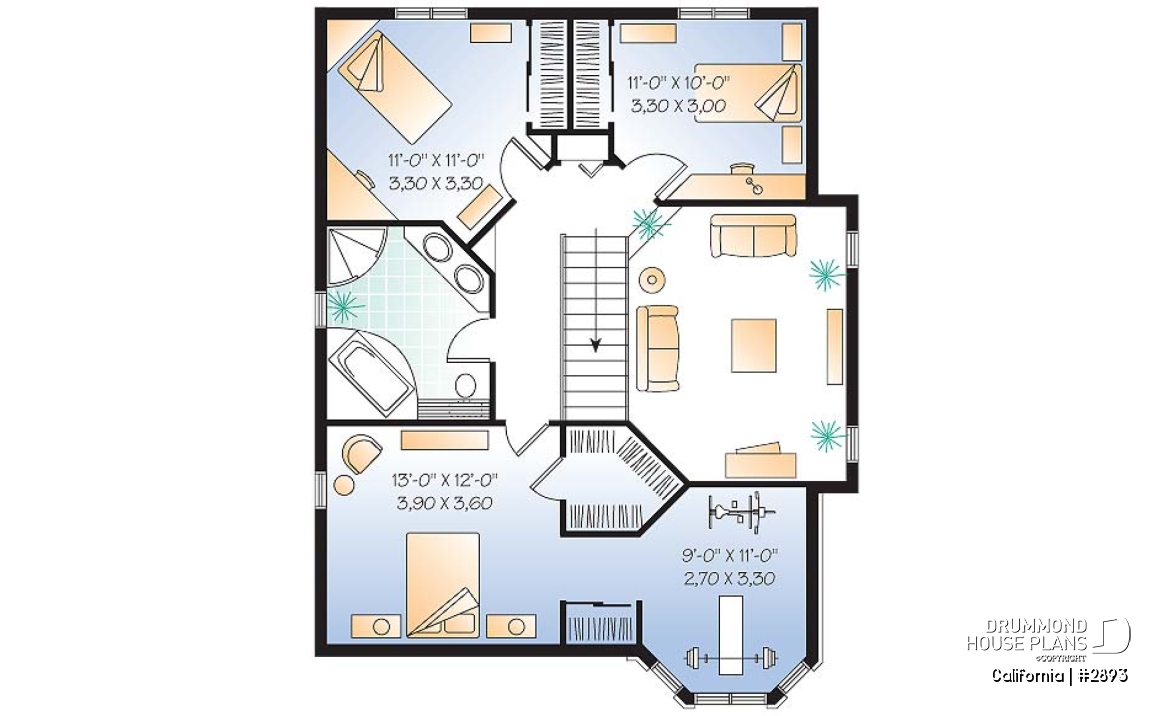

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Bedroom | 11'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Full bathroom | 9'0" x 11'0" | ~ 8'0" |
| Linen | 3'4" x 1'6" | ~ 8'0" |
General specifications
| Total living area | 1751 sq.ft. |
| 1st level | 863 sq.ft. |
| 2nd level | 888 sq.ft. |
| Width | 30'0" |
| Depth | 46'0" |
| Ridge height from top of foundation | 33'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Distinctive elements
Corner bath and dual sinks in master bathroom, exercise room, home office or 4th bedroom, cathedral ceiling in family room, covered front porch.
Plan feature(s)
Cathedral ceiling, Mezzanine, Lunch counter, Laundry chute, Deck, Office / Study / Den, Separate bath and shower, Double sinks, Walk-in master bed.
Plan architectural style(s)
. Victorian, . European, . American, . Manors and small castles, . Traditional
