Clayton (2789)

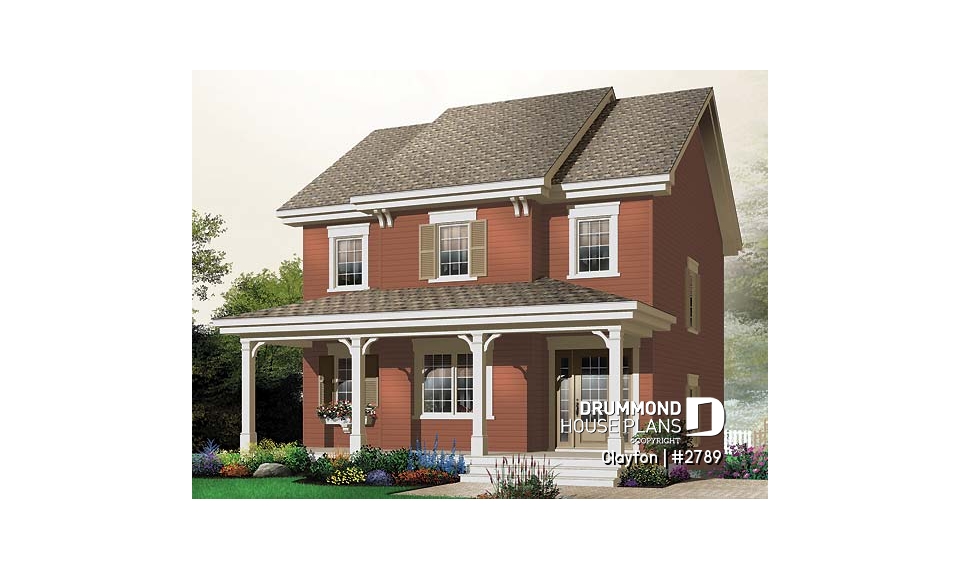

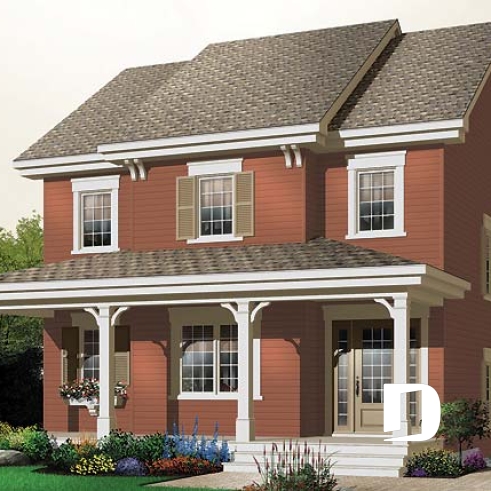

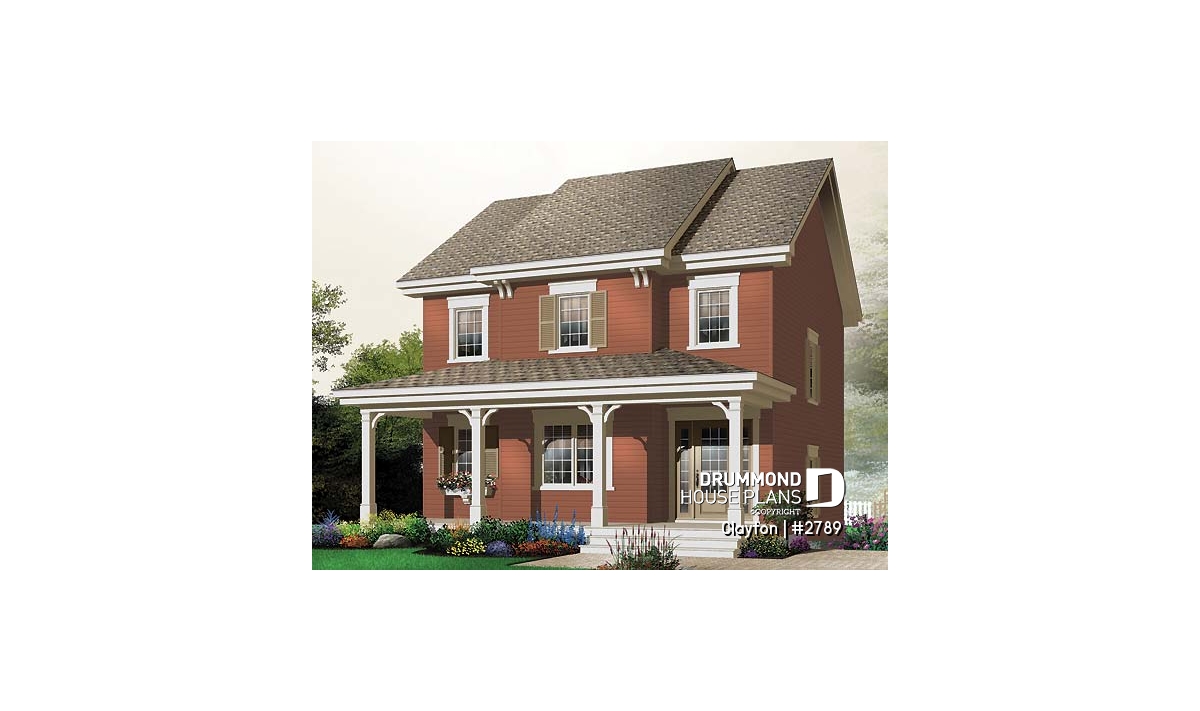

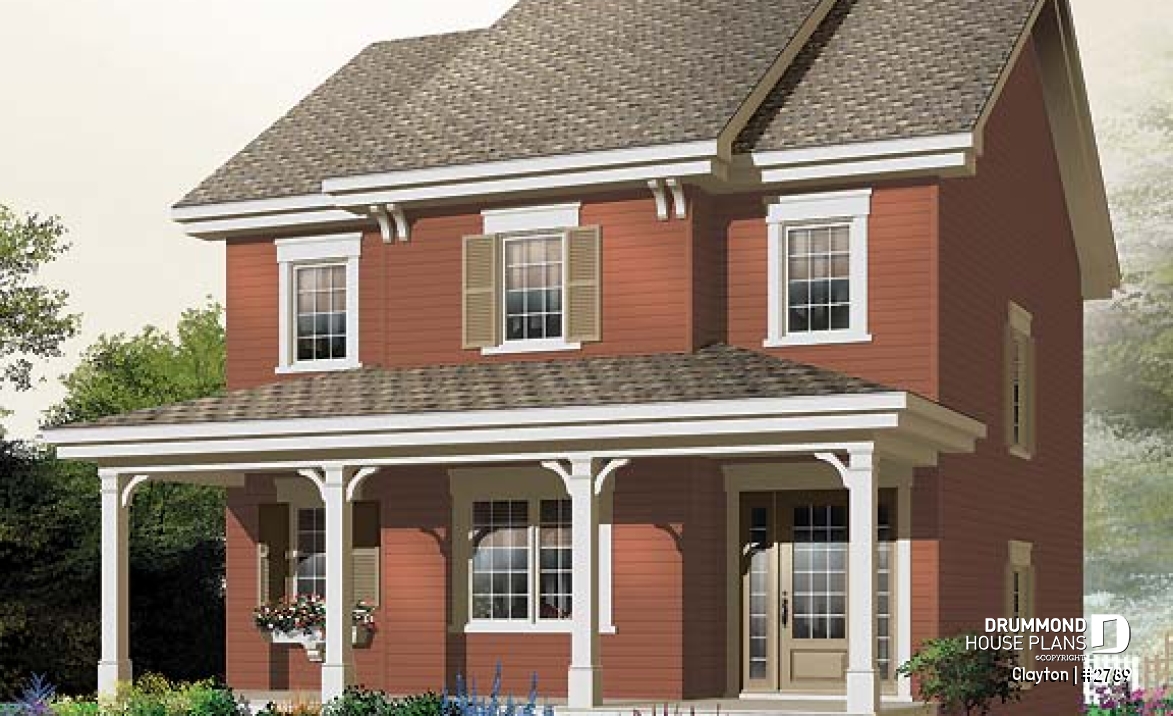

Country style 2 storey house plan. 3 bedrooms. a veranda and a covered porch
View the size of the rooms and height of the ceilings

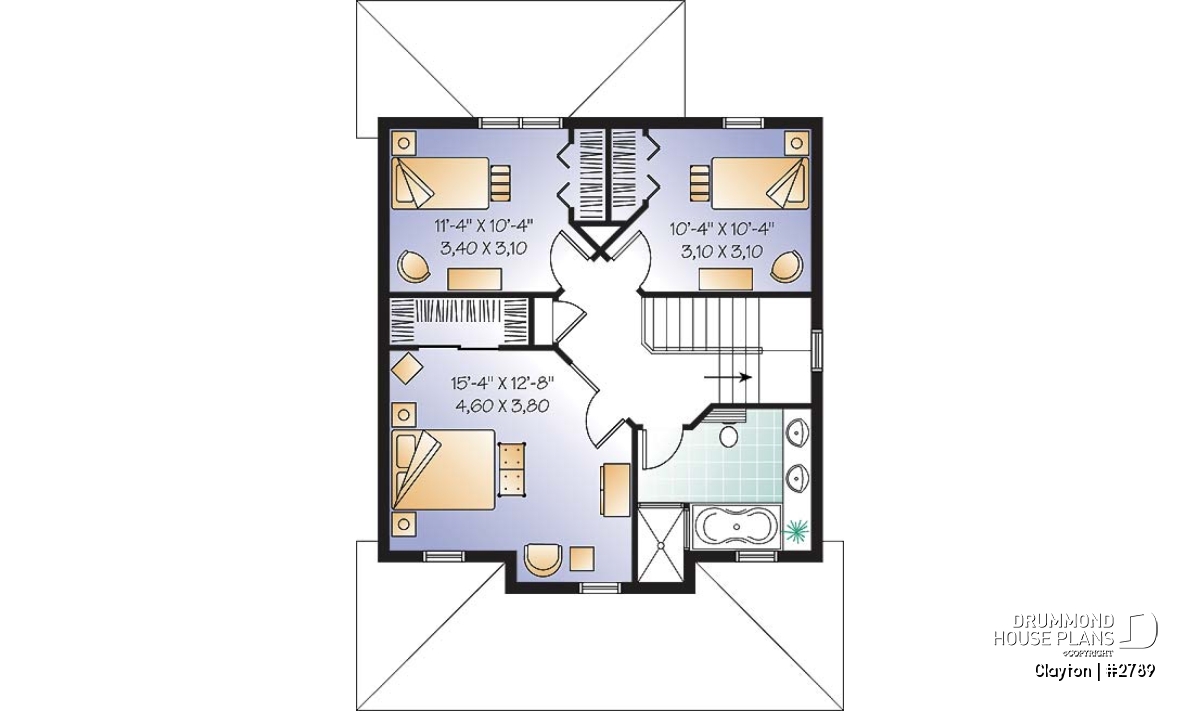

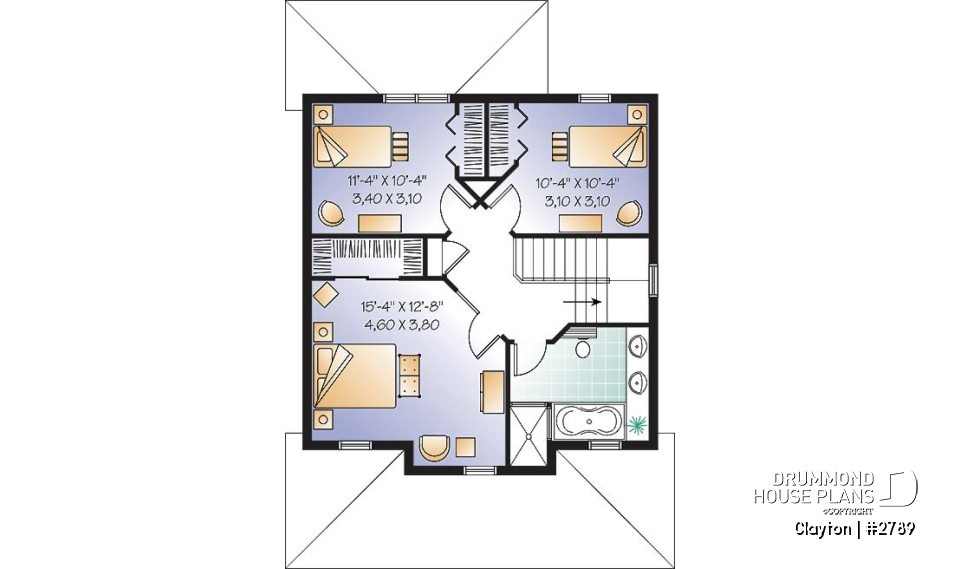

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 15'4" x 12'8" | ~ 8'0" |
| Bedroom | 11'4" x 10'4" | ~ 8'0" |
| Bedroom | 10'4" x 10'4" | ~ 8'0" |
| Linen | 1'2" x 3'0" | ~ 8'0" |

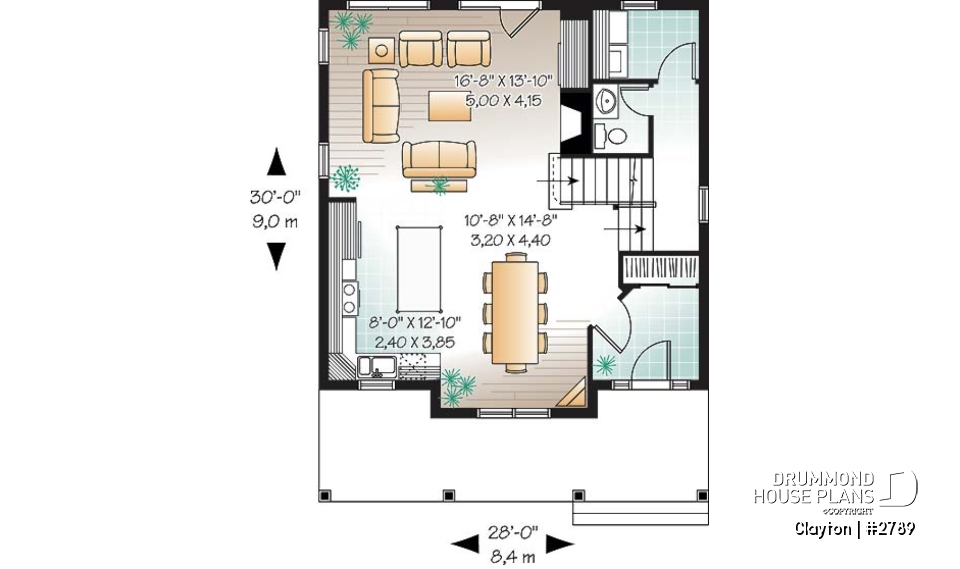

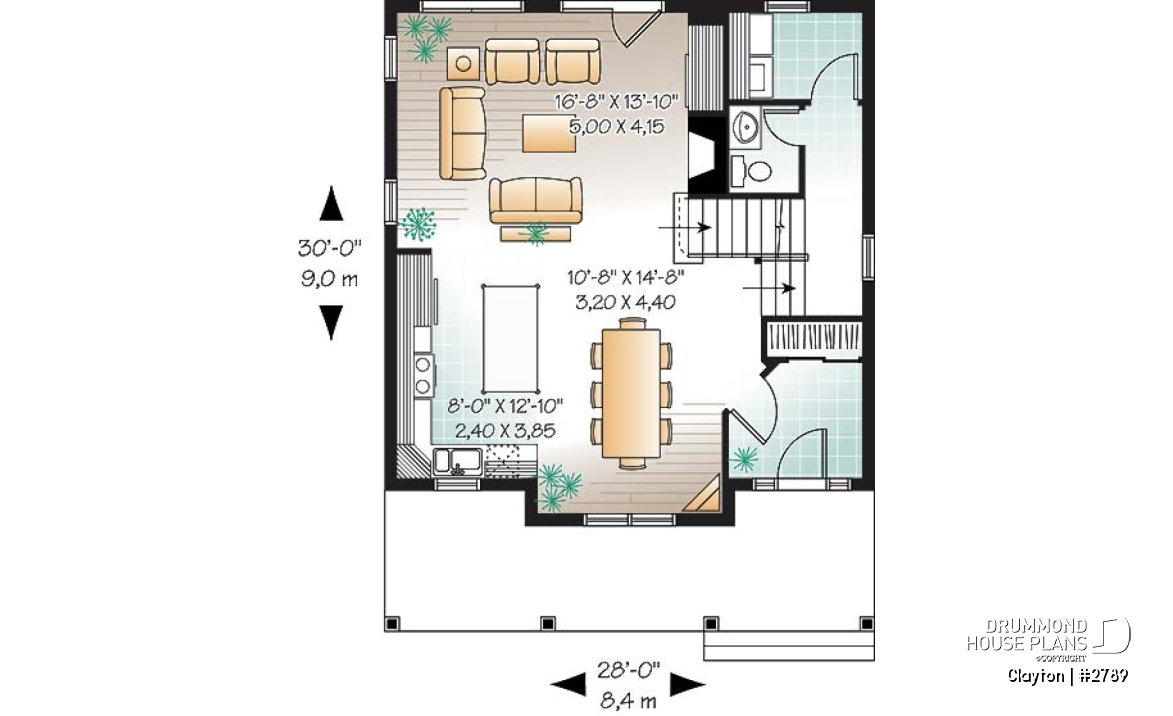

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'0" x 12'10" | ~ 8'0" |
| Dining room | 10'8" x 14'8" | ~ 8'0" |
| Living room | 16'8" x 13'10" | ~ 8'0" |
| Foyer | 7'8" x 6'8" | ~ 8'0" |
| Half bath or powder room | 4'0" x 5'0" | ~ 8'0" |
| Laundry room | 7'8" x 5'0" | ~ 8'0" |
| Porch | 28'0" x 6'0" | N/A |
| Porch | 18'0" x 6'0" | N/A |
General specifications
| Total living area | 1616 sq.ft. |
| 2nd level | 808 sq.ft. |
| 1st level | 808 sq.ft. |
| Width | 28'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 30'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Country style, scandinavian inspired 2 storey house plan, 3 bedrooms, a veranda and a covered porch
.
Distinctive elements

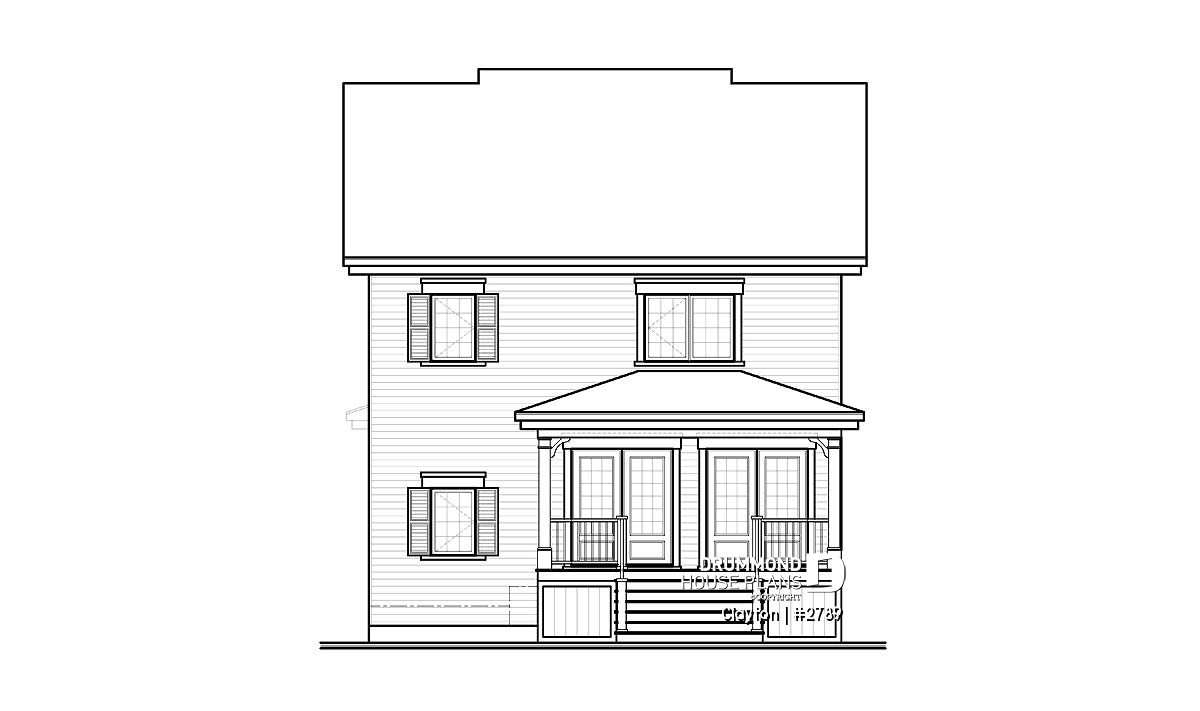

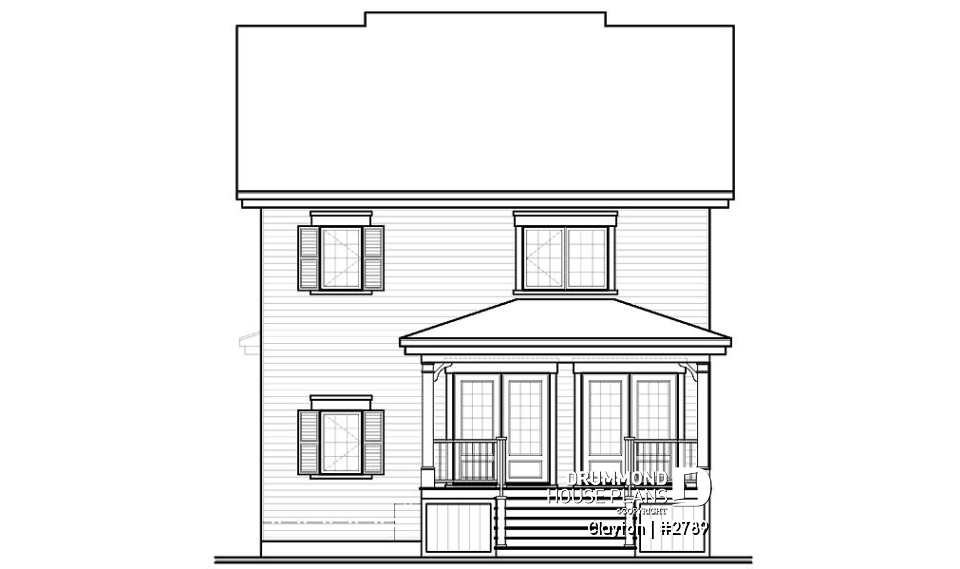

Superb front covered gallery and another good-sized rear covered gallery. Large living room with abundant windows including two duos of garden doors, a fireplace and a built-in tv-video unit. Well-lit stairwell. Remarkable bedroom #1 and well organized bathroom with a large glass shower and a wall to wall double sink.
Plan feature(s)
Fireplace, Island, Entrance hall, Gound floor laundry room, Separate bath and shower, Double sink vanity, Open floor layout, Walk-in master bed.
Plan architectural style(s)
. Country, . Traditional, . American, French Country
