House plan Tommy (3944)
3 bedroom panoramic view transitional home plan with pergola, mezzanine and garage
View the size of the rooms and height of the ceilings

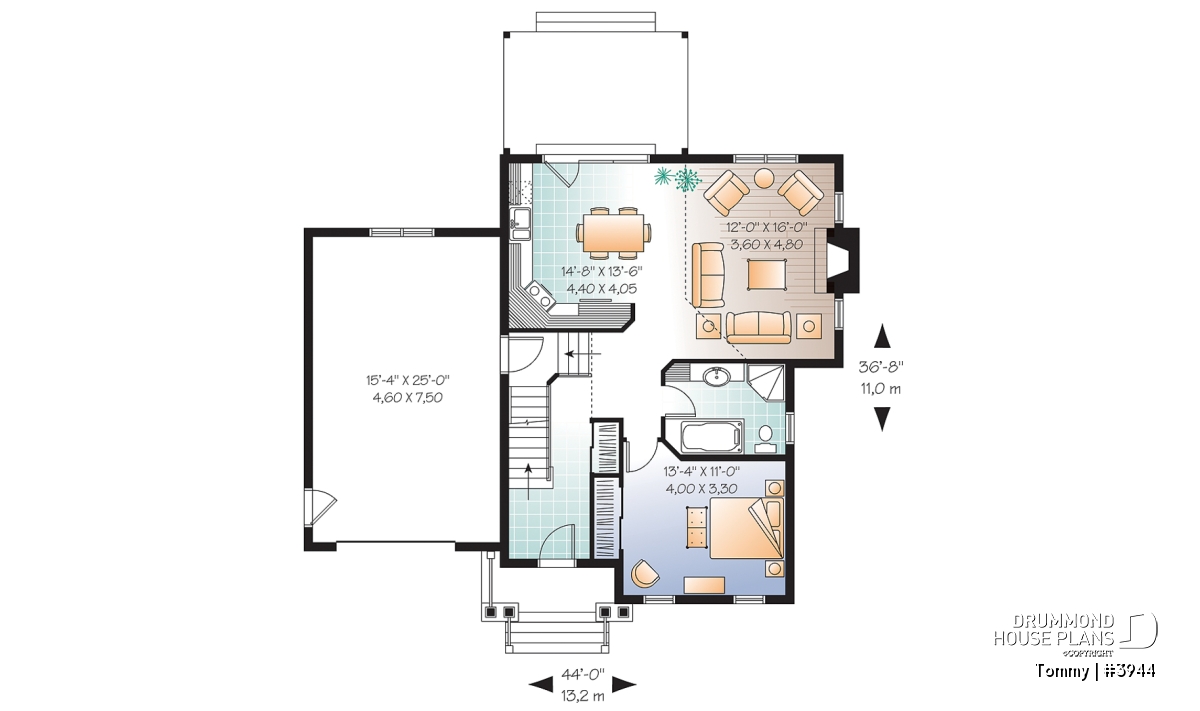

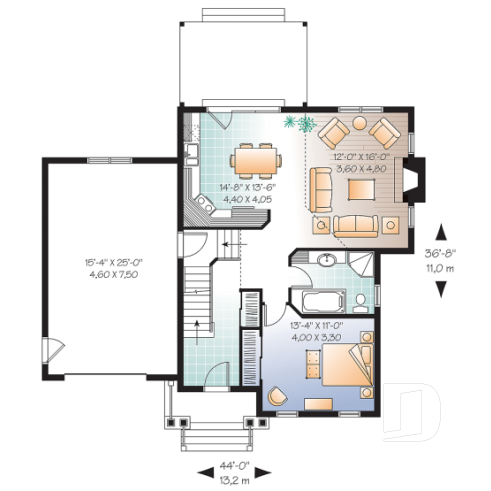

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 14'8" x 13'6" | ~ 8'0" |
| Living room | 12'0" x 16'0" | ~ 17'4" |
| Foyer | 6'8" x 5'9" | ~ 8'0" |
| Full bathroom | 9'10" x 7'6" | ~ 8'0" |
| Bedroom | 13'4" x 11'0" | ~ 8'0" |
| Garage | 15'4" x 25'0" | ~ 10'6" |
| Porch | 10'10" x 3'8" | N/A |
| Pergola | 15'0" x 10'0" | N/A |

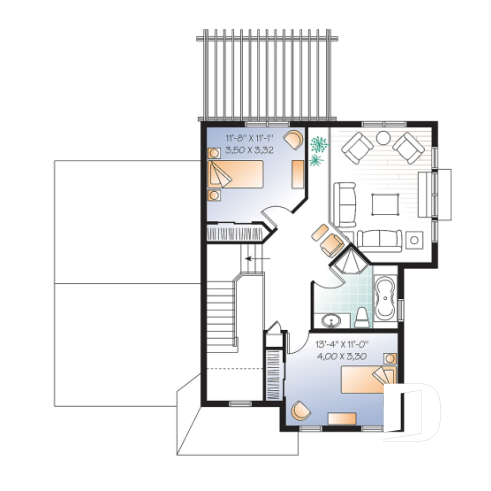

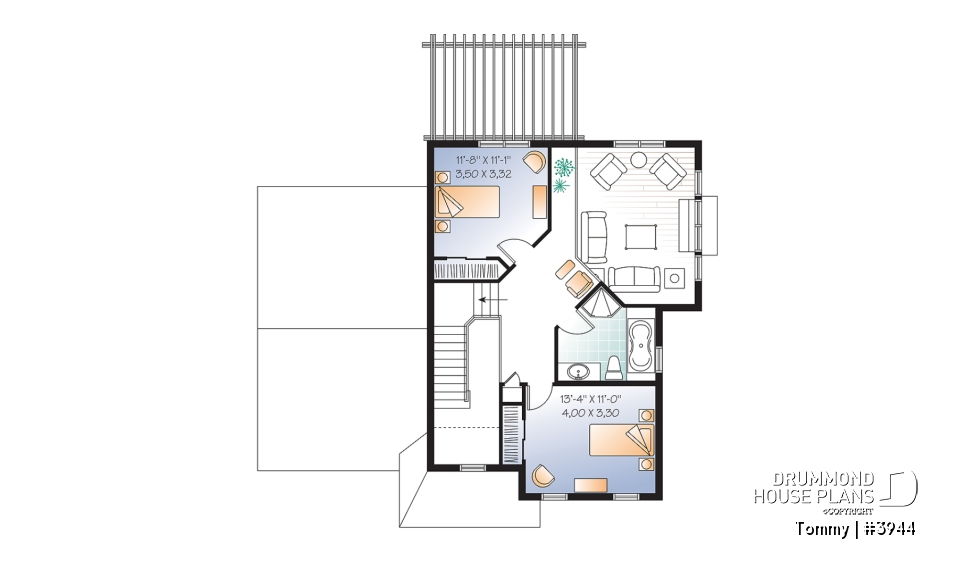

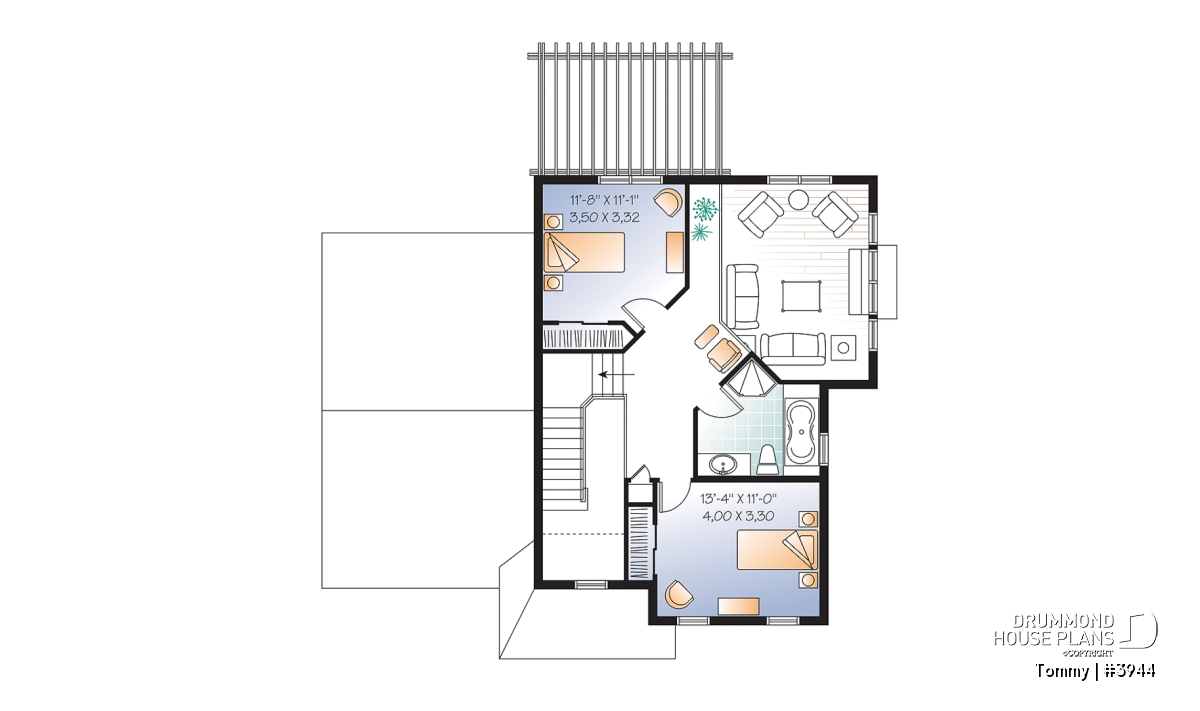

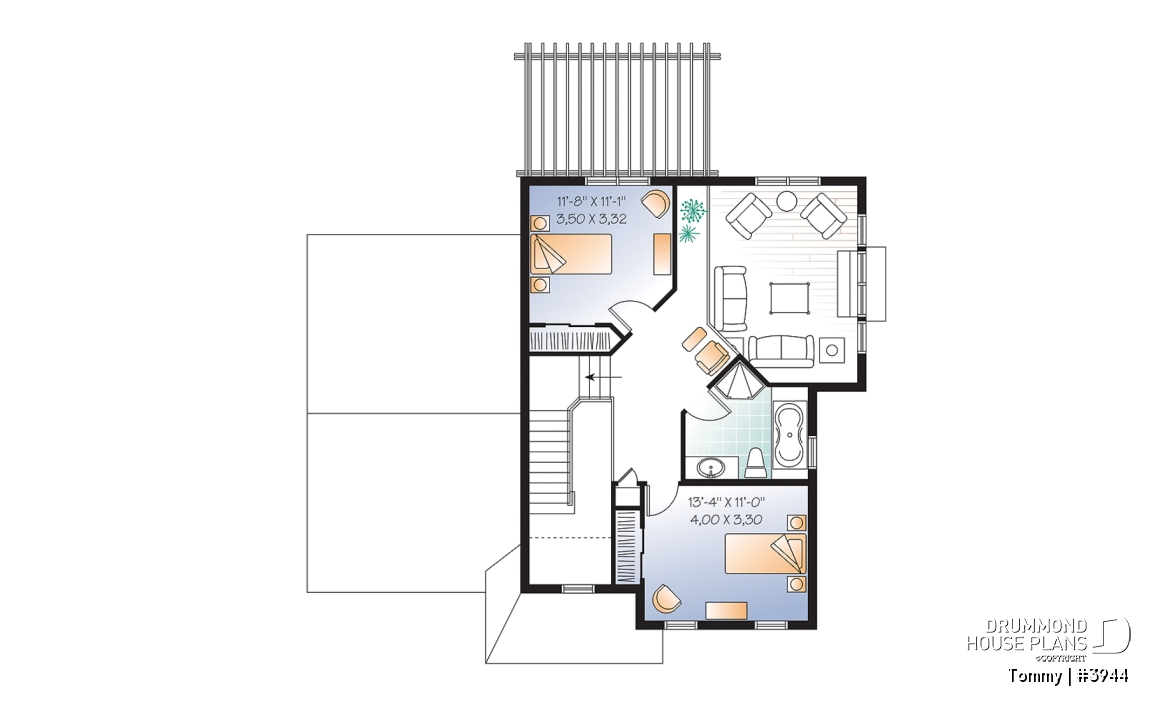

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Linen | 2'0" x 1'8" | ~ 8'0" |
| Full bathroom | 10'0" x 7'6" | ~ 8'0" |
| Bedroom | 13'4" x 11'0" | ~ 8'0" |
| Bedroom | 11'8" x 11'1" | ~ 8'0" |
General specifications
| Total living area | 1595 sq.ft. |
| 1st level | 922 sq.ft. |
| 2nd level | 673 sq.ft. |
| Width | 44'0" |
| Depth | 36'8" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Traditional house plan with scandinavian influence, 3 bedrooms and lots of windows
.
Distinctive elements

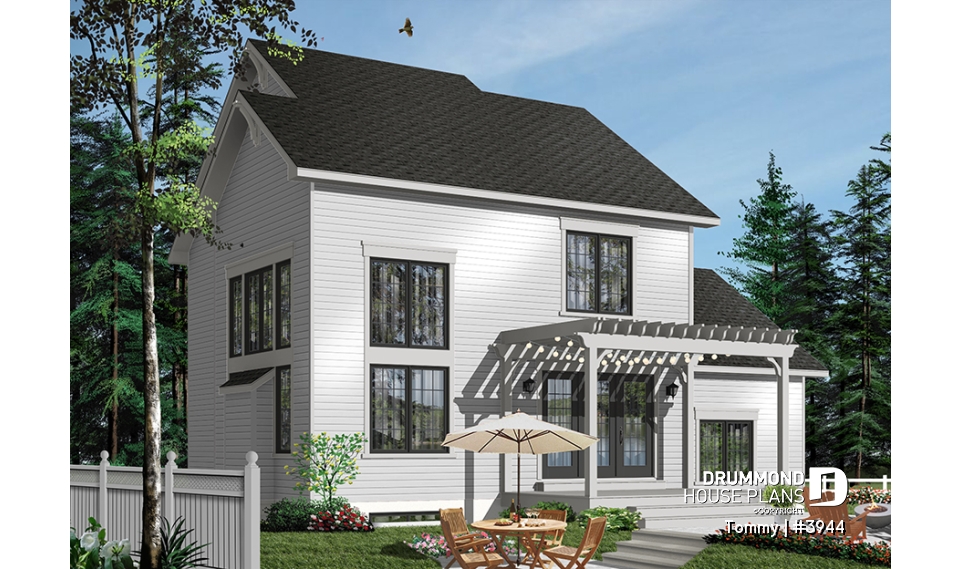

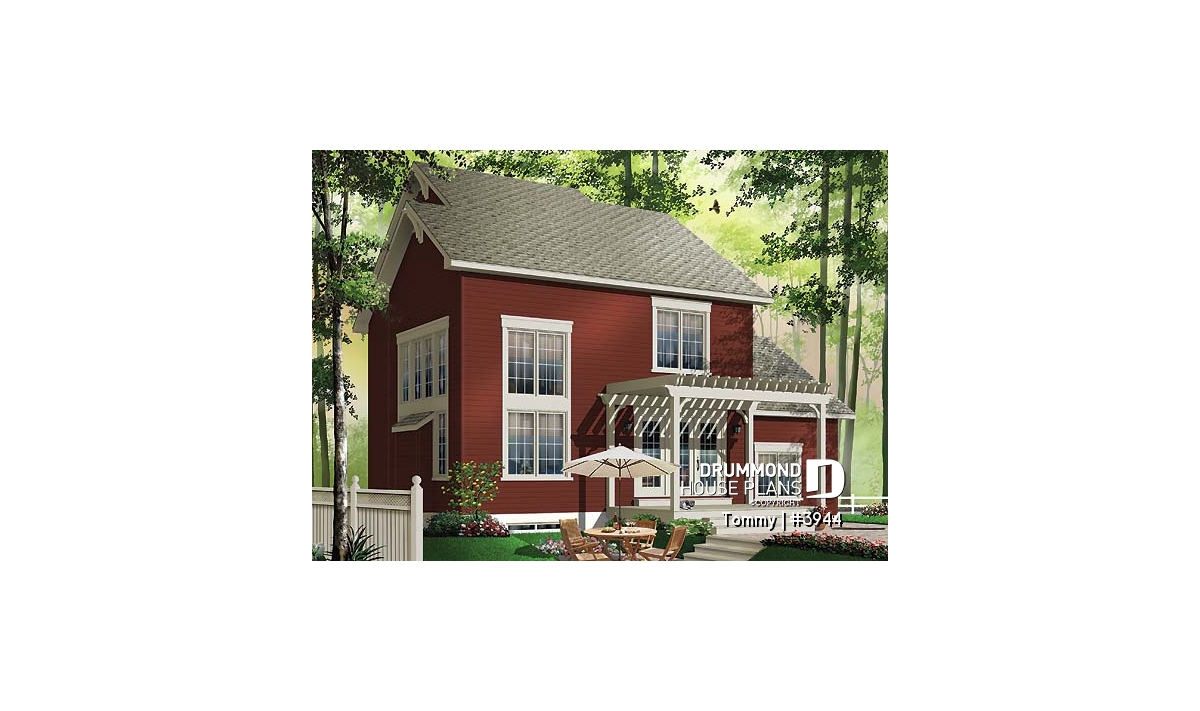

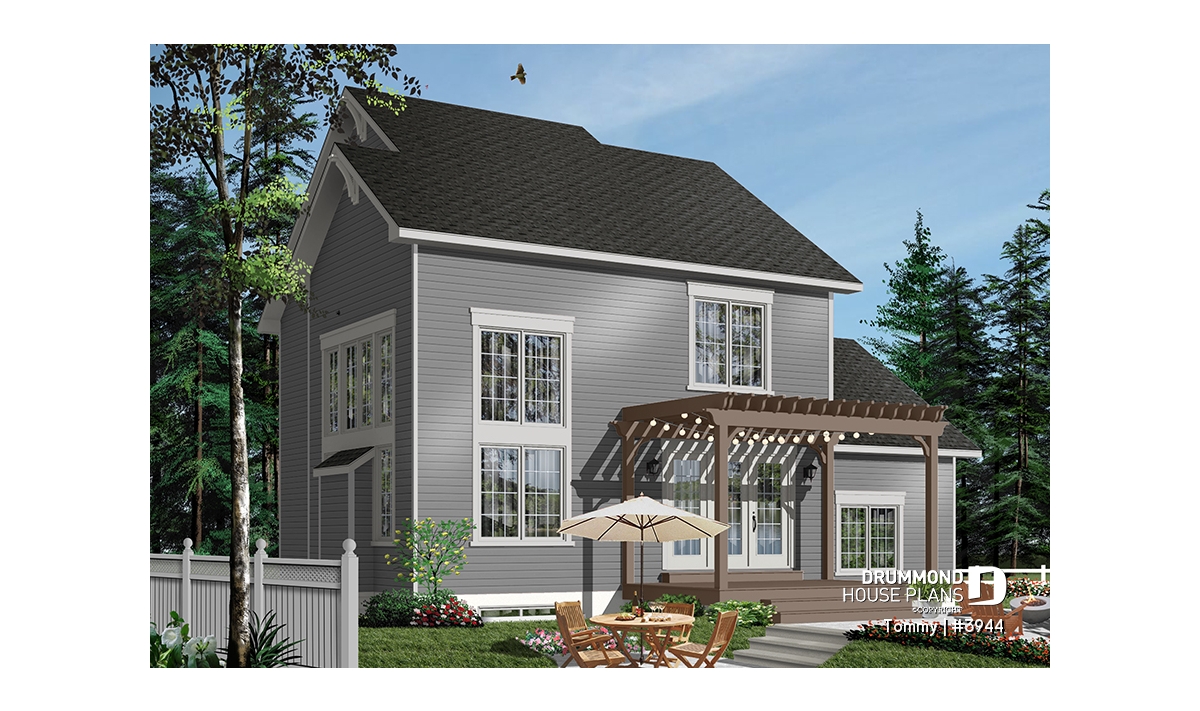

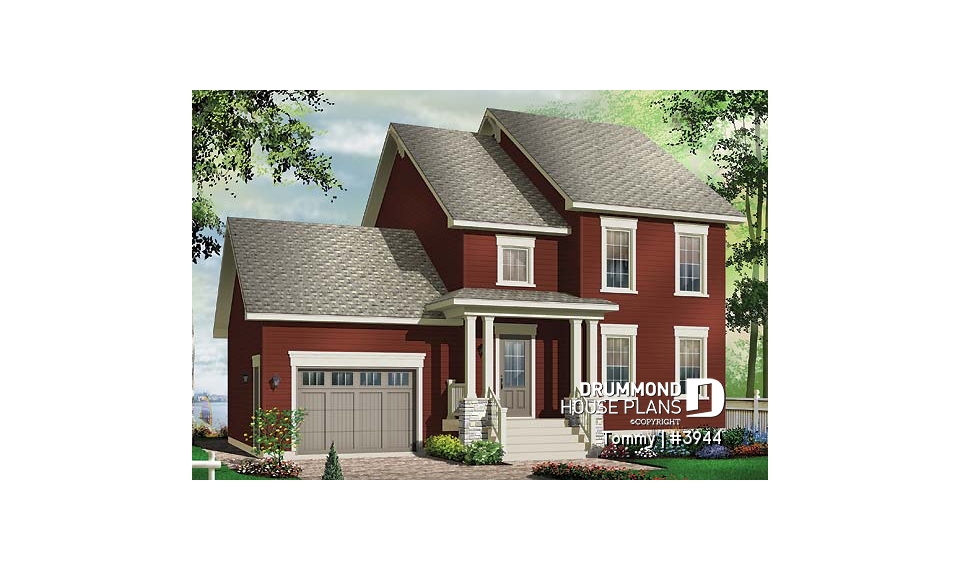

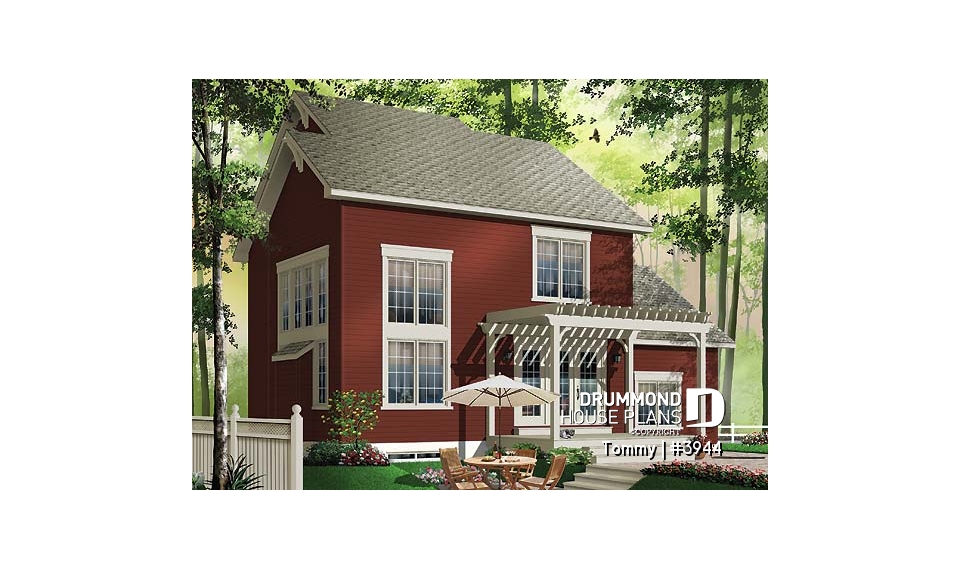

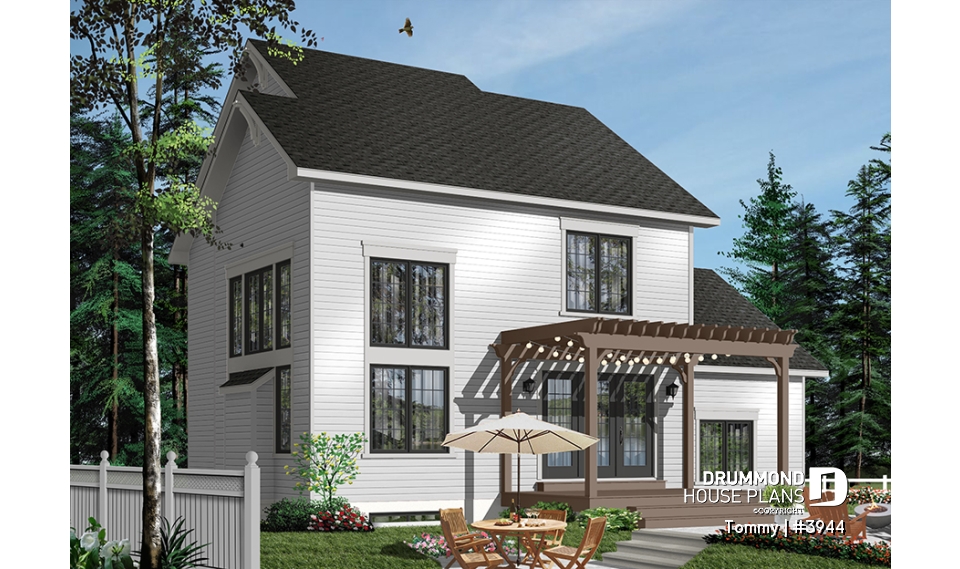

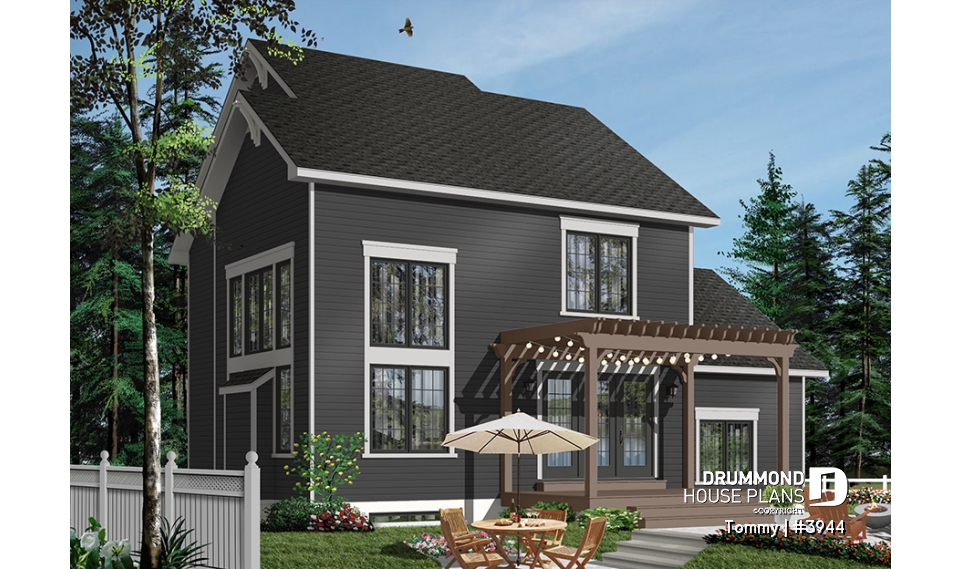

Rear terrace suggesting an interesting pergola. Two-storey living room with amazing fenestration and well located fireplace. Two-storey front entry. Master bedroom on first level.
Plan feature(s)
Fireplace, Mezzanine, Pergola, Split bedrooms, Master suite on main, Open floor layout, Panoramic view, Ceiling over 8', Separate bath and shower, 2-Story foyer
Plan architectural style(s)
. Traditional, . European, . English, . Country
