House plan Shipley (3823)
Beautiful american house plan, 3 bedrooms, see-thru fireplace, great master suite, kitchen with pantry
View the size of the rooms and height of the ceilings

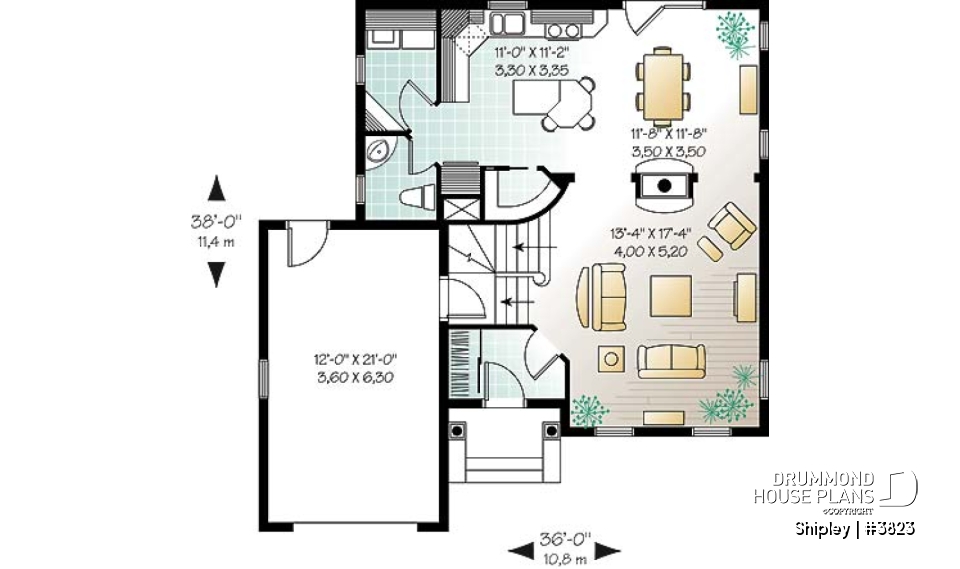

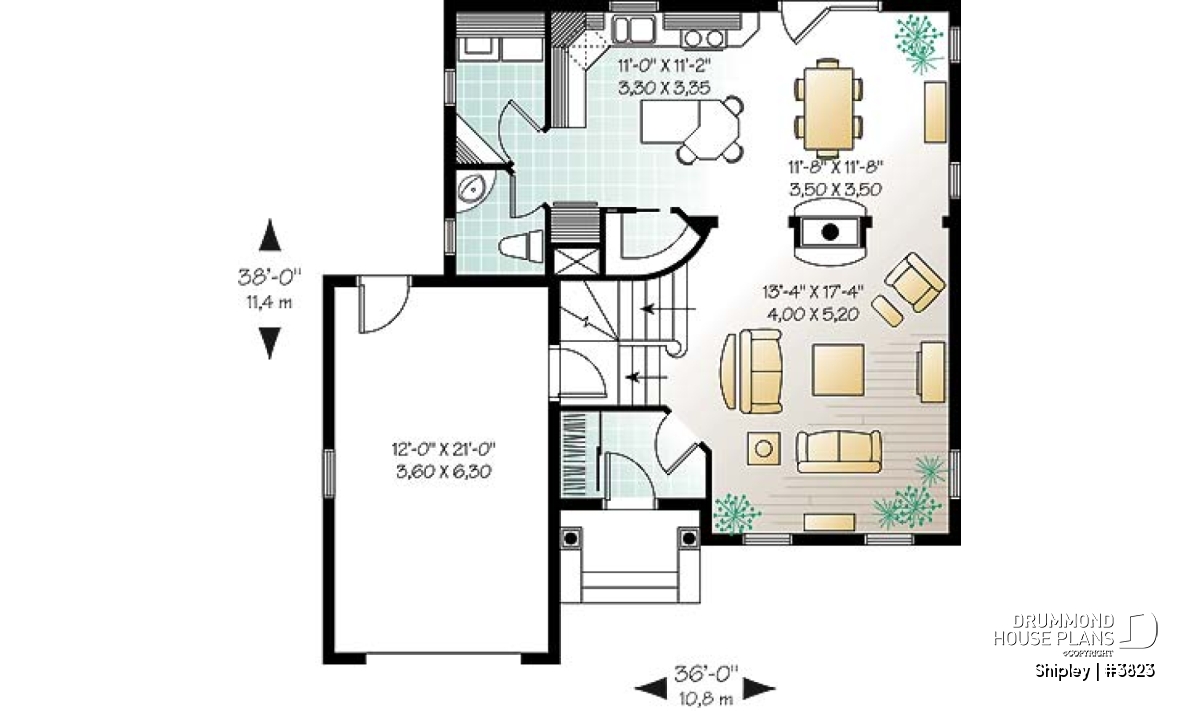

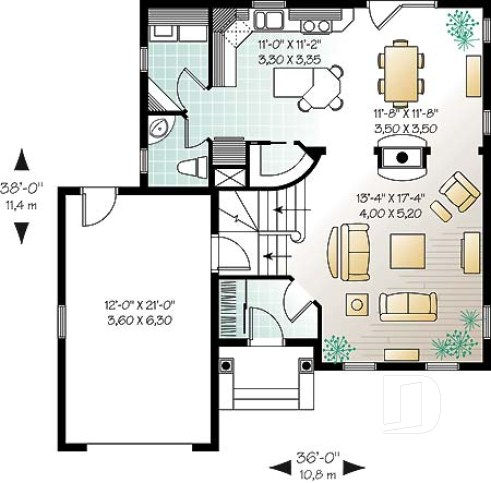

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'0" x 11'2" | ~ 8'0" |
| Pantry | 5'7" x 3'6" | ~ 8'0" |
| Dining room | 11'8" x 11'8" | ~ 8'0" |
| Living room | 13'4" x 17'4" | ~ 8'0" |
| Foyer | 6'0" x 5'0" | ~ 8'0" |
| Closet | 2'0" x 5'0" | N/A |
| Laundry room | 5'0" x 8'8" | ~ 8'0" |
| Garage | 12'0" x 21'0" | ~ 9'8" |
| Porch | 8'0" x 3'2" | N/A |
| Deck | 8'0" x 5'0" | N/A |
| Half bath or powder room | 5'0" x 6'0" | ~ 8'0" |

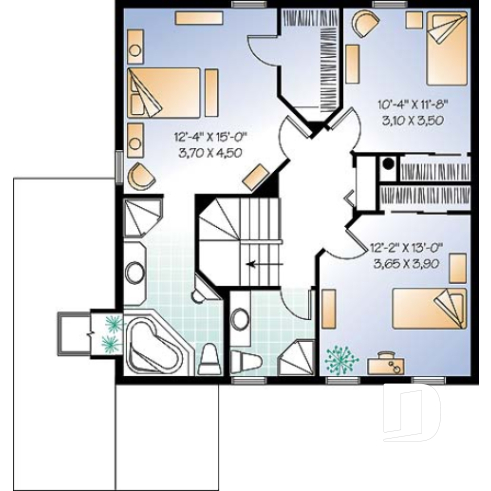

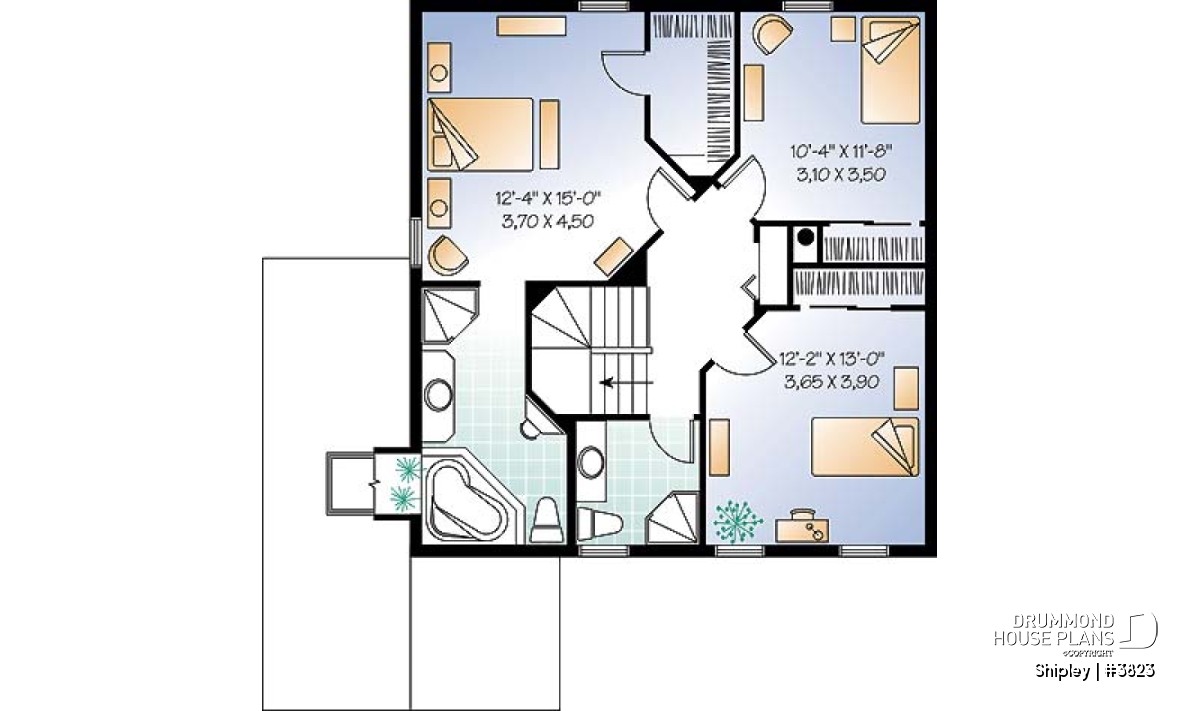

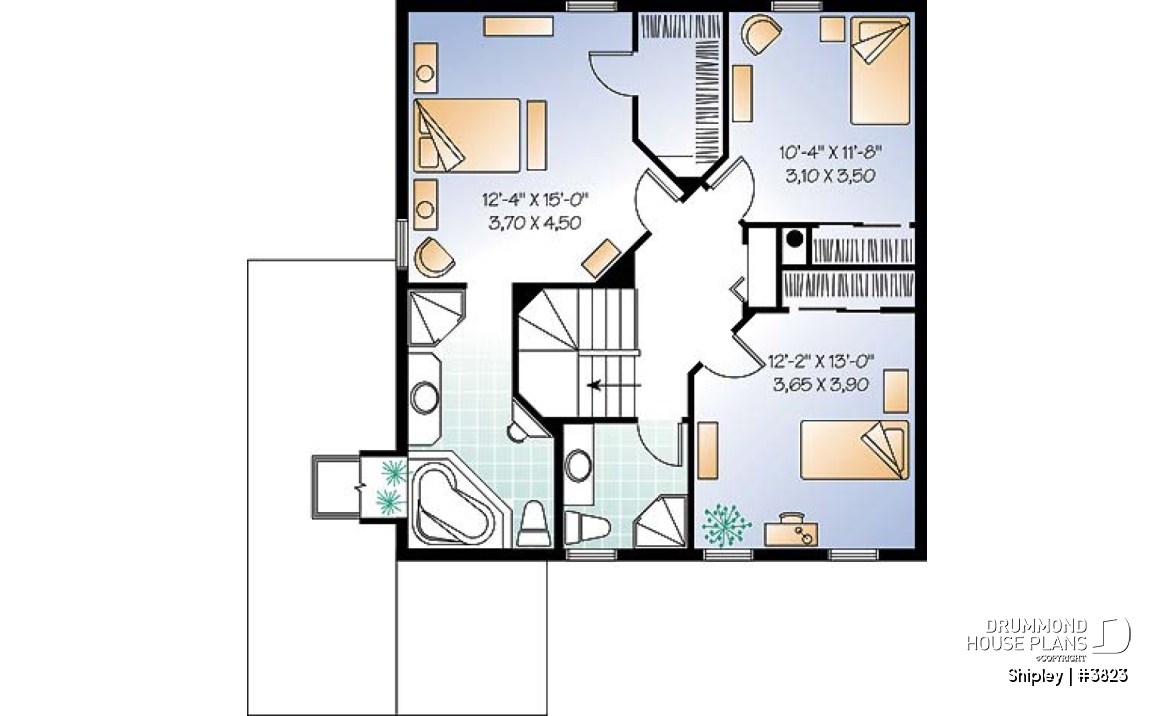

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 7'2" x 7'0" | ~ 8'0" |
| Bedroom | 12'4" x 15'0" | ~ 8'0" |
| Full bathroom | 5'8" x 14'4" | ~ 8'0" |
| Walk-in closet | 4'8" x 9'2" | ~ 8'0" |
| Bedroom | 12'2" x 13'0" | ~ 8'0" |
| Closet | 7'4" x 2'0" | ~ 8'0" |
| Bedroom | 10'4" x 11'8" | ~ 8'0" |
| Closet | 5'8" x 2'0" | ~ 8'0" |
| Linen | 1'6" x 4'4" | ~ 8'0" |
General specifications
| Total living area | 1722 sq.ft. |
| 1st level | 804 sq.ft. |
| 2nd level | 918 sq.ft. |
| Width | 36'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | D |
Rooms specifications

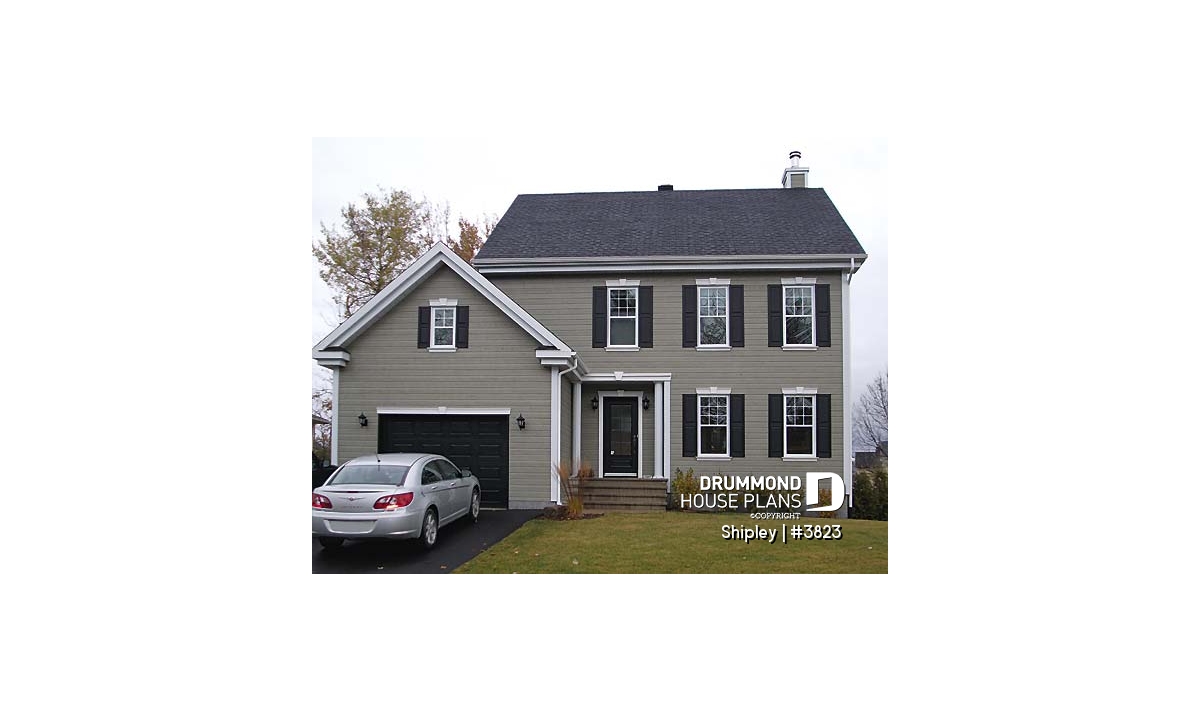

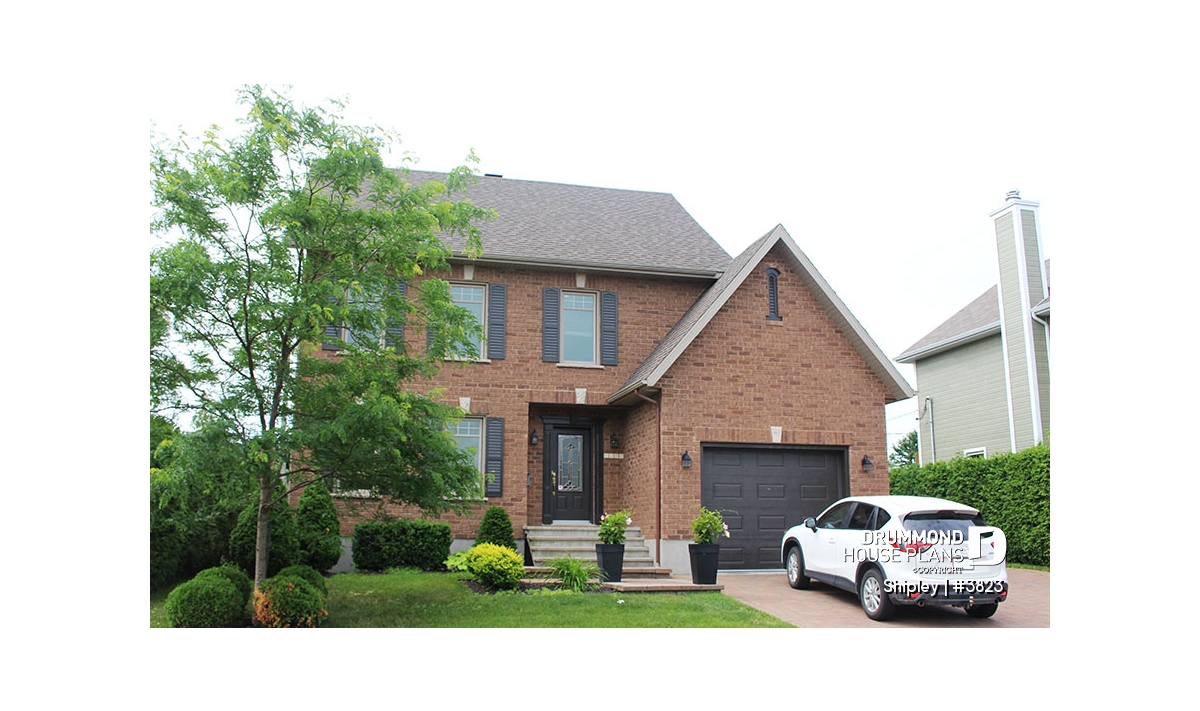

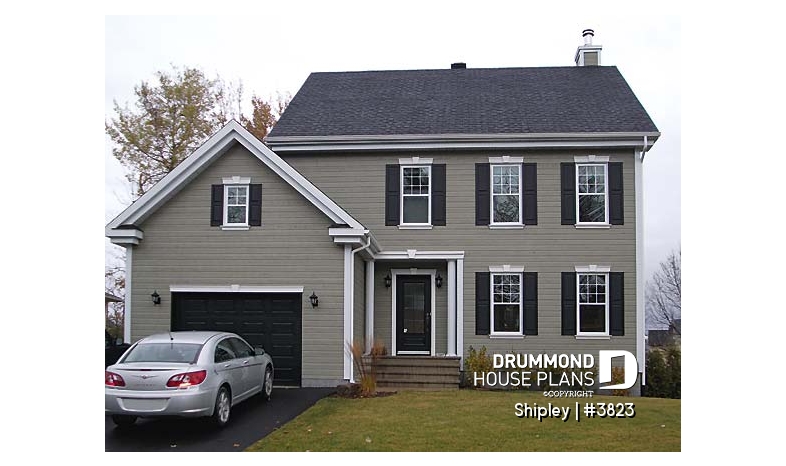

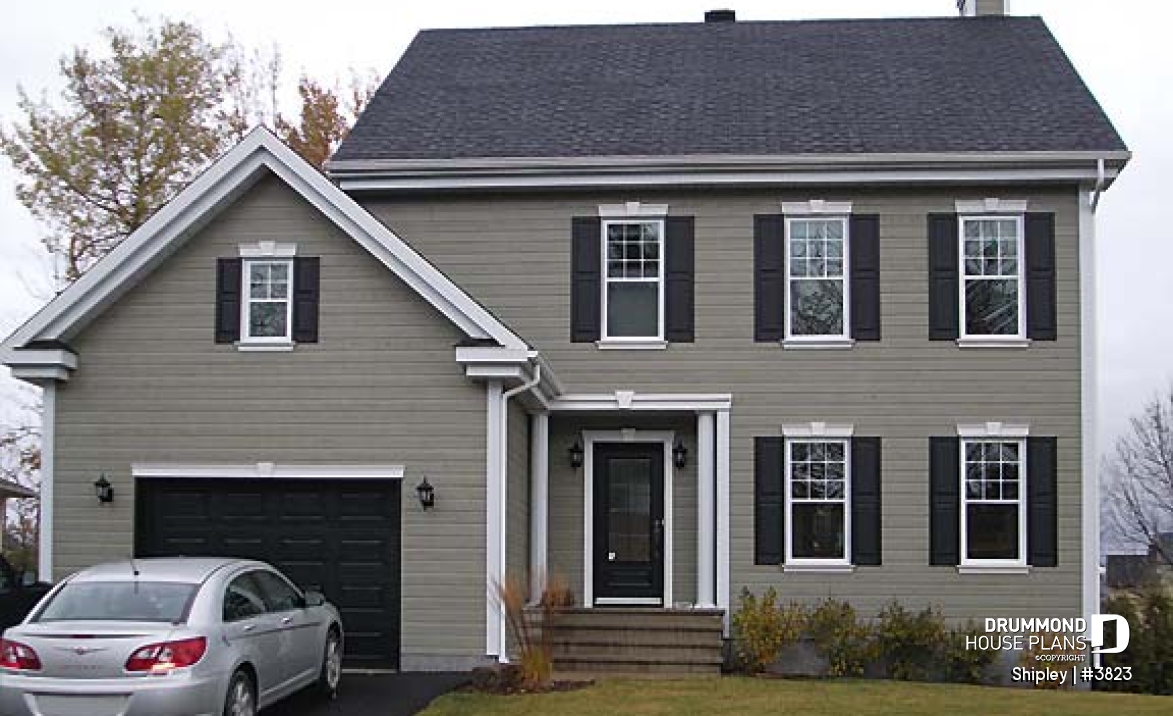

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

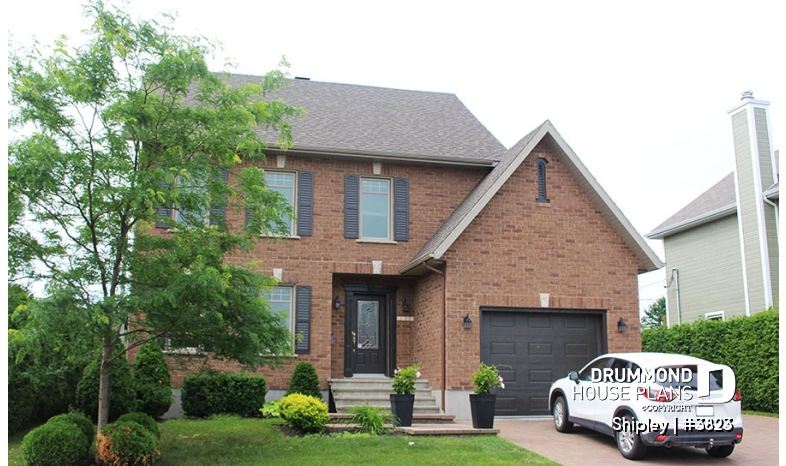

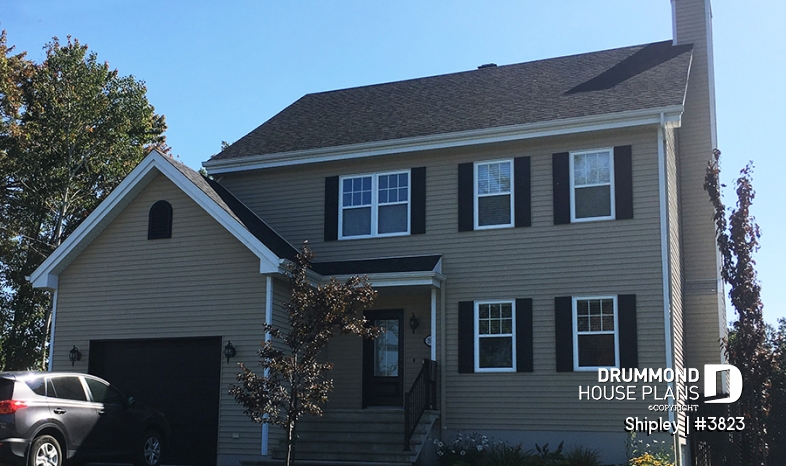

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

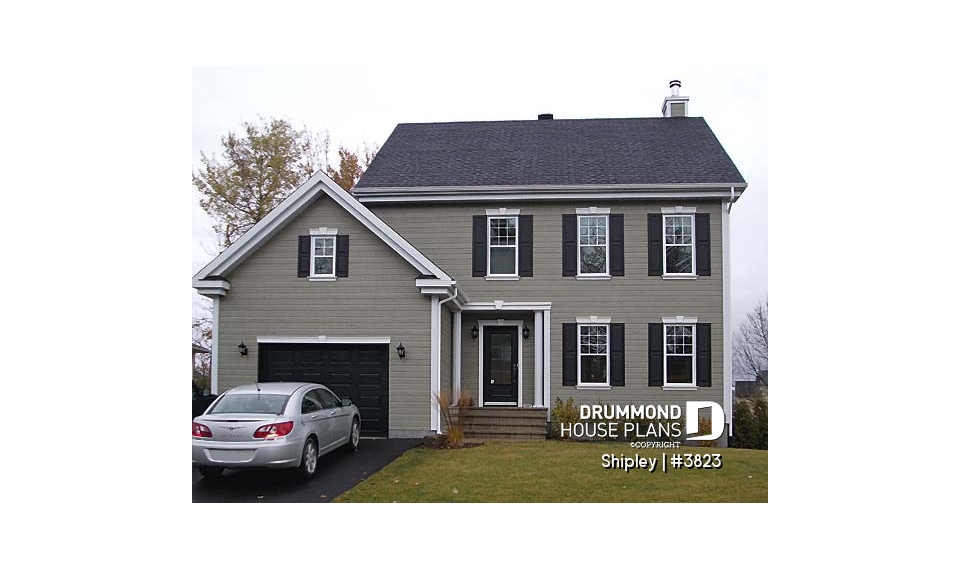

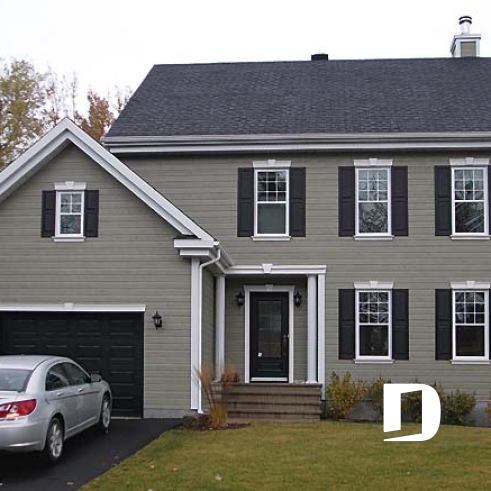

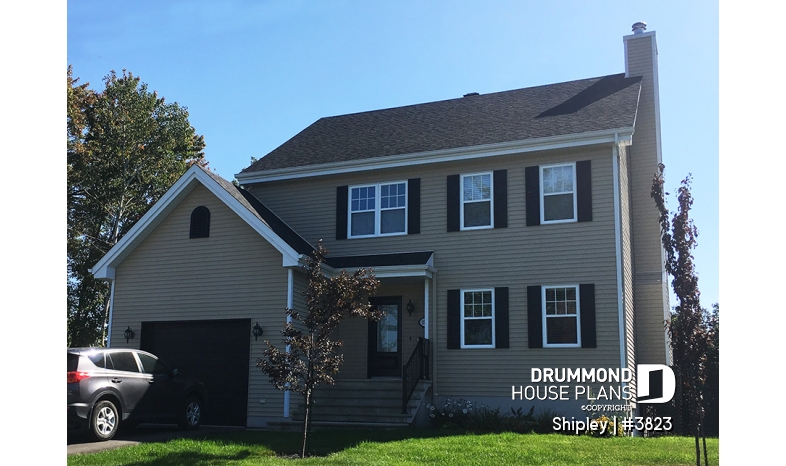

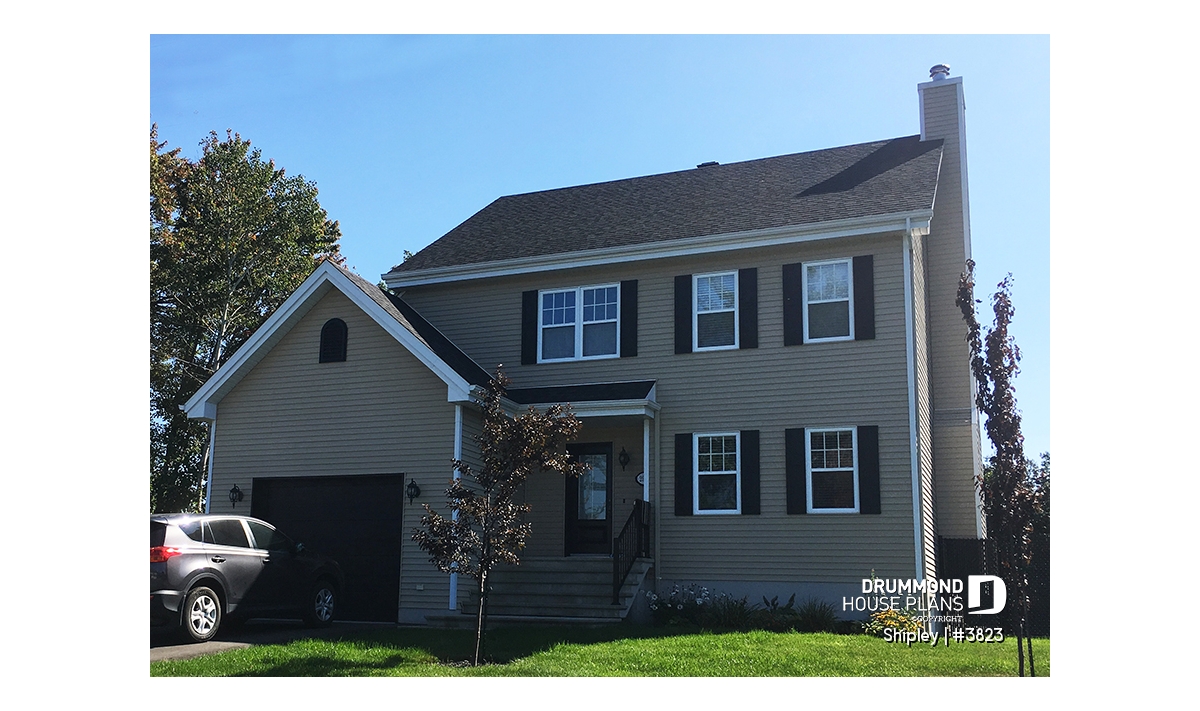

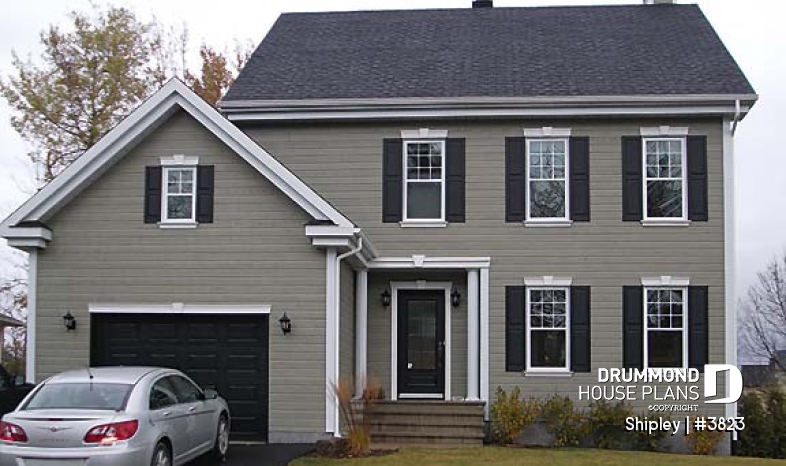

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Colonial style house plan with 3 bedrooms, great master suite and garage!
Symmetrical shuttered windows and impeccable trimwork result in a tidy house with formal charm.
An enclosed foyer keeps the weather out of the forward living room and a see-through fireplace creates a cozy ambiance throughout the entire main floor. Cooks will love the generous kitchen with island eating bar and walk-in pantry.
Upstairs, we find a lovely master retreat with walk-in closet and master bathroom with standalone shower plus a spa tube. Two additional bedrooms share a bathroom.
Need additional space? You’ll enjoy the attached garage and the basement is a beautiful blank slate for your family’s inspiration.
Distinctive elements
Kitchen with walk-in pantry, large family room, see-through fireplace and abundant windowing.
Master suite includes walk-in closet and private bathroom.
Plan feature(s)
Fireplace, Island, Entrance hall, Oversized garage, Gound floor laundry room, Master suite upstairs, Walk-in master bed., Separate bath and shower, Open floor layout
