House plan Meslay (3439)
Functional open floor plan with 3 large bedrooms and a garage
View the size of the rooms and height of the ceilings

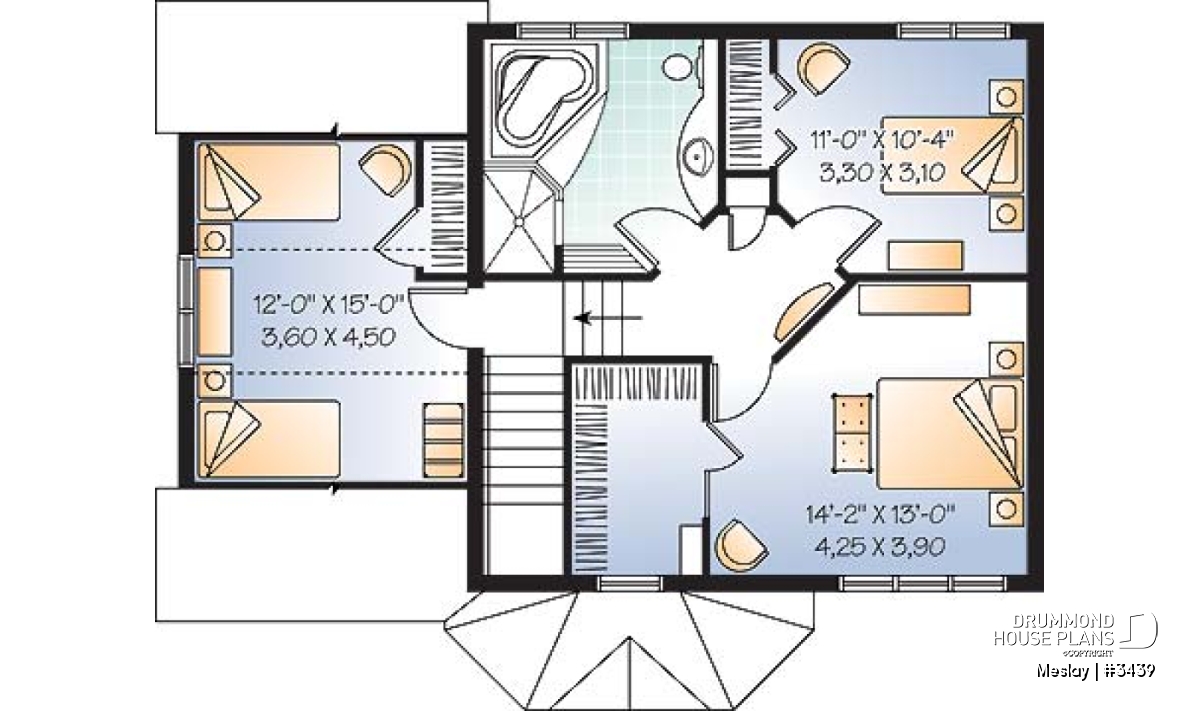

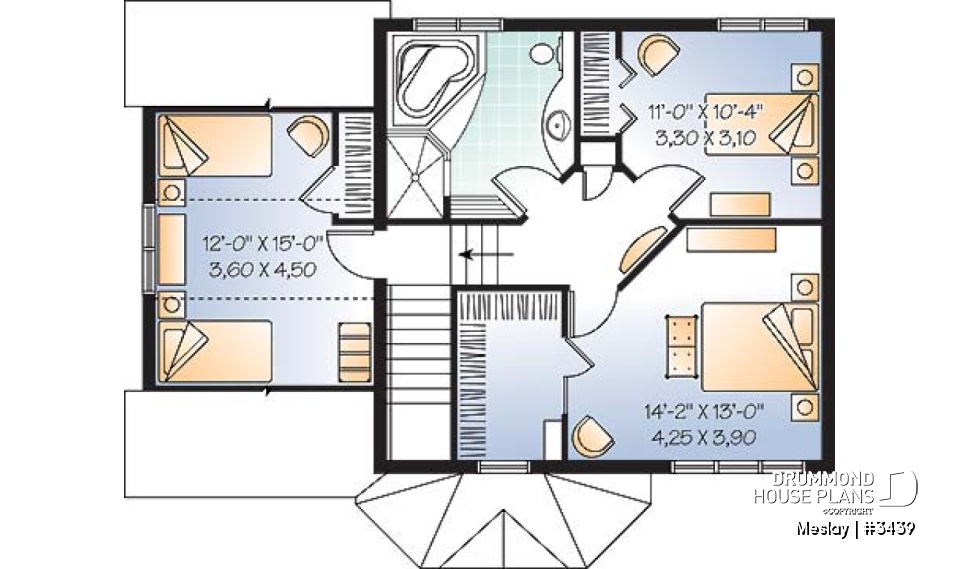

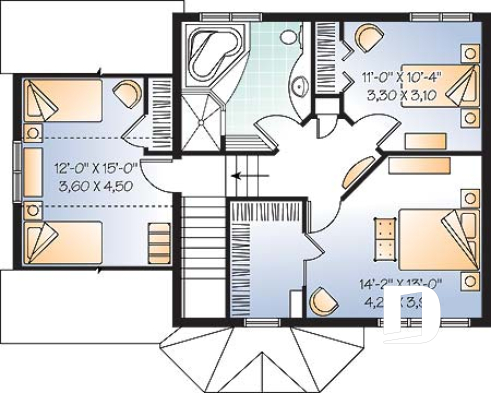

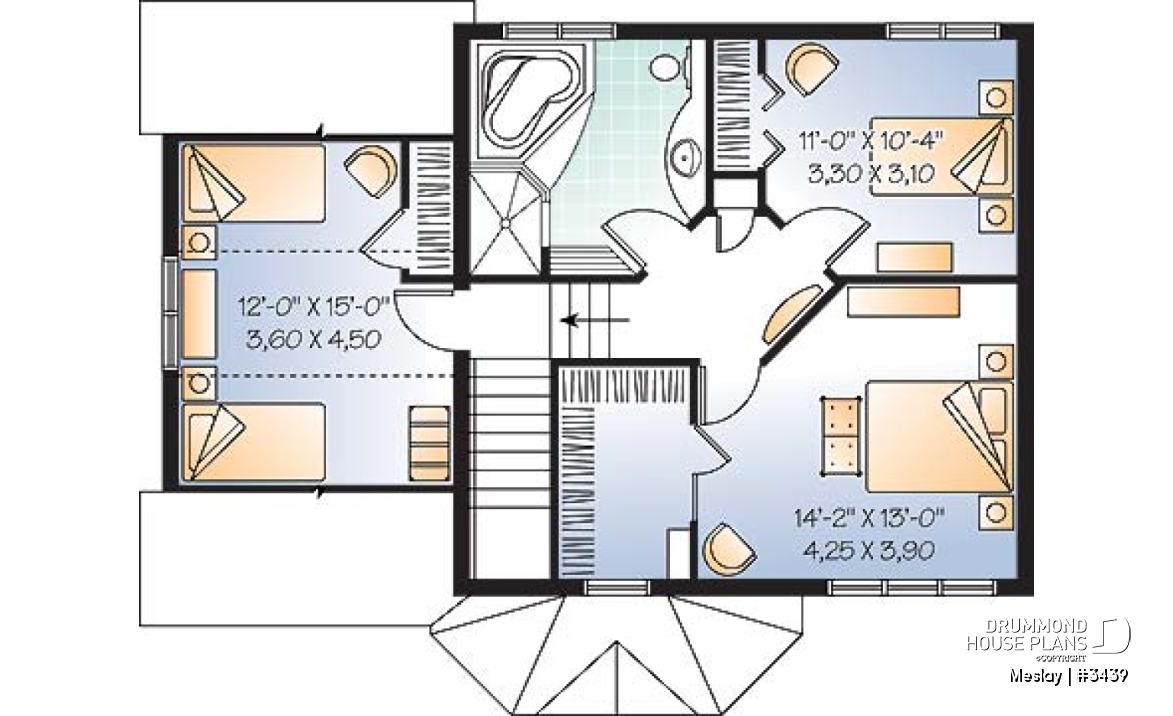

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'4" x 10'2" | ~ 8'0" |
| Bedroom | 14'2" x 13'0" | ~ 8'0" |
| Bedroom | 12'0" x 15'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'4" | ~ 8'0" |
| Linen | 2'0" x 1'2" | ~ 8'0" |

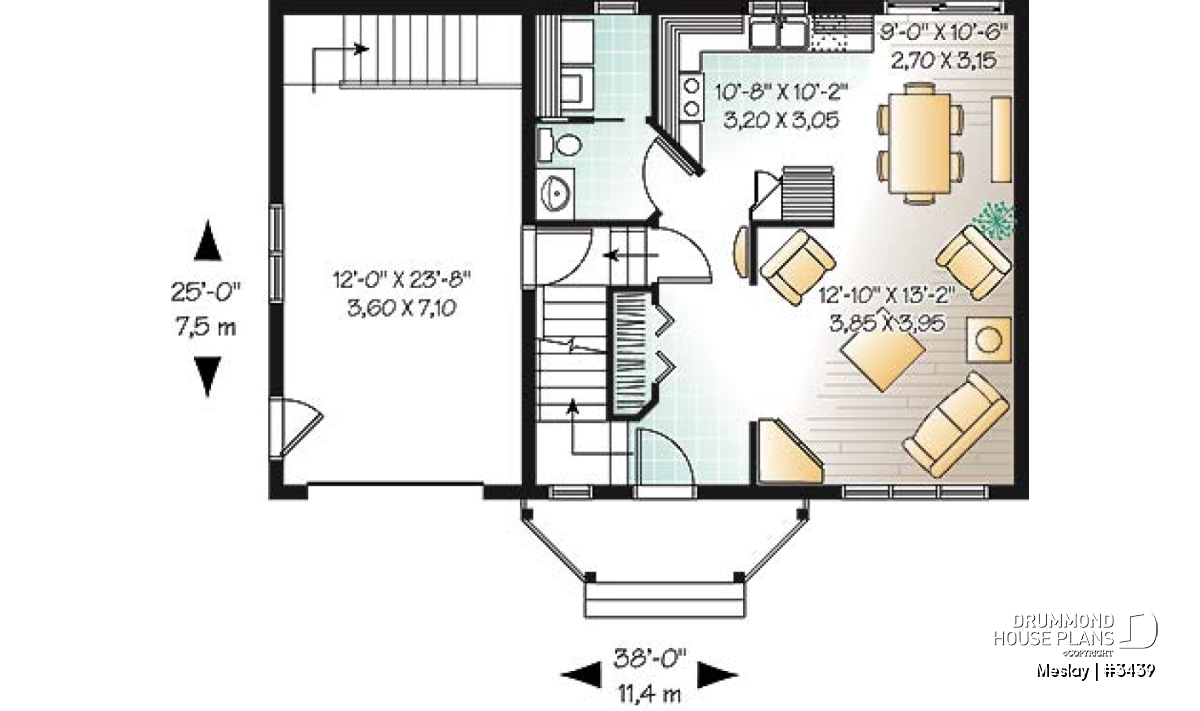

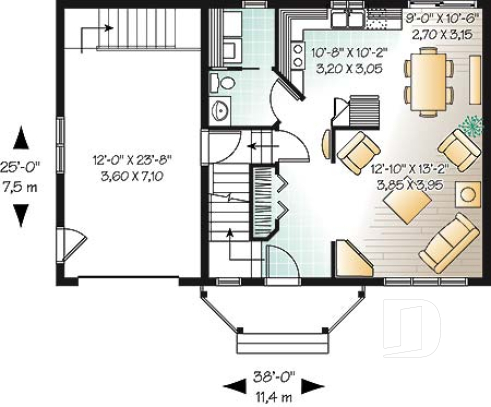

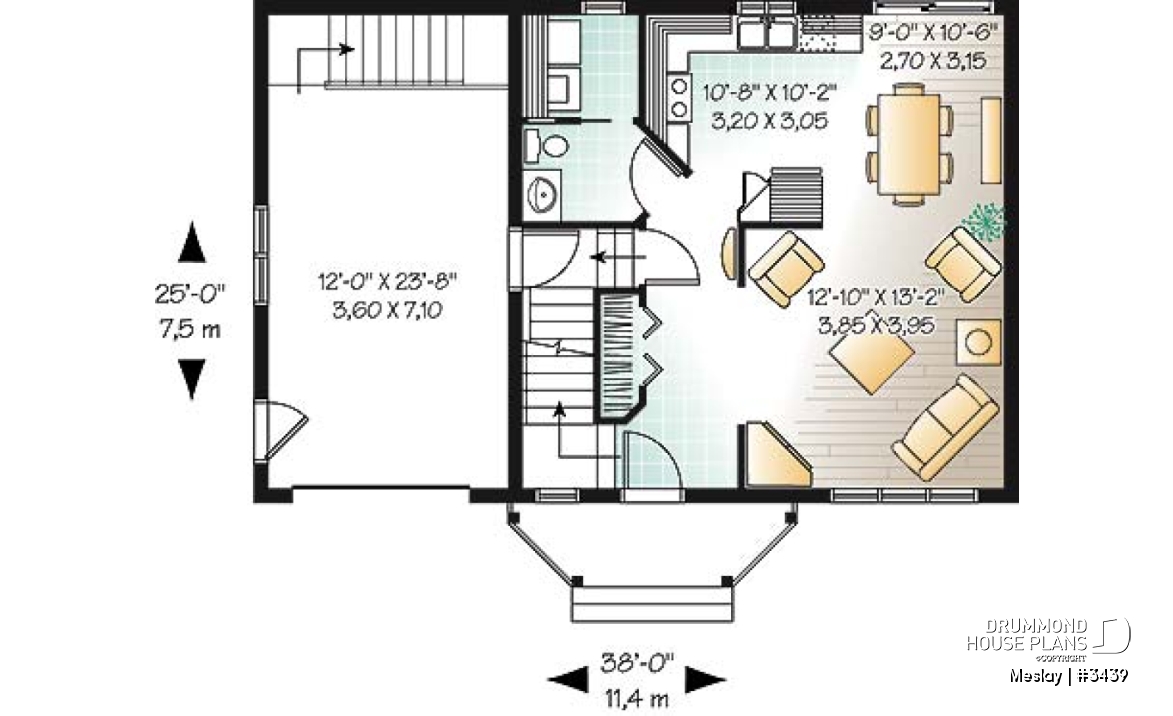

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 6'0" x 4'8" | ~ 8'0" |
| Kitchen | 10'8" x 10'2" | ~ 8'0" |
| Dining room | 9'0" x 10'6" | ~ 8'0" |
| Living room | 12'10" x 13'2" | ~ 8'0" |
| Foyer | 6'0" x 3'4" | ~ 8'0" |
| Utility room | 5'8" x 5'0" | ~ 8'0" |
| Garage | 12'0" x 23'8" | ~ 8'4" |
| Porch | 14'4" x 4'0" | N/A |
| Porch | 8'0" x 4'0" | N/A |
General specifications
| Total living area | 1465 sq.ft. |
| 2nd level | 832 sq.ft. |
| 1st level | 633 sq.ft. |
| Width | 38'0" |
| Depth | 25'0" |
| Ridge height from top of foundation | 28'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Affordable and functional 3 bedroom cottage.
This lovely and affordable cottage style model has an open floor plan that makes perfect use of space throughout. An abundance of windows offers natural daylight from the living/dining room and kitchen areas. The separate laundry room is accessible through pocket doors and direct access to the garage from a split level staircase is just one of the surprisingly practical features of this model.
A large, full bathroom on the second floor is conveniently located for use by the occupants of the master and two nicely sized secondary bedrooms.
Distinctive elements
One-car garage with access to basement. Excellent interior organization minimizing loss of spaces. Three lovely bedrooms on second level and remarkable bathroom.
Plan feature(s)
Gound floor laundry room, Separate bath and shower, Walk-in master bed., Basement access from garage
Plan architectural style(s)
. Country, . Traditional
