House plan Marlowe 4 (2779-V3)
Craftsman style small home, 3 bedrooms, home office and large covered terrace
View the size of the rooms and height of the ceilings

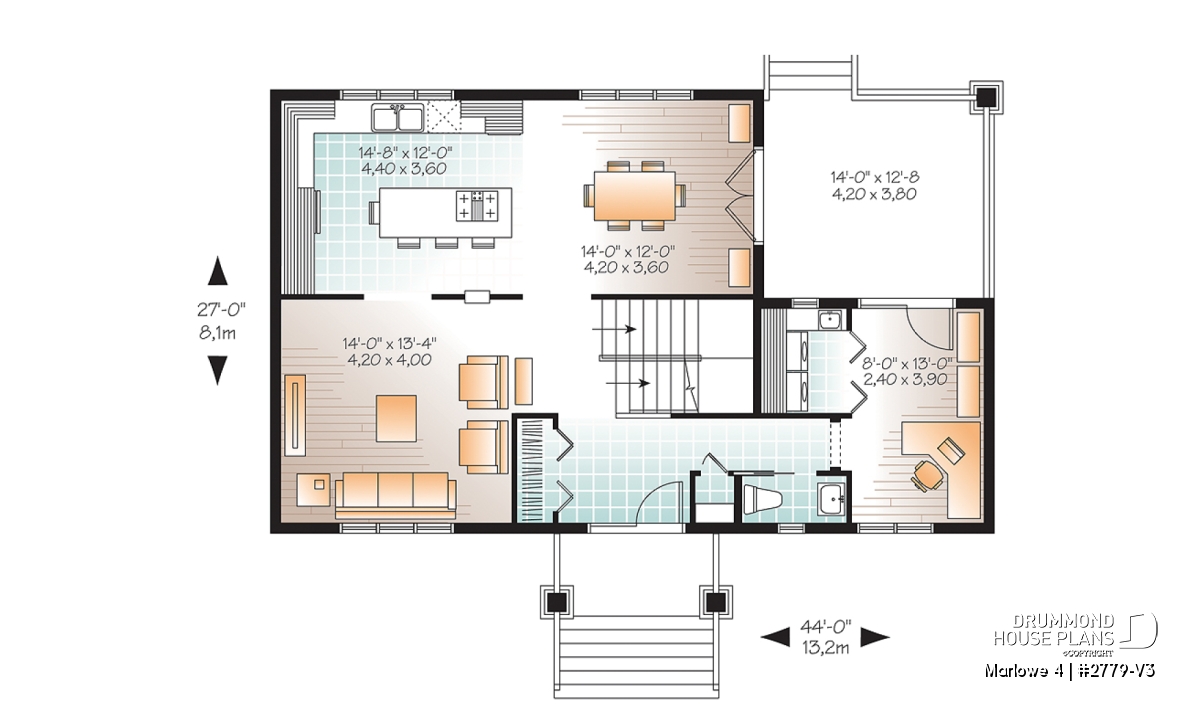

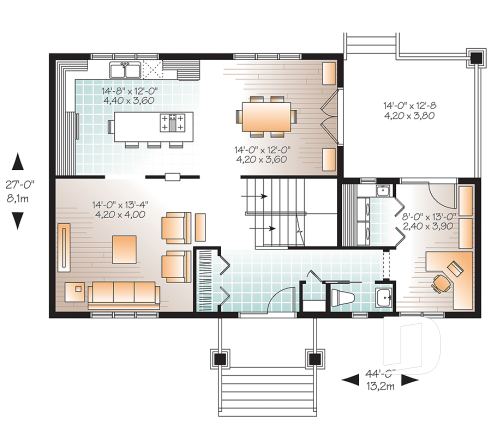

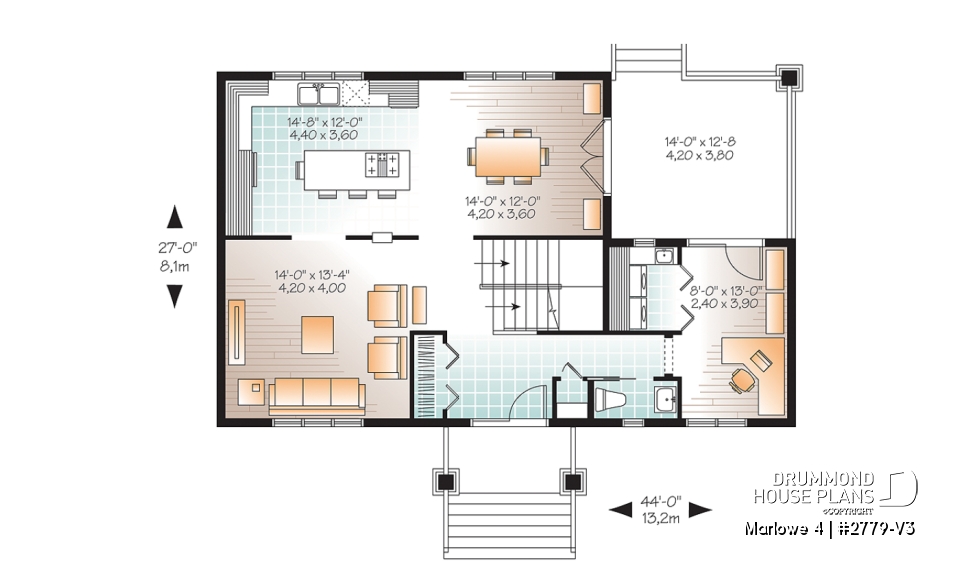

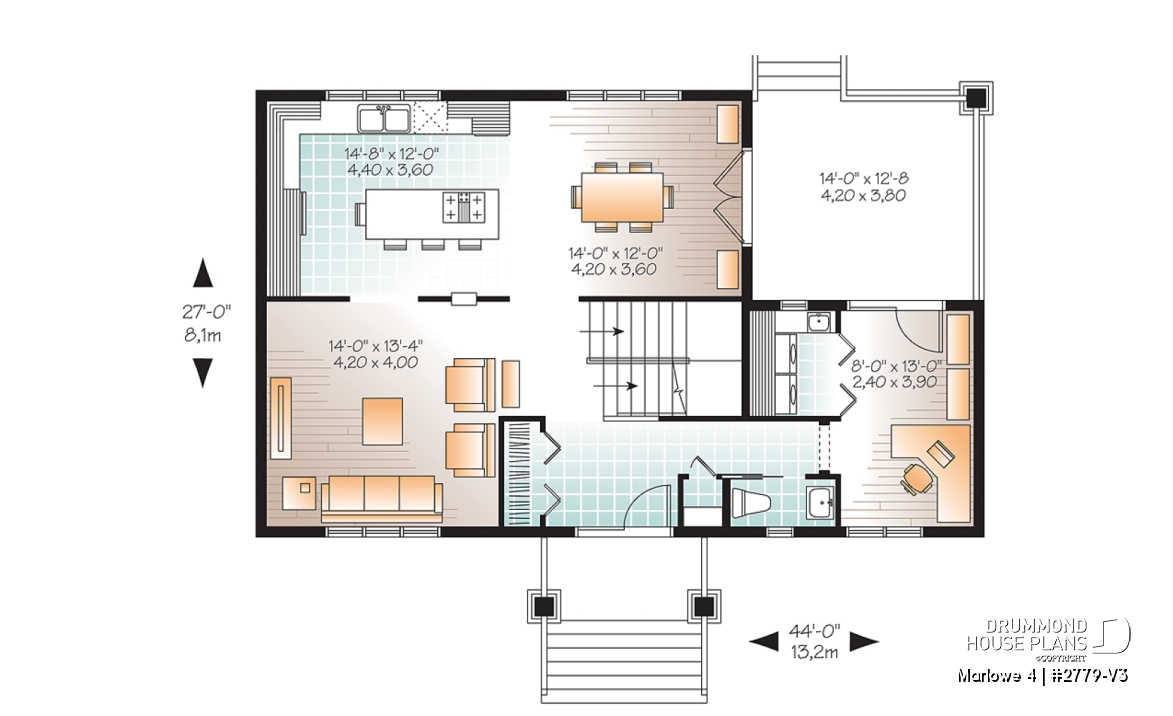

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 8'0" x 6'4" | ~ 9'0" |
| Closet | 2'2" x 6'4" | ~ 9'0" |
| Office | 8'0" x 13'0" | ~ 9'0" |
| Laundry room | 5'2" x 6'4" | ~ 9'0" |
| Half bath or powder room | 6'4" x 2'10" | ~ 9'0" |
| Living room | 14'0" x 13'4" | ~ 9'0" |
| Dining room | 14'0" x 11'8" | ~ 9'0" |
| Kitchen/dinette | 14'8" x 11'8" | ~ 9'0" |
| Pantry | 2'0" x 2'4" | N/A |
| Porch | 10'0" x 5'0" | N/A |
| Deck | 14'0" x 12'8" | N/A |
| Storage | 2'4" x 2'10" | ~ 8'0" |

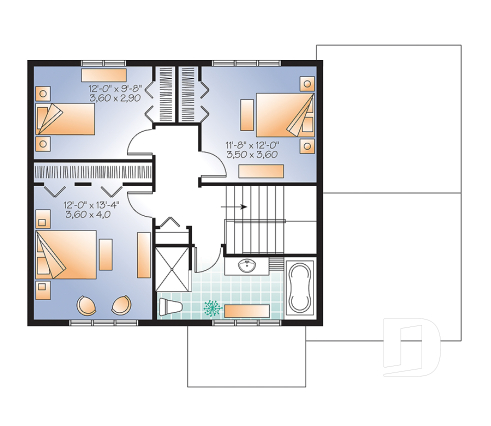

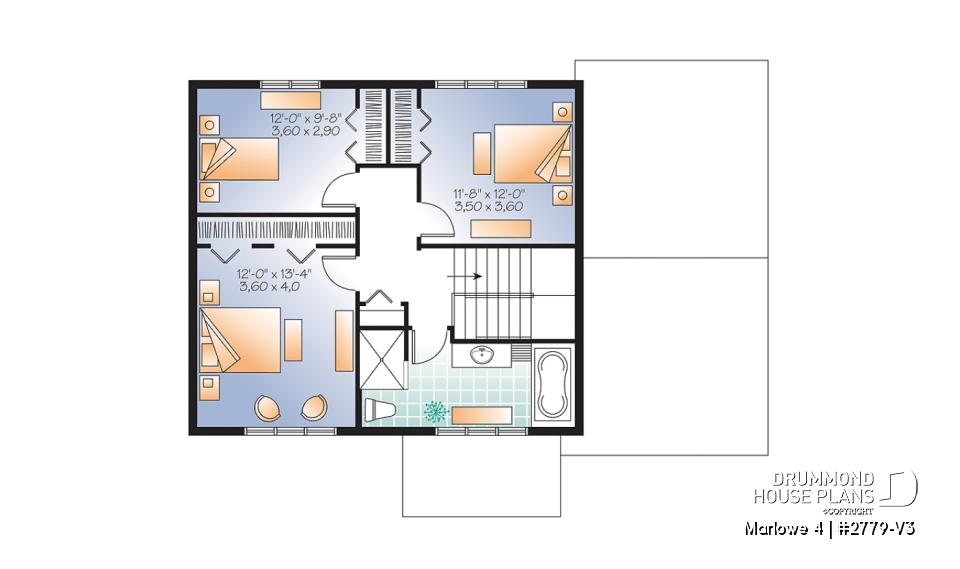

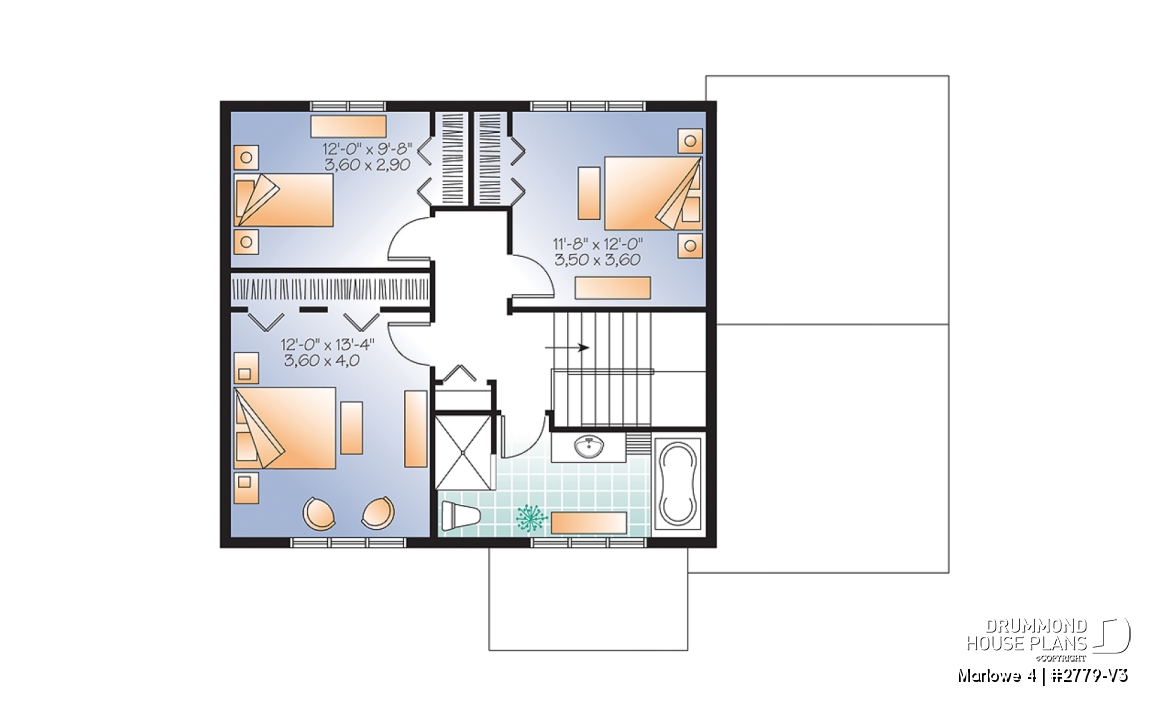

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 16'2" x 6'4" | ~ 8'0" |
| Bedroom | 12'0" x 13'0" | ~ 8'0" |
| Closet | 12'0" x 2'0" | ~ 8'0" |
| Bedroom | 11'8" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Bedroom | 12'0" x 9'0" | ~ 8'0" |
| Closet | 2'0" x 5'8" | ~ 8'0" |
| Linen | 3'4" x 1'6" | ~ 8'0" |
General specifications
| Total living area | 1821 sq.ft. |
| 1st level | 1011 sq.ft. |
| 2nd level | 810 sq.ft. |
| Width | 44'0" |
| Depth | 27'0" |
| Ridge height from top of foundation | 33'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

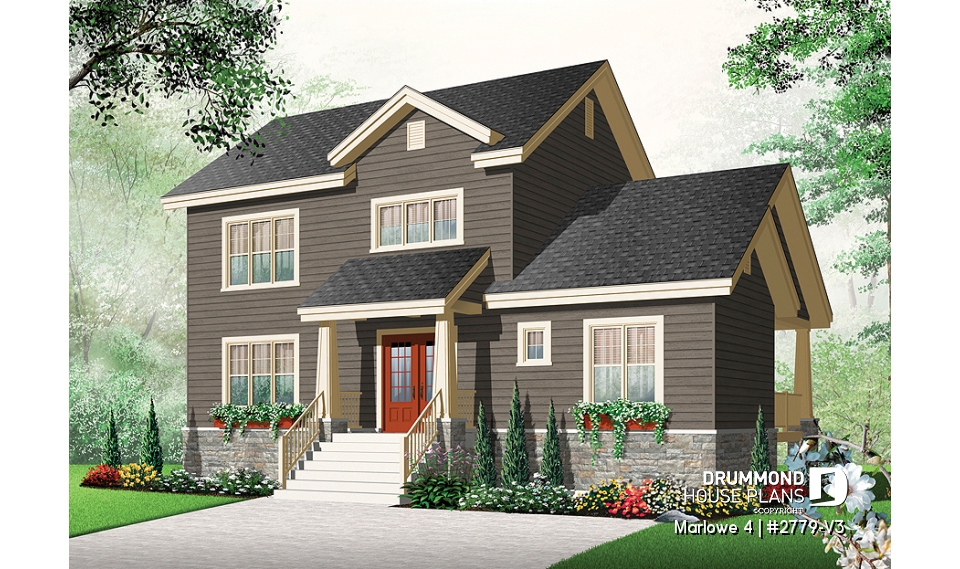

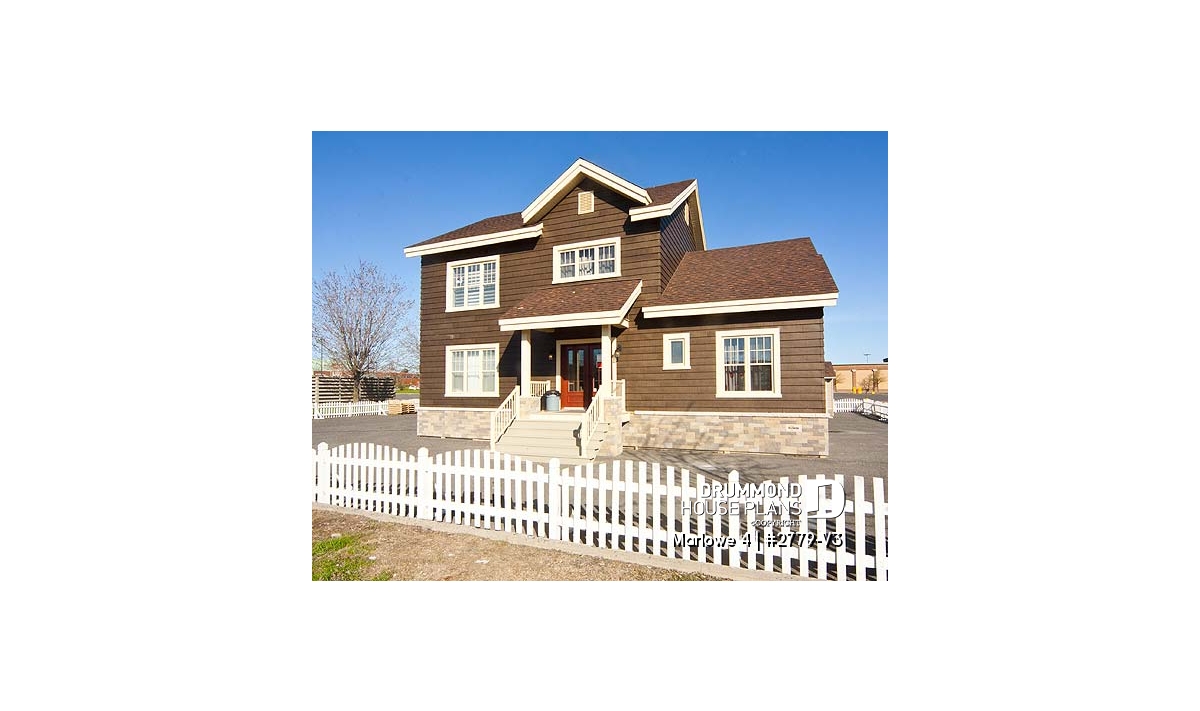

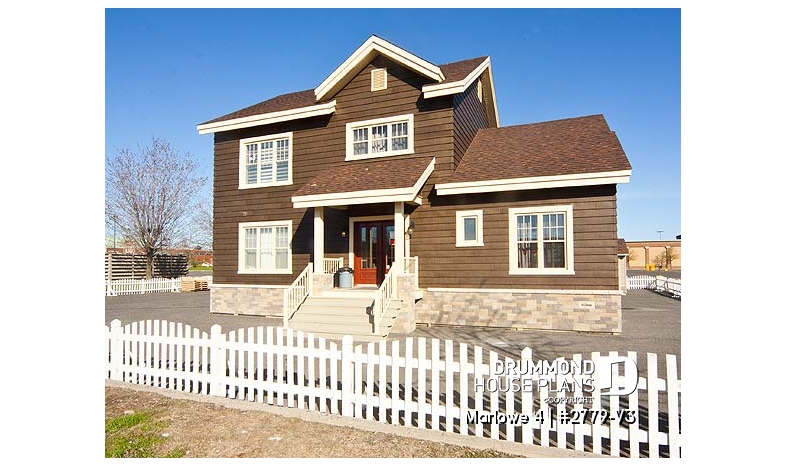

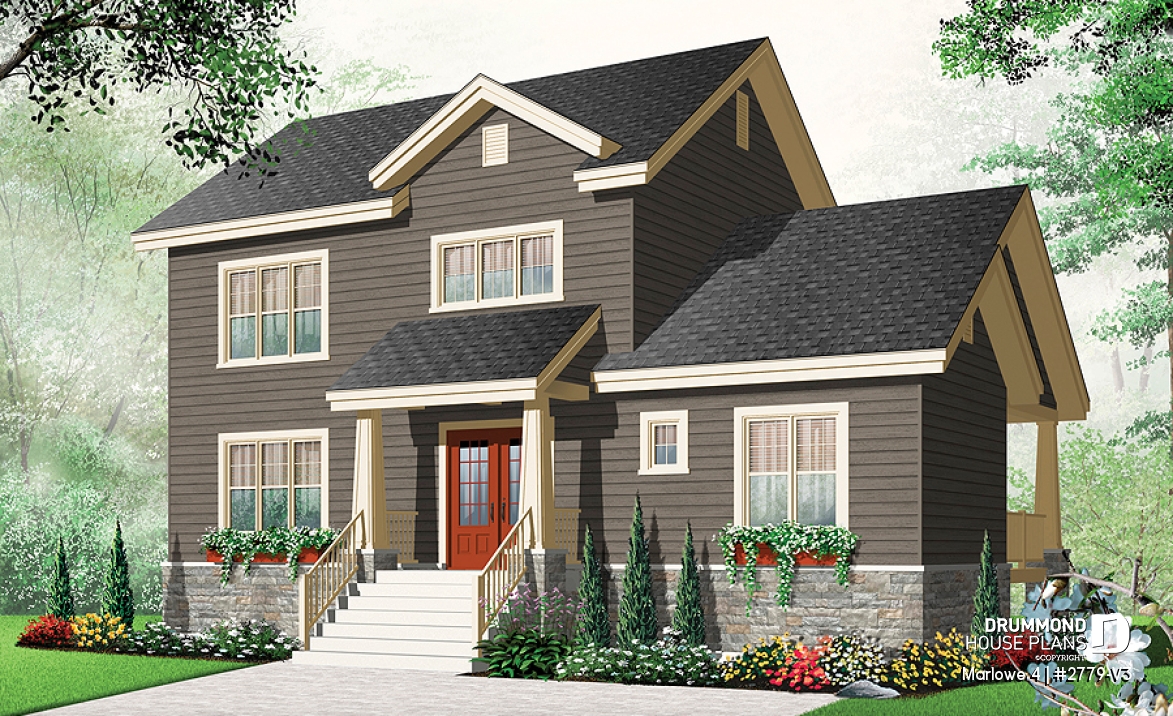

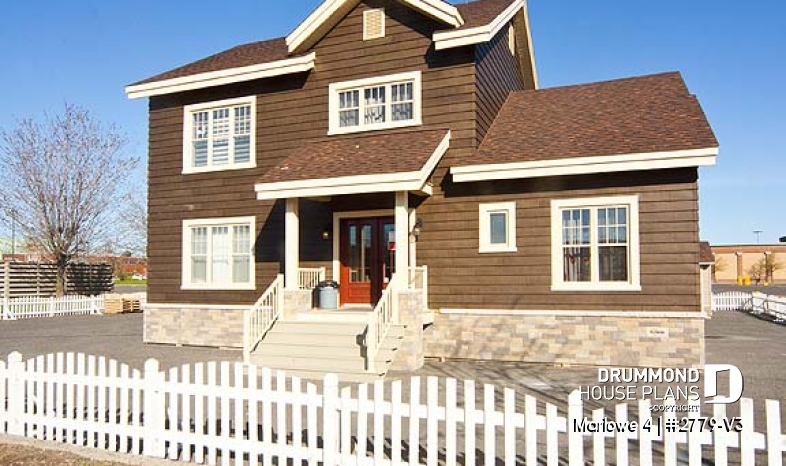

front
This color version might have decorative elements that are not available on base plan.

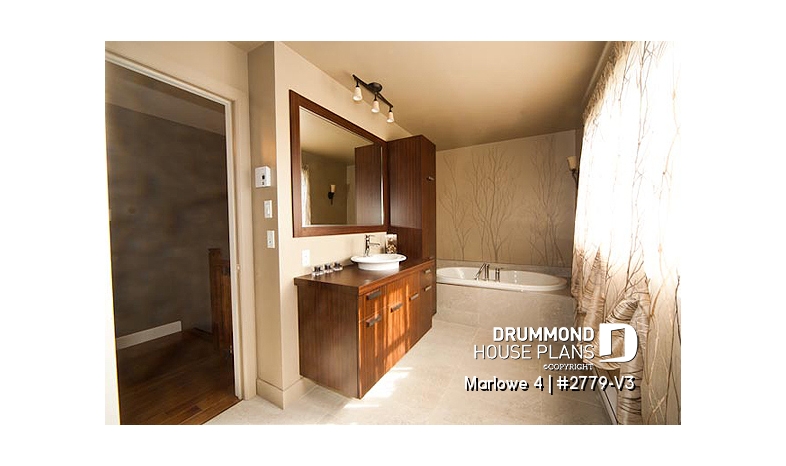

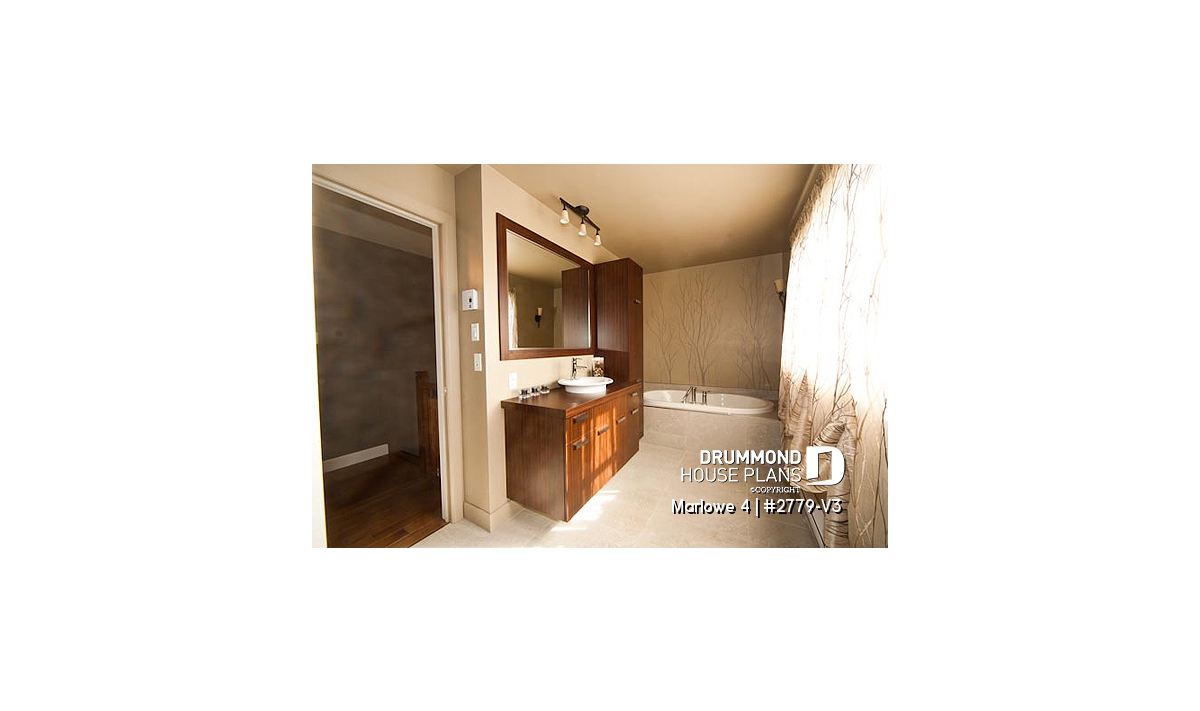

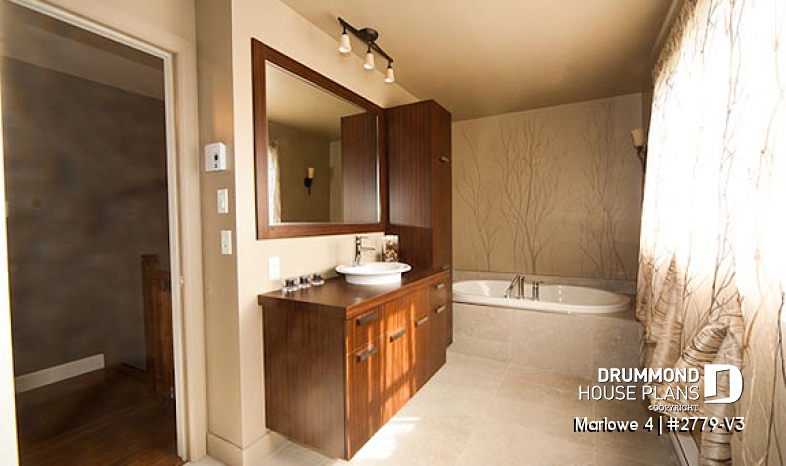

Bathroom
This color version might have decorative elements that are not available on base plan.

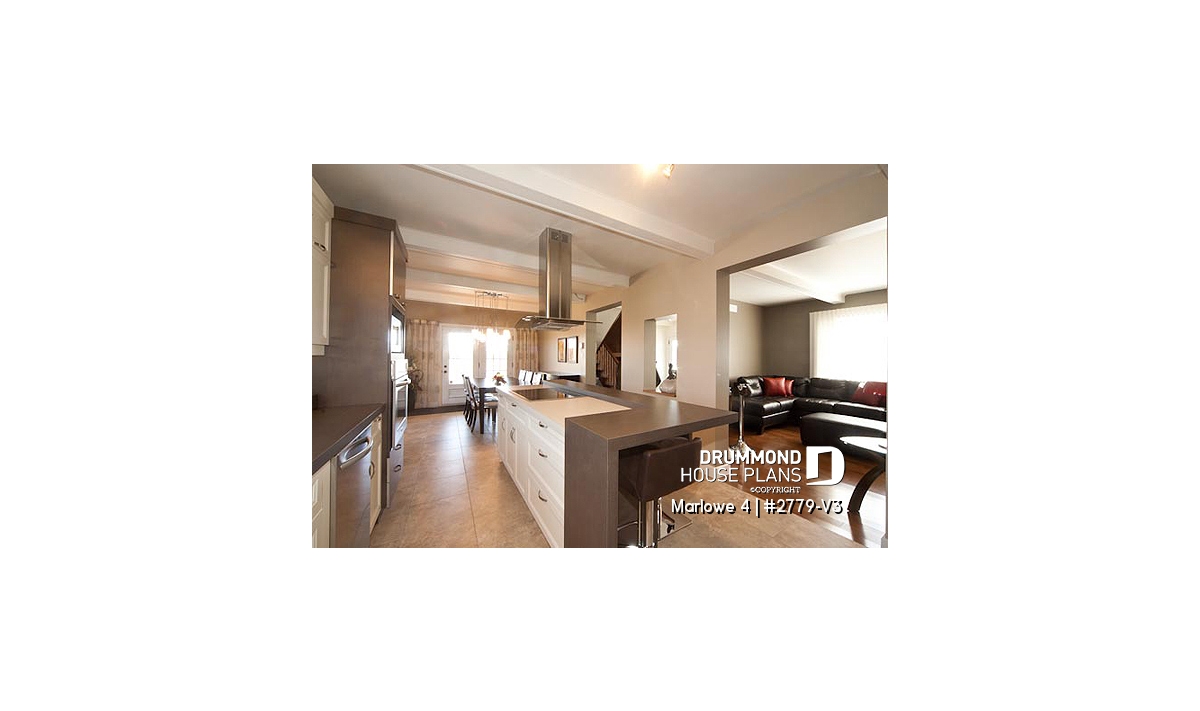

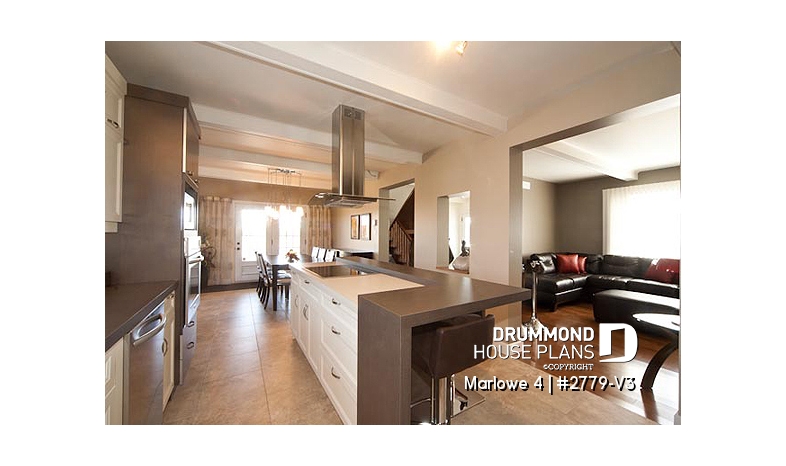

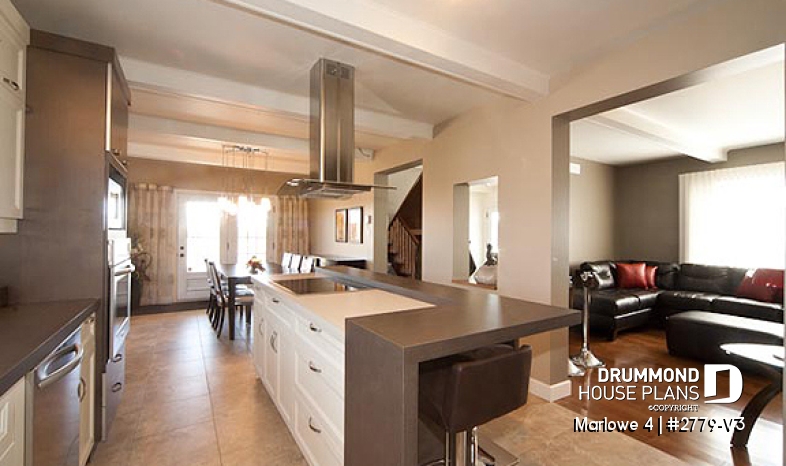

Kitchen
This color version might have decorative elements that are not available on base plan.

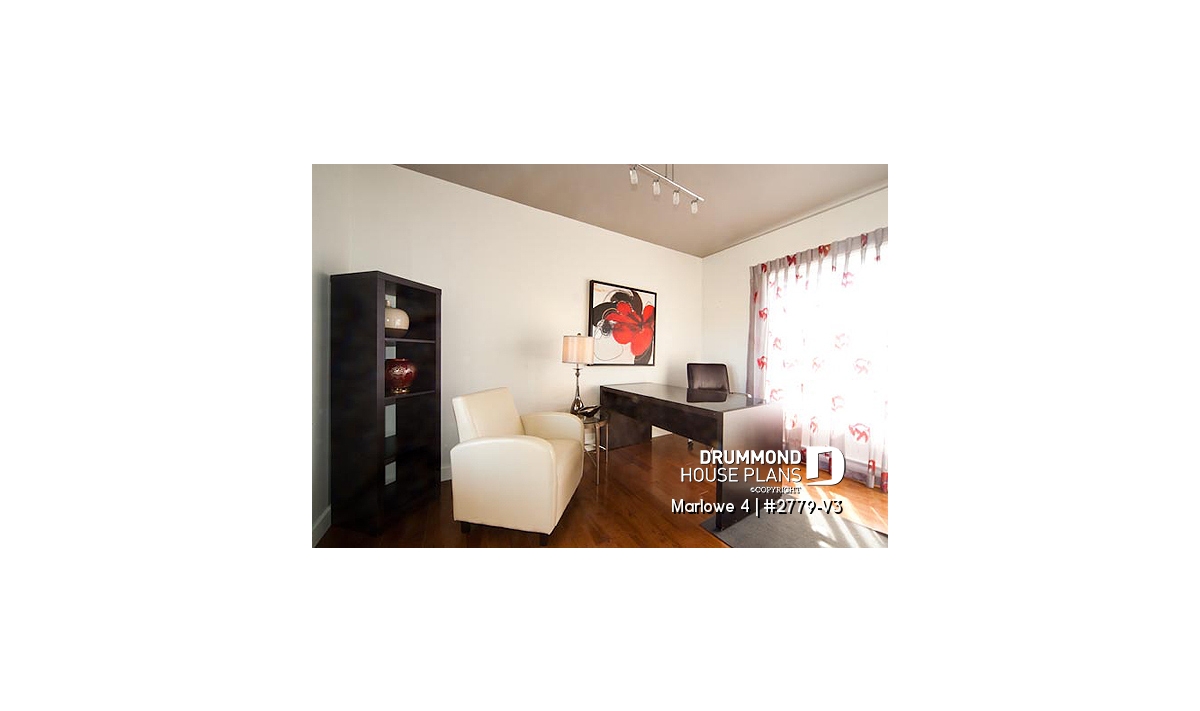

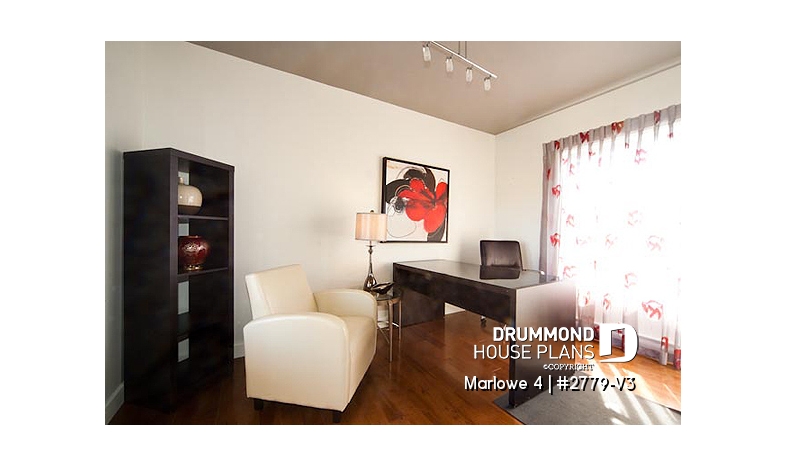

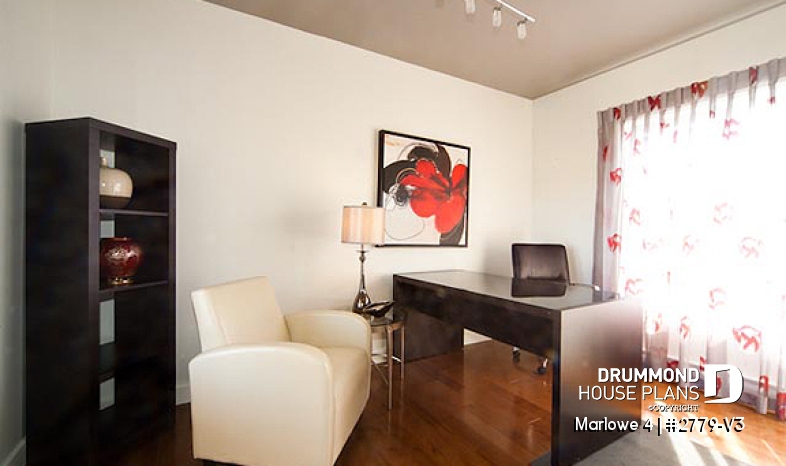

Home office
This color version might have decorative elements that are not available on base plan.

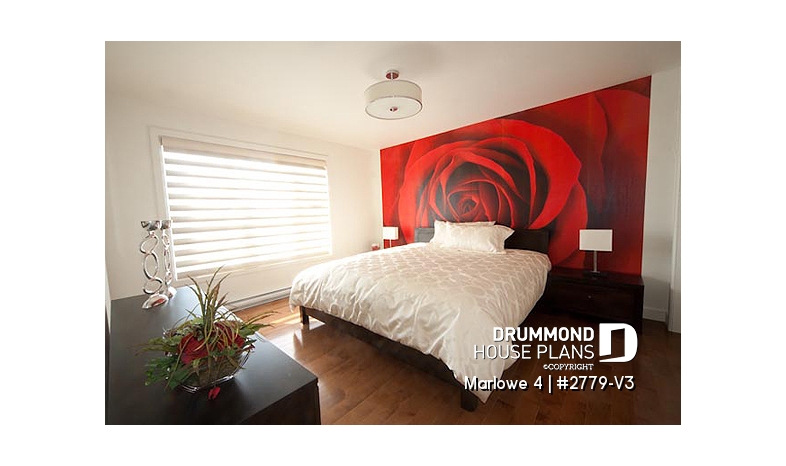

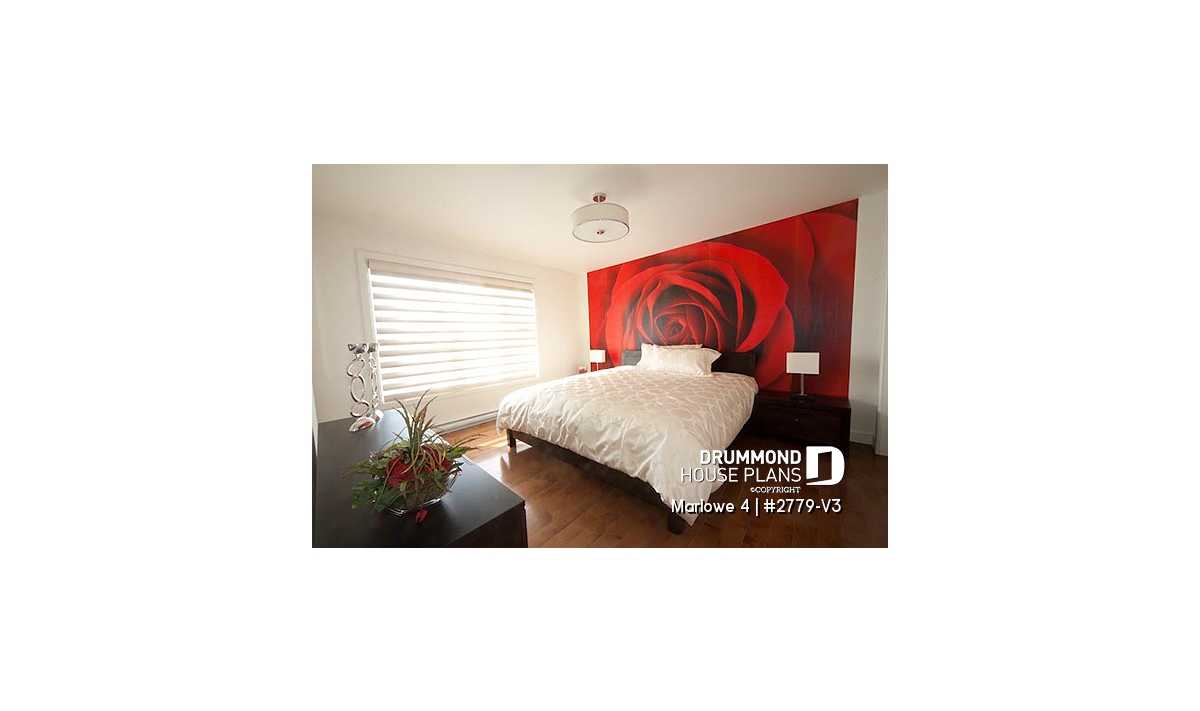

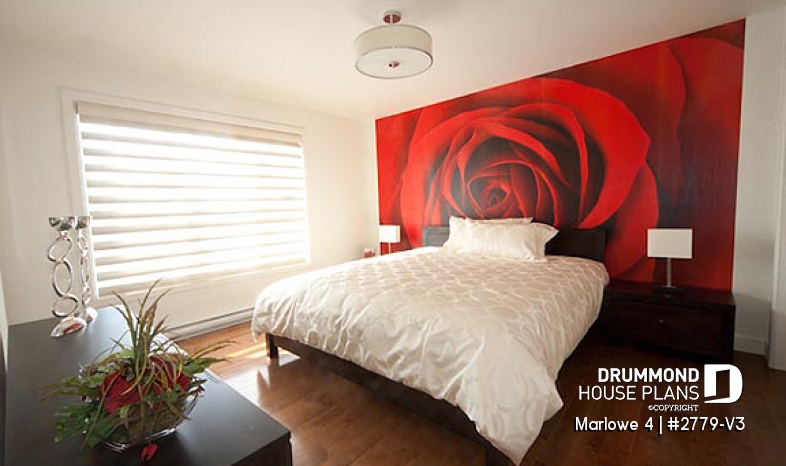

Bedroom
This color version might have decorative elements that are not available on base plan.

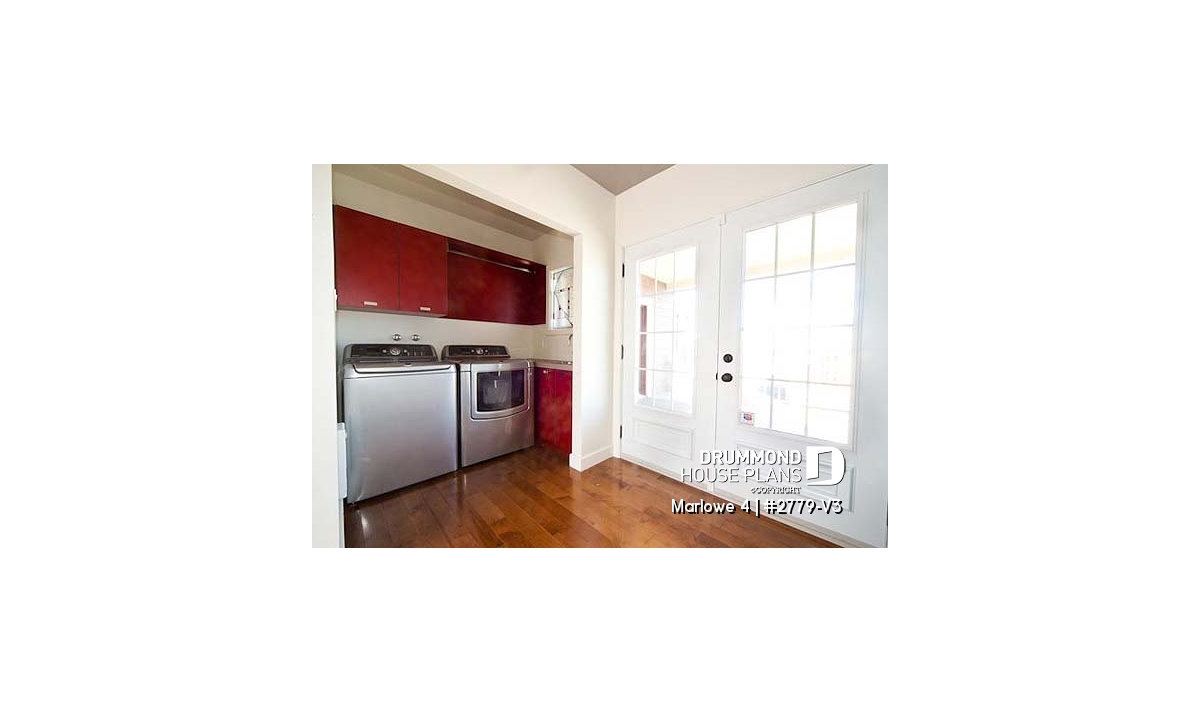

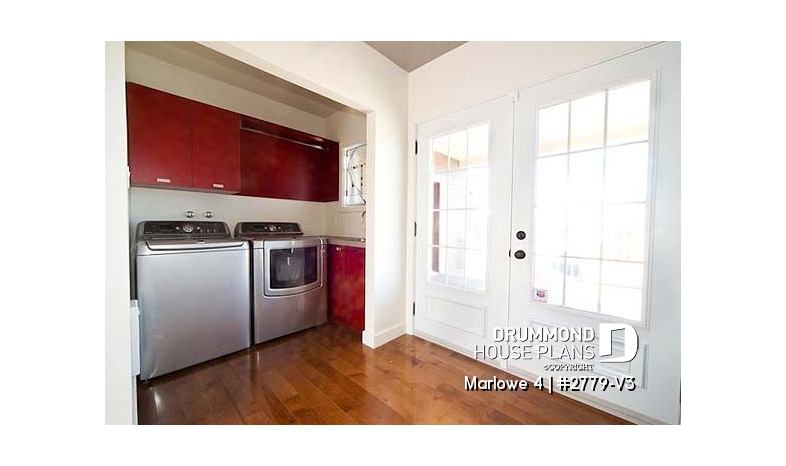

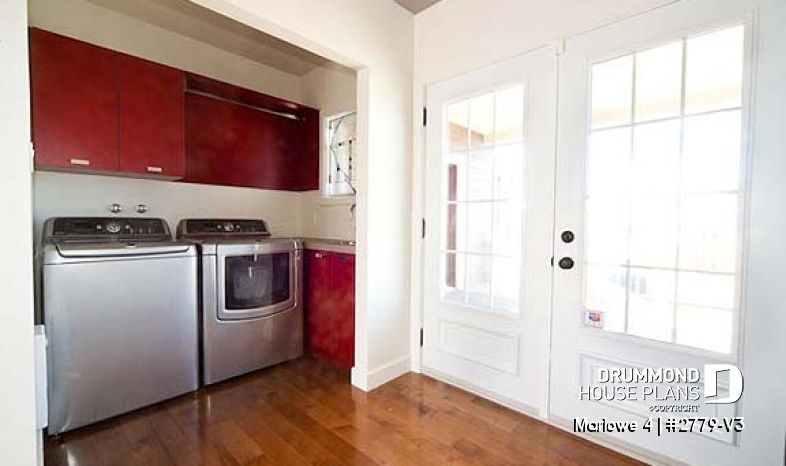

Utility room/laundry room
This color version might have decorative elements that are not available on base plan.
Other useful information on this plan
Country cottage complete with a stunning terrace
Because this spacious, three plus bedroom cottage is as cost effective as it is factory-fabrication friendly, it can be yours to enjoy no matter how you choose to build it.
Upon entering the large, open concept foyer we can’t help but be impressed by the spacious feeling of the design that is enhanced by the 9’ ceiling height throughout the first floor. Space is optimized with features such as a powder room just off of the entrance foyer and separate laundry area complete with counter and sink, behind doors within the home office. The large, 14’ x 12’8” covered terrace is accessible from the dining room though double doors or from the office and the kitchen has a practical 8 ’x 3’ central island.
Upstairs, three nicely sized bedrooms share a brightly lit bathroom that is complete with a built in unit and large 40” x 54” shower along with a full bath and linen closet.
Distinctive elements
9' ceilings throughout main floor with false beam accents.
Large kitchen with 8'x3' island.
Office space and laundry on ground floor.
Fully covered 14'x13' deck with access to the dining room.
Office area and laundry.
Three bedrooms upstairs and bathroom with independent 40"x54" shower.
Plan feature(s)
Office / Study / Den, Island, Gound floor laundry room, Ceiling over 8', Separate bath and shower, Deck, Veranda
Plan architectural style(s)
. Craftsman / Northwest, . Country, . Modern rustic, . Rustic, . Traditional, . American
