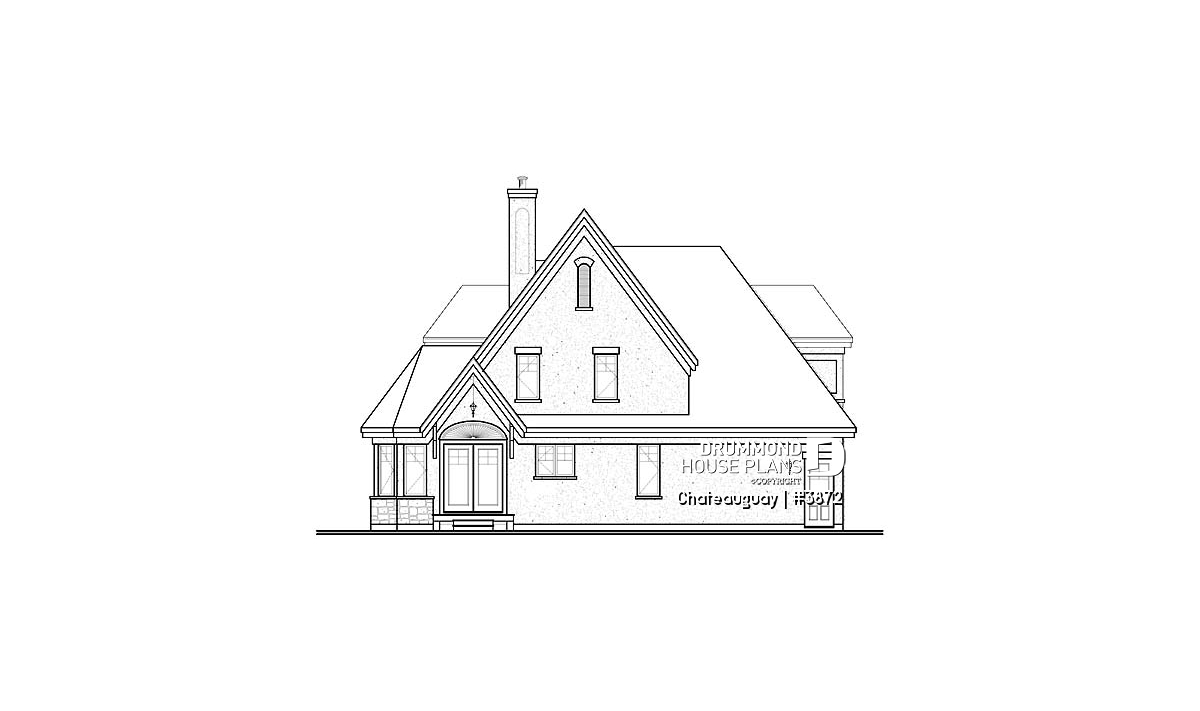

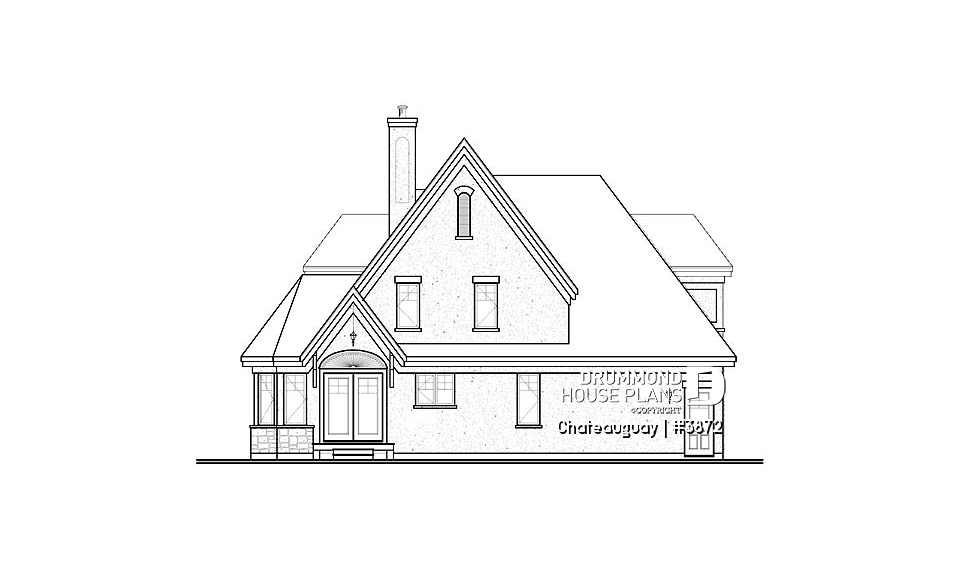

House plan Chateauguay (3872)
Manor style house for reduced mobility with elevator, 3 bedrooms, garage
View the size of the rooms and height of the ceilings

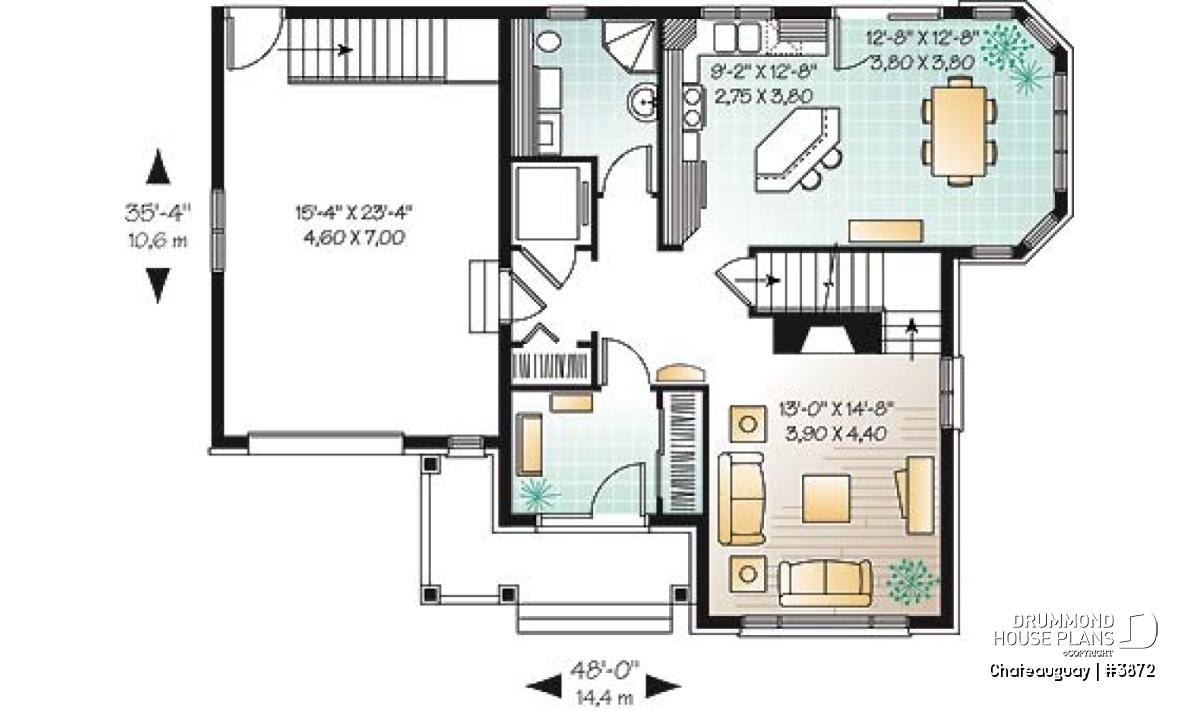

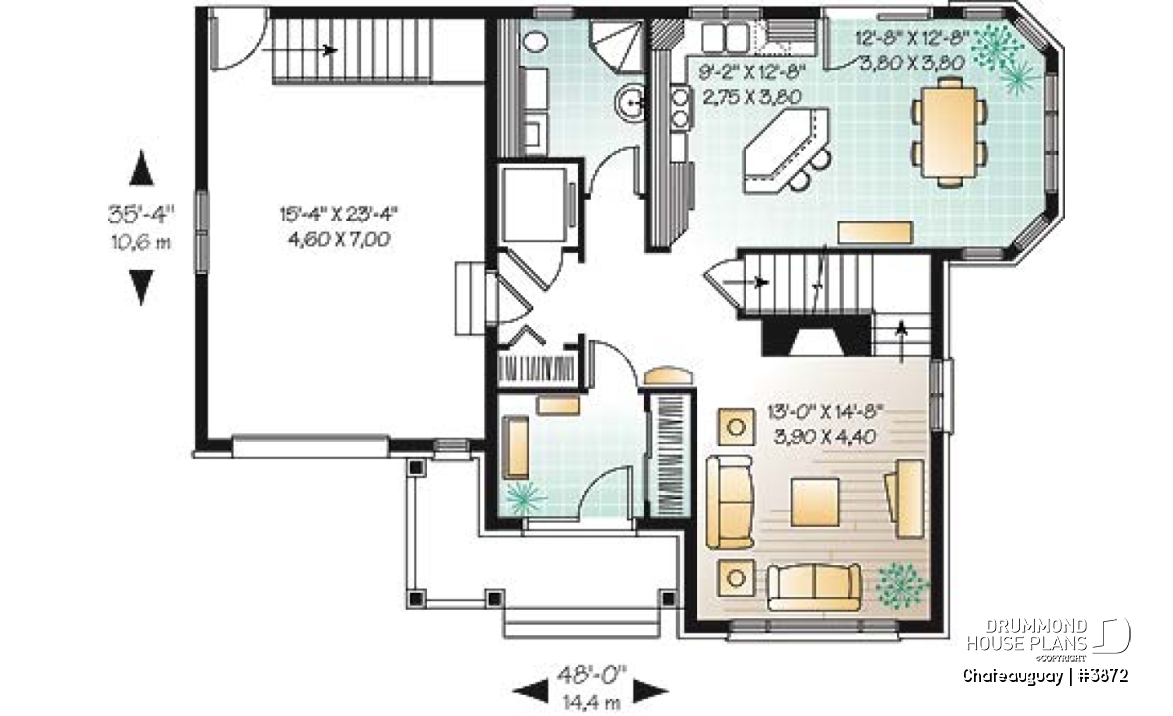

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 9'2" x 12'8" | ~ 8'0" |
| Garage | 15'4" x 23'4" | ~ 9'6" |
| Dining room | 12'8" x 12'8" | ~ 8'0" |
| Living room | 13'0" x 14'8" | ~ 13'8" |
| Foyer | 8'2" x 6'10" | ~ 8'0" |
| Full bathroom | 8'2" x 7'8" | ~ 8'0" |
| Porch | 15'0" x 4'0" | N/A |
| Porch | 8'2" x 5'0" | N/A |

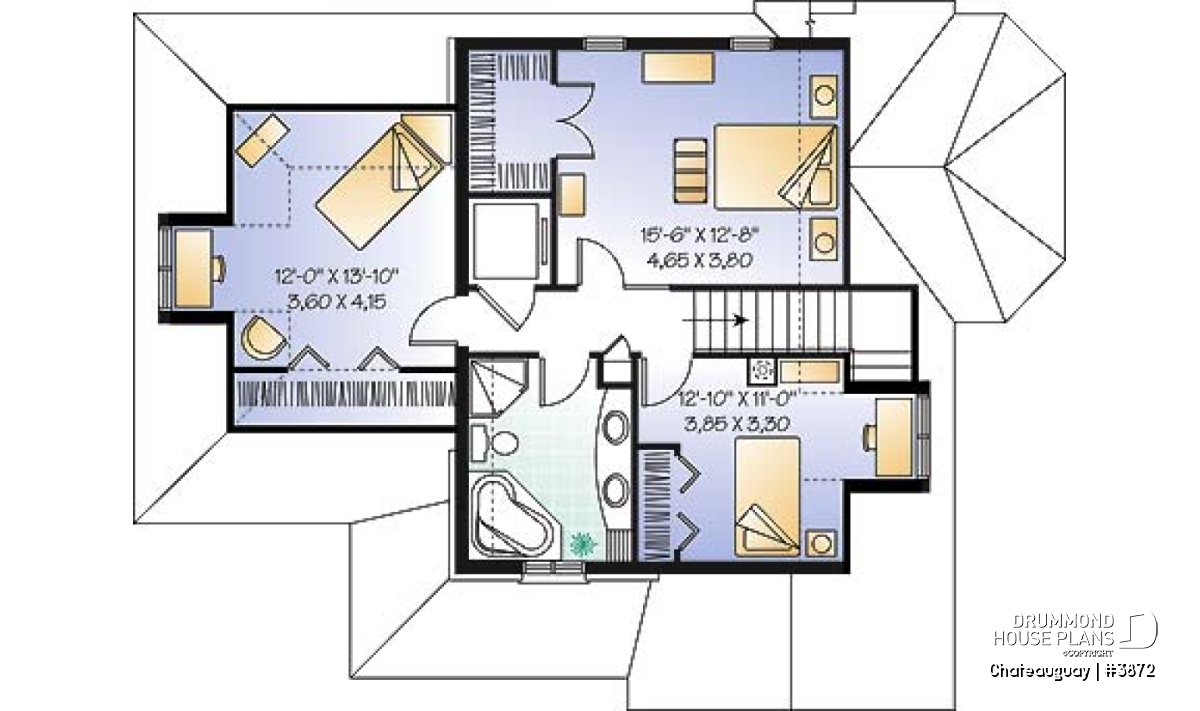

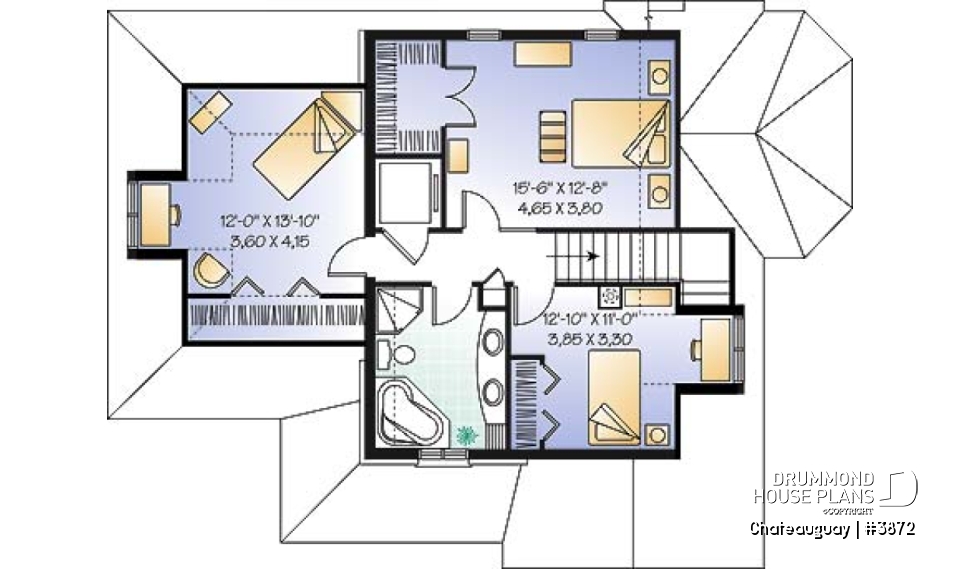

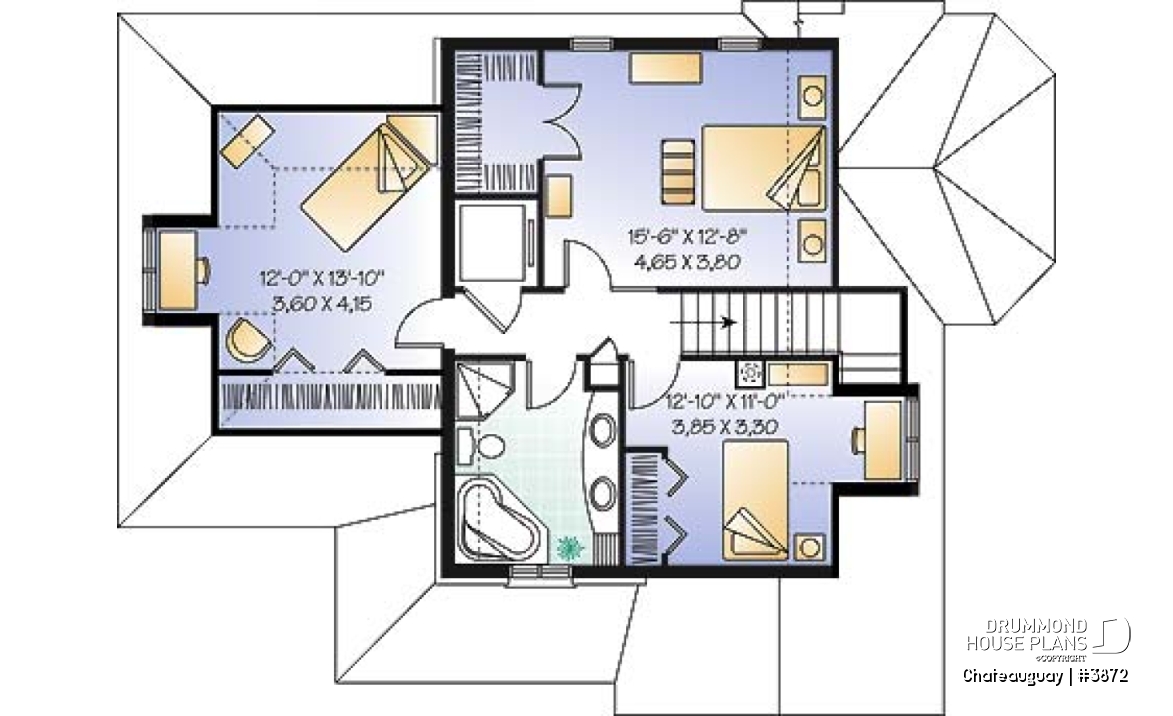

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 8'10" x 11'0" | ~ 8'0" |
| Bedroom | 15'6" x 12'8" | ~ 8'0" |
| Bedroom | 12'0" x 13'10" | ~ 8'0" |
| Bedroom | 12'10" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 1826 sq.ft. |
| 1st level | 918 sq.ft. |
| 2nd level | 908 sq.ft. |
| Width | 48'0" |
| Depth | 35'4" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Classic house including an elevator, ideal for people with reduced mobility!
.
Distinctive elements
Adequate size entry with a nearby elevator on three stories. Living room with fireplace and partial cathedral ceiling. Abundant fenestration in dining room. Lunch-island in the kitchen. Garage with stairs to the basement. Three nice bedrooms on 2nd floor, each with adequate storage.
Plan feature(s)
Elevator, Entrance hall, Island, Basement access from garage, Gound floor laundry room, Fireplace, Cathedral ceiling, Separate bath and shower, Double sinks, Walk-in master bed.
Plan architectural style(s)
. European, . Manors and small castles, Classic
