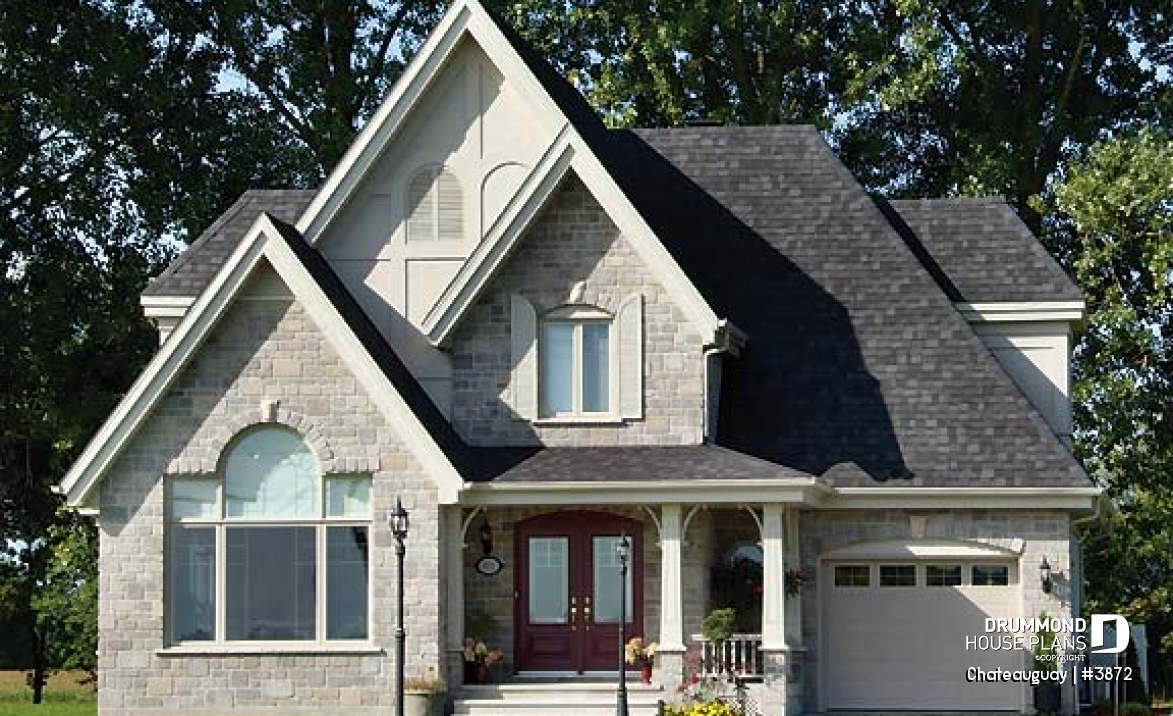

front - BASE MODEL

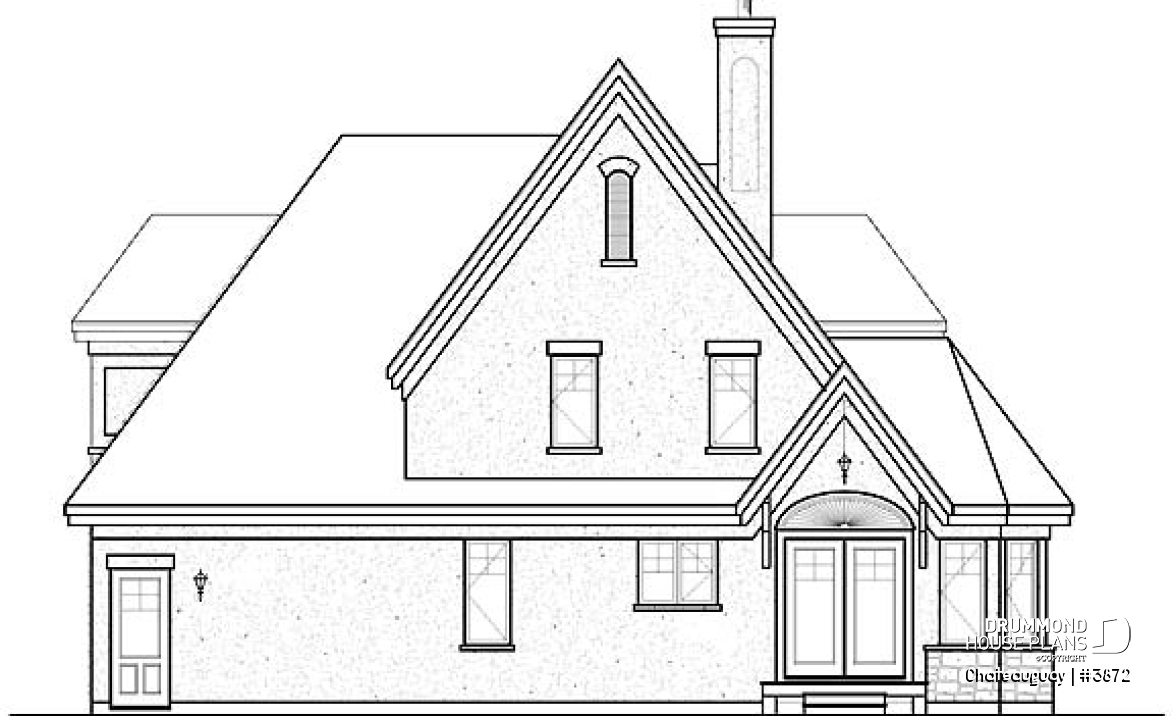

rear elevation

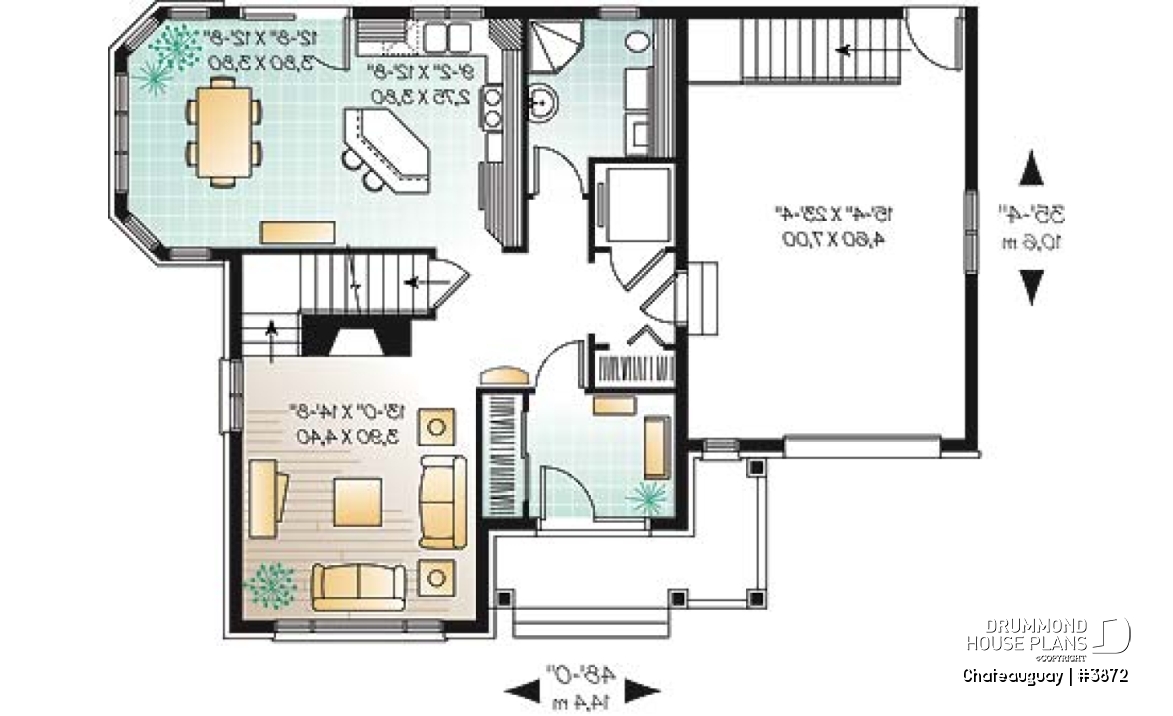

1st level

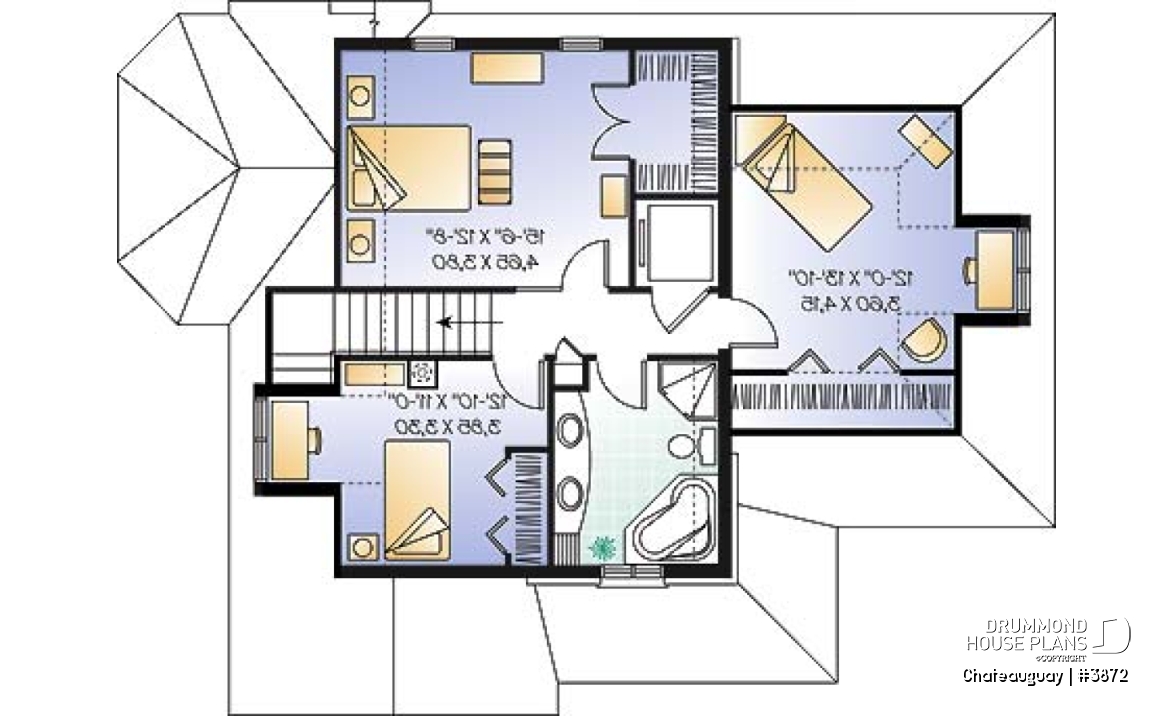

2nd level

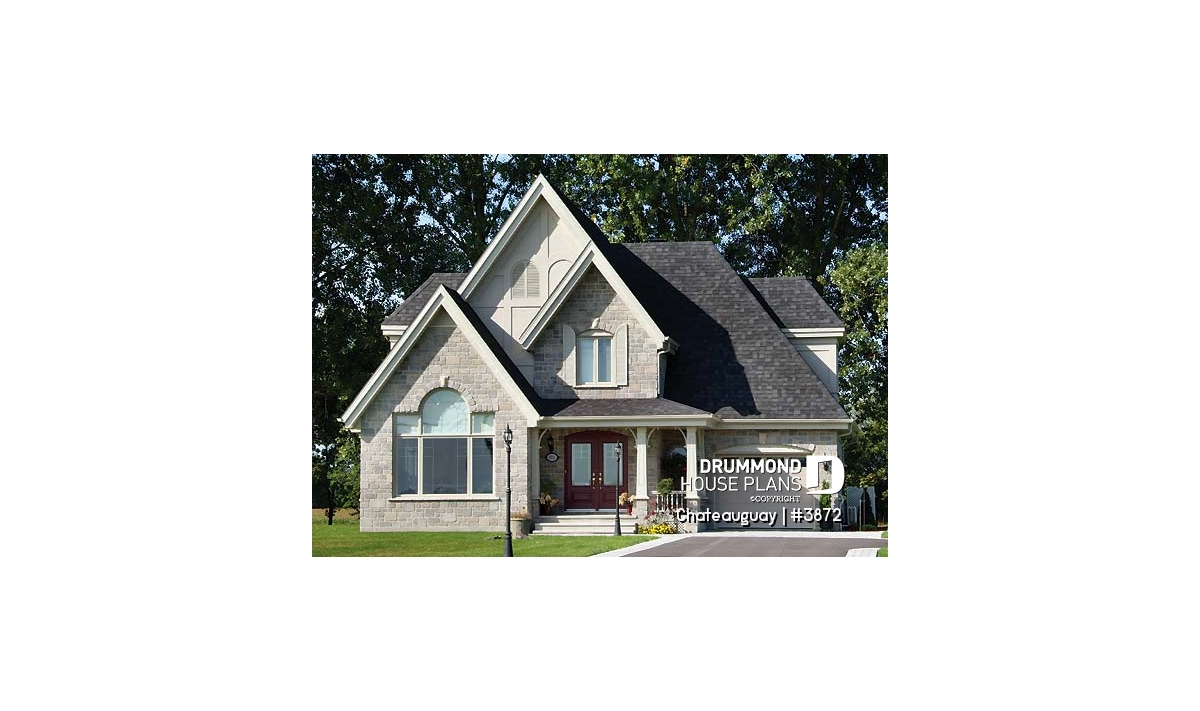

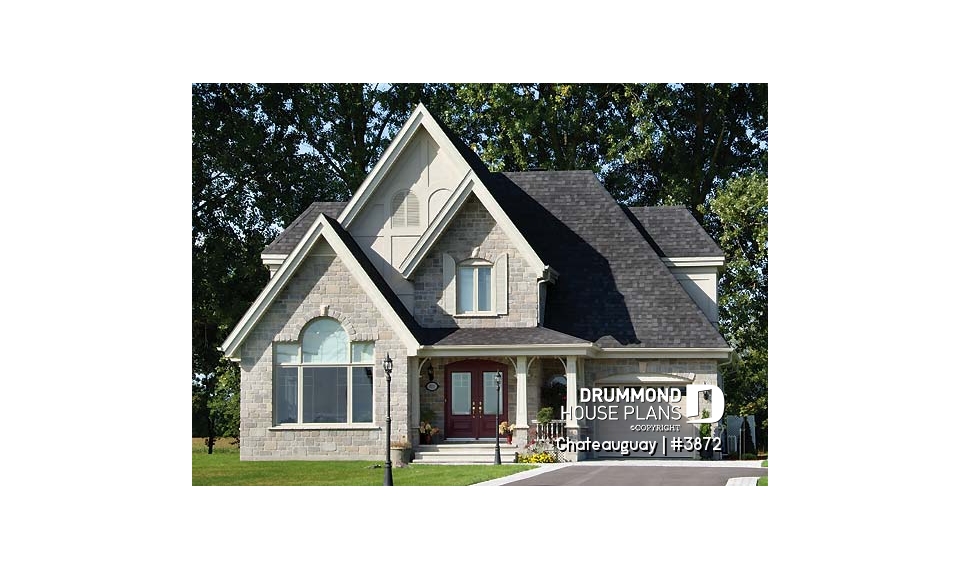

front - BASE MODEL

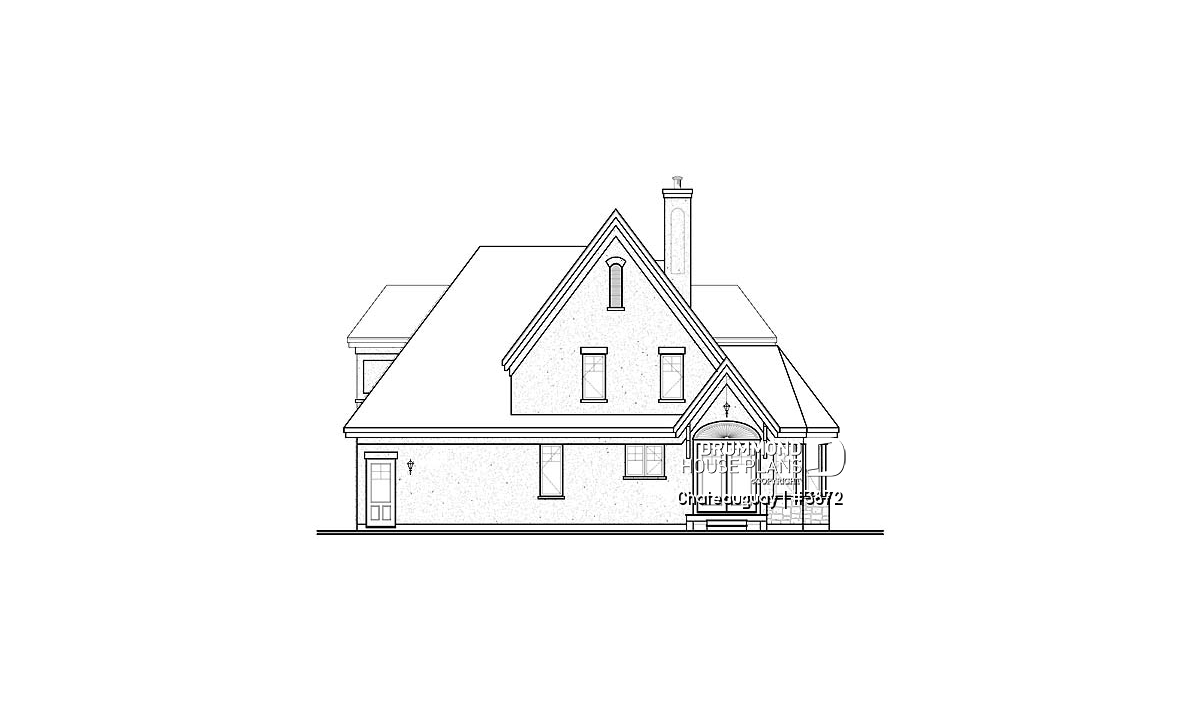

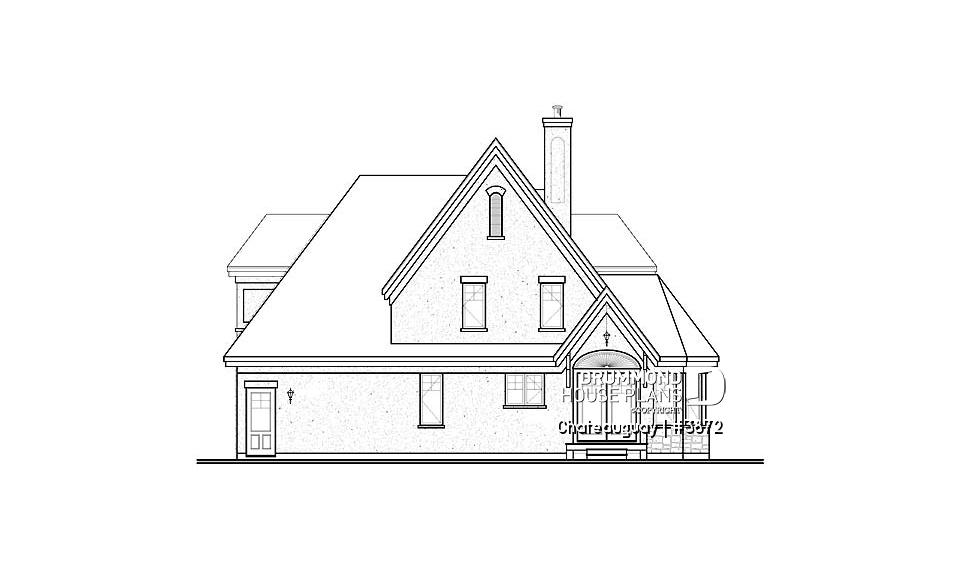

rear elevation

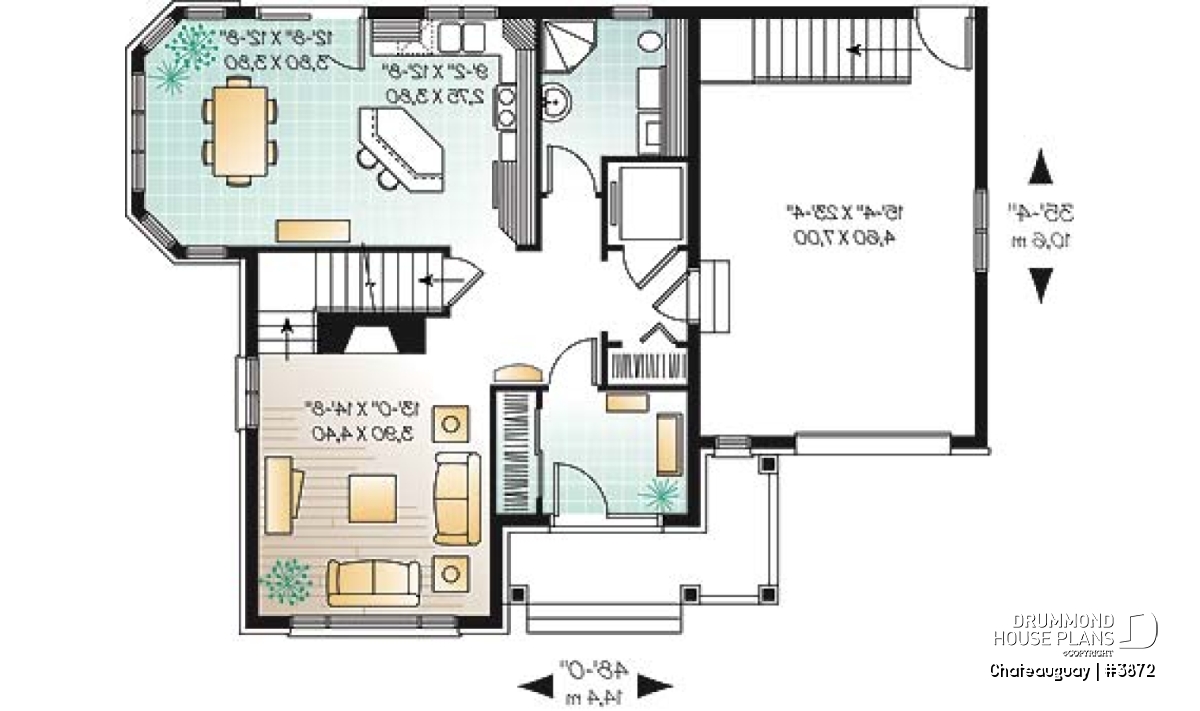

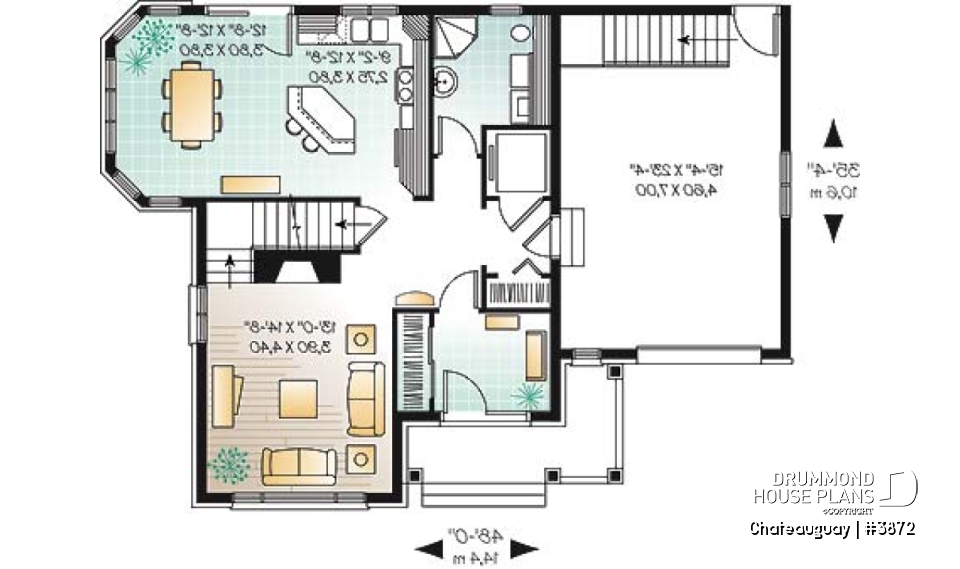

1st level

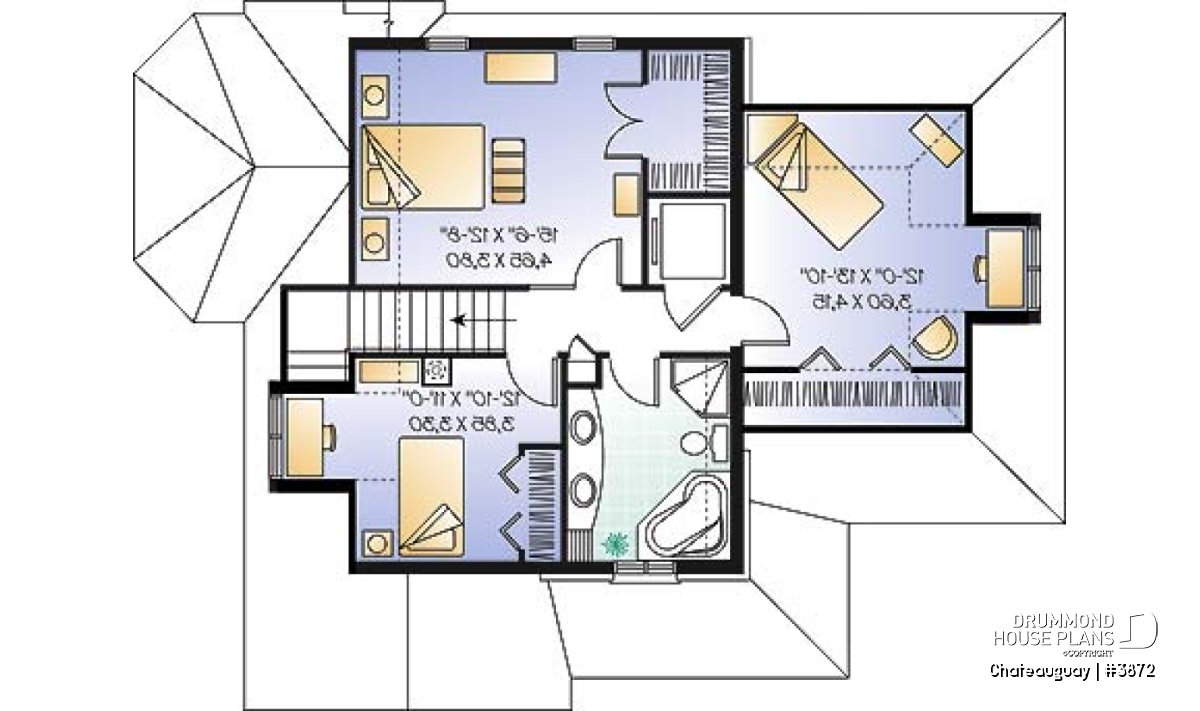

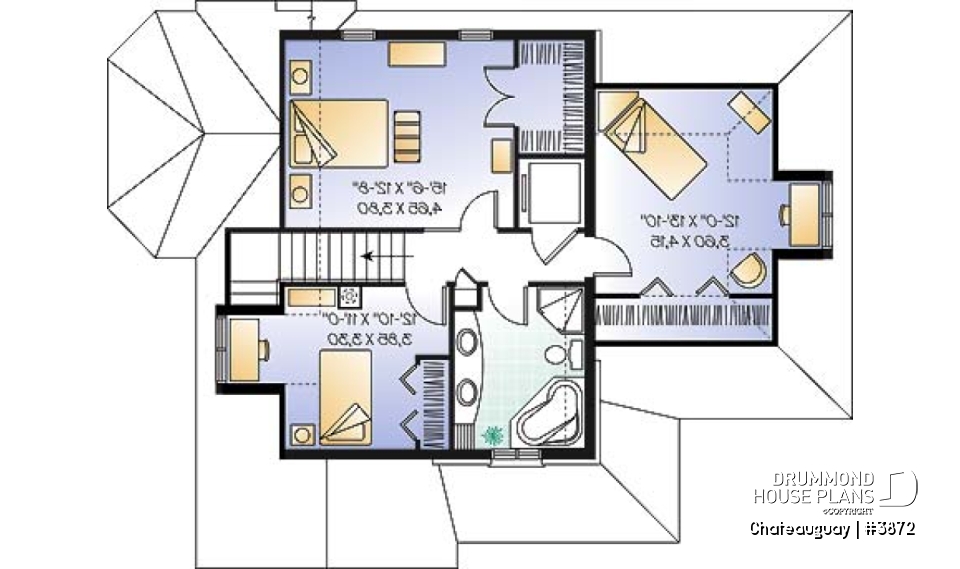

2nd level
House plan Chateauguay (# 3872) Manor style house for reduced mobility with elevator, 3 bedrooms, garage
3
2
1826 sq.ft.
One-car garage
Starting from
1740$
Additional details
General specifications
Total living area
1826 sq.ft.
1st level
918 sq.ft.
2nd level
908 sq.ft.
Width
48'0"
Depth
35'4"
Ridge height from top of foundation
32'2"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
E
Rooms specifications
Bedroom(s)
3
Full baths
2
Half baths
-
Garage type
One-car garage (400 sq.ft.)
Covered porch area
101 sq.ft.
1st level
Rooms
Sizes
Ceiling
Kitchen
9'2" x 12'8"
~ 8'0"
Garage
15'4" x 23'4"
~ 9'6"
Dining room
12'8" x 12'8"
~ 8'0"
Living room
13'0" x 14'8"
~ 13'8"
Foyer
8'2" x 6'10"
~ 8'0"
Full bathroom
8'2" x 7'8"
~ 8'0"
Porch
15'0" x 4'0"
N/D
Porch
8'2" x 5'0"
N/D
2nd level
Rooms
Sizes
Ceiling
Full bathroom
8'10" x 11'0"
~ 8'0"
Bedroom
15'6" x 12'8"
~ 8'0"
Bedroom
12'0" x 13'10"
~ 8'0"
Bedroom
12'10" x 11'0"
~ 8'0"
Classic house including an elevator, ideal for people with reduced mobility!
.
Distinctive elements
Adequate size entry with a nearby elevator on three stories. Living room with fireplace and partial cathedral ceiling. Abundant fenestration in dining room. Lunch-island in the kitchen. Garage with stairs to the basement. Three nice bedrooms on 2nd floor, each with adequate storage.
Plan feature(s)
Basement access from garage, Elevator, Separate bath and shower, Fireplace, Island, Double sinks, Cathedral ceiling, Gound floor laundry room, Entrance hall, Walk-in master bed.
Plan architectural style(s)
European, Manors and small castles, Classic
The plan Chateauguay is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
