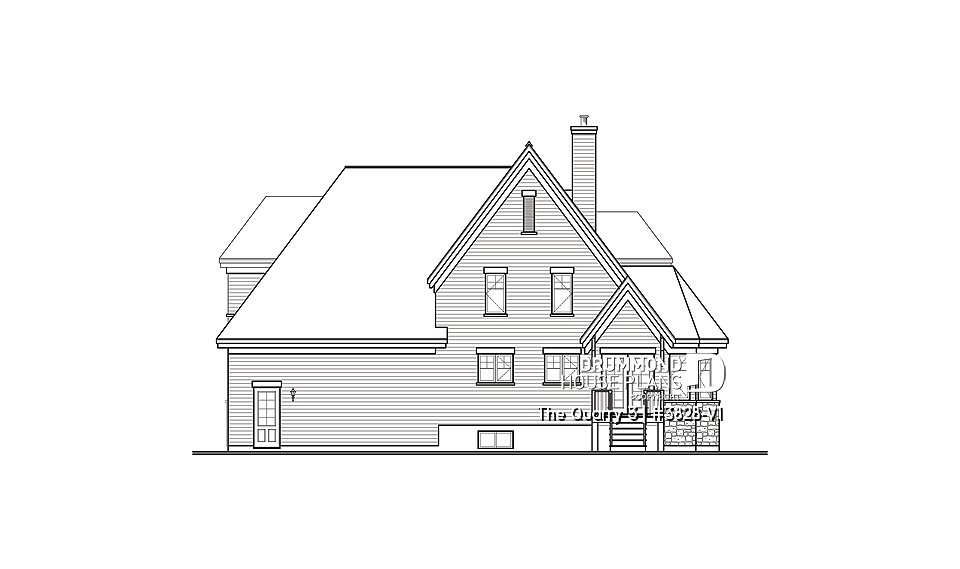

rear elevation
Color version 2 - Front
Color version 3 - Front
Color version 4 - Front
Color version 5 - Front
1st level
2nd level
Color version 1 - Front
front - ORIGINAL MODEL
front - BASE MODEL

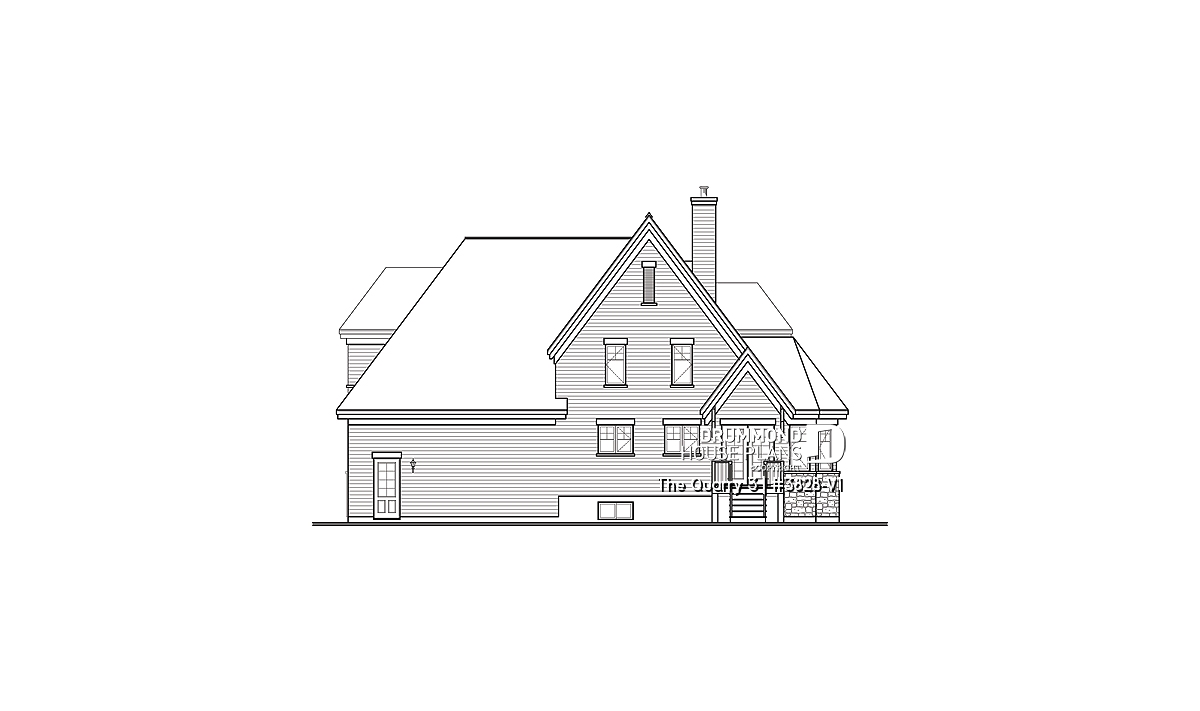

rear elevation
Color version 2 - Front
Color version 3 - Front
Color version 4 - Front
Color version 5 - Front
1st level
2nd level
House plan The Quarry 3 (# 3828-V1) Tudor style house plan with 4 bedrooms, seperated master bedroom with tub, 2-car garage
4
2
1982 sq.ft.
Two-car garage
Starting from
1740$
Additional details
General specifications
Total living area
1982 sq.ft.
1st level
925 sq.ft.
2nd level
1057 sq.ft.
Width
56'0"
Depth
35'4"
Ridge height from top of foundation
34'5"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space
Builder price code
E
Rooms specifications
Bedroom(s)
4
Full baths
2
Half baths
1
Garage type
Two-car garage (639 sq.ft.)
Covered porch area
60 sq.ft.
1st level
Rooms
Sizes
Ceiling
Kitchen/dinette
9'2" x 12'8"
~ 8'0"
Dining room
12'8" x 12'8"
~ 8'0"
Living room
13'0" x 14'8"
~ 13'8"
Foyer
8'2" x 6'10"
~ 8'0"
Foyer
4'4" x 5'0"
~ 8'0"
Half bath or powder room
8'2" x 5'0"
~ 8'0"
Utility room
8'2" x 7'2"
~ 8'0"
Porch
15'0" x 4'0"
N/D
Deck
8'0" x 5'0"
N/D
Garage
23'4" x 25'0"
~ 11'0"
2nd level
Rooms
Sizes
Ceiling
Full bathroom
8'8" x 11'0"
~ 8'0"
Master suite
14'0" x 12'4"
~ 9'0"
Bedroom
12'10" x 11'0"
~ 8'0"
Bedroom
10'0" x 10'4"
~ 8'0"
Bedroom
10'0" x 10'4"
~ 8'0"
Linen
1'8" x 2'0"
~ 8'0"
Tudor style 4 bedroom house plan with a 2-car garage
.
Distinctive elements
Fireplace and partial cathedral ceiling in living room. Closet in the foyer, and also in the service entrance from which we can access the garage. Abundant windows in the dining room. Four bedrooms on 2nd level, including a master suite with walk-in closet, bath in the lateral gable, independant 60" x 56" shower, two sinks and closed toilet. Other bathroom on 2nd level with 40" x 40" shower for practical side. Two-car garage with access to the basement.
Plan feature(s)
Basement access from garage, Separate bath and shower, Fireplace, Cathedral ceiling, Sloped ceiling, Gound floor laundry room, Entrance hall, Panoramic view, His/Hers walk-in
Plan architectural style(s)
Farmhouse, European, Manors and small castles, Craftsman / Northwest, American, Transitional, Mountain, Tudor
The plan The Quarry 3 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
