Garage plan Kilkenny (3983)
Large 3-car garage with workshop, half bath and unfinished bonus room on second floor
View the size of the rooms and height of the ceilings

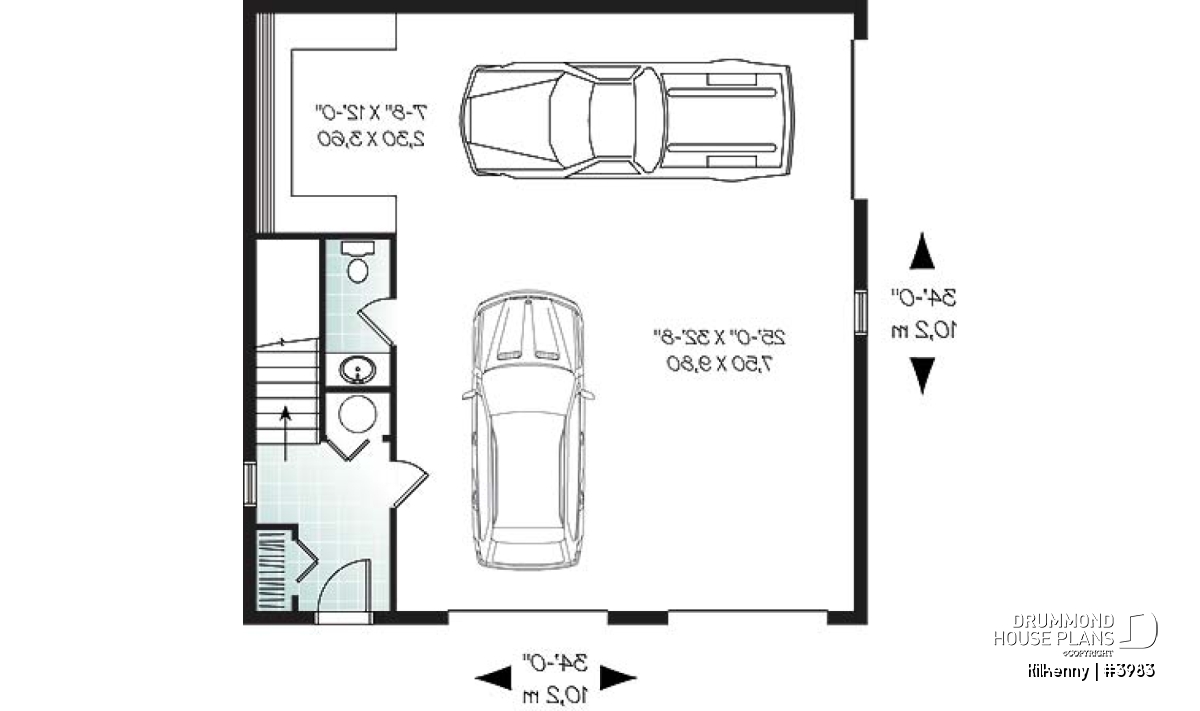

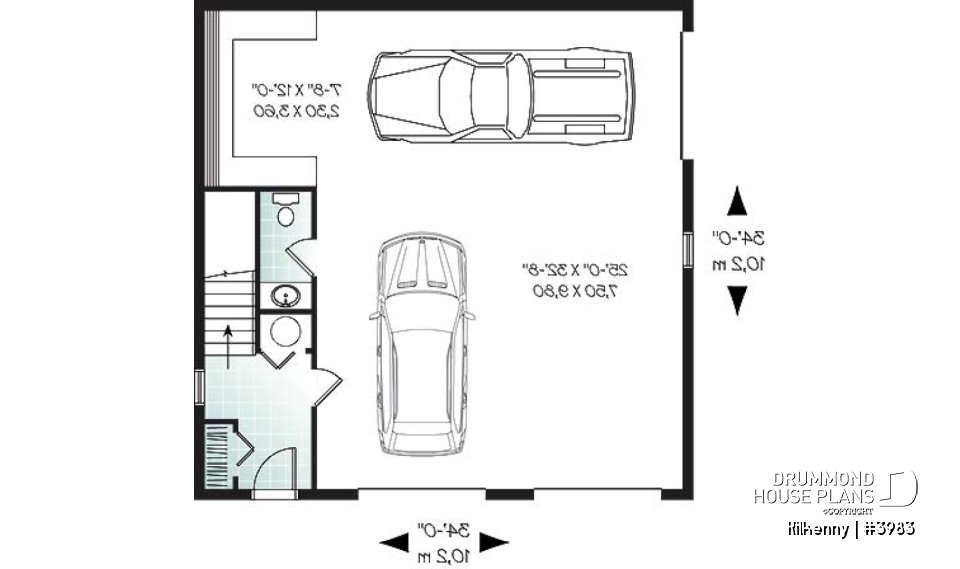

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

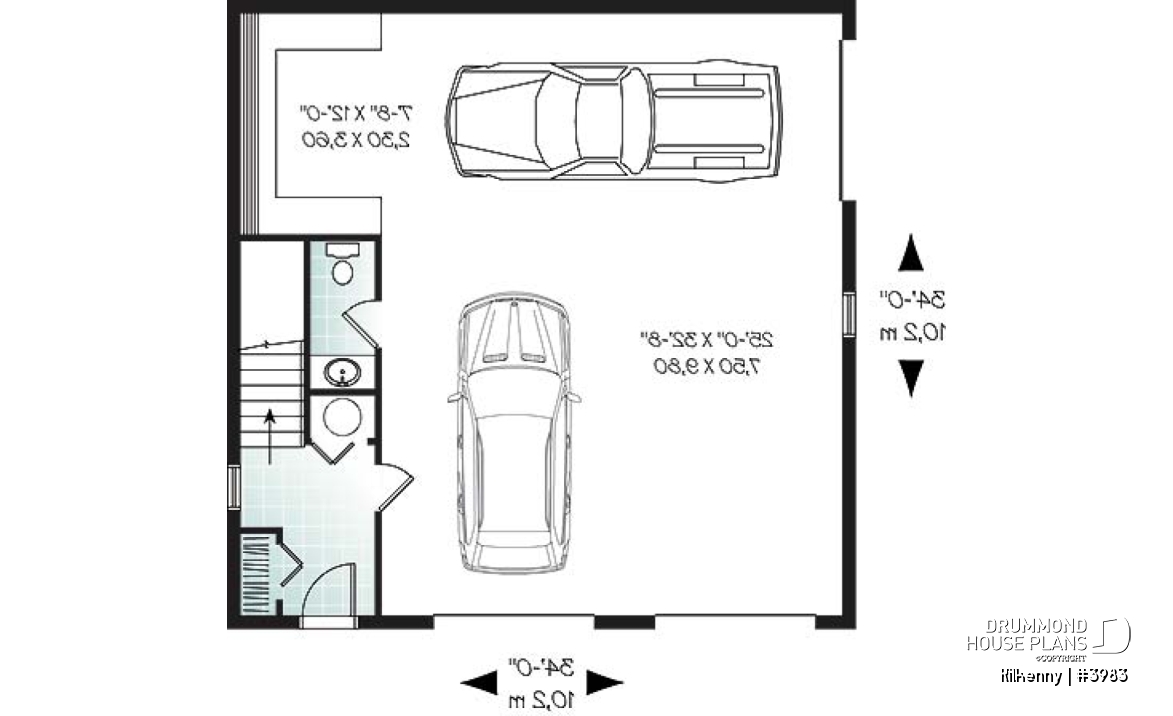

| Workshop | 7'8" x 12'0" | ~ 8'0" |
| Garage | 25'0" x 32'8" | ~ 8'0" |
| Half bath or powder room | 3'6" x 8'0" | ~ 8'0" |
| Storage | 3'6" x 2'4" | ~ 8'0" |
| Foyer | 5'0" x 4'10" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

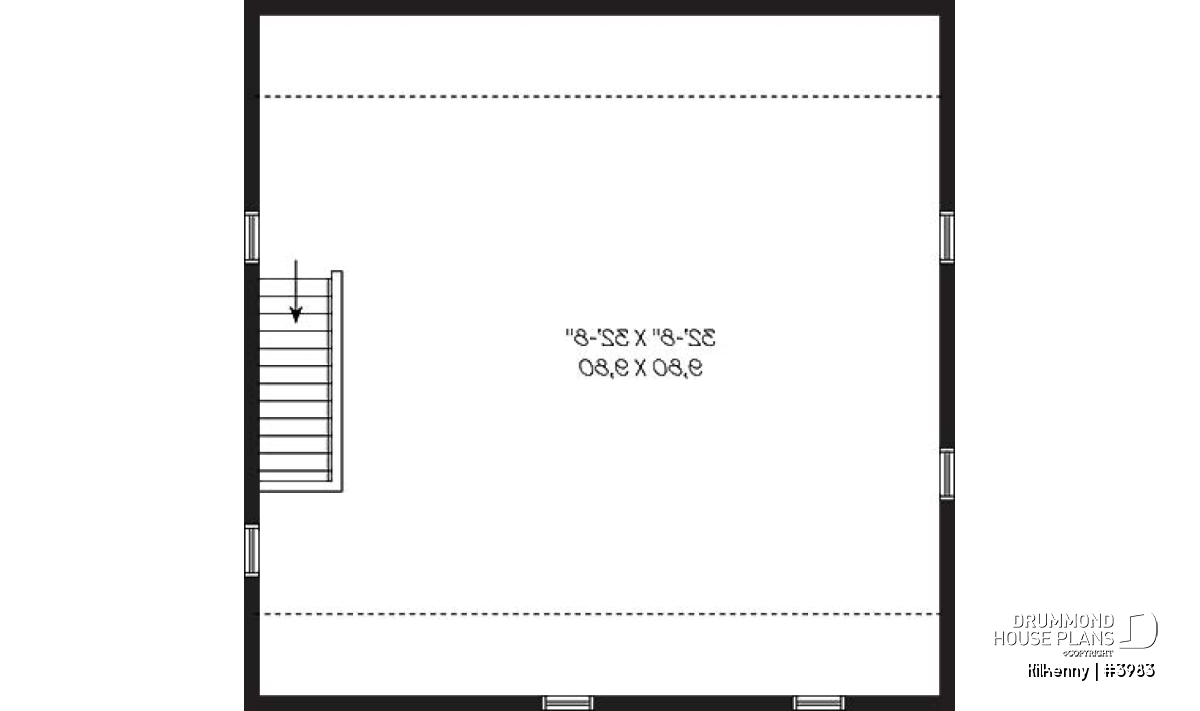

| Living bonus room | 32'8" x 32'8" | ~ 8'0" |
General specifications
| Total living area | 2268 sq.ft. |
| 1st level | 1156 sq.ft. |
| 2nd level | 1112 sq.ft. |
| Width | 34'0" |
| Depth | 34'0" |
| Ridge height from top of foundation | 29'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G3C |
Rooms specifications
Other useful information on this plan
Dreamy Workshop & a large 3-car garage with a practical half bath
This beautiful outbuilding exudes quaint charm and fabulous flexibility.
With two forward garage stalls and an extra deep side-load bay, this garage is a handyman's dream! A half bath allows for onsite cleanup and an undeveloped upstairs is ready for your inspiration. Teen getaway, studio, mortgage helper or fabulous storage?
Distinctive elements
3-car garage with large flex space on second floor.
Remarkable space on the second level with 1156 square feet.
Dimension: 34' x 34'.
8' ceiling everywhere.
Plan feature(s)
Plan architectural style(s)
. Country, . American, . Traditional
