Colechester (3040)
Intergenerational house plan, 2 beds and fireplace in family apt., 1 bed in the in-laws apartment
Bedrooms
2, 3
Bath(s)
1
Half B.
-
Living area
2020 sq.ft.
front - BASE MODEL

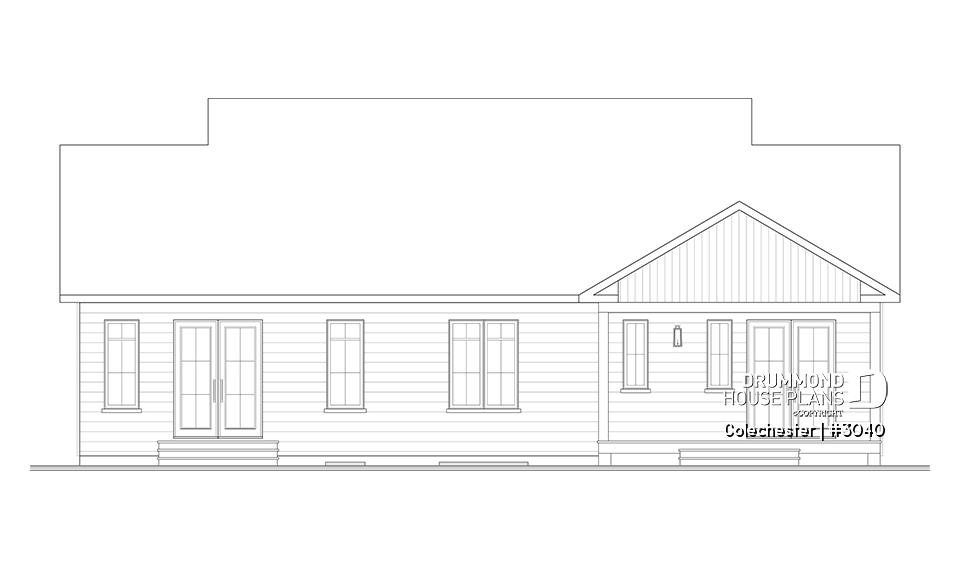

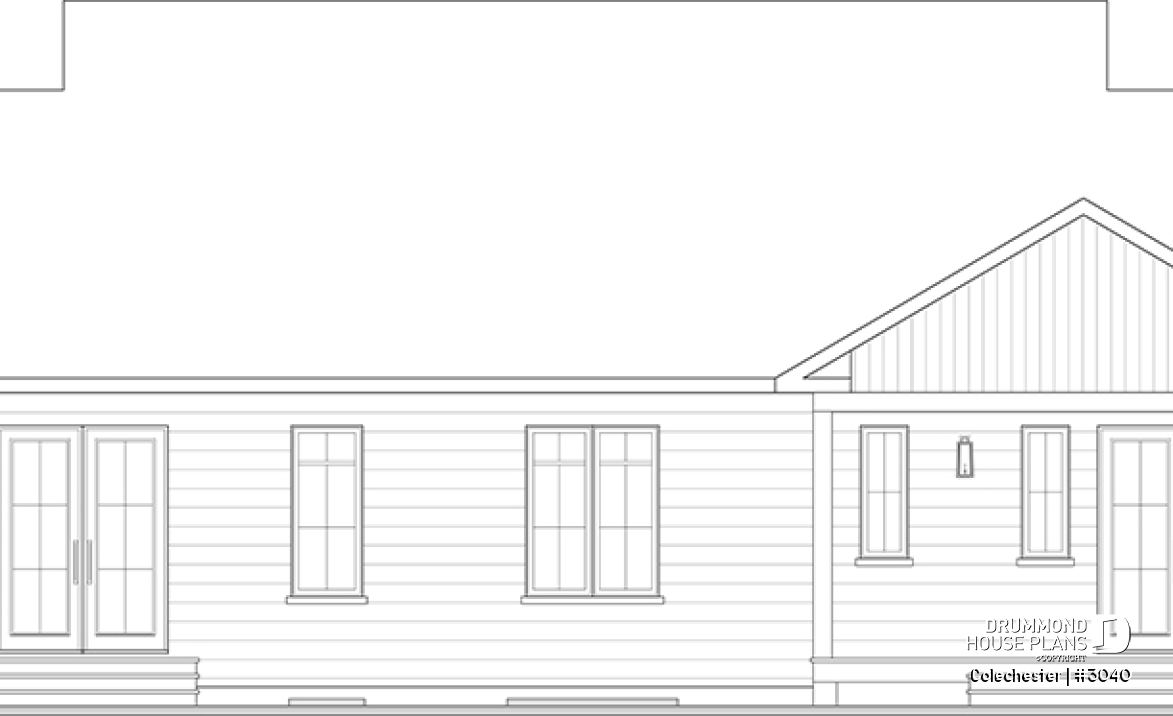

rear elevation
View by floor
-
1st level
View the size of the rooms and height of the ceilings
| 1st level | ||||
| Rooms | Sizes | Ceiling | ||
| Kitchen/dinette | 9'0" x 15'0" | ~ 8'0" | ||
| Kitchen/dining room | 19'0" x 14'4" | ~ 8'0" | ||
| Living room | 13'6" x 15'0" | ~ 8'0" | ||
| Living room | 13'0" x 16'0" | ~ 8'6" | ||
| Foyer | 4'10" x 9'3" | ~ 8'0" | ||
| Closet | 2'0" x 8'8" | ~ 8'0" | ||
| Foyer | 5'4" x 7'8" | ~ 8'0" | ||
| Closet | 2'0" x 6'2" | ~ 8'0" | ||
| Full bathroom | 5'8" x 8'4" | ~ 8'0" | ||
| Full bathroom | 10'8" x 8'8" | ~ 8'0" | ||
| Bedroom | 12'0" x 12'8" | ~ 8'0" | ||
| Closet | 9'2" x 2'0" | ~ 8'0" | ||
| Bedroom | 13'8" x 11'0" | ~ 8'0" | ||
| Closet | 2'0" x 11'0" | ~ 8'0" | ||
| Bedroom | 10'0" x 12'4" | ~ 8'0" | ||
| Closet | 4'4" x 2'0" | ~ 8'0" | ||
| Laundry room | 5'8" x 3'0" | ~ 8'0" | ||
| Storage | 1'0" x 7'10" | ~ 8'0" | ||
| Porch | 8'0" x 3'8" | N/A | ||
| Deck | 8'0" x 4'0" | N/A | ||
| Deck | 8'0" x 4'0" | N/A | ||
| Porch | 3'8" x 6'10" | N/A | ||
General specifications
| Total living area | 2020 sq.ft. |
| 1st level | 2020 sq.ft. |
| Width | 54'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 22'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | 1/2 Basement - 1/2 Crawl i |
| Builder price code | MB |
Rooms specifications
Units specifications
Buy this plan
From 1515$
Description
1st Floor: Family appartment ( 1210 sq.ft. ): Foyer, kitchen/dinette, dining room, living room, 2 bedrooms and bathroom. Grand-parents' suite ( 810 sq.ft. ): Entry, kitchen/dinette/living room, bedroom, bathroom and laundry area.
Other useful information on this plan
Full description
One-storey intergenerational house plan with 1 and 2 bedrooms
.
Distinctive elements
Separate entry foyer. Lowered living room with fireplace on family side. Remarquable bathroom, with bath, separate shower and a corner double sink. Attractive closets in both entries and in both master bedrooms. Windows on all four elevations.
Plan feature(s)
Fireplace, Lunch counter, Gound floor laundry room, Sunken living room, Double sink vanity, Separate bath and shower, Entrance hall, Sunken living room
Plan architectural style(s)
