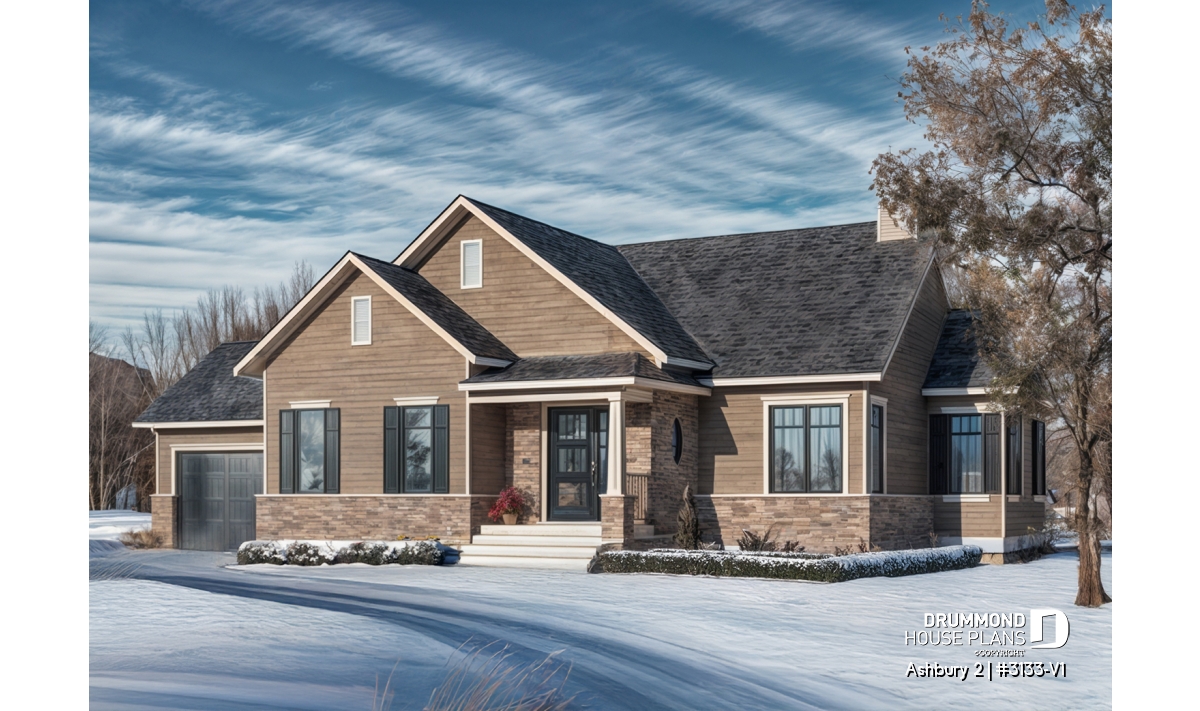

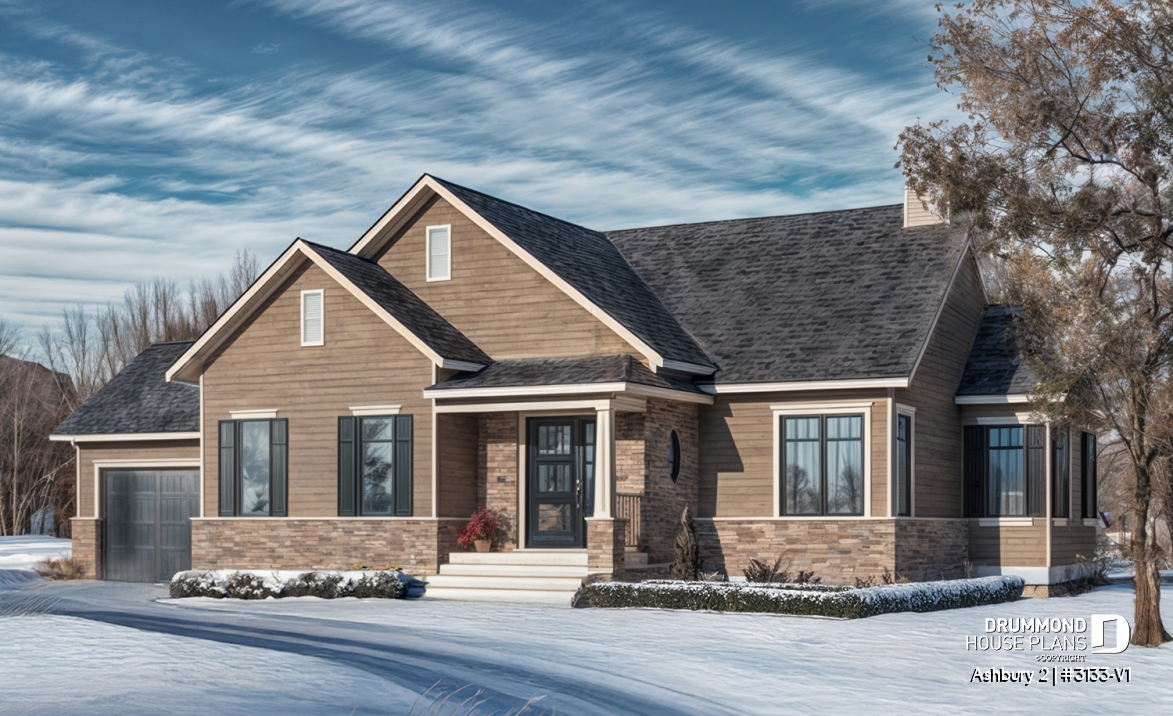

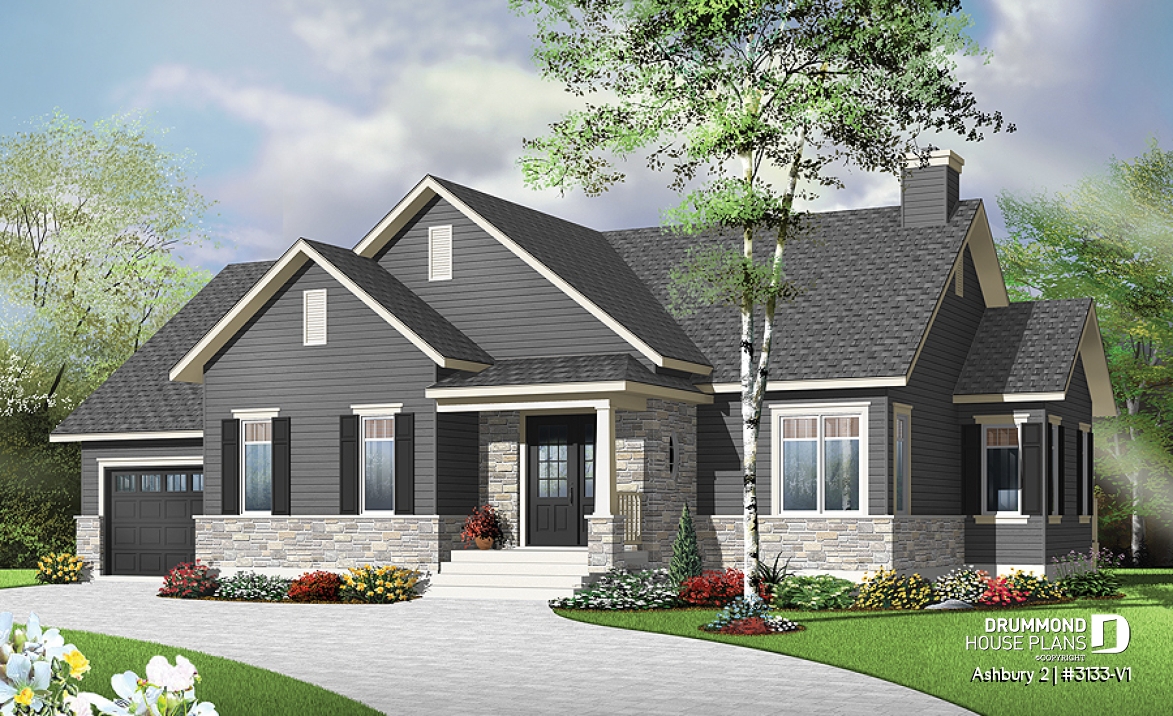

front - BASE MODEL

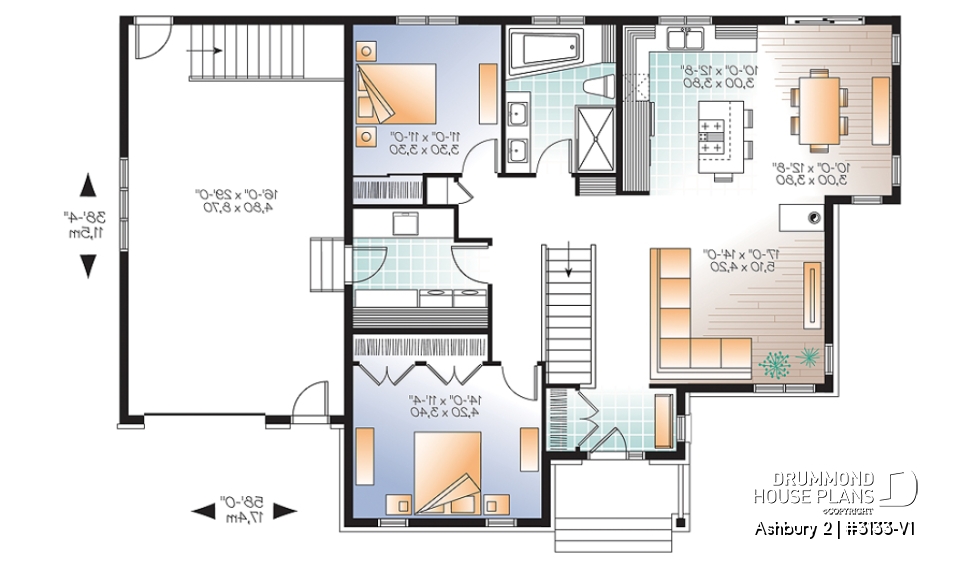

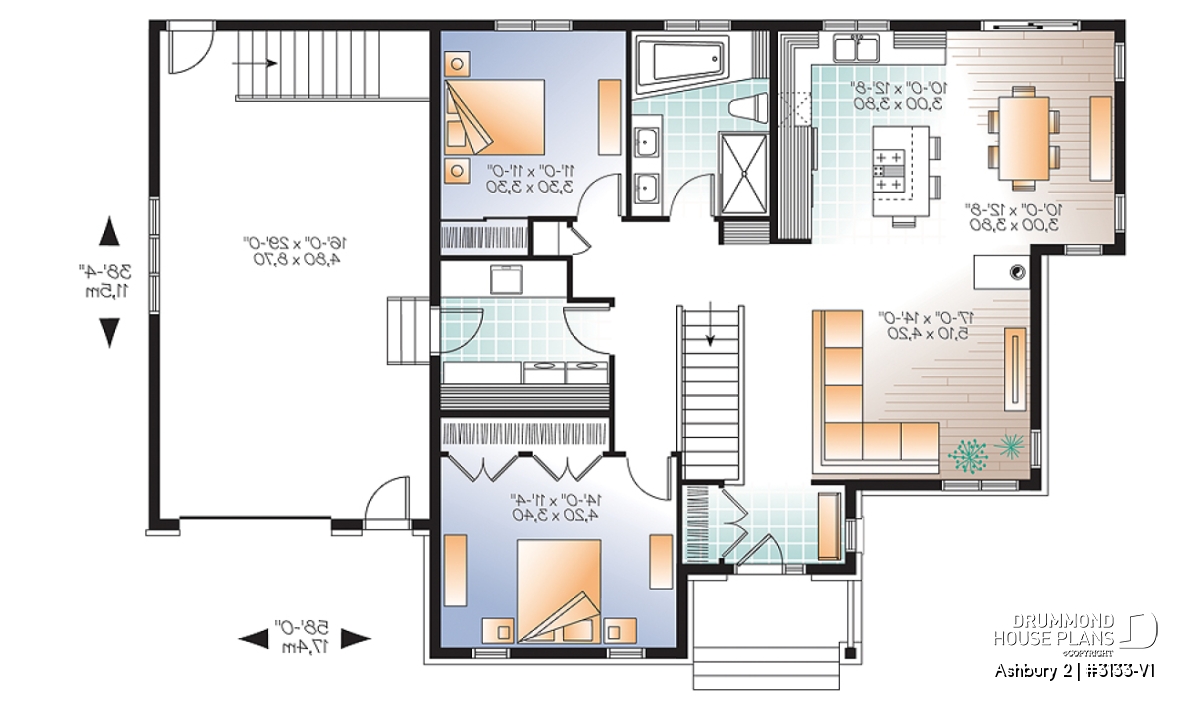

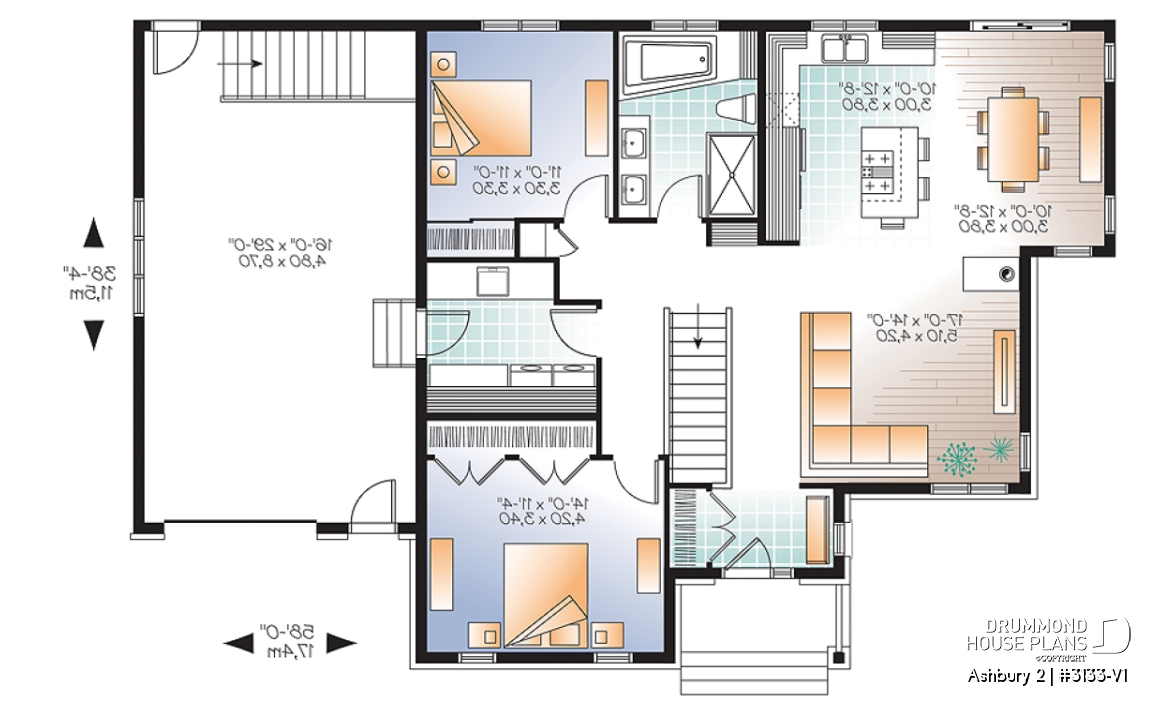

1st level
front - BASE MODEL

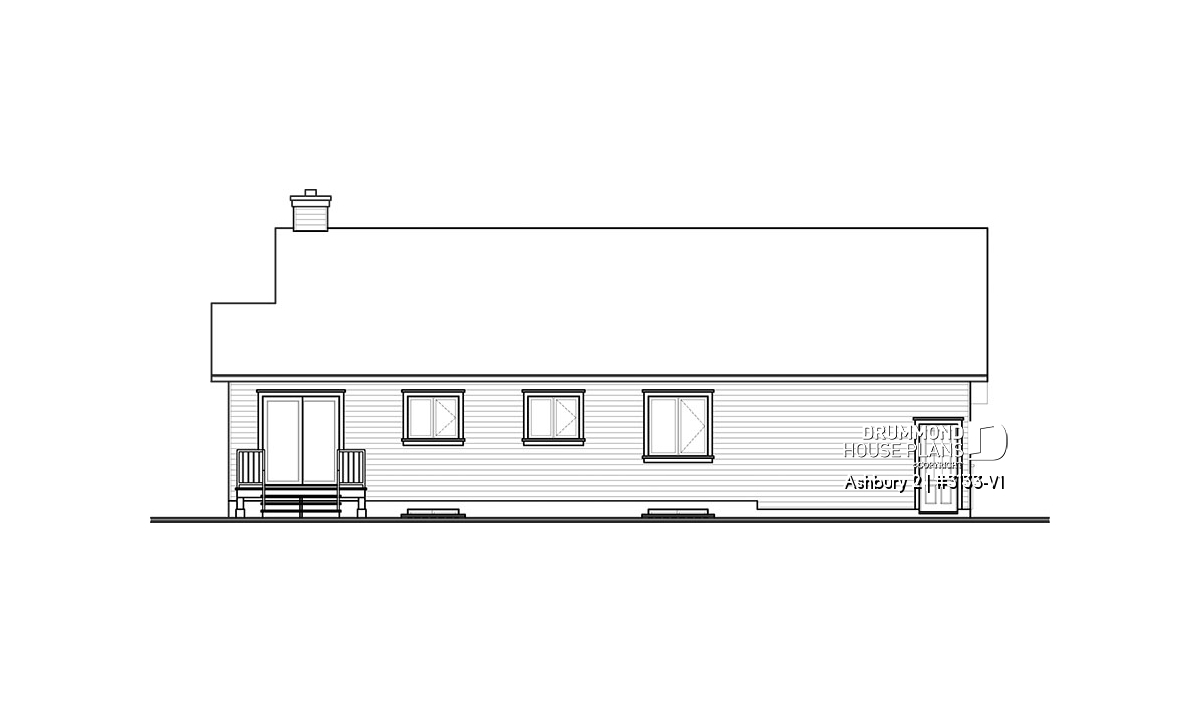

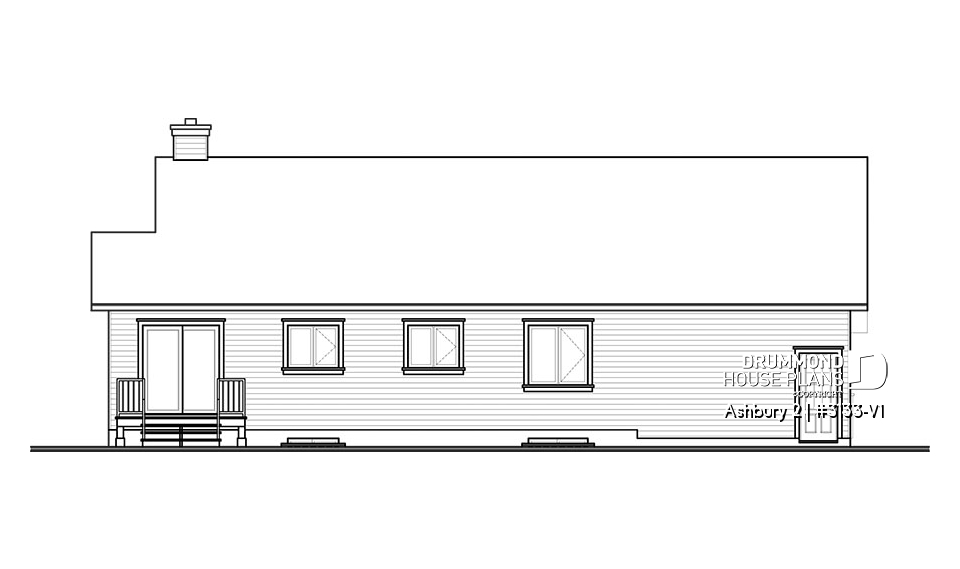

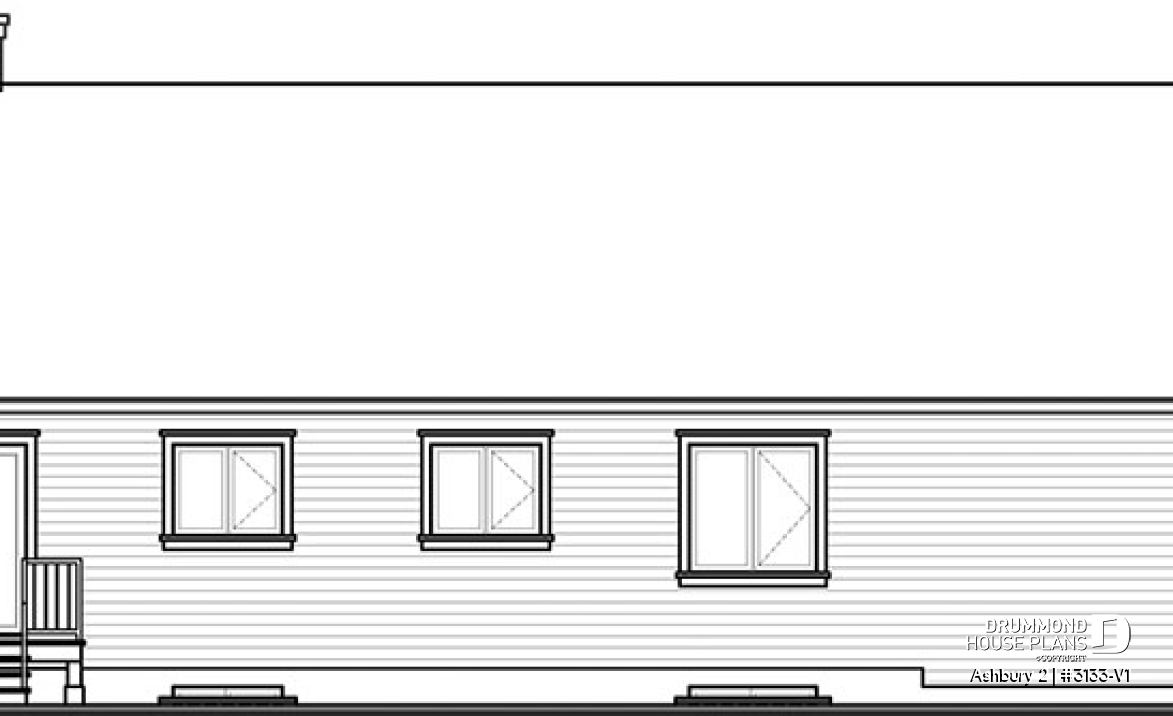

rear elevation

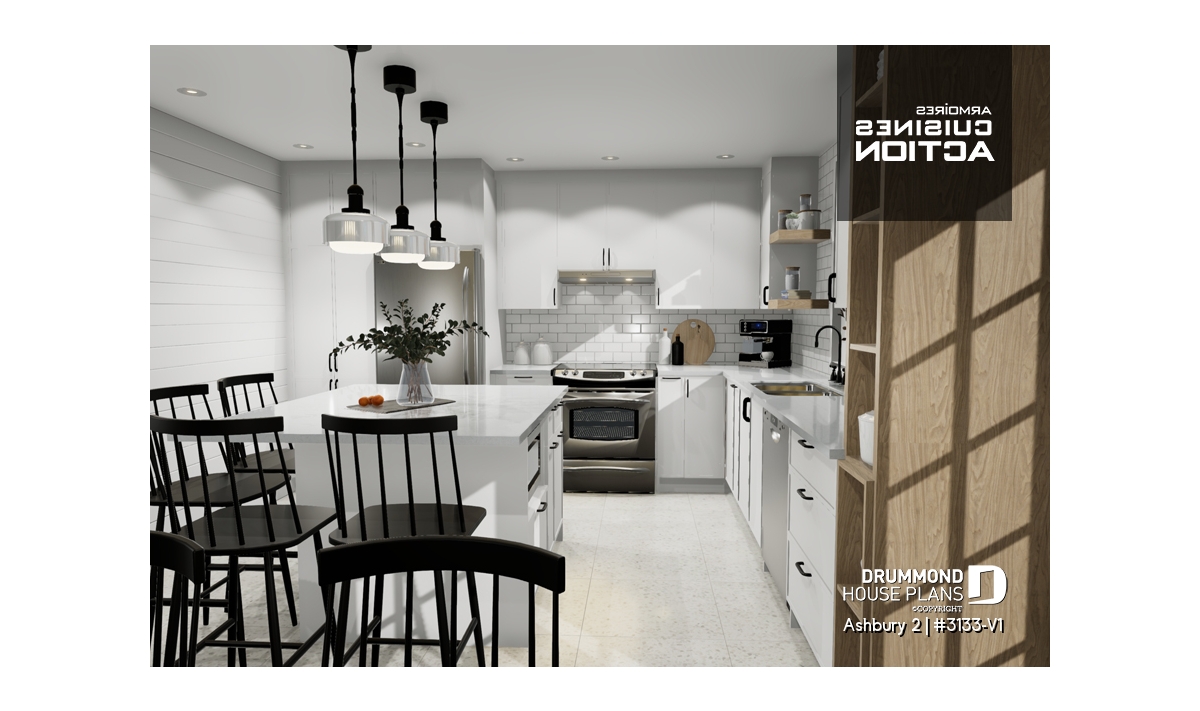

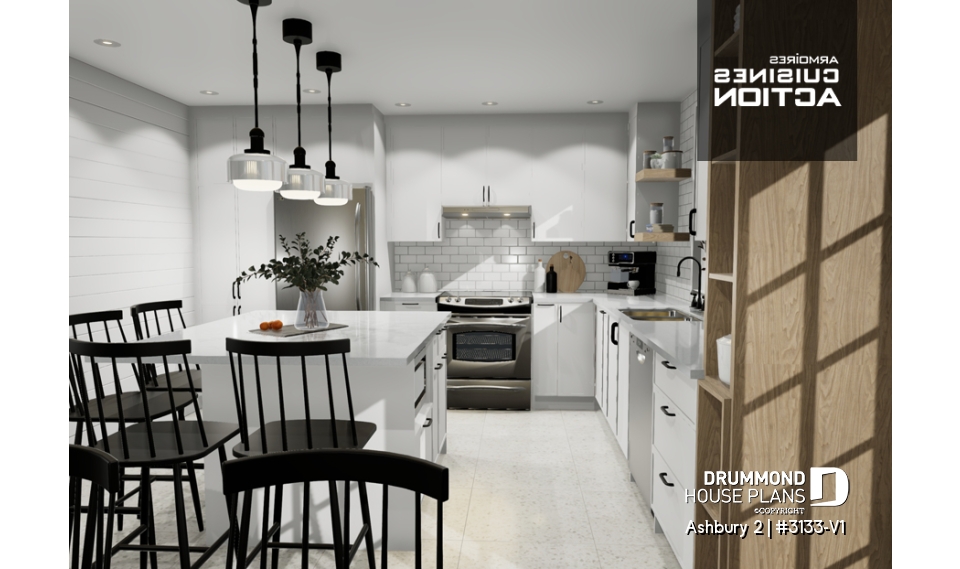

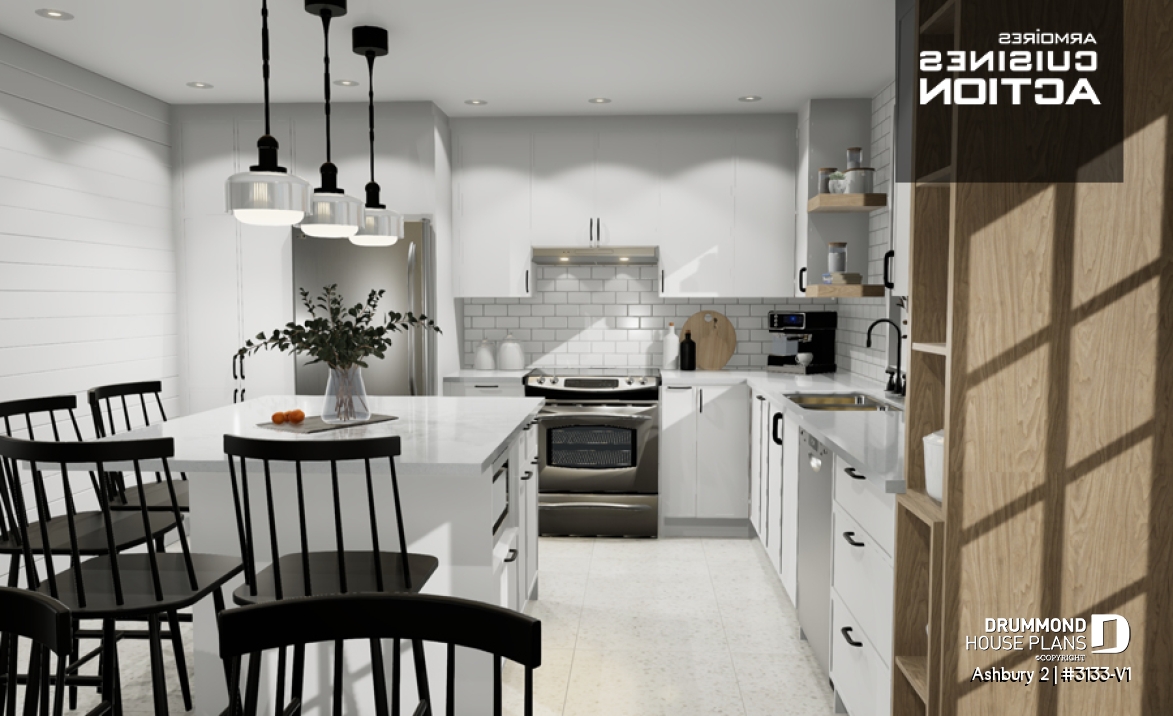

interior view

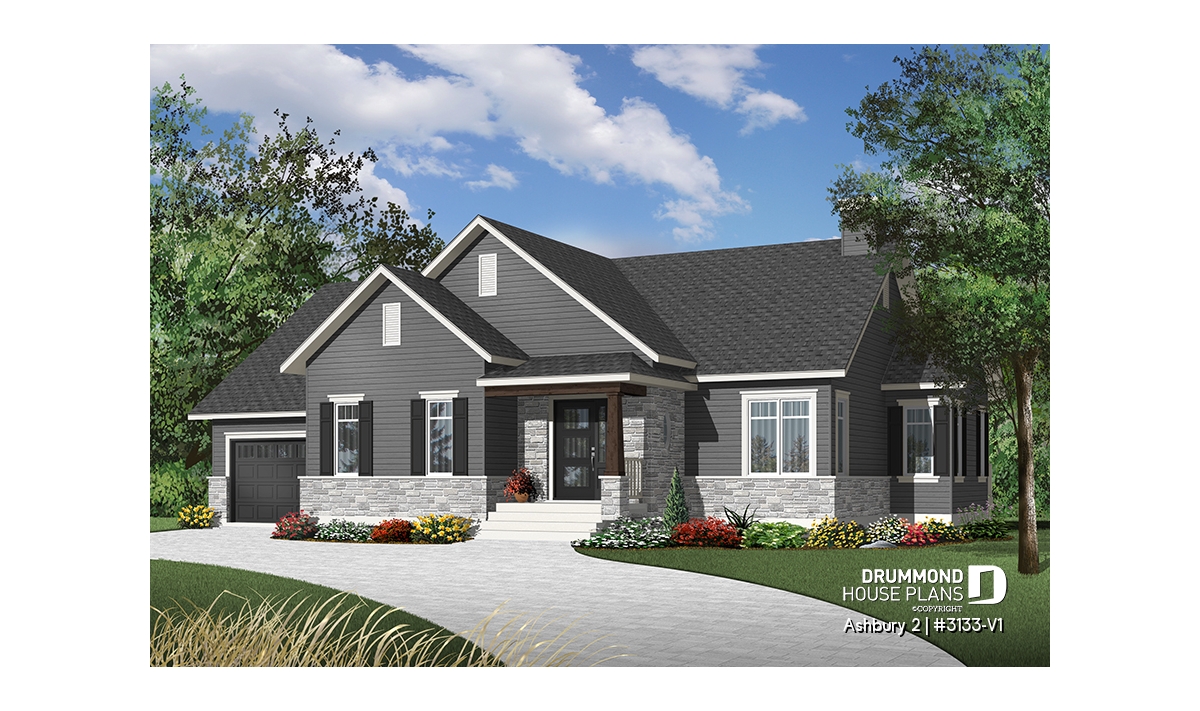

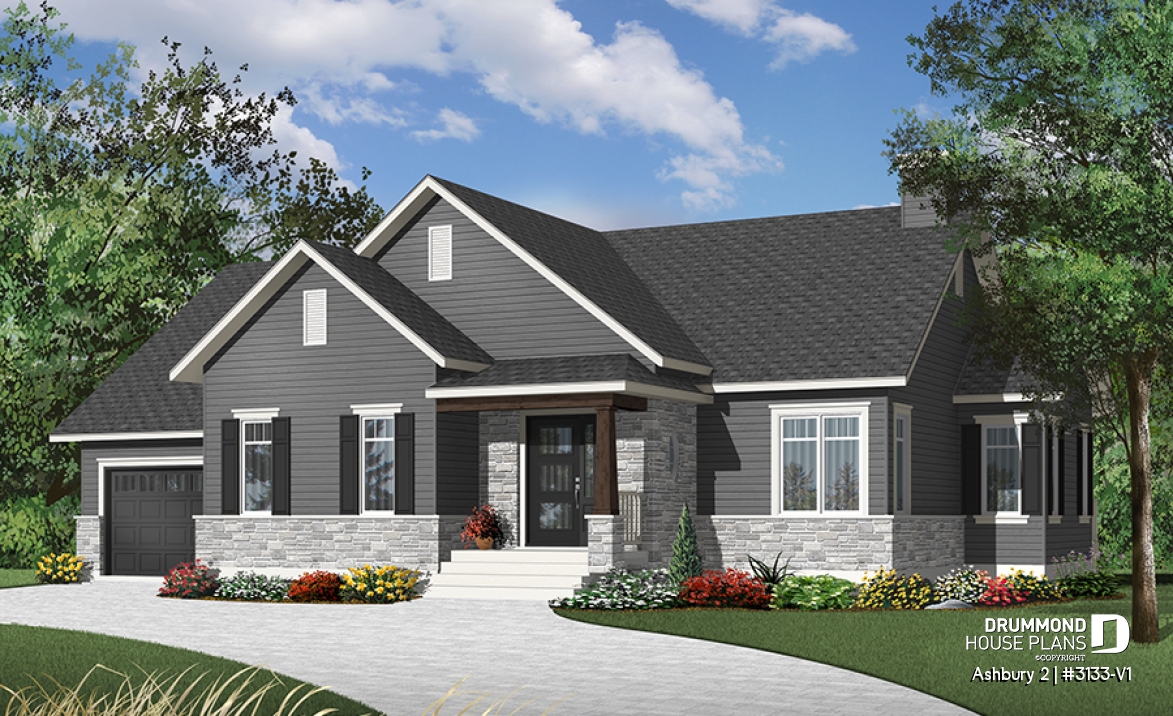

Color version 1 - Front

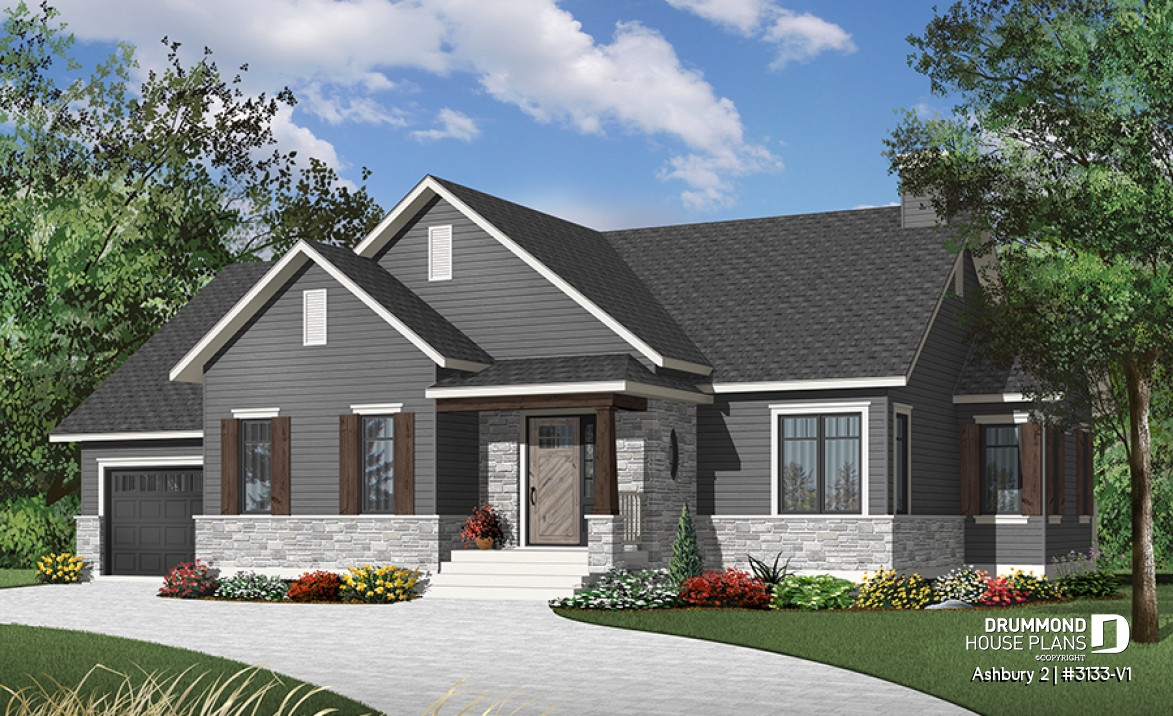

Color version 2 - Front
Color version 3 - Front

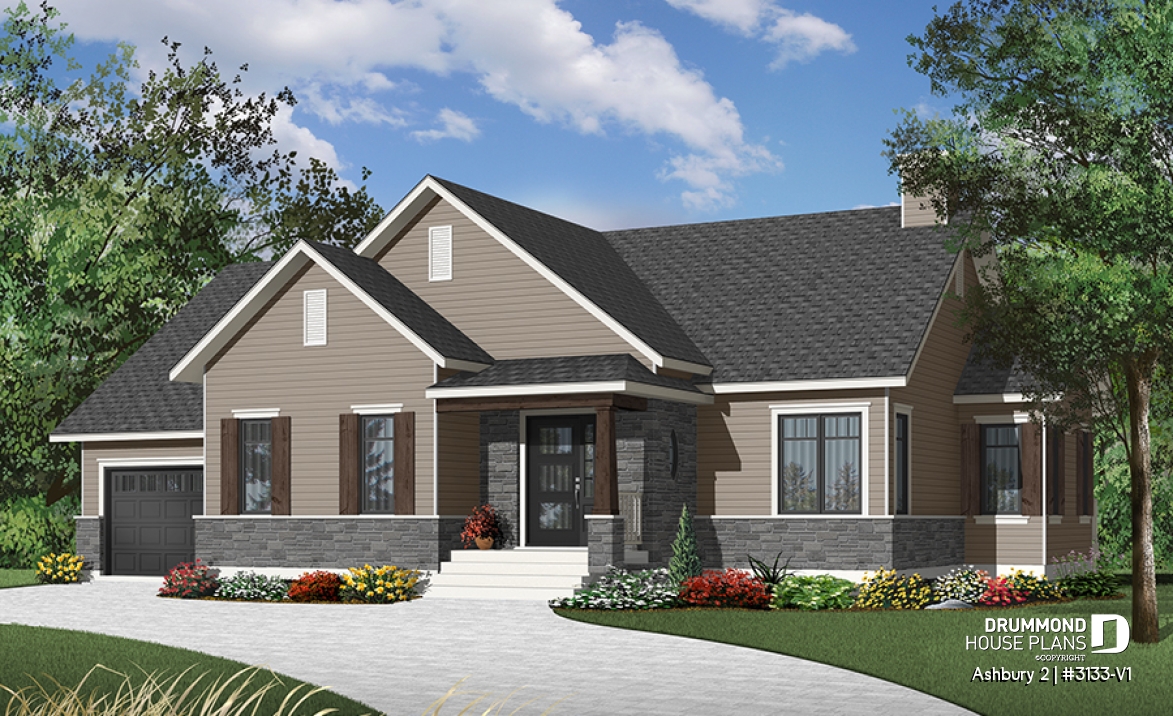

Color version 4 - Front

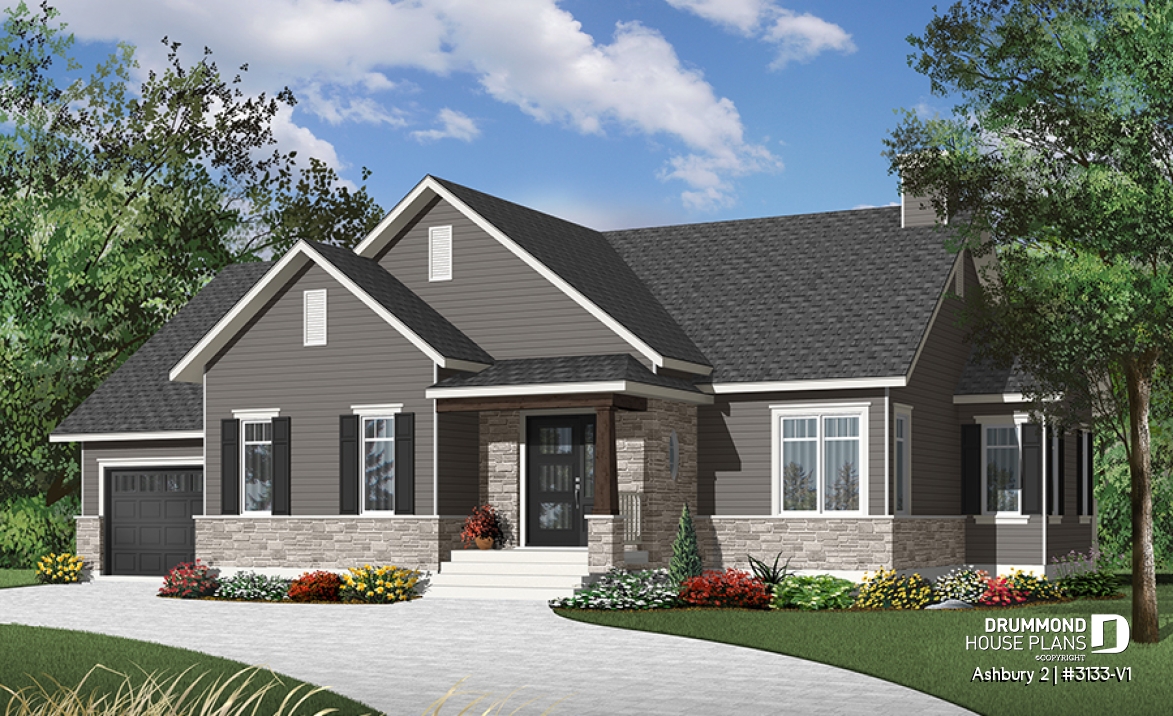

Color version 5 - Front

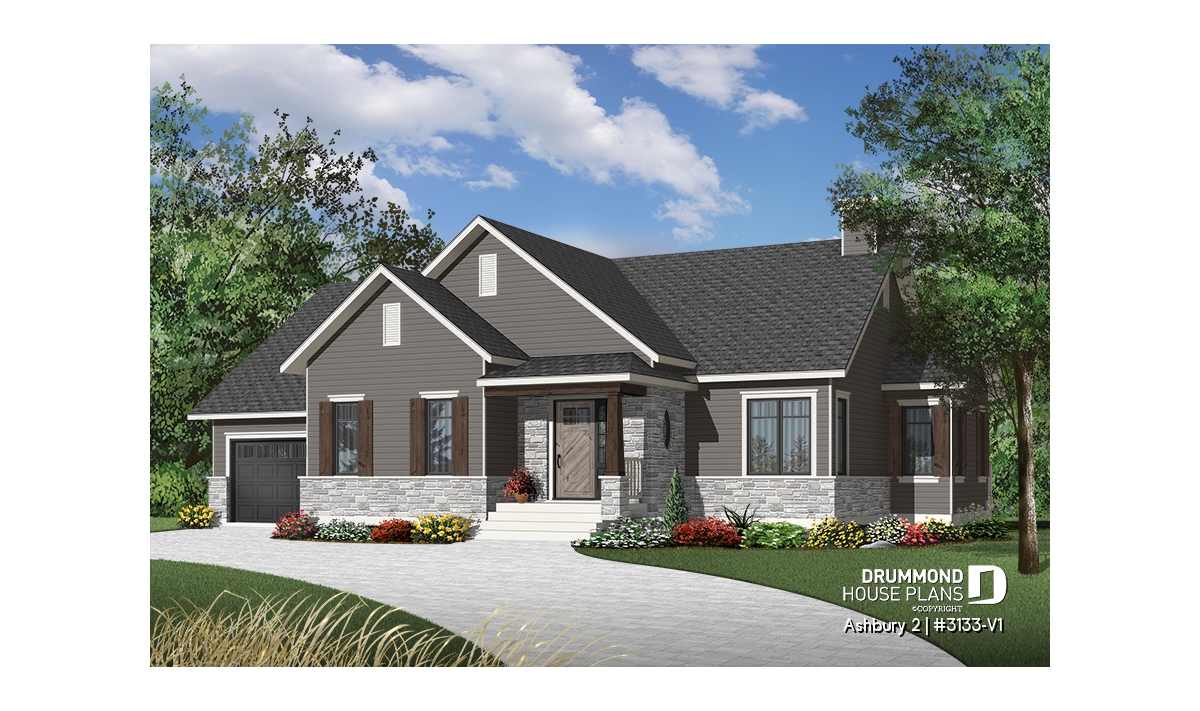

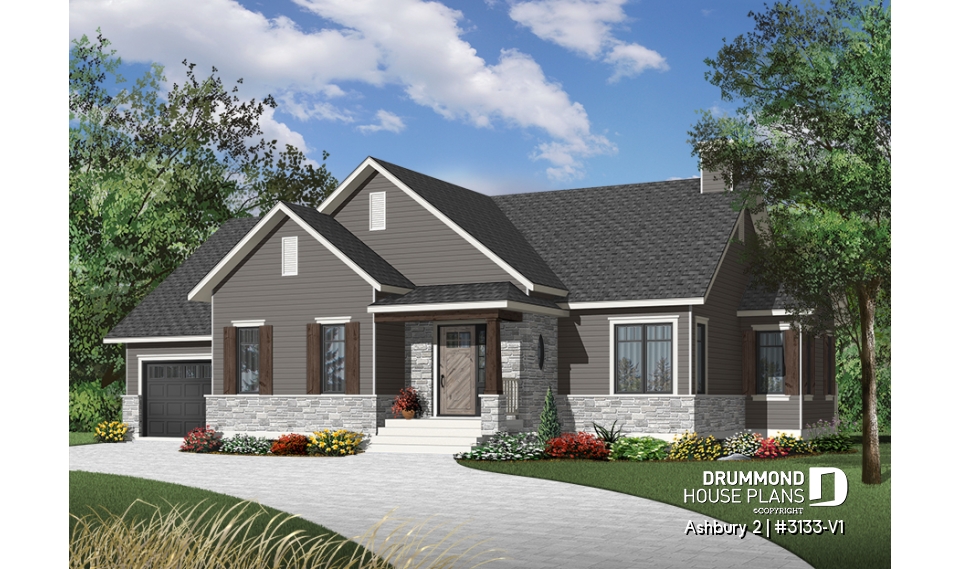

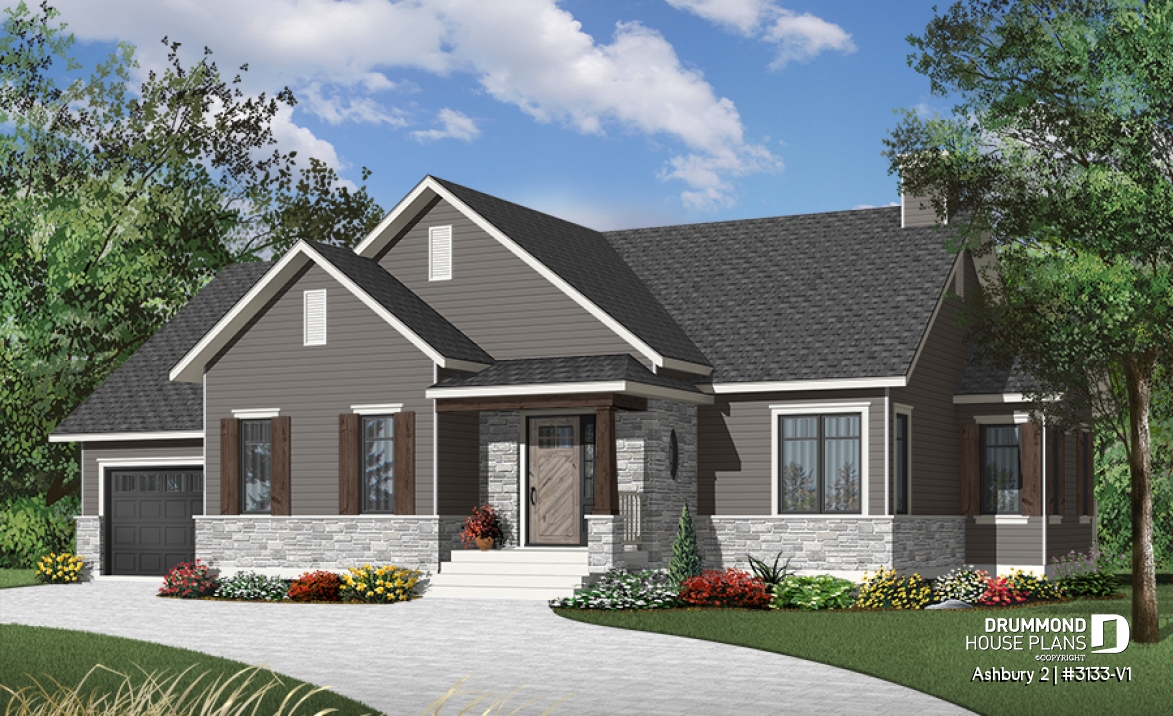

Color version 6 - Front

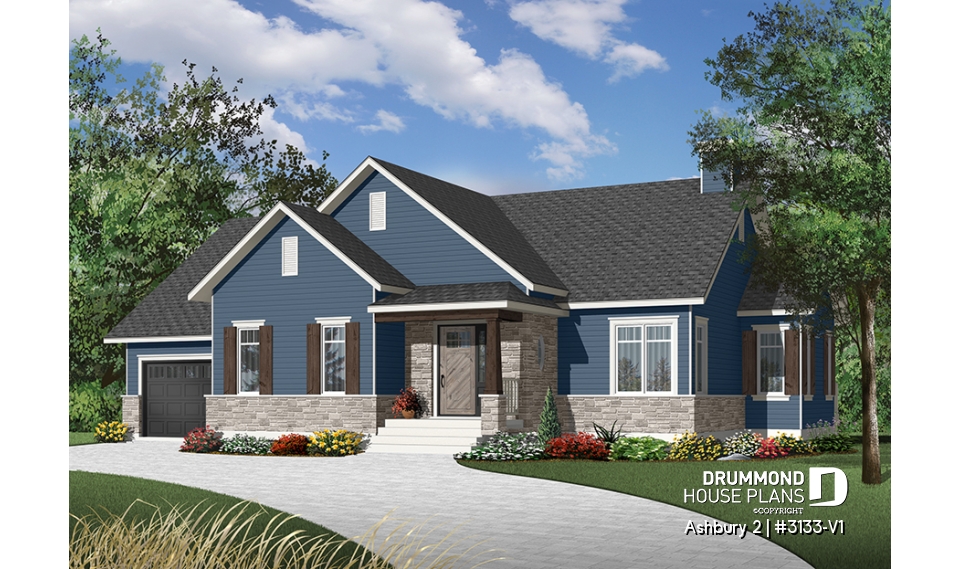

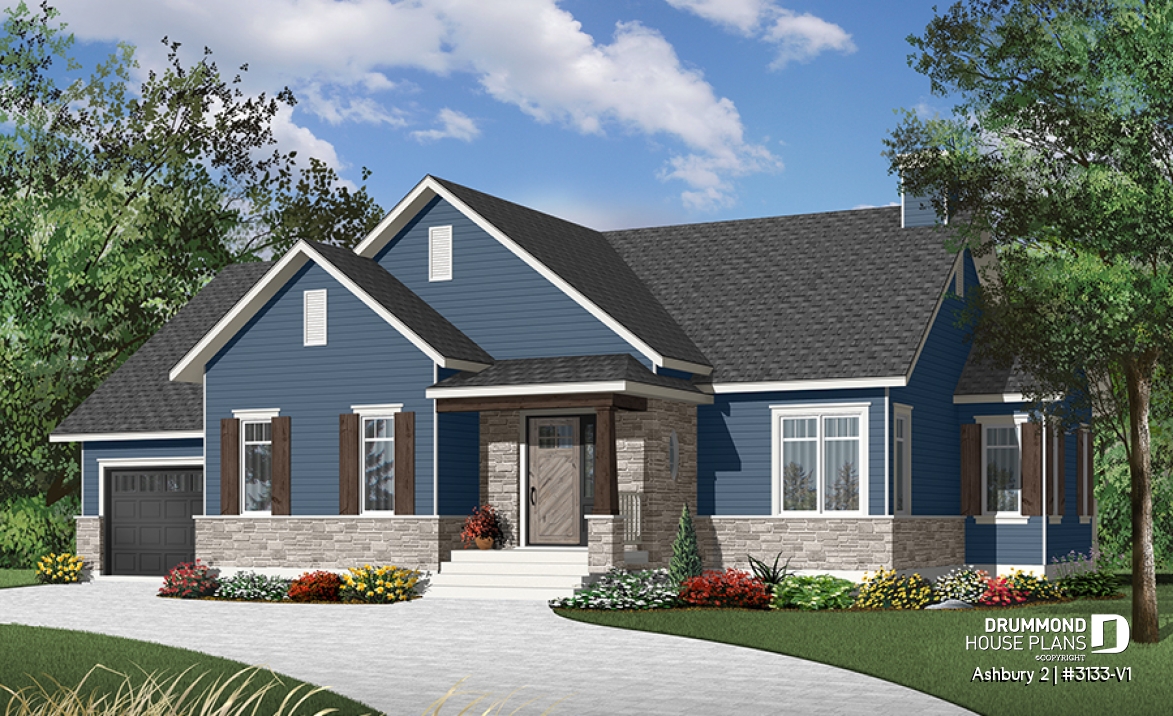

Color version 7 - Front

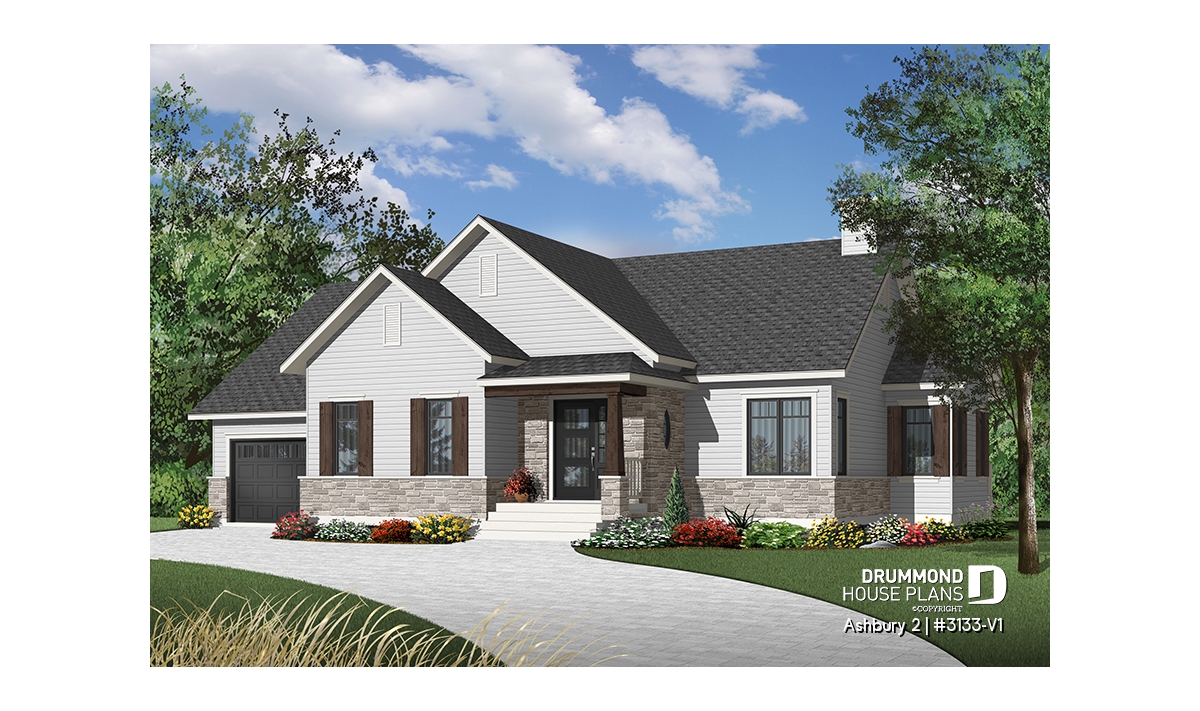

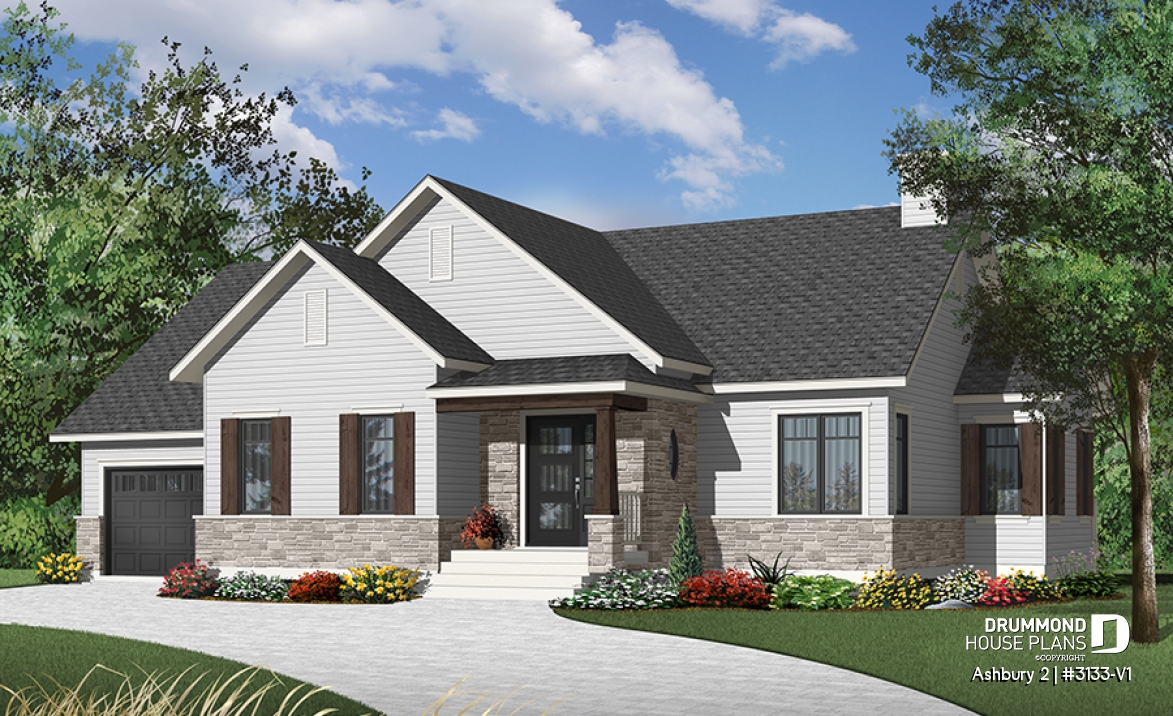

Color version 8 - Front
Ashbury 2 House plan 3133-V1
Country ranch house plan, 2 bedrooms, laundry room, one-car garage, full unfinished basement, fireplace
Starting from
1515$
| Technical details summary | Plan #3133-V1 | ||
|---|---|---|---|
| Total living area | 1314 sq.ft. | Bedroom | 2 |
| Full baths | 1 | Half baths | - |
| Foundation included | Unfinished Basement | Garage | One-car garage |
| Width | 58'0" | Depth | 38'4" |
Photos of the plan Ashbury 2
Additional details
General specifications
Total living area
1314 sq.ft.
1st level
1314 sq.ft.
Width
58'0"
Depth
38'4"
Ridge height from top of foundation
22'0"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
C
Rooms specifications
Bedroom(s)
2
Full baths
1
Half baths
-
Garage type
One-car garage (511 sq.ft.)
Covered porch area
-
1st level
Rooms
Sizes
Ceiling
Foyer
7'2" x 4'8"
~ 8'0"
Closet
2'2" x 4'8"
~ 8'0"
Living room
17'0" x 14'0"
~ 8'0"
Dining room
10'0" x 12'8"
~ 8'0"
Kitchen/dinette
10'0" x 12'8"
~ 8'0"
Pantry
2'0" x 1'8"
N/A
Full bathroom
8'2" x 11'0"
~ 8'0"
Linen
1'0" x 2'10"
N/A
Shower
3'0" x 5'0"
N/A
Bedroom
14'0" x 11'4"
~ 8'0"
Closet
10'0" x 2'0"
~ 8'0"
Bedroom
11'0" x 11'0"
~ 8'0"
Closet
5'2" x 2'0"
~ 8'0"
Utility room
10'0" x 8'10"
~ 8'0"
Linen
2'0" x 2'0"
~ 8'0"
Storage
2'8" x 1'4"
~ 8'0"
Garage
16'0" x 29'0"
~ 10'4"
Transitional style house plan - economical home design with open floor plan concept
Inspired by the popular plan 3133, this version is particularly suited to those for whom the convenience of having everything on the same level, whether due to advanced age or other considerations, takes precedence over the number of bedrooms required.
The three bedrooms of the original plan become two as the third is replaced with a laundry/utility room in which a large counter complete with sink and place for a separate freezer are practical features that are sure to be appreciated by the occupants.
Naturally, this "baby boomer" approach includes the addition of a nicely sized garage that has service entrances in the front and rear with direct access to the basement. The 100 square feet added to the main level enhances the comfort and size of the rooms including an open, well fenestrated activities area complete with a fireplace in the center. Another wonderful feature of this plan is the abundant storage space and kitchen island. There is a practical, double vanity in a bathroom that boasts a separate, corner tub an a 3' x 6' shower enclosure.
A well considered choice for homeowners who know what they want!
Distinctive elements
Garage with direct basement access via the utility room. Abundantly windowed dining room. Kitchen / dinette with 40" x 60" central lunch island lunch. Two good-sized bedrooms. Bathroom with double vanity and 36" x 60" shower.Utility room including laundry and freezer space. Fireplace in living room opon on three sides to the living room and the heart of the activities area.
Plan feature(s)
Gound floor laundry room, Fireplace, Island, Basement access from garage, Open floor layout, Separate bath and shower, Double sinks
Plan architectural style(s)
Transitional, Rustic, Modern rustic, Country, Craftsman / Northwest, Mountain, Ranch
The plan Ashbury 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
