House plan The Touchstone 4 (2957-V2)
3 to 4 bedroom Mountain cottage plan, panoramic views, open floor plan, master suite on main floor, mezzanine
View the size of the rooms and height of the ceilings

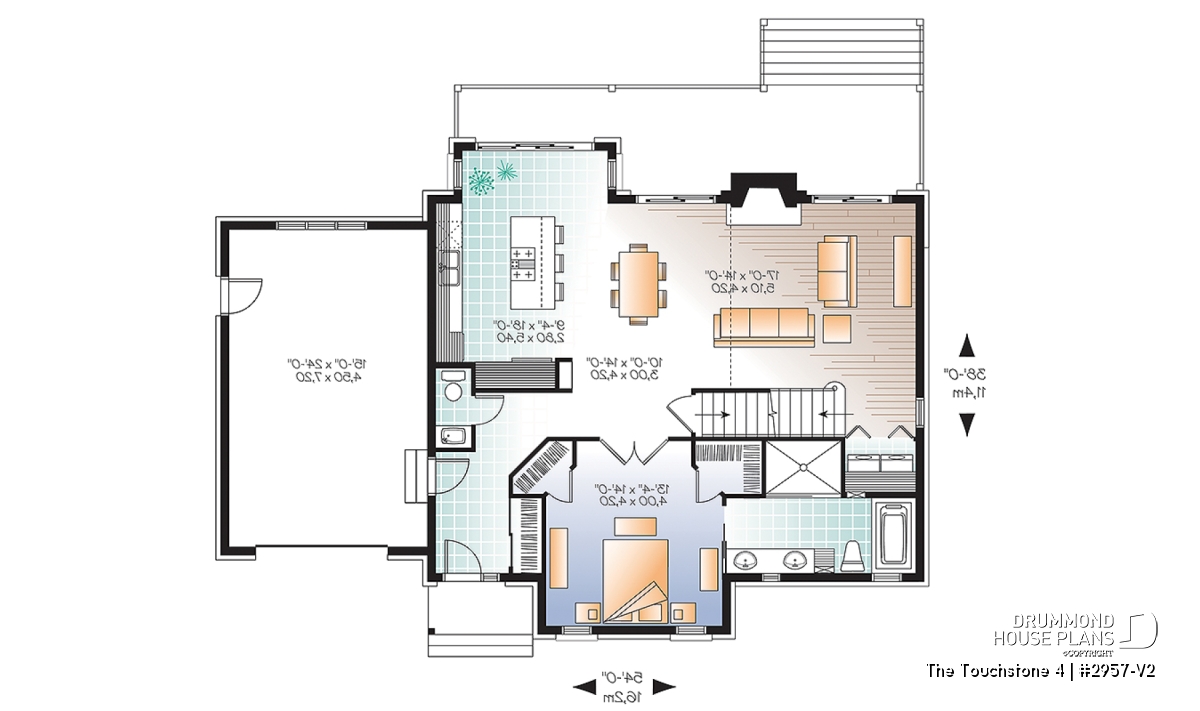

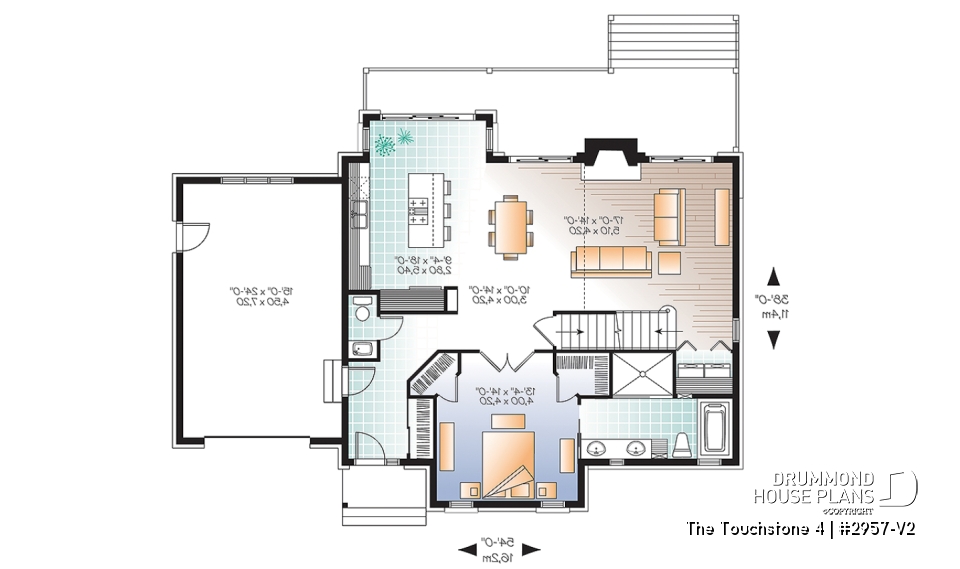

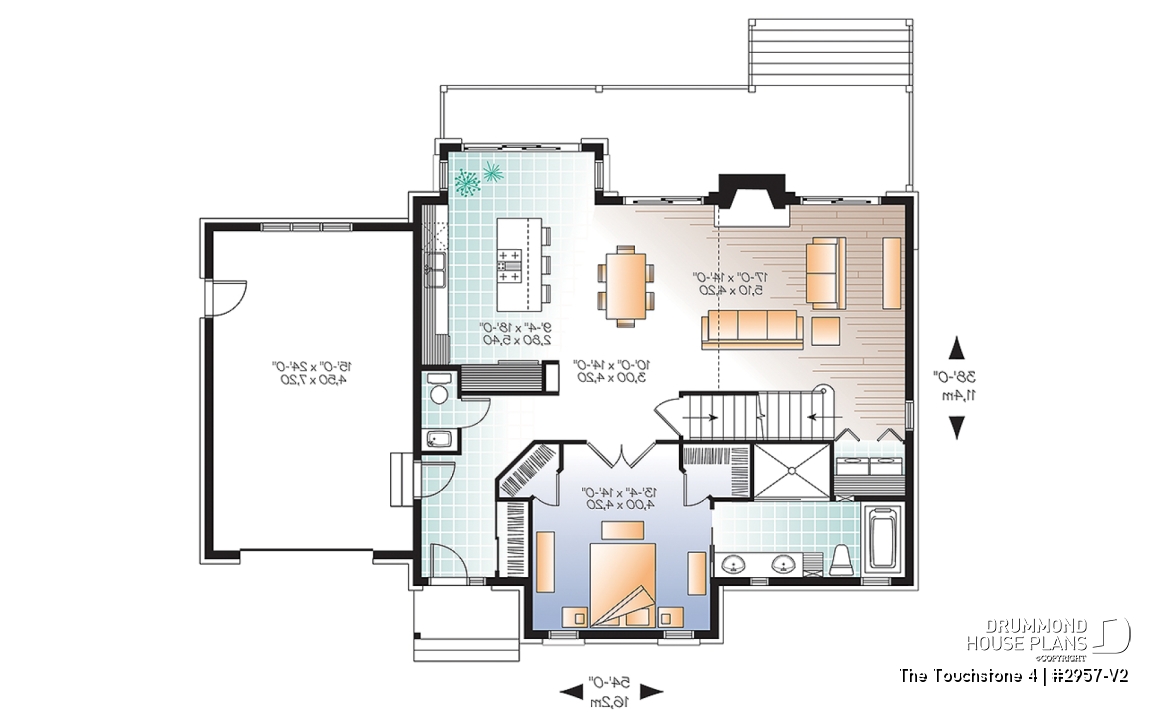

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 5'6" x 9'2" | ~ 8'0" |
| Closet | 2'2" x 5'8" | ~ 8'0" |
| Powder room | 2'8" x 6'0" | ~ 8'0" |
| Kitchen/dinette | 9'4" x 18'0" | ~ 8'0" |
| Pantry | 2'6" x 2'0" | N/A |
| Dining room | 10'0" x 14'0" | ~ 8'0" |
| Living room | 17'0" x 14'0" | ~ 12'6" |
| Bedroom | 13'4" x 14'0" | ~ 8'0" |
| Walk-in closet | 5'0" x 4'0" | ~ 8'0" |
| Closet | 6'0" x 2'6" | ~ 8'0" |
| Laundry room | 5'4" x 3'10" | ~ 8'0" |
| Full bathroom | 14'4" x 10'0" | ~ 8'0" |
| Linen | 1'6" x 1'4" | N/A |
| Garage | 15'0" x 24'0" | ~ 9'4" |

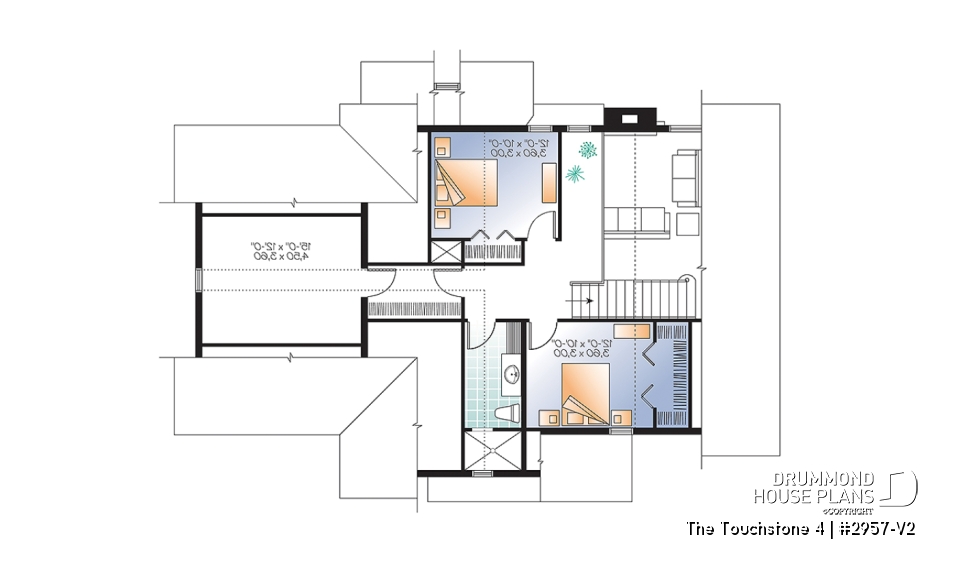

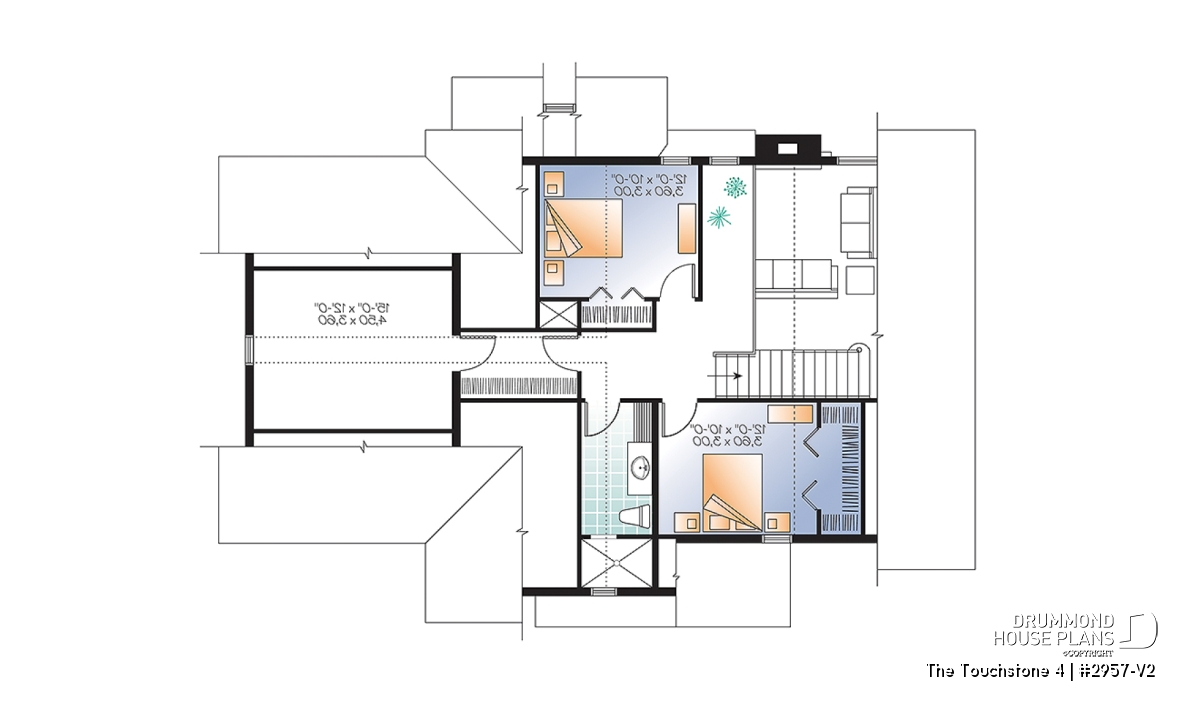

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 3'0" x 10'0" | ~ 6'0" |
| Bedroom | 12'0" x 10'0" | ~ 8'0" |
| Closet | 5'4" x 2'0" | ~ 8'0" |
| Shower room or three quarter bath | 5'4" x 14'0" | ~ 8'0" |
| Linen | 3'0" x 1'4" | ~ 8'0" |
| Storage | 8'10" x 5'0" | ~ 8'0" |
| Mezzanine | 4'0" x 14'4" | ~ 8'0" |
General specifications
| Total living area | 1886 sq.ft. |
| 1st level | 1255 sq.ft. |
| 2nd level | 631 sq.ft. |
| Width | 54'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 26'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Full basement with walkout, Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Craftsman style cottage house plan with 3 bedrooms, large bonus room and cathedral ceiling
Inspired by numerous requests for an attached garage on our popular chalet plan 2957, Drummond House Plans presents this beautiful cottage with a revamped floor plan that moves the kitchen closer to the added garage.

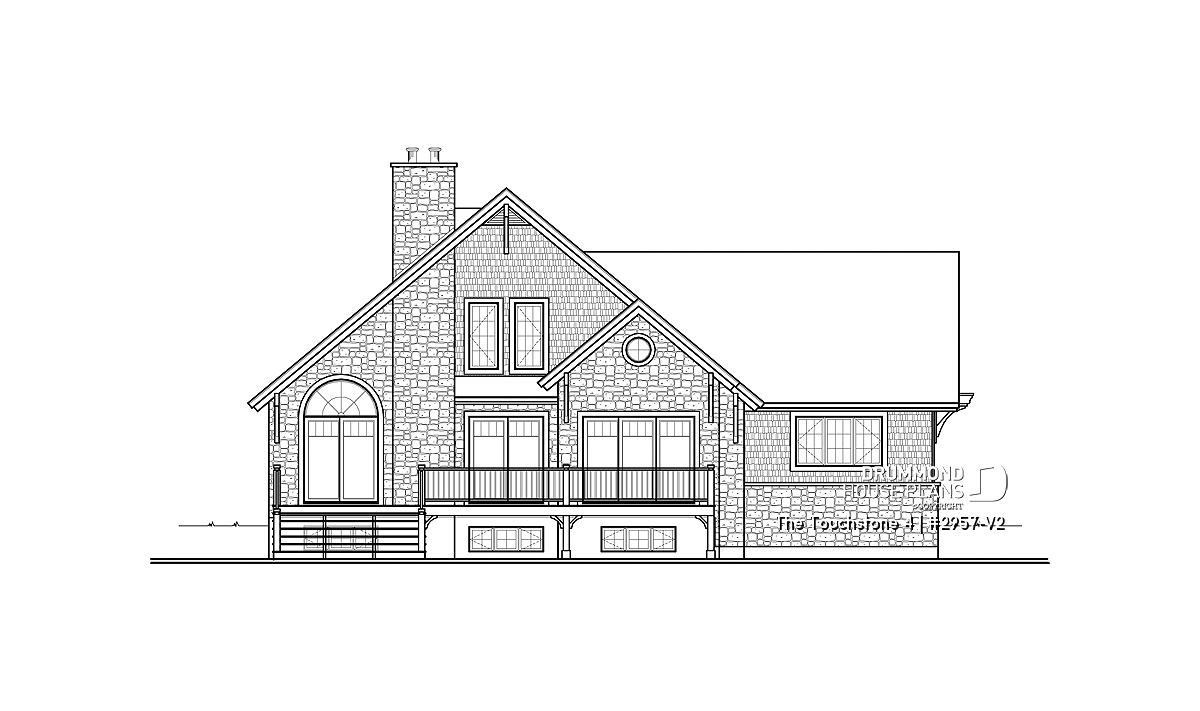

From the outside the appealing cache in front is enhanced by the garage while maintaining the same attractive features in the back of this beautiful home.
Significant changes that have been brought to the inside start with the relocation of the kitchen and include the exceptional master suite and its private bathroom, two separate closets and view of the back through two glass doors. The activities area, with its ample fenestration and cathedral ceiling in the living room, along with a fireplace in the living/dining areas are sure to please the occupants. The large kitchen island and a separate laundry area on the main level as well as a powder room just off of the main entrance also enhance the livability of this delightful home.
Upstairs there are two comfortable bedrooms and a separate bathroom, with shower, and a hallway that opens onto a mezzanine and bonus space that can be converted to a 4th bedroom if the need arises.
Distinctive elements
Entirely open activities area oriented to rear. Foyer and vaulted ceiling in living room. Lunch island in the kitchen. Master suite with private bathroom, his and hers closets. 2 glass doors to take advantage of the panoramic view. Laundry area on the main level. 4th bedroom possible in bonus space over garage on second level.
Plan feature(s)
Cathedral ceiling, Mezzanine, Gound floor laundry room, Island, Panoramic view, Master suite upstairs, Walk-in master bed., Fireplace, Living bonus space
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . American, . Rustic, . Ski chalets, . Country, . Craftsman / Northwest, . Transitional, . Mountain, . Modern rustic
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
