House plan Essex 2 (3883-V1)

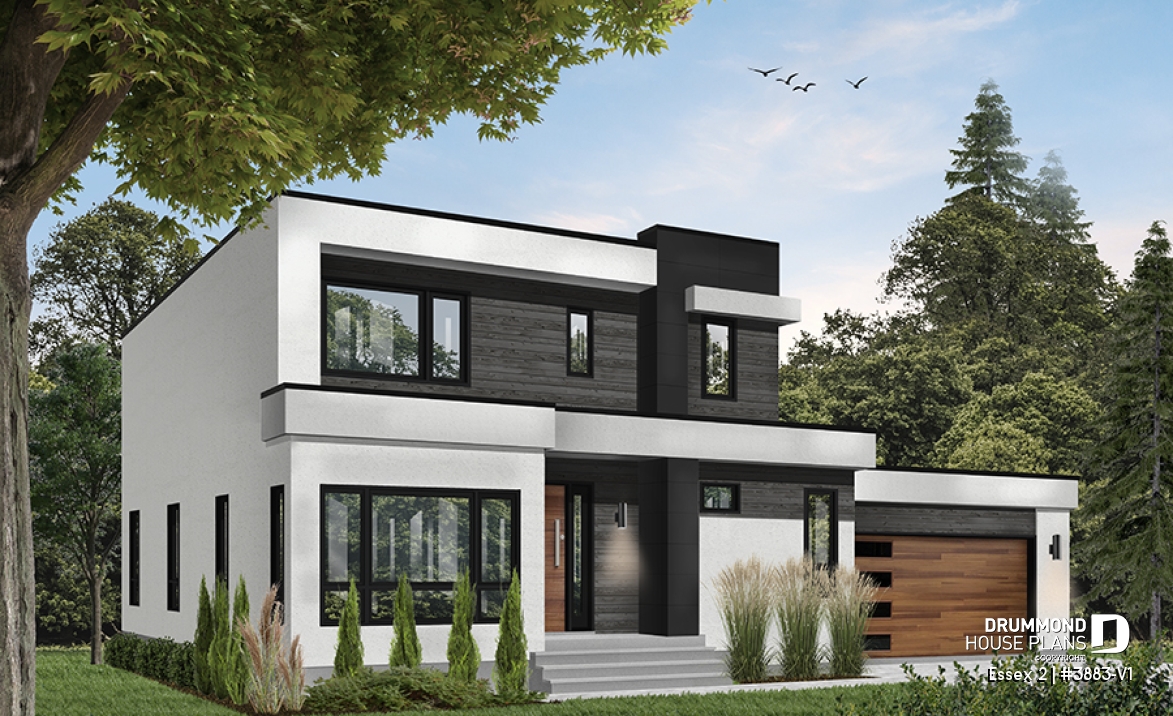

3 to 4 bedroom Cube Shaped house plan, home office, lots of natural lights, 2-car garage, unfinished basement
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 15'2" x 15'0" | ~ 9'0" |
| Home office | 11'1" x 10'0" | ~ 9'0" |
| Foyer | 7'2" x 6'0" | ~ 9'0" |
| Closet | 2'0" x 6'0" | ~ 9'0" |
| Laundry room | 6'2" x 8'0" | ~ 9'0" |
| Garage | 21'9" x 24'9" | ~ 10'0" |
| Kitchen/dining room | 11'6" x 17'4" | ~ 9'0" |
| Powder room | 4'10" x 8'0" | ~ 11'0" |
| Covered porch | 25'8" x 6'0" | N/A |
| Covered porch | 9'0" x 4'0" | N/A |
| Pantry | 4'6" x 3'8" | ~ 9'0" |
| Closet | 5'0" x 2'6" | ~ 11'0" |
| Terrace | 29'0" x 10'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 16'0" x 15'0" | ~ 8'0" |
| Walk-in closet | 5'6" x 15'0" | ~ 8'0" |
| Shower room or three quarter bath | 5'6" x 10'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'11" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Bedroom | 12'8" x 10'2" | ~ 8'0" |
| Closet | 7'8" x 2'2" | ~ 8'0" |
| Balcony | 25'8" x 6'0" | N/A |
| Full bathroom | 14'8" x 7'8" | ~ 8'0" |

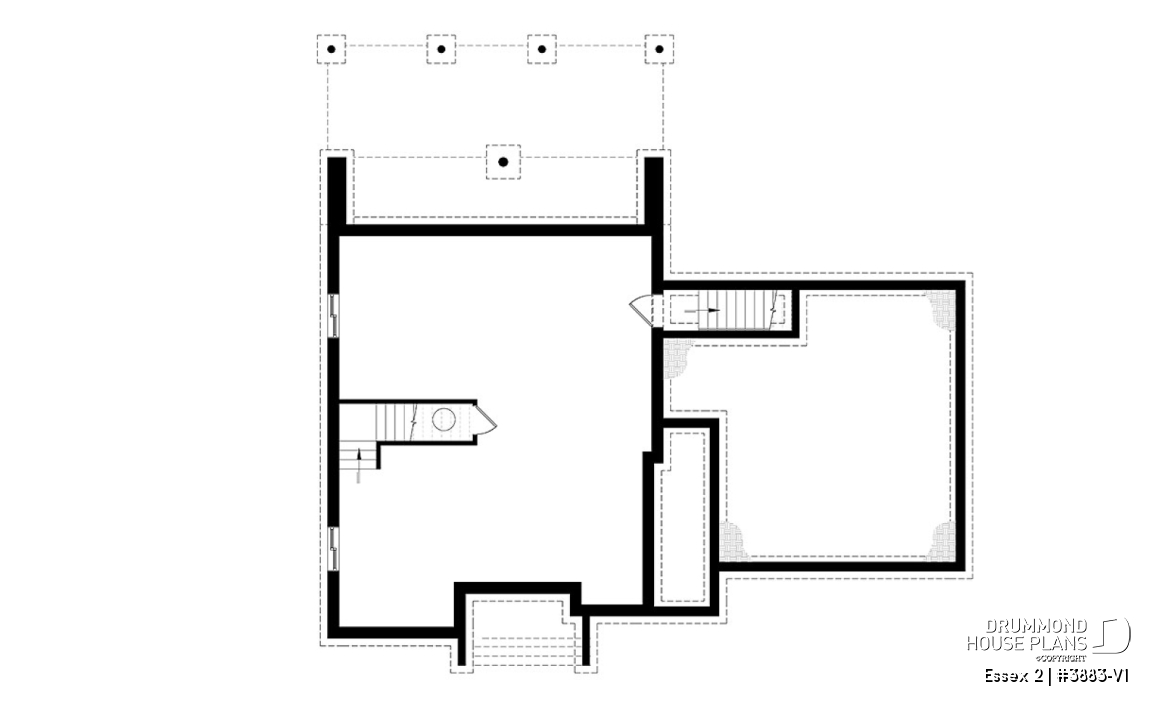

| Basement |
|---|
General specifications
| Total living area | 2042 sq.ft. |
| 1st level | 1122 sq.ft. |
| 2nd level | 920 sq.ft. |
| Basement | 1000 sq.ft. |
| Width | 57'0" |
| Depth | 43'0" |
| Ridge height from top of foundation | 22'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Cube Shaped House Plan with 3 to 4 bedrooms and a 2-car garage!
The contemporary look of this Minimalist house design will appeal to our forward-thinking customers that seeks to distinguish themselves. Offering 3 to 4 bedrooms, including a master suite on the second floor, this house floor plans will appeal to families with several children as well as blended families.
There is a 9’ ceiling throughout the main floor. The entrance hall features a practical coat closet, perfect for rainy days! A home office is located near the main entrance of the house and could also be easily converted into a nursery, bedroom #4 or a playroom, depending on your needs. The master suite is conveniently situated on the second floor and will appeal to families with younger children. The master suite includes a private balcony and also a good size walk-in closet. The master bathroom features a vanity, a large shower stall and a toilet area.
The kitchen offers plenty of counter space, a kitchen island and a practical pantry. The kitchen is also located near the half bath and the laundry room.

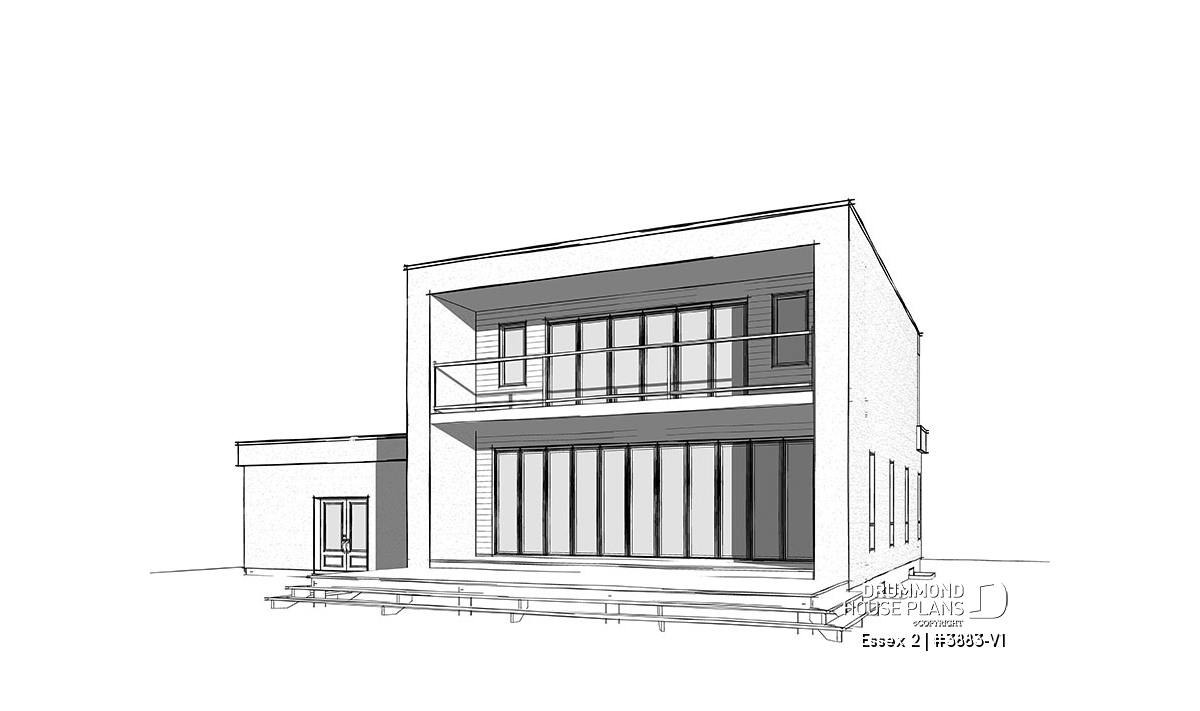

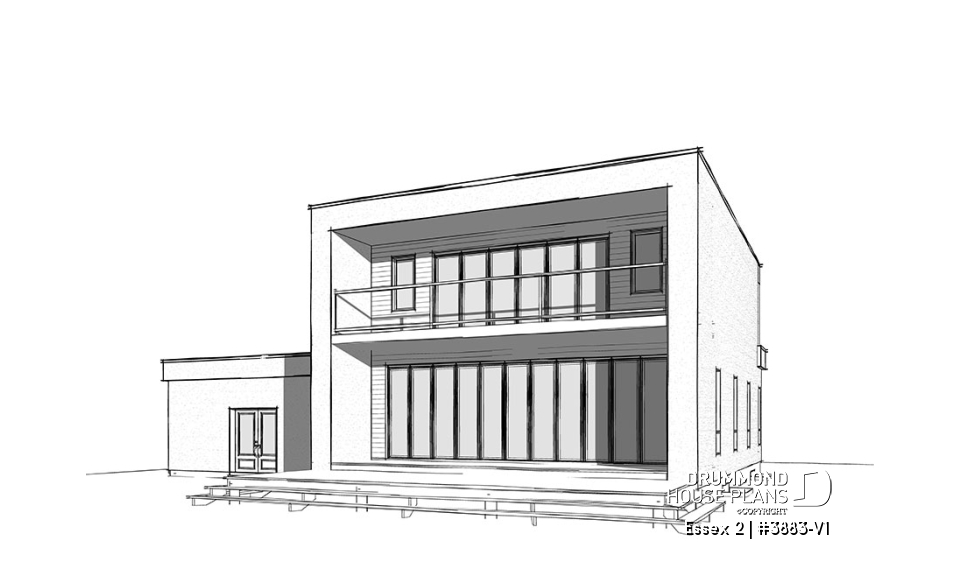

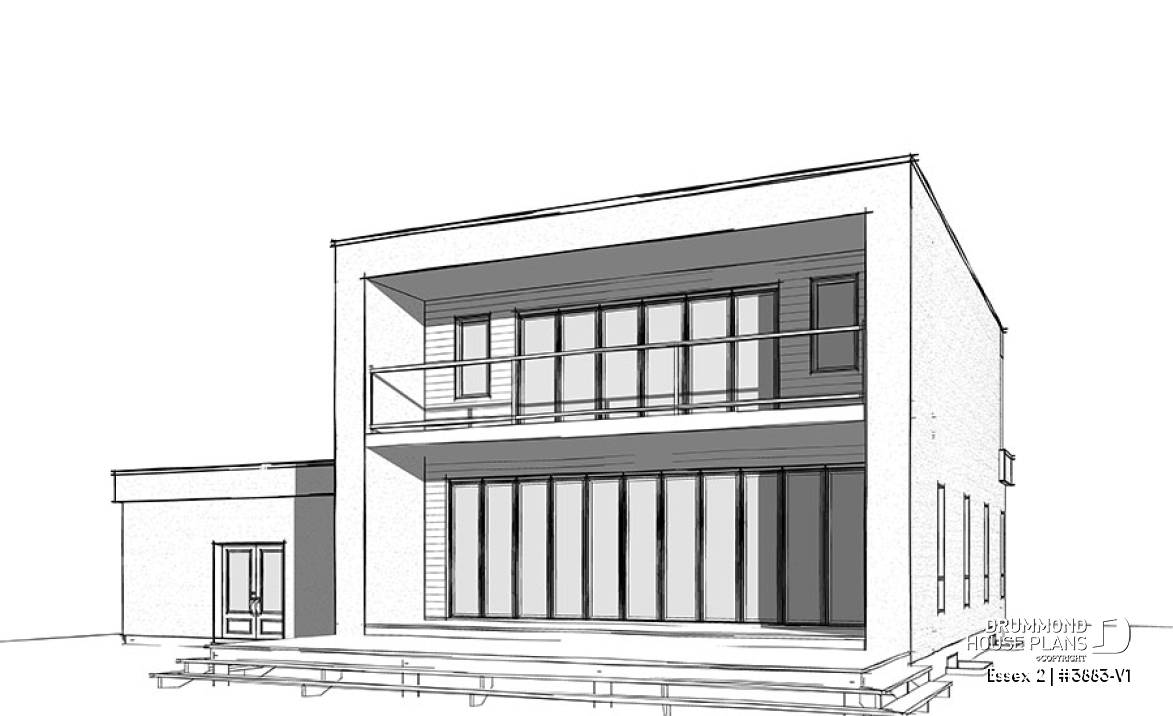

The family / living room has a fireplace and lots of natural light. In addition, a large covered terrace is accessible through retractable patio doors located in the dining room and family room area. The folding patio doors offer plenty of natural lights in the common areas.
On the second floor, two (2) good size bedrooms share a full bathroom with bathtub, shower, double vanity, toilet and storage.

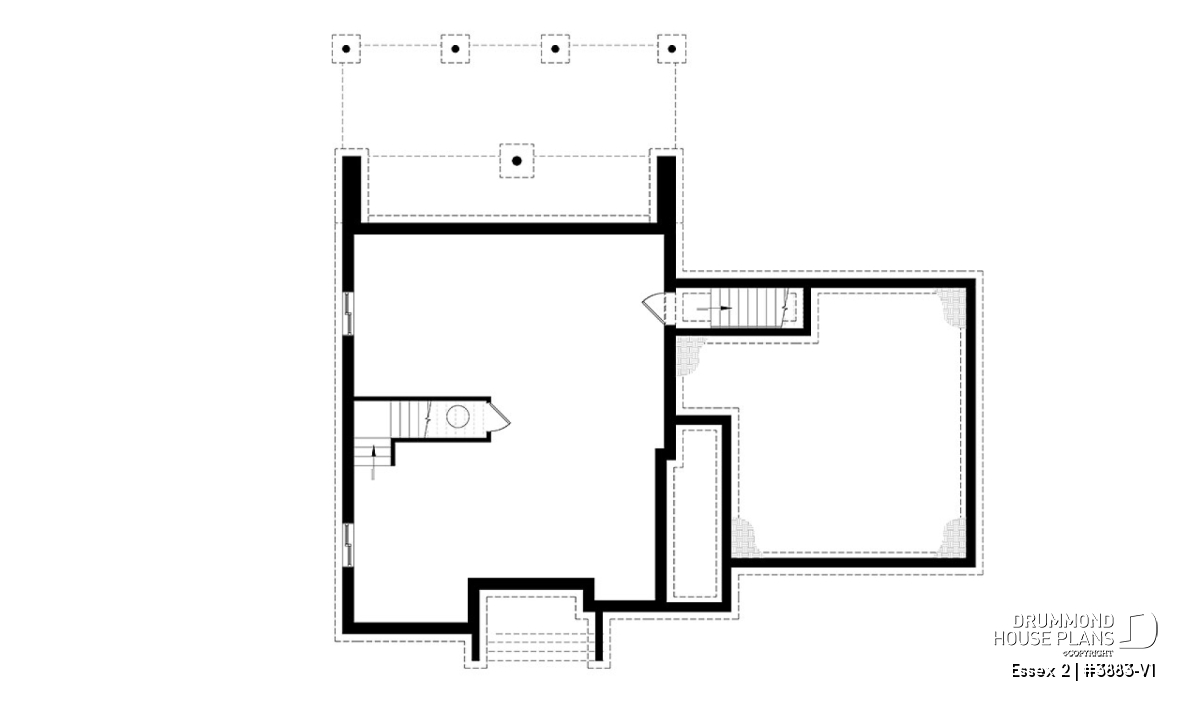

The double car garage offers practical access to the outside, the unfinished basement and the main floor of the house. The unfinished basement will allow for extra bedrooms, storage, etc. in the future.
Alternate floor plan layouts are available for this home, see plan # 3883 et 3883-V2 for more details.
Distinctive elements
Cube Shaped style modern home plan with double car garage.
9 'ceiling throughout the main floor.
Closed foyer with coat closet.
Home office or bedroom #4 or playroom.
Master suite with private balcony and good size walk-in. Master bathroom with large shower.
Kitchen with lots of counter space, an island and a pantry. Living room with fireplace.
Folding patio doors in the dining and family room area, leading to a covered terrace at the rear of the house.
Half bathroom and laundry room located off the kitchen.
2 secondary good size bedrooms on second floor share a very large bathroom with shower, bathtub, double vanity and toilet.
Large double garage with access to the basement, to the rear and side of the house and the main floor of the house.
Unfinished basement can be easily finished for additional bedrooms, storage, home theater, etc.
For alternate floor plan layouts of this home, see plan # 3883 and # 3883-V2.
Plan feature(s)
Office / Study / Den, Gound floor laundry room, Laundry chute, Fireplace, Pantry, Ceiling over 8', Master suite upstairs, Deck, Basement access from garage, Lunch counter
