House plan Whitman (3862)
Affordable American style home plan with 3 bedrooms and master suite, garage
View the size of the rooms and height of the ceilings

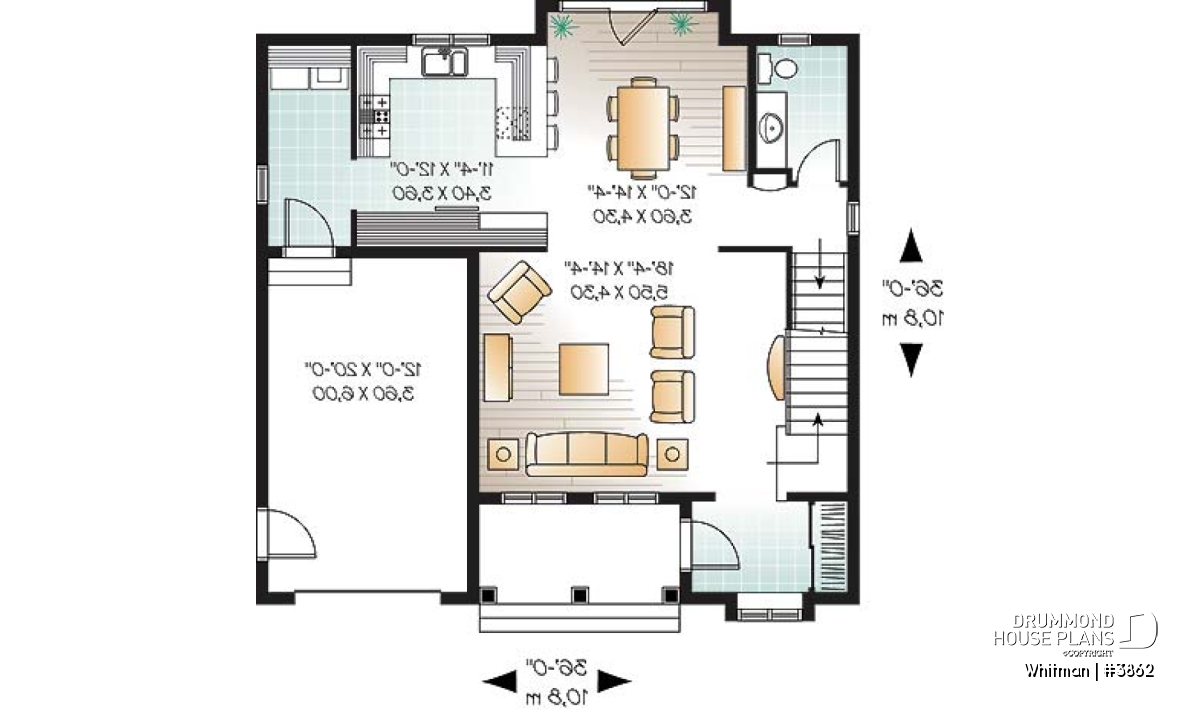

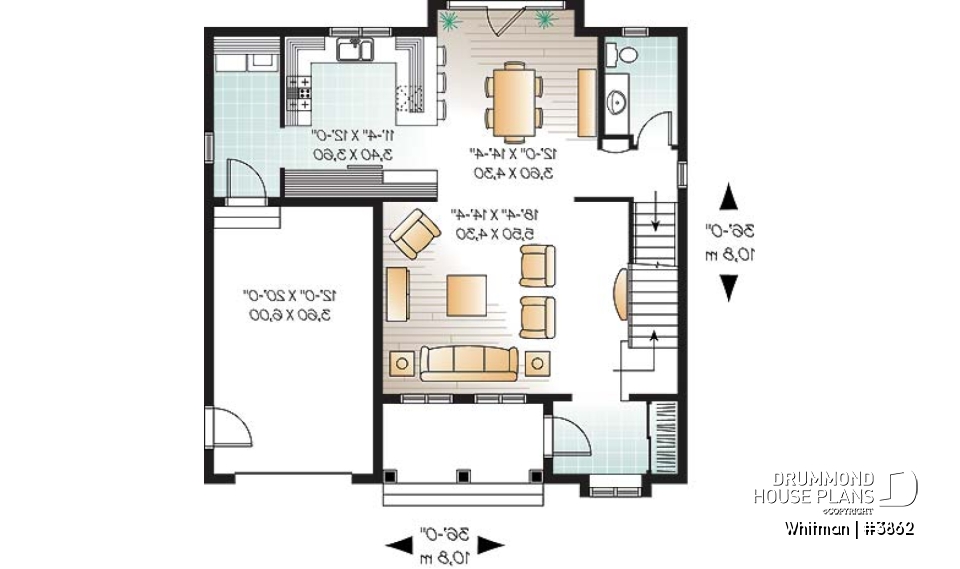

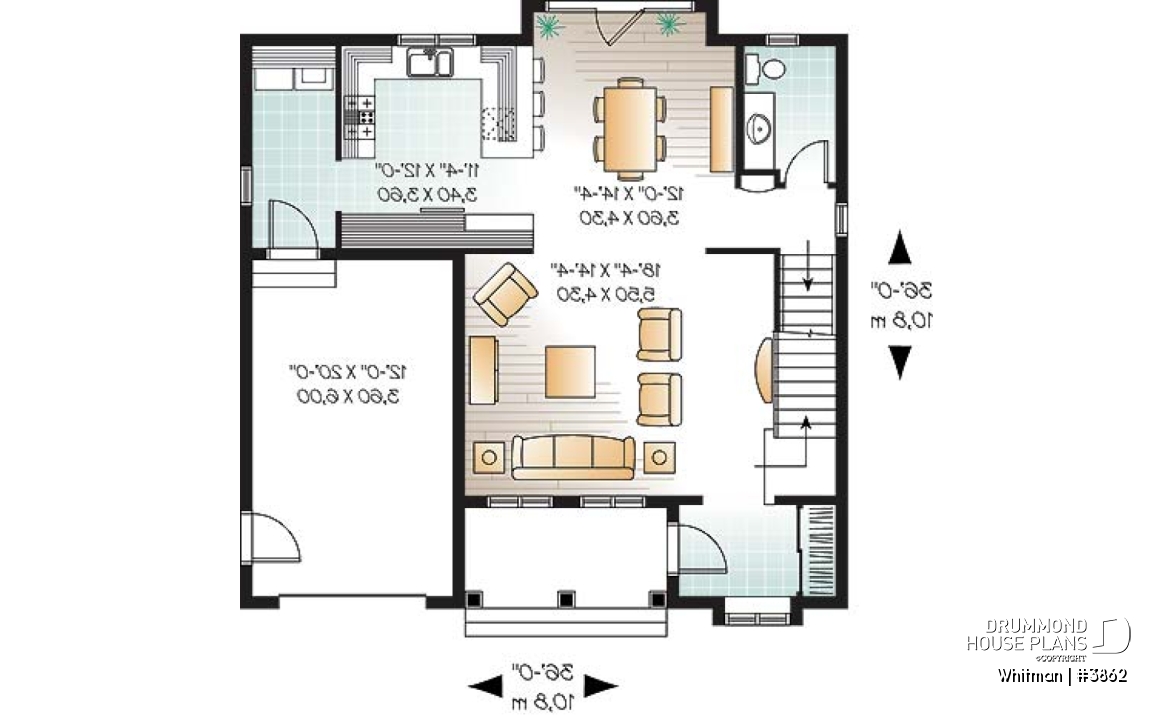

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 11'4" x 12'0" | ~ 8'0" |
| Dining room | 12'0" x 14'4" | ~ 8'0" |
| Living room | 18'4" x 14'4" | ~ 8'0" |
| Foyer | 7'0" x 5'6" | ~ 8'0" |
| Closet | 2'0" x 5'6" | ~ 8'0" |
| Half bath or powder room | 5'6" x 7'4" | ~ 8'0" |
| Laundry room | 5'0" x 12'0" | ~ 8'0" |
| Garage | 12'0" x 20'0" | ~ 9'0" |
| Covered porch | 12'0" x 6'0" | N/A |
| Deck | 11'8" x 6'0" | N/A |

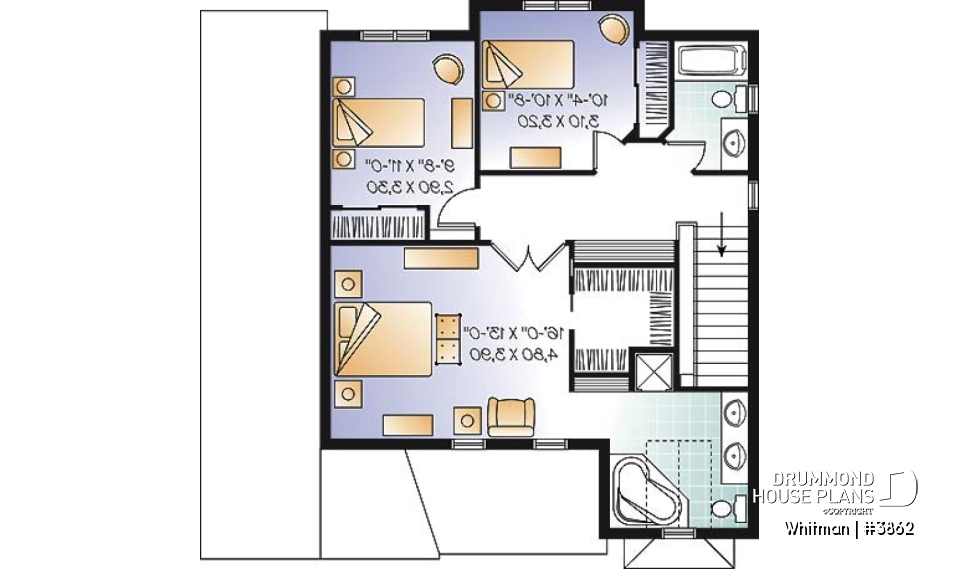

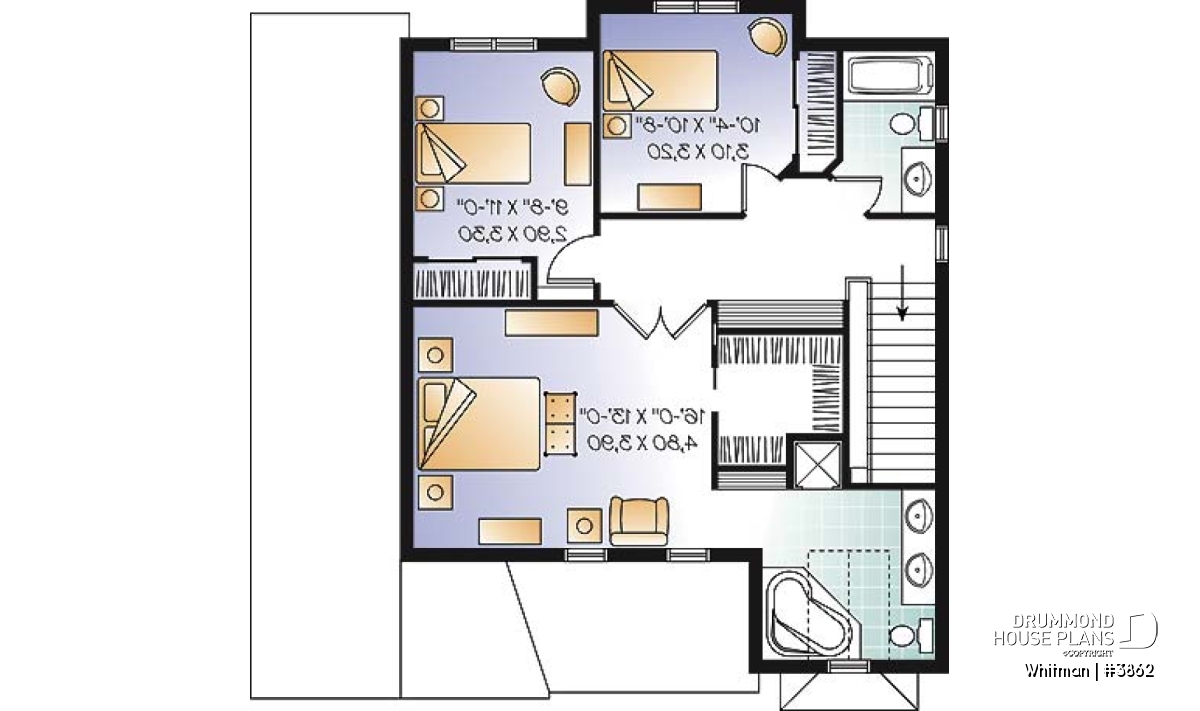

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 8'8" | ~ 8'0" |
| Master suite | 16'0" x 13'0" | ~ 8'0" |
| Full bathroom | 9'4" x 9'2" | ~ 9'4" |
| Walk-in closet | 6'8" x 7'0" | ~ 8'0" |
| Bedroom | 10'4" x 10'8" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Bedroom | 9'8" x 11'0" | ~ 8'0" |
| Closet | 6'4" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1824 sq.ft. |
| 1st level | 915 sq.ft. |
| 2nd level | 909 sq.ft. |
| Width | 36'0" |
| Depth | 36'0" |
| Ridge height from top of foundation | 28'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Construction Ma-Pel Inc.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Courtesy '' Qualité Habitation 2012 ''
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Courtesy '' Qualité Habitation 2012 ''
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
East coast inspired cottage with 3 bedrooms and master suite!
An inviting covered porch offers protection from the elements to the main entrance foyer which has a projecting window to add a unique touch. The garage blends well with the simple yet elegant volumes to enhance balance and ensure curb appeal.
The floor plan includes a large living room with lateral stairway and triple garden doors off of the dining room for access to the deck overlooking the back yard. The kitchen has ample storage space and a peninsula. A powder room on the main level and a laundry area with direct access to the garage complete the first level of this beautiful home.
There are three bedrooms on the upper level, one of which is a large master suite with a walk-in closet. The well appointed master bathroom includes a corner bath, separate shower and a double vanity. There is a second full bathroom on this level and the two other bedrooms have along with large closets in each to complete the features of this well thought out design.
Distinctive elements
Very comfortable rooms. Independent laundry room on the first level. Lovely master suite with private bathroom. Kitchen with excellent storage space.
Plan feature(s)
Lunch counter, Built-ins, Master suite upstairs, Gound floor laundry room, Cathedral ceiling, Walk-in master bed., Separate bath and shower, Double sinks, Coffee bar
Plan architectural style(s)
. Country, . American, . Traditional, . Colonial
