House plan Applegate 3 (2783-V2)
Simple and affordable 3 bedroom Country rustic house plan with large family room, pantry and computer corner
View the size of the rooms and height of the ceilings

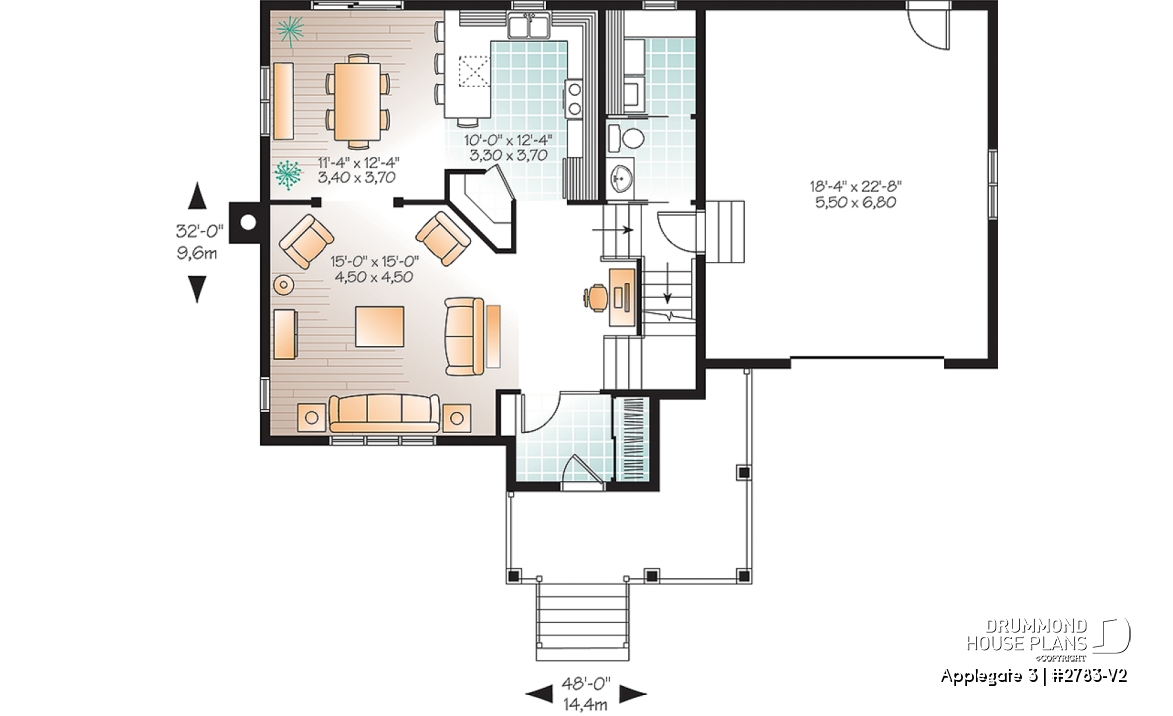

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Covered porch | 16'0" x 6'0" | N/A |
| Deck | 12'0" x 8'0" | N/A |
| Garage | 18'4" x 22'8" | ~ 10'6" |
| Kitchen/dinette | 10'0" x 12'4" | ~ 8'0" |
| Dining room | 11'4" x 12'4" | ~ 8'0" |
| Living room | 15'0" x 15'0" | ~ 8'0" |
| Foyer | 6'2" x 5'8" | ~ 8'0" |
| Half bath or powder room | 5'10" x 5'3" | ~ 10'8" |
| Laundry room | 5'10" x 6'9" | ~ 10'8" |
| Reading/computer area | 4'0" x 4'10" | ~ 8'0" |

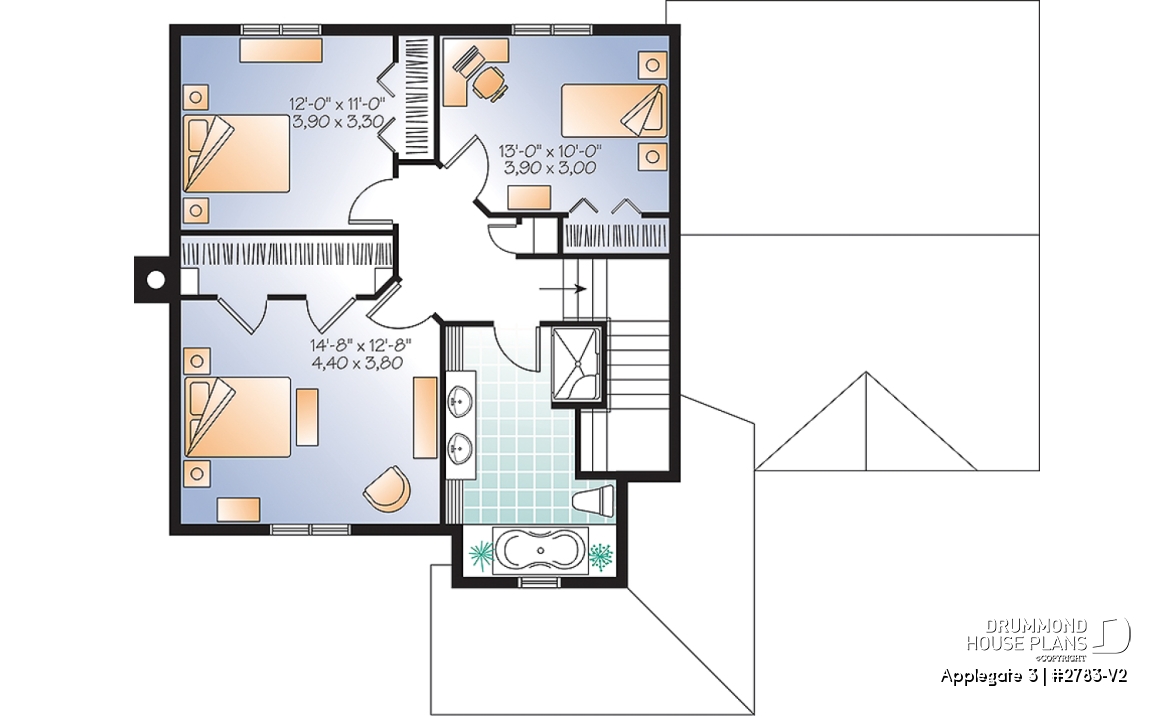

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'8" x 14'2" | ~ 8'0" |
| Bedroom | 14'8" x 12'8" | ~ 8'0" |
| Bedroom | 13'0" x 11'0" | ~ 8'0" |
| Bedroom | 13'0" x 10'0" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |
General specifications
| Total living area | 1724 sq.ft. |
| 1st level | 862 sq.ft. |
| 2nd level | 862 sq.ft. |
| Width | 48'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 32'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | D |
Rooms specifications
Other useful information on this plan
Attractive budget cottage with 3 bedrooms and a one-car garage!
This cottage will appeal to many with its classic exterior appearance.
In addition to attractive curb appeal , this cottage offers well planned interior. A good sized entry leads the way to a well-lit living room warmed by a cozy fireplace. A kitchen with island and dining room are grouped for social or more formal dining. A half bath and laundry are located for convenience yet discreetness.
Upstairs you find a master bedroom with walk-in closet, two secondary bedrooms and a 5-piece bathroom.
Distinctive elements
Walk-in pantry in kitchen. Upstairs bathroom with 51" x 34" shower, excellent storage, double vanity and discreet placement of toilet. Walk-in closet in master bedroom.
Plan feature(s)
Pantry, Lunch counter, Mud room, Gound floor laundry room, Office / Study / Den, Walk-in master bed., His/Hers walk-in, Separate bath and shower, Double sinks
Plan architectural style(s)
. Country, . American, . Traditional
