House plan Rockspring 4 (3919)
Ranch style house plan with walkout finished basement, 2 to 4 bedrooms, garage, cathedral ceiling
View the size of the rooms and height of the ceilings

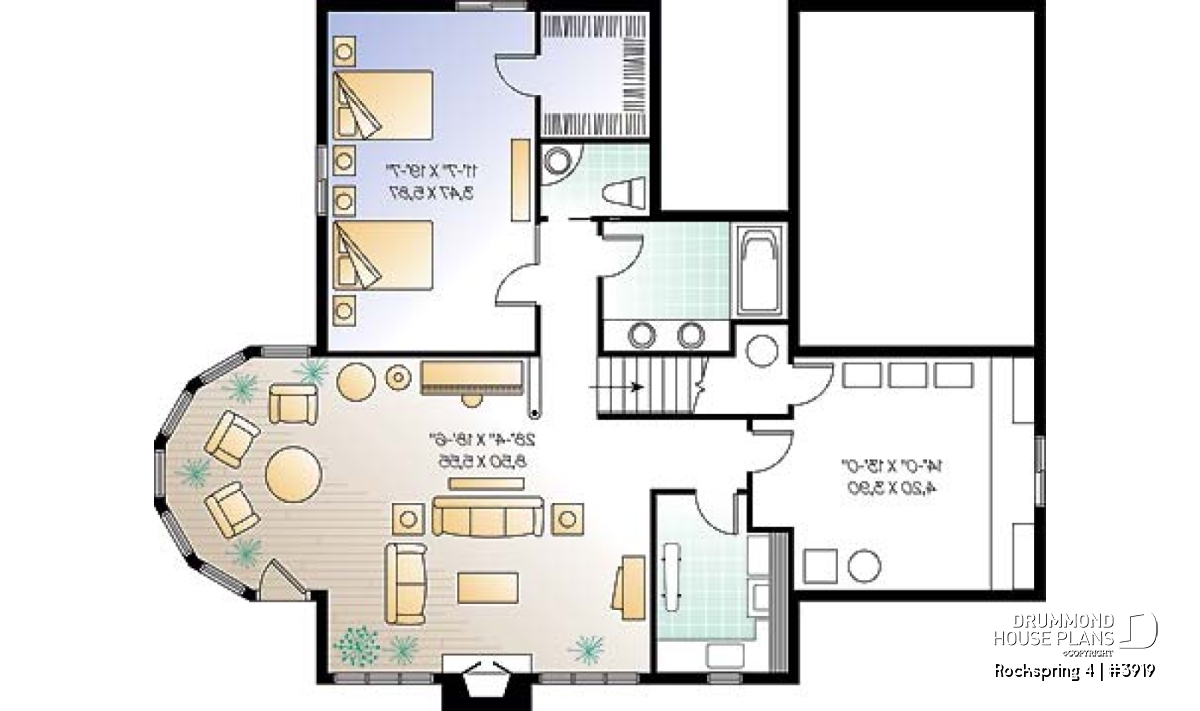

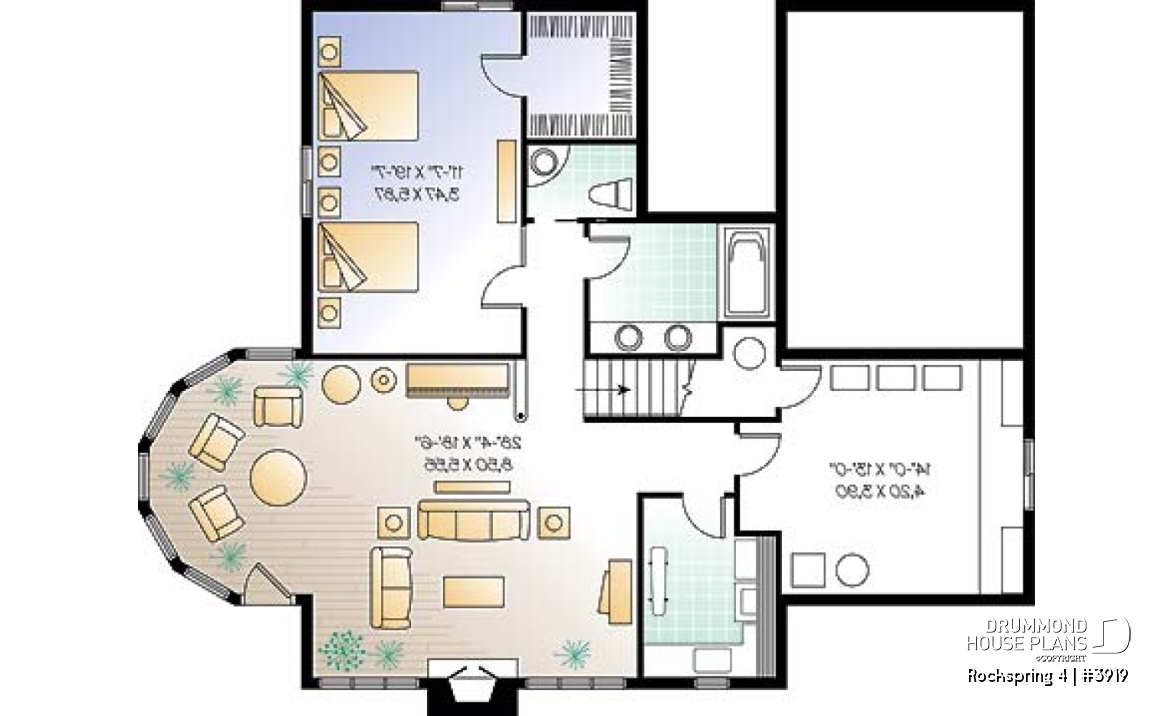

| Basement | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'7" x 7'7" | ~ 8'0" |
| Great room or Family room | 28'4" x 18'6" | ~ 8'0" |
| Bedroom | 11'7" x 19'7" | ~ 8'0" |
| Utility room | 7'10" x 10'4" | ~ 8'0" |
| Workshop | 14'0" x 13'0" | ~ 8'0" |
| Half bath or powder room | 6'3" x 4'3" | ~ 8'0" |

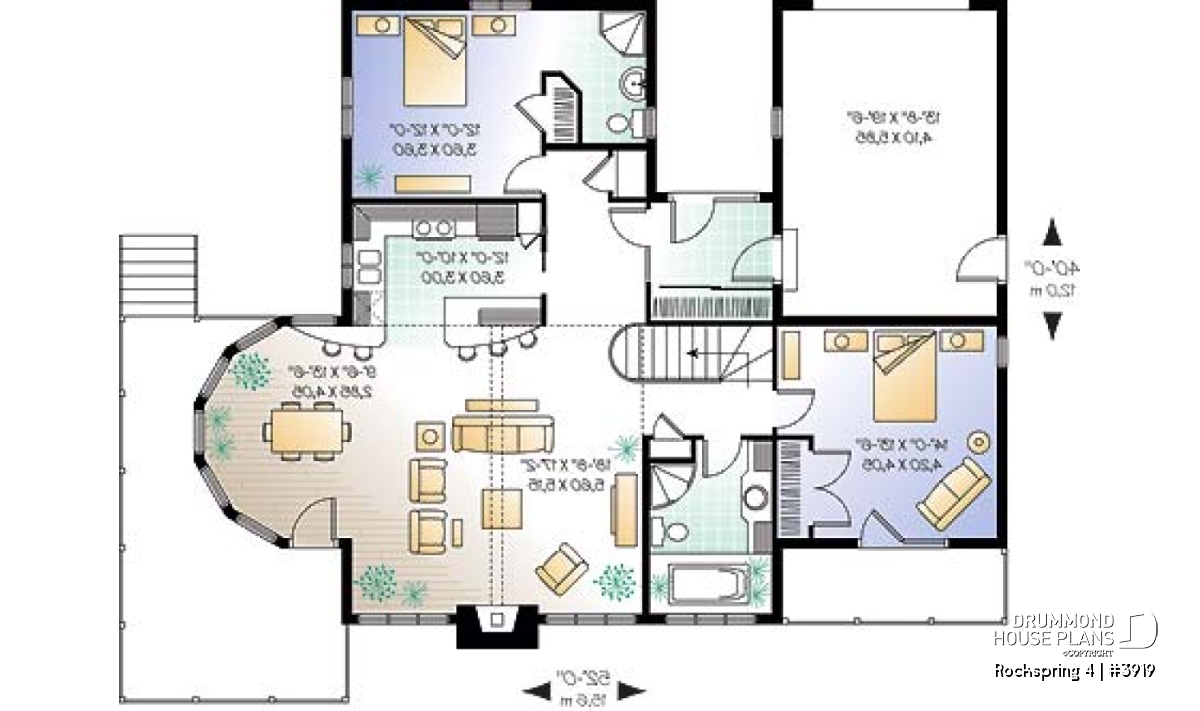

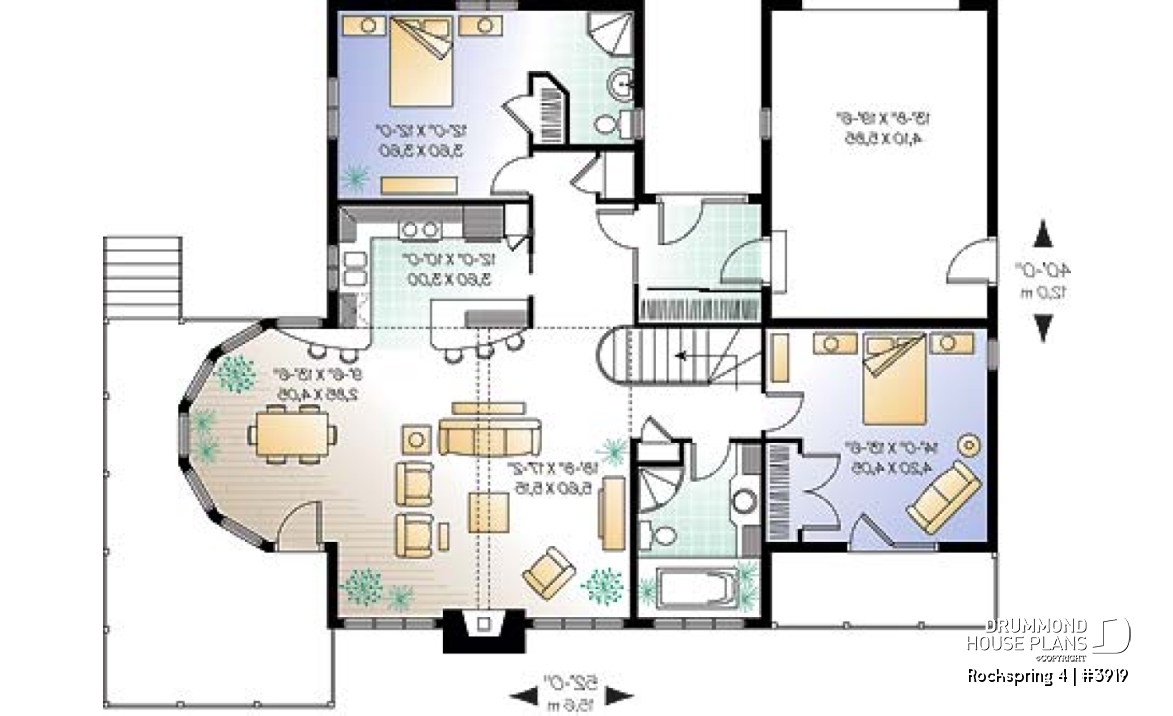

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 7'10" x 11'2" | ~ 8'0" |
| Kitchen | 12'0" x 10'0" | ~ 8'0" |
| Dining room | 9'6" x 13'6" | ~ 8'8" |
| Living room | 18'6" x 17'2" | N/A |
| Bedroom | 14'0" x 13'6" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
| Linen | 2'0" x 2'10" | ~ 8'0" |
| Linen | 2'8" x 1'0" | ~ 8'0" |
| Foyer | 7'10" x 5'6" | ~ 8'0" |
| Garage | 13'8" x 19'6" | ~ 8'0" |
| Porch | 14'6" x 24'10" | N/A |
| Terrace | 14'4" x 5'0" | N/A |
General specifications
| Total living area | 2720 sq.ft. |
| Basement | 1360 sq.ft. |
| 1st level | 1360 sq.ft. |
| Width | 52'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 30'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Finished basement with walkout i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
2 to 4 bedroom panoramic view ranch style house plan with walkout basement!
.
Distinctive elements
Master bedroom with private balcony.
Fireplace on the main floor and basement
Rear porch
Deck/patio
Abundant windowing
Plan feature(s)
Fireplace, Separate bath and shower, Lunch counter, Island, Cathedral ceiling, Entrance hall, Panoramic view
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Ski chalets, . American, . Traditional, . Ranch, . Mountain
