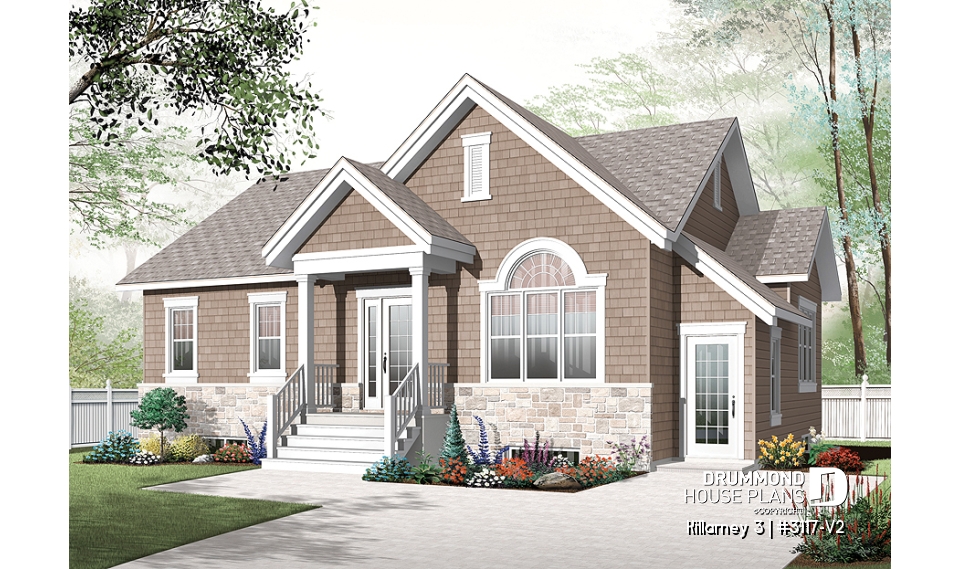

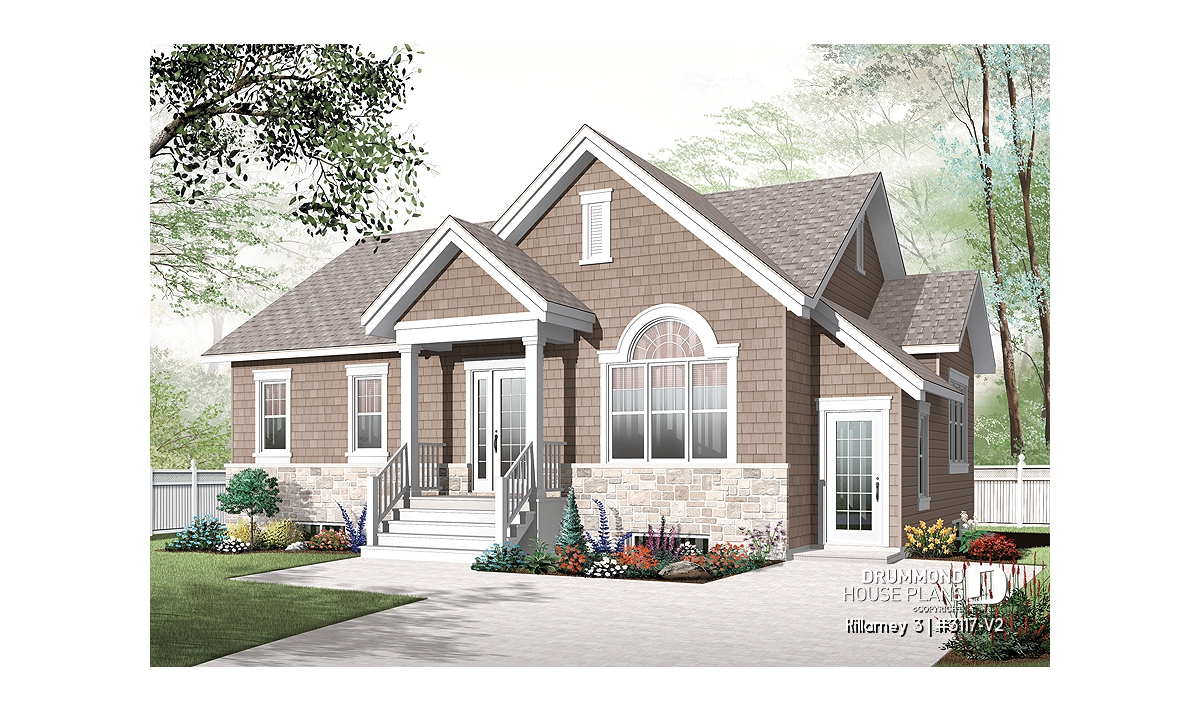

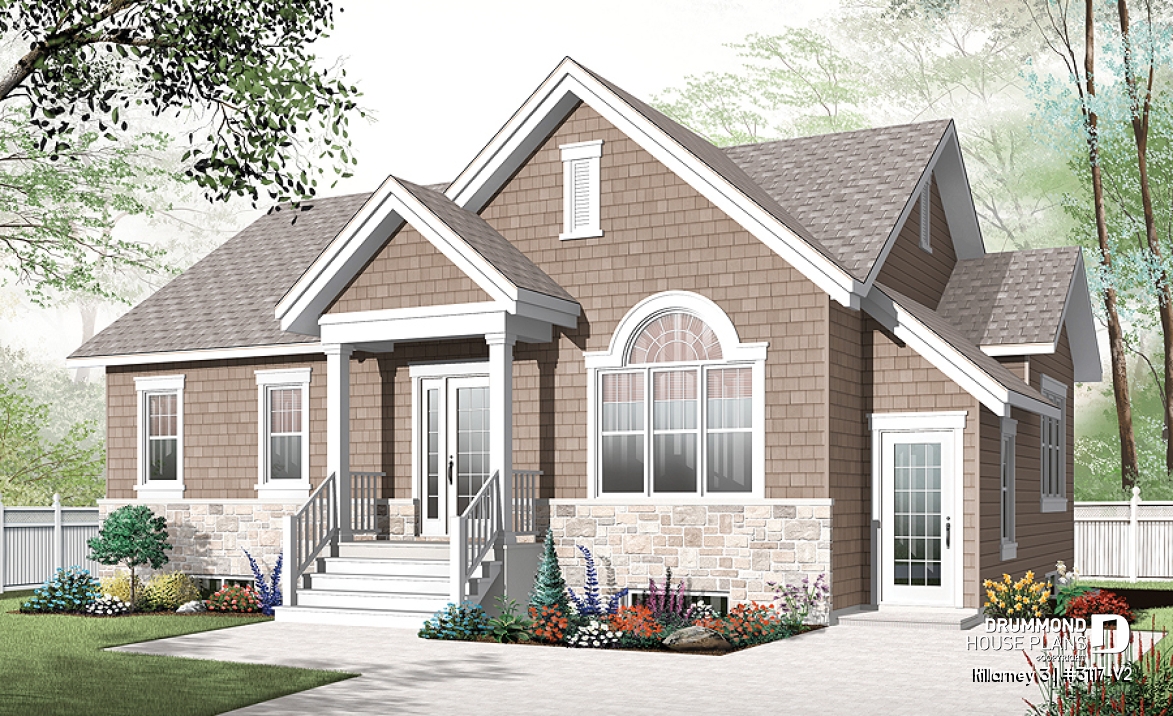

front - BASE MODEL

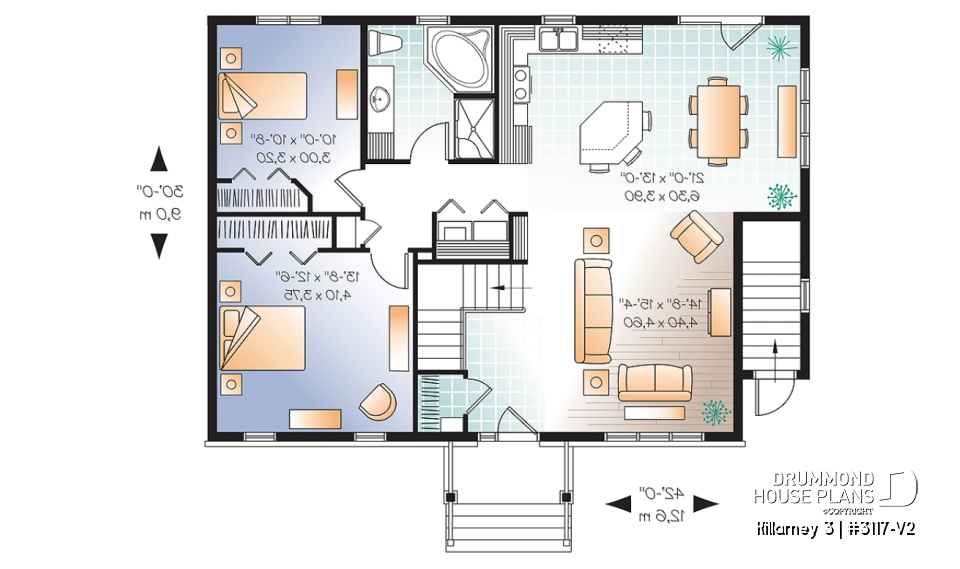

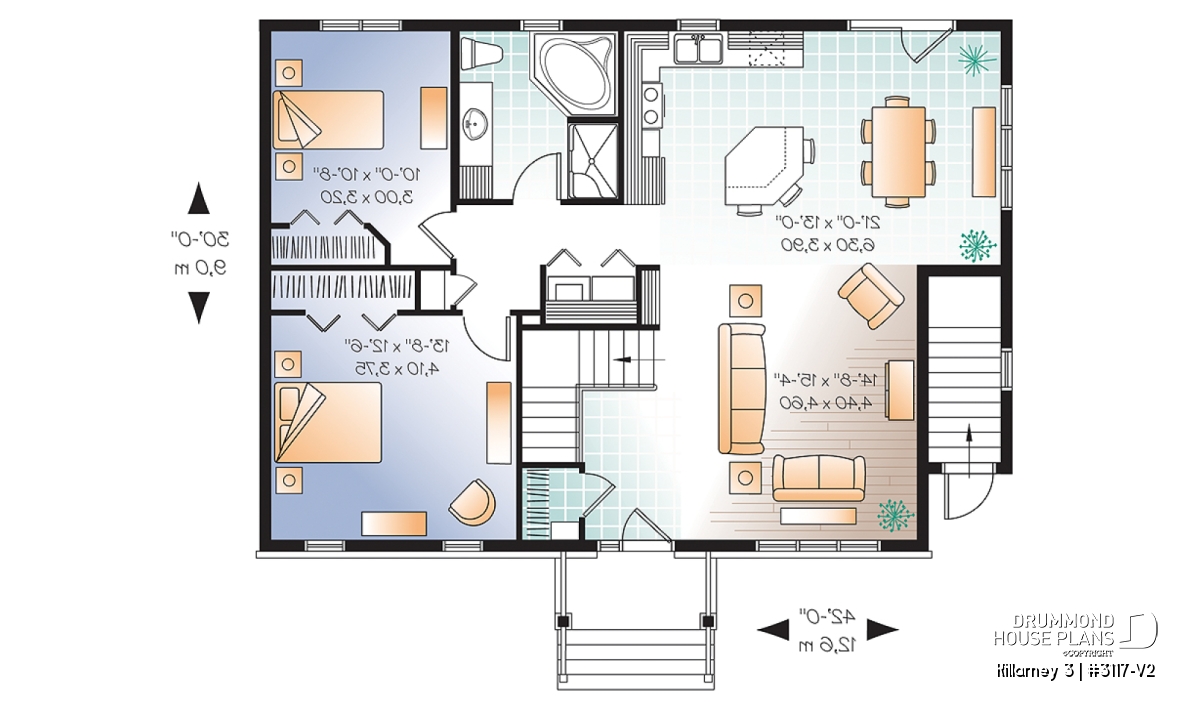

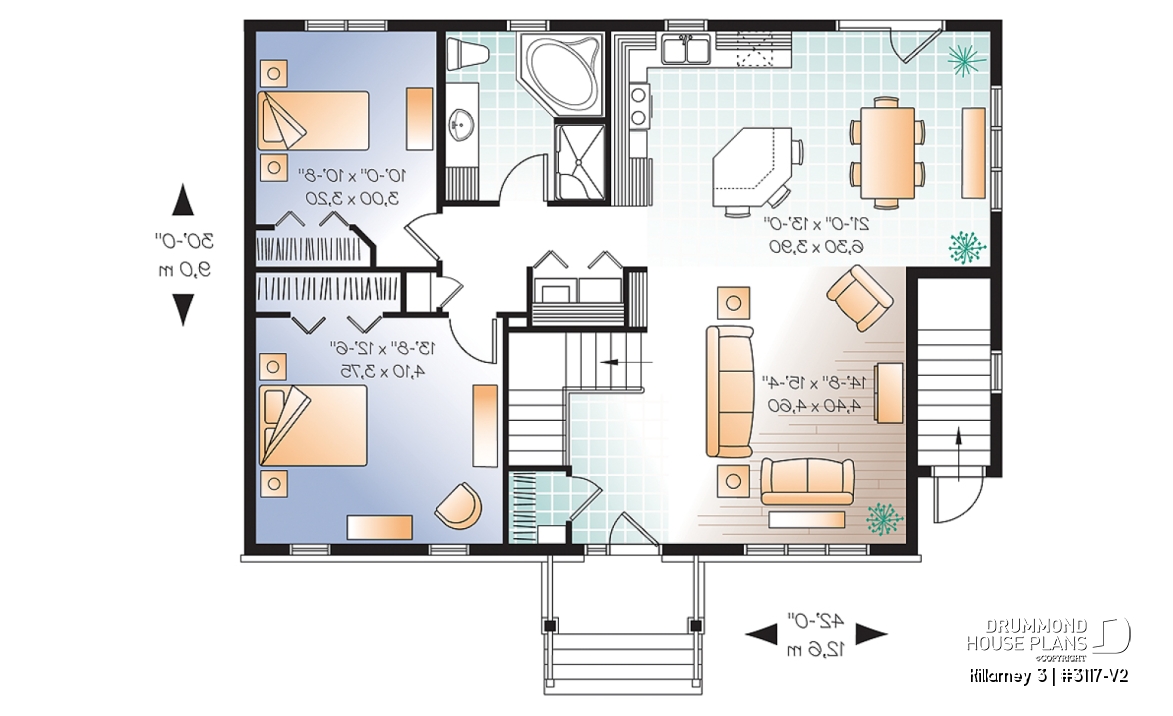

1st level

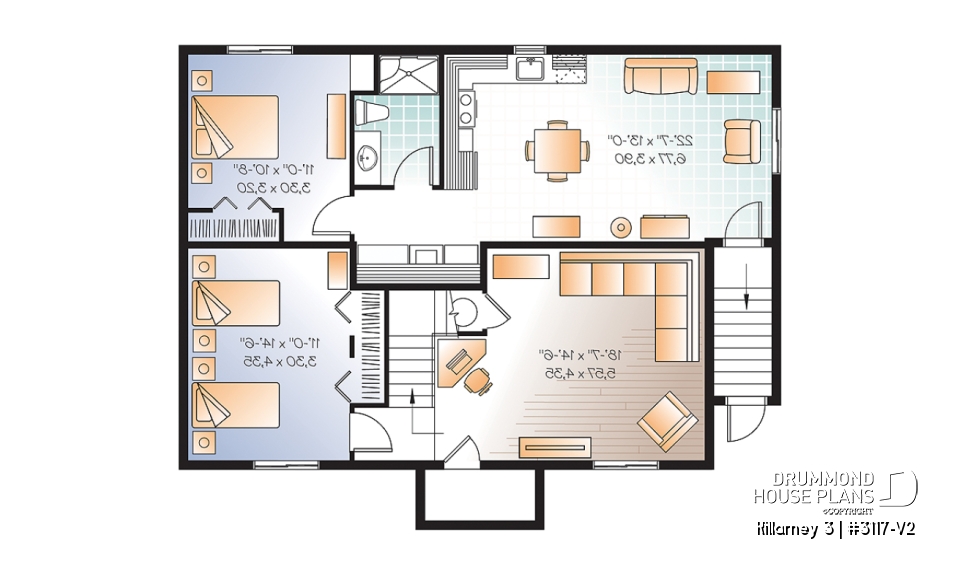

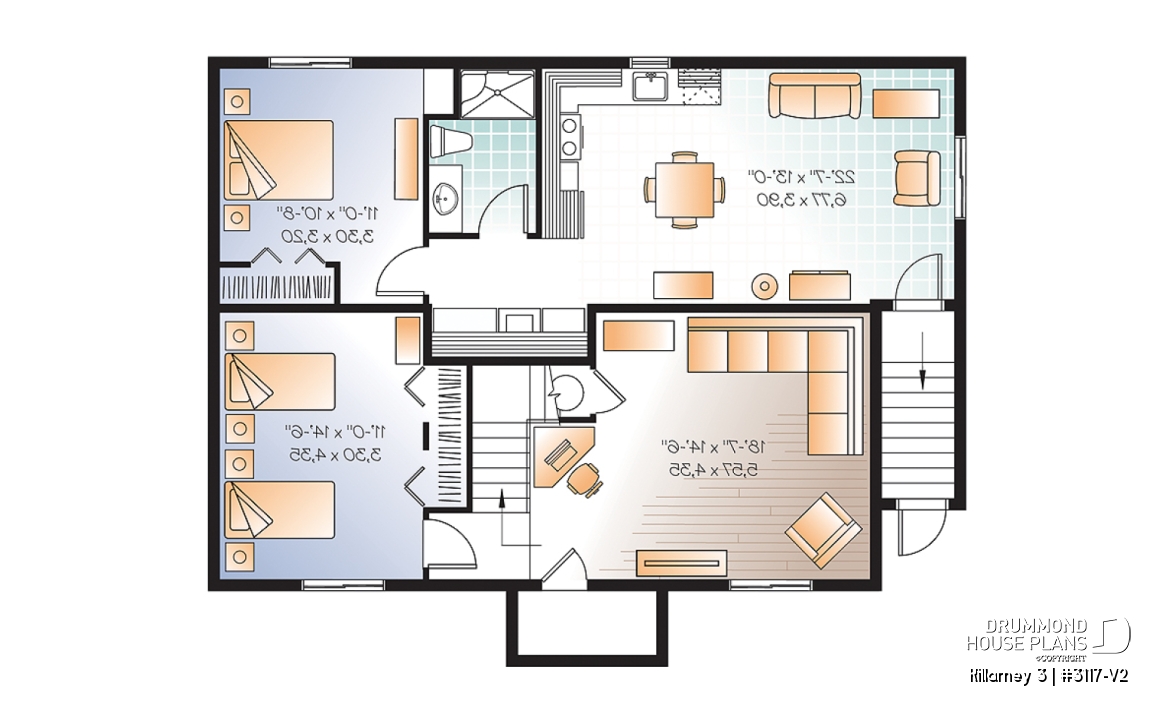

Basement

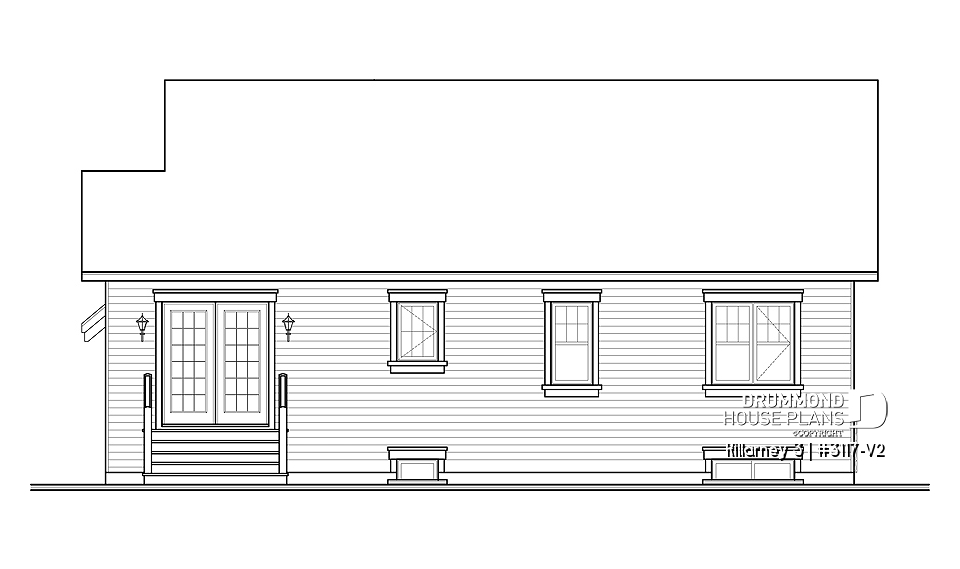

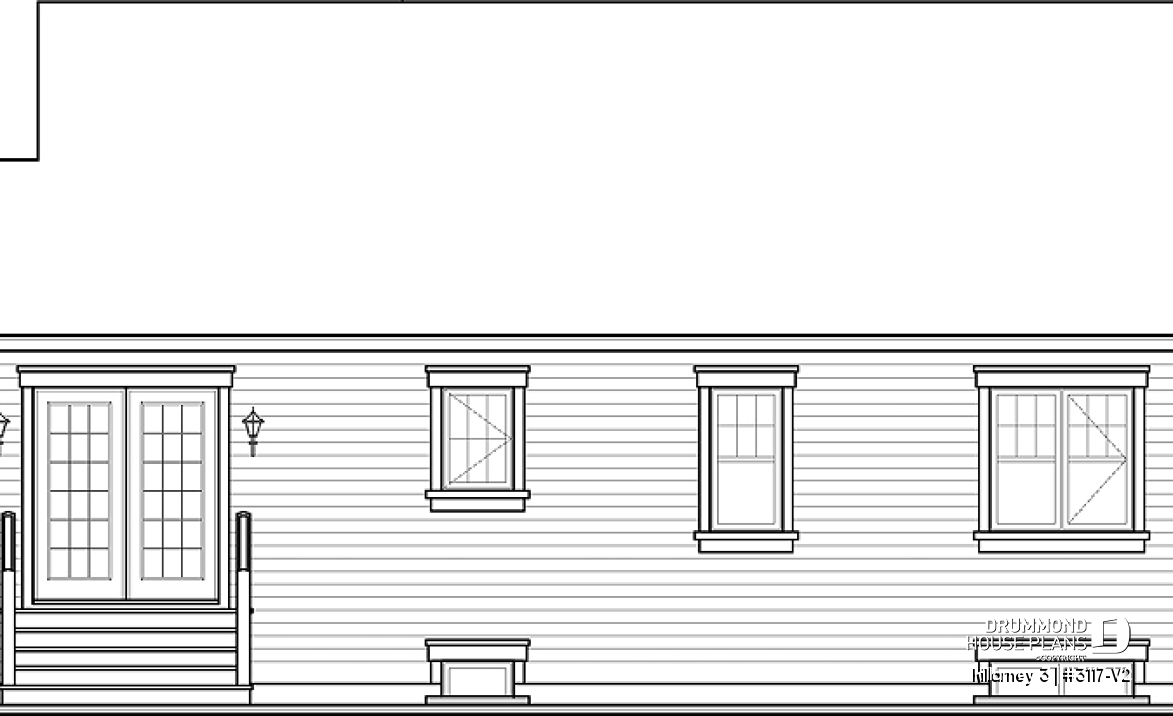

rear elevation
Killarney 3 House plan 3117-V2
3 bedroom house plan with 2 family rooms (main unit) and a one-bedroom basement apartment
Starting from
2130$
| Technical details summary | Plan #3117-V2 | ||
|---|---|---|---|
| Total living area | 2425 sq.ft. | Bedroom | 1, 2, 3 |
| Full baths | 2 | Half baths | - |
| Foundation included | Finished basement | Garage | - |
| Width | 42'0" | Depth | 30'0" |
Additional details
General specifications
Total living area
2425 sq.ft.
1st level
1187 sq.ft.
Basement
1238 sq.ft.
Width
42'0"
Depth
30'0"
Ridge height from top of foundation
22'1"
Exterior wall
2 X 6
Finished basement
Builder price code
MB
Rooms specifications
Bedroom(s)
1, 2, 3
Full baths
2
Half baths
-
Garage type
-
Covered porch area
36 sq.ft.
Units specifications
UNIT 1
UNIT 2 (BACHELOR)
Total living area
1850 sq.ft.
575 sq.ft.
Basement
663 sq.ft.
575 sq.ft.
1st level
1187 sq.ft.
Width
42' 0"
42' 0"
Depth
30' 0"
14' 2"
Ridge height from top of foundation
22' 1"
22' 1"
Exterior wall
2 X 6
2 X 6
Foundation type
Finished basement
Finished basement
Bedroom(s)
3
1
Full baths
1
1
Half baths
-
-
Garage type
-
-
Living bonus space
-
-
Bonus storage
-
-
Basement
Rooms
Sizes
Ceiling
Playroom
18'7" x 14'6"
~ 8'0"
Bedroom
11'0" x 14'6"
~ 8'0"
Closet
2'0" x 7'10"
~ 8'0"
Cold room
7'8" x 3'4"
~ 8'0"
Activity room
22'7" x 13'0"
~ 8'0"
Laundry room
8'7" x 2'11"
~ 8'0"
Bedroom
11'0" x 10'8"
~ 8'0"
Closet
6'1" x 2'0"
~ 8'0"
Shower room or three quarter bath
5'9" x 9'1"
~ 8'0"
1st level
Rooms
Sizes
Ceiling
Covered porch
9'0" x 4'0"
N/D
Deck
8'0" x 5'0"
N/D
Kitchen/dining room
21'0" x 13'0"
~ 8'0"
Pantry
1'0" x 3'0"
N/A
Living room/computer center
14'8" x 15'4"
~ 8'0"
Full bathroom
8'10" x 9'4"
~ 8'0"
Bedroom
13'8" x 12'6"
~ 8'0"
Closet
6'4" x 2'0"
~ 8'0"
Bedroom
10'0" x 10'8"
~ 8'0"
Closet
6'4" x 2'0"
~ 8'0"
Laundry room
5'0" x 3'0"
~ 8'0"
Linen
1'8" x 2'2"
~ 8'0"
Foyer
5'0" x 4'2"
~ 8'0"
Closet
3'2" x 4'0"
~ 8'0"
Charming 3 bedroom house plan with a complete one-bedroom basement appartment
Without a doubt, plan 3117 is a popular model, as is plan 3107 with its 3 bedrooms that has made it one of our best sellers. Drummond House Plans’ designers have developed plan 3117-V1 with a bachelor apartment in the basement to create a model that is sure to gain favour with those looking for a multi-generational or mortgage-helping home.
The main level offers two bedrooms with an increase in both width and depth of 2’ that permits the addition of a laundry area on the main floor and enough space for a computer desk in the corner of the living room. The third bedroom in the basement and a second living room, which can be used as a playroom for younger children or a home theatre, is sure to be a welcome feature of this plan.
The bachelor apartment in the basement has its own, separate entrance and a well designed kitchen/living room with separate bathroom and laundry area that have been planned with both the owner and tenant in mind to enhance the relationship between the two!
Distinctive elements
Popular plan to which a bachelor suite has been added. Entirely open activity area for the main unit as well as for the tenant. Large interior spaces. Bathroom on the main level with corner bath and independant 51" x 34" shower.
Plan feature(s)
Gound floor laundry room, Island, Game room, Office / Study / Den, Open floor layout, Separate bath and shower, Access to basement from exterior, Separate bath and shower, Separate bath and shower, Planning desk
Plan architectural style(s)
The plan Killarney 3 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
