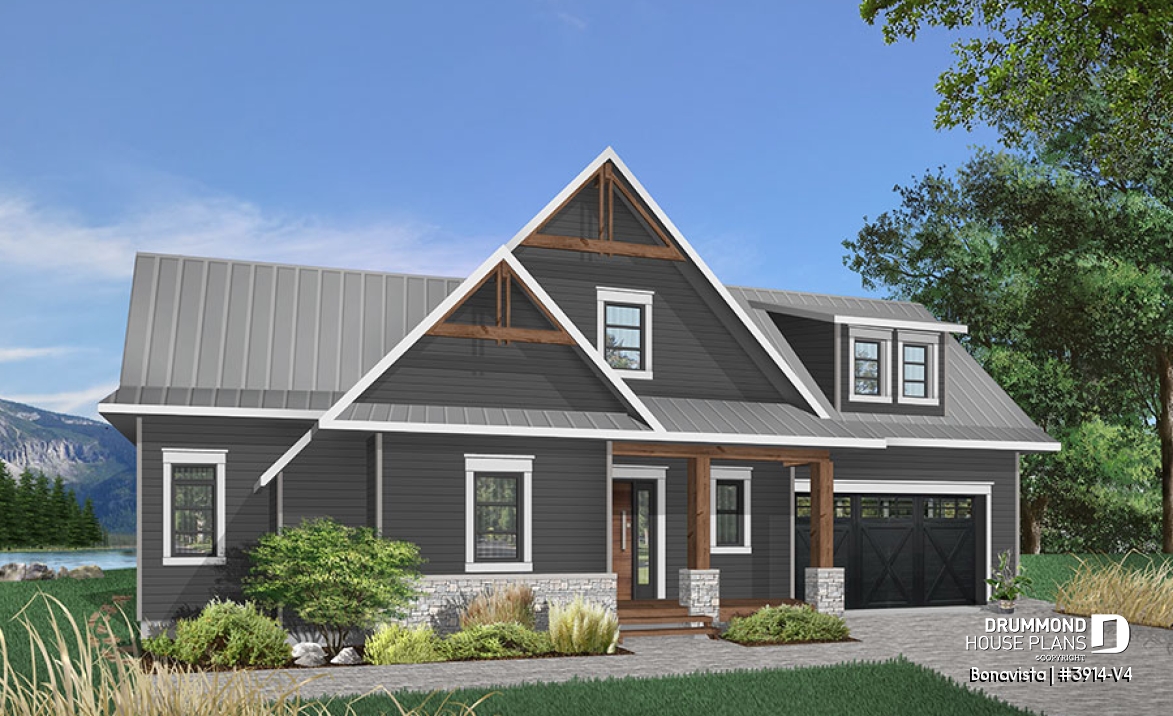

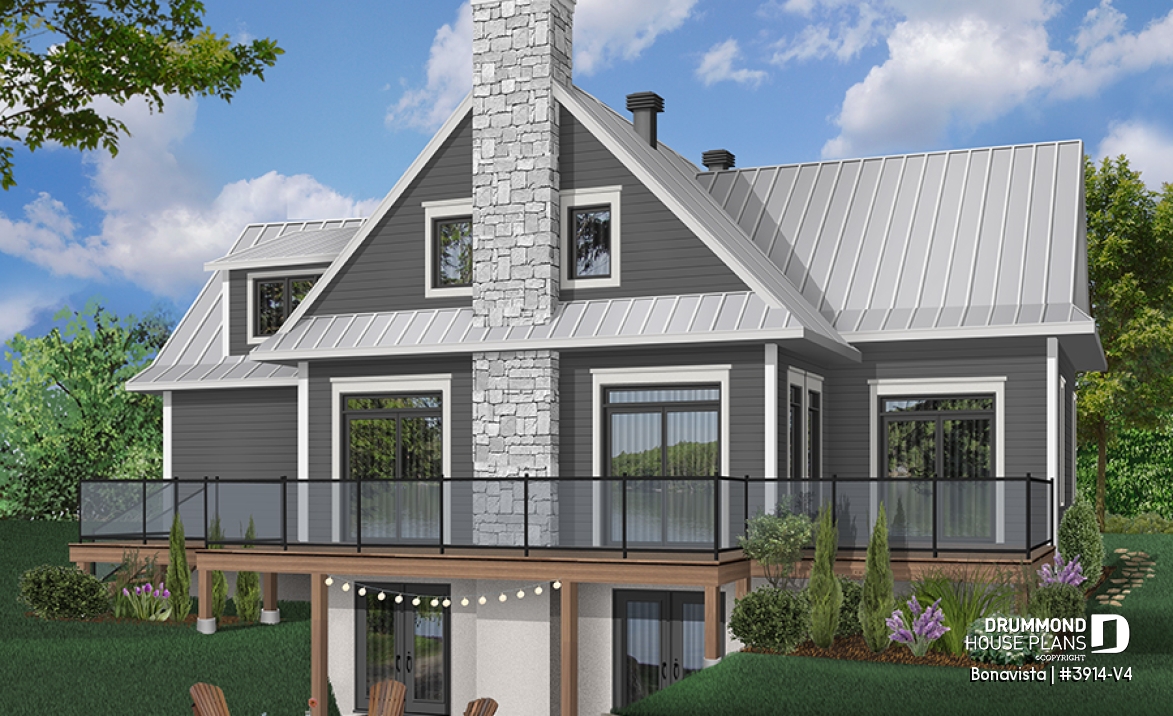

House plan Bonavista (3914-V4)
4 bedroom lakefront cottage including 2 master suites, double garage, open floor plan concept
View the size of the rooms and height of the ceilings

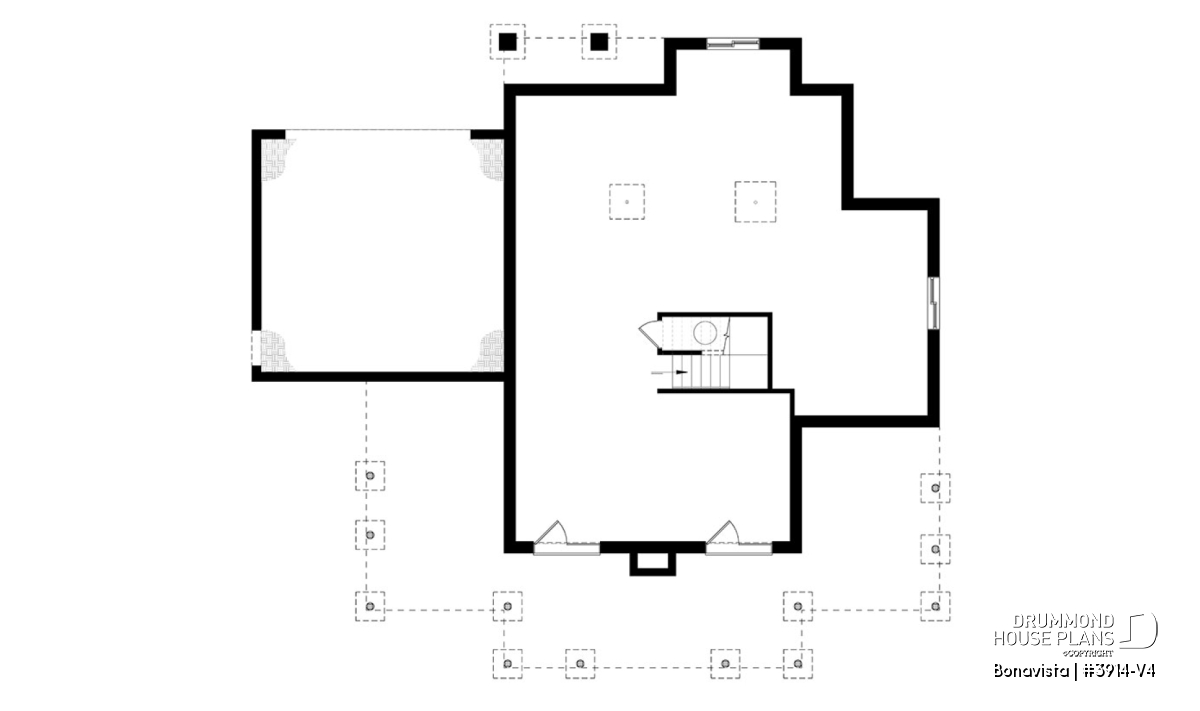

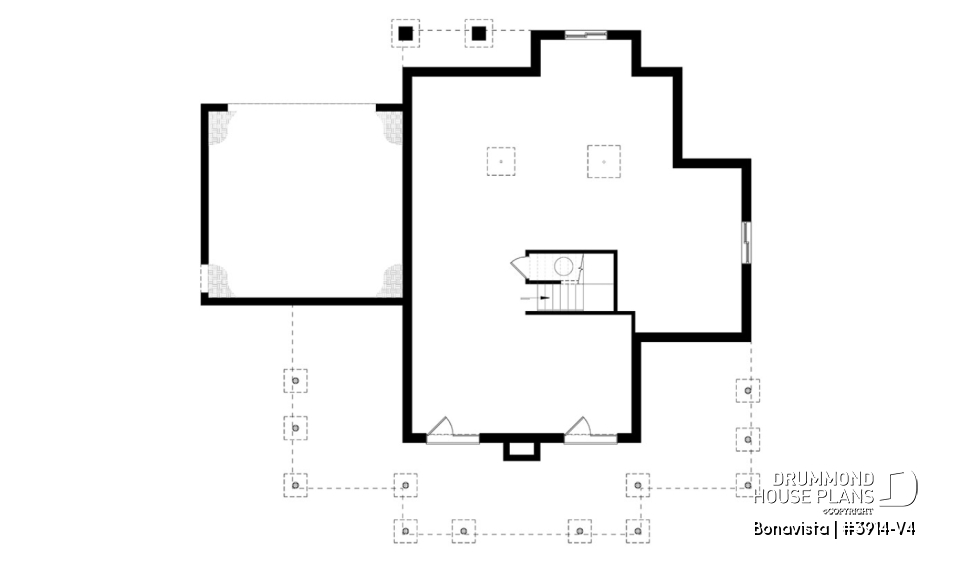

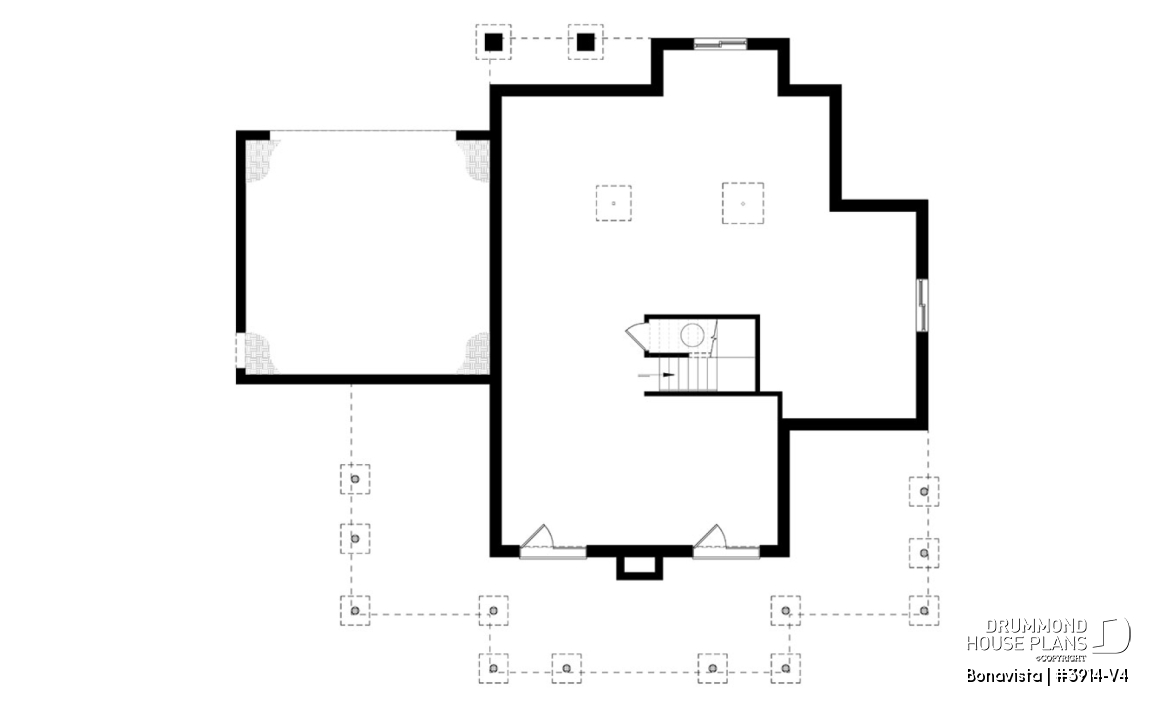

| Basement |
|---|
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'8" x 13'6" | ~ 9'0" |
| Dining room | 11'0" x 17'4" | ~ 9'0" |
| Living room | 13'8" x 14'4" | ~ 9'0" |
| Master suite | 14'0" x 18'8" | ~ 9'0" |
| Full bathroom | 7'10" x 13'8" | ~ 9'0" |
| Walk-in closet | 7'0" x 9'8" | ~ 9'0" |
| Garage | 21'4" x 20'8" | ~ 10'8" |
| Powder room | 5'0" x 5'4" | ~ 9'0" |
| Pantry | 2'10" x 5'4" | ~ 9'0" |
| Laundry space | 5'2" x 5'6" | ~ 9'0" |
| Foyer | 5'9" x 9'6" | ~ 9'0" |
| Covered porch | 14'0" x 4'0" | N/A |
| Deck | 26'0" x 9'0" | N/A |
| Deck | 12'0" x 16'0" | N/A |
| Deck | 12'0" x 20'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'0" x 14'0" | ~ 8'0" |
| Closet | 2'0" x 9'0" | ~ 8'0" |
| Bedroom | 13'0" x 14'0" | ~ 8'0" |
| Closet | 2'0" x 6'6" | ~ 8'0" |
| Closet | 2'0" x 7'2" | ~ 8'0" |
| Bedroom | 14'2" x 20'8" | ~ 8'0" |
| Walk-in closet | 5'8" x 5'10" | ~ 8'0" |
| Shower room or three quarter bath | 8'4" x 5'10" | ~ 8'0" |
| Full bathroom | 14'0" x 8'6" | ~ 8'0" |
| Linen | 2'0" x 5'9" | ~ 8'0" |
General specifications
| Total living area | 2719 sq.ft. |
| Basement | 1425 sq.ft. |
| 1st level | 1425 sq.ft. |
| 2nd level | 1294 sq.ft. |
| Width | 60'0" |
| Depth | 47'0" |
| Ridge height from top of foundation | 26'4" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab , Full basement with walkout i |
| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan
Dream rustic lake cottage house plan, with and 4 bedrooms, including 2 master suites
This member of our collection is much appreciated by owners of a lakefront or waterfront lot and it boasts the addition of a two car garage. Because of the several rooms which offer a view of the scenery, this plan is especially well suited to this kind of scenery.
Inside, whether in the kitchen, dining room, living room or master suite the panoramic view is visible throughout the entire main level which is what adds to the unique appeal of the interior spaces in this home. Special features of this plan include an abundantly fenestration kitchen with its central island and pantry and the large walk-in closet in the master suite with its private bathroom. A powder room is also available for guests and family members as well as a laundry room.
Add to the preceding features a second floor with a second master suite with ensuite, and two secondary bedrooms along with a third full bathroom.
Outside, a large covered porch insures the comfort of the occupants both inside and out. If insects are a problem, it would be easy to screen in the porch to keep the bugs out..
Distinctive elements
Lakefront Rustic style Cottage.
2 master suites with ensuite and walk-in closet.
Total of 4 bedrooms with 3.5 bathrooms.
Pantry and large kitchen island.
Powder room and laundry room near kitchen.
Fireplace and cathedral ceiling in family room and dining room.
Massive deck accessible through family area.
Unfinished walkout basement.
Plan feature(s)
Fireplace, Guest suite, Gound floor laundry room, Ceiling over 8', Walk-in master bed., Master suite on main, Island, Pantry, Sloped ceiling, Open floor layout, Panoramic view, Entrance hall
Plan architectural style(s)
. Cottage, chalet, cabin, . A-Frame, . Country, . Modern rustic, . Craftsman / Northwest, . Rustic, . Vacation and waterfront, . Ranch, . American, . Farmhouse
