Garage plan The Pottery Port 3 (2975-22)
Two-car garage with bonus space on second floor / or storage space
View the size of the rooms and height of the ceilings

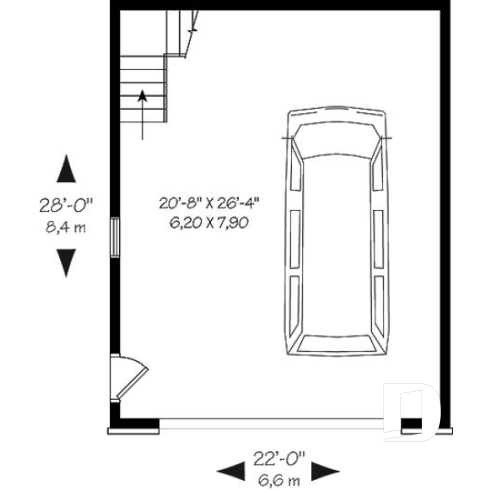

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 20'8" x 26'4" | ~ 8'6" |

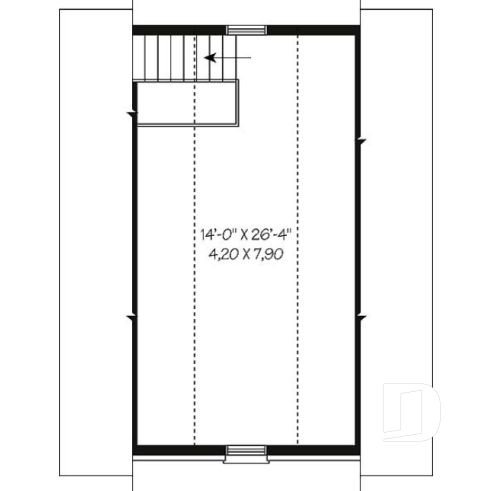

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |

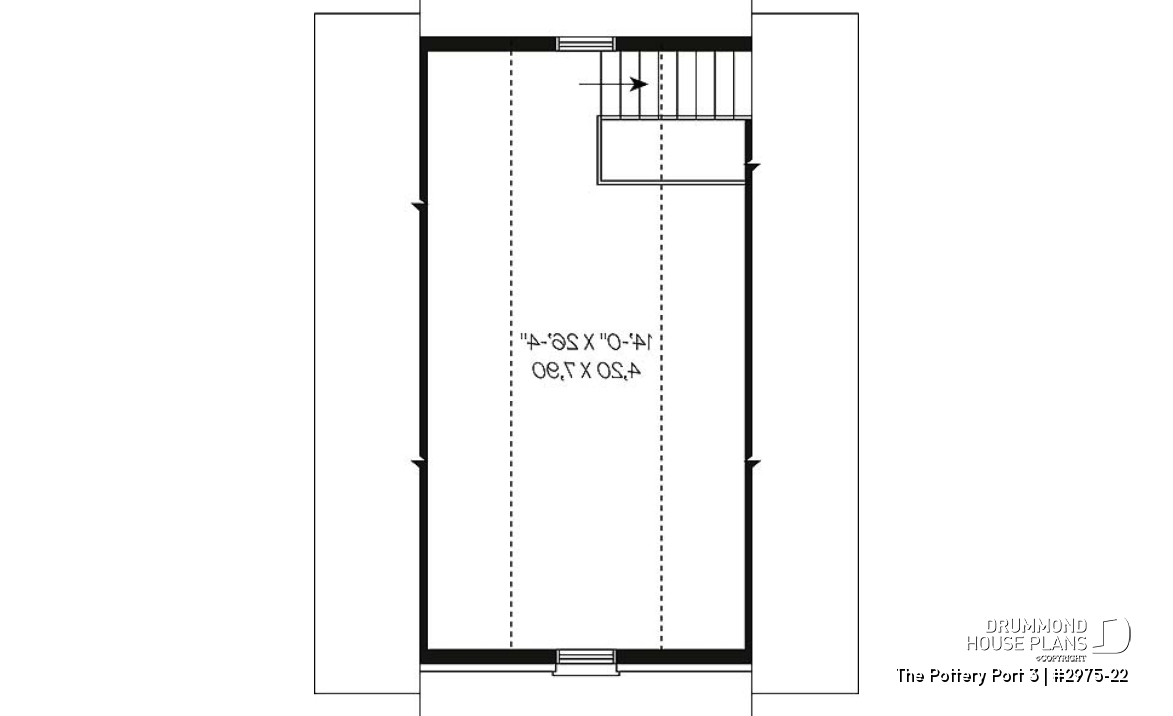

| Storage | 14'0" x 26'4" | ~ 7'0" |
General specifications
| Total living area | 984 sq.ft. |
| 1st level | 616 sq.ft. |
| 2nd level | 368 sq.ft. |
| Width | 22'0" |
| Depth | 28'0" |
| Ridge height from top of foundation | 20'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2B |
Rooms specifications
Other useful information on this plan
Two-car garage with bonus space on second floor / or storage space

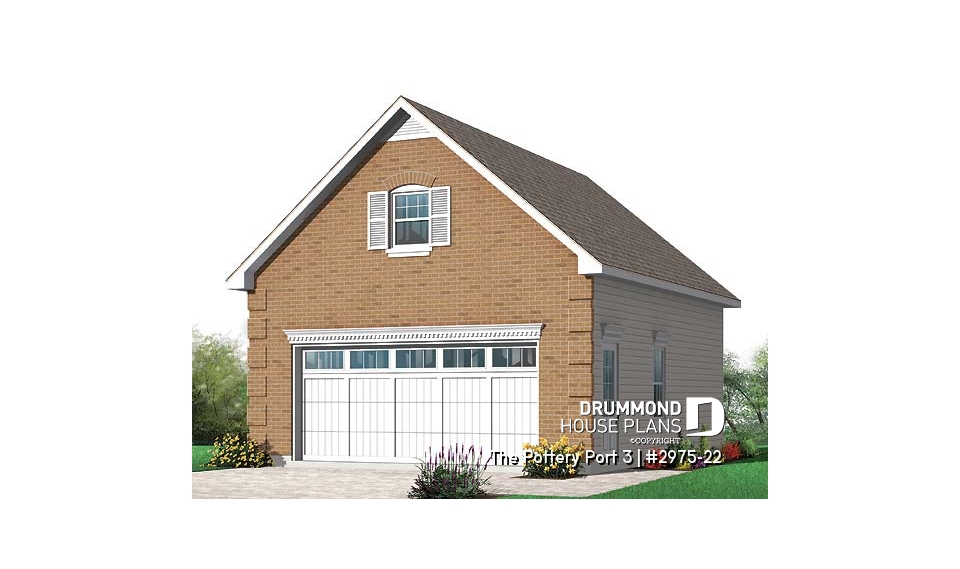

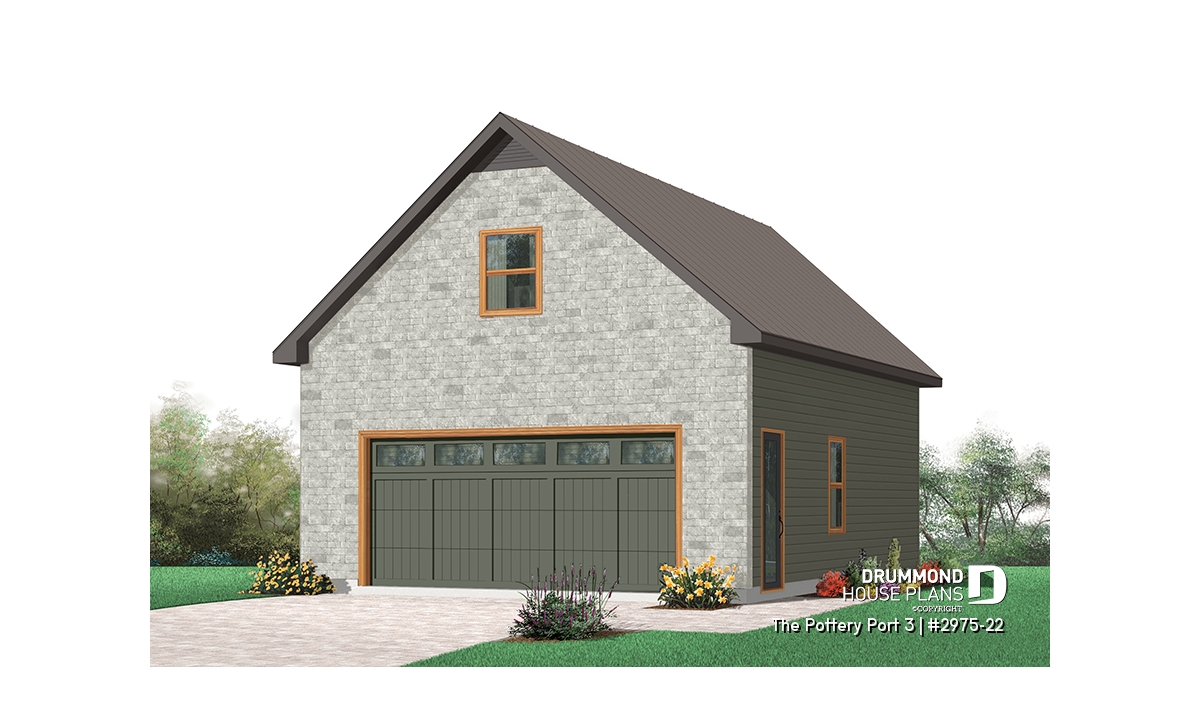

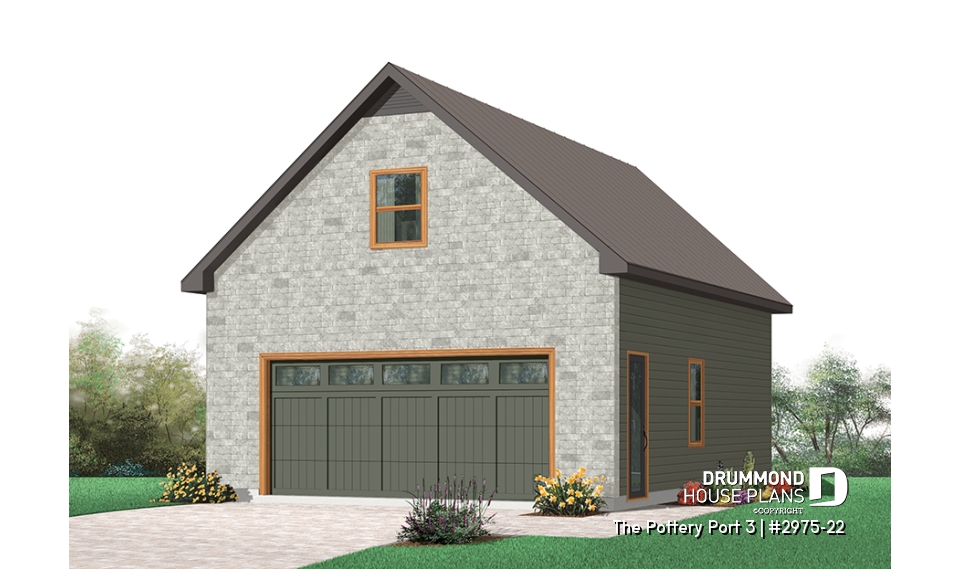

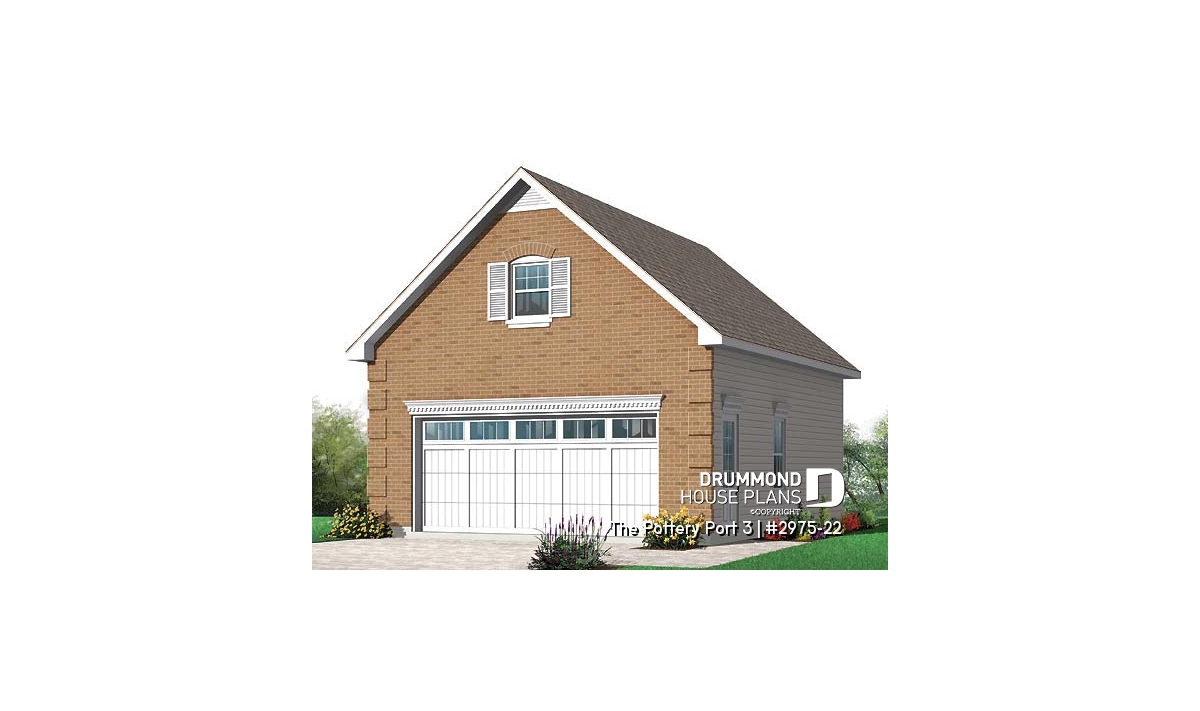

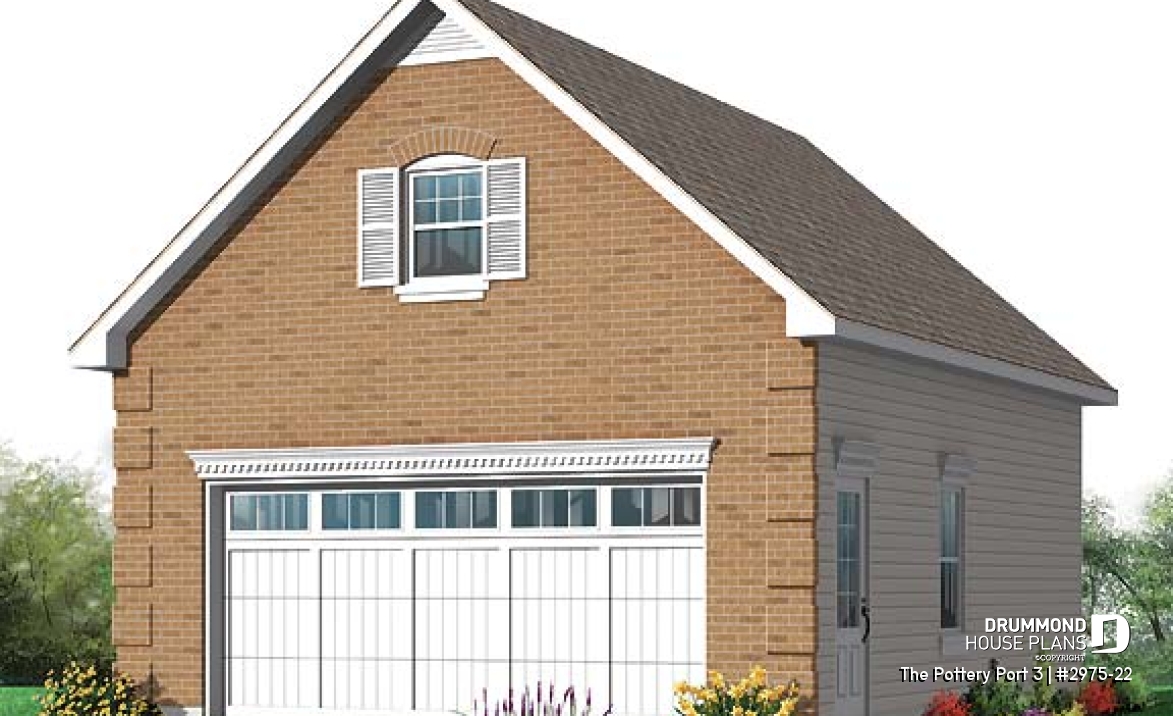

Designed and illustrated in a style to complement traditional brick houses, this two-car garage provides pleasing proportions for vehicle parking and a bit of workspace to spare plus surprise storage above! A perfect space for storage of seasonal items!
Distinctive elements
Facade bricks.
Second level storage of 368 sq.ft.
Plan architectural style(s)
. American, . English, . European, . Traditional, . Country, . Contemporary
