Starting from $1450

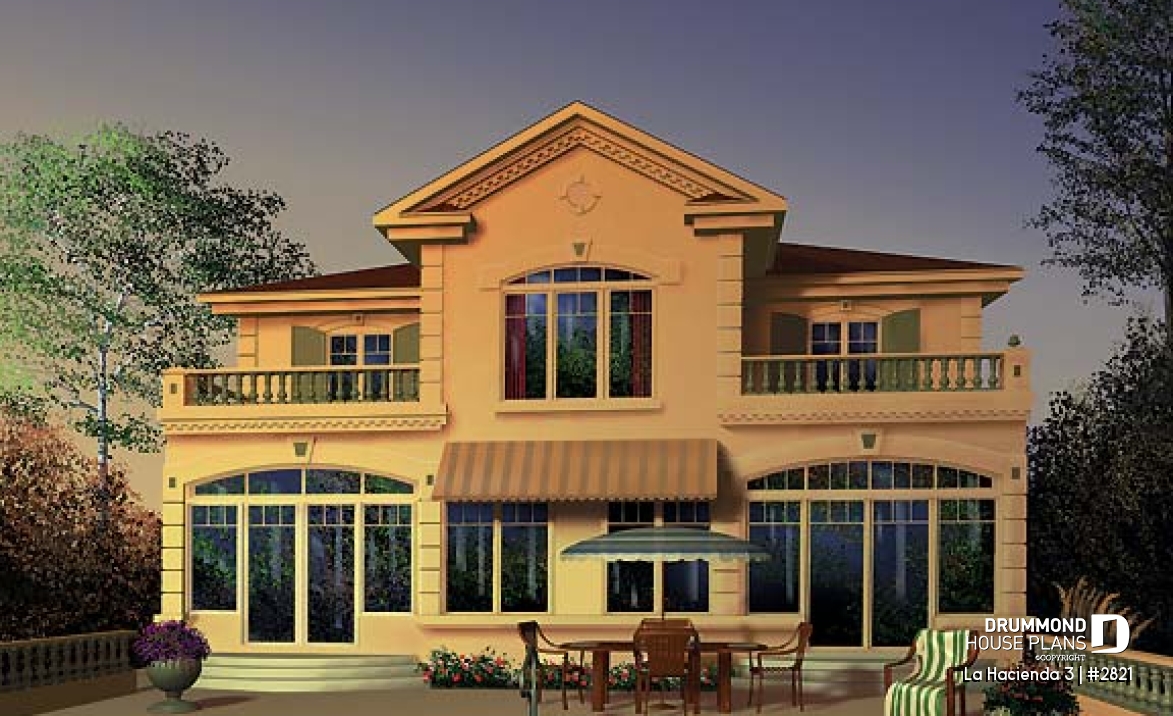

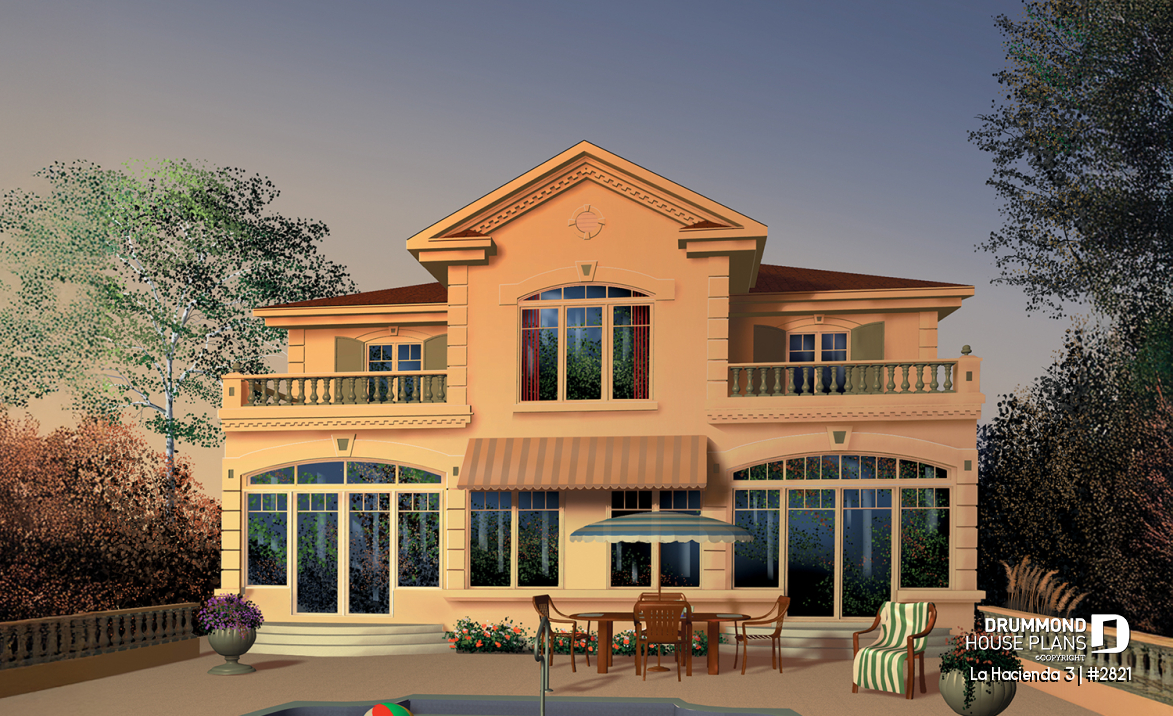

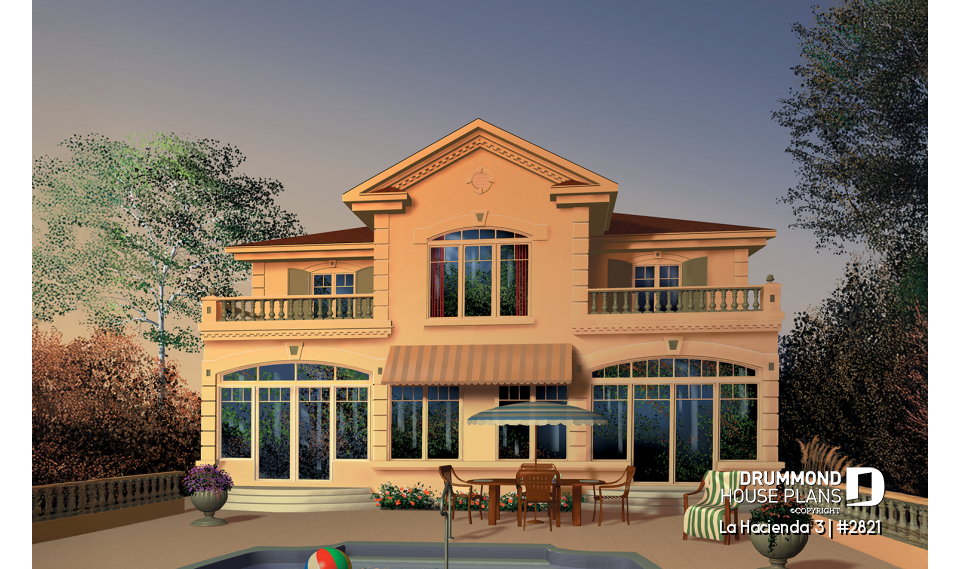

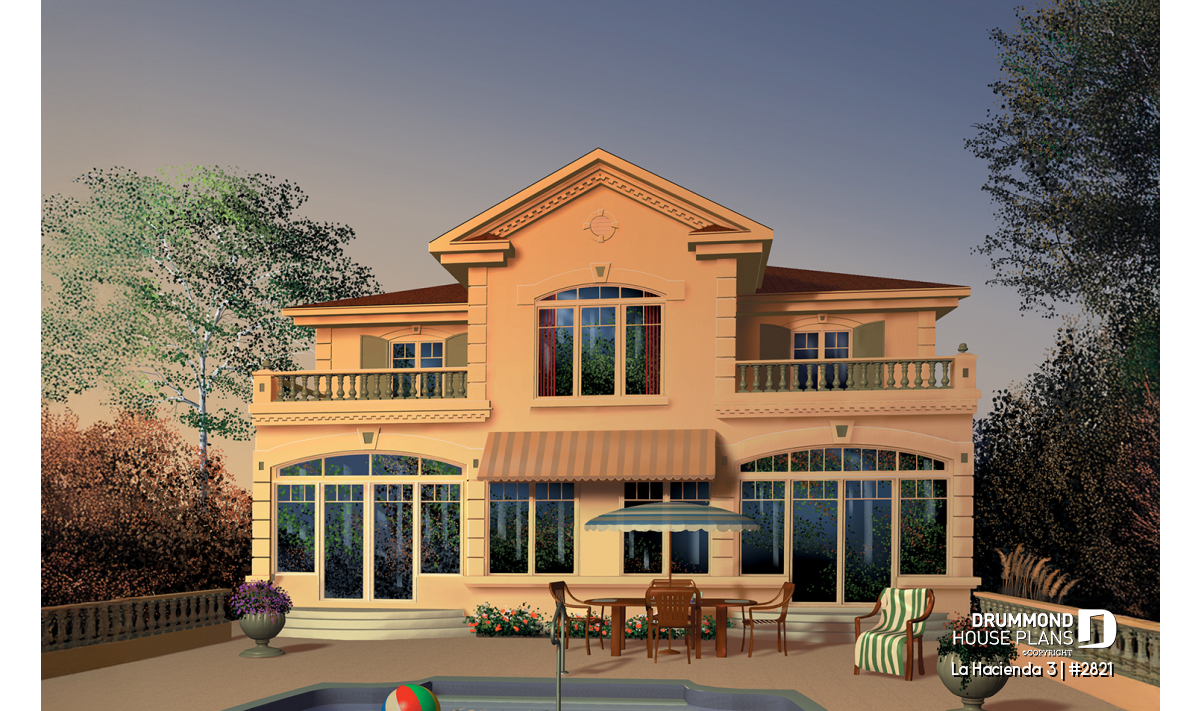

Rear view - BASE MODEL

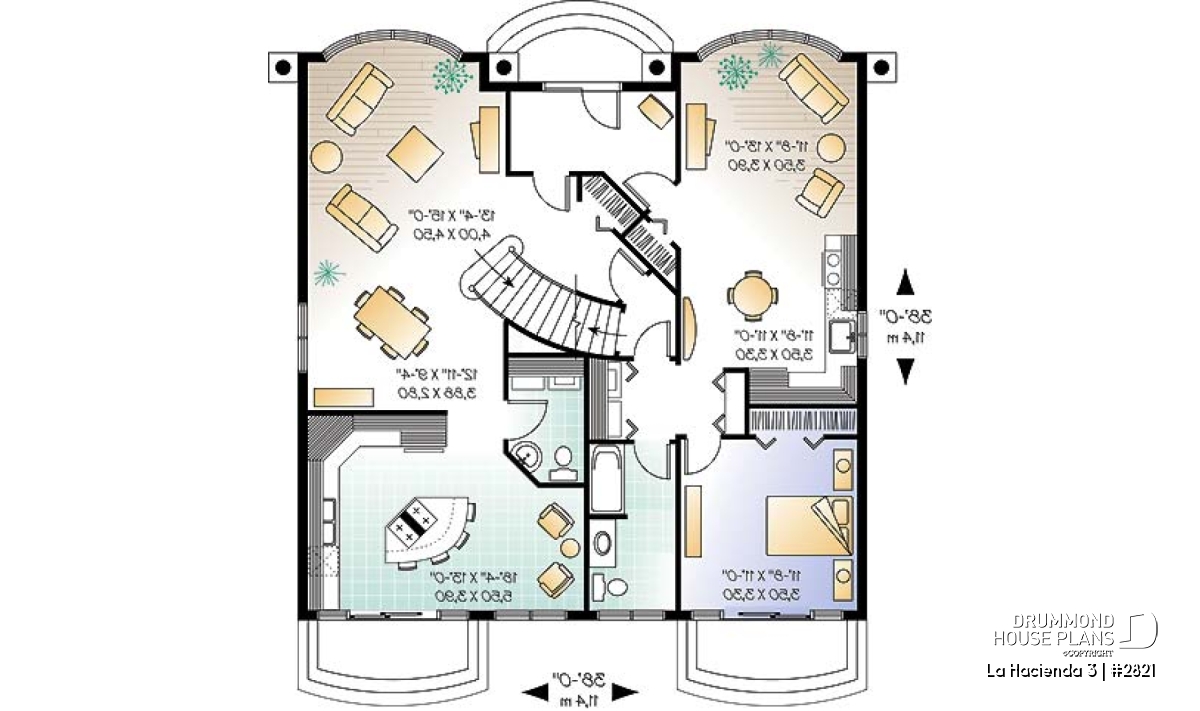

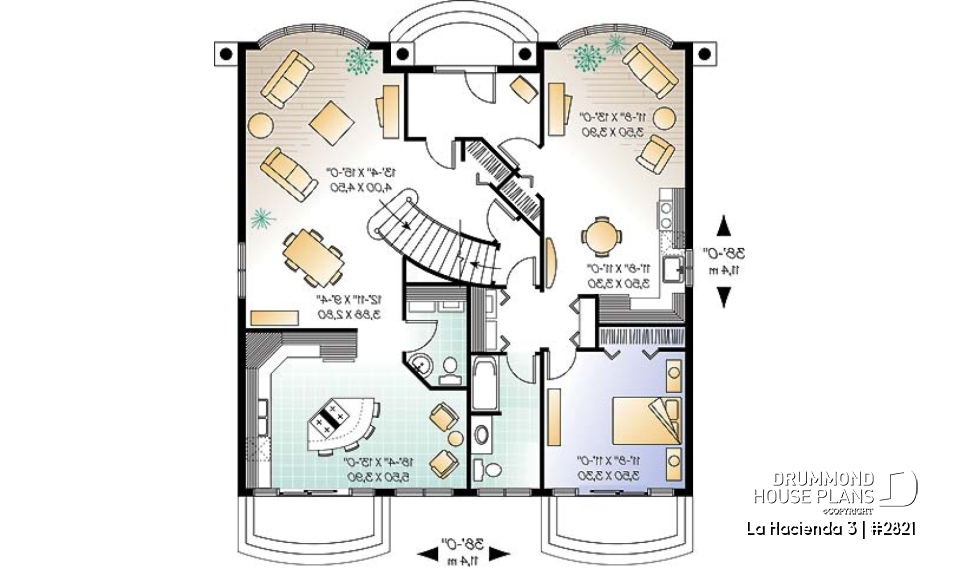

1st level

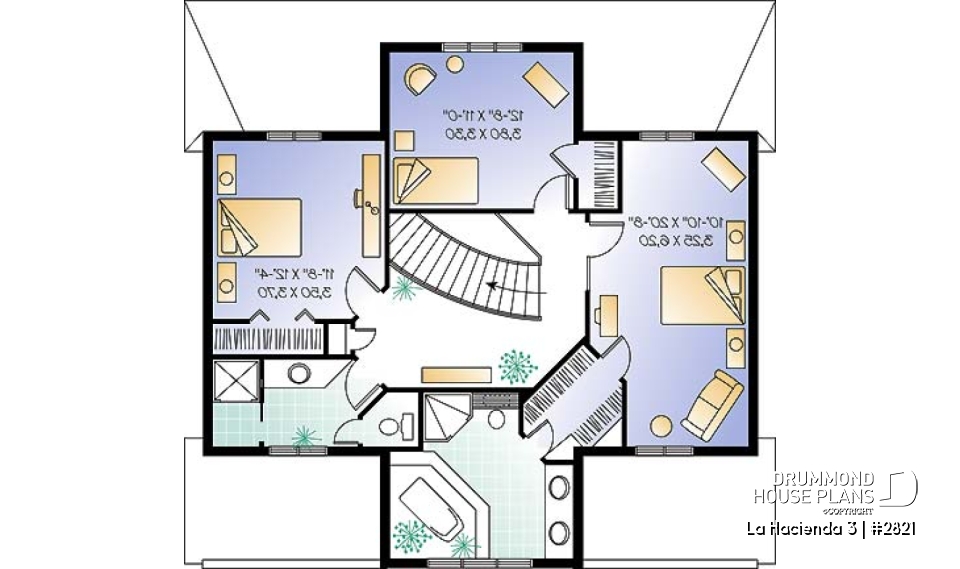

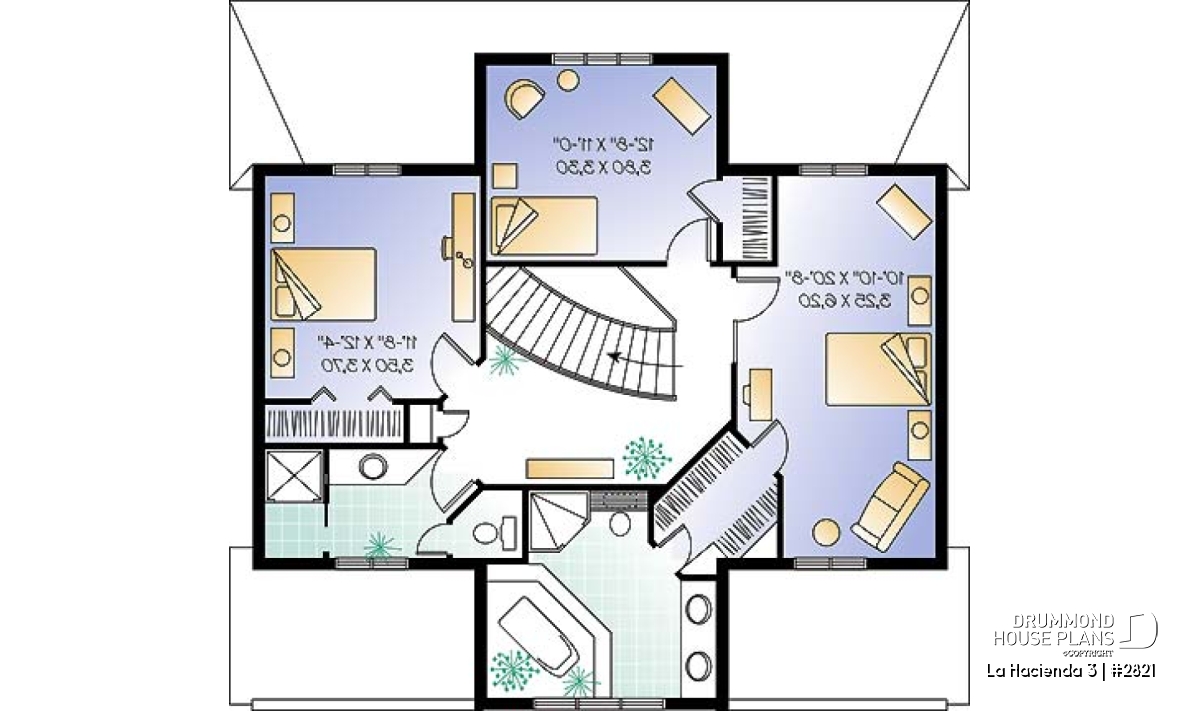

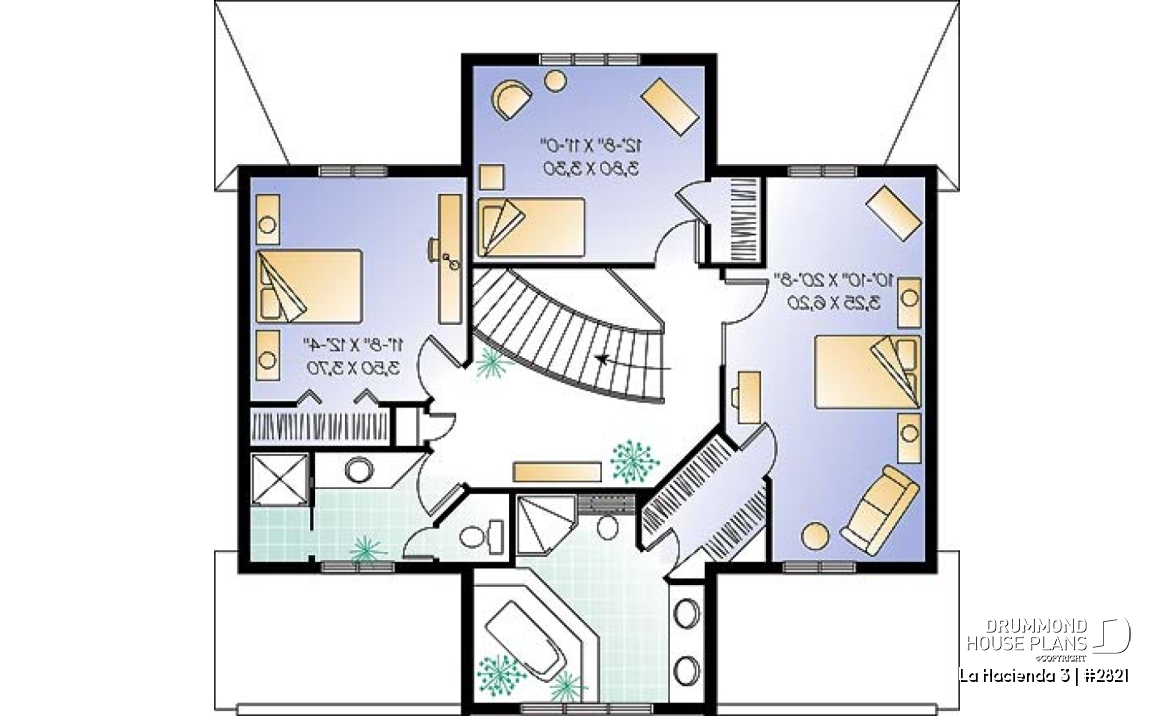

2nd level

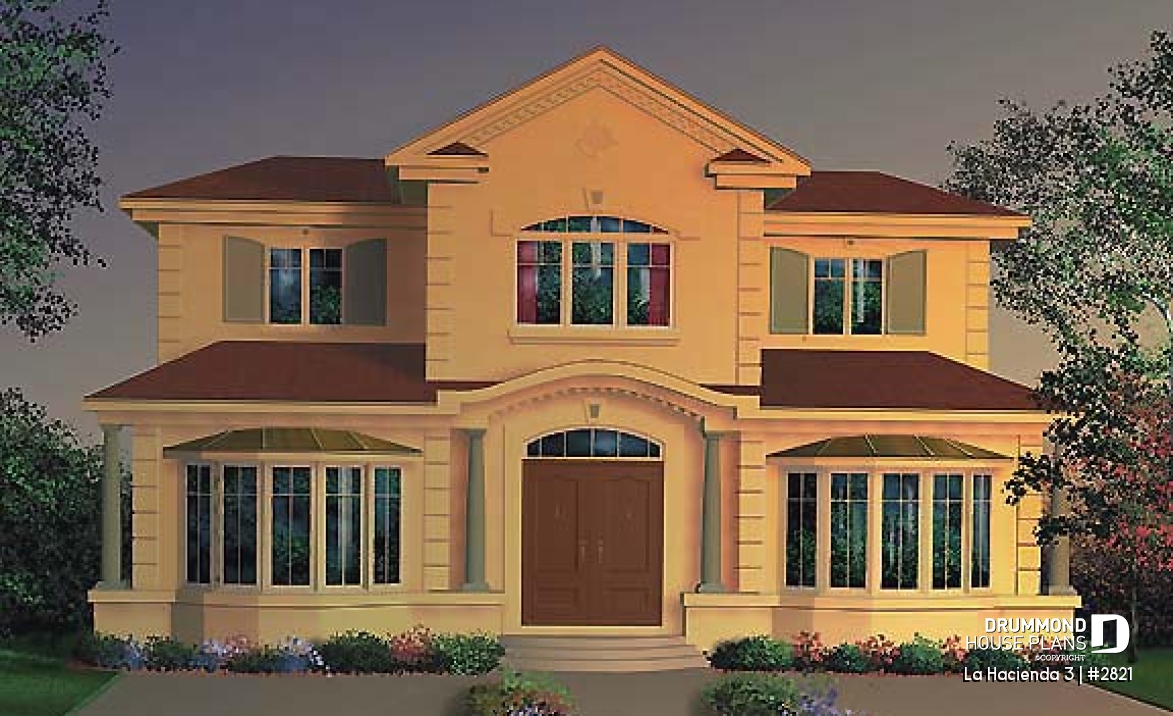

front - BASE MODEL
La Hacienda 3 House plan 2821
Multigenerational house plan, one-bedroom apartment on main floor, two-story 3 bedroom for the family
Starting from
2130$
| Technical details summary | Plan #2821 | ||
|---|---|---|---|
| Total living area | 2480 sq.ft. | Bedroom | 3, 4 |
| Full baths | 3 | Half baths | 1 |
| Foundation included | Unfinished Basement | Garage | - |
| Width | 38'0" | Depth | 38'0" |
Additional details
General specifications
Total living area
2480 sq.ft.
1st level
1448 sq.ft.
2nd level
1032 sq.ft.
Width
38'0"
Depth
38'0"
Ridge height from top of foundation
26'2"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
MB
Rooms specifications
Bedroom(s)
3, 4
Full baths
3
Half baths
1
Garage type
-
Covered porch area
27 sq.ft.
Units specifications
UNIT 1 (MAIN UNIT)
UNIT 2 (IN-LAW SUITE)
Total living area
1787 sq.ft.
693 sq.ft.
1st level
755 sq.ft.
693 sq.ft.
2nd level
1032 sq.ft.
Width
25' 0"
18' 6"
Depth
38' 0"
38' 0"
Ridge height from top of foundation
26' 2"
26' 2"
Exterior wall
2 X 6
2 X 6
Foundation type
Unfinished Basement
Unfinished Basement
Bedroom(s)
3
1
Full baths
2
1
Half baths
1
-
Garage type
-
-
Living bonus space
-
-
Bonus storage
-
-
1st level
Rooms
Sizes
Ceiling
Full bathroom
5'10" x 11'0"
~ 9'0"
Kitchen
18'4" x 13'0"
~ 9'0"
Kitchen/dining room
11'8" x 11'0"
~ 9'0"
Dining room
12'11" x 9'4"
~ 9'0"
Living room
13'4" x 15'0"
~ 9'0"
Living room
11'8" x 13'0"
~ 9'0"
Bedroom
11'8" x 11'0"
~ 9'0"
Linen
1'0" x 4'4"
~ 9'0"
Foyer
11'0" x 5'0"
~ 9'0"
Powder/laundry room
5'0" x 9'2"
~ 9'0"
Closet
3'0" x 2'0"
~ 9'0"
Closet
3'0" x 2'0"
~ 9'0"
Covered porch
8'8" x 3'8"
N/D
Laundry room
2'8" x 5'0"
~ 9'0"
2nd level
Rooms
Sizes
Ceiling
Full bathroom
14'4" x 5'8"
~ 8'0"
Bedroom
10'10" x 20'8"
~ 8'0"
Bedroom
12'8" x 11'0"
~ 9'0"
Linen
1'6" x 2'0"
~ 8'0"
Bedroom
11'8" x 12'4"
~ 8'0"
Magnificent Multi-Generational house plan with 1 bedroom apartment on main floor for the grand-parents and 3 bedroom, 2-story apartment for the family
Achieve family harmony in this exquisitely detailed Mediterranean-style home. An in-law suite of nearly 700 sq. ft. includes separate foyer entrance and offers full independence including a bedroom, eat-in kitchen, living room, laundry, bathroom and private patio access.
Greet guests in the generous foyer and receive them in the forward living room, accented by an incredible curved staircase. The adjoining dining room completes the formal space. The kitchen with eating bar and lounge area is sure to be the hub of activity and drinks in backyard views.
Upstairs, the master suite boasts every comfort including a walk-in closet and sumptuous bathroom with soaker tub, independent shower and double-sink vanity. Two secondary bedrooms share a common bathroom.
Additional space can be configured in the unfinished basement.
Distinctive elements
Intergenerational house plan.
9' ceiling on main floor.
Grandparents suite has access to house and semi-private main entrance from foyer.
Dual sinks in 2nd level bathroom.
Walk-in closet in one of secondary bedrooms.
Unique and abundant window features.
Unfinished basement.
Other foundation options available.
Plan feature(s)
Gound floor laundry room, Gound floor laundry room, Island, Open floor layout, Ceiling over 8', Master suite upstairs, Panoramic view, Panoramic view
Plan architectural style(s)
The plan La Hacienda 3 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
