House plan Dahlia (3271)

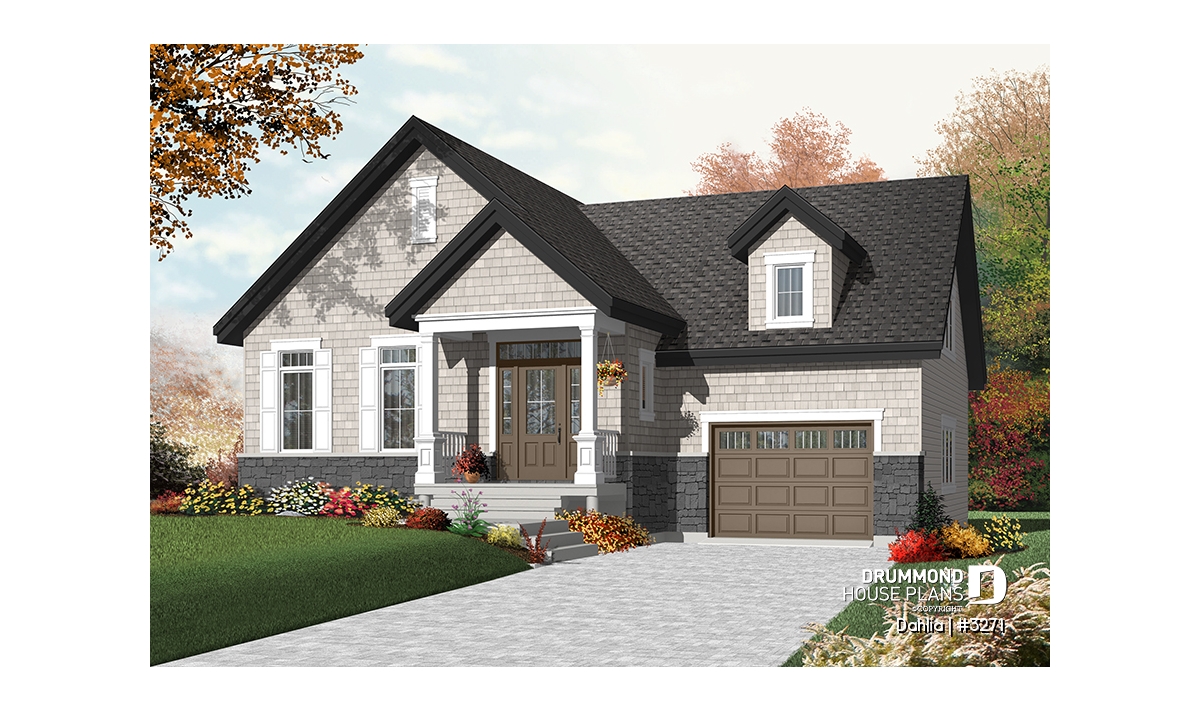

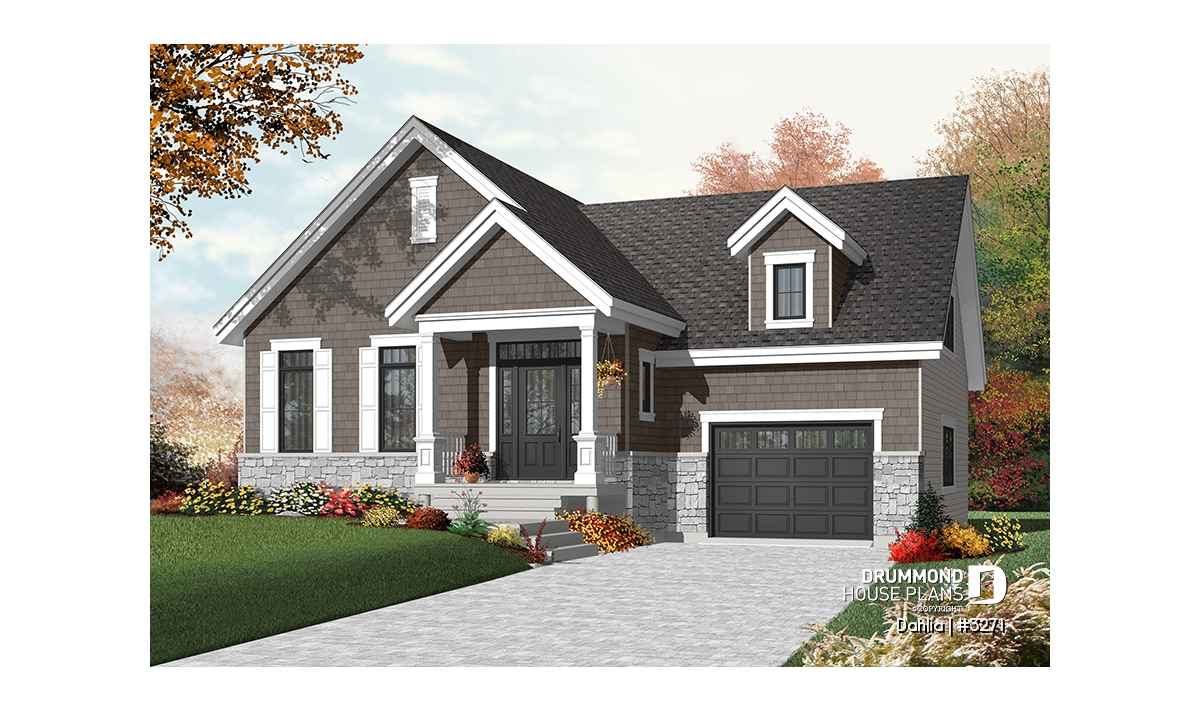

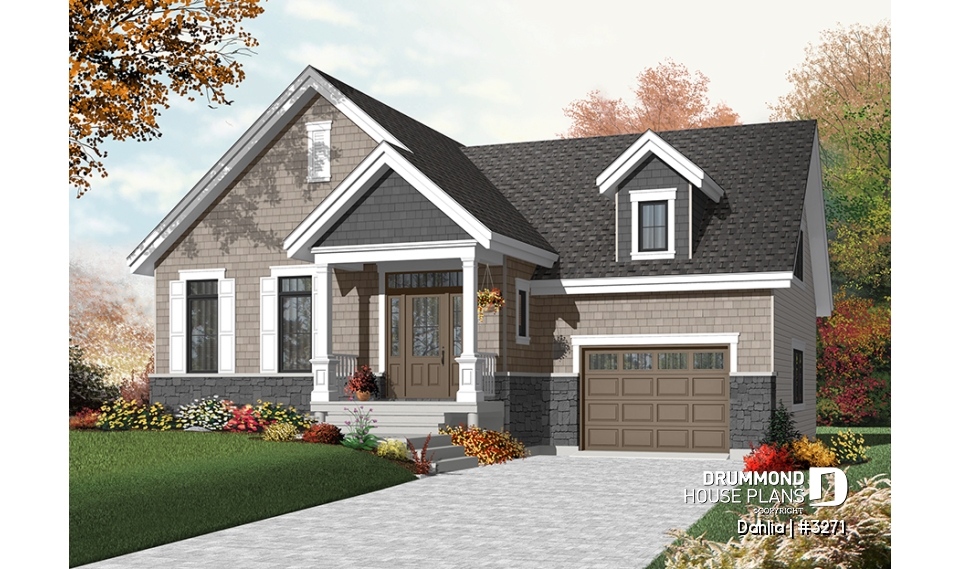

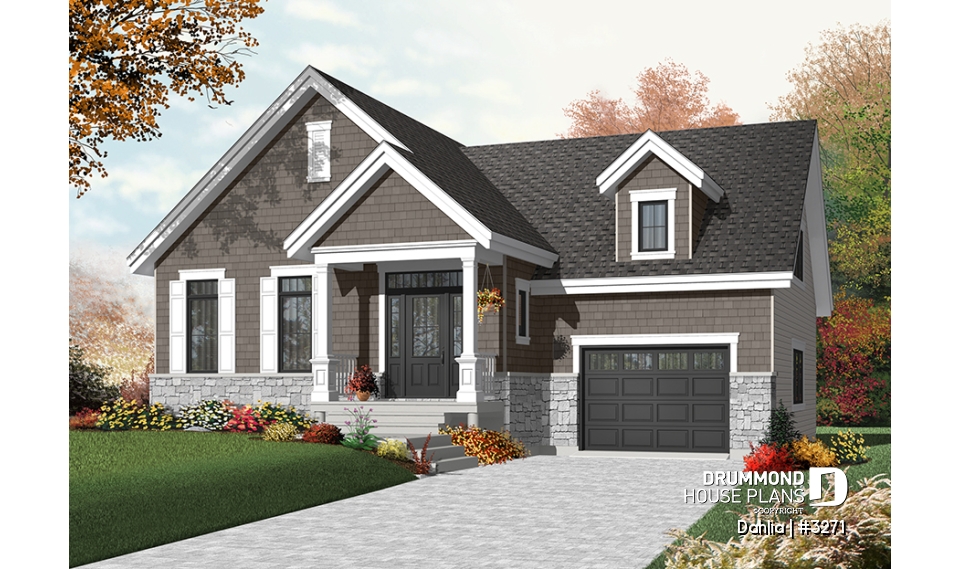

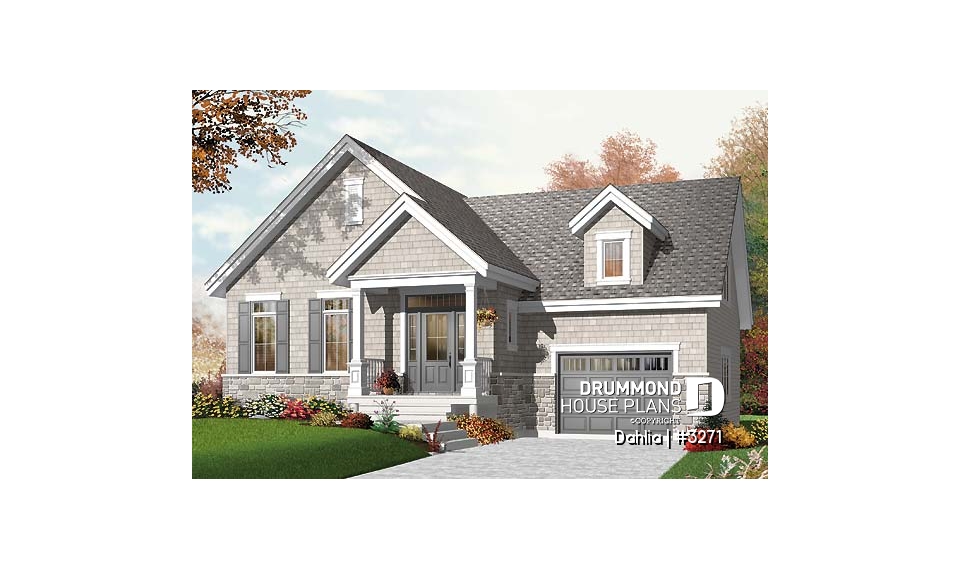

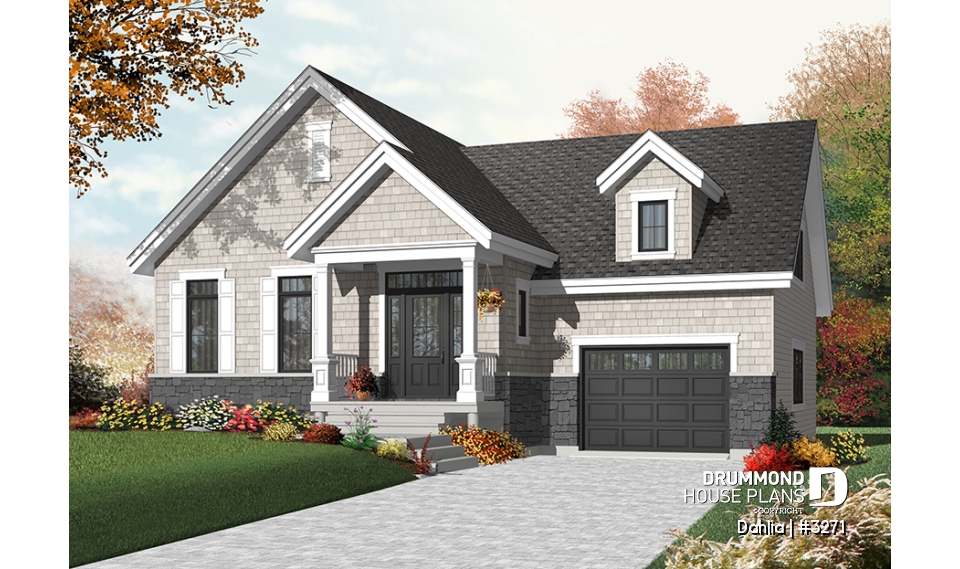

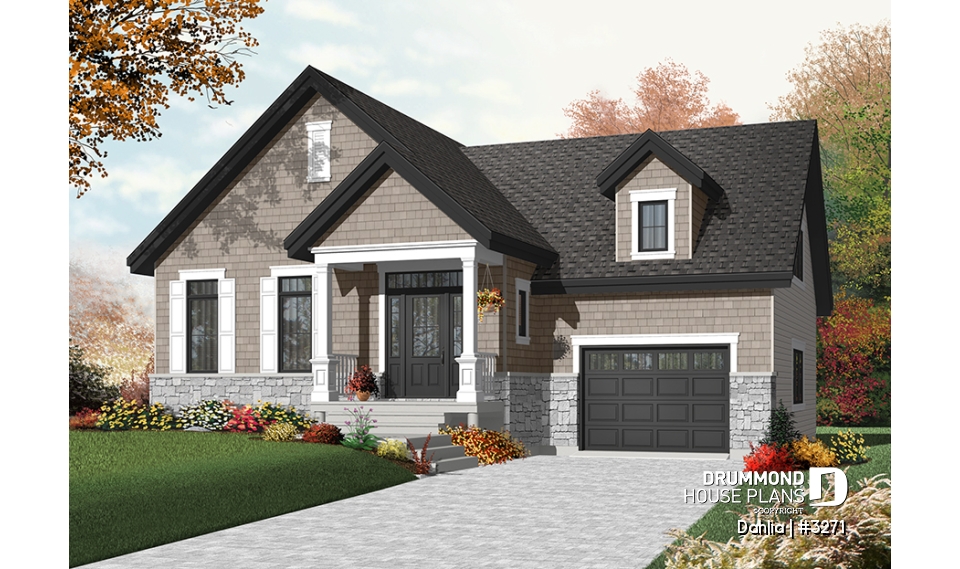

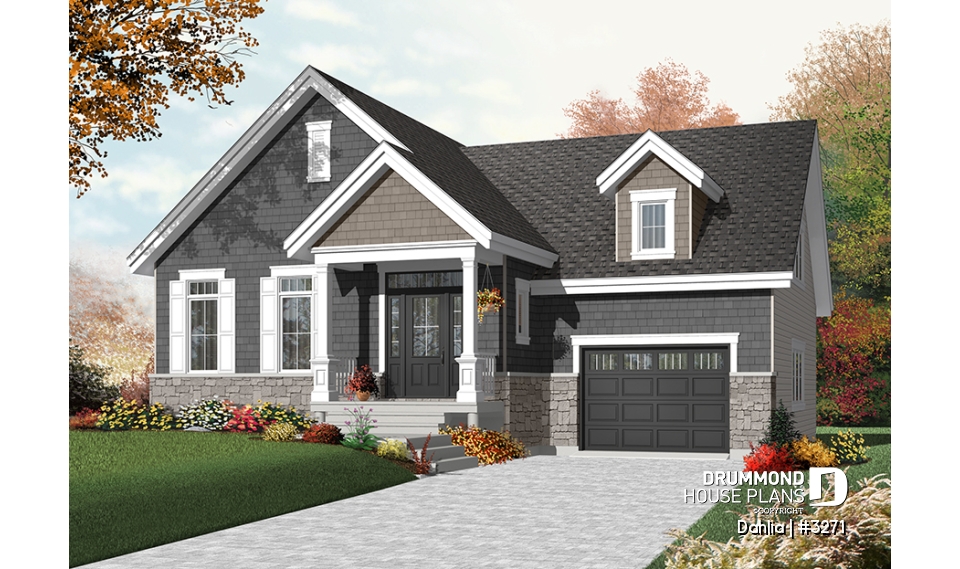

Craftsman bungalow house plan with open floor plan concept, bonus space (bedroom or else) and garage
View the size of the rooms and height of the ceilings

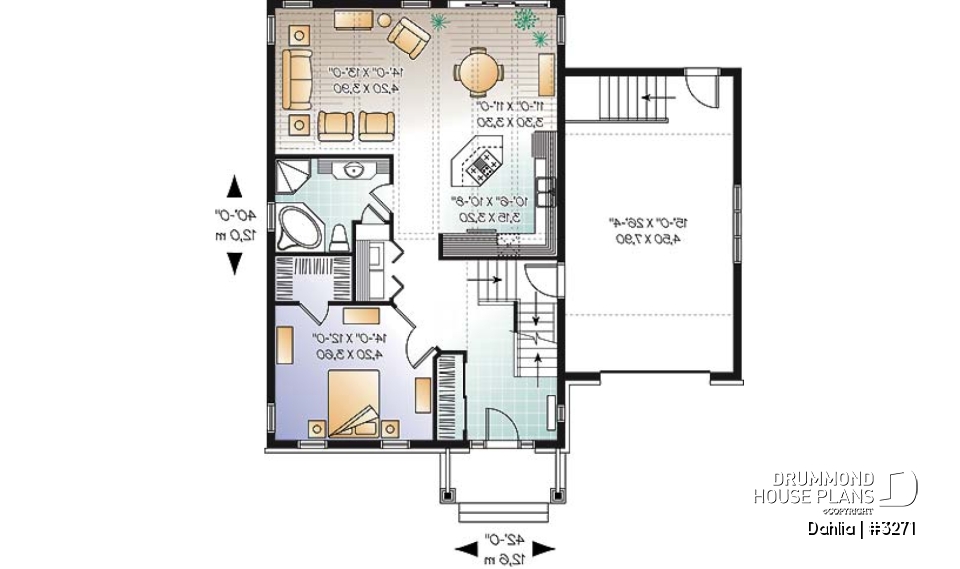

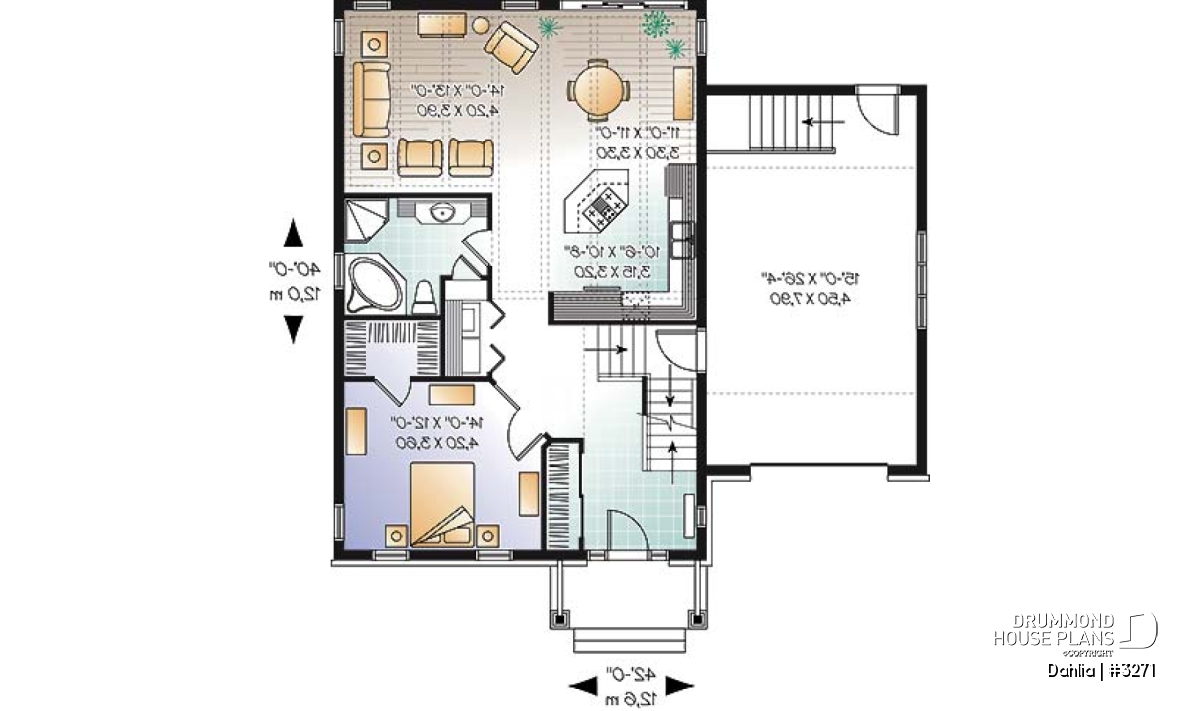

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'6" x 10'8" | ~ 9'0" |
| Pantry | 2'2" x 2'0" | ~ 9'0" |
| Dining room | 11'0" x 11'0" | ~ 9'0" |
| Living room | 14'0" x 13'0" | ~ 9'0" |
| Foyer | 8'0" x 5'8" | ~ 9'0" |
| Closet | 2'4" x 7'8" | ~ 9'0" |
| Full bathroom | 9'10" x 8'4" | ~ 9'0" |
| Bedroom | 14'0" x 12'0" | ~ 9'0" |
| Walk-in closet | 7'0" x 4'0" | ~ 9'0" |
| Laundry room | 3'0" x 6'10" | ~ 9'0" |
| Garage | 15'0" x 26'4" | ~ 8'0" |
| Covered porch | 11'0" x 4'6" | N/A |
| Deck | 10'0" x 5'0" | N/A |

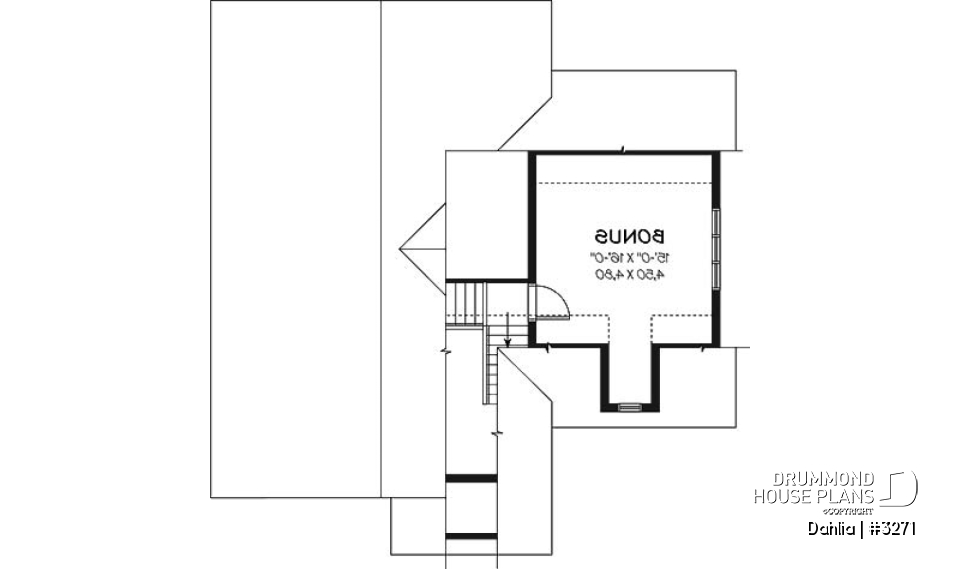

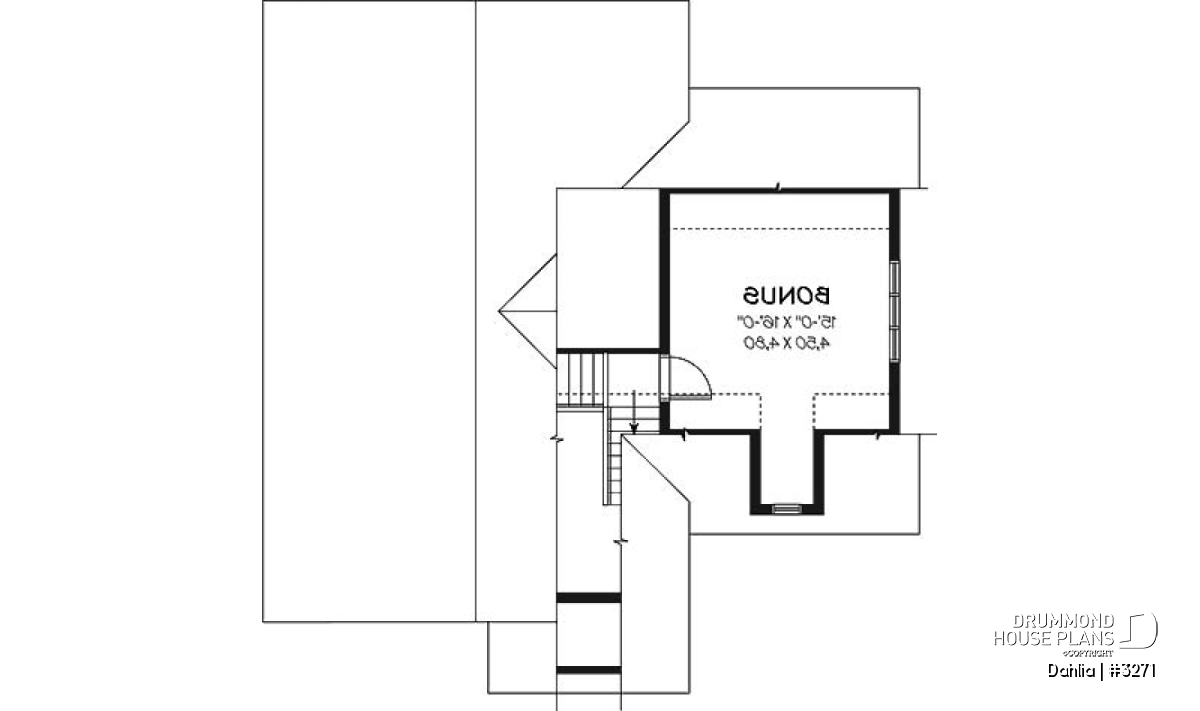

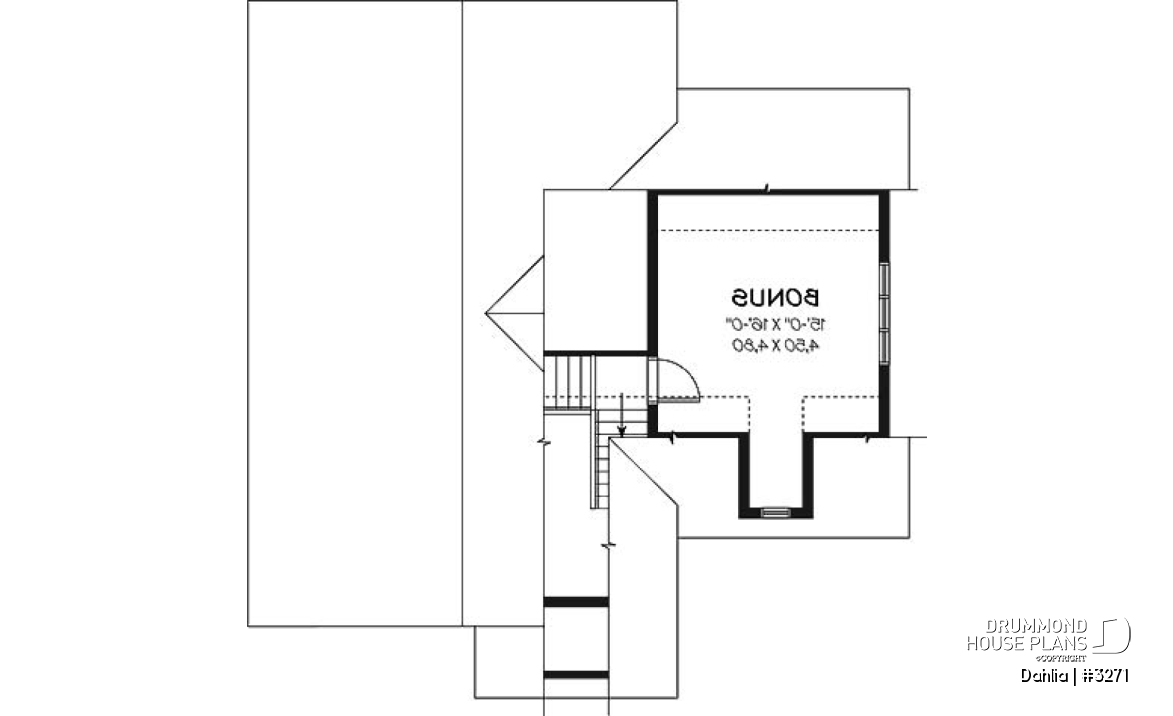

| Bonus space | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living bonus room | 15'0" x 16'0" | ~ 8'0" |
General specifications
| Total living area | 1054 sq.ft. |
| 1st level | 1054 sq.ft. |
| Bonus space | 0 sq.ft. |
| Width | 42'0" |
| Depth | 40'0" |
| Ridge height from top of foundation | 24'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Craftsman house plan with 9' ceilings throughout and bonus space above the garage.
Master on main level with walk-in closet, a separate laundry area and a well appointed full bathroom with corner shower, corner bath and linen closet are some of the attractions of this classic home.
9' ceilings throughout the open floor plan of the common area enhance the feeling of space as does the uniquely styled kitchen with island and an open view on the rest of the living/dining area enhance the livability of this classic home.
Access to the garage from inside the home is another convenient feature as is the second staircase with direct access to the full basement from the garage and a generous bonus living space above the garage ensures that this plan has the flexibility and the floor space to meet the needs of a growing or a combined family.
Distinctive elements
9' ceiling on 1st level, allowing the installation of false beams to the ceiling of all activity area facing the back of the house. Entry with large closet and staircase leading to the bonus space. Bedroom with walk-in closet. Well organized bathroom. Kitchen with central lunch counter. Triple patio door in dining room. Adequate dimensions single-car garage with access to the basement and with a bonus space above.
Plan feature(s)
Basement access from garage, Living bonus space, Ceiling over 8', Island, Walk-in master bed., Gound floor laundry room, Panoramic view
Plan architectural style(s)
. Craftsman / Northwest, . American, . Modern rustic, . Rustic, . Traditional, . Country, . Transitional, . Cape Cod
Similar plans
Previously Viewed Plans
