House plan Azalea (3723-DJG)

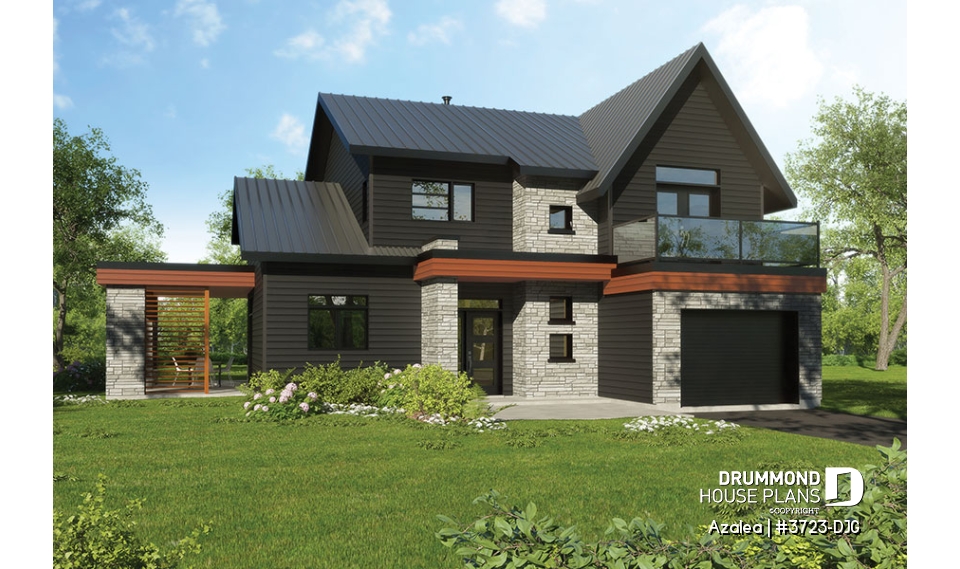

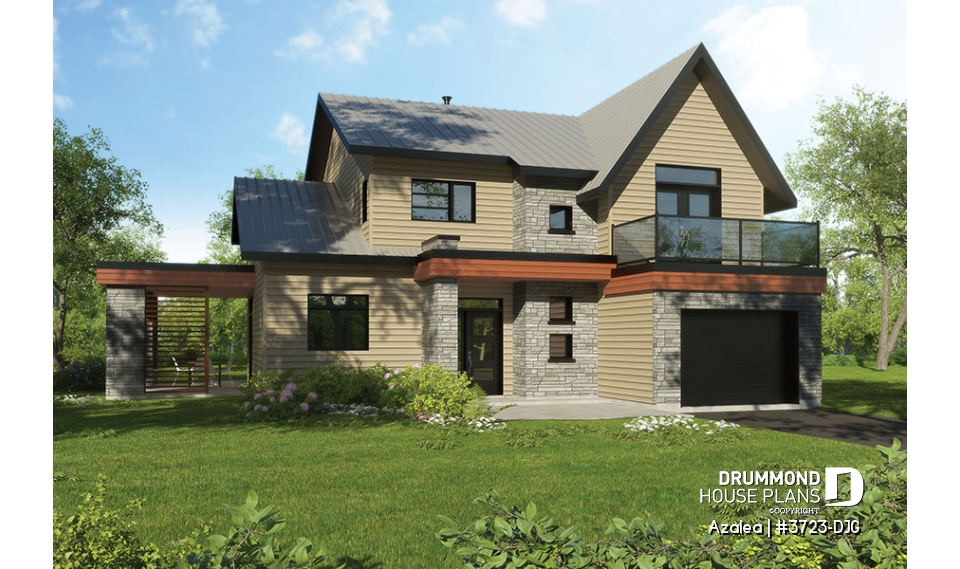

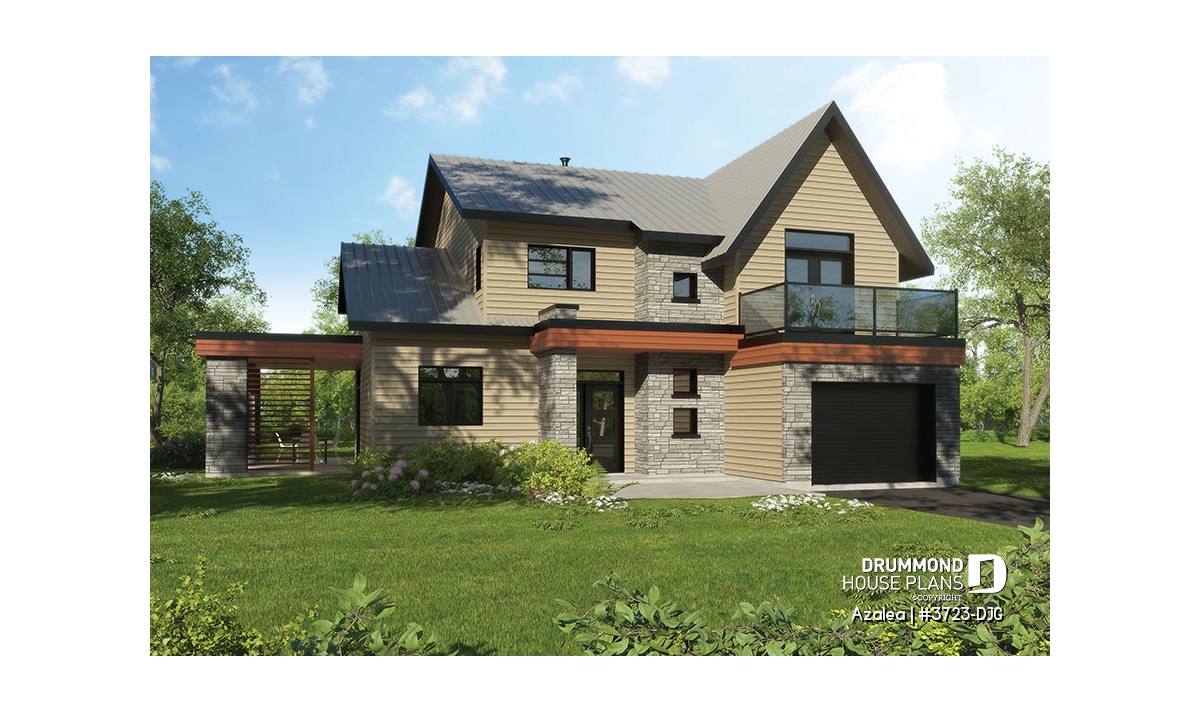

3 to 4 bedroom Modern Scandinavian house, master w/ private balcony, covered deck, den on main floor
Virtual visit
View the size of the rooms and height of the ceilings

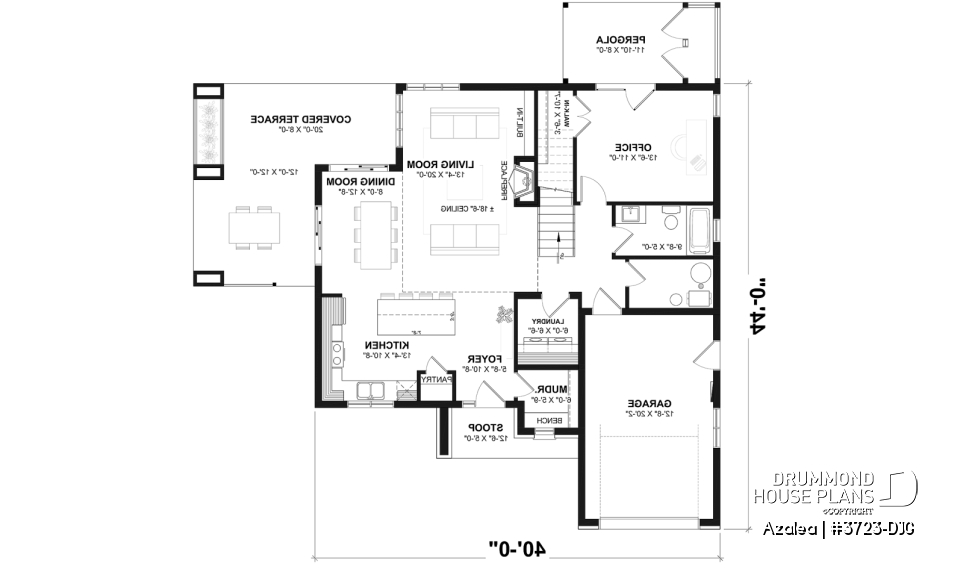

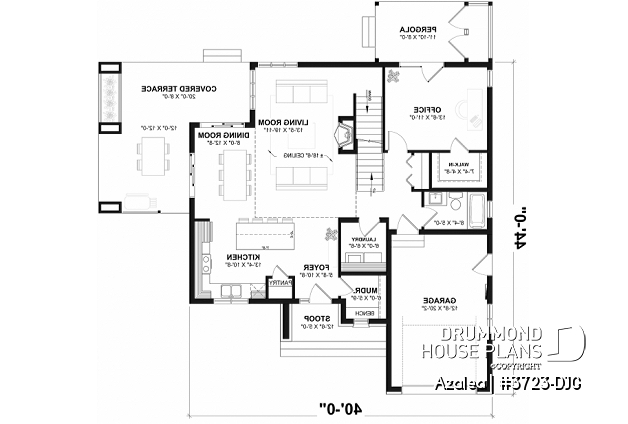

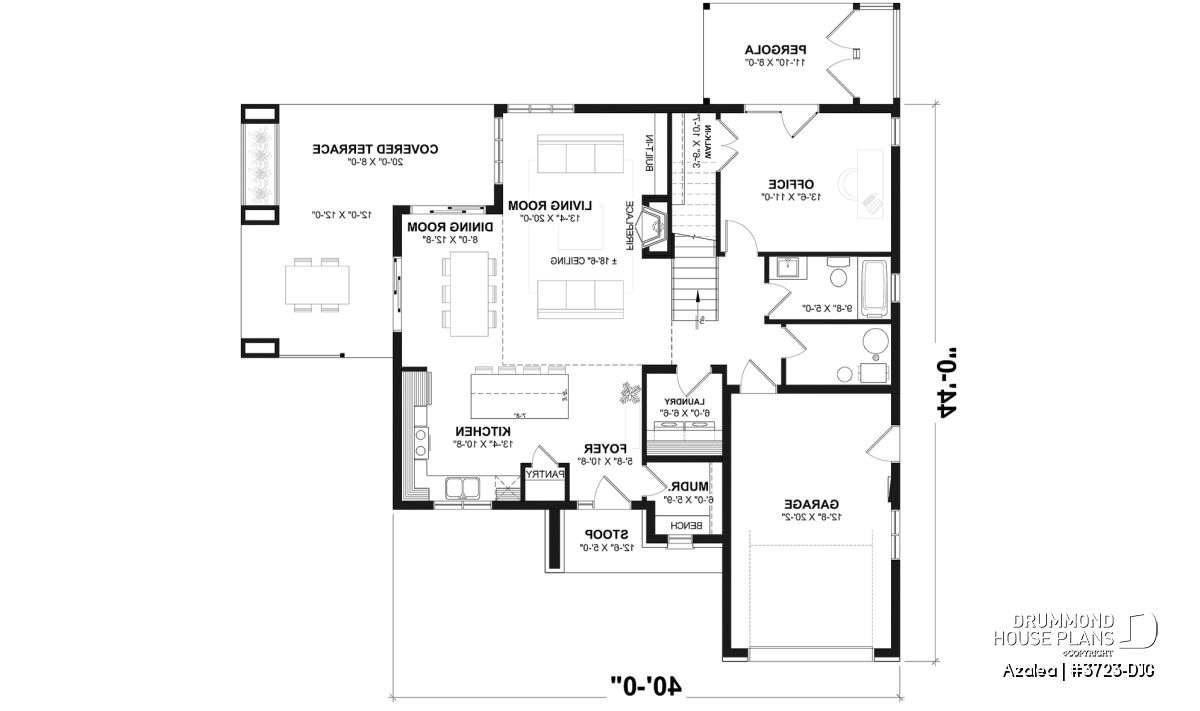

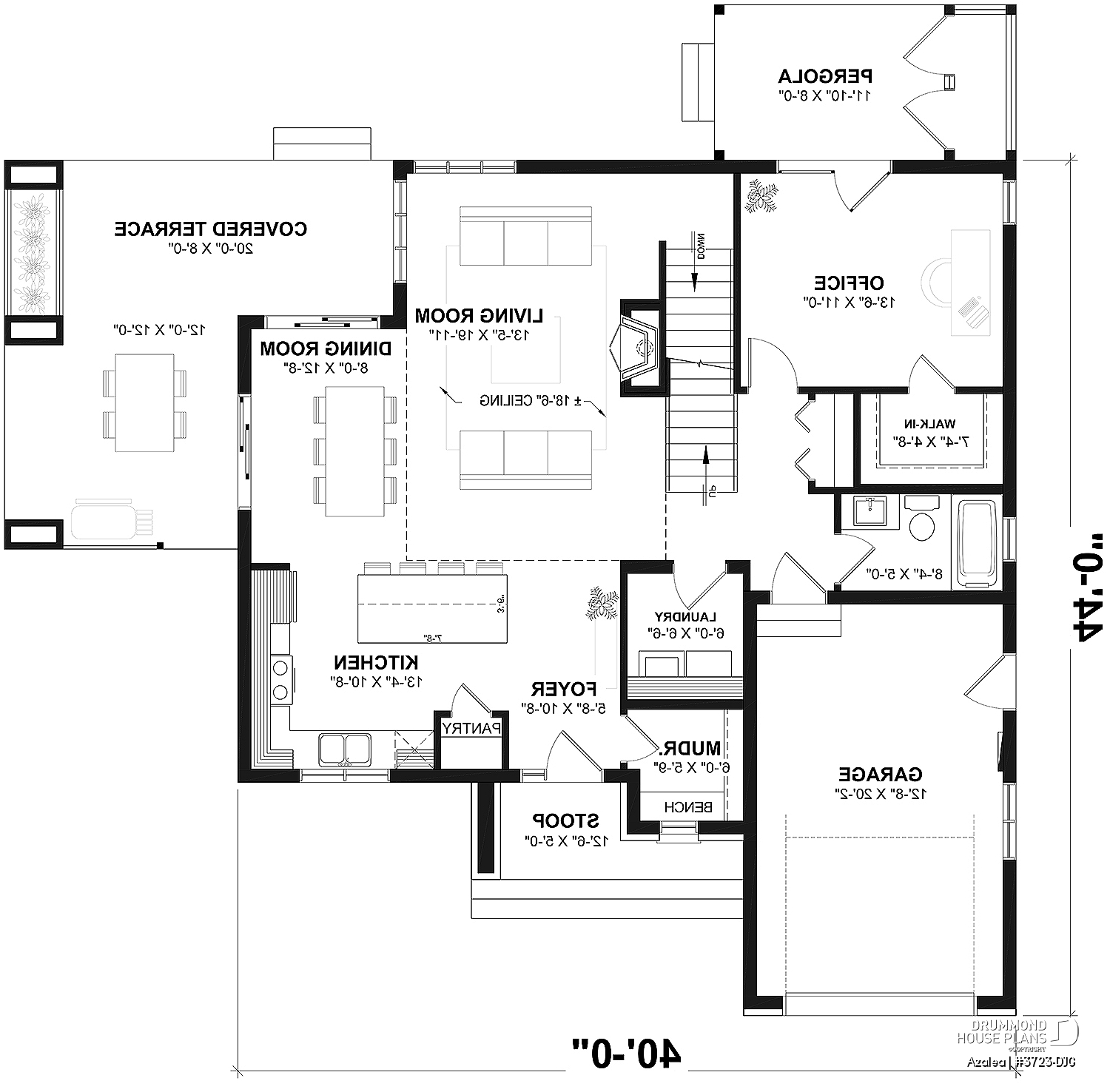

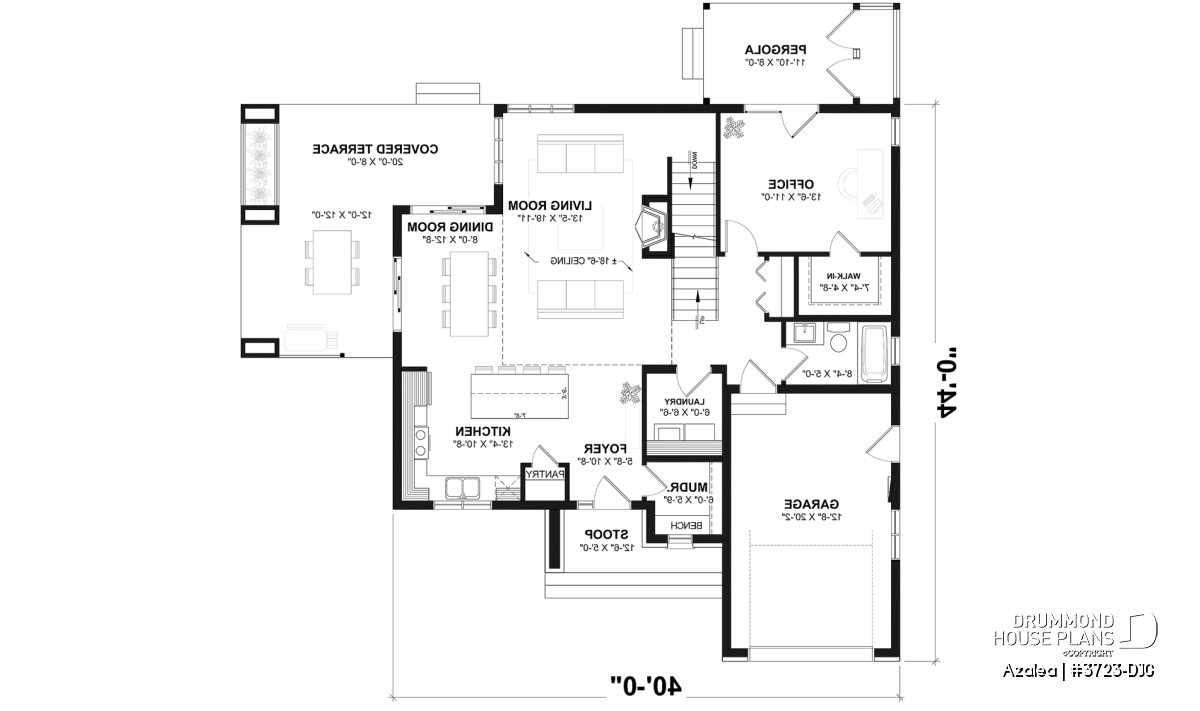

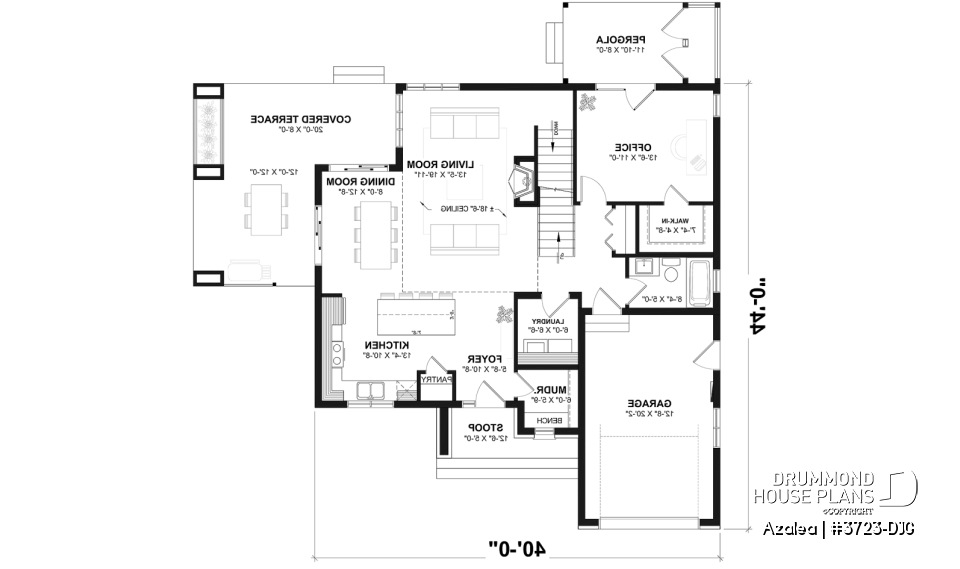

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 13'6" x 11'0" | ~ 9'0" |
| Closet | 3'4" x 10'0" | ~ 9'0" |
| Living room | 13'0" x 15'6" | ~ 18'0" |
| Kitchen | 13'4" x 10'9" | ~ 9'0" |
| Pantry | 3'0" x 2'8" | ~ 9'0" |
| Garage | 12'9" x 20'0" | ~ 9'6" |
| Bathroom | 9'8" x 5'0" | ~ 9'0" |
| Mechanical room | 8'4" x 4'10" | ~ 9'0" |
| Closet | 5'3" x 5'9" | ~ 9'0" |
| Laundry room | 6'0" x 6'9" | ~ 9'0" |
| Covered porch | 6'0" x 5'0" | N/A |
| Dining room | 12'0" x 12'0" | ~ 9'0" |
| Pergola | 12'0" x 8'0" | N/A |
| Covered deck | 20'0" x 20'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'9" x 15'0" | ~ 8'0" |
| Walk-in closet | 4'0" x 9'0" | ~ 8'0" |
| Bedroom | 10'2" x 11'0" | ~ 8'0" |
| Closet | 4'2" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'4" | ~ 9'0" |
| Closet | 2'0" x 6'4" | ~ 8'0" |
| Bathroom | 10'0" x 9'0" | ~ 8'0" |
| Balcony | 14'0" x 7'0" | N/A |
General specifications
| Total living area | 1944 sq.ft. |
| 1st level | 1113 sq.ft. |
| 2nd level | 831 sq.ft. |
| Width | 40'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 28'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |

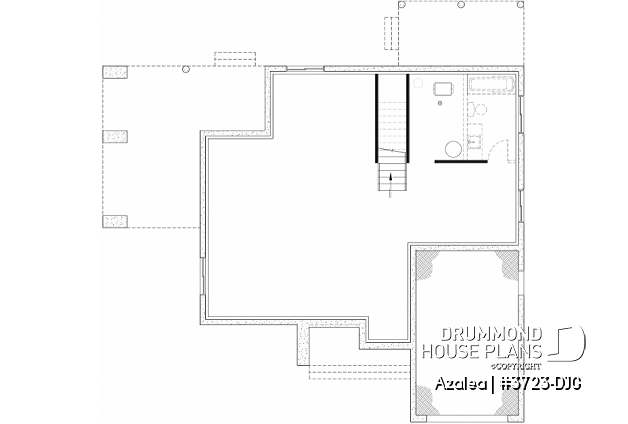

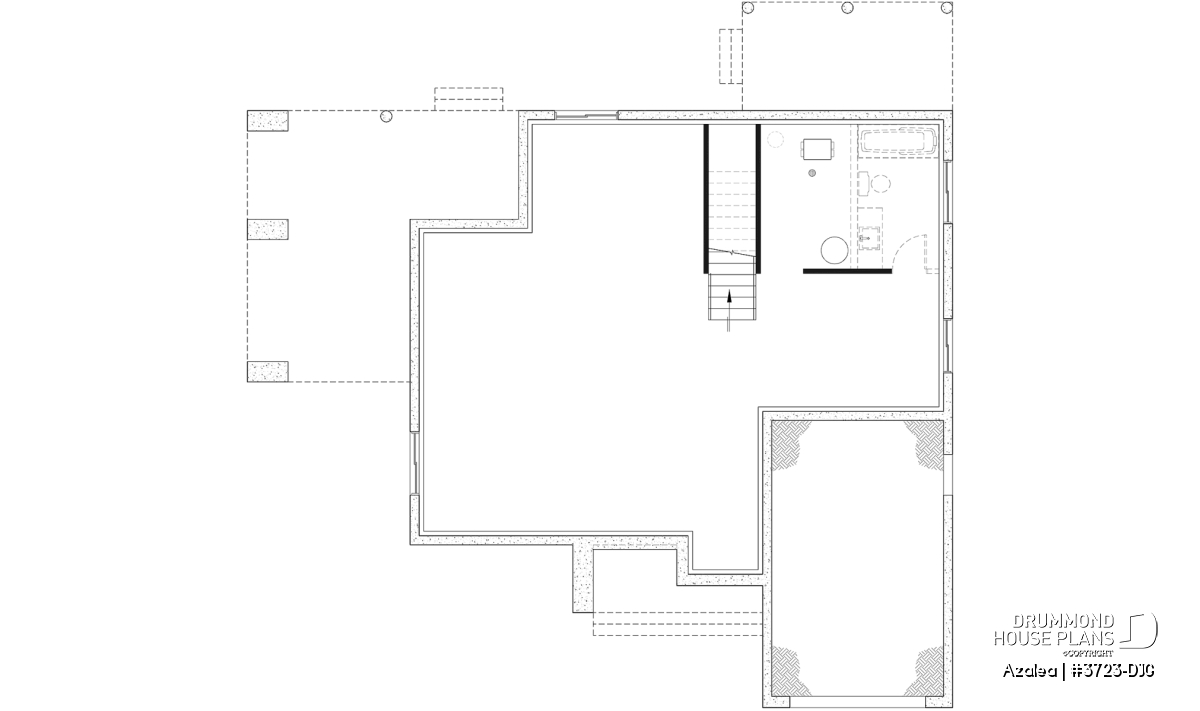

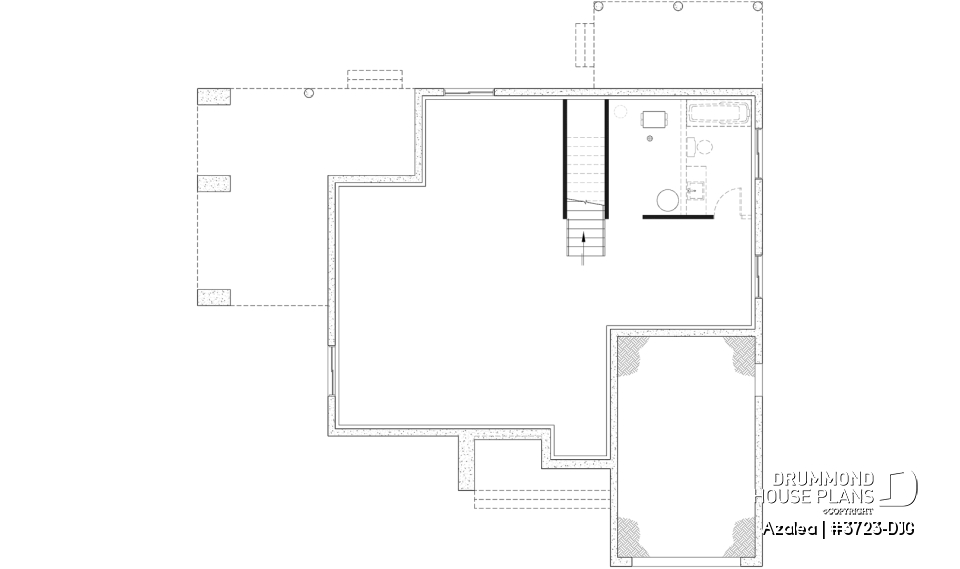

| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications

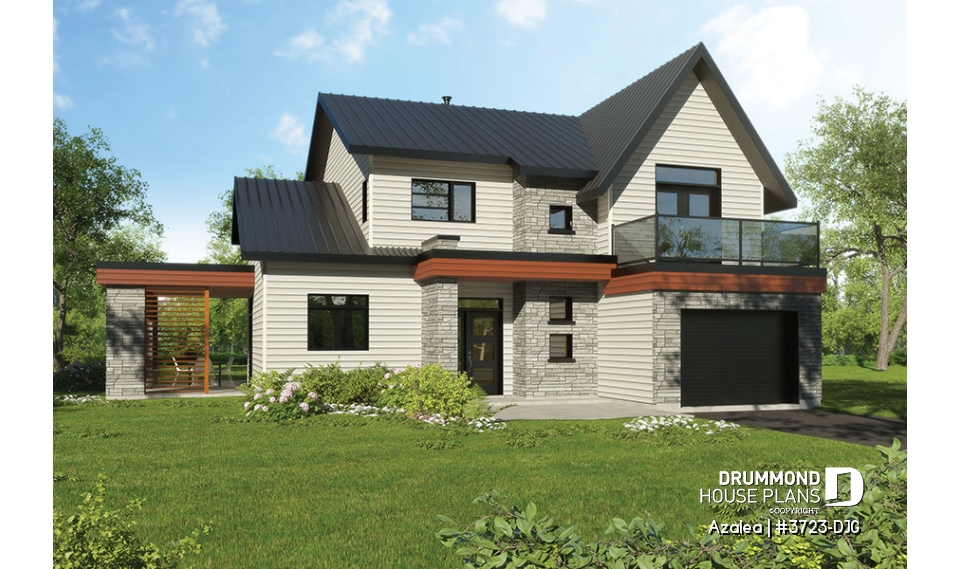

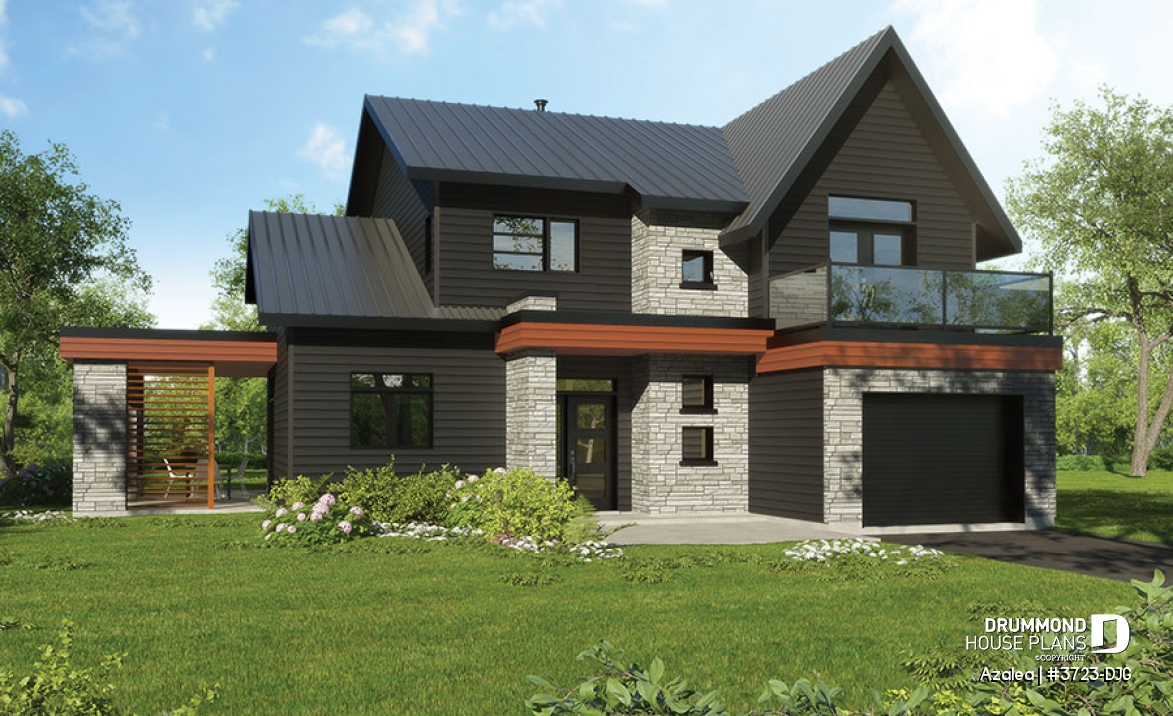

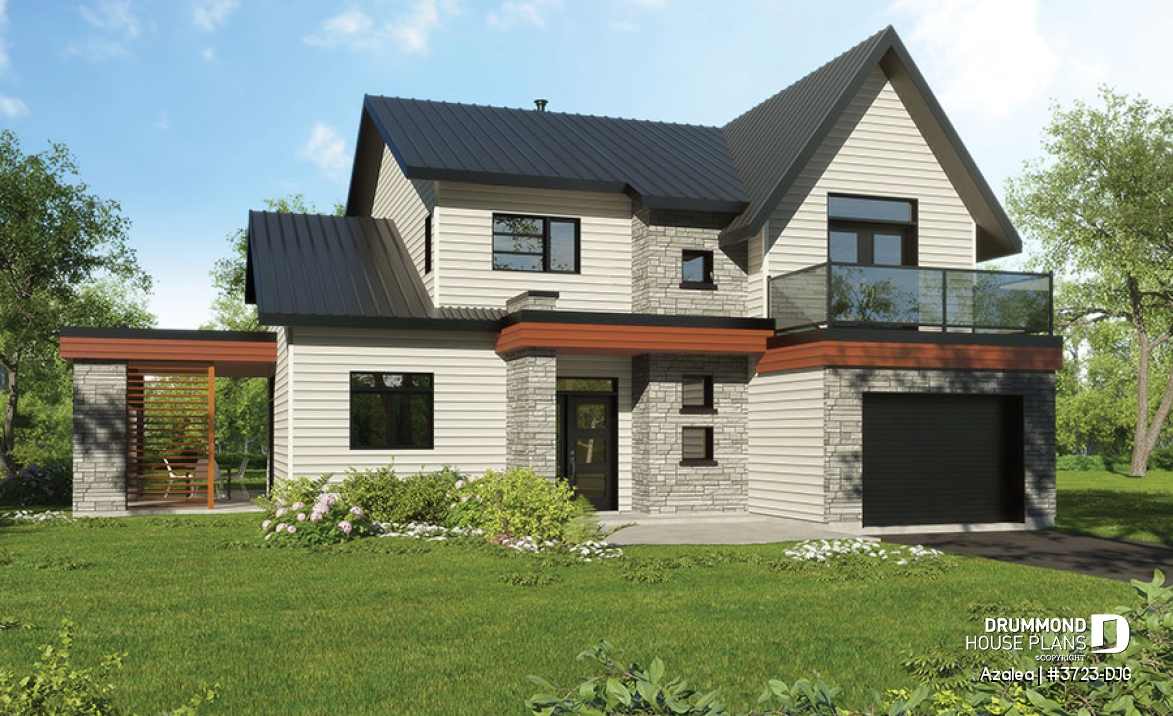

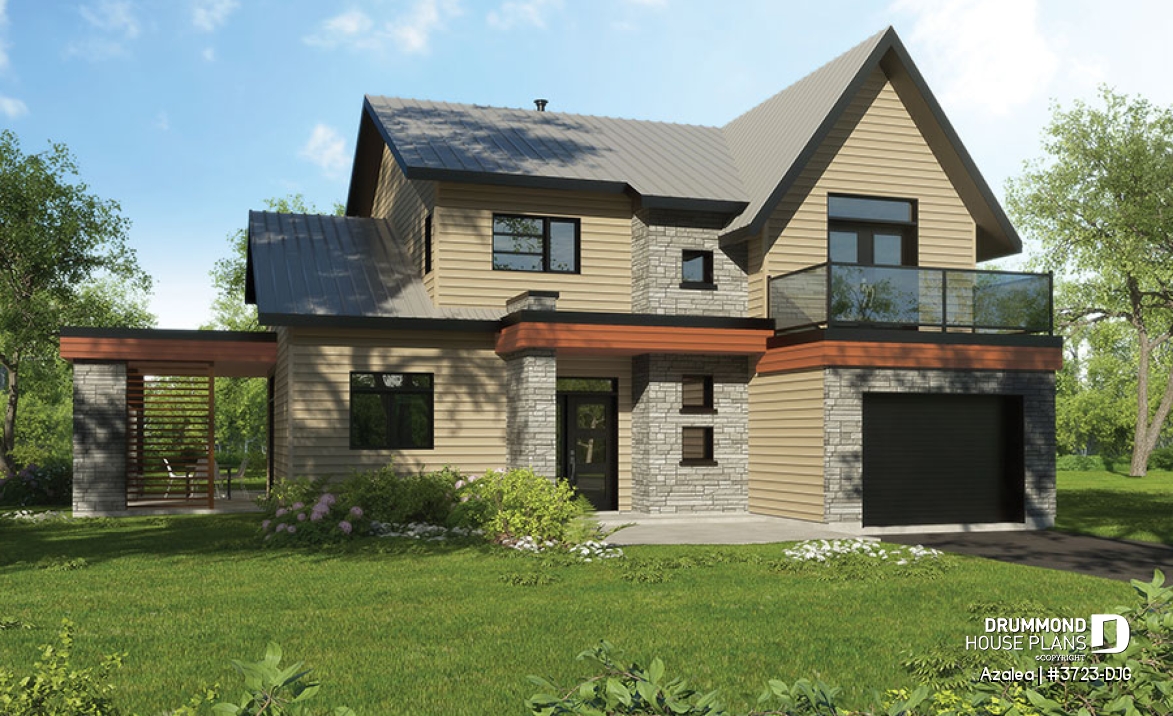

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Deck
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Deck
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Deck
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Porch
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

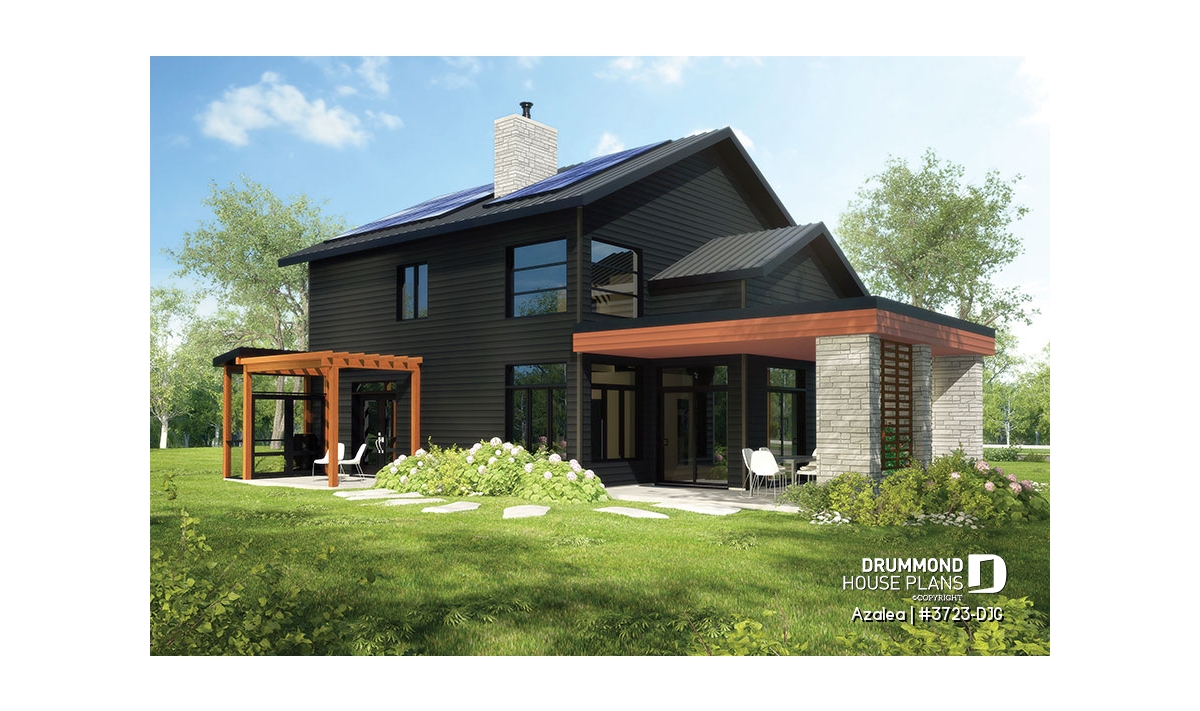

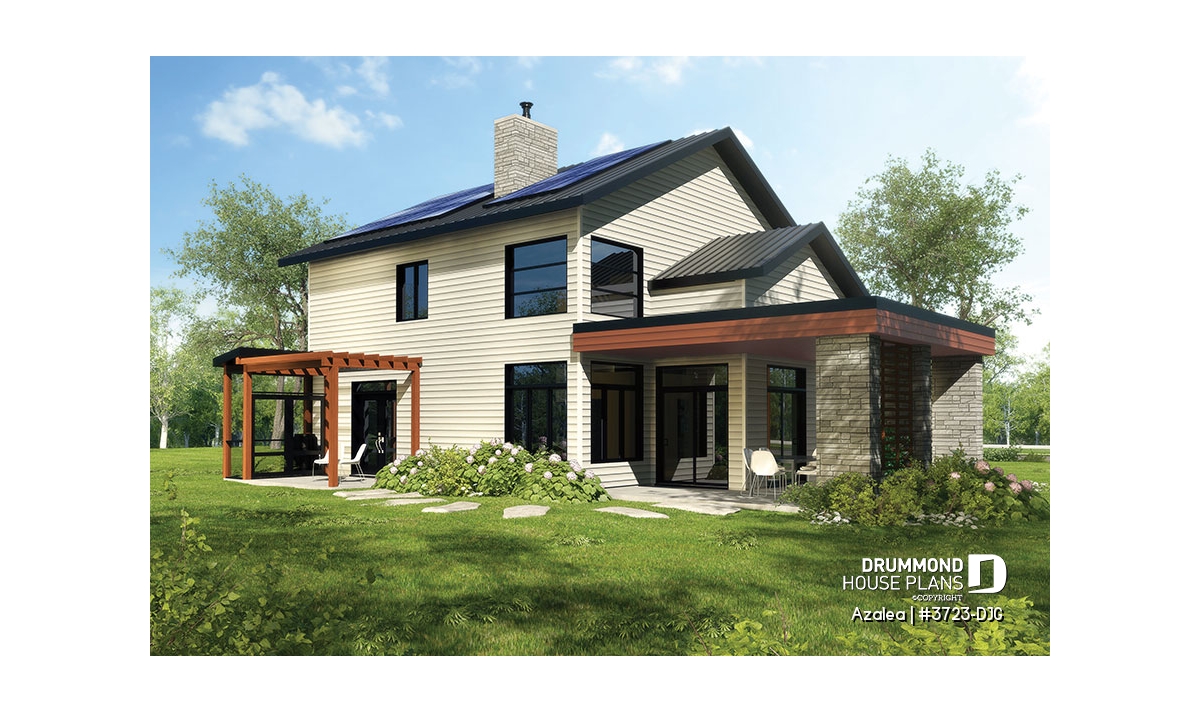

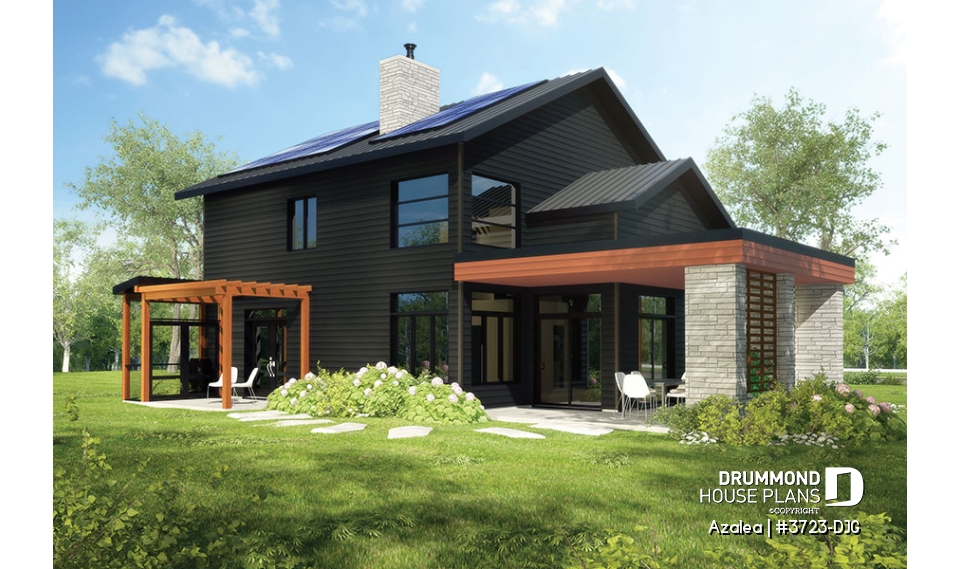

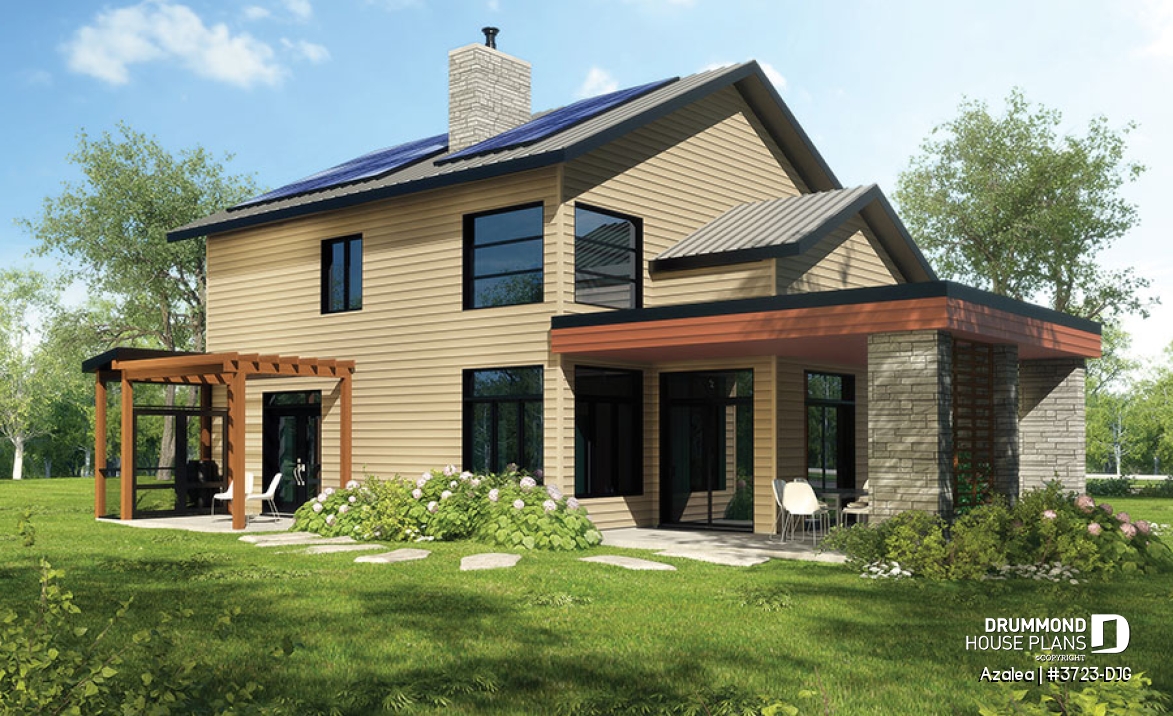

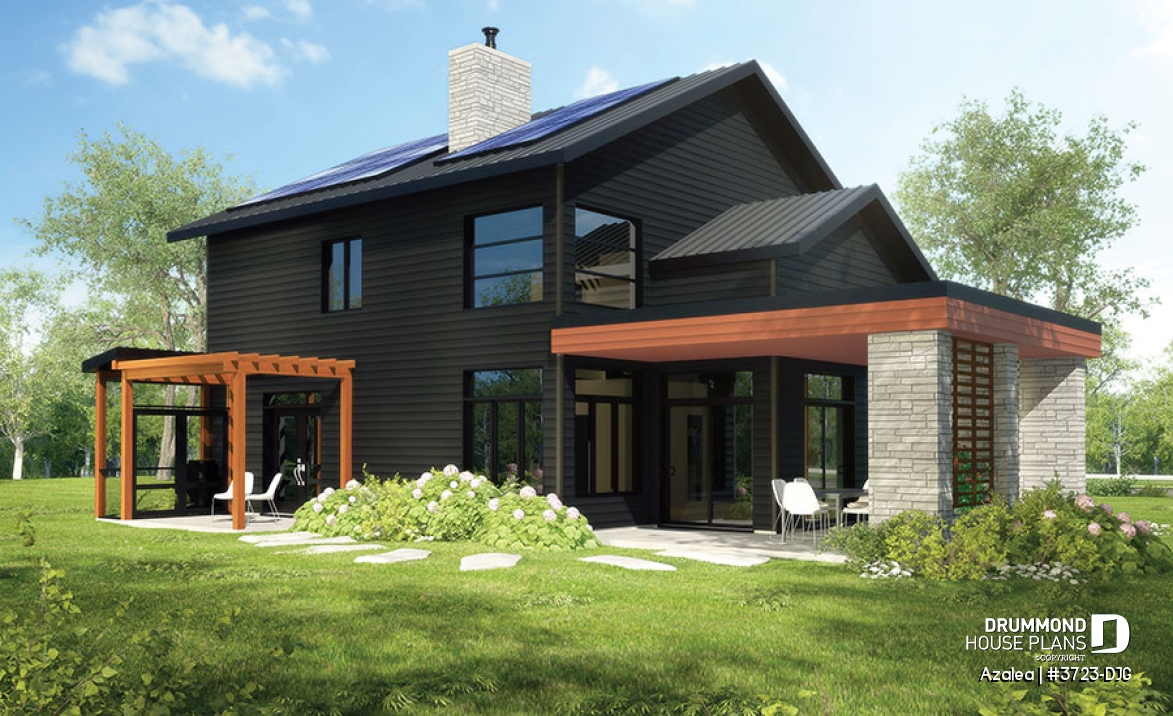

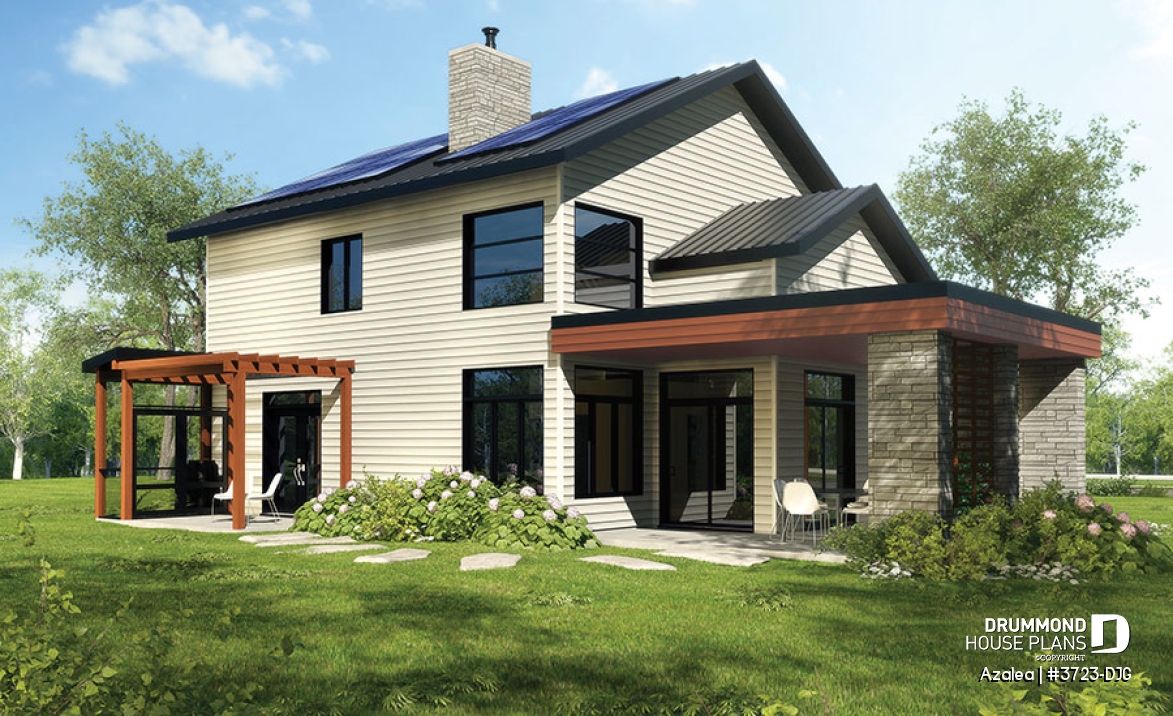

back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
back
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

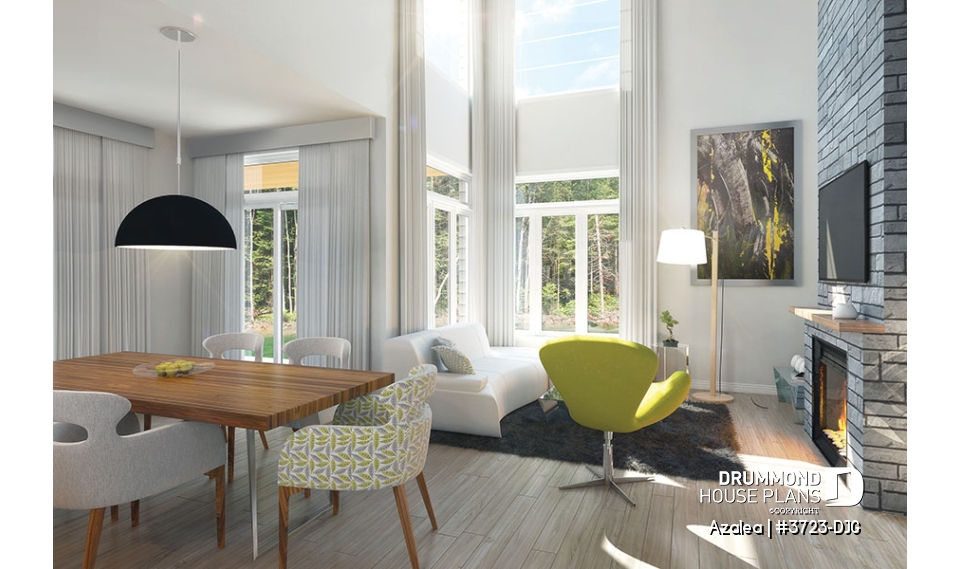

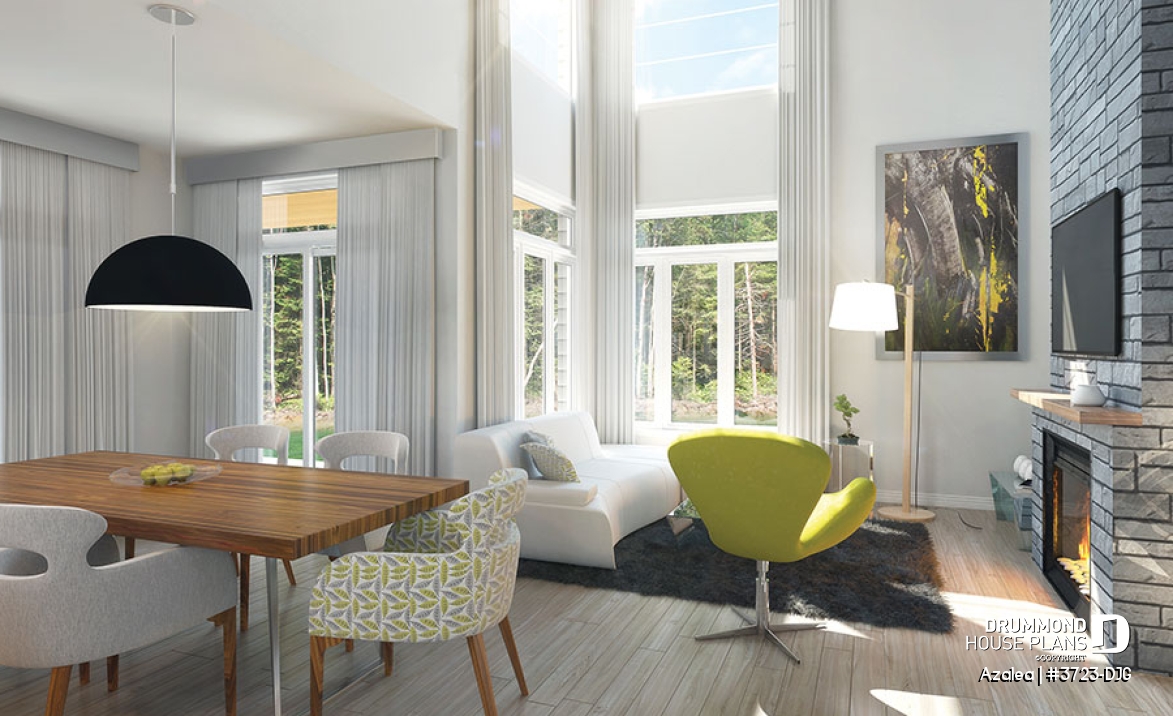

Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Stairs
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Modern Scandinavian style house with 3 bedrooms and a den! (plus garage!!)
Azalea is a plan that is not only aesthetically appealing but also has the natural function of purifying the surrounding air. In this spirit of dual functions, we named our last model "Azalea", house plan # 3723, which besides being a superb contemporary house with touch of natural stones and wood, suggests a few ecological aspects like a small 3-season greenhouse and herb garden, as well as a grid space that can either serve as rain collector and why not raise a few urban chickens!
This new contemporary Drummond House Plans model #3723 has been designed to take advantage of a south-west orientation that maximizes solar energy. It is possible to reverse this plan or to adjust it according to the orientation of your lot. The stone of the hearth is well oriented to store passive heat from the sun. The large roof cornices help to reduce the heat of the sun that enters the summer, but allows the heat of the sun to penetrate in the house during the winter. The house has been designed with roof slopes of 6/12, an ideal inclination for the installation of solar panels. The roof area is large enough to allow enough solar panels to not only power the water heater, but also the heating system of the house. This new contemporary modern two-storey design # 3723 (Azalea) is intended for a floating slab foundation with radiant heating, however, it could also be heated with a central heating and air conditioning system, which could benefit from solar panels.
An intelligent thermostat system for heating and system management becomes an important contribution to this type of construction. There are solutions on the market that are affordable.
Inside the Healthy House you will also find a cathedral ceiling on the ground floor, in the lounge area, allows better circulation of area and heat in the house, and the kitchen, living room and dining areas benefit from great natural light.
Azalea (plan no. 3723) proposes a cloakroom closed at the entrance of walk-in type. The refined kitchen contains a pantry and a large kitchen island. The dining room benefits from lots of natural light mainly from the beautiful windows and garden-door leading directly to a very large covered terrace. This area is large enough to accommodate a BBQ area, a 4 to 8 seater table depending on the layout, in addition to a multifunction screened space as stated above. A versatile room, adjacent to a full bathroom, can be used as a home office, playroom or simply bedroom # 4 if you have a large or recomposed family. A direct and convenient access to the garage is located near the laundry room and mechanical room.
Upstairs, the master bedroom benefits from a large walk-in closet and private balcony, besides being adjacent to a large family bathroom with separate bath and shower, and double vanity. The secondary rooms are of good size and with wardrobe. A mezzanine overlooks the living room and keeps an eye on the activities on the ground floor.
Healthy home environment
As for the exterior, a grid space is provided in the back left corner. This location can be used to install a rainwater collector. The grating space also allows you to grow plants or have your own chicken coop if your municipality allows you!
The structure of the pergola can be used as a support to grow vines or flowers.
A small garden near the large terrace can also be arranged, allowing the cultivation of its own vegetables and herbs, all close to the kitchen!
The large covered terrace, fitted to incorporate a BBQ, provides better comfort on hot days or on rainy days during the summer season.
You have a project of construction or renovation in order to have a healthy house, a green house or simply the house of your dreams? Do not hesitate to us at: 1-800-567-5267 or visit our website: http://www.drummondhouseplans.com
Distinctive elements
This house was designed to maximize solar energy.
The roof has a 6/12 slope, which is the ideal inclination for the installation of solar panels on the roof.
Practical coat closet located near front entrace.
Kitchen with large island, pantry and open plan with the rest of the family areas.
Access to a large covered terrace, near the dining room, with space for a small herb garden.
Family room with fireplace on 2 floors and cathedral ceiling.
Flex room (bedroom # 4, home office or playroom) with access to a pergola and small 3-season greenhouse.
A full bathroom is located near the flex room.
Convenient access from the garage located near the laundry room and the kitchen.
Mezzanine overlooking the living room.

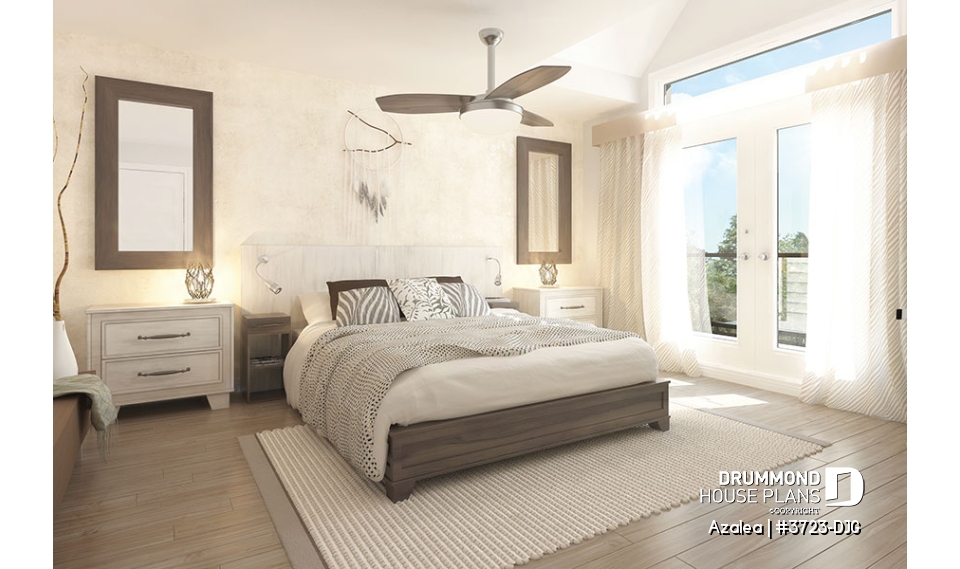

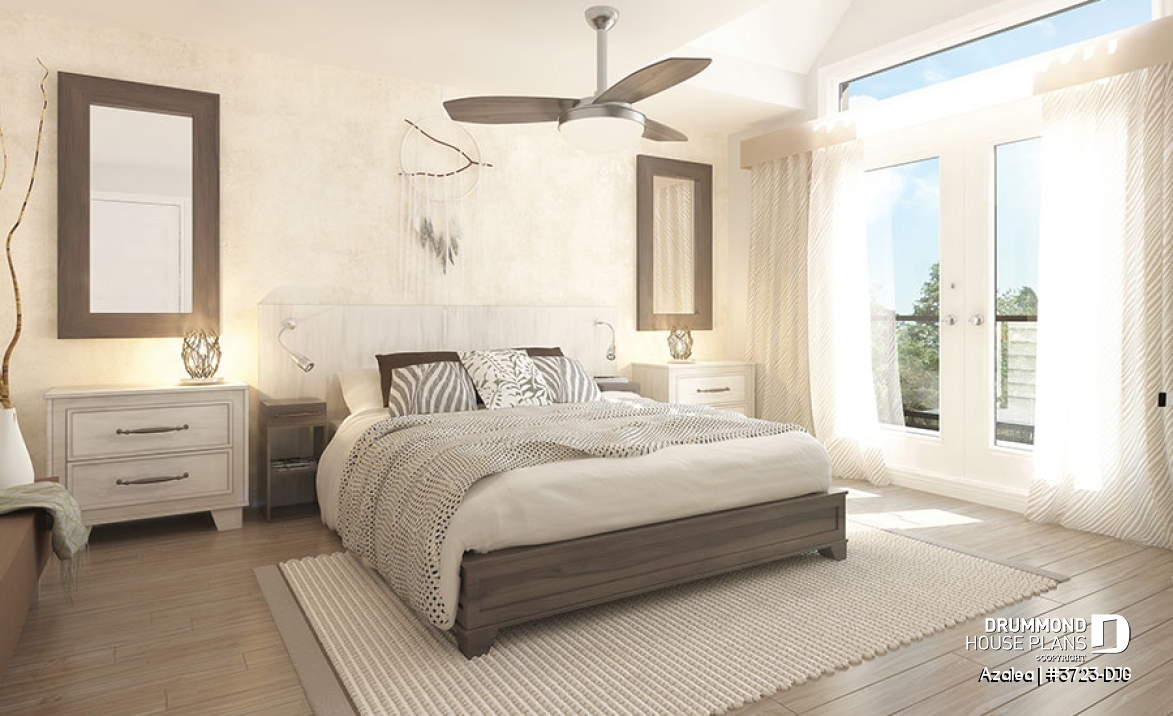

Master bedroom with large walk-in closet and private balcony.
Two secondary bedrooms of good sizes.
A large family bathroom combining a double vanity and a separate bath & shower.
This house features a slab foundation, Many other foundation options are available.
Plan feature(s)
Gound floor laundry room, Lunch counter, Mezzanine, Open floor layout, Ceiling over 8', Deck, Double sinks, Separate bath and shower, Sunroom, Balcony 2nd floor, Walk-in master bed., Office / Study / Den, Island, Pantry, Fireplace
Plan architectural style(s)
. Scandinavian, . Modern / Design, . Modern rustic, . Vacation and waterfront, . European, . Transitional, . English, . Contemporary
