House plan The Saddlery (3935)
Two-bedrooms garage apartment, 2 shower rooms, open concept with cathedral ceiling & fireplace
View the size of the rooms and height of the ceilings

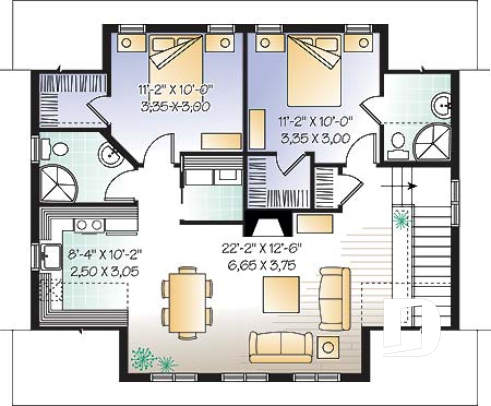

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'8" x 7'4" | ~ 8'0" |
| Kitchen | 8'4" x 10'2" | ~ 8'0" |
| Living room | 22'2" x 12'6" | ~ 8'0" |
| Master suite | 11'2" x 10'0" | ~ 8'0" |
| Bedroom | 11'2" x 10'0" | ~ 8'0" |
| Utility room | 5'0" x 5'6" | ~ 8'0" |
| Closet | 2'0" x 3'6" | ~ 8'0" |

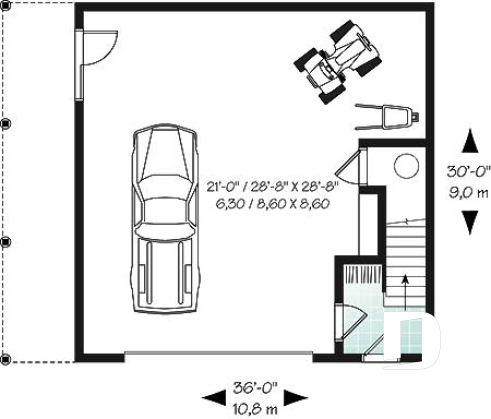

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 7'0" x 3'4" | ~ 9'4" |
| Garage | 21'0" x 28'8" | ~ 9'4" |
| Mud room | 3'4" x 2'4" | ~ 9'4" |
General specifications
| Total living area | 1096 sq.ft. |
| 2nd level | 968 sq.ft. |
| 1st level | 128 sq.ft. |
| Width | 36'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 27'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications

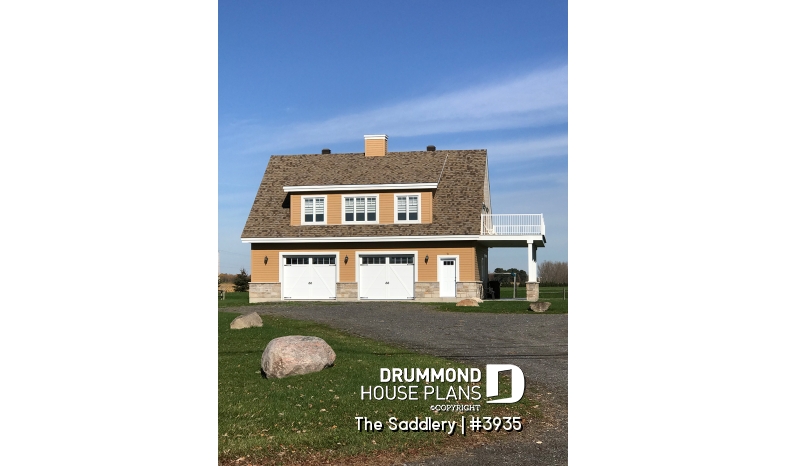

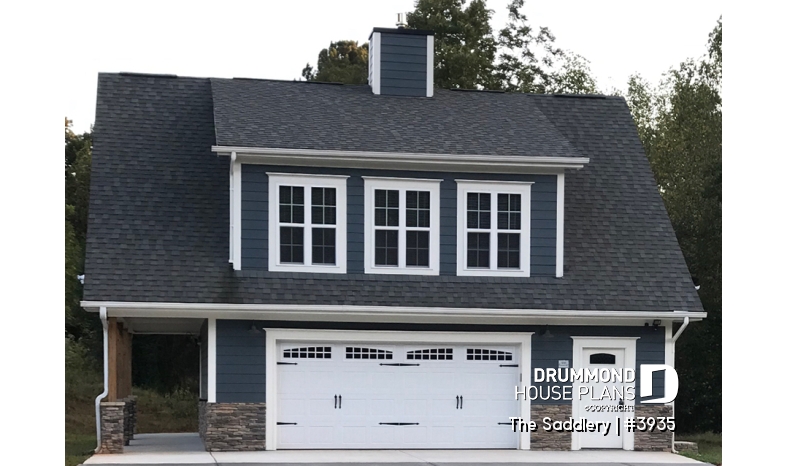

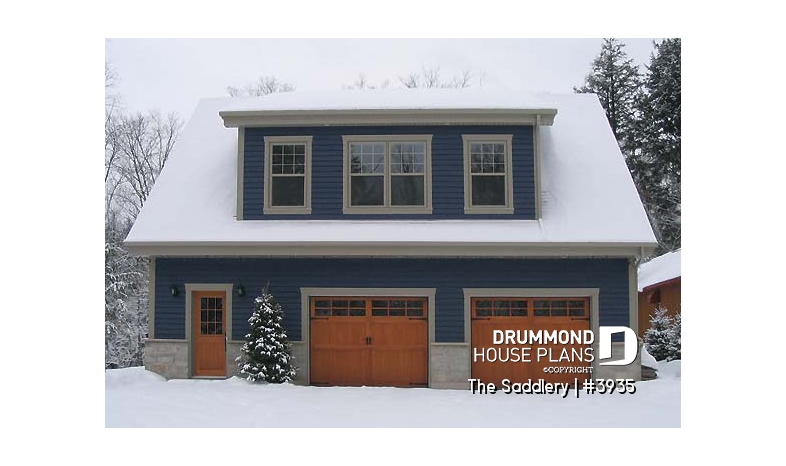

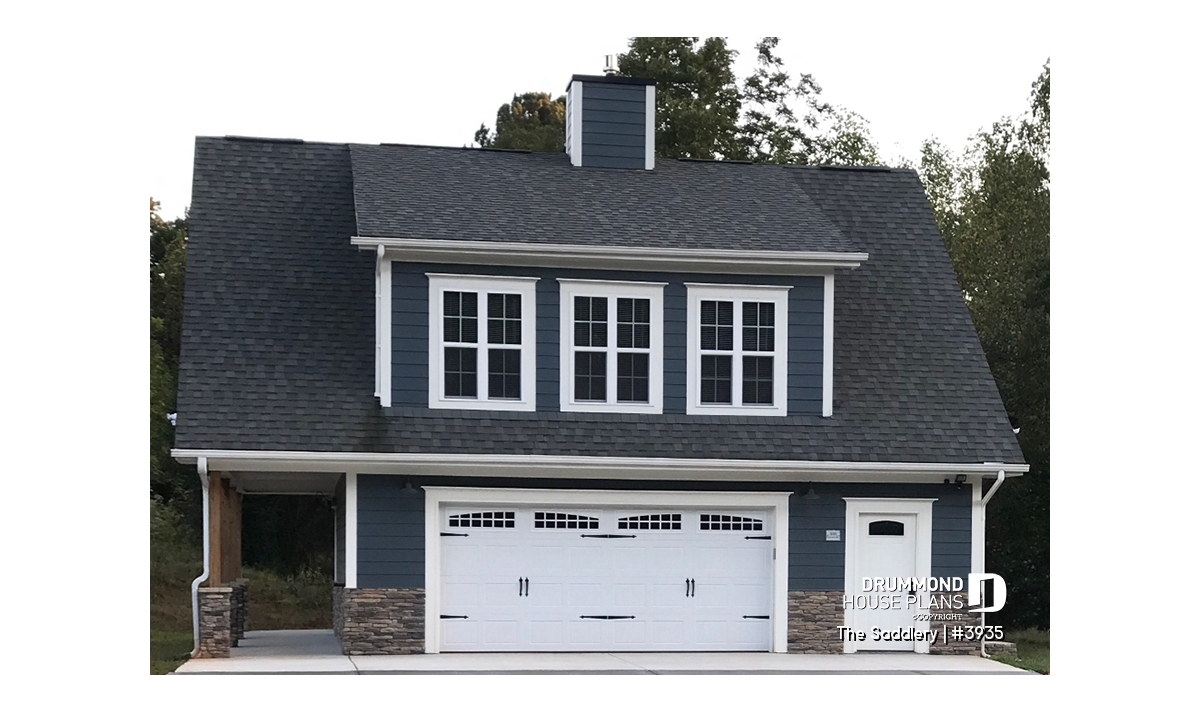

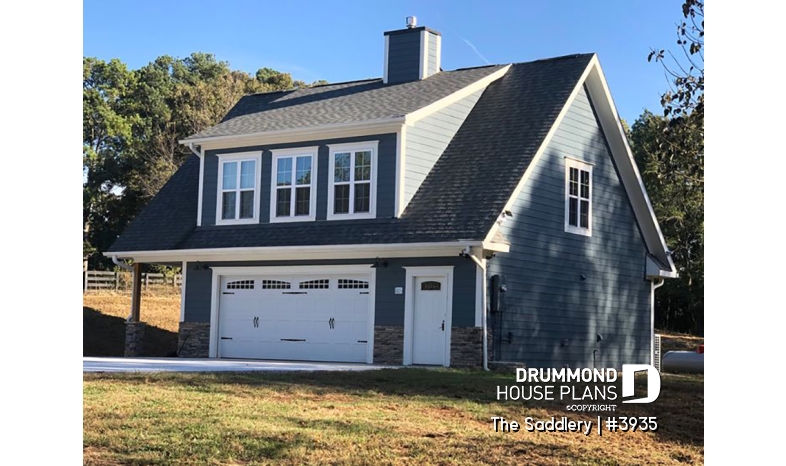

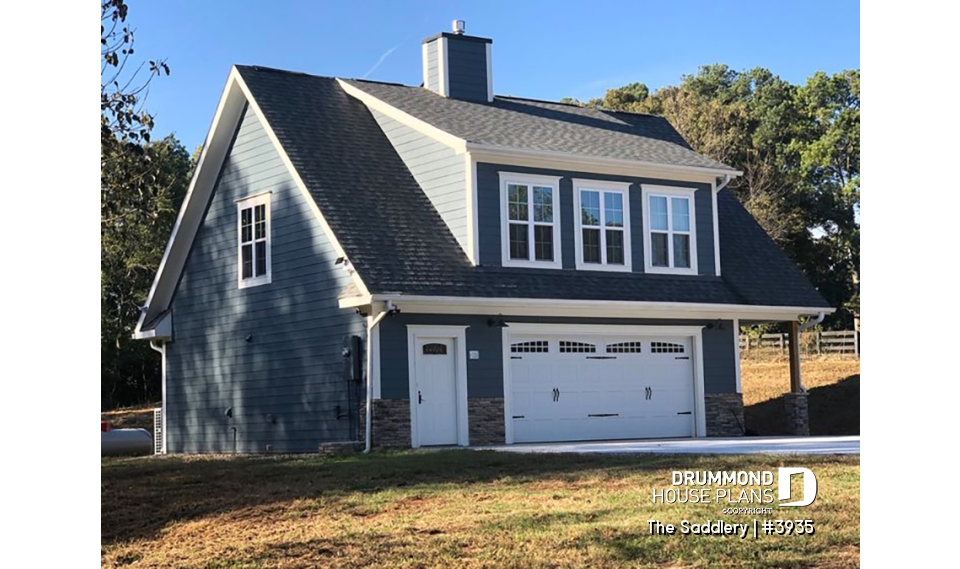

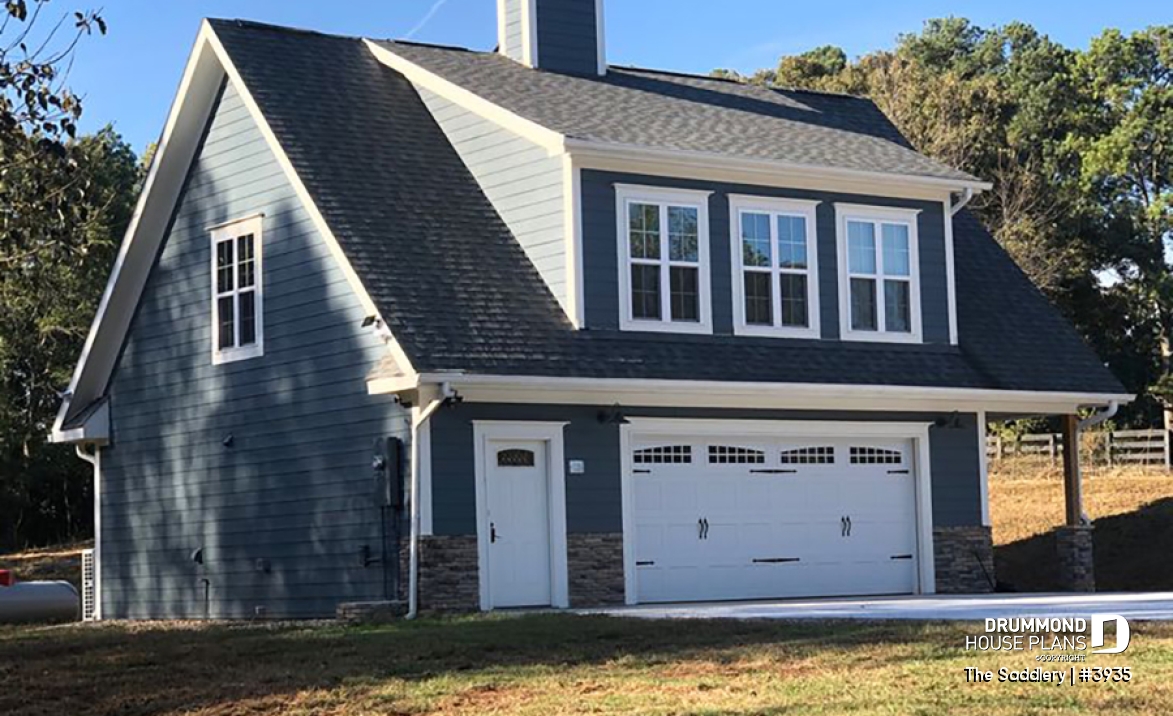

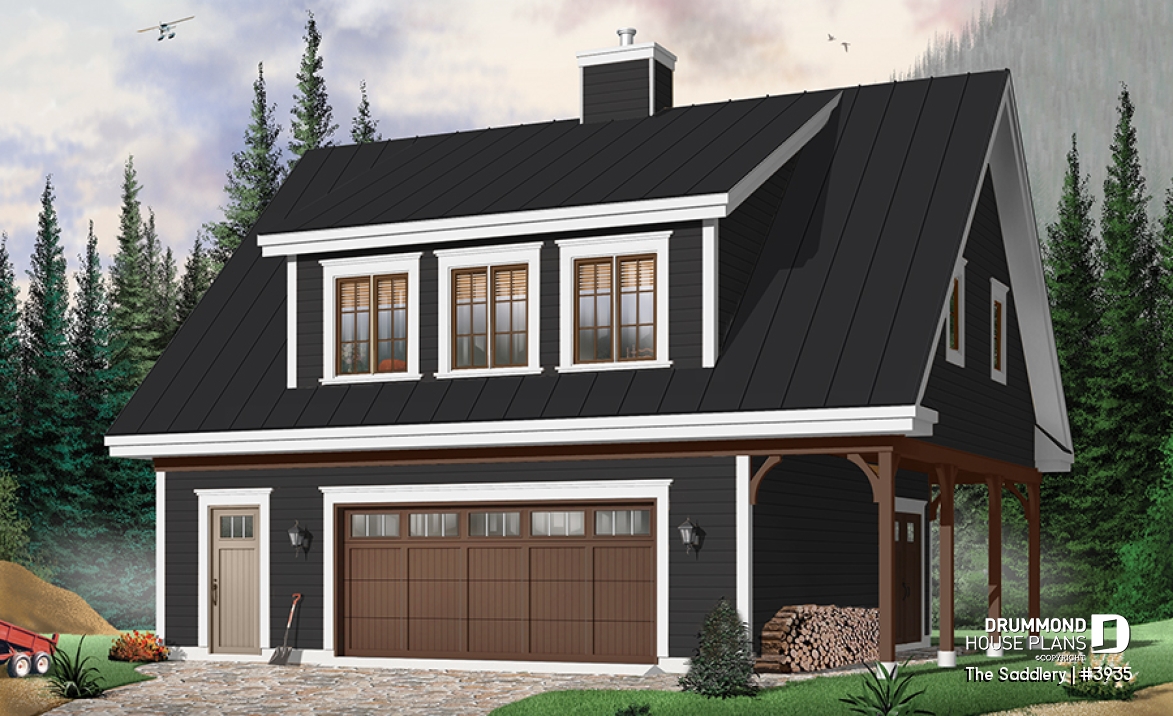

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

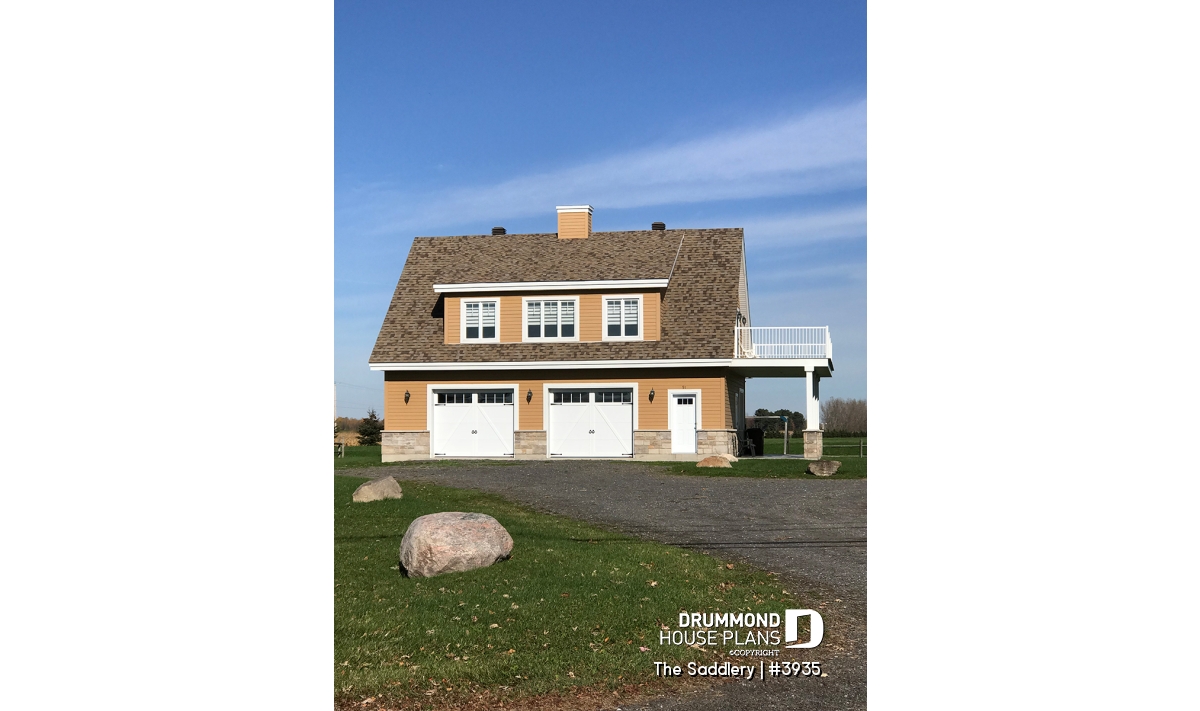

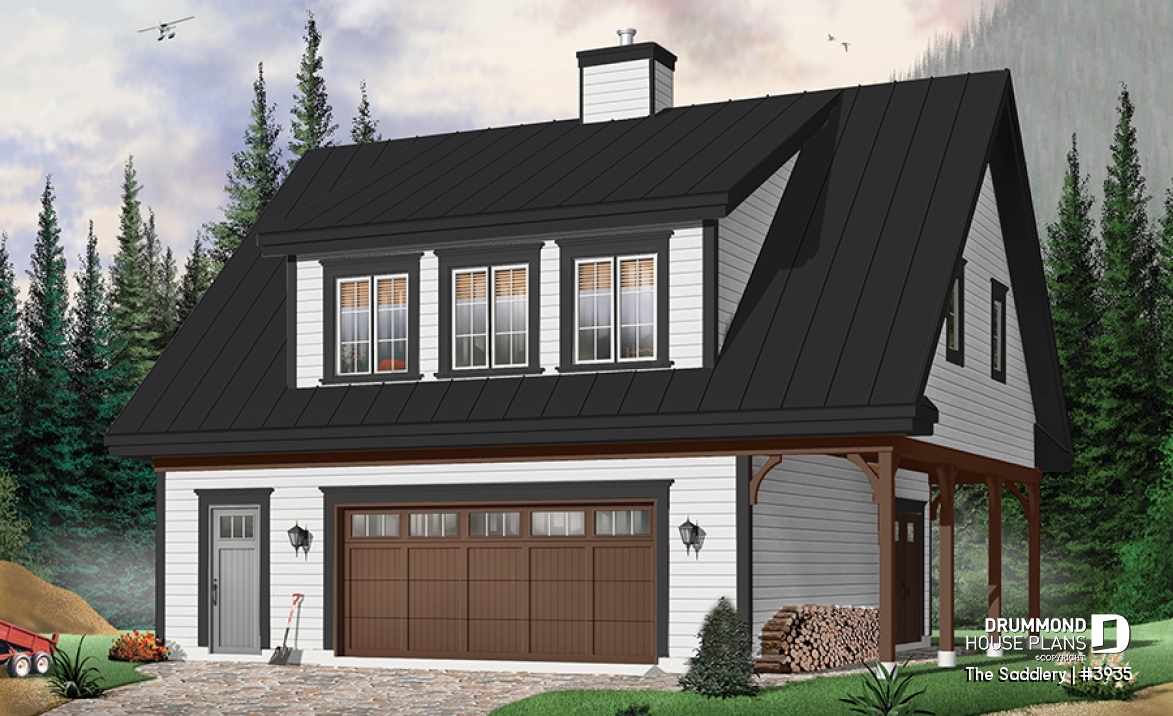

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

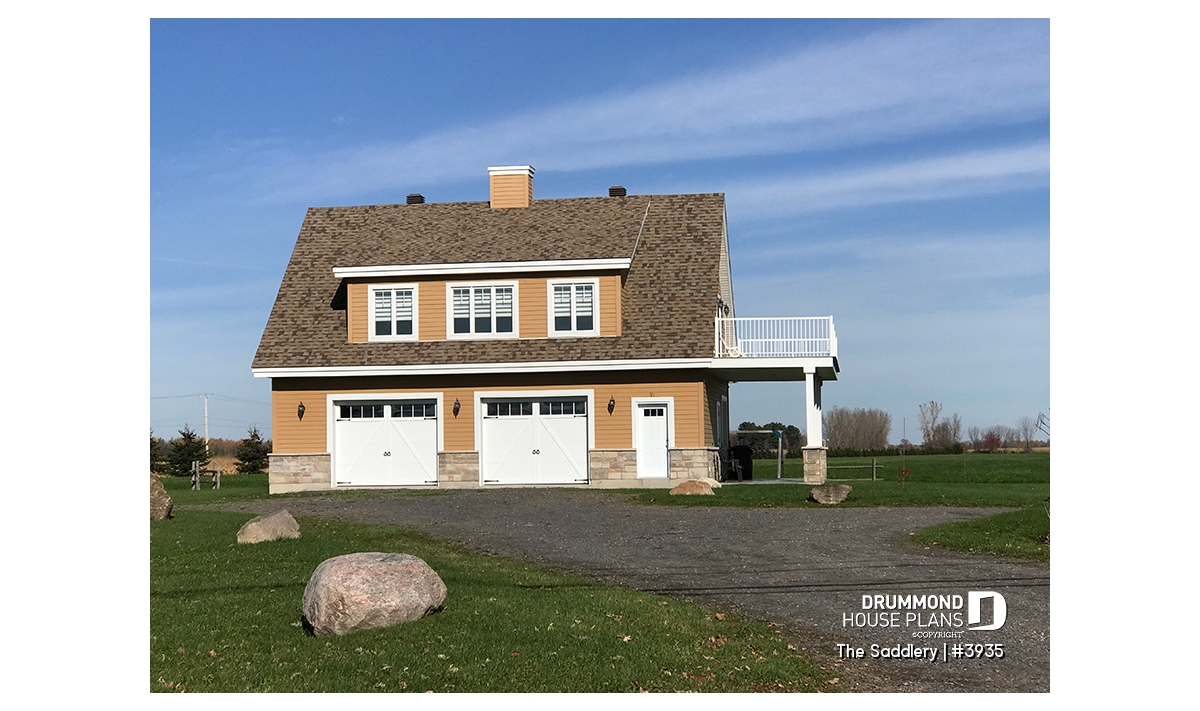

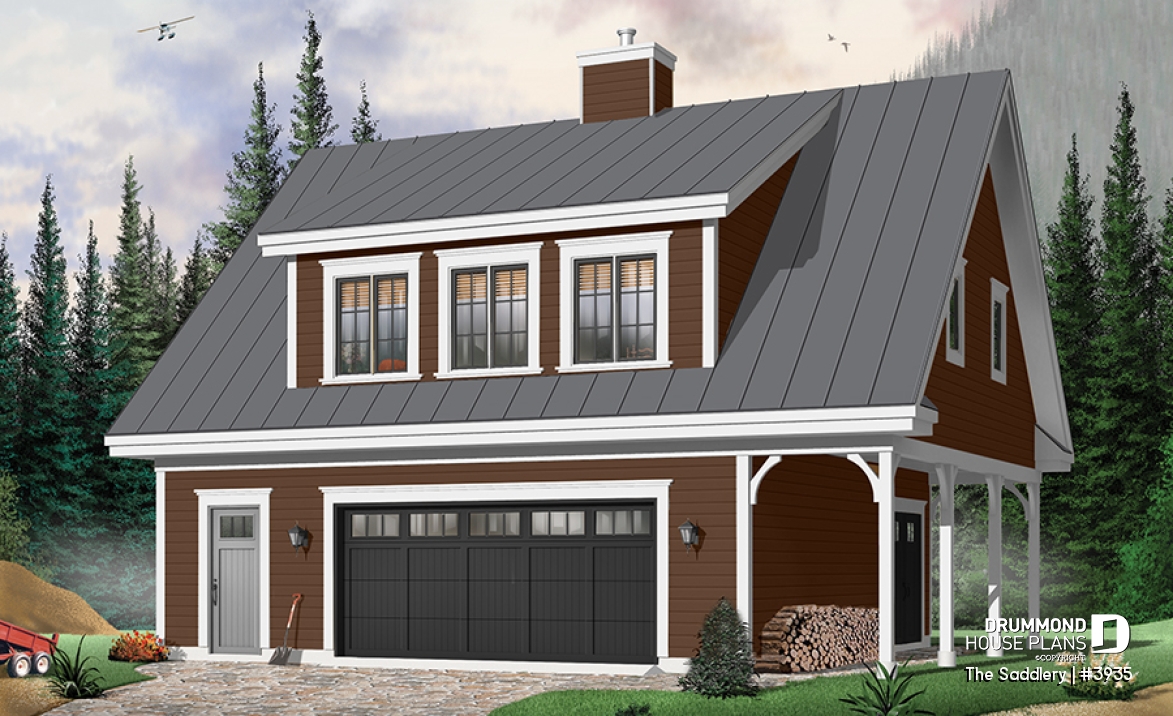

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

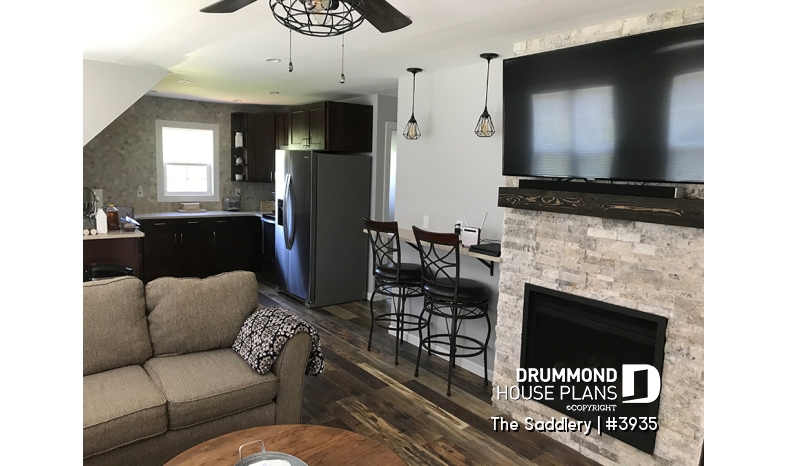

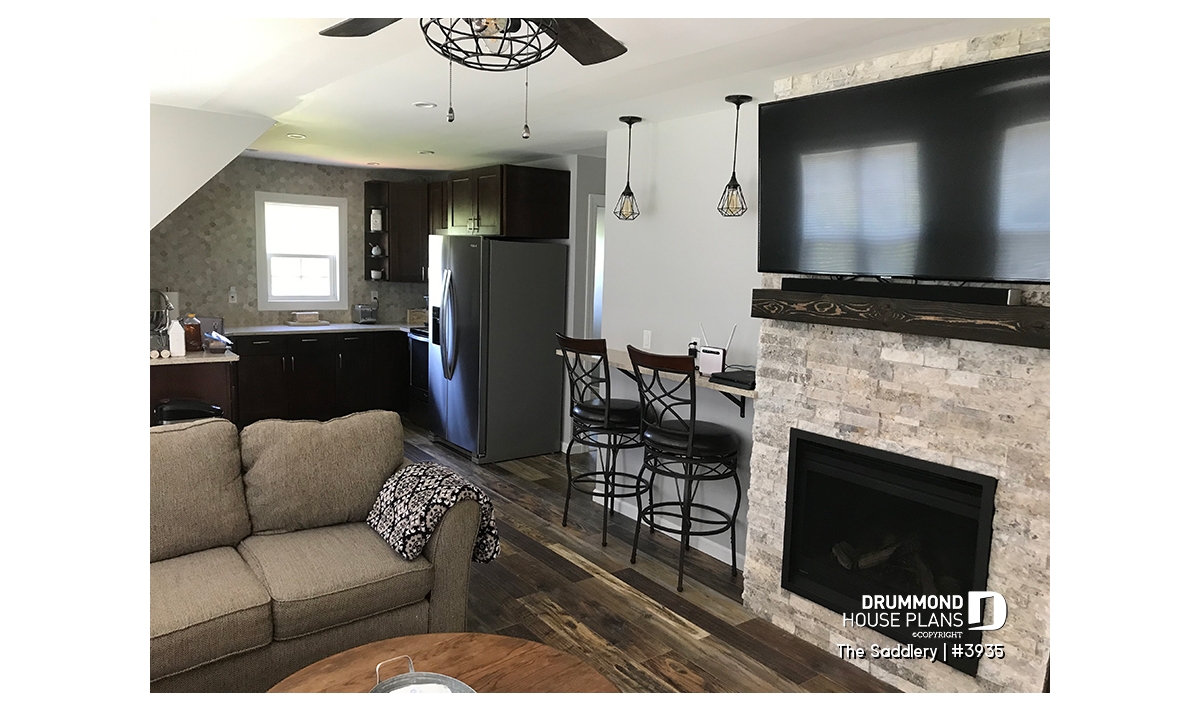

Great / Family room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

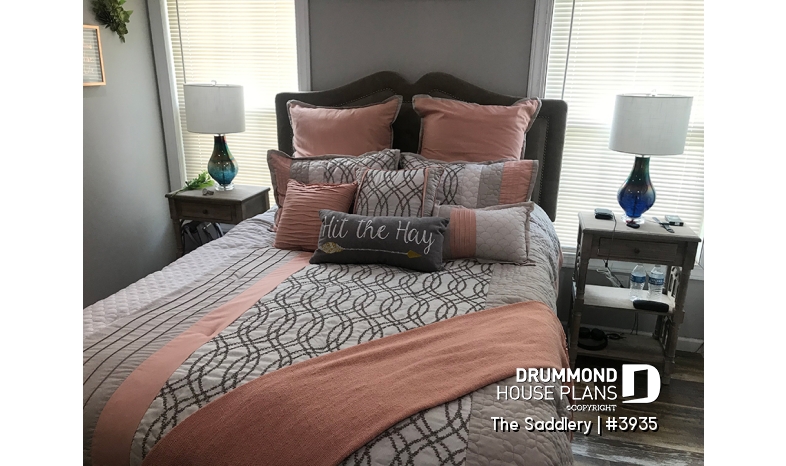

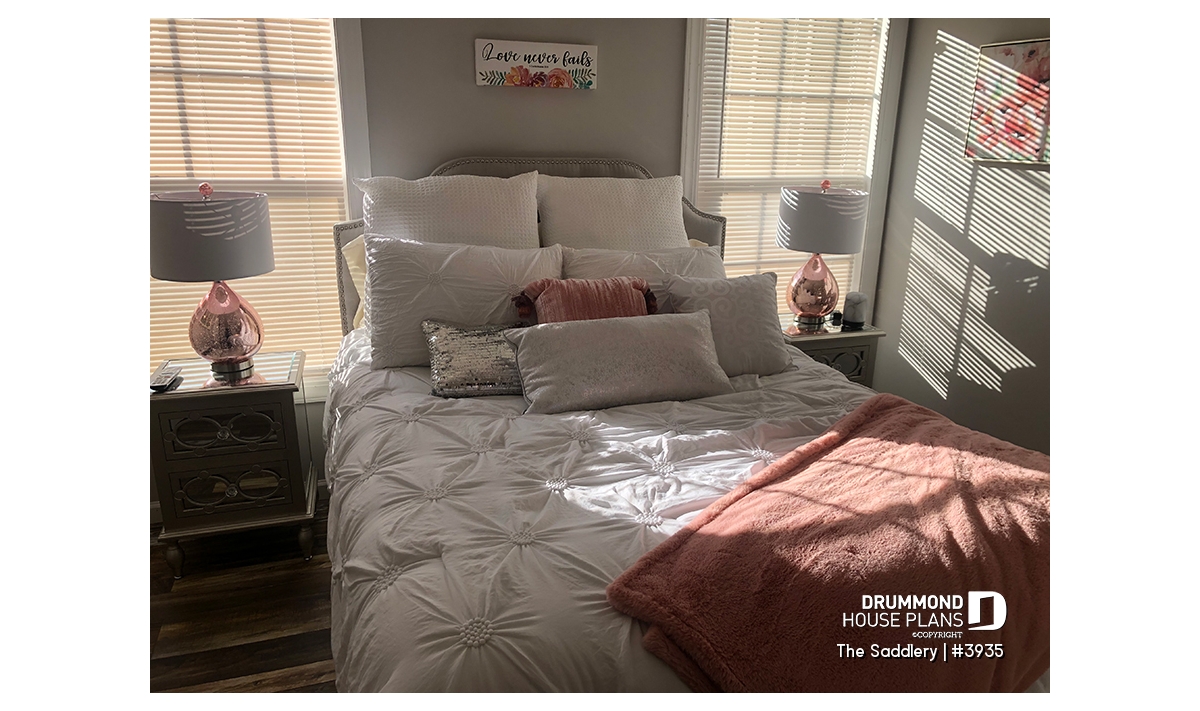

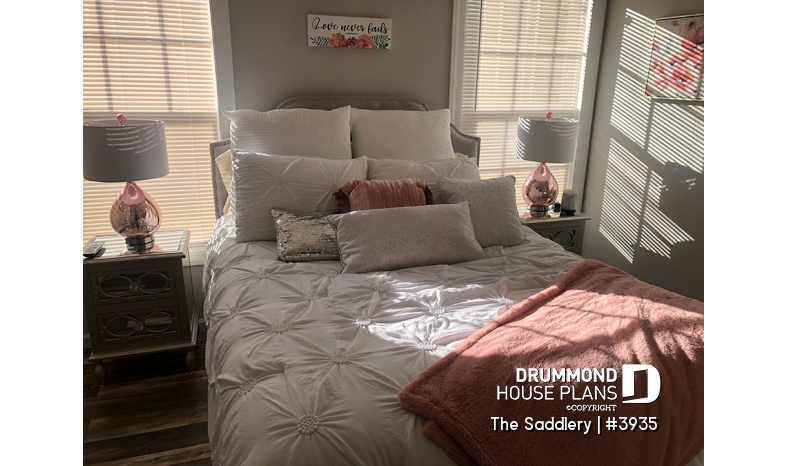

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

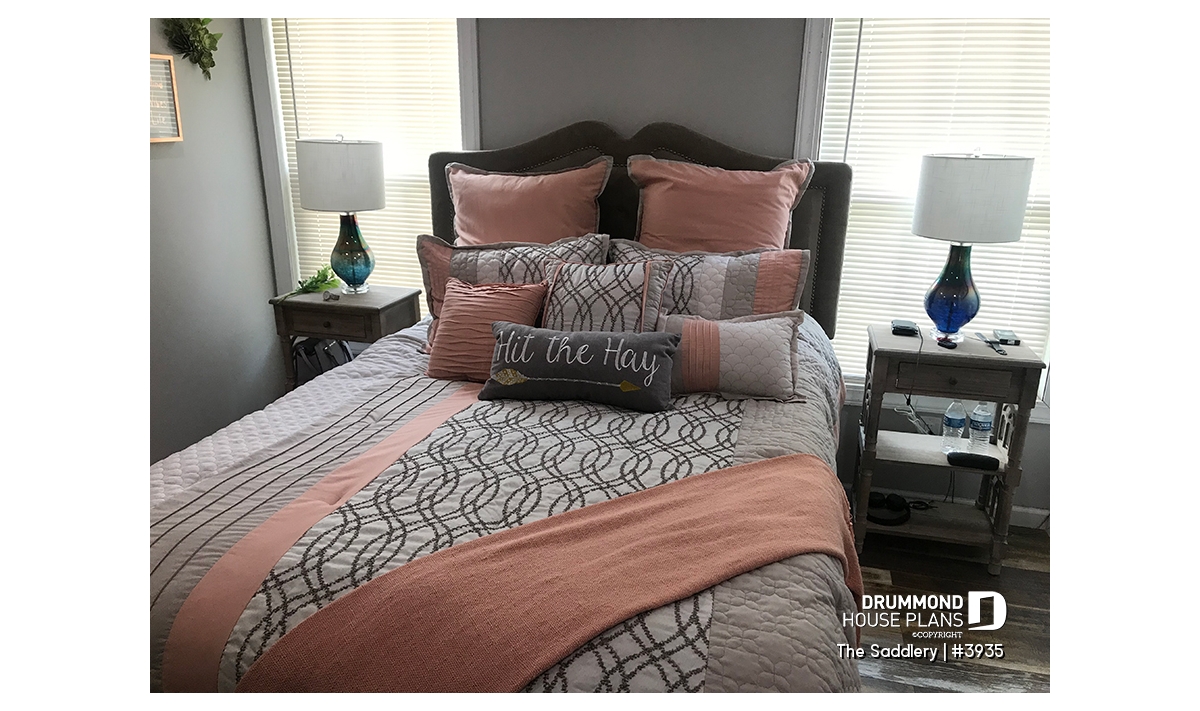

Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Note: The photos of this house differ from the original plan, from which they come.
Other useful information on this plan

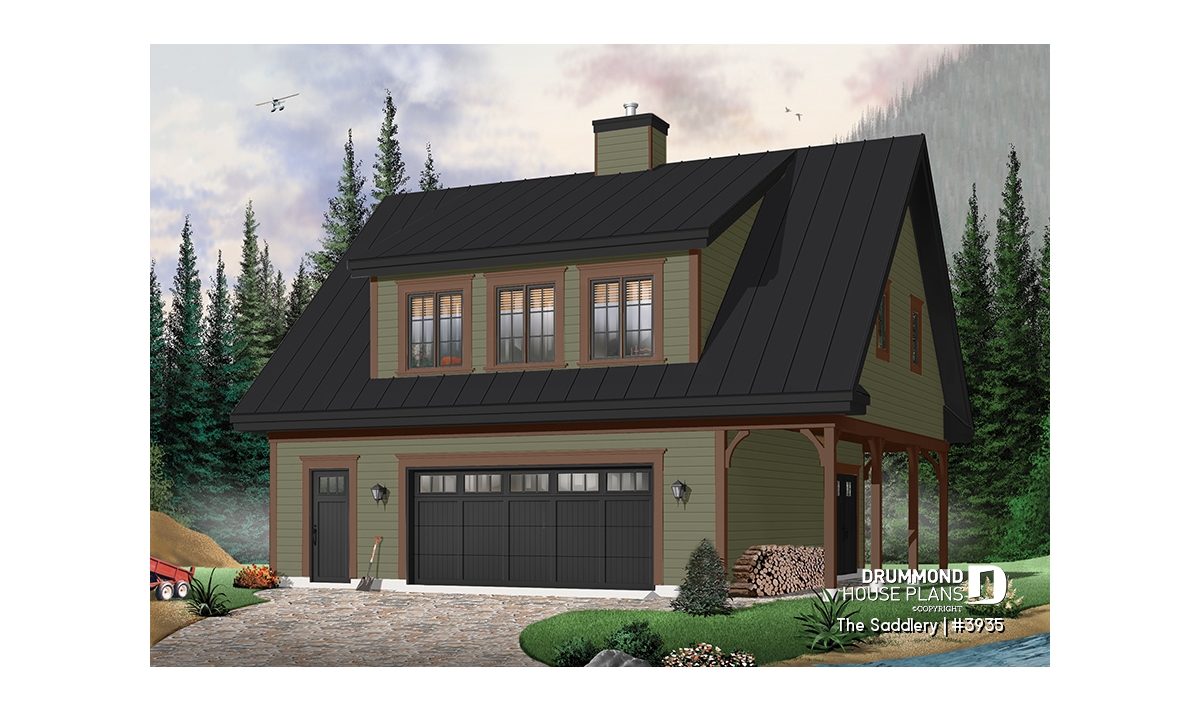

Attractive 2 bedroom suite over 2-car garage plan
This versatile garage is increasingly popular for those looking for a separate suite on a large lot or as a recreation property with lots of room for toys!
The oversized shed dormer and trio of windows ensure ample light for the suite upstairs. A covered shelter provides enough space to store a few cords of wood safe from the elements and for easy access via the garage.
Upstairs, a U-shaped kitchen embraces the family and dining areas which both cozy up by the hearth. Two dreamy bedrooms each have their own walk-ins and shower rooms. To enhance the character, the staircase railing doubles as showcase storage.
Distinctive elements
Two-car garage plan with accommodation upstairs.
Garage, chalet, small house or guest suite, the choice of accommodation is yours.
Country style.
2 bedrooms, 2 bathrooms, laundry room, walk-in closet, and lots of storage.
Well located fireplace upstairs.
Other storage well integrated and acting as a railing at the top of the stairs.
Plan feature(s)
Fireplace, Second floor laundry room, Mud room, Panoramic view, Open floor layout
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Traditional, . American, . Modern rustic, . Craftsman / Northwest, . Vacation and waterfront
Similar plans
Previously Viewed Plans
Questions and comments
May 14
Stephanie Ford
Can I purchase ONLY the materials list without purchasing a plan?
May 14
Customer service
Good day Ms. Ford and thank you for your interest in this plan.
Yes, you can purchase the materials list without purchasing the plan but the order will need to be done by phone during business hours as this is not an option on the Internet order.
You can reach us at 1-800-567-5267 from 8am to 5pm Monday to Thursday and until 4:30pm on Friday.
Regards
Deb
June 20
Steve Zeneri
DO you have a house plan to match Plan no.W3935
The Saddlery
June 20
Customer service
Good day and thank you for taking the time to write.
Although I am not sure of your requirement, I assume that you are looking for a similar floor plan that is not built above a garage so I have come up with the following links
plan 2923 has only one bathroom but a similar layout which may be interesting.
Plan 2030A or plan 3965/url]may be acceptable options with their second floor mezzanines and second bathrooms.
[url=www.drummondhouseplans.com/house-plan-detail/info/1001702.html]Plan 3213, with its attached garage may be a choice which suits your needs as well.
Plan 2496 may be another interesting choice with its split level and single car garage.
Please let me know if I can further assist you
Deborah
May 01
Melissa
can this structure be a DIY? does this 2nd floor/roof require heavy machinery?
thank you
May 01
Customer service
Good day and thank you for taking the time to write.
We are unfamiliar with the term DIY, is this part of the IRC 2006 code? Please clarify and I will be happy to respond.
As for the heavy equipment, this is something that you will need to discuss with your contractor as the roof installation will depend on the method chosen by the individual who will do the job.
Please let me know if you have any other questions or comments.
Regards
Deborah
January 06
Allison Rye
Hi,
I am very seriously looking to purchase these plans, but I was wondering if you had any views from the interior? Or actual pictures of the inside?
Thanks,
Allison
January 06
Customer service
Good day Ms. Rye and thank you for your interest in our plans.
We might have what you are looking for in our photo gallery.
You can access it using this link
http://www.drummondhouseplans.com/photo-gallery.html
or
http://www.drummondhouseplans.com/renovation-plans/all-renovations.html
Please don't hesitate to contact me if you have any other questions or comments.
Regards
Deborah
June 30
David
Approximate cost/sq. ft. to build?
July 04
Customer service
Dear David,
Thank you for your interest in Drummond House Plans.
As costs vary greatly from region to region, we suggest that you show the information available on our website regarding that plan (illustrations, floor plans, technical details) to a builder in your region to obtain a more accurate estimate. The builder should be able to provide you with a construction cost estimate or, at least, a dollar amount per square foot.
Please contact me again if you need further information.
Sincerely,
France, Customer Service Department
