House plan The Quarry 3 (2639)
Elegant Tudor-Style Two-Story Home with Double Garage and Luxurious Primary Suite Design
View the size of the rooms and height of the ceilings

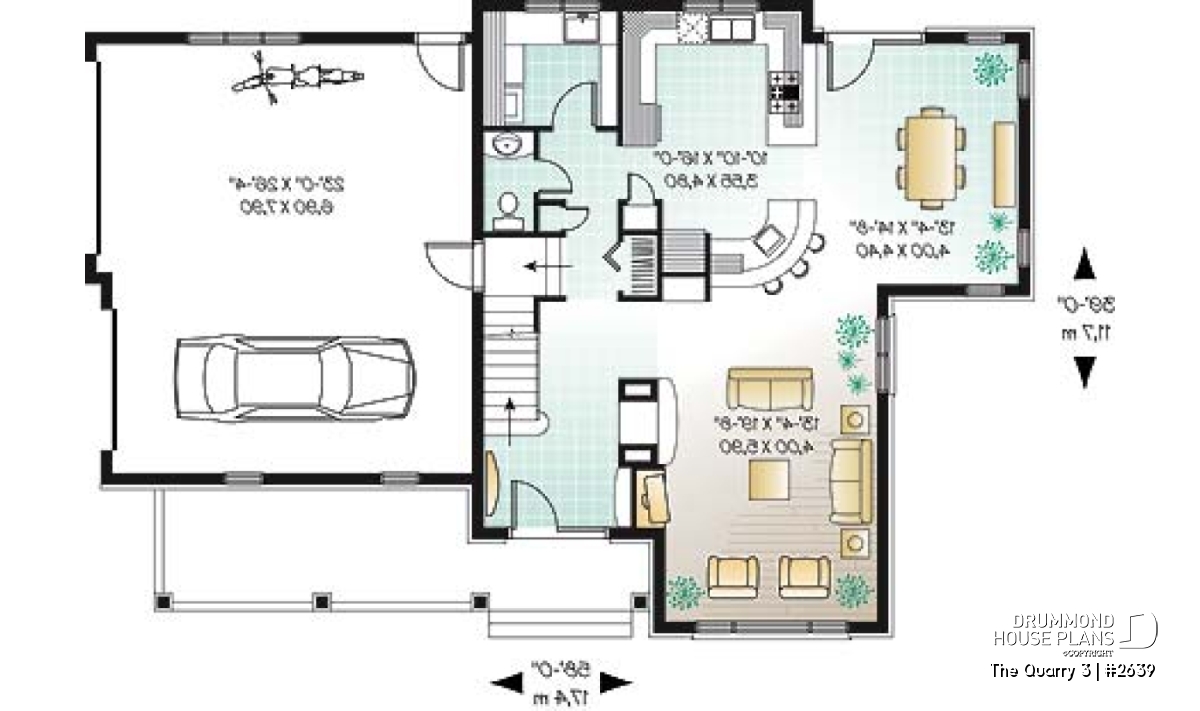

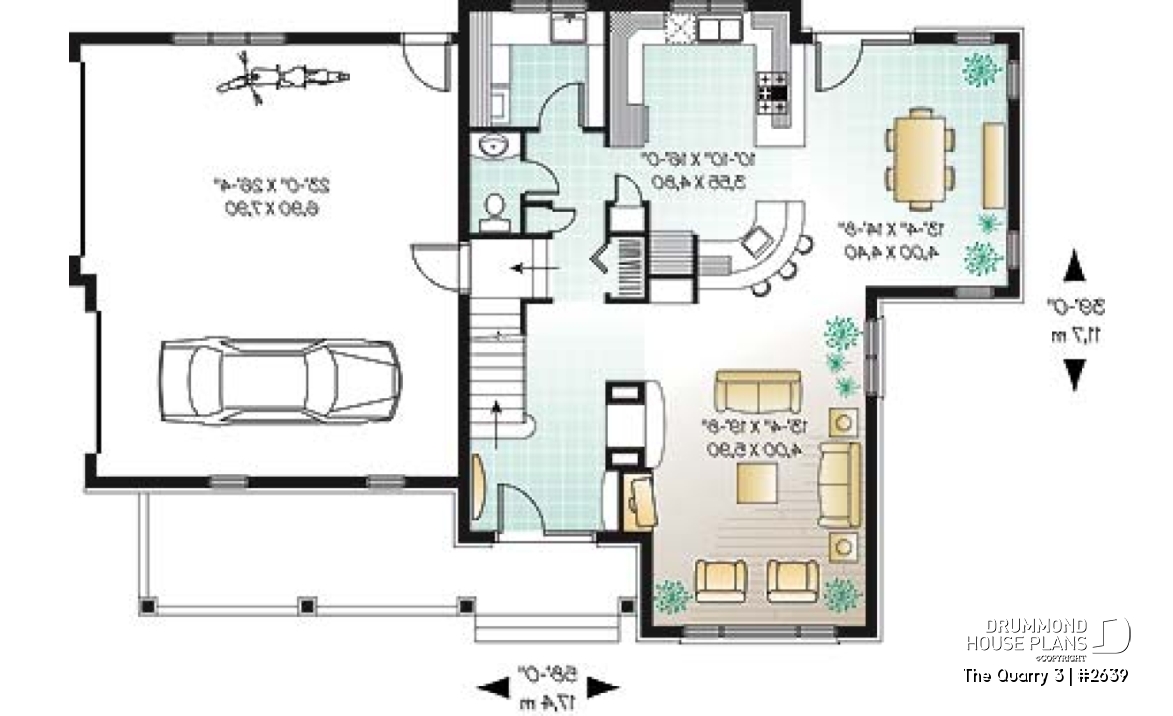

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 3'0" x 6'0" | ~ 8'0" |
| Kitchen | 10'10" x 16'0" | ~ 8'0" |
| Dining room | 13'4" x 14'8" | ~ 8'0" |
| Living room | 13'4" x 19'8" | ~ 8'0" |
| Linen | 1'8" x 1'4" | ~ 8'0" |
| Foyer | 9'0" x 5'10" | ~ 17'4" |
| Laundry room | 8'2" x 7'0" | ~ 8'0" |
| Garage | 23'0" x 26'4" | ~ 9'8" |
| Porch | 30'0" x 7'4" | N/A |
| Deck | 8'0" x 5'0" | N/A |

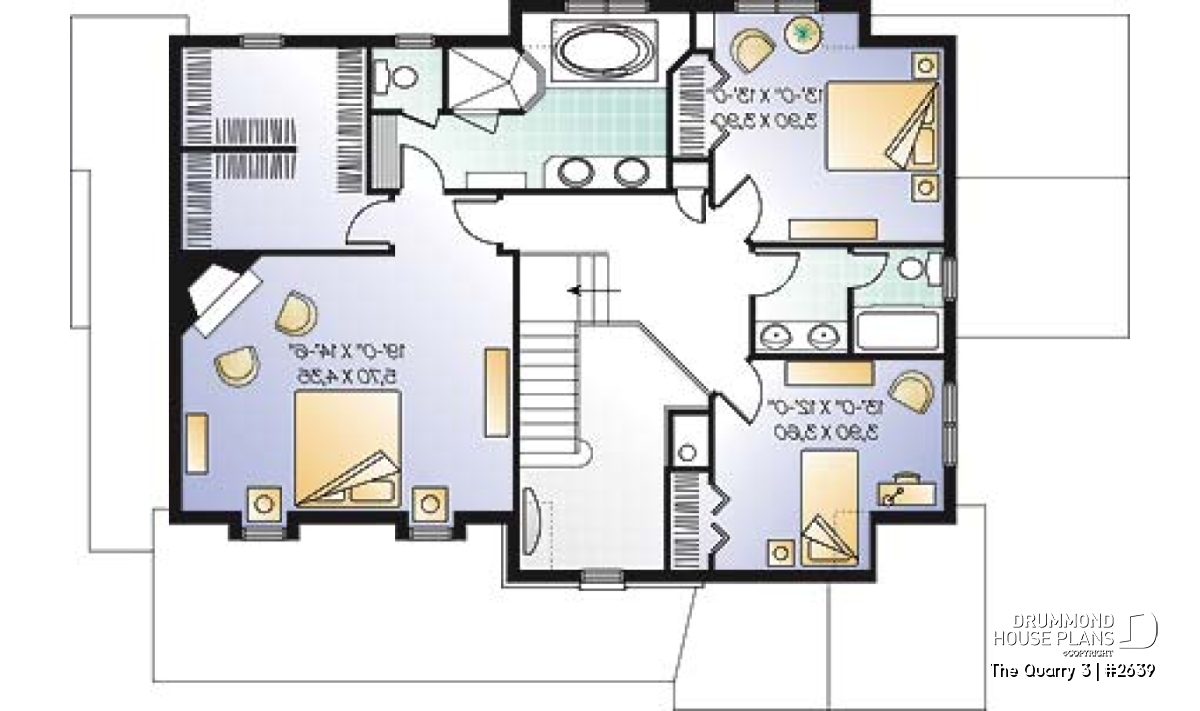

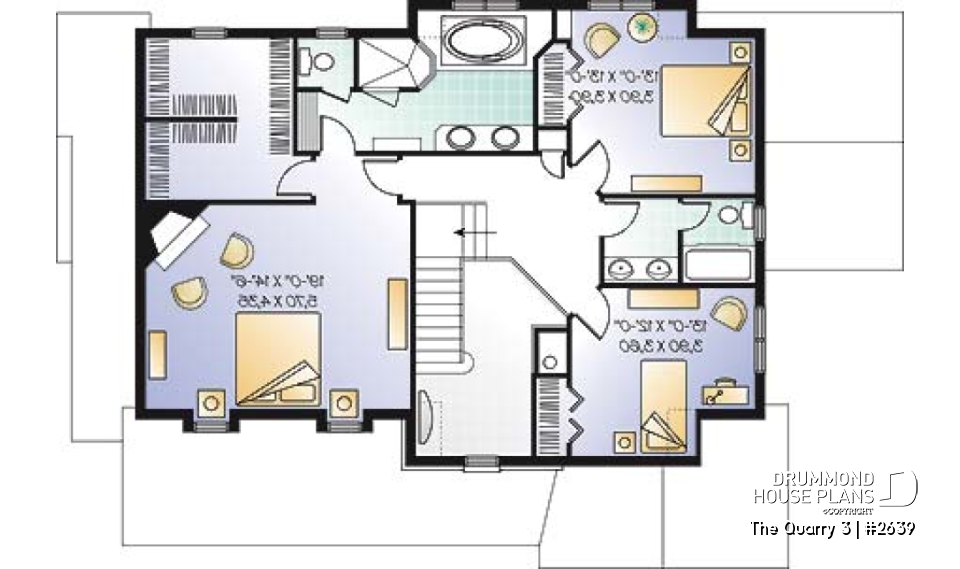

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'8" x 6'0" | ~ 8'0" |
| Master suite | 19'0" x 14'6" | ~ 8'0" |
| Bedroom | 13'0" x 13'0" | ~ 8'0" |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Linen | 2'0" x 1'6" | ~ 8'0" |
General specifications
| Total living area | 2339 sq.ft. |
| 1st level | 1078 sq.ft. |
| 2nd level | 1261 sq.ft. |
| Width | 58'0" |
| Depth | 39'0" |
| Ridge height from top of foundation | 32'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications

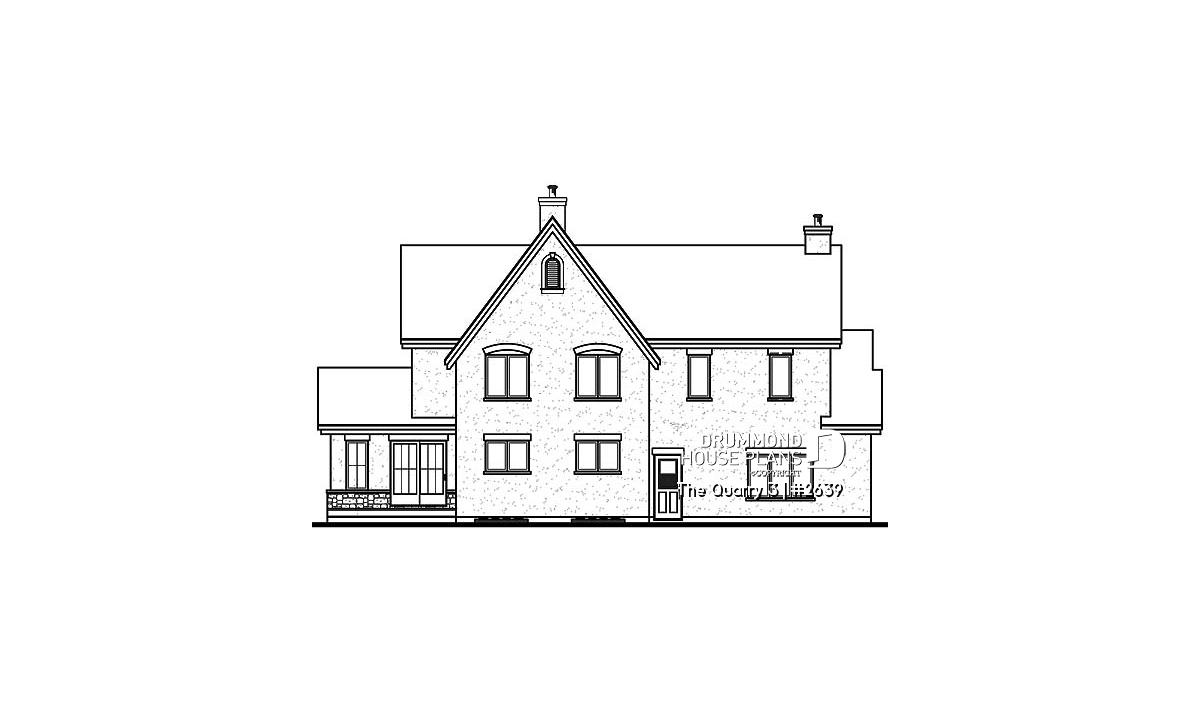

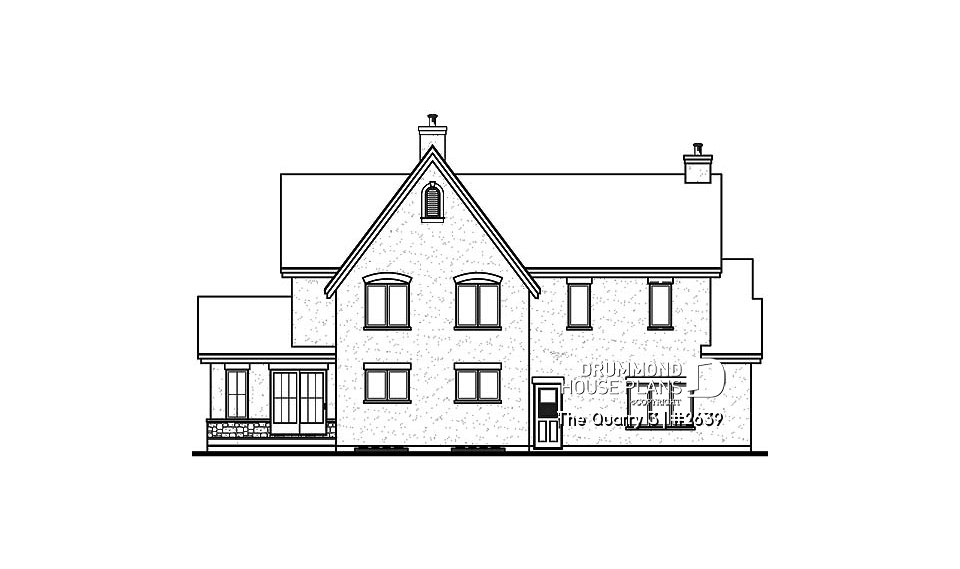

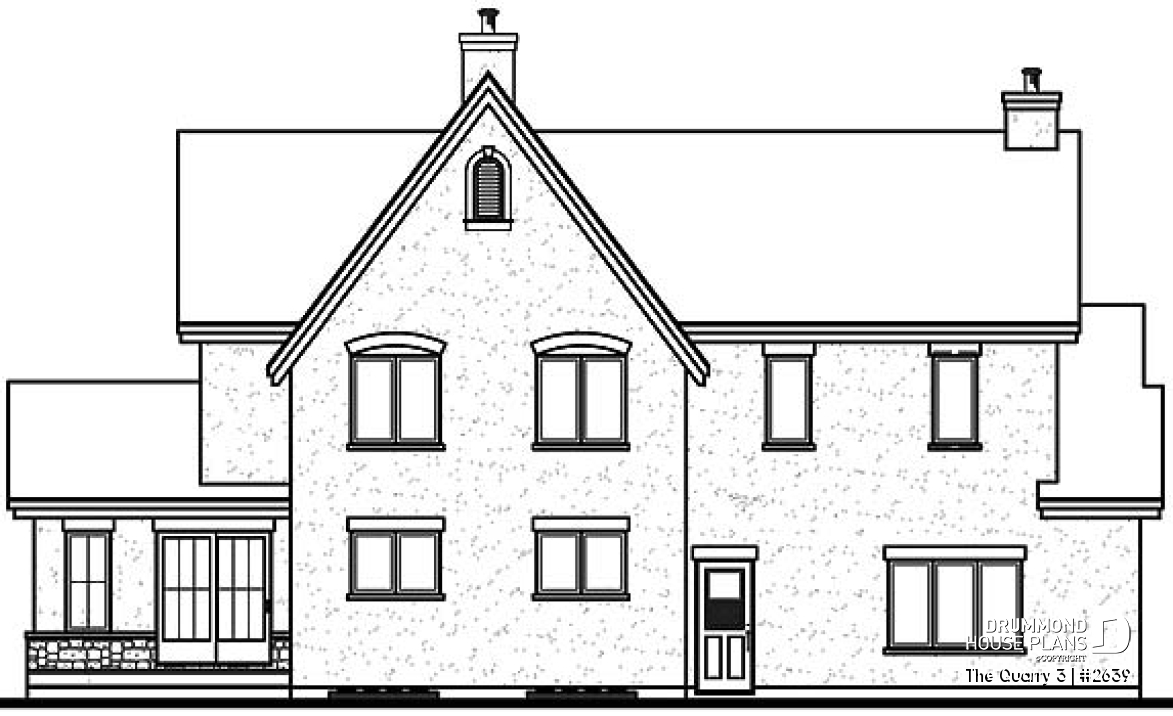

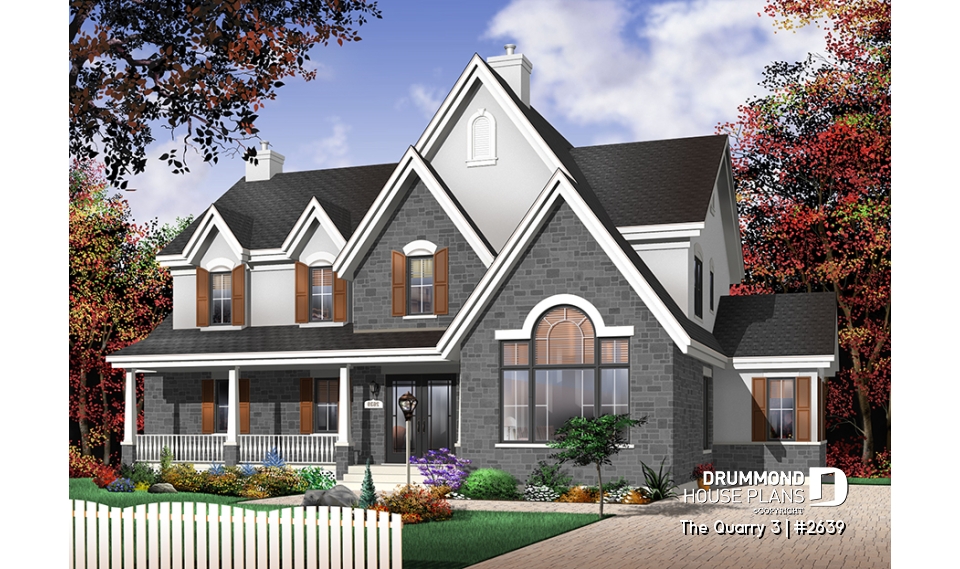

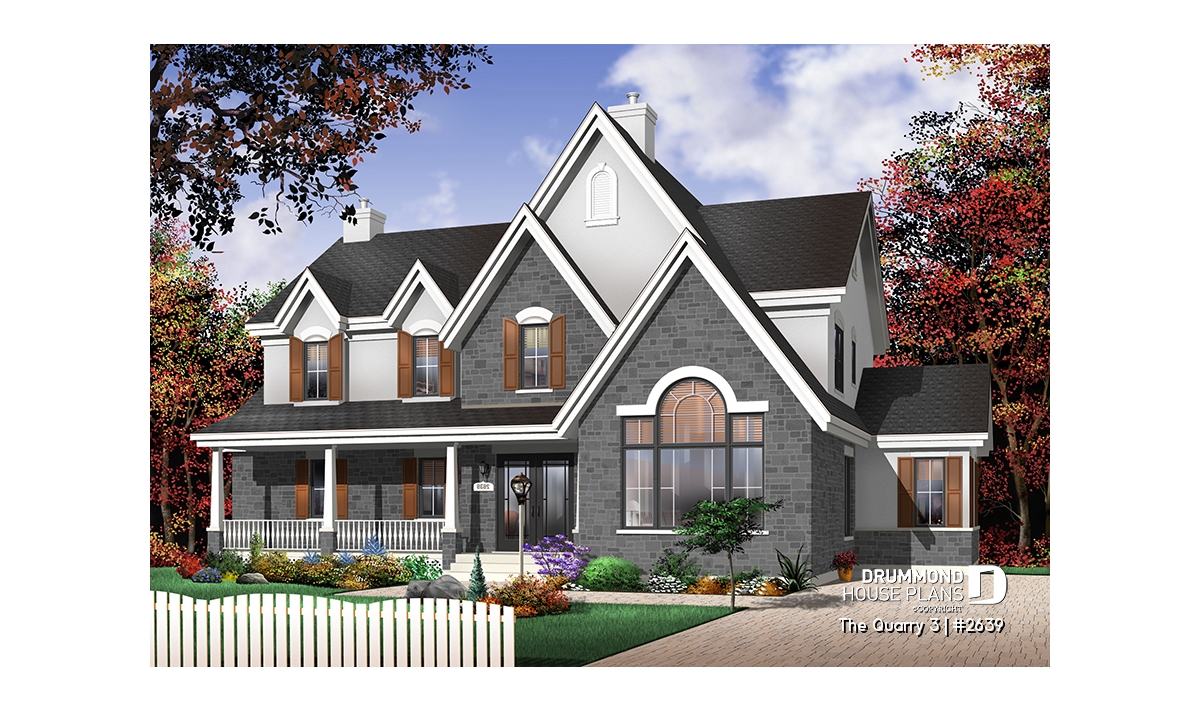

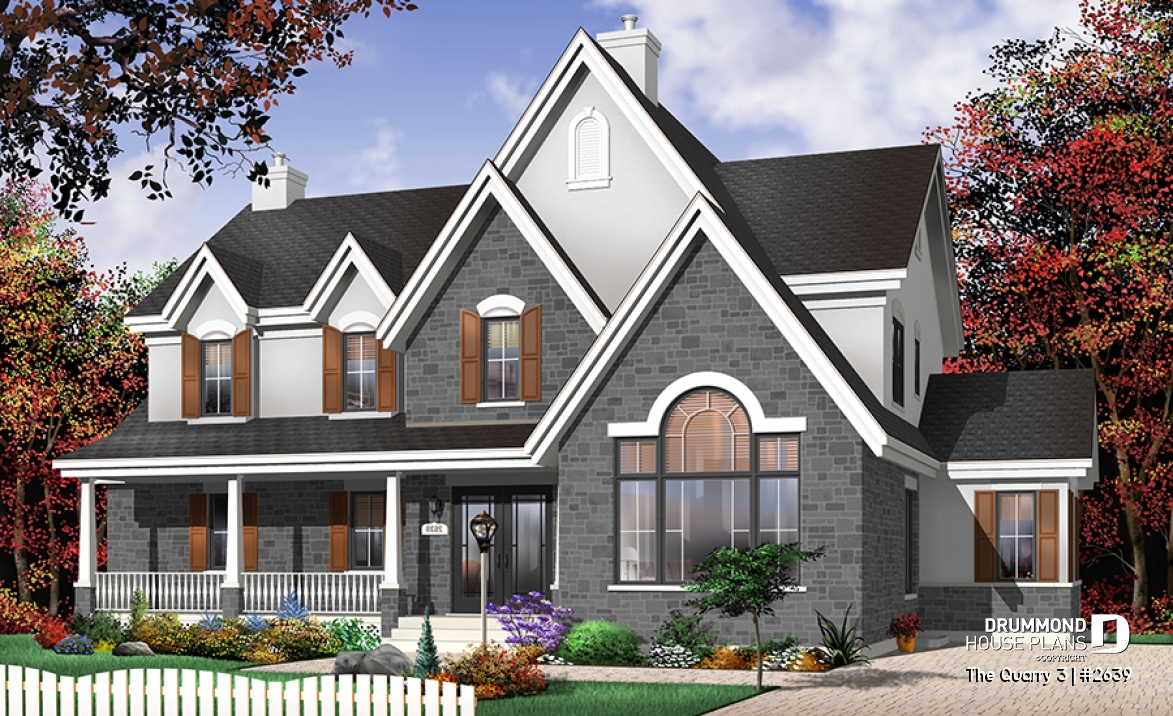

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

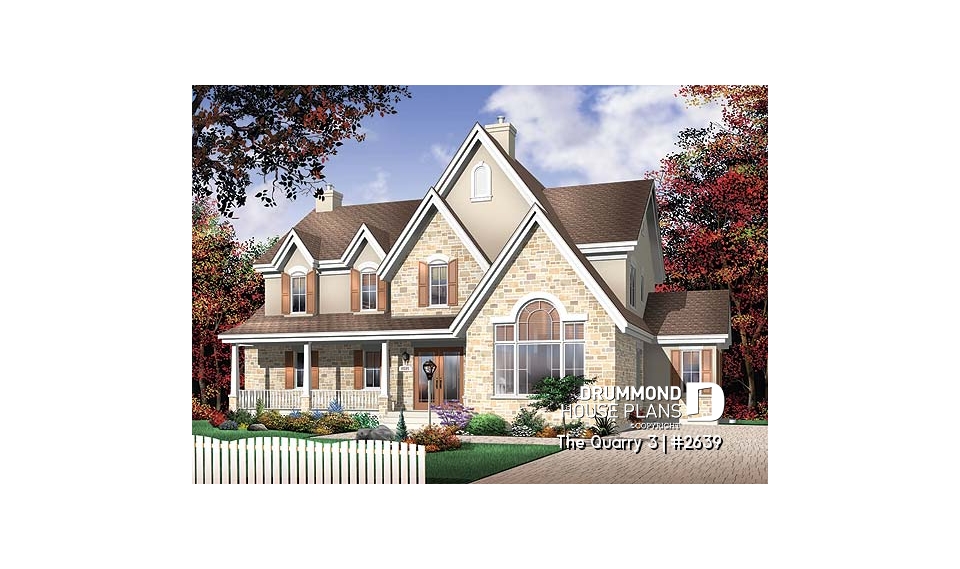

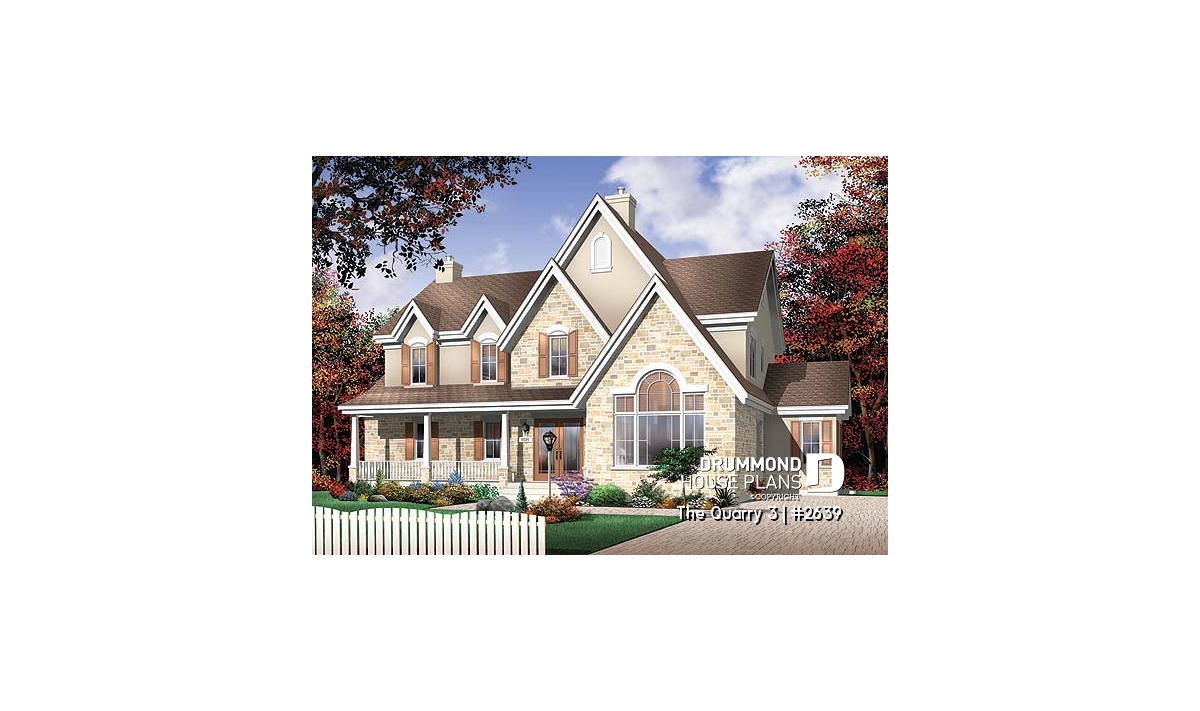

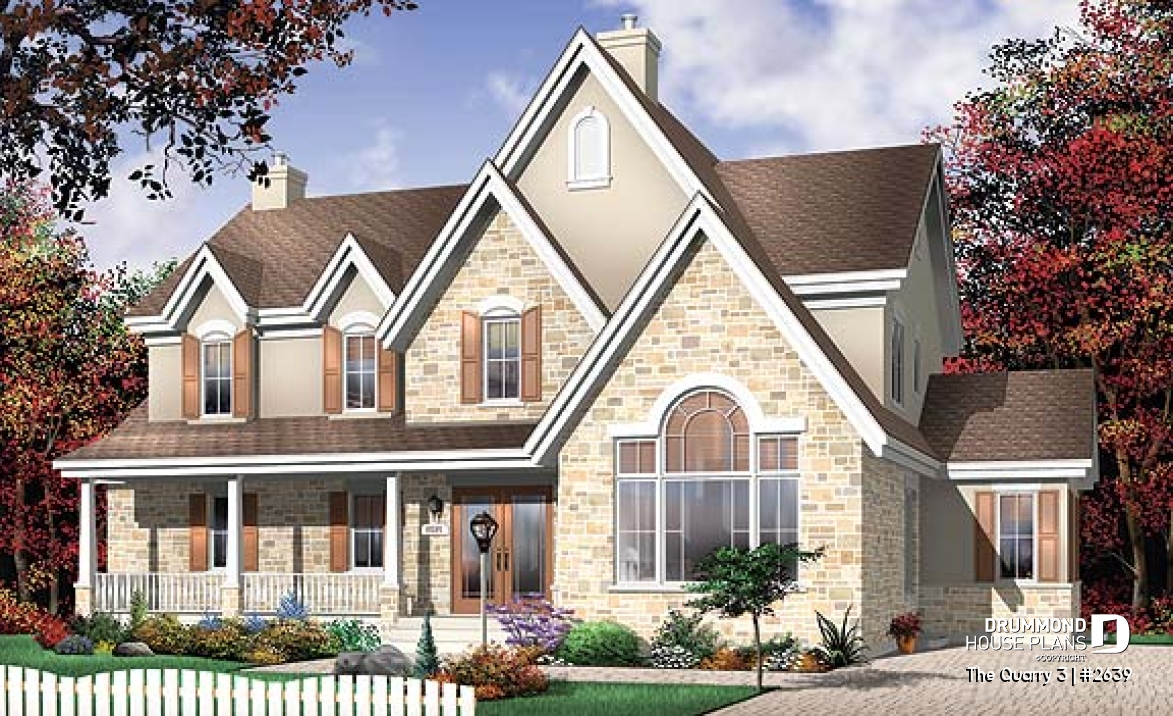

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
American-Inspired European Cottage Plan with Luxurious Master Suite
Designed from our popular 3828 model, this American-inspired European cottage elevates everyday living with thoughtful enhancements and timeless charm. Among its standout features are a discreet yet highly functional double garage and an exceptional second floor that owes its generous layout to this expanded footprint.
Upon entering, you’re greeted by a stunning two-story foyer that shares a dual-sided fireplace with the living room, creating an immediate sense of warmth and architectural interest. The living room itself offers an inviting place to gather, seamlessly connecting to an original and distinctive kitchen design. Adjacent is a bright dining area, wrapped in windows on three sides, and complemented by a rounded lunch counter perfect for casual meals or evening chats.
Convenience is woven into every corner of the main level, including an enviable independent laundry room and well-placed storage solutions that simplify daily life.
Upstairs, the layout continues to impress. Two comfortable secondary bedrooms share a stylish full bathroom, ideal for family or guests. The crown jewel of this level is the expansive master suite, featuring its own fireplace, a remarkably large walk-in closet, and a beautifully appointed private bathroom designed to exceed expectations. This sanctuary-like suite enhances relaxation and elevates the overall appeal of the home.
Blending European sophistication with American practicality, this redesigned cottage offers refined style, impressive functionality, and exceptional comfort—perfect for families seeking a home that harmonizes elegance and everyday living.
Distinctive elements
Tudor-inspired two-story home with a side-by-side double garage.
Beautiful covered front porch enhancing the façade.
Two-story front entry with a direct view of the fireplace for a stunning wow effect.
Spacious living room with a built-in TV and a double-sided fireplace also opening to the main entrance.
Unique kitchen with a dinette counter that also functions as a bar.
Open-concept kitchen and dining room for easy, inviting gatherings.
Exceptional primary suite with a generous double walk-in closet and a cozy fireplace.
Two large secondary bedrooms sharing a full bathroom.
Unfinished basement ready to be customized to your needs.
Plan feature(s)
Fireplace, Mezzanine, 2-Story foyer, Gound floor laundry room, His/Hers walk-in, Master suite upstairs, Separate bath and shower, Double sinks, Lunch counter, Coffee bar, Side entry garage
