House plan Russell (2693)

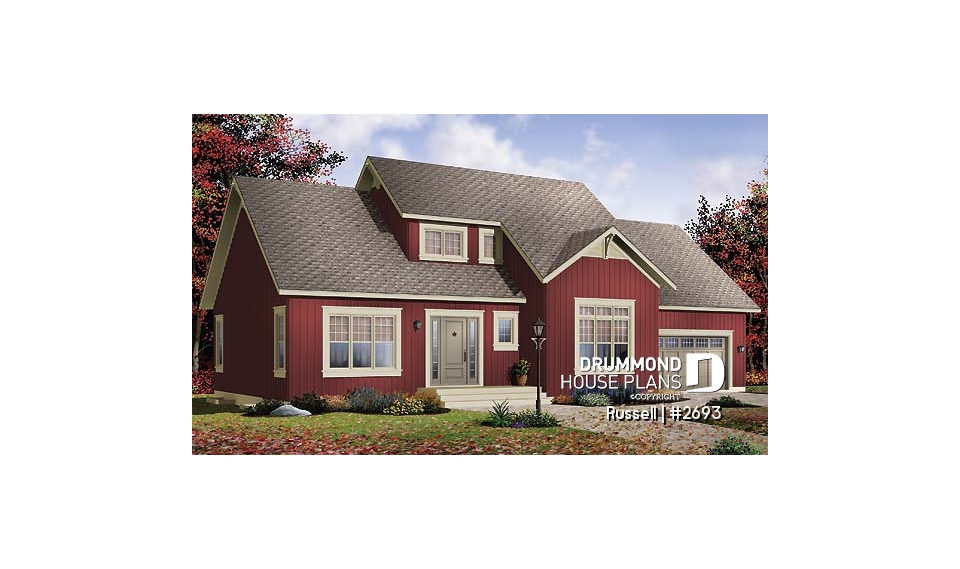

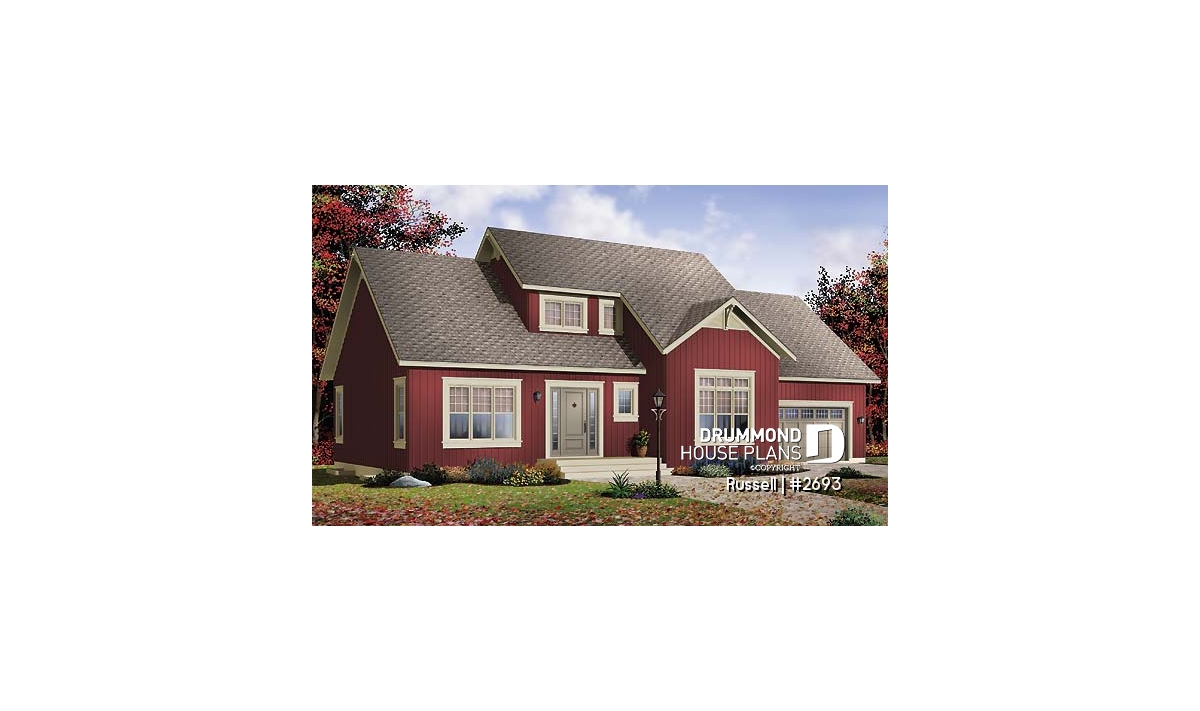

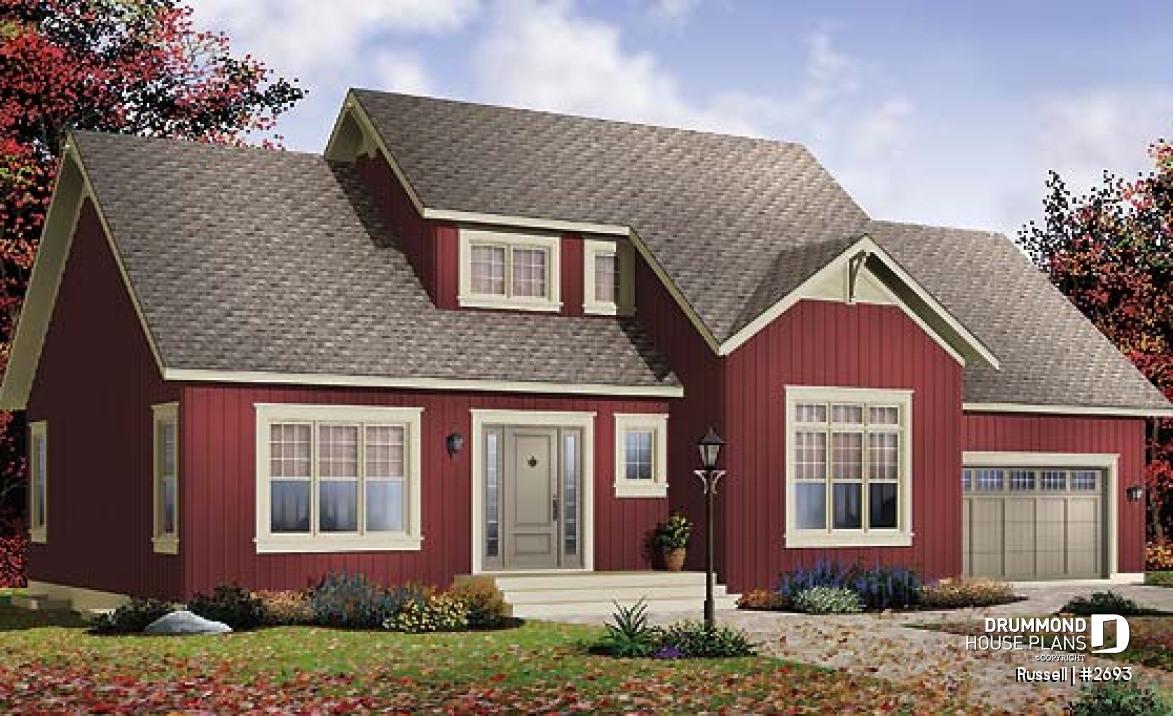

3 to 4 bedroom simple 2-storey home, bonus room above 2-car garage, family and living rooms
View the size of the rooms and height of the ceilings

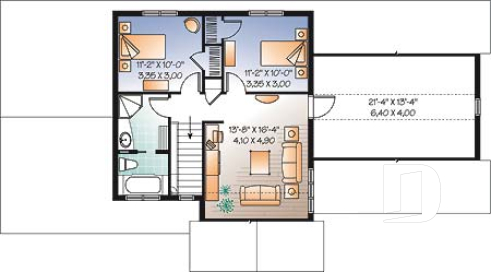

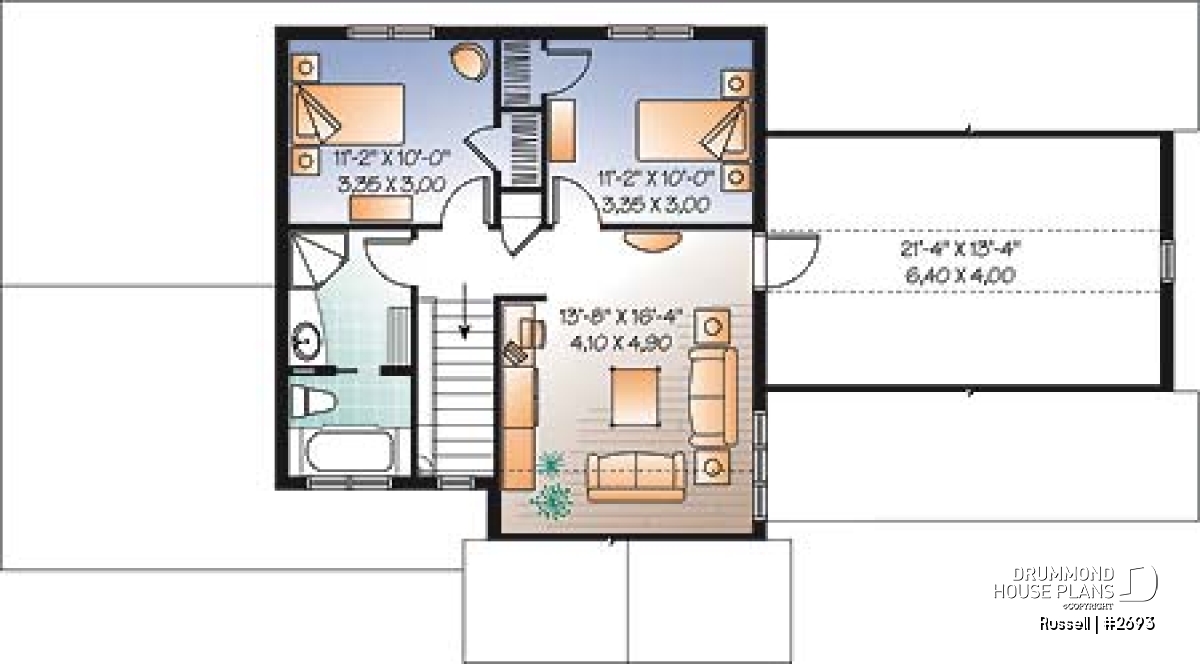

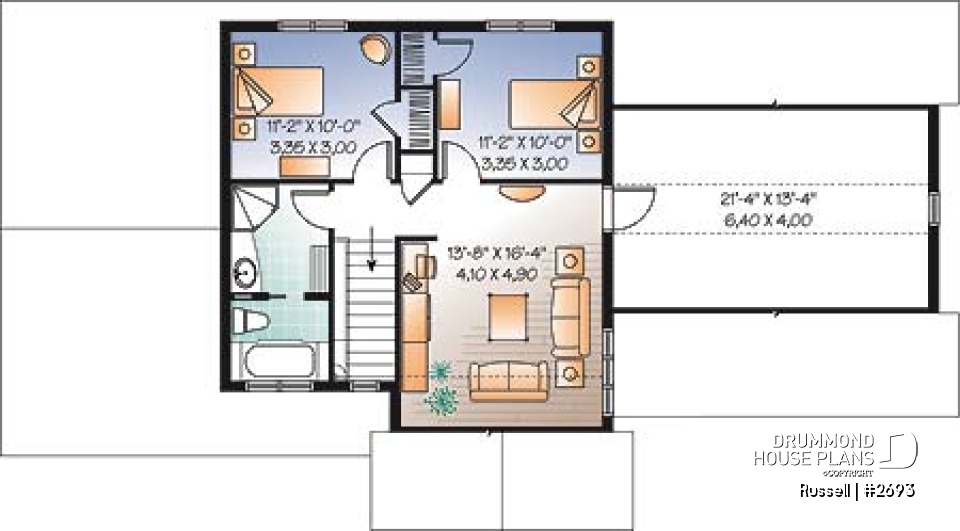

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'8" x 13'4" | ~ 8'0" |
| Bedroom | 11'2" x 10'0" | ~ 8'0" |
| Closet | 2'2" x 4'0" | ~ 8'0" |
| Bedroom | 11'2" x 10'0" | ~ 8'0" |
| Closet | 2'2" x 3'8" | ~ 8'0" |
| Great room or Family room | 13'8" x 16'4" | ~ 8'0" |
| Living bonus room | 21'4" x 13'4" | ~ 8'0" |
| Linen | 2'2" x 1'8" | ~ 8'0" |

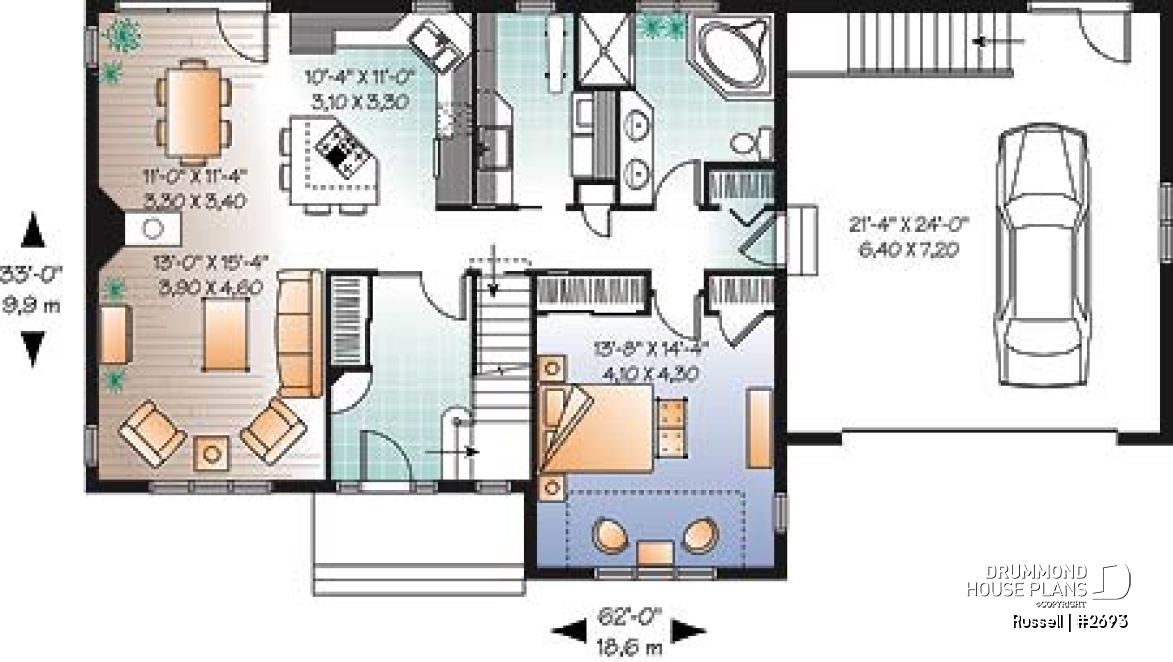

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 10'4" x 11'0" | ~ 8'0" |
| Pantry | 2'0" x 1'7" | N/A |
| Dining room | 11'0" x 11'4" | ~ 8'0" |
| Living room | 13'0" x 15'4" | ~ 8'0" |
| Foyer | 8'0" x 11'8" | ~ 8'0" |
| Closet | 2'0" x 5'2" | ~ 8'0" |
| Full bathroom | 8'10" x 11'0" | ~ 8'0" |
| Bedroom | 13'8" x 14'4" | ~ 9'10" |
| Closet | 6'3" x 2'0" | ~ 8'0" |
| Closet | 3'9" x 2'0" | ~ 8'0" |
| Garage | 21'4" x 24'0" | ~ 9'8" |
| Closet | 3'9" x 2'0" | ~ 8'0" |
| Utility room | 5'6" x 11'0" | ~ 8'0" |
| Porch | 12'0" x 4'2" | N/A |
| Linen | 2'0" x 1'2" | ~ 8'0" |
| Deck | 12'4" x 5'0" | N/A |
General specifications
| Total living area | 1898 sq.ft. |
| 2nd level | 703 sq.ft. |
| 1st level | 1195 sq.ft. |
| Width | 62'0" |
| Depth | 33'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Simple cottage house plan with 3 to 4 beds, a 2-car garage, family + living rooms!
.
Distinctive elements
Three-sided fireplace shared by living and dining rooms. Triple garden-doors in dining room. Island lunch counter in kitchen. Main floor full laundry facilities. Access to basement from garage. Attractive family room on second level and bonus room above garage.
Plan feature(s)
Fireplace, Basement access from garage, Living bonus space, Island, Entrance hall, Separate bath and shower, Double sinks, Gound floor laundry room, Cathedral ceiling, Sloped ceiling
Plan architectural style(s)
. Country, . American, . Cottage, chalet, cabin, . Mountain, . Traditional, . Transitional
Similar plans
Previously Viewed Plans
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
