House plan Merlot (2649)
Large master suite, modern cottage house plan, great open floor plan waterfront or mountain home design
View the size of the rooms and height of the ceilings

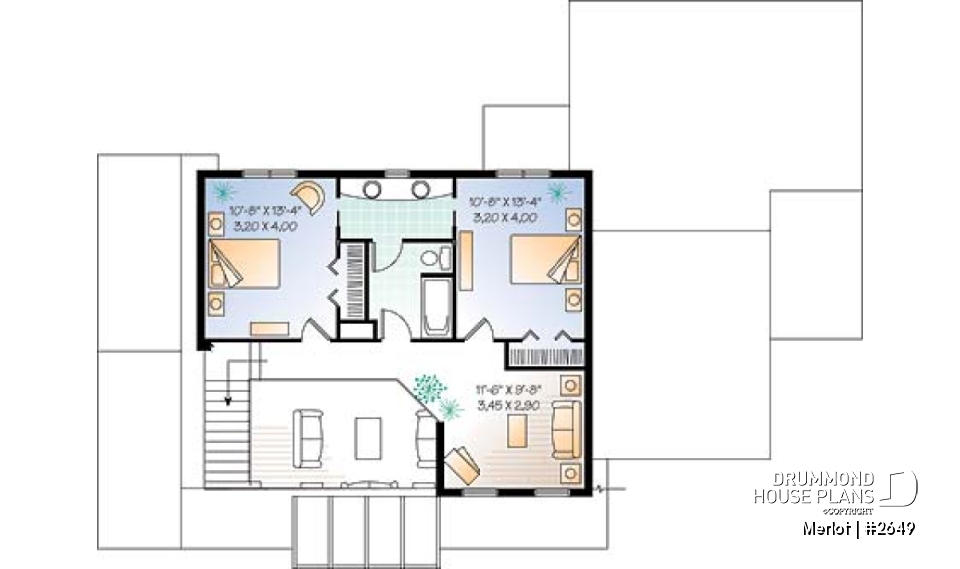

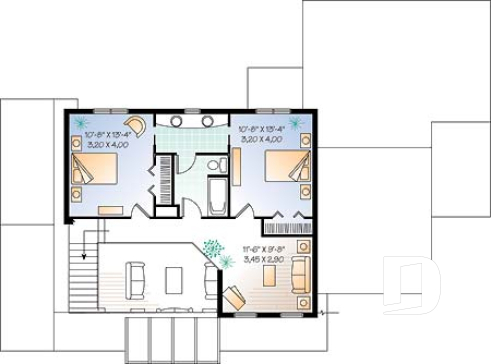

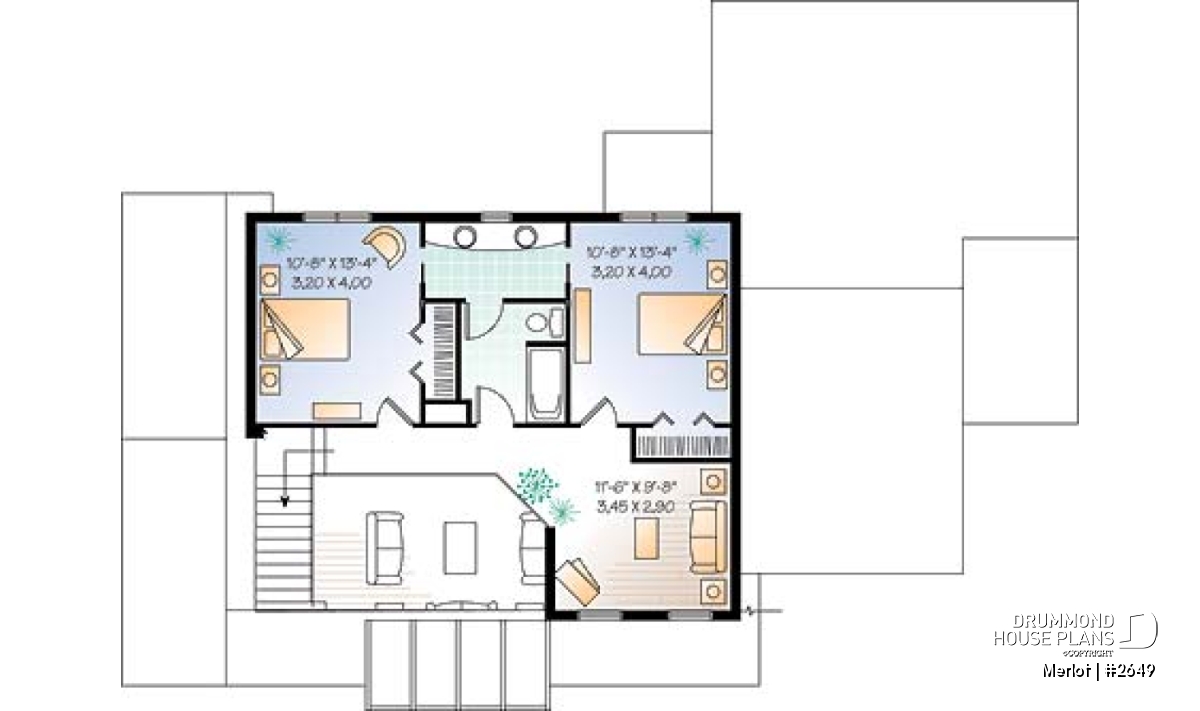

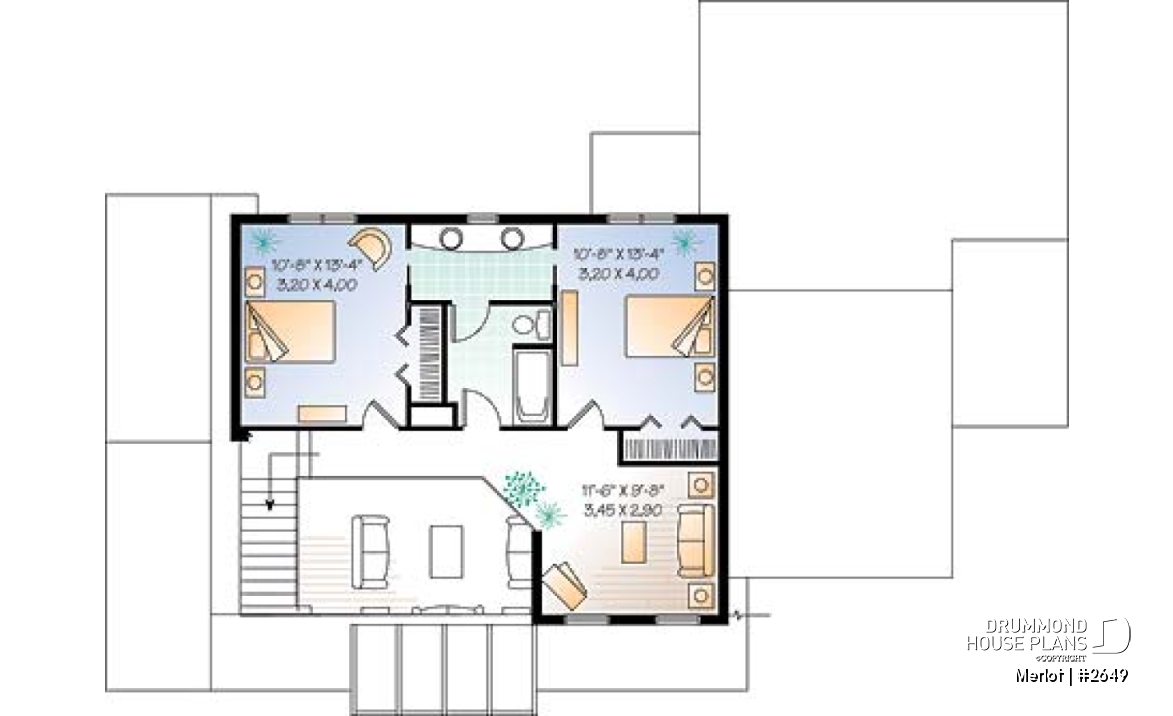

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'10" x 7'10" | ~ 8'0" |
| Bedroom | 10'8" x 13'2" | ~ 8'0" |
| Bedroom | 10'8" x 13'2" | ~ 8'0" |
| Reading/computer area | 11'6" x 9'8" | ~ 8'0" |

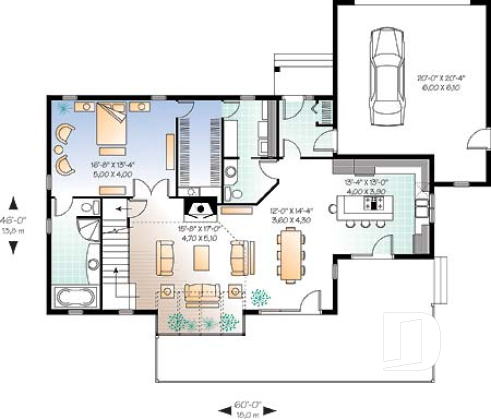

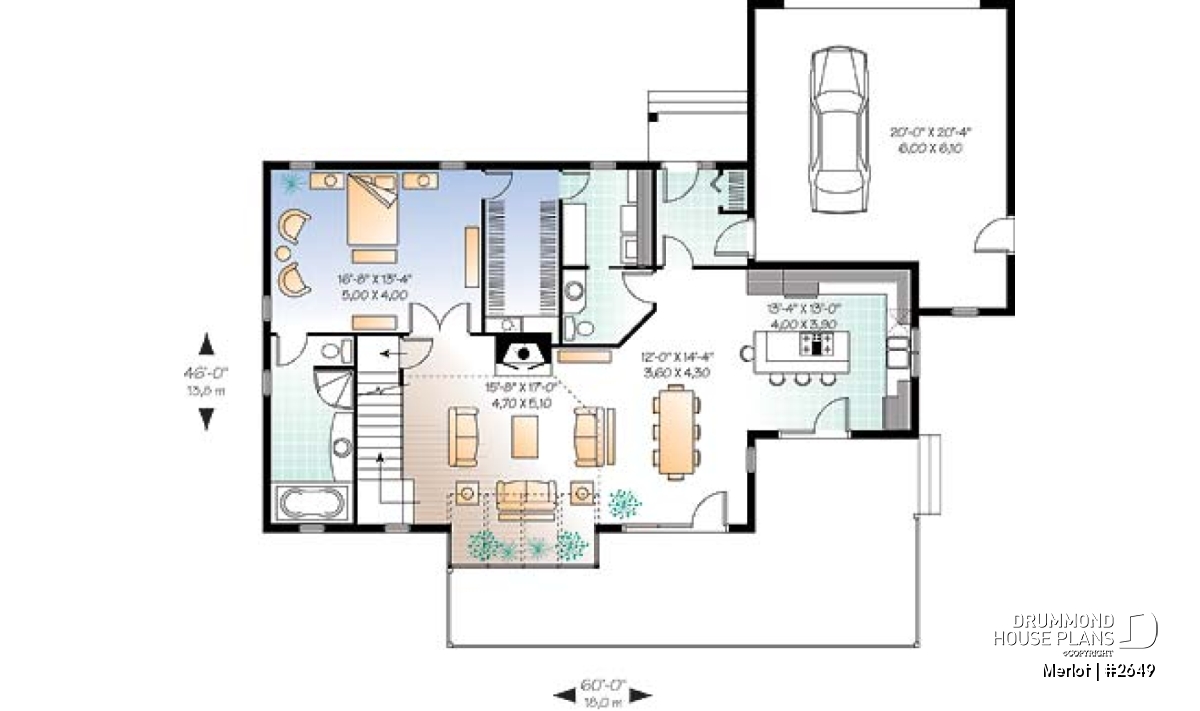

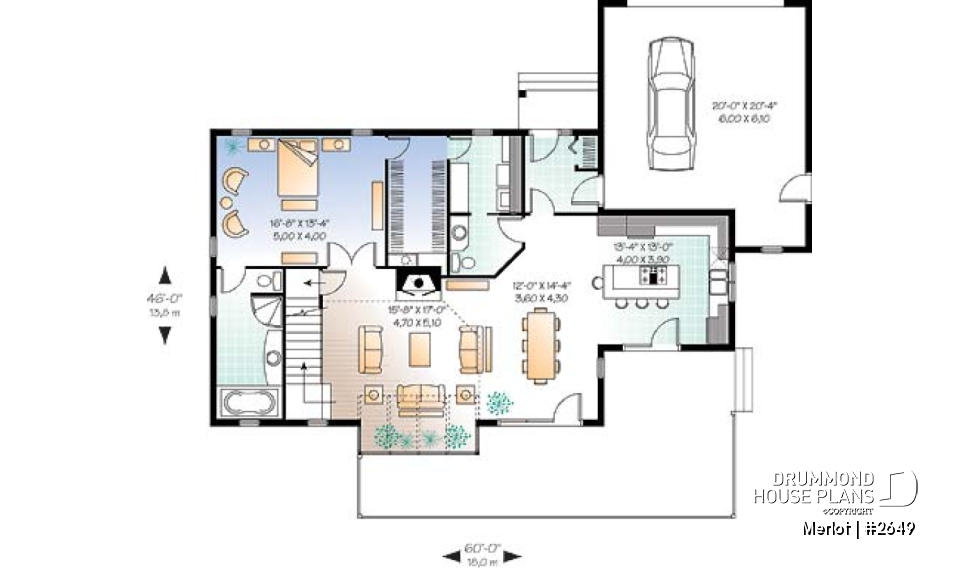

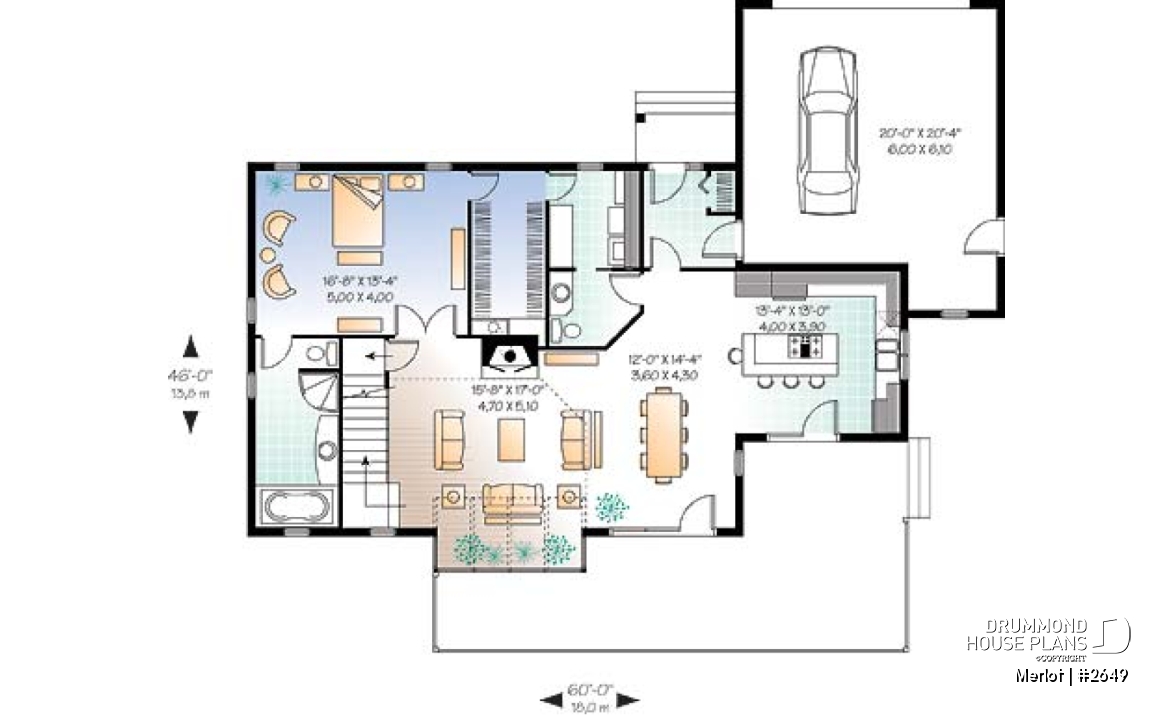

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Master suite | 16'6" x 15'4" | ~ 8'0" |
| Kitchen | 13'2" x 13'0" | ~ 8'0" |
| Dining room | 12'0" x 14'2" | ~ 8'0" |
| Living room | 15'8" x 17'0" | ~ 8'0" |
| Foyer | 7'8" x 7'10" | ~ 8'0" |
| Utility room | 7'2" x 7'10" | ~ 8'0" |
| Garage | 20'0" x 20'6" | ~ 9'8" |
| Porch | 8'0" x 4'0" | N/A |
| Terrace | 37'9" x 16'10" | N/A |
| Half bath or powder room | 7'2" x 6'0" | ~ 8'0" |
General specifications
| Total living area | 2100 sq.ft. |
| 2nd level | 695 sq.ft. |
| 1st level | 1405 sq.ft. |
| Width | 60'0" |
| Depth | 46'0" |
| Ridge height from top of foundation | 26'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | E |
Rooms specifications
Other useful information on this plan
Great modern cottage, laundry off the master, 3 to 4 bedrooms, large deck
.
Distinctive elements
Sunroom for panoramic view, large closet in master bedroom, abundant fenestration and sunroom with 12' height, access to foyer from garage.
Plan feature(s)
Fireplace, Mezzanine, Cathedral ceiling, Jack & Jill bath, Master suite on main, Walk-in master bed., Separate bath and shower, Island, Gound floor laundry room, Entrance hall, Oversized garage, Panoramic view, Double sinks
Plan architectural style(s)
. Mountain, . Vacation and waterfront, . Ski chalets, . American, . Mid-century, . Modern / Design, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
November 26
Linda
I really like this plan but I do not like the glass roof in what is called the sunroom. Can this be changed to a regular roof? Thank you, Linda
November 26
Customer service
Hello Linda,
Absolutely! This can be done no problem as well as any other modifications you wish to have done.
Please visit our website here to get a free quote on changes.
Happy Monday!
Jessica
Thank you for your comment! It must be approved before being put online, please allow a period of 24 hours.
Error with google reCaptcha! Try again
You may also like
Similar plans
Awards and
Recognition
Here is a brief description of our different plan packages. Please select the plan package that suits your needs. You can change the package at the next step, if necessary.
PDF VERSION OF PLAN:
Complete digital version of plan (pdf format) sent by email (original plan format 18" x 24'' or 24" x 36'')
5 copies of plan + PDF:
Includes: 5 copies of plan, plan in PDF format (reduced size version), materials list.
Foundation type
Additional foundation types are available, a fee may apply. Please indicate your choice on the online order form, or to our customer service representative, when placing your house plan order.
If your desired foundation type is not available, please contact our customer service to receive your free plan modification quote.
Explanation of bonus space types
UNFINISHED BONUS ROOM
The bonus rooms are often planned above the garage and are accessible from the house. They are designed to be converted as an office, a laundry area, a bathroom, a library corner or even an additional bedroom for which homeowners must make sure to have a window that complies with current codes & standards.
STORAGE AREA
Often located above the garage, our storage areas are used only as storage and are usually accessible from the garage via a retractable staircase.
Do you like this plan but want it to be modified to suit your needs?
To add a garage, another bedroom, finish the basement or any other modification, click here and let us know about your desired changes and to get your free quote for the modification of your plan.
