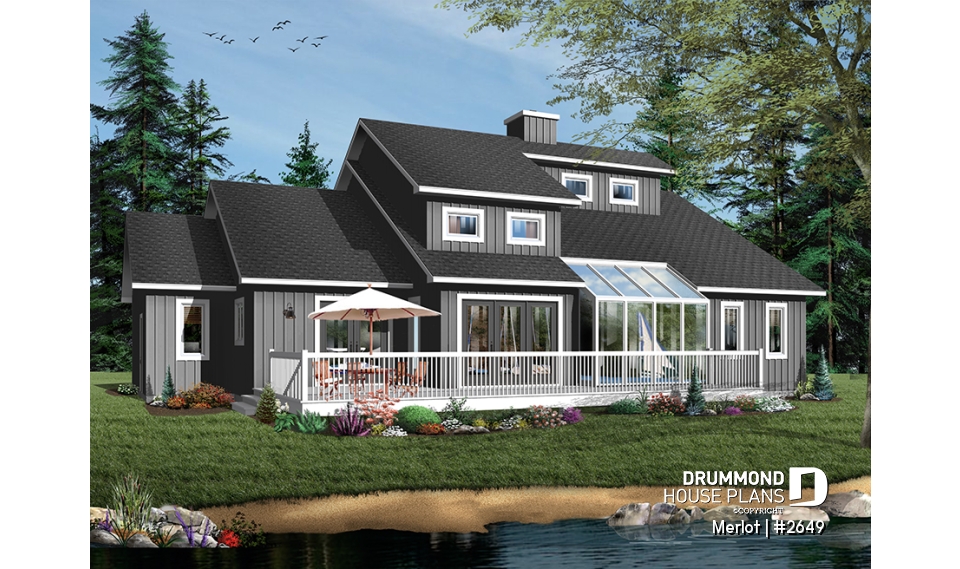

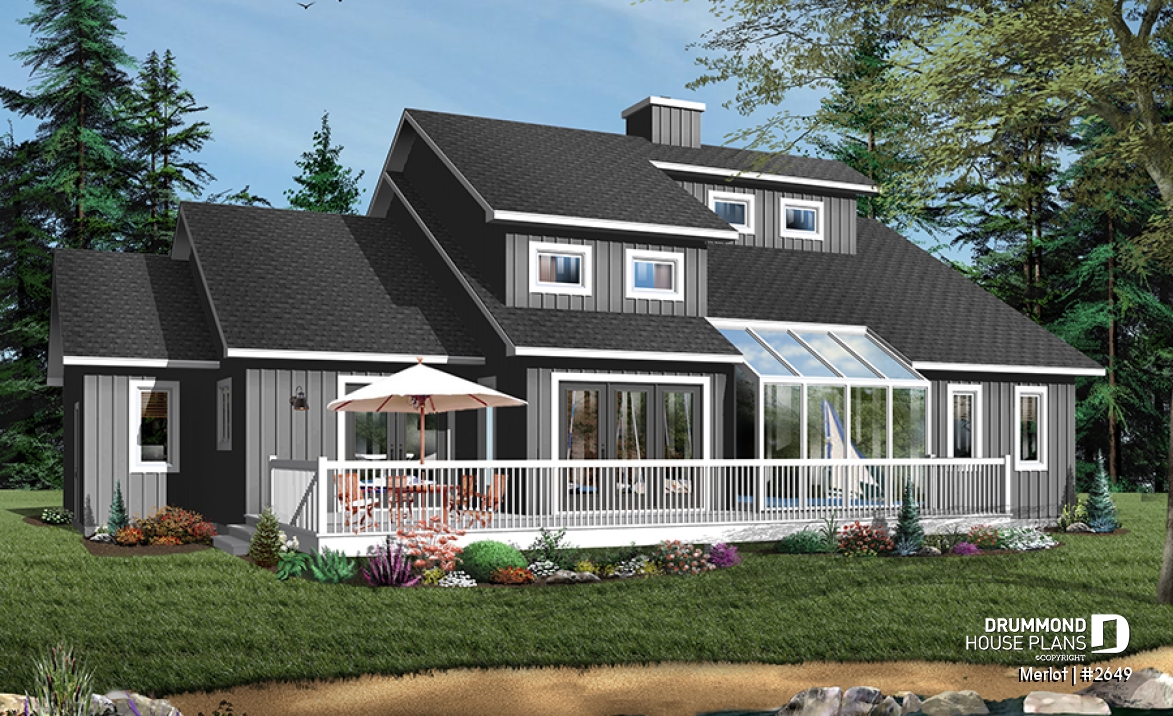

Color version 1 - Rear

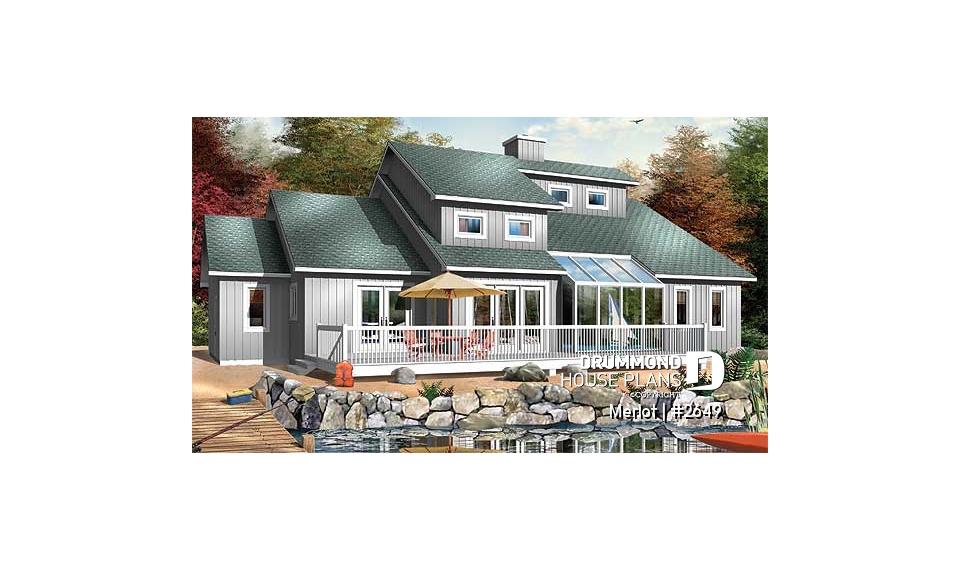

Rear view - ORIGINAL MODEL

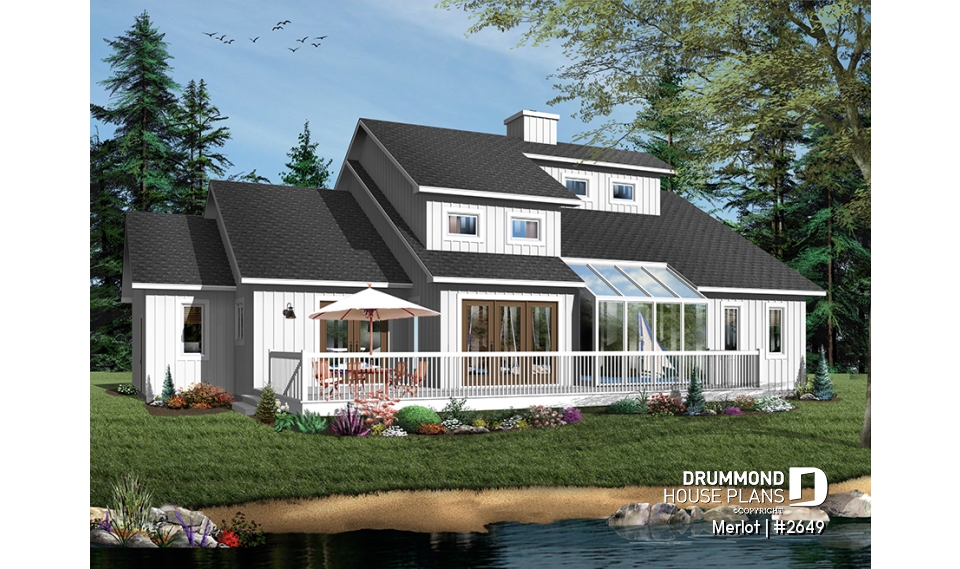

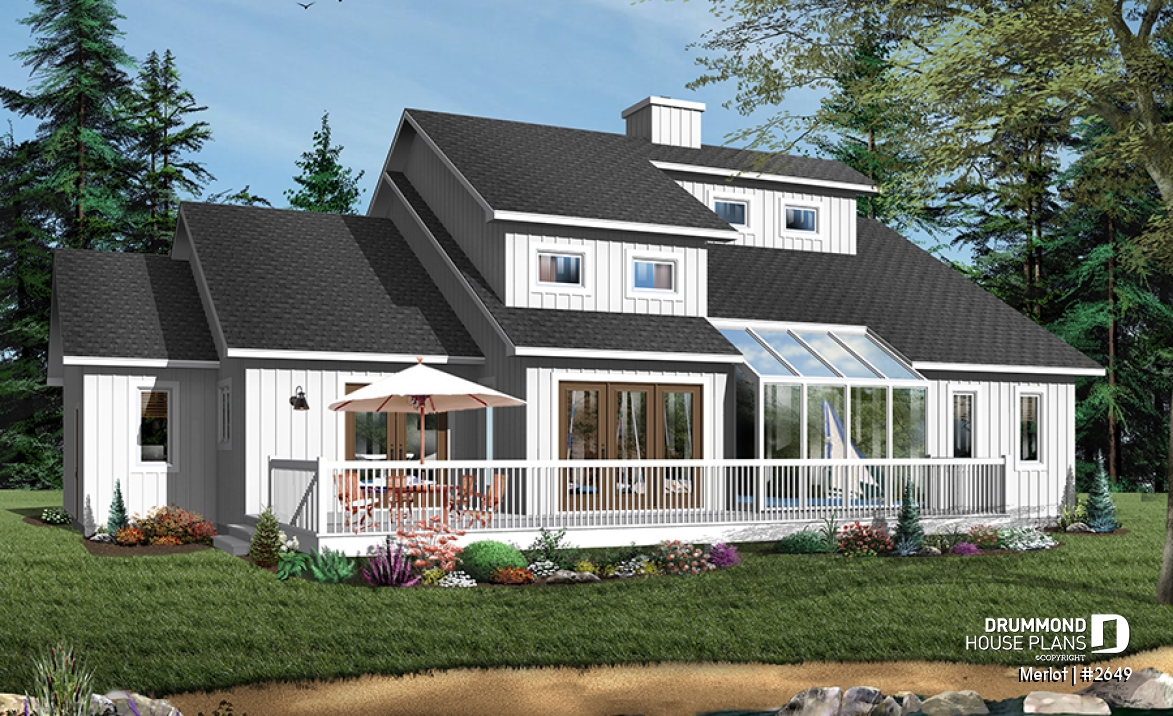

Rear view - BASE MODEL

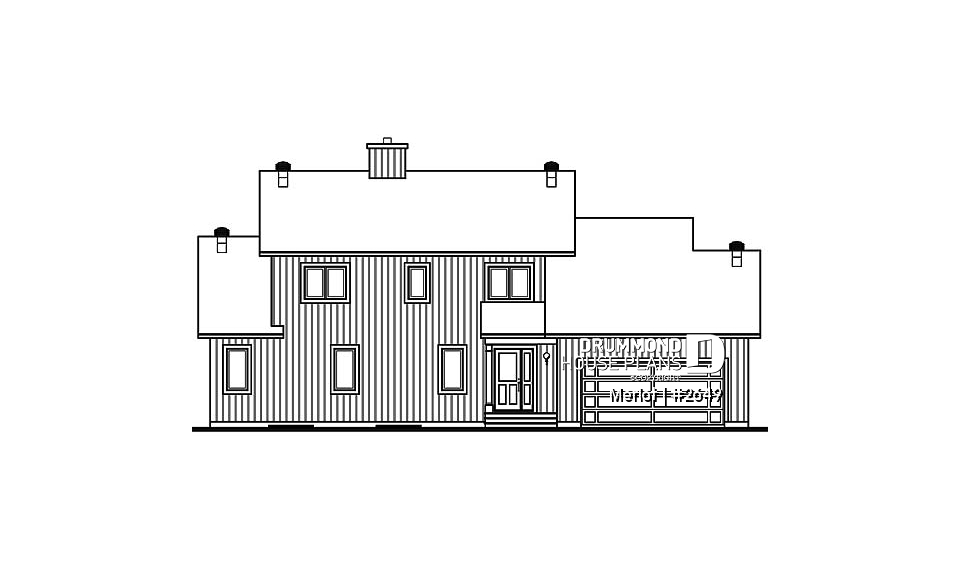

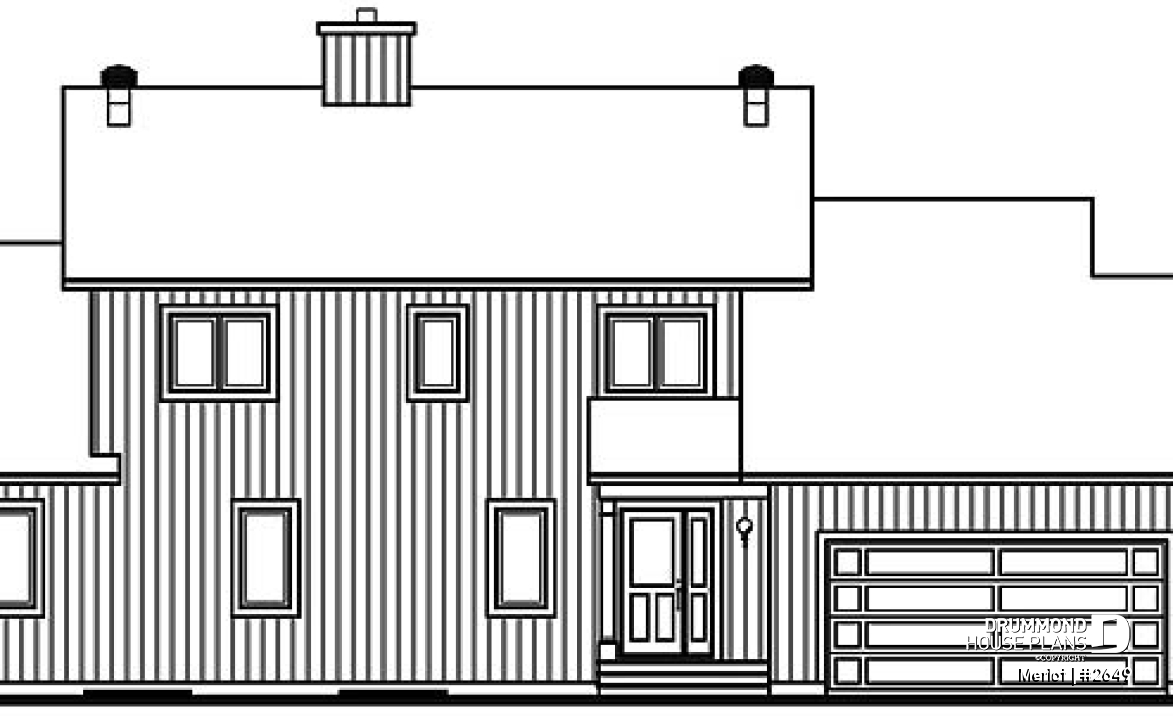

front elevation

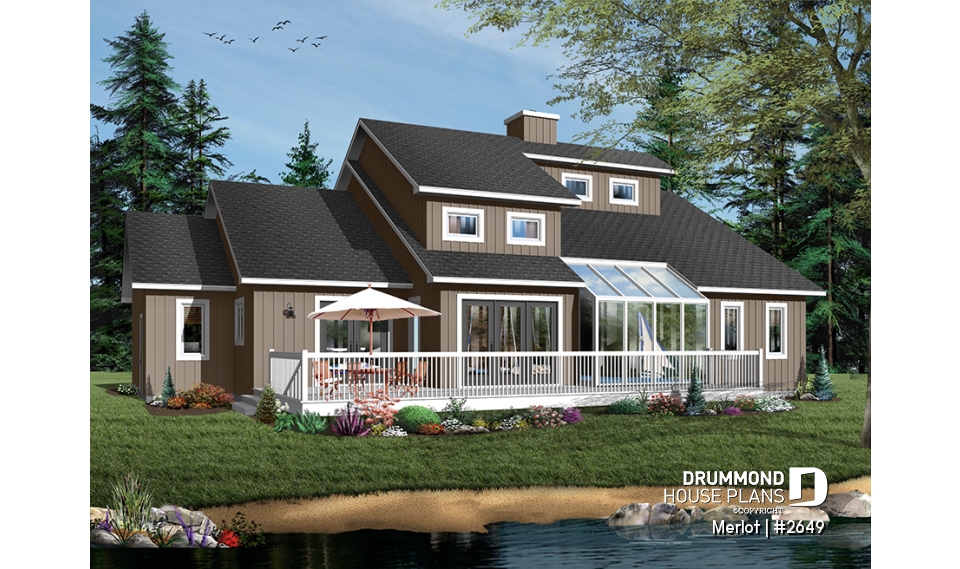

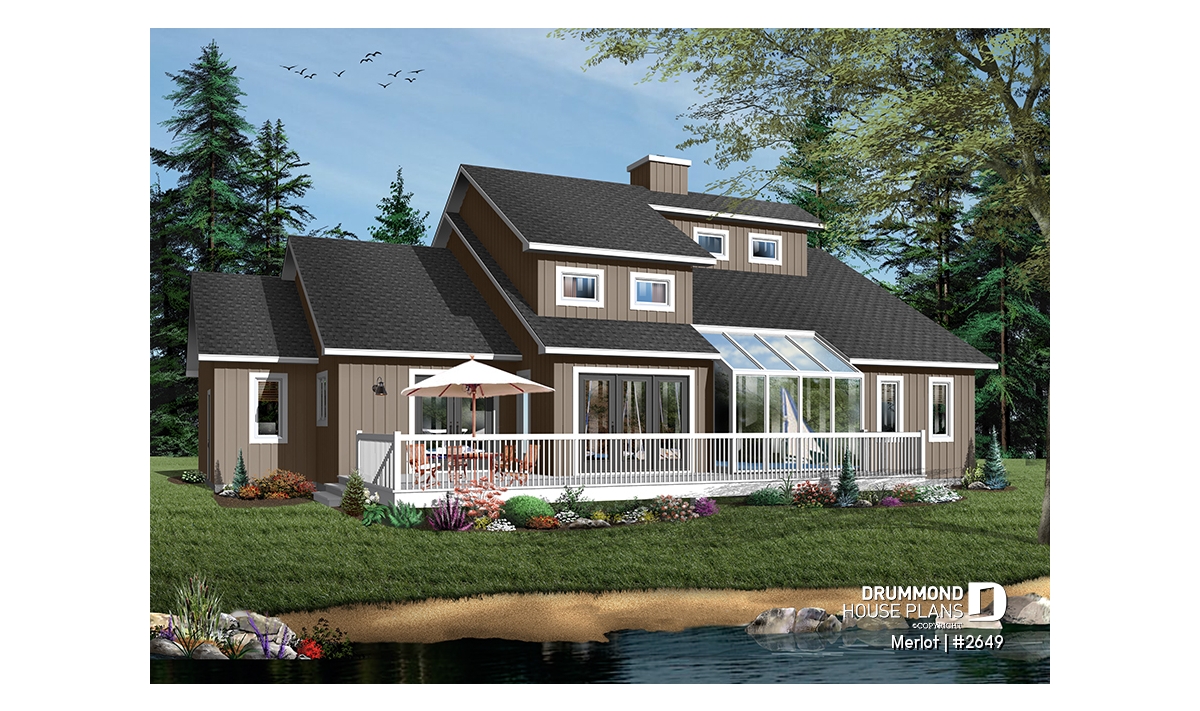

Color version 2 - Rear

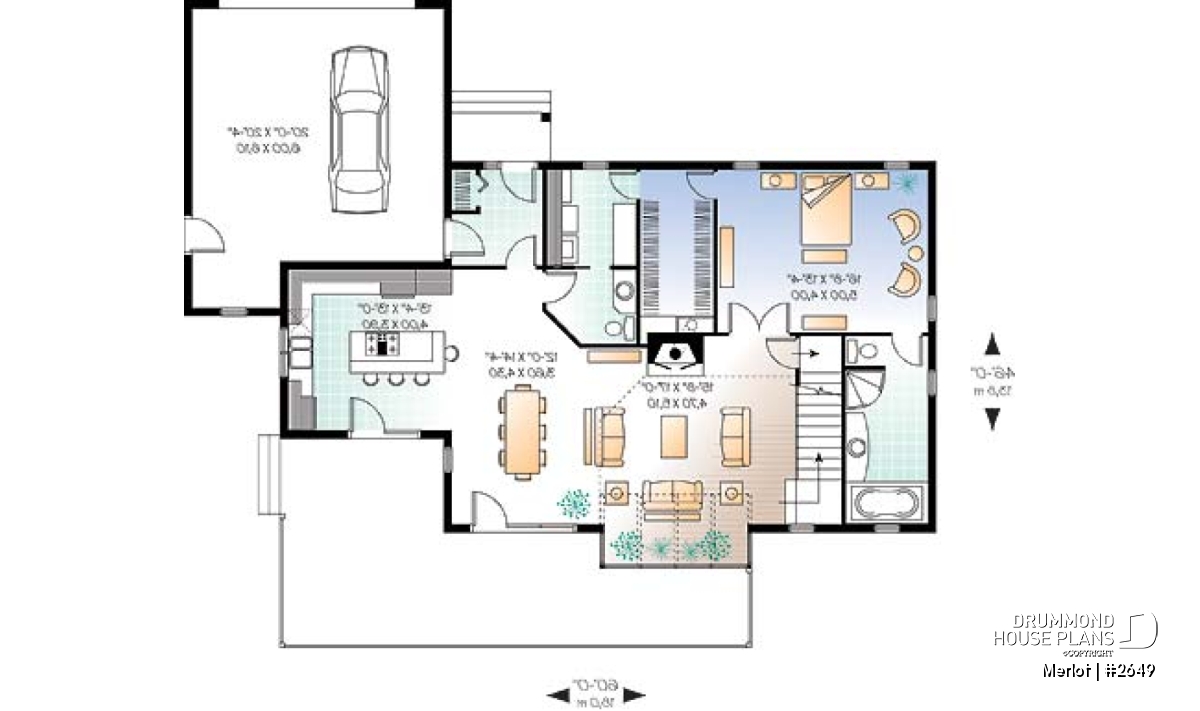

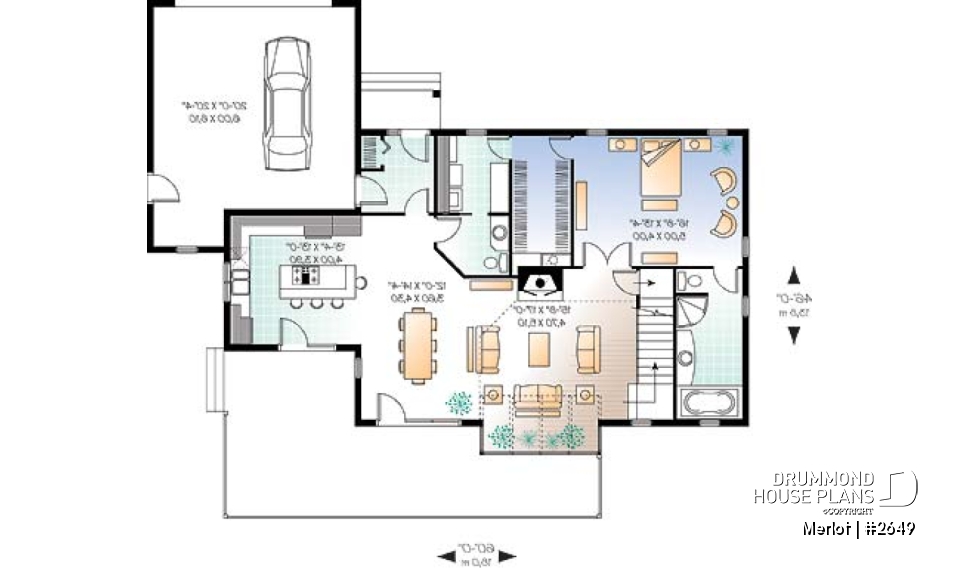

1st level

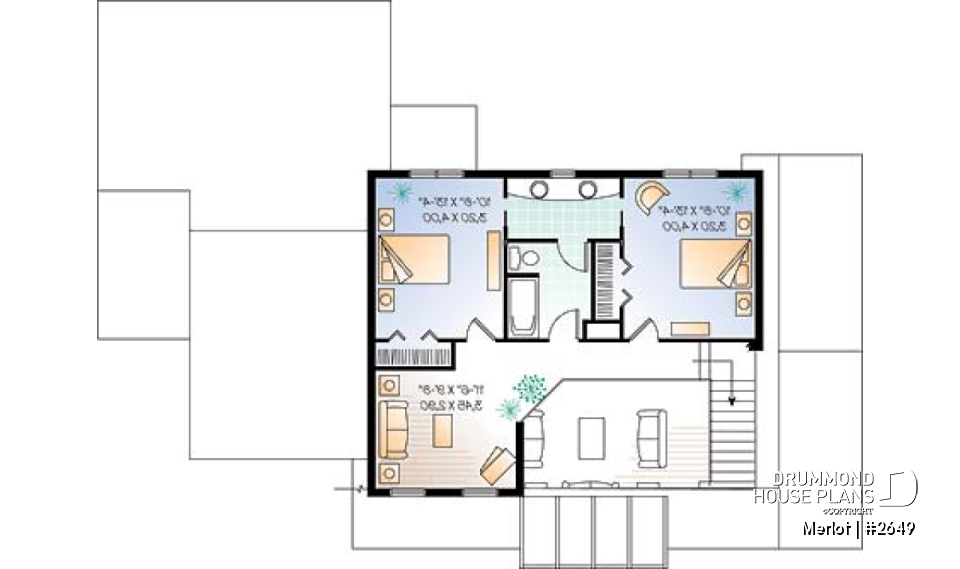

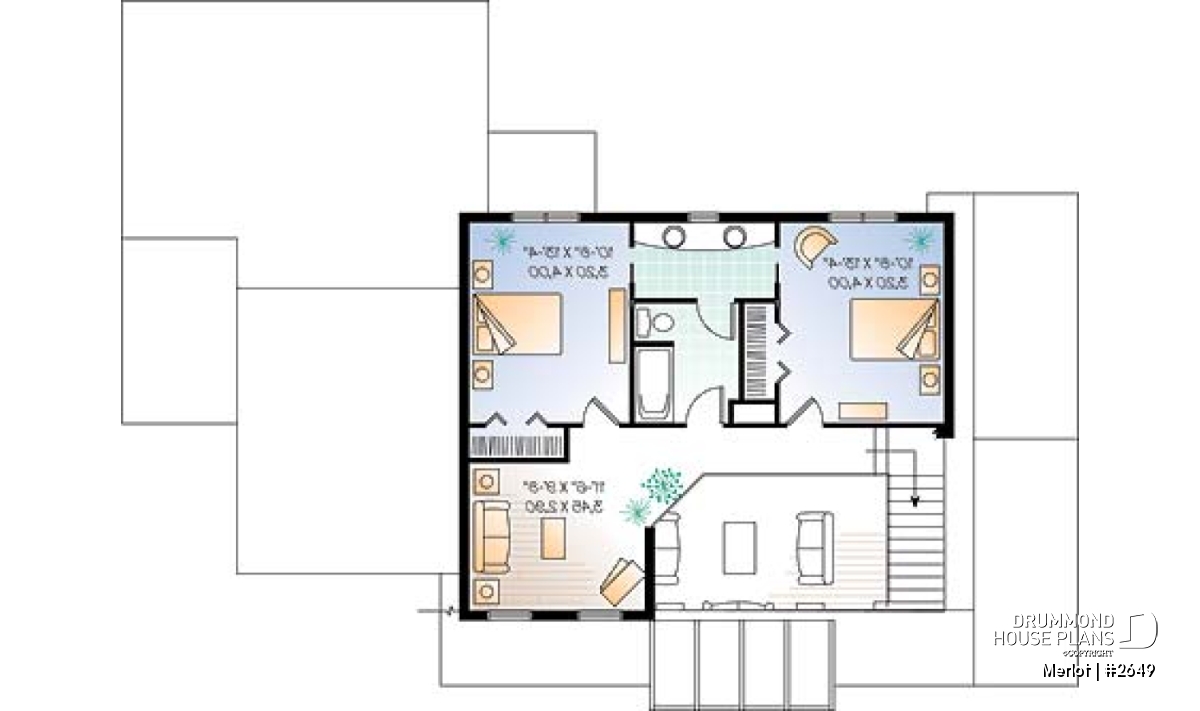

2nd level
Color version 1 - Rear
Rear view - ORIGINAL MODEL
Rear view - BASE MODEL
front elevation
Color version 2 - Rear

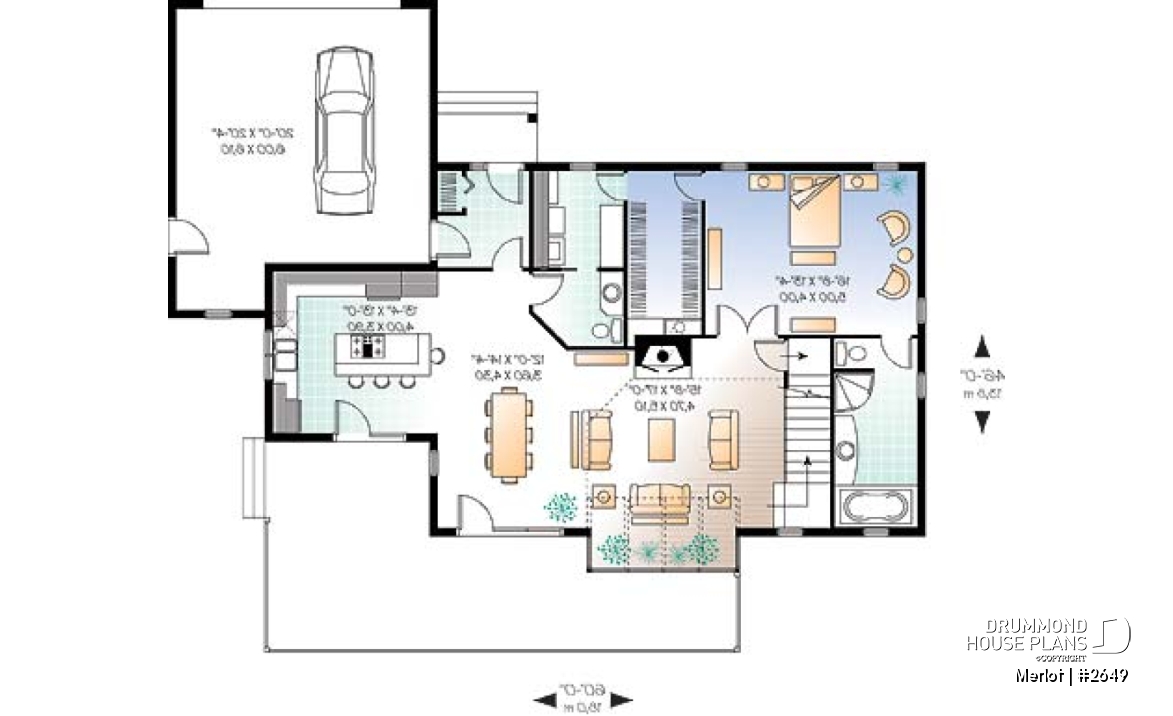

1st level

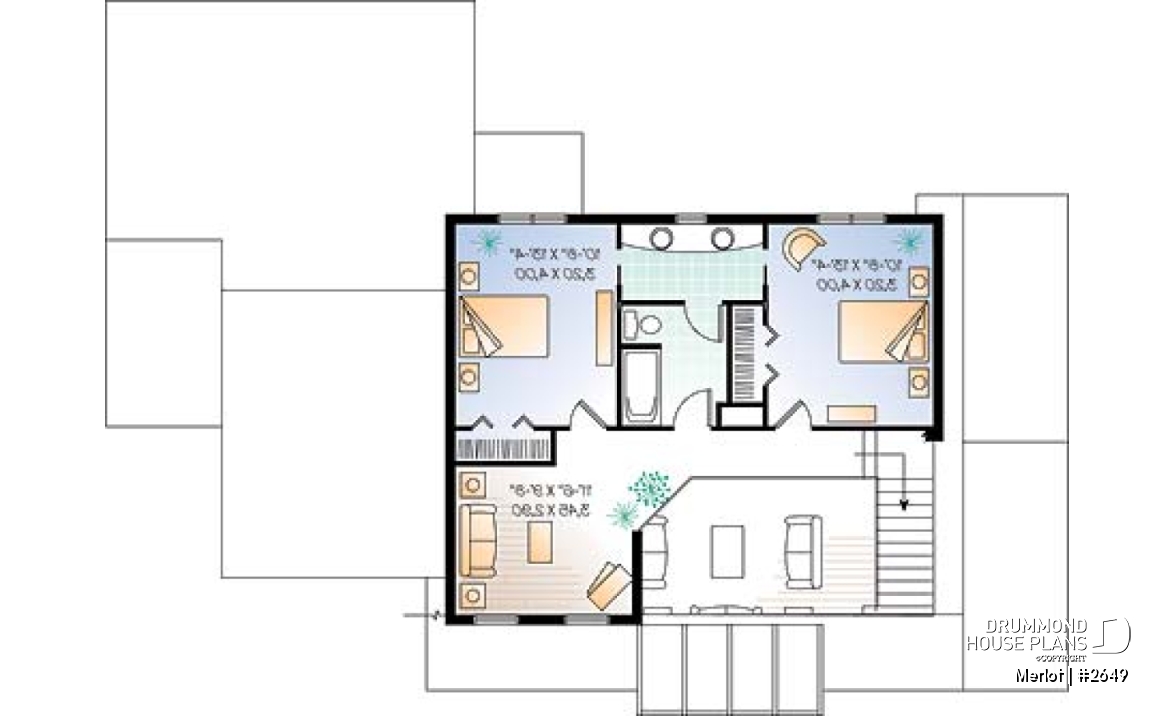

2nd level
House plan Merlot (# 2649) Large master suite, modern cottage house plan, great open floor plan waterfront or mountain home design
3, 4
2
2100 sq.ft.
Two-car garage
Starting from
1740$
Additional details
General specifications
Total living area
2100 sq.ft.
1st level
1405 sq.ft.
2nd level
695 sq.ft.
Width
60'0"
Depth
46'0"
Ridge height from top of foundation
26'10"
Exterior wall
2 X 6
Unfinished Basement
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
E
Rooms specifications
Bedroom(s)
3, 4
Full baths
2
Half baths
1
Garage type
Two-car garage (479 sq.ft.)
Covered porch area
32 sq.ft.
2nd level
Rooms
Sizes
Ceiling
Full bathroom
6'10" x 7'10"
~ 8'0"
Bedroom
10'8" x 13'2"
~ 8'0"
Bedroom
10'8" x 13'2"
~ 8'0"
Reading/computer area
11'6" x 9'8"
~ 8'0"
1st level
Rooms
Sizes
Ceiling
Master suite
16'6" x 15'4"
~ 8'0"
Kitchen
13'2" x 13'0"
~ 8'0"
Dining room
12'0" x 14'2"
~ 8'0"
Living room
15'8" x 17'0"
~ 8'0"
Foyer
7'8" x 7'10"
~ 8'0"
Utility room
7'2" x 7'10"
~ 8'0"
Garage
20'0" x 20'6"
~ 9'8"
Porch
8'0" x 4'0"
N/D
Terrace
37'9" x 16'10"
N/D
Half bath or powder room
7'2" x 6'0"
~ 8'0"
Great modern cottage, laundry off the master, 3 to 4 bedrooms, large deck
.
Distinctive elements
Sunroom for panoramic view, large closet in master bedroom, abundant fenestration and sunroom with 12' height, access to foyer from garage.
Plan feature(s)
Separate bath and shower, Fireplace, Oversized garage, Island, Double sinks, Mezzanine, Cathedral ceiling, Jack & Jill bath, Gound floor laundry room, Master suite on main, Entrance hall, Panoramic view, Walk-in master bed.
Plan architectural style(s)
Mountain, Vacation and waterfront, Ski chalets, American, Mid-century, Modern / Design, Cottage, chalet, cabin
The plan Merlot is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
