House plan St-Arnaud - Eco (90111)

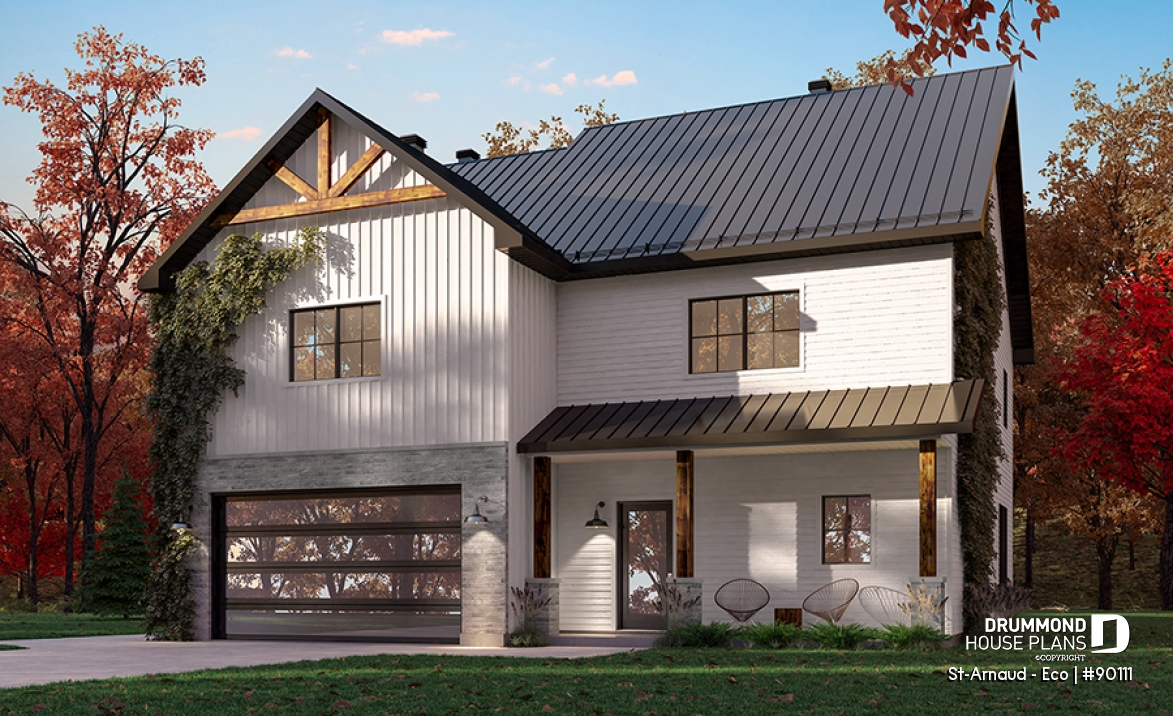

Eco-friendly Farmhouse style plan, 3 bedrooms, office, garage and nice sheltered terrace
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 16'4" x 15'6" | ~ 9'0" |
| Pantry | 10'4" x 5'0" | ~ 9'0" |
| Dining room | 9'8" x 13'2" | ~ 9'0" |
| Deck | 16'6" x 10'0" | ~ 9'0" |
| Bathroom | 7'0" x 5'10" | ~ 9'0" |
| Mud room | 8'8" x 10'2" | ~ 9'0" |
| Living room | 14'0" x 12'2" | ~ 18'8" |
| Foyer | 9'4" x 5'0" | ~ 9'0" |
| Garage | 19'2" x 23'0" | ~ 9'6" |
| Covered porch | 21'0" x 4'0" | ~ 9'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Mezzanine | 8'8" x 11'10" | ~ 8'0" |
| Bedroom | 16'10" x 9'10" | ~ 8'0" |
| Closet | 2'0" x 9'10" | ~ 8'0" |
| Bedroom | 16'4" x 9'10" | ~ 8'0" |
| Closet | 3'4" x 5'1" | ~ 8'0" |
| Master suite | 16'2" x 12'8" | ~ 8'0" |
| Walk-in closet | 7'0" x 11'0" | ~ 8'0" |
| Full bathroom | 8'8" x 11'0" | ~ 8'0" |
| Bathroom | 5'10" x 11'8" | ~ 8'0" |
| Laundry room | 6'6" x 8'0" | ~ 8'0" |
General specifications
| Total living area | 2300 sq.ft. |
| 1st level | 910 sq.ft. |
| 2nd level | 1390 sq.ft. |
| Width | 42'0" |
| Depth | 42'4" |
| Ridge height from top of foundation | 34'11" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Unfinished Basement, Crawl space, Monolithic Slab |
| Builder price code | F |
Rooms specifications

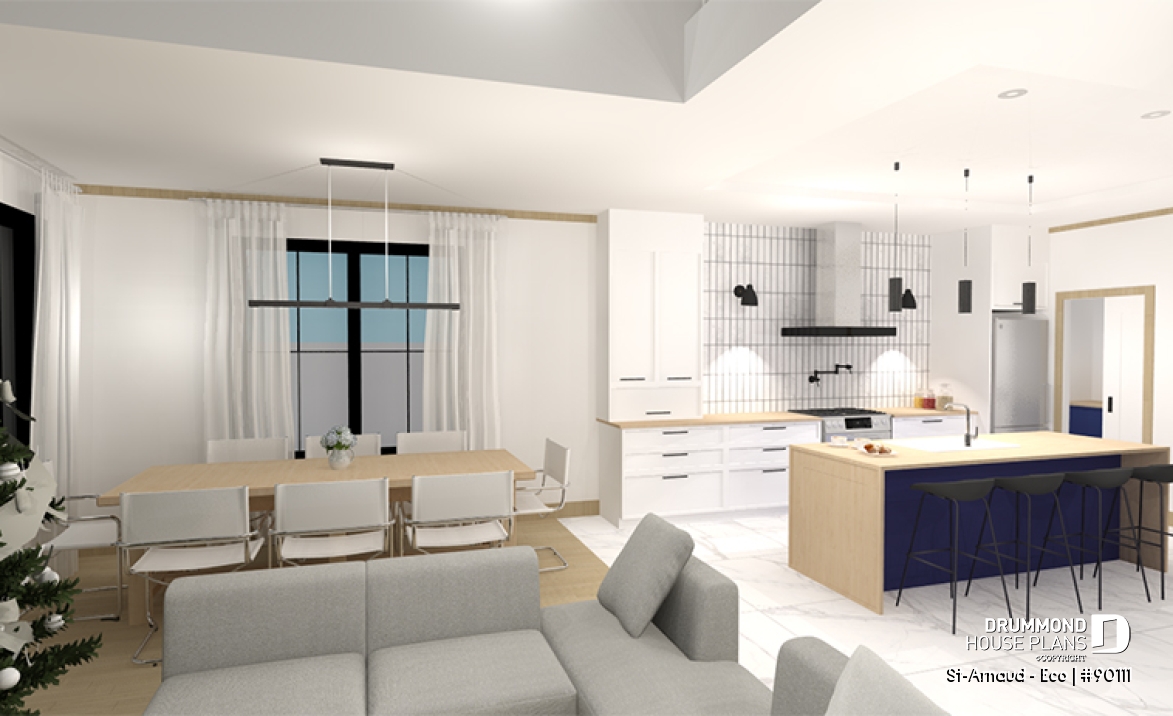

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Living room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Activity sector
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Our revisited and Eco-friendly St Arnaud 3
Inspired by the St-Arnaud 3 (plan # 2673-V2) house plan, the St-Arnaud-Eco house is an eco-friendly and revisited version of our already popular St Arnaud 3. The walls have been thickened to guarantee better insulation and the windows have been revised to make it a passive solar house.
Designed for a southern optimal backyard orientation, we have kept the defining features of the original while offering new, more optimal and eco-friendly ideas. First of all, we find a closed entrance that also communicates with the kitchen pantry. Then there is a large open space with a double height at the living room level as well as a fireplace that adds definite charm. From the living room we can access the covered terrace located to the southwest, perfect for enjoying the beautiful outdoors.
Finally, there is a large mudroom for everyday use that also communicates directly with the garage.
Upstairs, we find an open mezzanine with a space that can be used as an office or bedroom directly to the southeast. Meanwhile, the master bedroom is also located to the south and has a large walk-in closet and a private bathroom. There are also two other large bedrooms, a closed laundry room and a full bathroom for the rest of the family members.
This farmhouse-style house is perfect for a large family that wants to combine aesthetics and eco-friendly features.
ECO-FRIENDLY HOUSE PLAN
This house plan is part of our “Eco-friendly house plan collection” and here is what distinguishes all the plans included in this selection:
Sun:
The orientation of the house according to the sun’s daily path, combined with the thermal capture of the sun's rays using optimal fenestration, minimizing heating costs and maximizing the presence of natural light.
Simplicity:
A house with modest volumes ensuring simplified construction, while favoring the maximization of interior spaces, to reduce the number of square feet and the construction cost.
Sound Mind & Body:
A home designed to promote the well-being and health of its occupants by being well ventilated, using durable and non-toxic materials (steel, wood, lightweight cladding, fiber cement, among others) and maximizing natural light.
Distinctive elements
Farmhouse style home offering 3 to 4 bedrooms.
Ecological and modified version of our very popular St-Arnaud 3 (#2673-V2).
9' ceiling on the entire ground floor except in the living room where it is 18'8''.
Closed entrance with direct access to the pantry.
Kitchen with pantry, island and wine cellar.
Open floor plan concept.
Majestic fireplace on 2 floors.
Shower room set back from the common areas.
Cloakroom accessible from the garage.
Upstairs master suite with large walk-in closet and private bathroom.
Upstairs laundry room.
2 very large secondary bedrooms upstairs.
Mezzanine office area (or bedrooms #4) overlooking the living room.
Floating slab foundation, other types of foundation available.
---
To ensure superior insulation for each of our ecological homes, the walls are made of a double frame of 2x4 spaced 24 inches apart. The amount of wood needed is therefore similar to that of a traditional house that uses 2x6 spaced every 16 inches. In addition, these two walls are also staggered in order to cut thermal bridges as much as possible, that is to say the continuous elements that create heat losses from the inside to the outside of the house. The insulation material used in this wall cut is squirt cellulose. It is a 100% recycled material that perfectly hugs each of the wall cavities for optimal insulation.
* For more information or to buy a traditional construction version, please contact our customer service.
Plan feature(s)
Entrance hall, Pantry, Wine cellar, Island, Ceiling over 8', Open floor layout, Fireplace, Mud room, Deck, Second floor laundry room, Office / Study / Den, Mezzanine, Master suite upstairs, Separate bath and shower
Plan architectural style(s)
Modern farmhouse, . Farmhouse, . Traditional, . Transitional, . American, . Country, . Modern rustic
