House plan Fletcher (4151)
Small and affordable bungalow house plan, 2 bedrooms, cathedral ceiling, closed foyer
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'6" x 8'8" | ~ 8'0" |
| Kitchen | 9'0" x 12'0" | ~ 8'0" |
| Dining room | 10'0" x 12'0" | ~ 8'0" |
| Living room | 12'0" x 17'4" | ~ 13'10" |
| Bedroom | 13'4" x 12'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'0" | ~ 8'0" |
| Foyer | 6'8" x 6'0" | ~ 8'0" |
| Porch | 19'4" x 4'0" | N/A |
| Porch | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1113 sq.ft. |
| 1st level | 1113 sq.ft. |
| Width | 34'0" |
| Depth | 35'0" |
| Ridge height from top of foundation | 22'5" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | B |
Rooms specifications

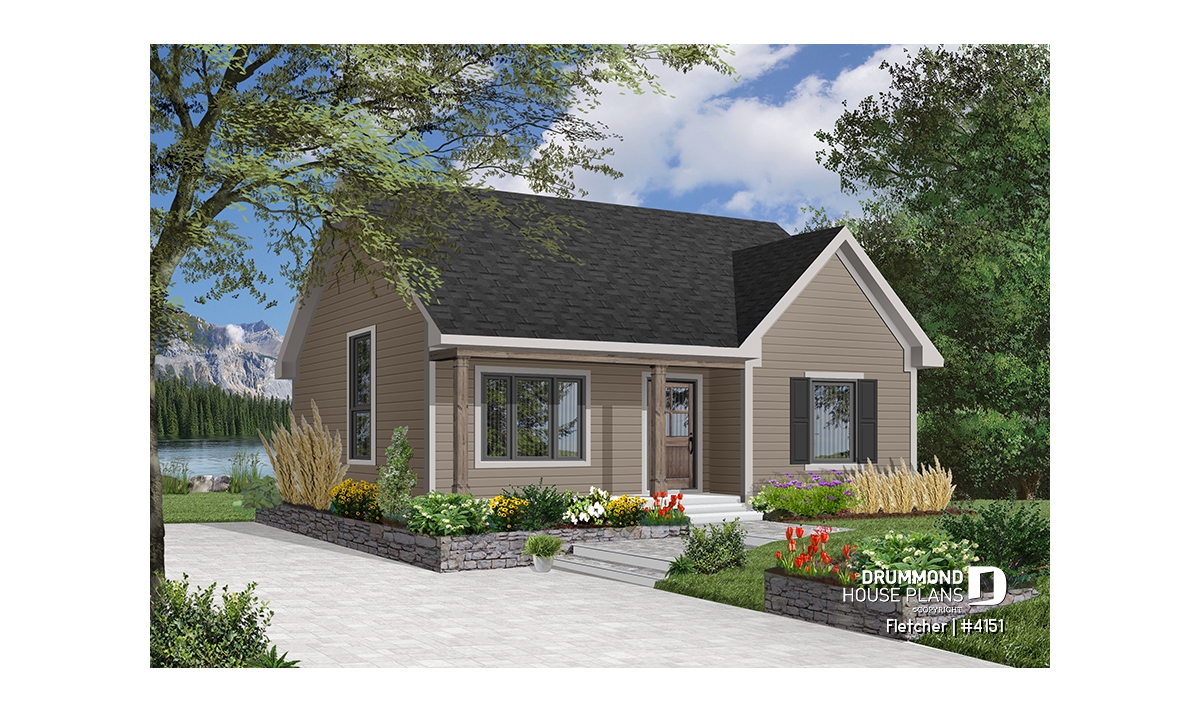

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

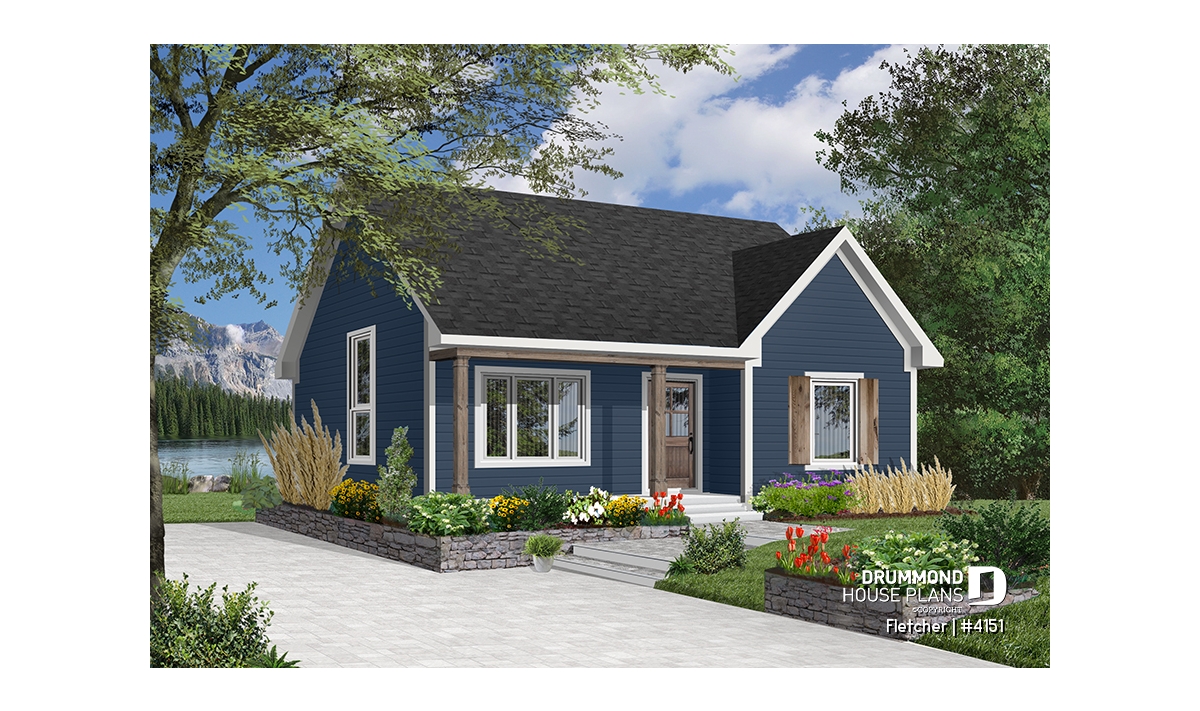

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

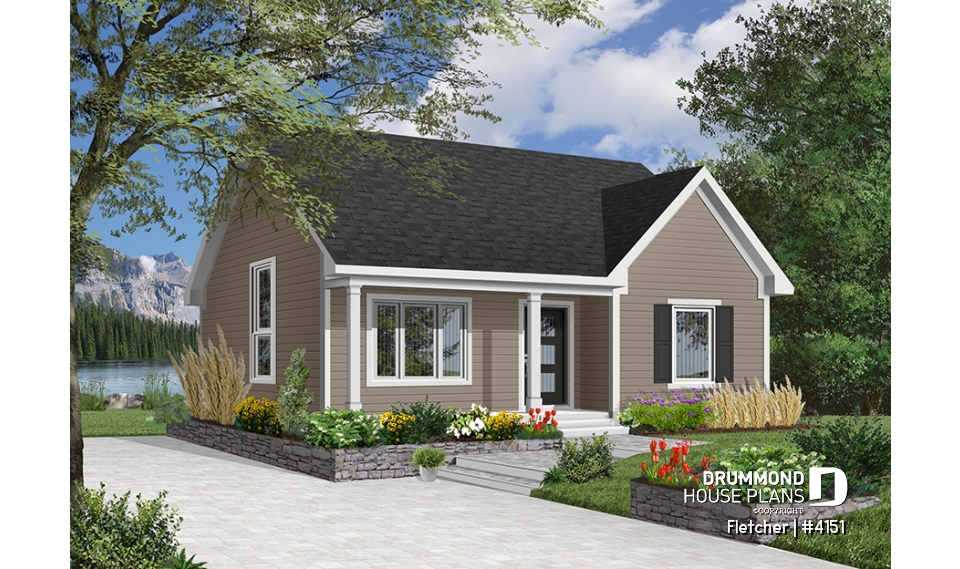

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Friendly front porch and affordable construction costs
A front porch with picket railing creates a pleasing welcome to this compact cottage. An enclosed entry provides a nice weather shield and, upon entry, the eye travels upward to the cathedral ceiling which adds a feeling of an enlarged space in the living room. The living room is separated from the kitchen and dining area by pocket doors allowing your choice of open space or separation.
In the sleeping wing, two bedrooms lie on either side of a bathroom with soaker tub and independent shower and share easy access to the hall laundry.
A full basement offers the opportunity for expanded living or storage space.
Distinctive elements
Covered front porch, cathedral ceiling in foyer, family and dining rooms and kitchen.
Ceiling up to 13'-8" in the middle, and at the front in the family room, ceiling is at 9'-6".
Plan feature(s)
Cathedral ceiling, Open floor layout, Separate bath and shower, Planning desk, Entrance hall, Pantry
Plan architectural style(s)
. Country, . Traditional, . American, . Craftsman / Northwest, . Rustic, . Farmhouse, . Transitional, . Modern rustic
