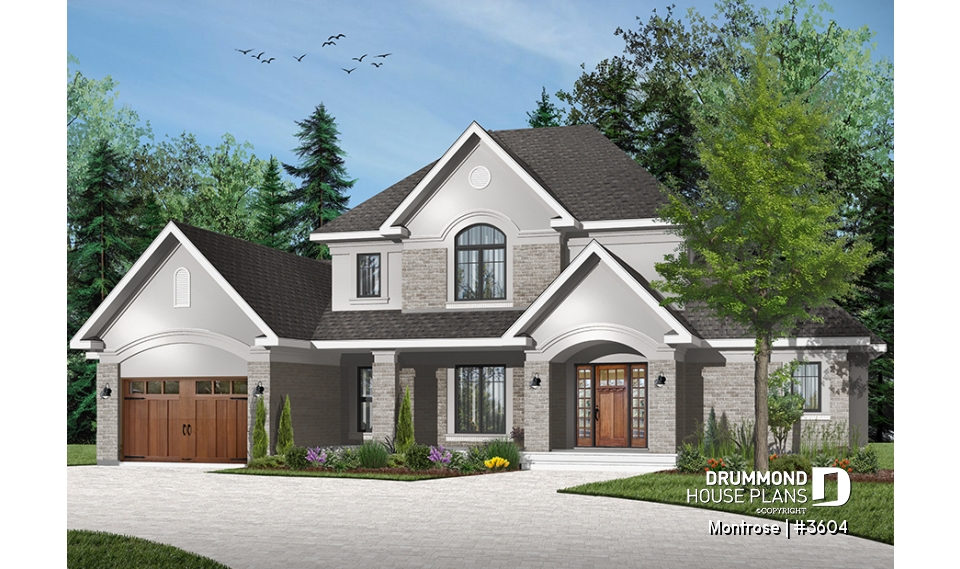

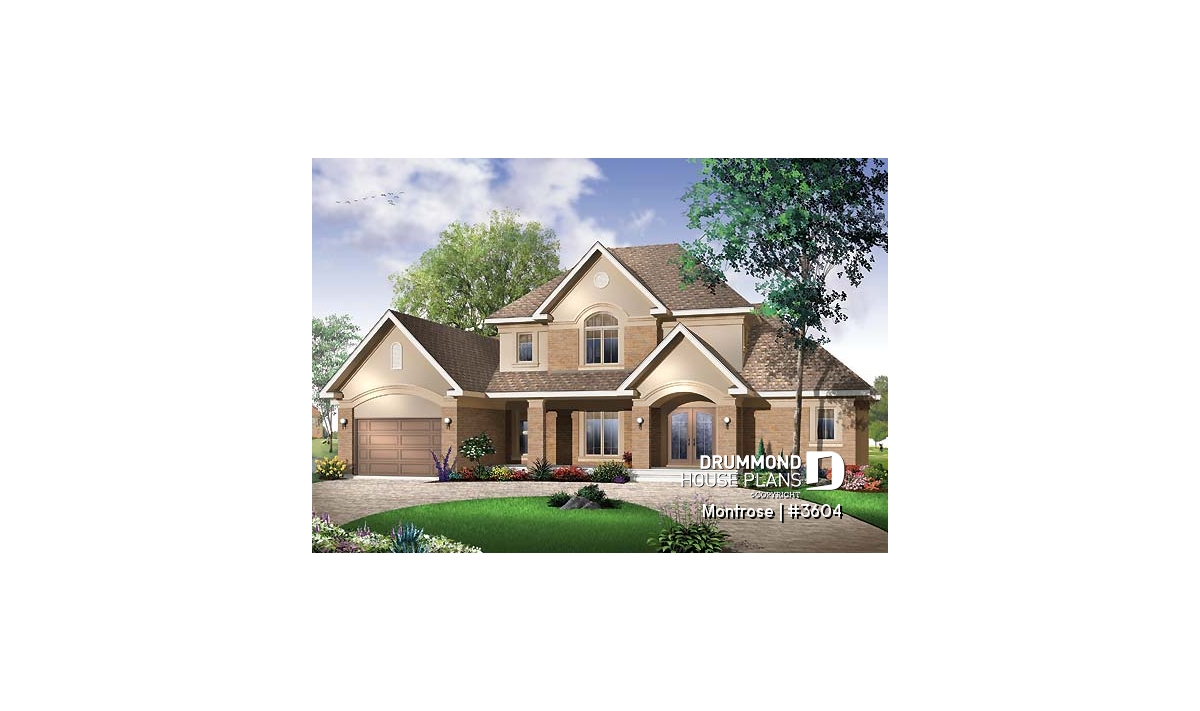

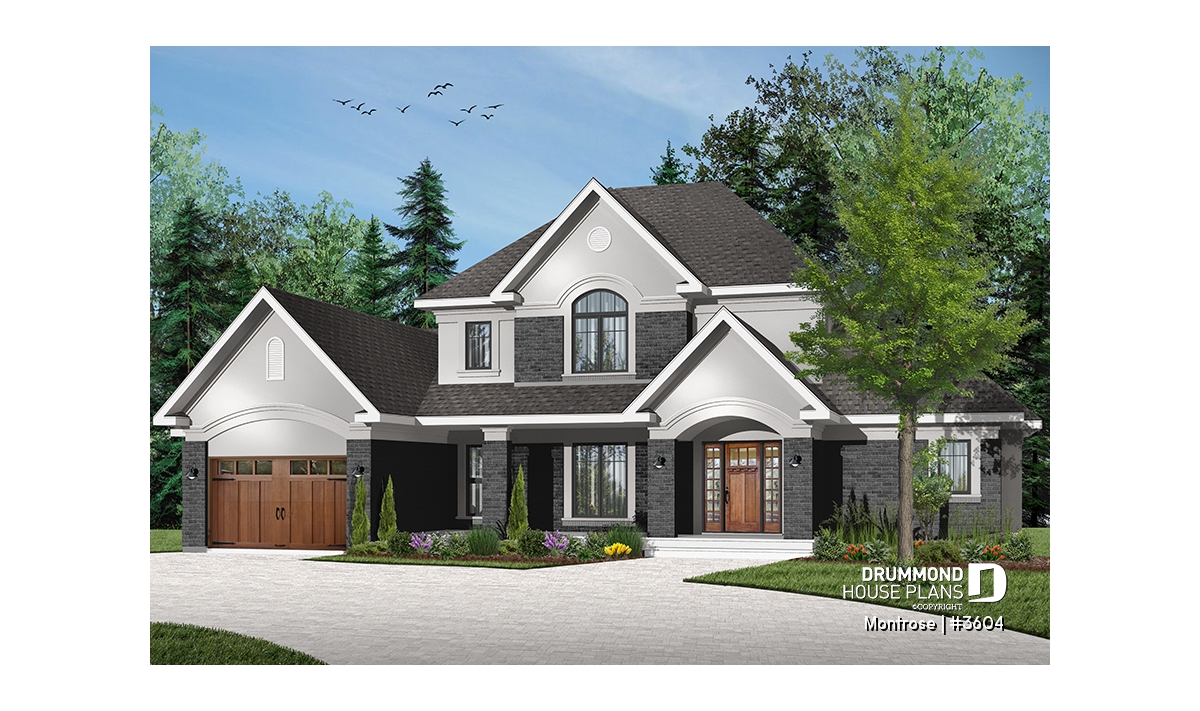

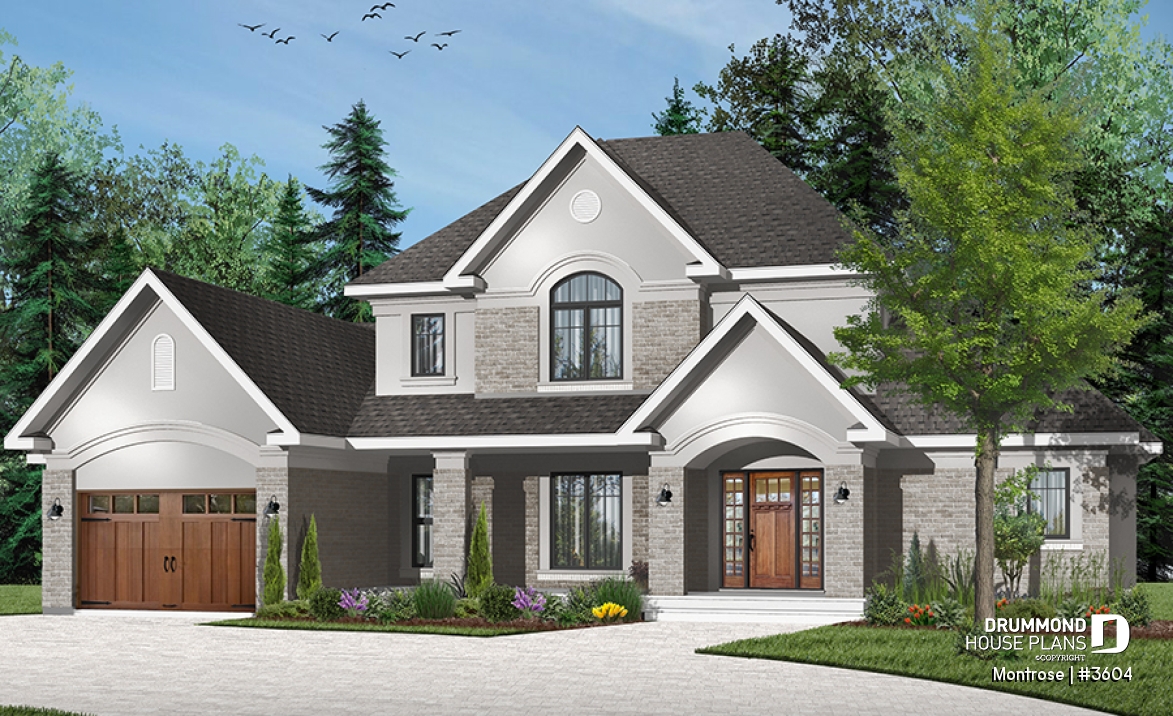

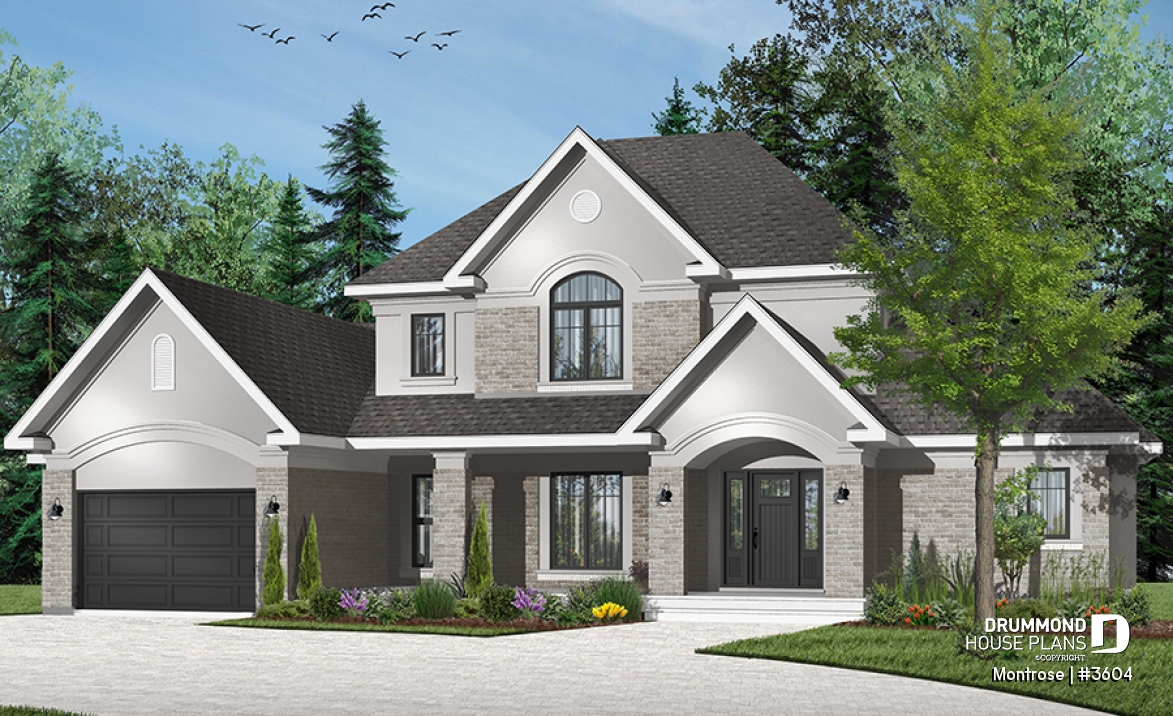

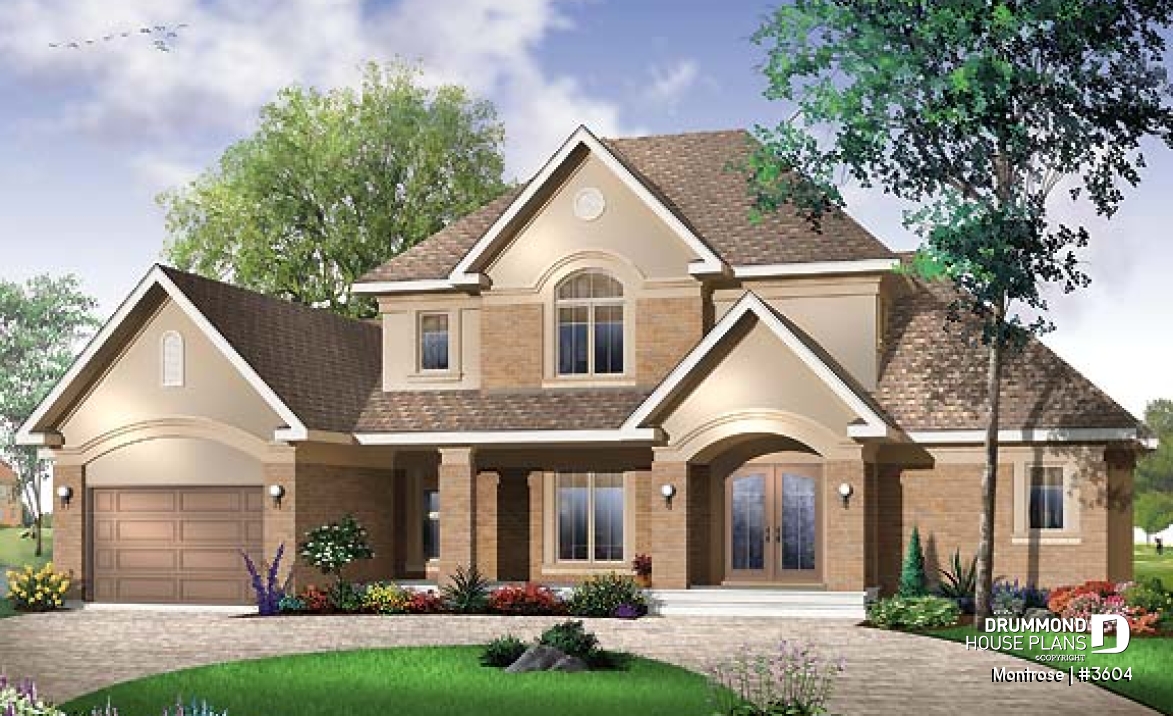

House plan Montrose (3604)
Beautiful 4 bedrooms ranch style house plan, 2 master suites, 3-car garage, 9' ceiling, formal dining room
View the size of the rooms and height of the ceilings

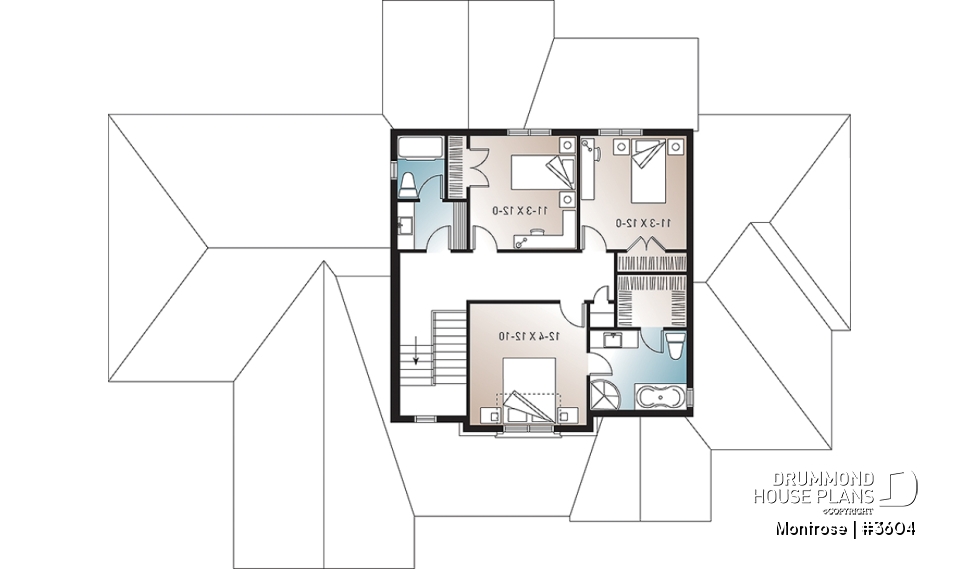

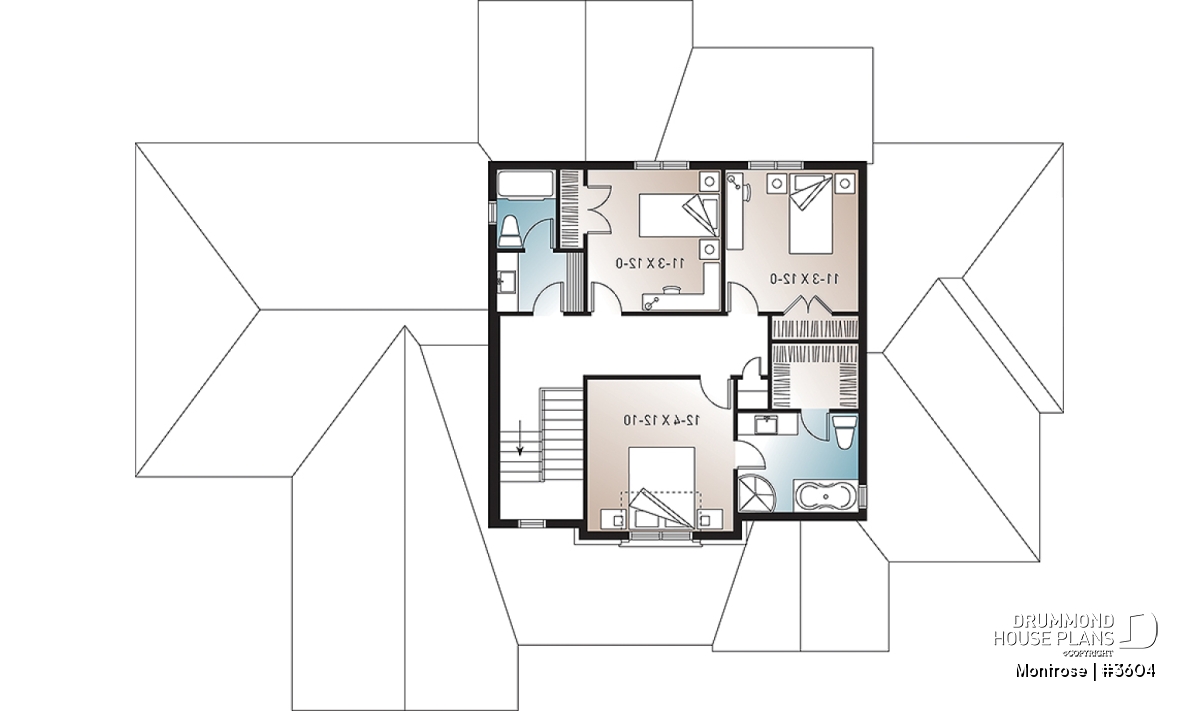

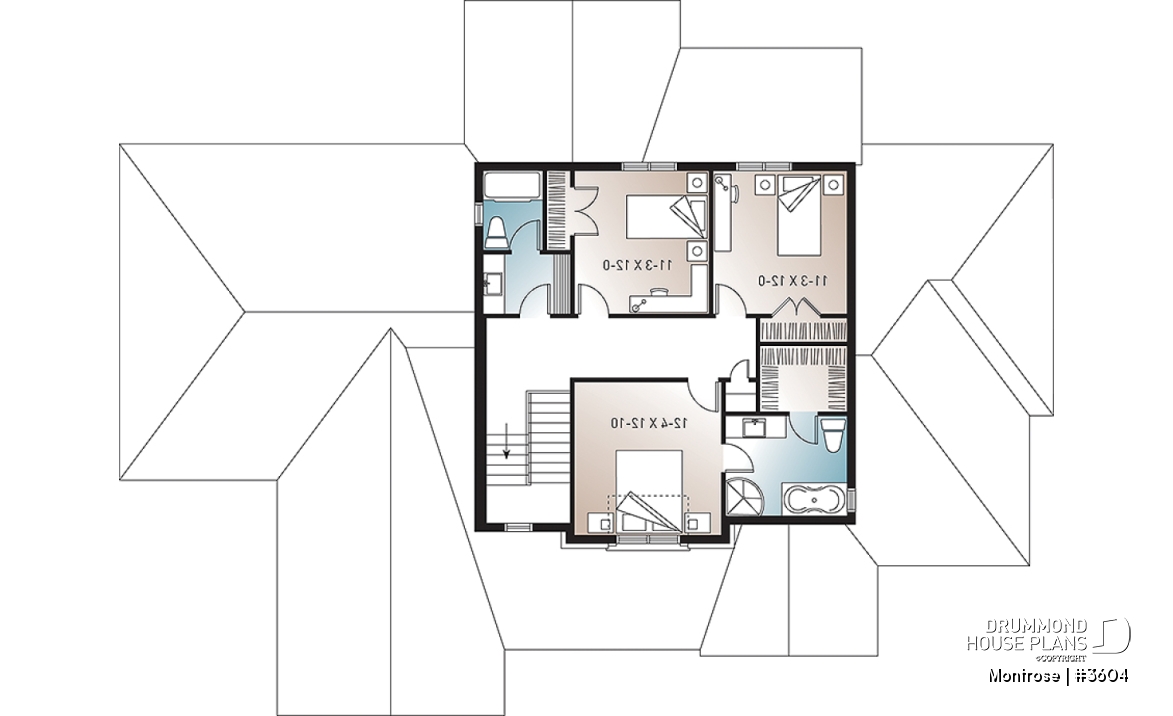

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 12'4" x 12'10" | ~ 8'0" |
| Bedroom | 11'3" x 12'0" | ~ 8'0" |
| Bedroom | 11'3" x 12'0" | ~ 8'0" |
| Storage | 2'6" x 2'6" | ~ 8'0" |
| Full bathroom | 5'0" x 12'0" | ~ 8'0" |

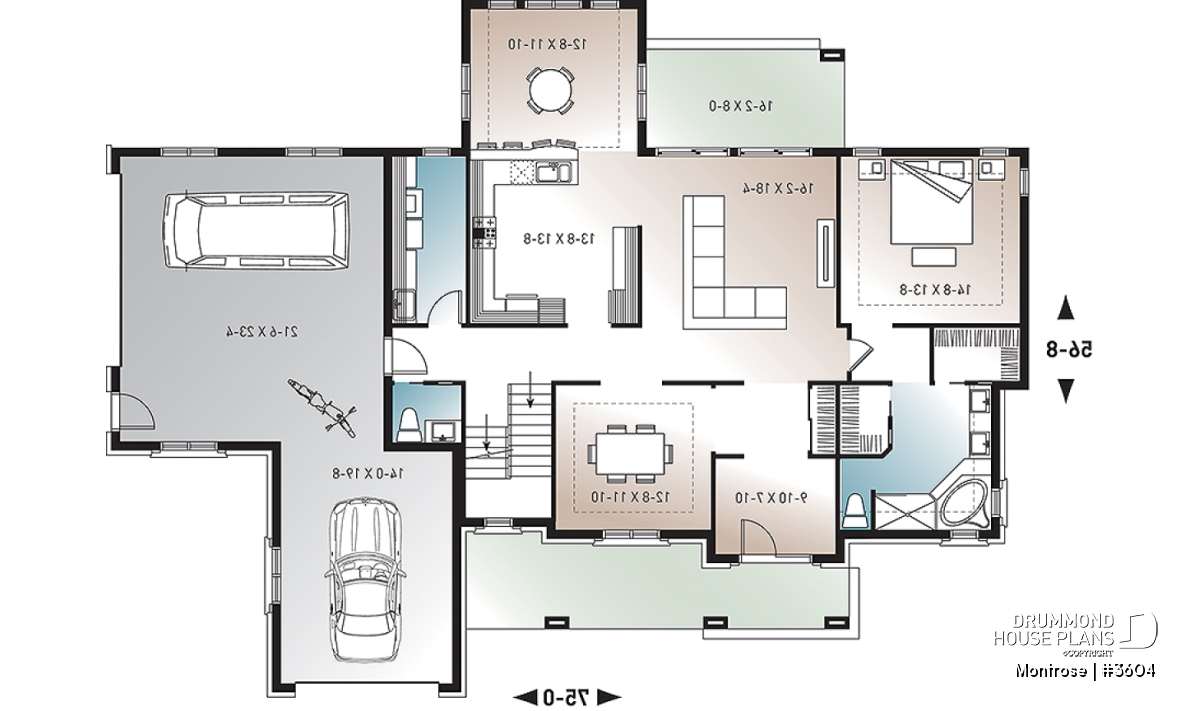

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 13'8" x 13'8" | ~ 9'0" |
| Dining room | 12'8" x 11'10" | ~ 9'0" |
| Foyer | 9'10" x 7'0" | ~ 9'0" |
| Master suite | 14'8" x 13'8" | ~ 9'0" |
| Half bath or powder room | 5'8" x 4'8" | ~ 9'0" |
| Garage | 14'0" x 19'8" | ~ 9'4" |
| Utility room | 6'0" x 13'8" | ~ 9'0" |
| Garage | 21'6" x 23'4" | ~ 9'4" |
| Porch | 31'0" x 7'0" | N/A |
| Dinette | 13'8" x 12'0" | ~ 9'0" |
| Great room or Family room | 16'2" x 18'4" | ~ 9'0" |
| Porch | 16'2" x 8'0" | N/A |
General specifications
| Total living area | 2812 sq.ft. |
| 2nd level | 994 sq.ft. |
| 1st level | 1818 sq.ft. |
| Width | 75'0" |
| Depth | 56'8" |
| Ridge height from top of foundation | 32'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
Stunning 4 bedroom ranch style house plan with 3-car garage and formal dining room
.
Distinctive elements
Luxury 4 bedrooms ranch style house plan with a 3-car garage.
Large master suite on main floor and 3 bedrooms on second floor including a guest suite.
Covered front porch and covered rear patio.
9' ceiling on main level with box ceilings in master suite and dining room.
Cathedral ceiling in breakfast room.
Large foyer entrance.
Comfortable kitchen with independant breakfast room in a solarium.
Large sized laundry room.
Three lovely bedrooms on second level of which one is a guest suite with private bathroom.
Large 3-car garage.
Plan feature(s)
Master suite on main, Breakfast nook, Gound floor laundry room, Deck, Guest suite, Formal dining room, Ceiling over 8', Side entry garage, Oversized garage, His/Hers walk-in, Double sinks, Separate bath and shower, Sunroom
Plan architectural style(s)
. American, . European, . Traditional, . Ranch, . Transitional, . Manors and small castles, . Country
