House plan Mimosa (2932)
Swiss chalet style house plan, 3 bedrooms, 2 bathrooms, open floor plan layout with large fireplace
View the size of the rooms and height of the ceilings

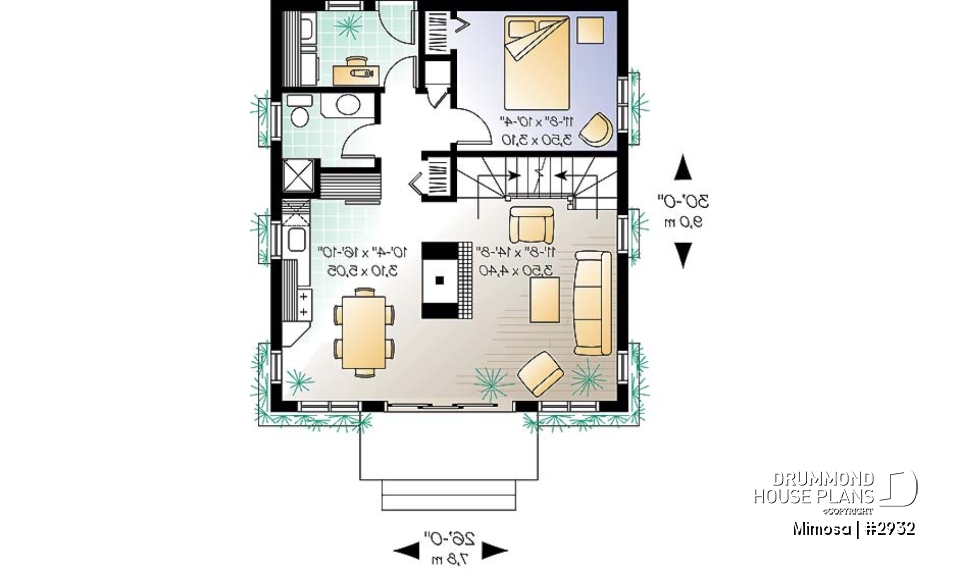

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'4" x 6'10" | ~ 8'0" |
| Kitchen | 10'4" x 16'10" | ~ 8'0" |
| Living room | 11'8" x 14'8" | ~ 8'0" |
| Bedroom | 11'8" x 10'4" | ~ 8'0" |
| Closet | 2'0" x 3'0" | ~ 8'0" |
| Terrace | 8'0" x 4'0" | N/A |
| Terrace | 12'10" x 5'0" | N/A |
| Foyer | 10'4" x 5'10" | ~ 8'0" |
| Linen | 2'0" x 2'0" | ~ 8'0" |

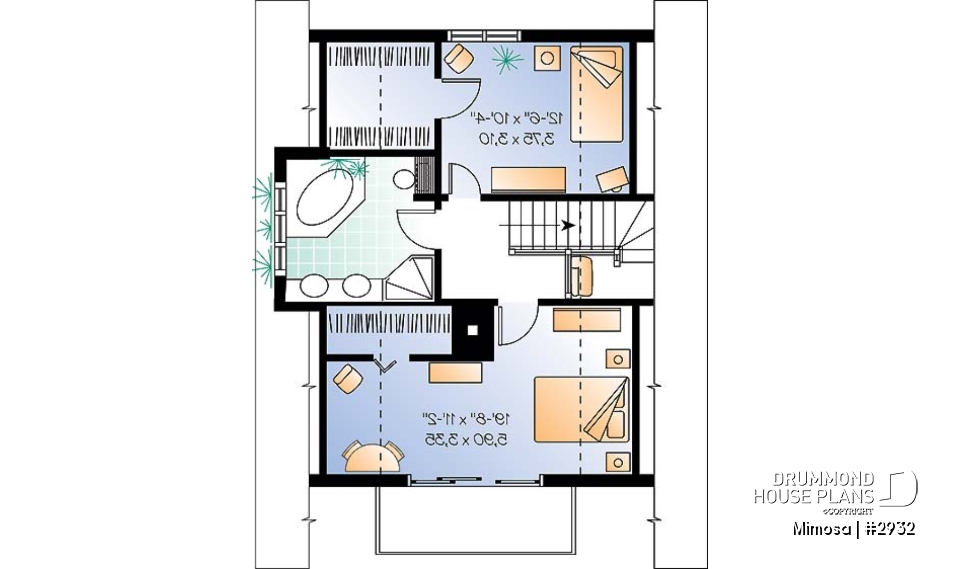

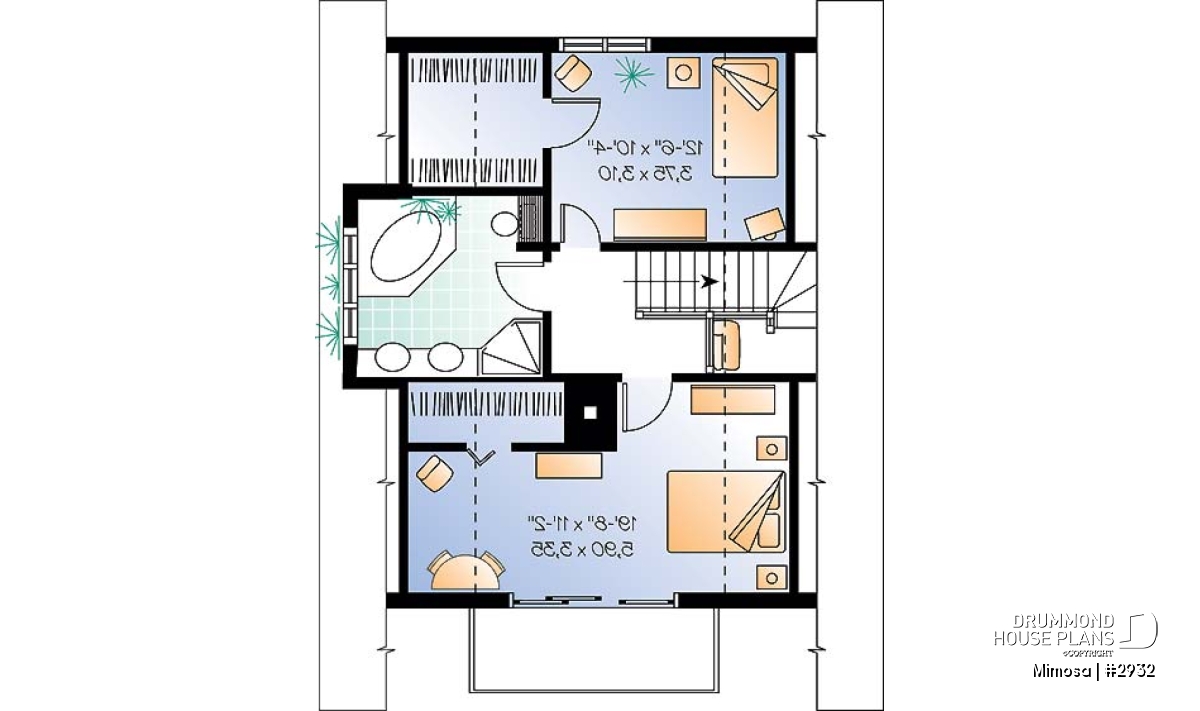

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'4" x 9'4" | ~ 8'0" |
| Bedroom | 19'8" x 11'2" | ~ 8'0" |
| Bedroom | 12'6" x 14'0" | ~ 8'0" |
| Balcony | 12'10" x 5'0" | N/A |
General specifications
| Total living area | 1380 sq.ft. |
| 1st level | 780 sq.ft. |
| 2nd level | 600 sq.ft. |
| Width | 26'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 27'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Other useful information on this plan
Stylish Swiss chalet house plan with great open floor plan layout, 3 beds and 2 baths!
.
Distinctive elements
Master bedroom with walk-in closet and private balcony, walk-in closet in secondary bedroom at second level, special ceiling treatments.
Plan feature(s)
Fireplace, Balcony 2nd floor, Sloped ceiling, Gound floor laundry room, Separate bath and shower, Double sinks
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Vacation and waterfront, . Ski chalets, . Rustic, . A-Frame, . Mountain, . European
