House plan Versaille 2 (3427-V2)
House plan with large master suite, double garage, 2 fireplaces and cathedral ceiling, mezzanine
View the size of the rooms and height of the ceilings

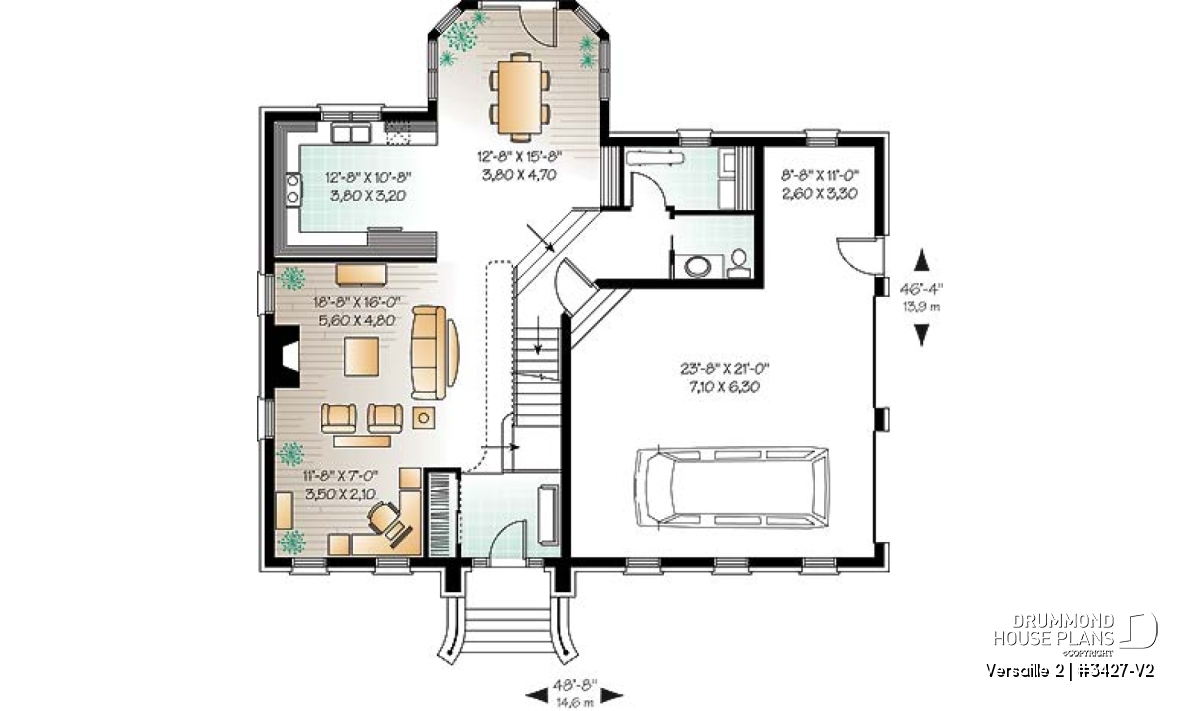

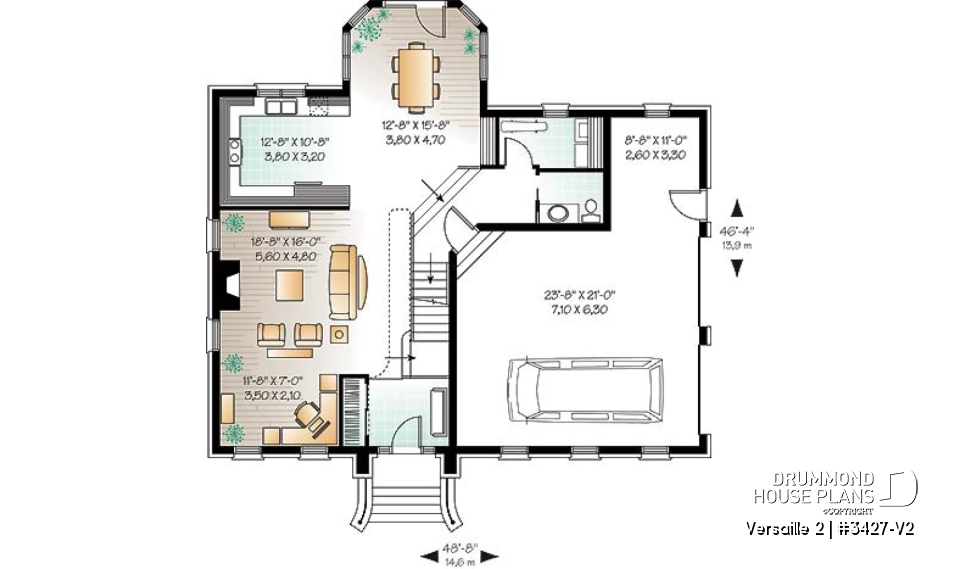

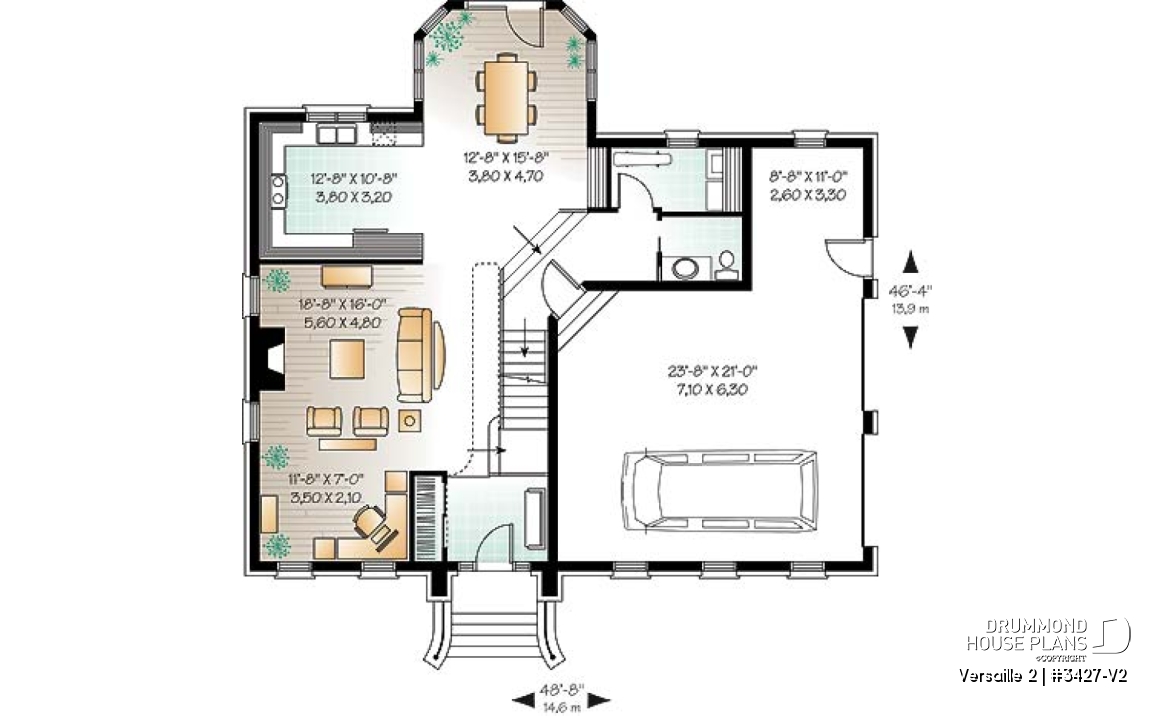

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 12'8" x 10'8" | ~ 9'0" |
| Porch | 6'8" x 3'0" | N/A |
| Porch | 12'0" x 5'0" | N/A |
| Dining room | 12'8" x 15'8" | ~ 9'0" |
| Living room | 18'8" x 16'0" | ~ 9'0" |
| Foyer | 7'10" x 6'8" | ~ 9'0" |
| Half bath or powder room | 6'3" x 5'0" | ~ 9'11" |
| Laundry room | 9'10" x 5'0" | ~ 9'11" |
| Reading/computer area | 11'8" x 7'0" | ~ 9'0" |
| Garage | 23'8" x 21'0" | ~ 10'6" |

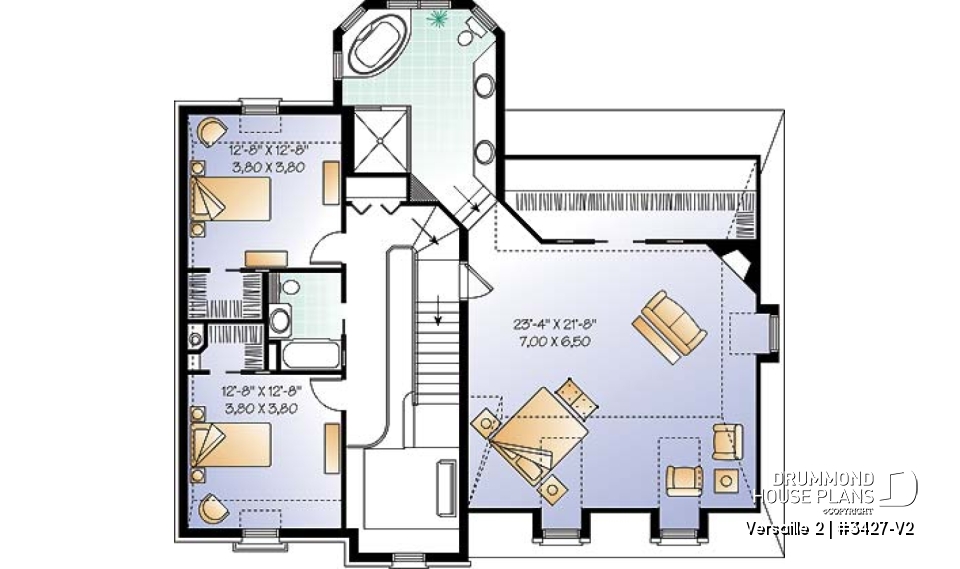

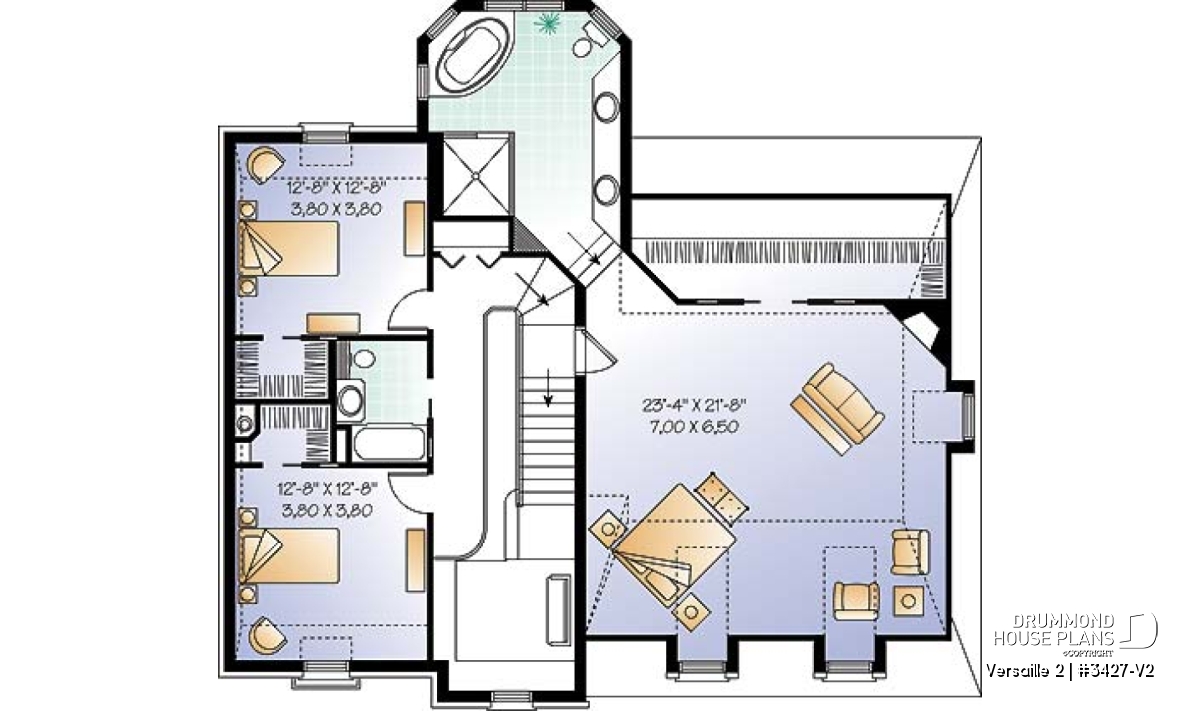

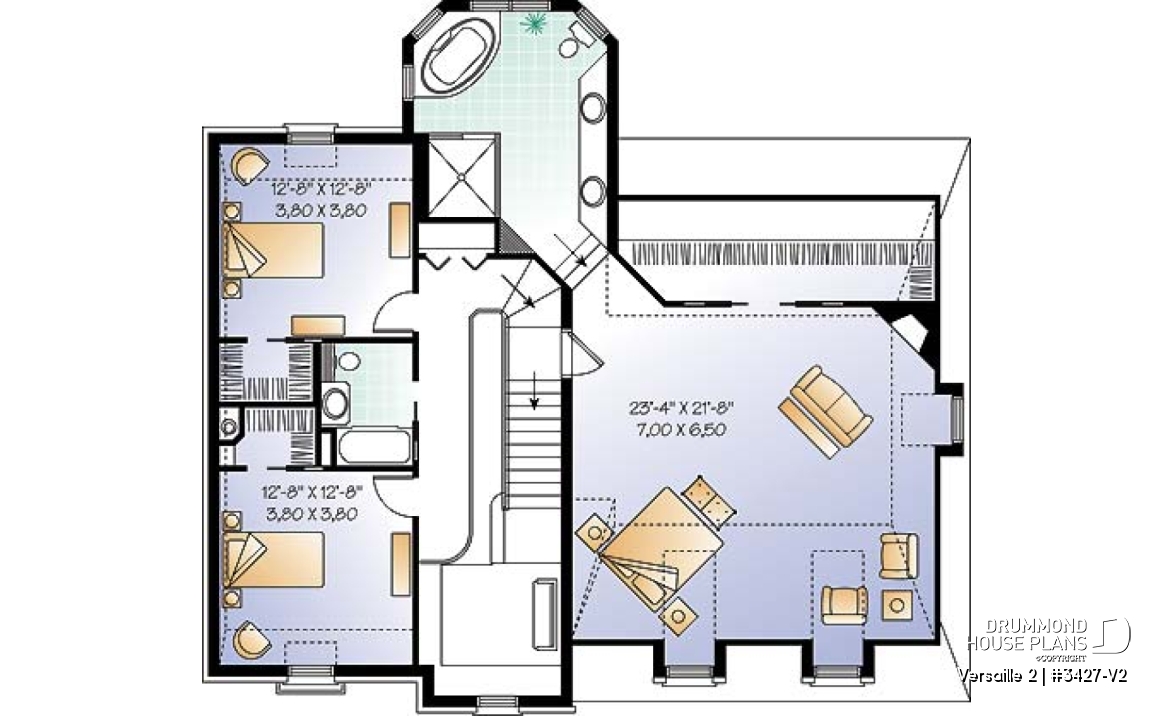

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 8'0" | ~ 8'0" |
| Bedroom | 23'4" x 21'8" | ~ 9'11" |
| Bedroom | 12'8" x 12'8" | ~ 8'0" |
| Bedroom | 12'8" x 12'8" | ~ 8'0" |
General specifications
| Total living area | 2803 sq.ft. |
| 1st level | 1163 sq.ft. |
| 2nd level | 1640 sq.ft. |
| Width | 48'8" |
| Depth | 46'4" |
| Ridge height from top of foundation | 38'7" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | H |
Rooms specifications
Other useful information on this plan
3 bedroom European house plan, very large master suite with fireplace, 2-car garage
.
Distinctive elements
9' ceiling on 1st level and 10' in master suite. Foyer opened on two levels. Living room with fireplace and computer area. Dining room with abundant fenestration. Independant laundry room on 1st level. Beautiful master suite with large closet, corner fireplace and private bathroom. Nice size secondary bedrooms with adequate closets and nearby bathroom.
Plan feature(s)
Side entry garage, Ceiling over 8', Gound floor laundry room, Fireplace, Master suite upstairs, Entrance hall, Panoramic view, Separate bath and shower, Walk-in master bed., 2-Story foyer, Planning desk, Oversized garage
Plan architectural style(s)
. European, . Manors and small castles, . English, . Victorian
