House plan The Skyway 2 (4935)
Open floor plan cottage with interior spa area, and 1 or 2 bedroom option
View the size of the rooms and height of the ceilings

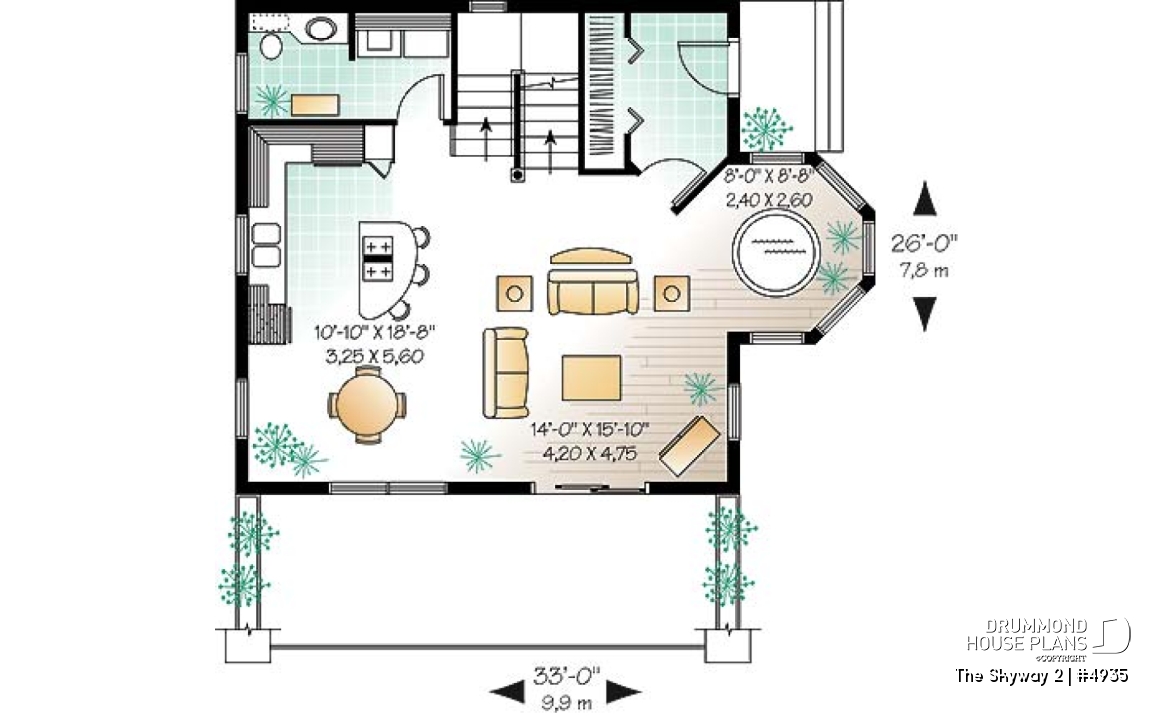

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Utility room | 5'0" x 5'8" | ~ 8'0" |
| Terrace | 23'6" x 8'0" | N/A |
| Foyer | 5'2" x 10'7" | ~ 8'0" |
| Half bath or powder room | 4'10" x 5'8" | ~ 8'0" |
| Kitchen | 10'10" x 18'8" | ~ 8'0" |
| Living room | 14'0" x 15'10" | ~ 8'0" |
| Reading/computer area | 8'0" x 8'8" | ~ 8'0" |
| Porch | 4'0" x 8'0" | N/A |

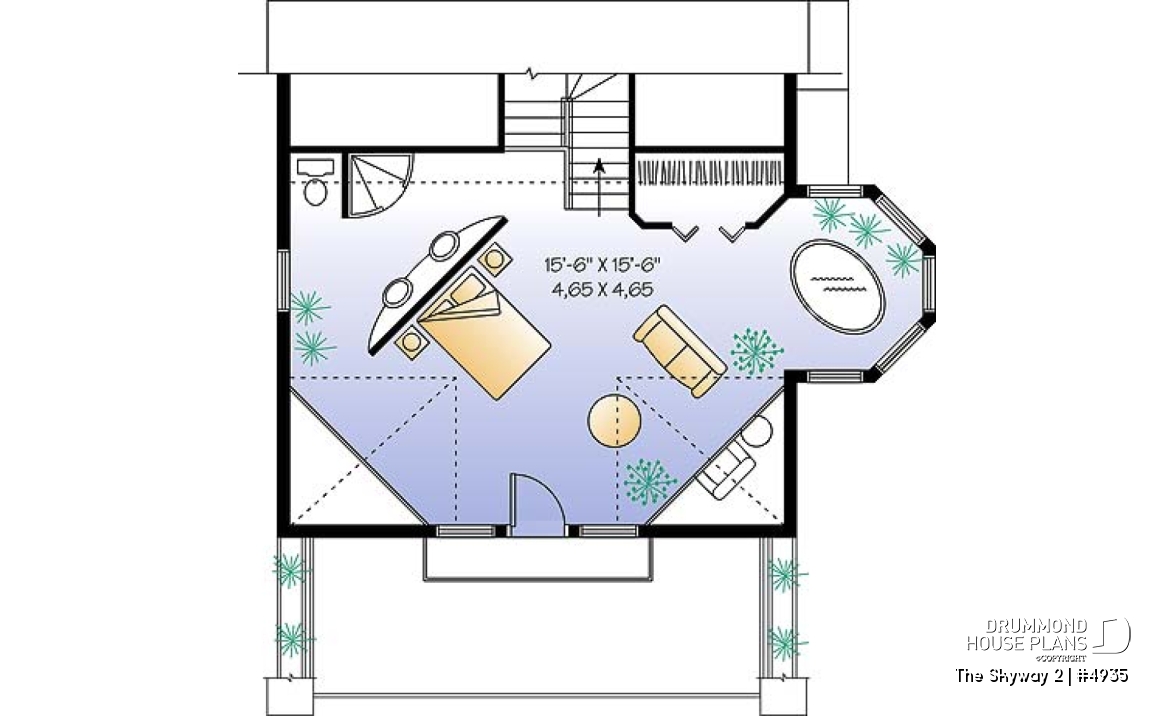

| 2nd level option 1 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 9'5" x 10'0" | ~ 8'0" |
| Bedroom | 28'0" x 18'8" | ~ 8'0" |

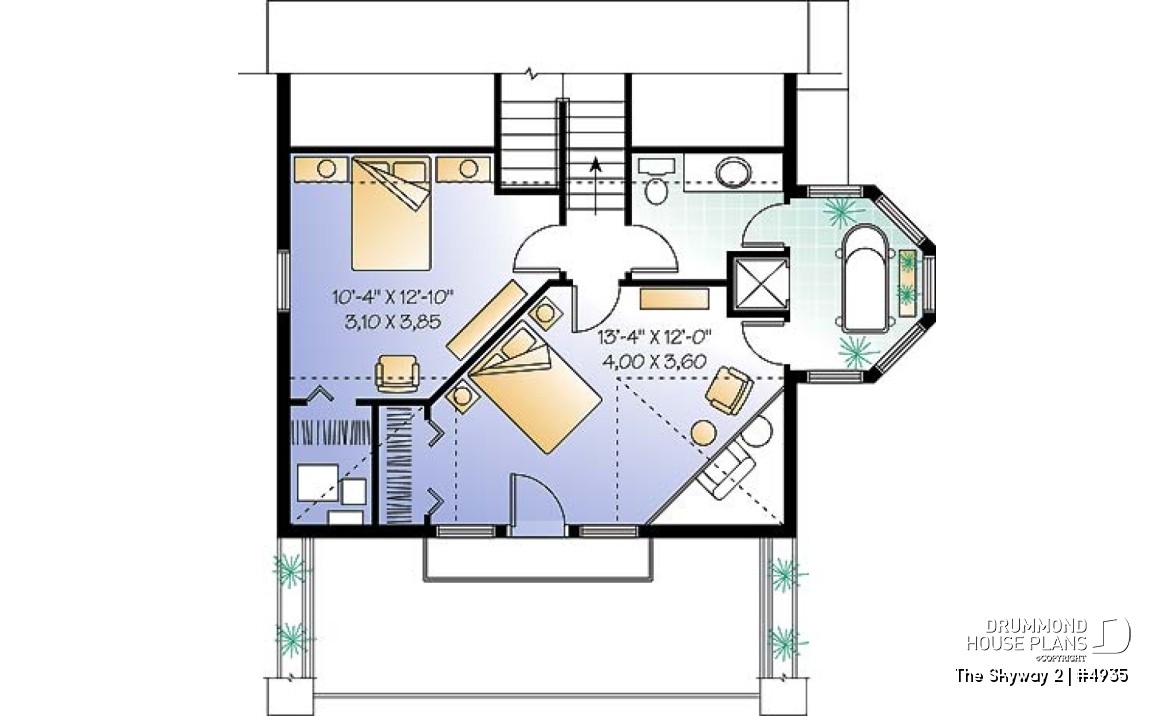

| 2nd level option 2 | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 14'4" x 10'8" | ~ 8'0" |
| Bedroom | 12'0" x 14'0" | ~ 8'0" |
| Bedroom | 12'0" x 12'0" | ~ 8'0" |
General specifications
| Total living area | 1325 sq.ft. |
| 1st level | 741 sq.ft. |
| 2nd level option 1 | 584 sq.ft. |
| 2nd level option 2 | 584 sq.ft. |
| Width | 33'0" |
| Depth | 26'0" |
| Ridge height from top of foundation | 34'3" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full basement with walkout i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications

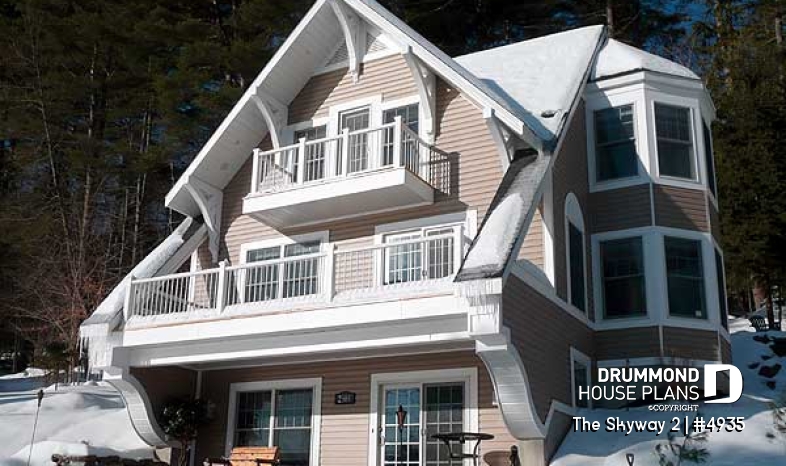

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

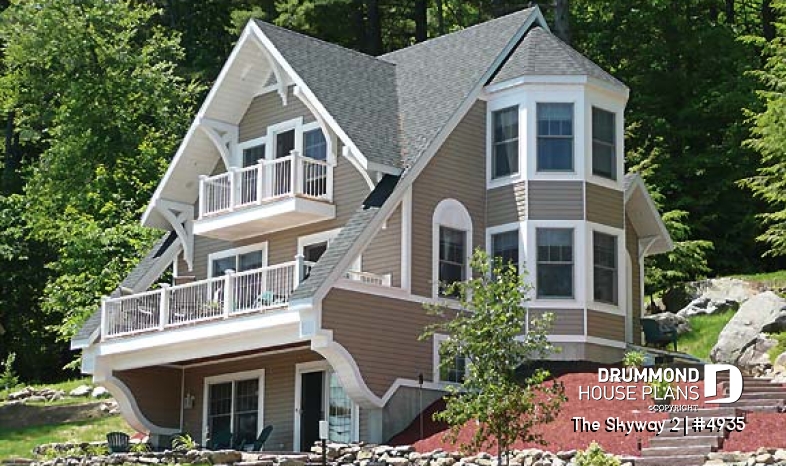

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

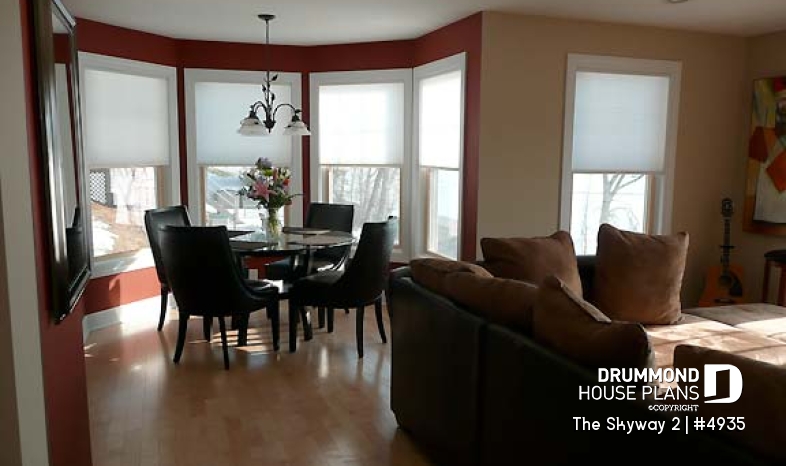

Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

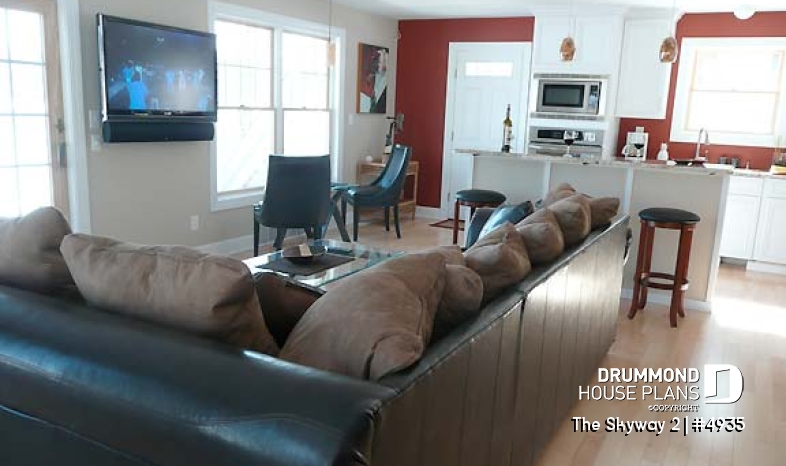

Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Truly unique chalet style house
If ever there existed an original house with the appearance of a vacation home in Drummond Designs’ collection, this certainly is it.
Its originality is above all attributable to a not so common exterior, proposing, among others, a large terrace whose very distinct structure with curved supports recalling the prow of certain ships, as well as a turret inspired from the Victorian era for a happy and very dynamic mixing of the different volumes.
Inside, this originality continues with the layout; on the main level, a large sized foyer, an entirely open activities center embellished by abundant windowing, a hot tub space in the turret, and of a kitchen with central island lunch counter, a “must” in this type of home. On the upper level, this trend continues with a choice of two layouts; the first suggests two bedrooms and a complete bathroom within the turret, and a second one, quite as exceptional and suggesting a unique master bedroom with open bathroom and large bathtub in the turret. To be noted here that the two proposed layouts are included with the plan and that, for each of these, some parts in the mezzanine are attributed to the upper bedrooms so as to occupy these slanted ceiling spaces which are otherwise lost and for even more originality.
Distinctive elements
Entirely open activity area on first floor with a spa in the turret. Foyer with large closet. One or two bedrooms on second level. Both options are included with the plan.
Plan feature(s)
Mezzanine, Entrance hall, Gound floor laundry room, Open floor layout, Island, Balcony 2nd floor, Separate bath and shower
Plan architectural style(s)
. Cottage, chalet, cabin, . Vacation and waterfront, . Victorian, . Ski chalets, . A-Frame, . Country, . American, . Traditional, . Mountain
Previously Viewed Plans
Questions and comments
May 01
Saraswattee Latchmoodoo
Hi, I would like to know where is the garage in the plan W4935.
I would also appreciate if you could provide some more photos of the interior, for example, closet, kitchen, bedrooms, etc...
Thanks,
Regards.
May 03
Customer service
Dear Sir,
Thank you for your interest in Drummond House Plans.
There is no garage included in this plan. Please click here to view all the pictures we have available for this plan.
Please contact us again if you need further information. We will gladly answer any questions you may have.
Best Regards,
Customer Service Department
