Starting from $1220

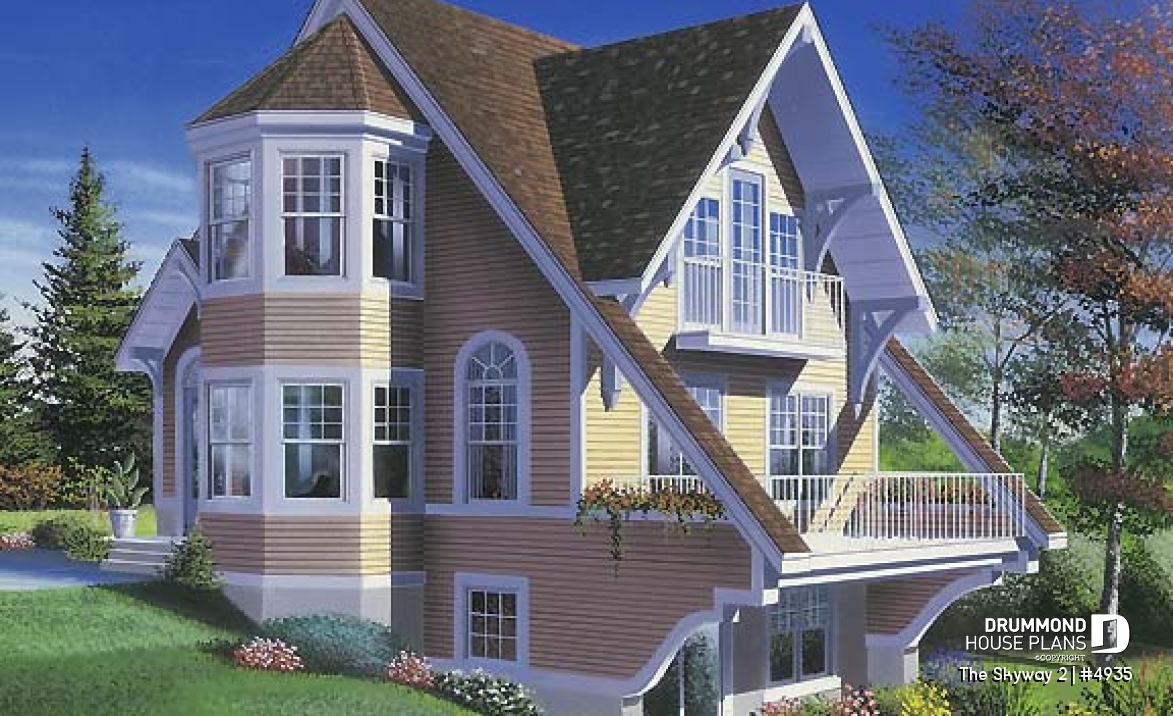

front - BASE MODEL
1st level
2nd level option 1
2nd level option 2

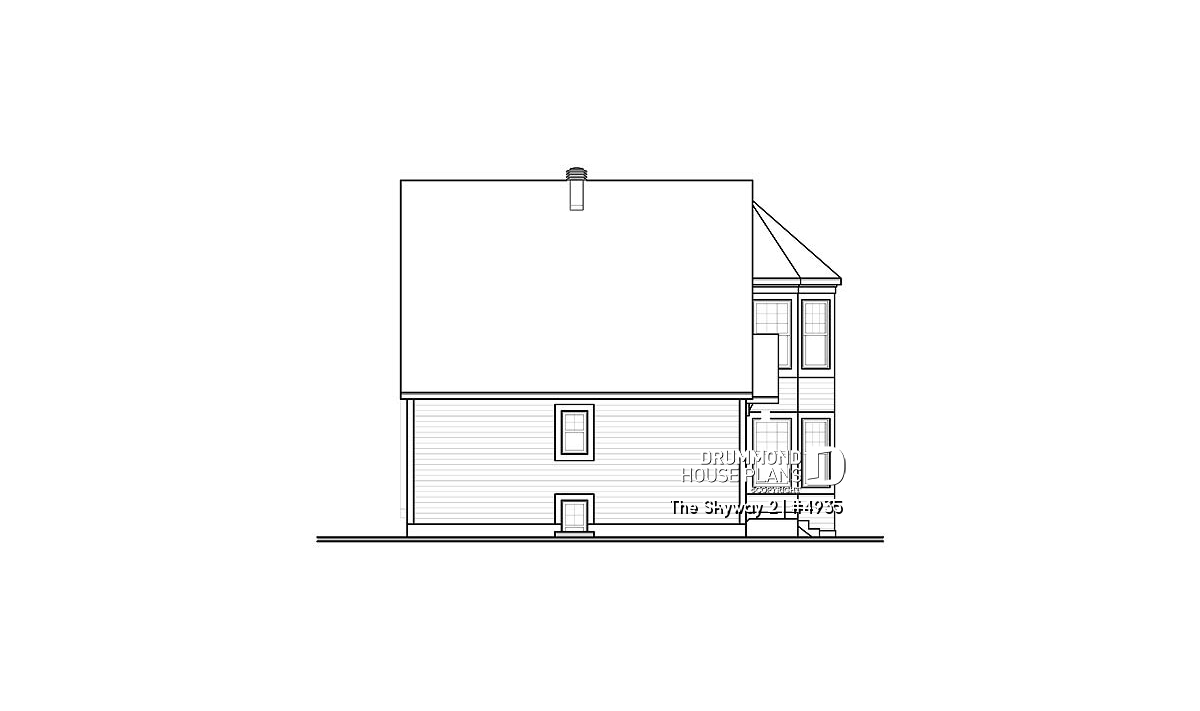

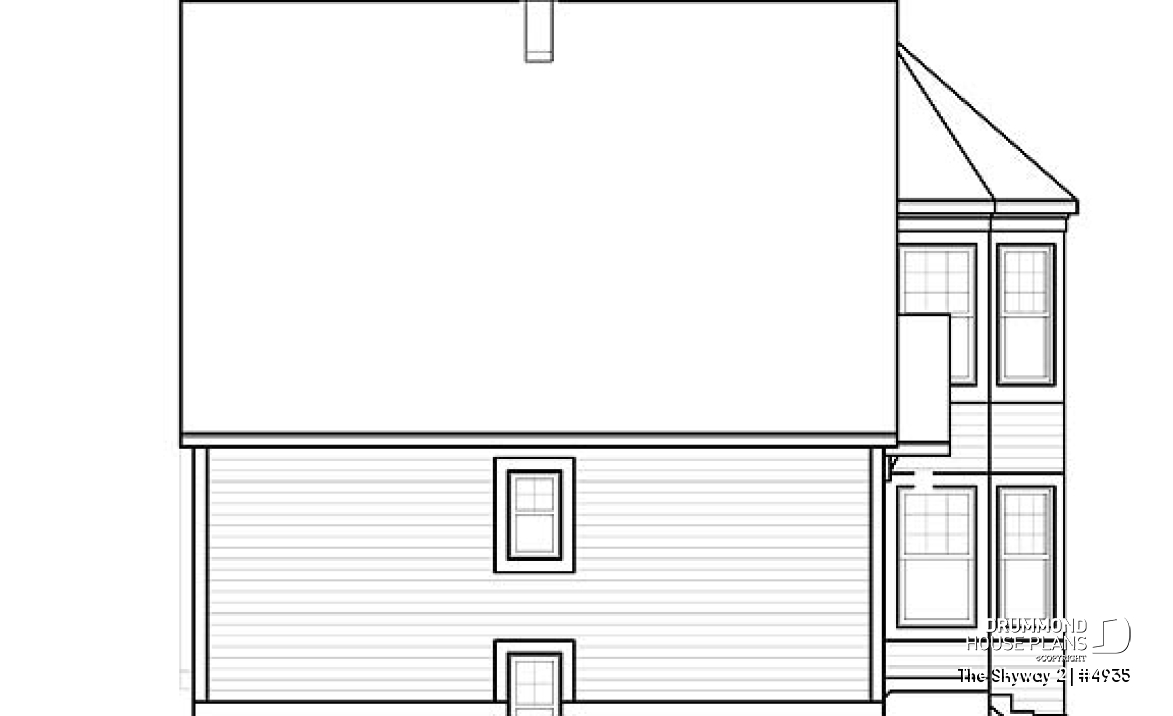

rear elevation
The Skyway 2 House plan 4935
Open floor plan cottage with interior spa area, and 1 or 2 bedroom option
Starting from
1515$
| Technical details summary | Plan #4935 | ||
|---|---|---|---|
| Total living area | 1325 sq.ft. | Bedroom | 1, 2 |
| Full baths | 1 | Half baths | 1 |
| Foundation included | Full basement with walkout | Garage | - |
| Width | 33'0" | Depth | 26'0" |
Photos of the plan The Skyway 2
Additional details
General specifications
Total living area
1325 sq.ft.
1st level
741 sq.ft.
2nd level option 1
584 sq.ft.
2nd level option 2
584 sq.ft.
Width
33'0"
Depth
26'0"
Ridge height from top of foundation
34'3"
Exterior wall
2 X 6
Full basement with walkout
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
C
Rooms specifications
Bedroom(s)
1, 2
Full baths
1
Half baths
1
Garage type
-
Covered porch area
32 sq.ft.

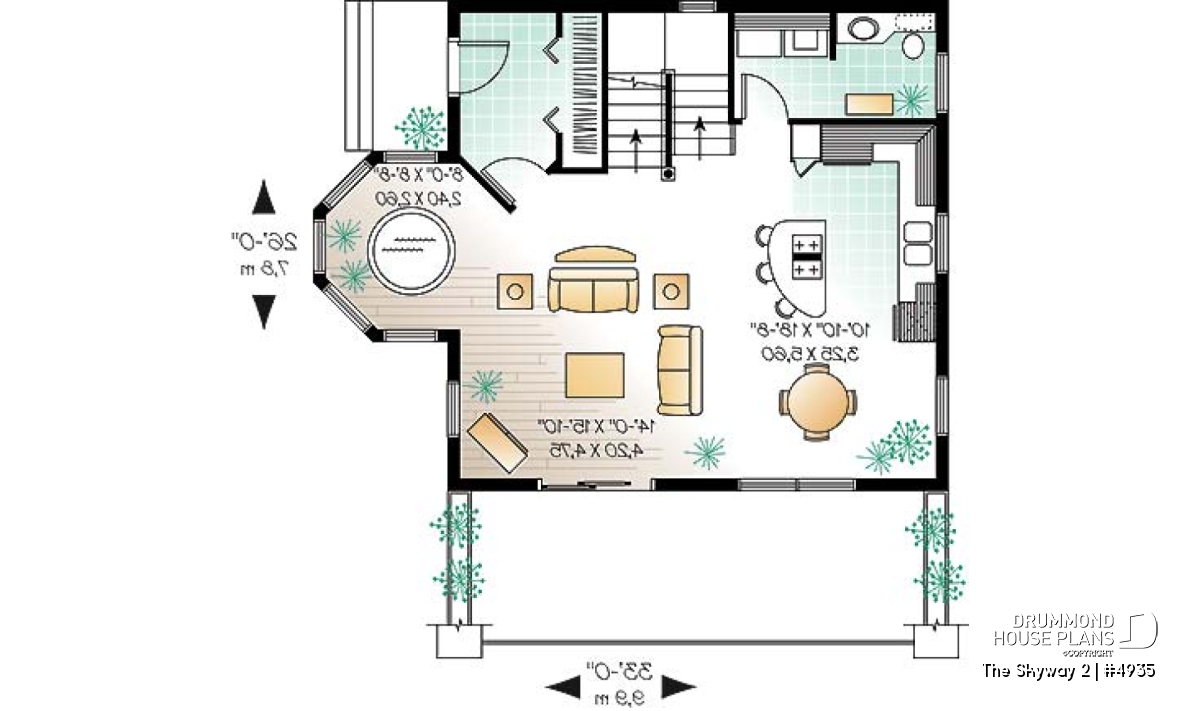

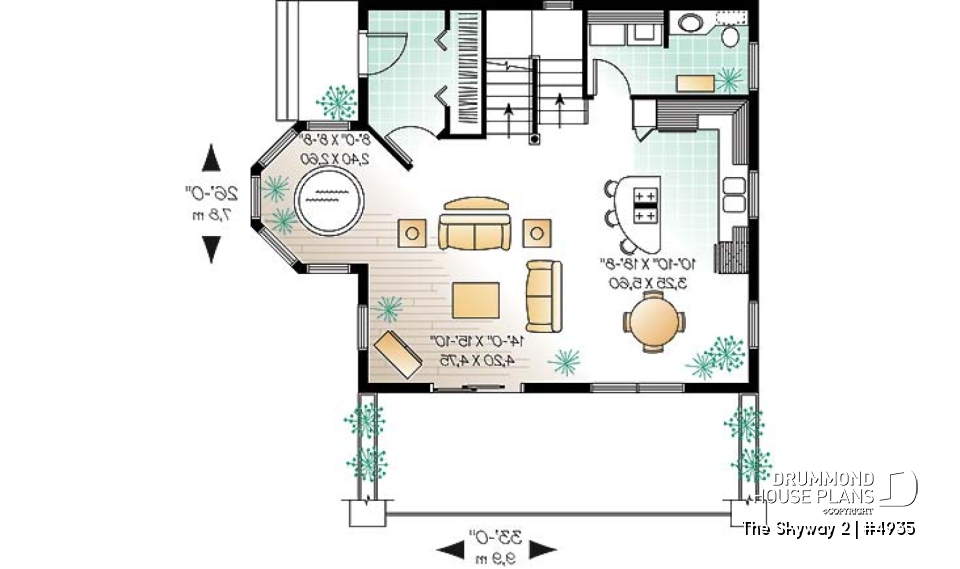

1st level
Rooms
Sizes
Ceiling
Utility room
5'0" x 5'8"
~ 8'0"
Terrace
23'6" x 8'0"
N/D
Foyer
5'2" x 10'7"
~ 8'0"
Half bath or powder room
4'10" x 5'8"
~ 8'0"
Kitchen
10'10" x 18'8"
~ 8'0"
Living room
14'0" x 15'10"
~ 8'0"
Reading/computer area
8'0" x 8'8"
~ 8'0"
Porch
4'0" x 8'0"
N/D

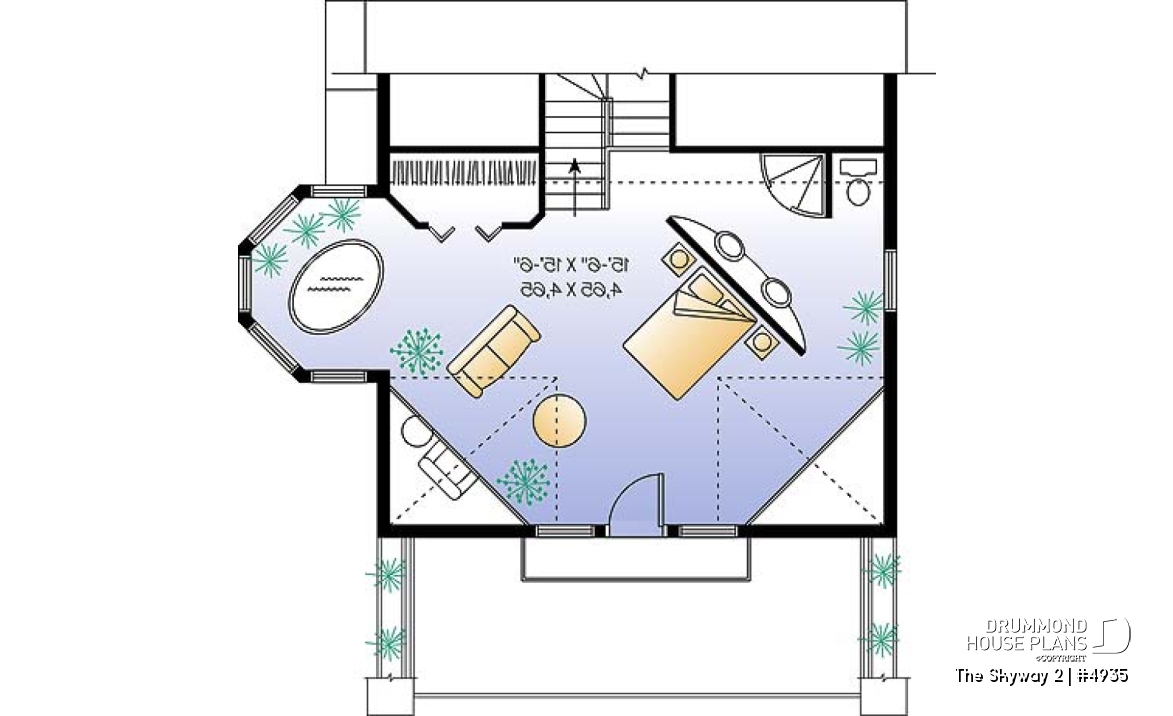

2nd level option 1
Rooms
Sizes
Ceiling
Full bathroom
9'5" x 10'0"
~ 8'0"
Bedroom
28'0" x 18'8"
~ 8'0"

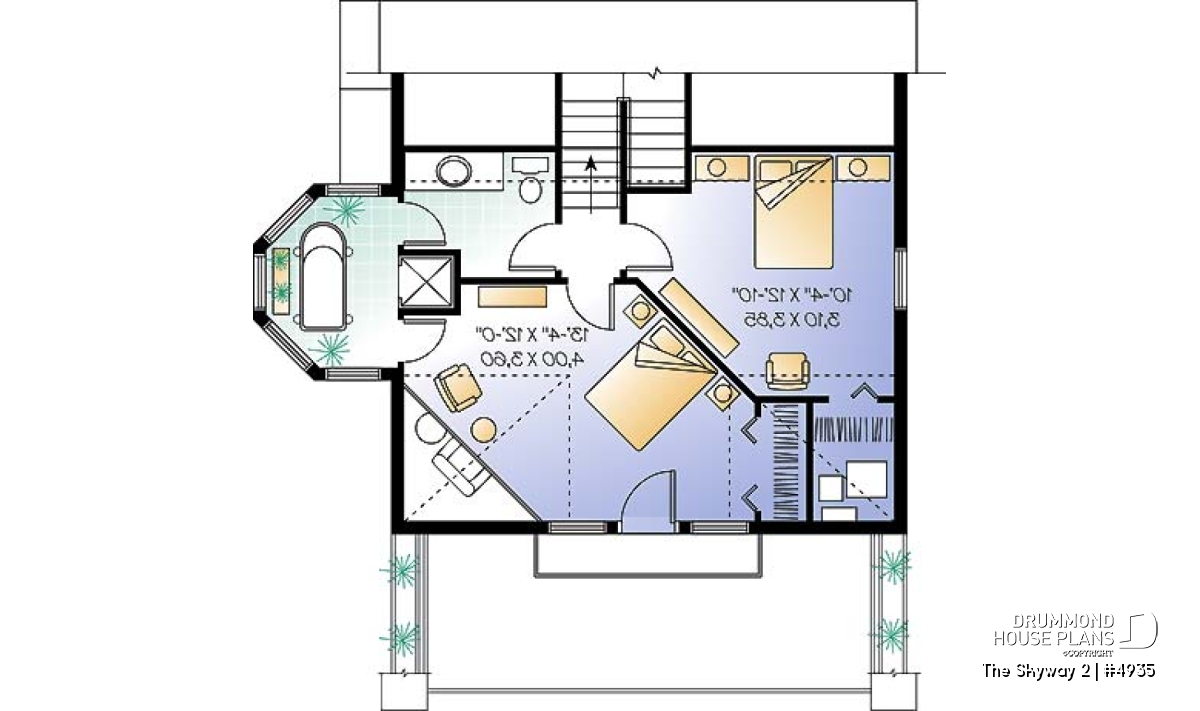

2nd level option 2
Rooms
Sizes
Ceiling
Full bathroom
14'4" x 10'8"
~ 8'0"
Bedroom
12'0" x 14'0"
~ 8'0"
Bedroom
12'0" x 12'0"
~ 8'0"
Truly unique chalet style house
If ever there existed an original house with the appearance of a vacation home in Drummond Designs’ collection, this certainly is it.
Its originality is above all attributable to a not so common exterior, proposing, among others, a large terrace whose very distinct structure with curved supports recalling the prow of certain ships, as well as a turret inspired from the Victorian era for a happy and very dynamic mixing of the different volumes.
Inside, this originality continues with the layout; on the main level, a large sized foyer, an entirely open activities center embellished by abundant windowing, a hot tub space in the turret, and of a kitchen with central island lunch counter, a “must” in this type of home. On the upper level, this trend continues with a choice of two layouts; the first suggests two bedrooms and a complete bathroom within the turret, and a second one, quite as exceptional and suggesting a unique master bedroom with open bathroom and large bathtub in the turret. To be noted here that the two proposed layouts are included with the plan and that, for each of these, some parts in the mezzanine are attributed to the upper bedrooms so as to occupy these slanted ceiling spaces which are otherwise lost and for even more originality.
Distinctive elements
Entirely open activity area on first floor with a spa in the turret. Foyer with large closet. One or two bedrooms on second level. Both options are included with the plan.
Plan feature(s)
Mezzanine, Entrance hall, Gound floor laundry room, Open floor layout, Island, Balcony 2nd floor, Separate bath and shower
Plan architectural style(s)
Cottage, chalet, cabin, Vacation and waterfront, Victorian, Ski chalets, A-Frame, Country, American, Traditional, Mountain
The plan The Skyway 2 is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
