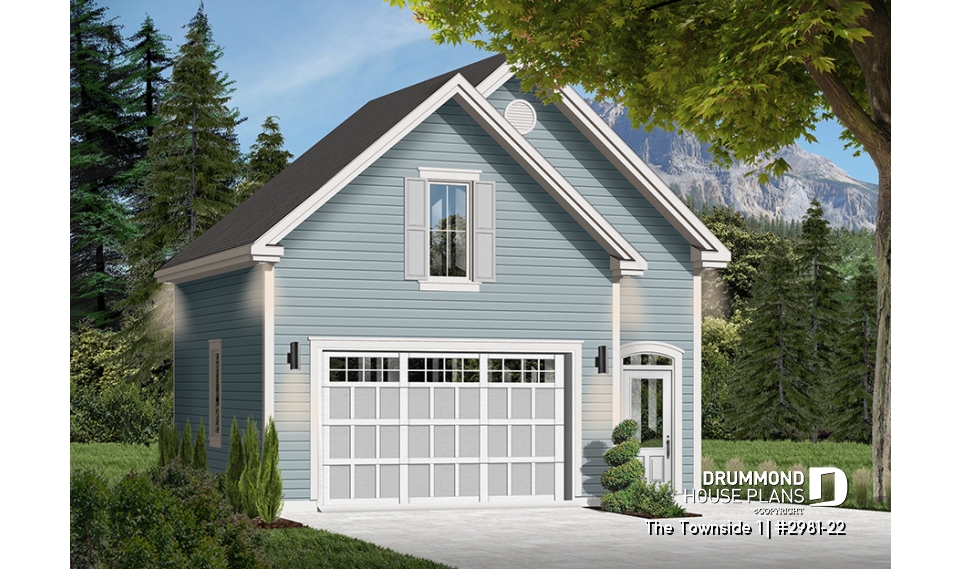

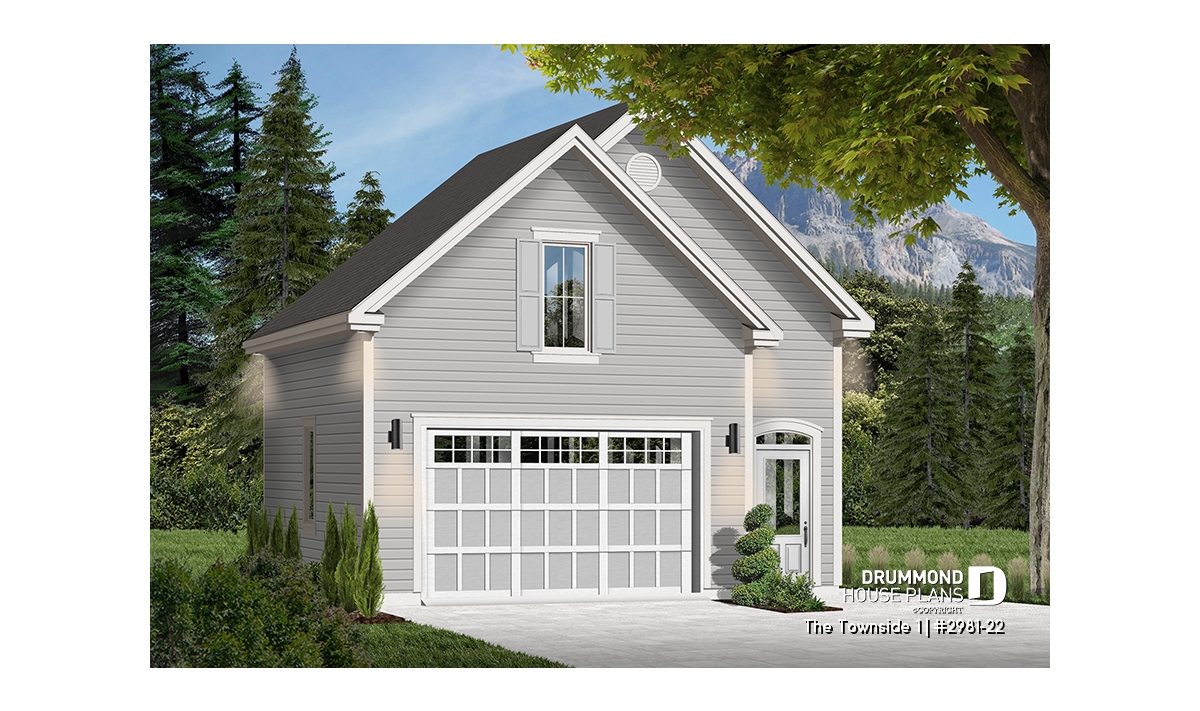

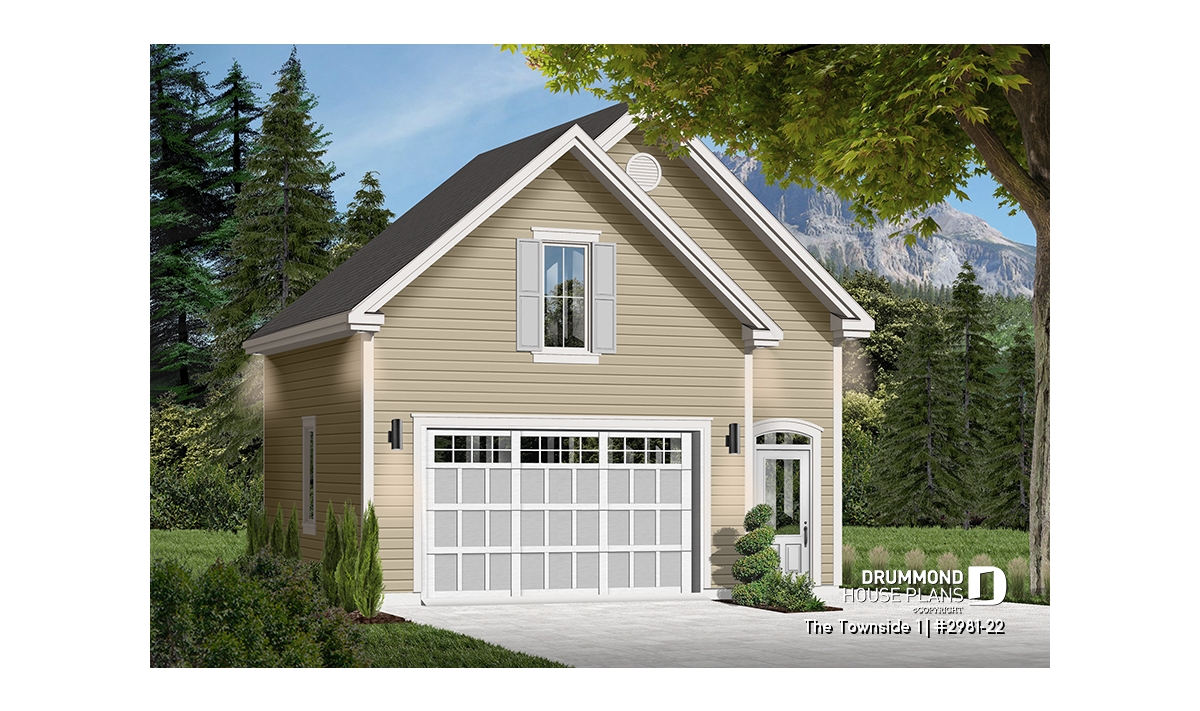

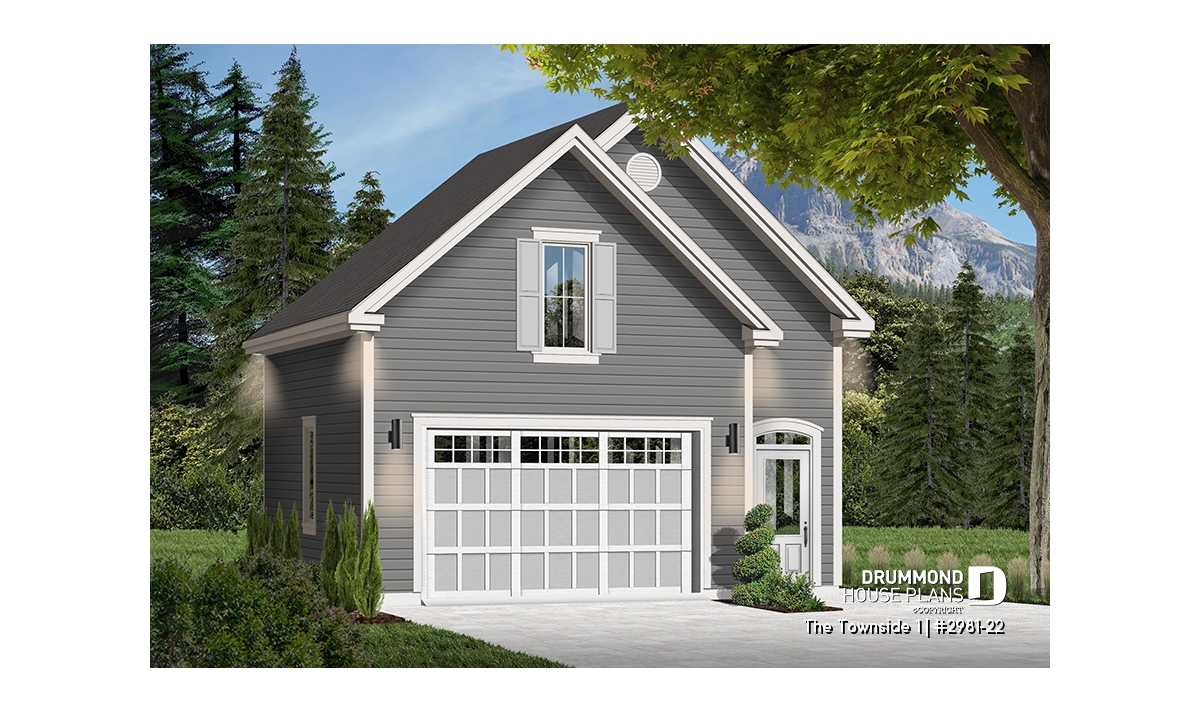

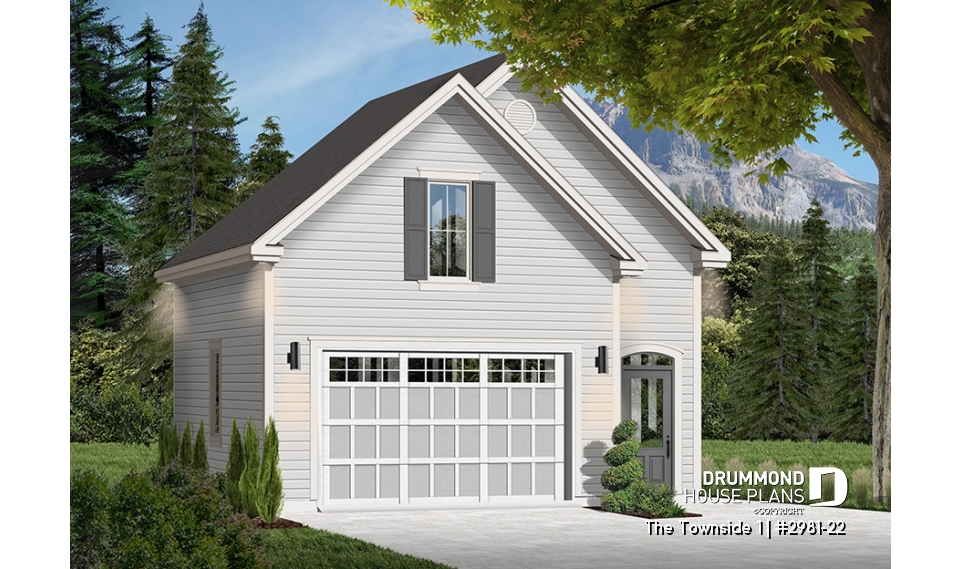

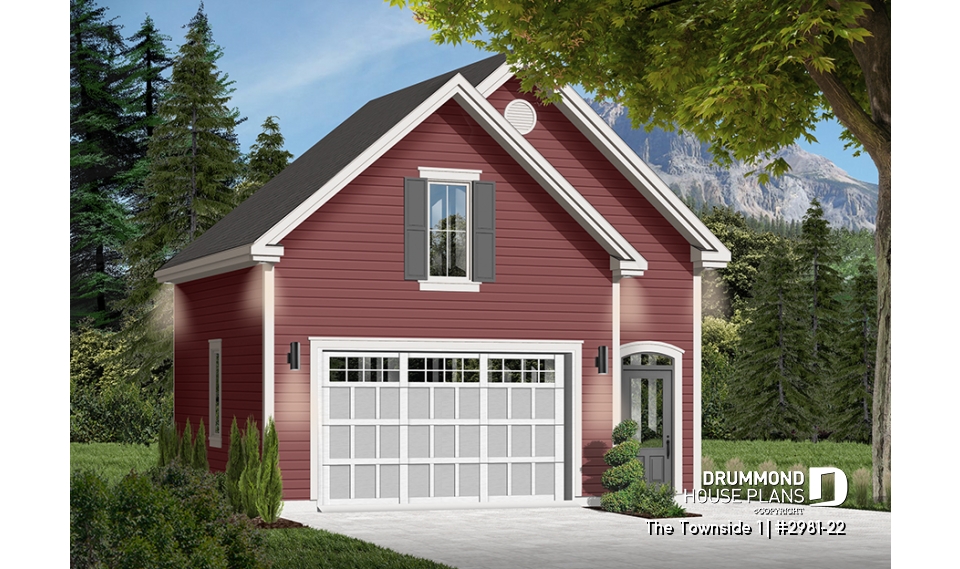

Garage plan The Townside 1 (2981-22)
Country style Garage plan with storage on attic
View the size of the rooms and height of the ceilings

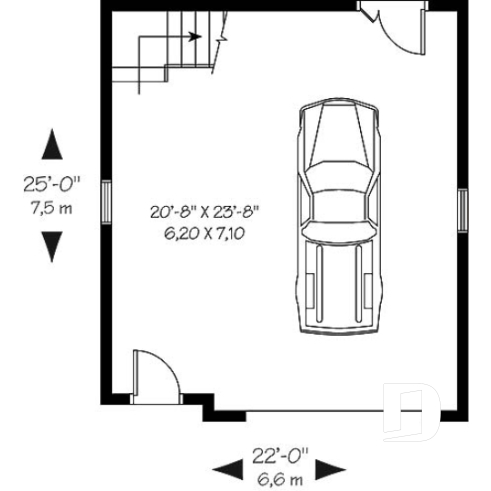

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 20'8" x 23'8" | ~ 8'4" |

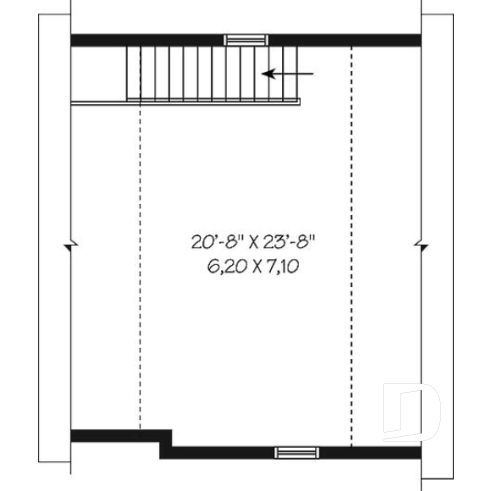

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 20'8" x 23'8" | ~ 8'0" |
General specifications
| Total living area | 1032 sq.ft. |
| 1st level | 544 sq.ft. |
| 2nd level | 488 sq.ft. |
| Width | 22'0" |
| Depth | 25'0" |
| Ridge height from top of foundation | 25'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G1C |
Rooms specifications
Other useful information on this plan
Garage plan with loft on second floorc, for storage!
.
Distinctive elements
Ample one-car garage 22' x 25'
Door on the back and window on each side.
Stairs to the second floor.
Second level storage area of 488 sq.ft.
Plan feature(s)
Oversized garage, Sloped ceiling
Plan architectural style(s)
. American, . Traditional, . Country, . Colonial, . Farmhouse, Trending
