House plan Lotus 3 (3128-V2)

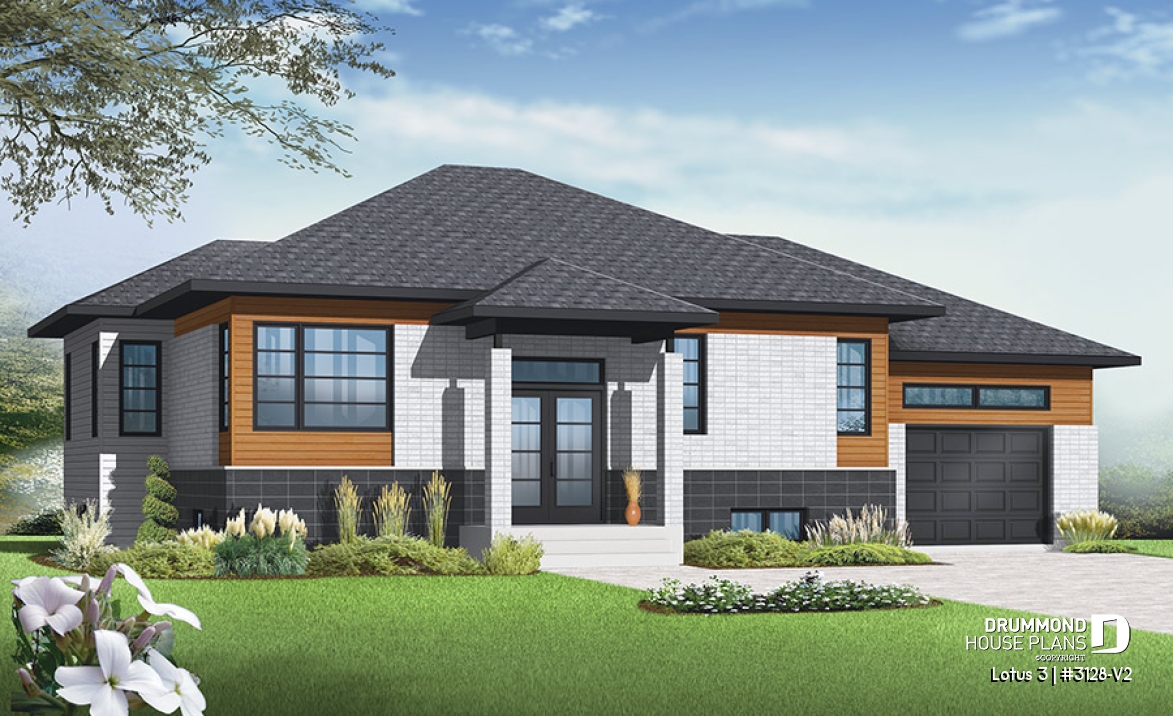

Affordable Contemporary 2 bedroom split level house model with one-car garage, open concept, kitchen island
View the size of the rooms and height of the ceilings

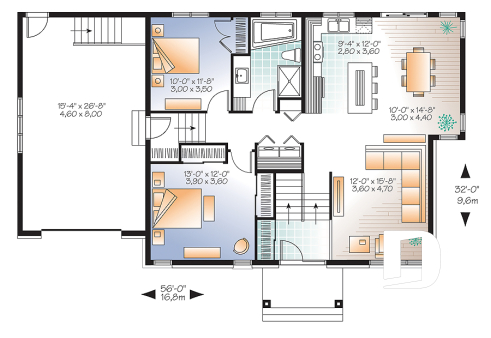

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 6'8" x 5'0" | ~ 11'0" |
| Closet | 2'0" x 5'0" | ~ 11'0" |
| Living room | 12'0" x 15'8" | ~ 8'0" |
| Dining room | 10'0" x 14'8" | ~ 8'0" |
| Kitchen/dinette | 9'4" x 12'0" | ~ 8'0" |
| Pantry | 1'10" x 2'0" | N/A |
| Bedroom | 13'0" x 12'0" | ~ 8'0" |
| Closet | 5'6" x 2'0" | ~ 8'0" |
| Closet | 2'0" x 5'6" | ~ 8'0" |
| Bedroom | 10'0" x 11'8" | ~ 8'0" |
| Closet | 1'10" x 4'6" | ~ 8'0" |
| Full bathroom | 8'6" x 11'8" | ~ 8'0" |
| Linen | 1'6" x 1'8" | N/A |
| Laundry space | 5'6" x 3'0" | ~ 8'0" |
| Linen | 5'6" x 1'6" | N/A |
| Foyer | 3'6" x 3'8" | ~ 11'0" |
| Closet | 3'6" x 2'4" | ~ 11'0" |
| Storage | 2'8" x 1'4" | ~ 8'0" |
General specifications
| Total living area | 1223 sq.ft. |
| 1st level | 1223 sq.ft. |
| Width | 56'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 21'10" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | C |
Rooms specifications

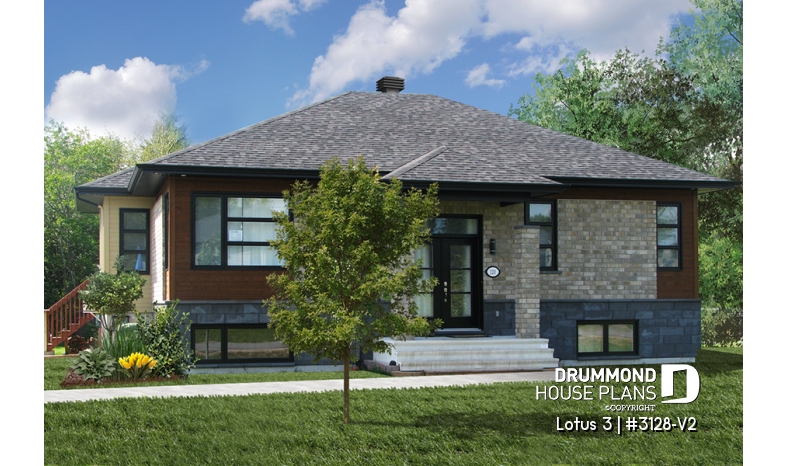

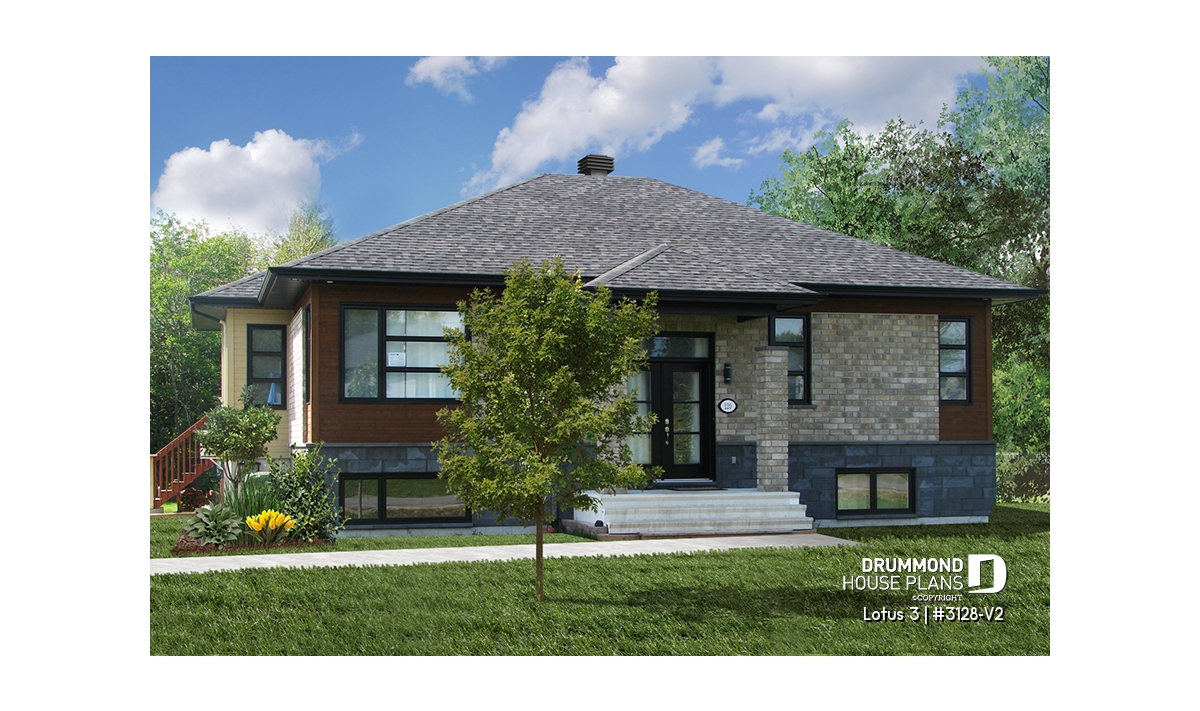

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

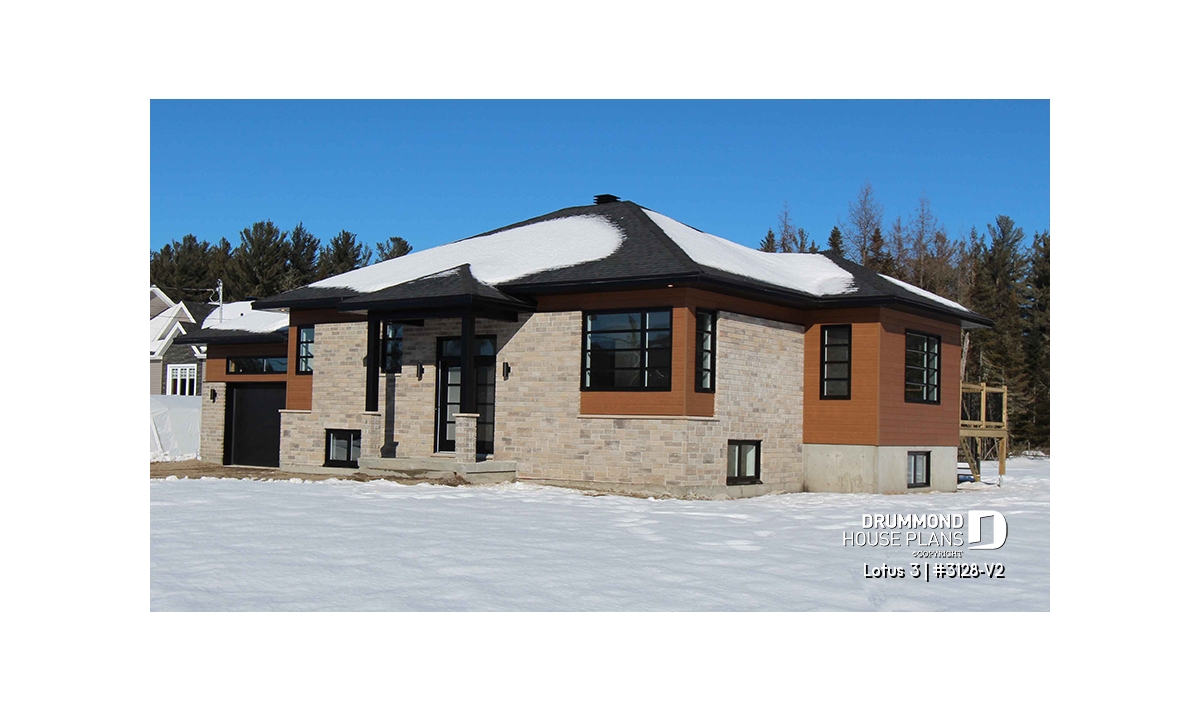

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan
Sweetly Serene Bungalow with 2 bedrooms and garage
Modern lines, contemporary windows and a low profile create a very serene sense of home in this new release. Homeowners will appreciate the covered entry and attached garage as well as numerous amenities on one level.
The living area is bright and open allowing for inclusive social gatherings from anywhere from the living room, dining room or kitchen. Two bedrooms share discreet access to a bathroom with soaker tub and independent shower. A hall laundry closet is equally well-placed within easy reach of the bedrooms or kitchen.
Patio doors provide an easy path to the back yard and garden enjoyment. A raised basement is a blank palette awaiting your ideas for living or recreation space.
A versatile plan for families or empty nesters sure to be liveable through all of life’s stages.
Distinctive elements
Abundant windows in the main living area. Kitchen with a central lunch island. Bathroom with a separate 3 ft x 4 ft shower. Closets at both the main and the garage entrances. Garage with stairs to the basement.
Plan feature(s)
Island, Gound floor laundry room, Basement access from garage, Separate bath and shower, Open floor layout
Plan architectural style(s)
. Modern / Design, . Contemporary, . Ranch, . Mid-century
Similar plans
Previously Viewed Plans
Questions and comments
January 14
gabriel mwaipopo
i like the plans
January 14
Customer service
Thank you!
August 28
ALFRED JALLOH
Is it possible to modify this home from a 2-bedroom to
a 3-bedroom with the same square footage? It will be ok to eliminate some rooms such as the foyer, additional closets, laundry and linen room, and pantry. Thank you.
Best regards,
Alfred Jalloh
August 28
Customer service
Good day Mr. Jalloh and thank you for your interest in our plans.
The changes that you would like to make to this plan are possible, all you need to do is to fill in the details on our on line modification form the link for which you will find below.
http://www.drummondhouseplans.com/plan-modification-services/online-estimate-form/plan/1003109.html
We will be happy to return a free estimate for the modifications within two business days of receipt of your request.
Please let me know if you have any other questions or comments.
Regards
Deborah
