House plan Joshua 3 (1703-V2)
Small Modern house plan 2 bedrooms + office, compact kitchen with island and pantry, large 2nd floor terrace
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Bedroom | 9'4" x 9'8" | ~ 8'0" |
| Closet | 3'2" x 2'0" | ~ 8'0" |
| Bathroom | 9'4" x 5'0" | ~ 8'0" |
| Shower | 5'0" x 2'8" | N/A |
| Home office | 8'2" x 9'8" | ~ 8'0" |
| Kitchen | 11'6" x 10'0" | ~ 8'0" |
| Kitchen island | 5'0" x 2'6" | N/A |
| Porch | 22'0" x 4'4" | N/A |
| Covered porch | 19'6" x 5'0" | ~ 7'6" |
| Covered porch | 8'0" x 4'4" | ~ 7'6" |
| Pantry | 4'4" x 6'0" | ~ 8'0" |
| Living room/dining room | 11'6" x 18'8" | ~ 8'0" |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Deck | 12'0" x 30'0" | N/A |
| Master suite | 12'8" x 10'6" | ~ 8'0" |
| Walk-in closet | 4'8" x 9'4" | ~ 8'0" |
| Full bathroom | 7'8" x 9'8" | ~ 8'0" |
| Shower | 4'6" x 3'0" | N/A |
| Linen | 1'6" x 1'6" | N/A |
General specifications
| Total living area | 1200 sq.ft. |
| 1st level | 780 sq.ft. |
| 2nd level | 420 sq.ft. |
| Width | 26'0" |
| Depth | 30'0" |
| Ridge height from top of foundation | 21'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Crawl space, Monolithic Slab |
| Builder price code | C |
Rooms specifications
Bedroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Bathroom
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.

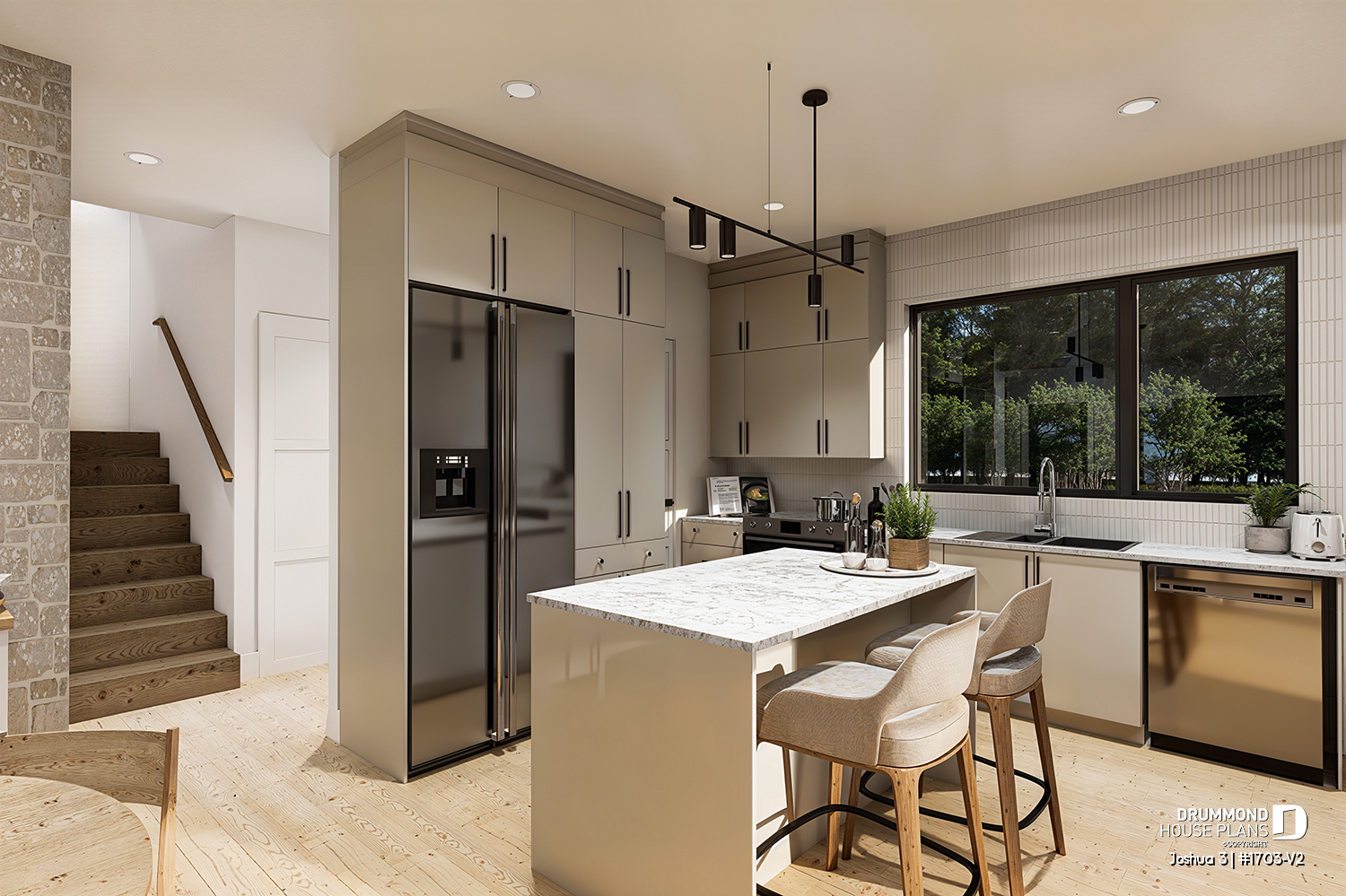

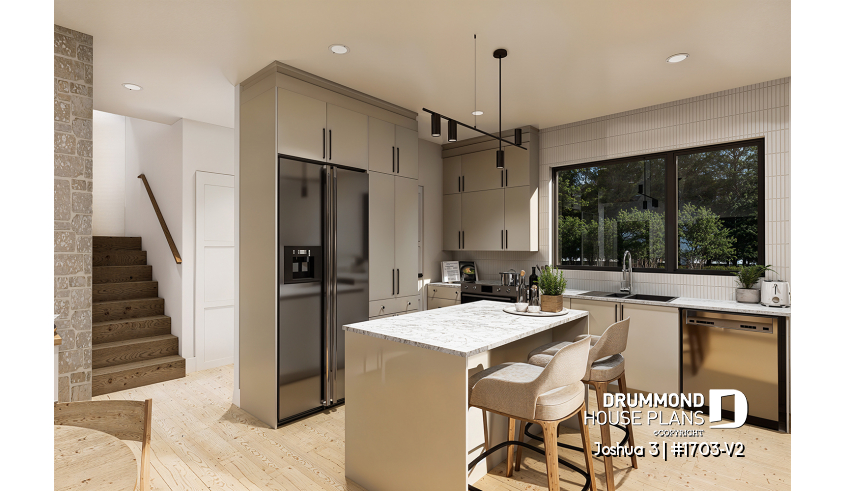

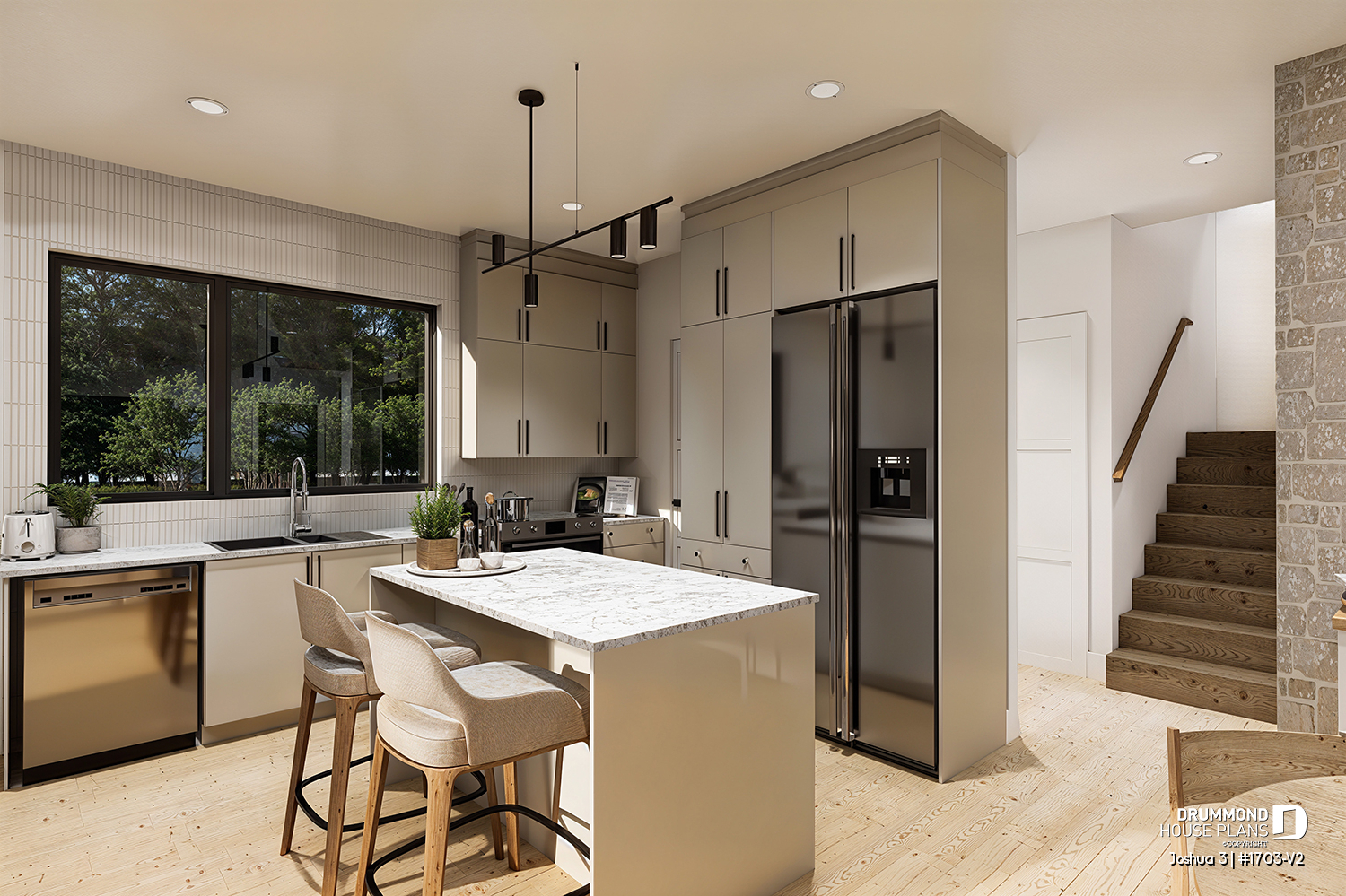

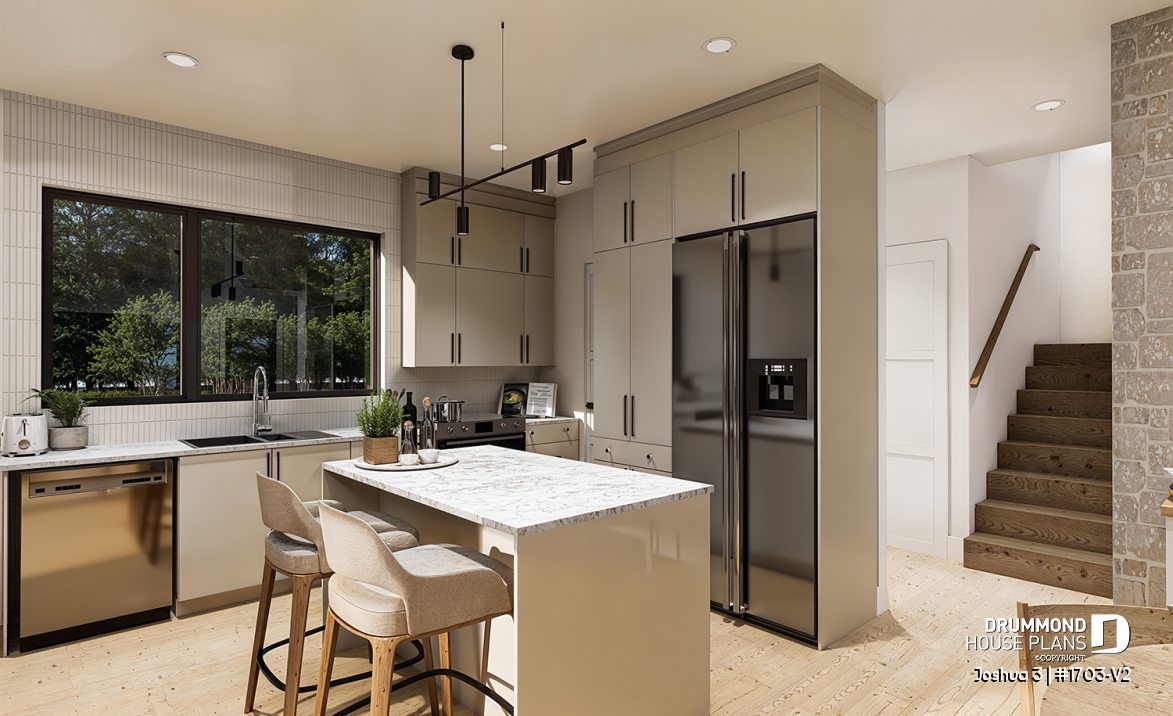

Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Kitchen
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Dining room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Foyer
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Sitting room
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Other useful information on this plan

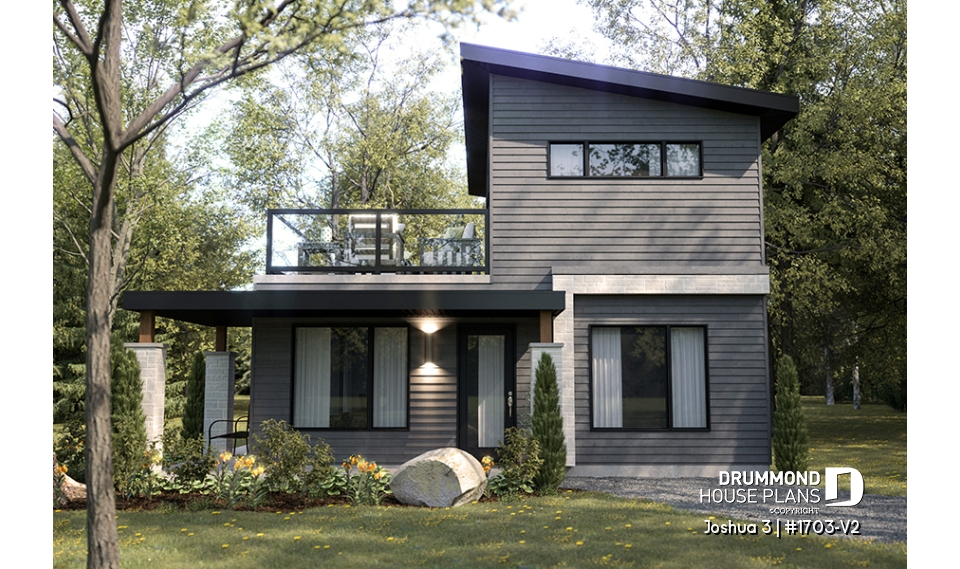

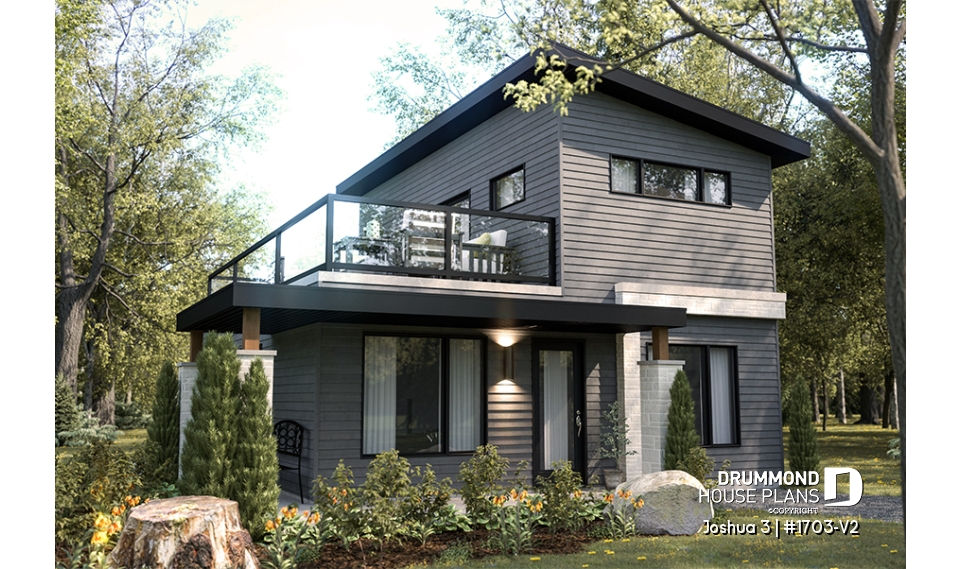

Modern and compact house plan with 2 to 3 bedrooms, 2 bathrooms and large private terrace on the second level!
Joshua 3 house plan (1703-V2) offers a total living area of 1200 sq. ft. All ceilings are 8 ft. high. The planned foundation is a floating slab, although other foundation options are available.

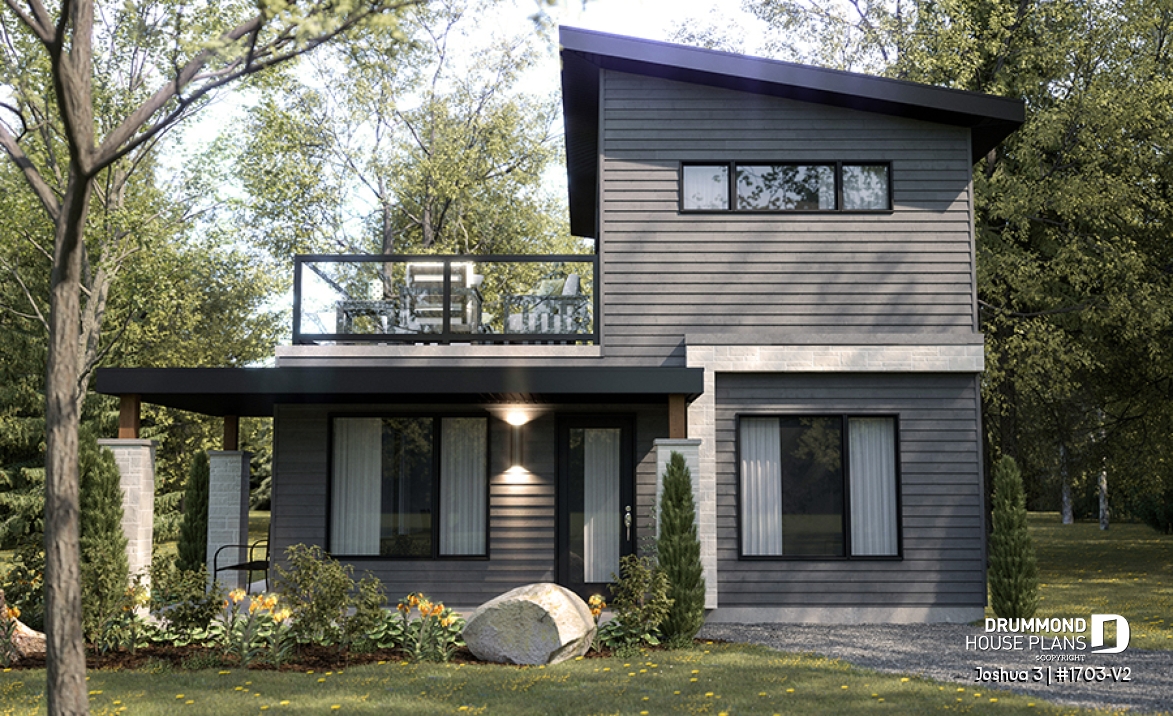

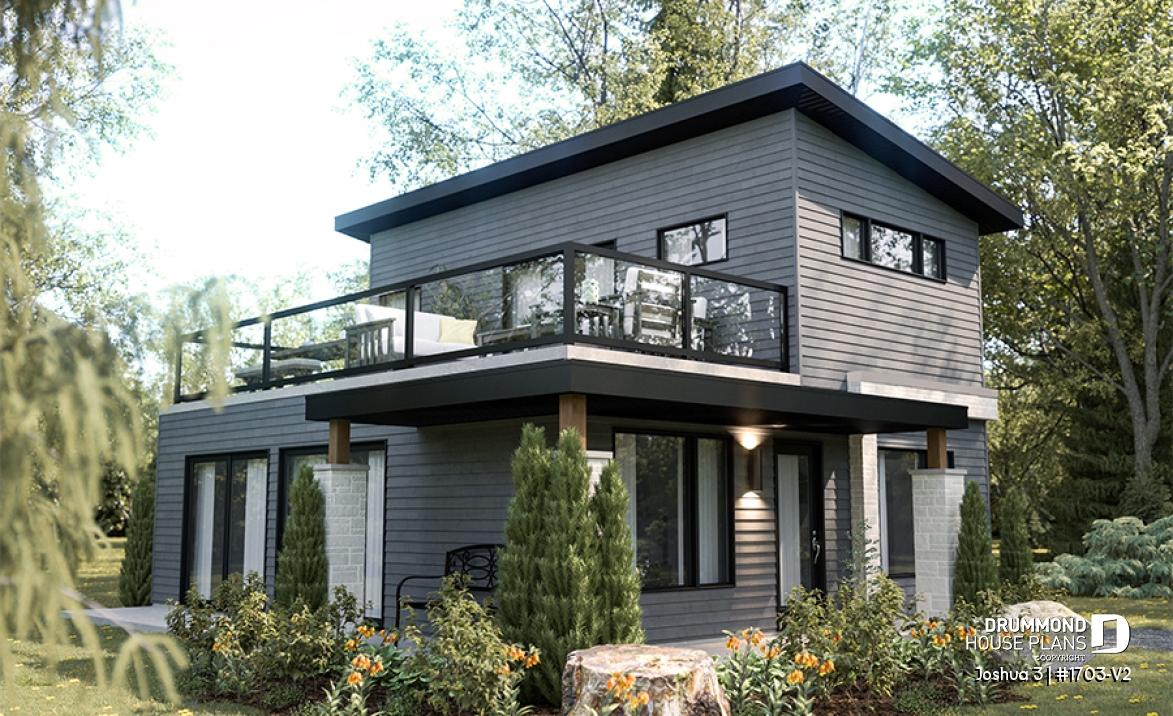

The front balcony is covered, and the side balcony on the right is partially sheltered as well. Depending on the orientation of your house, plan this portion to the south, in order to take advantage of the maximum amount of sunlight in the kitchen, dining room and living room.
*PLEASE NOTE: All our plans are available in a "reading reverse" version to allow you to take advantage of maximum natural light, depending on the orientation of your lot.

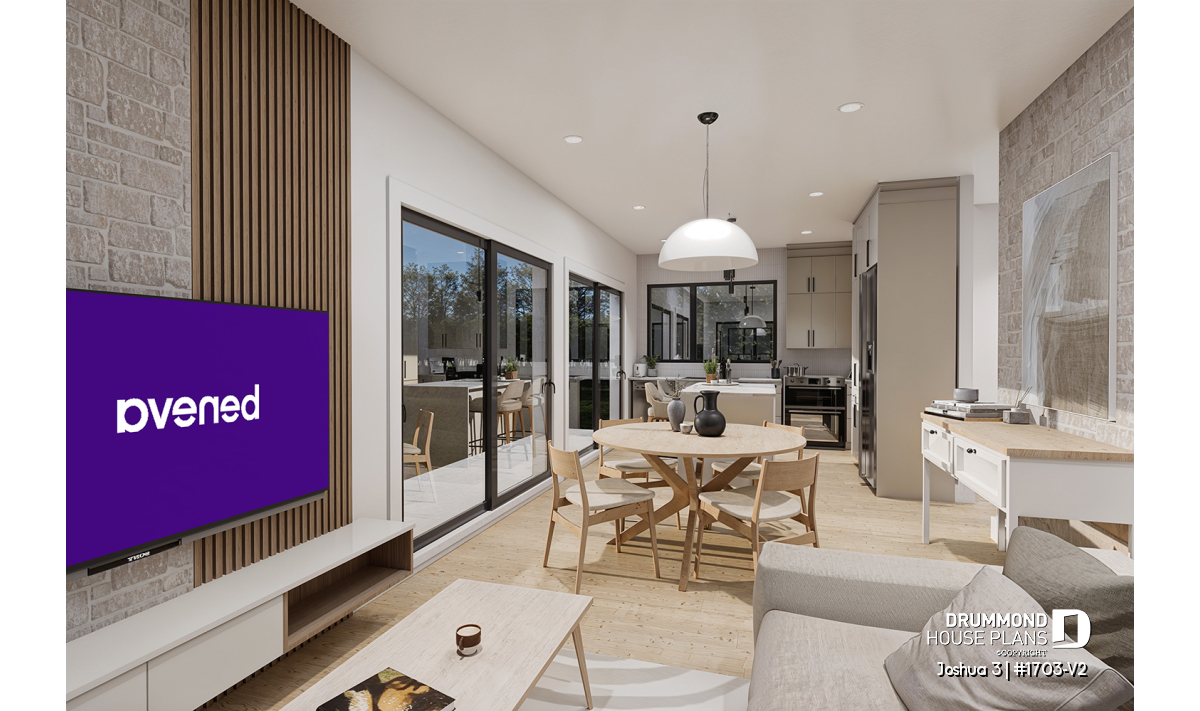

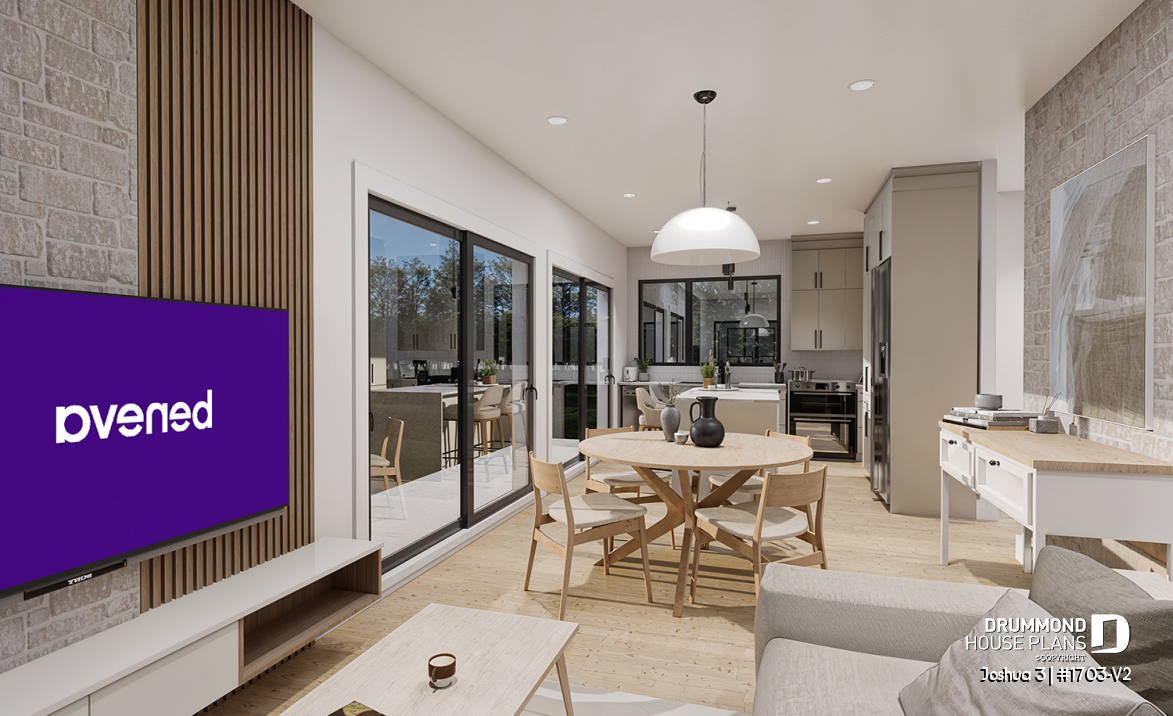

When entering this modern house, a seating area and a dresser are on the left. On the right we see the living room, the kitchen and the dining room which are open concept. This area receives ample natural light via 2 separate patio doors.

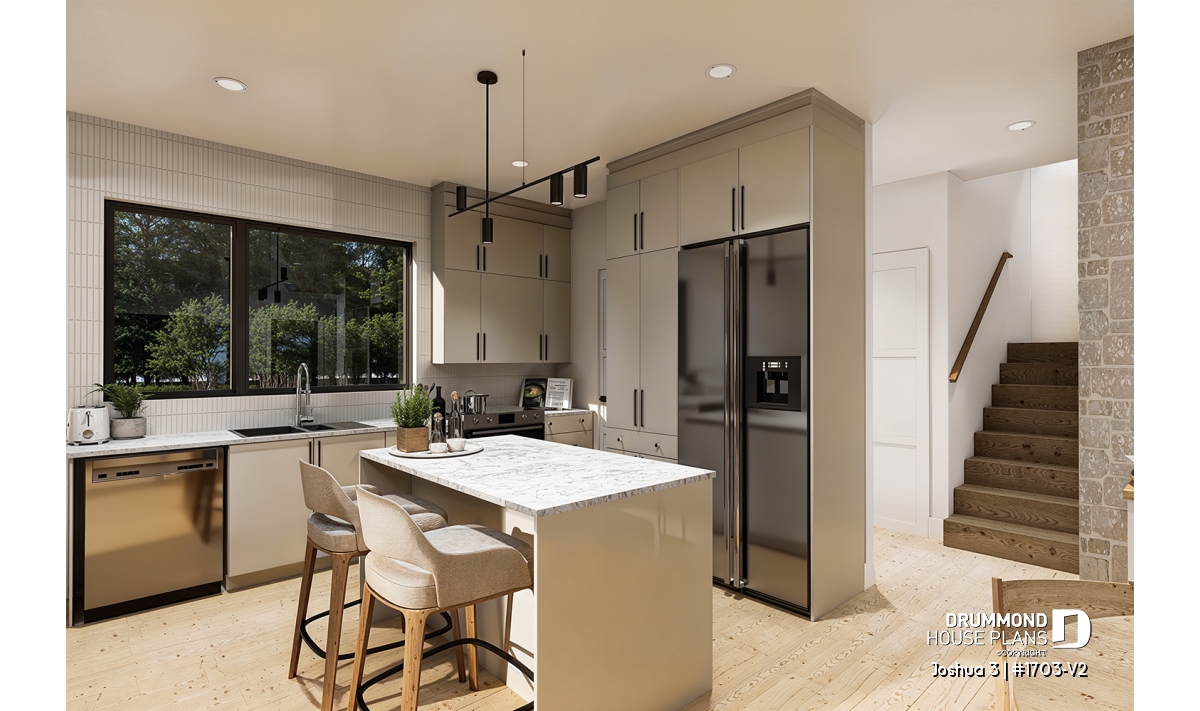

The kitchen offers an island as well as a walk-in pantry. A guest bedroom (bedroom #2), an office (or bedroom #3) and a shower room complete the ground floor.

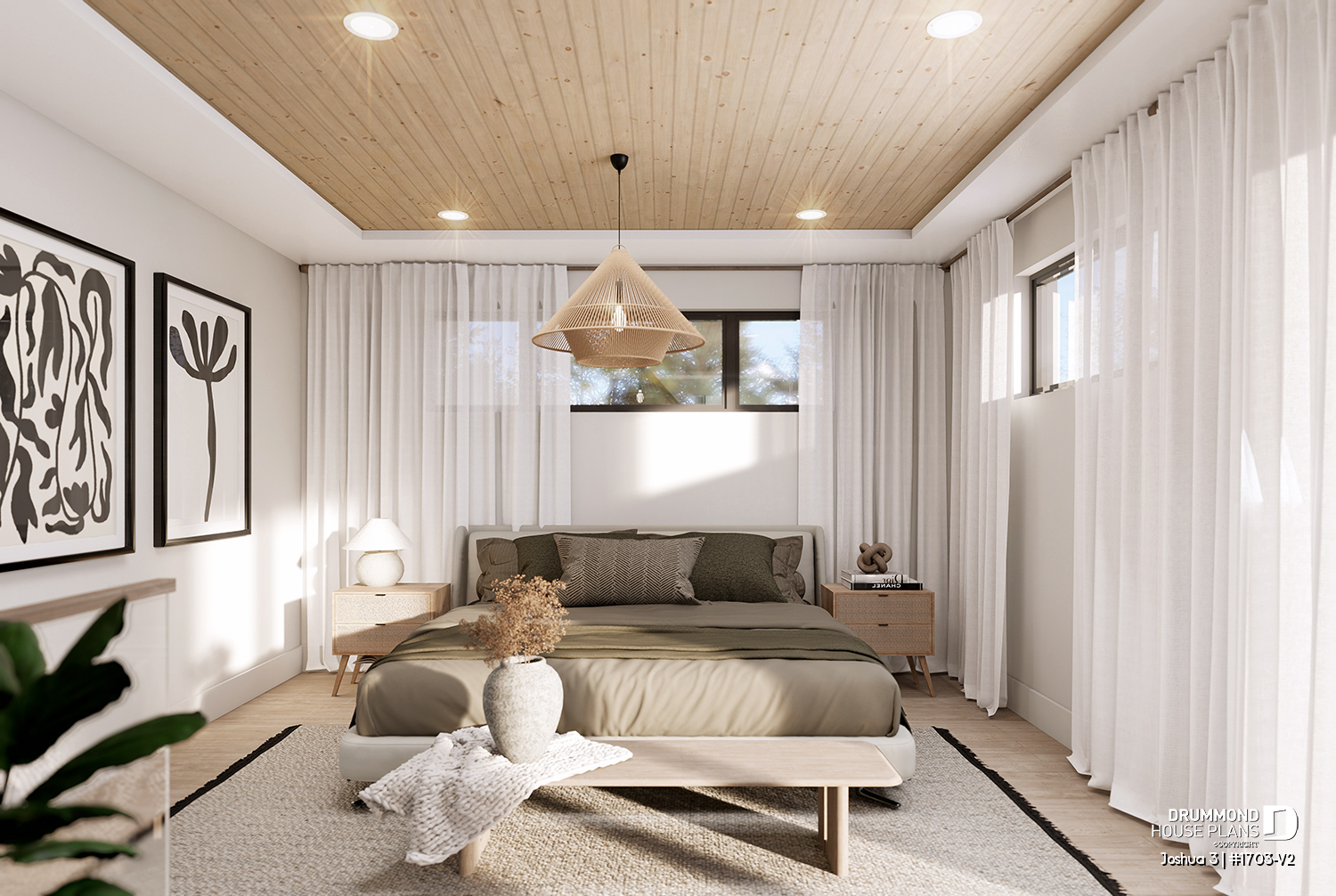

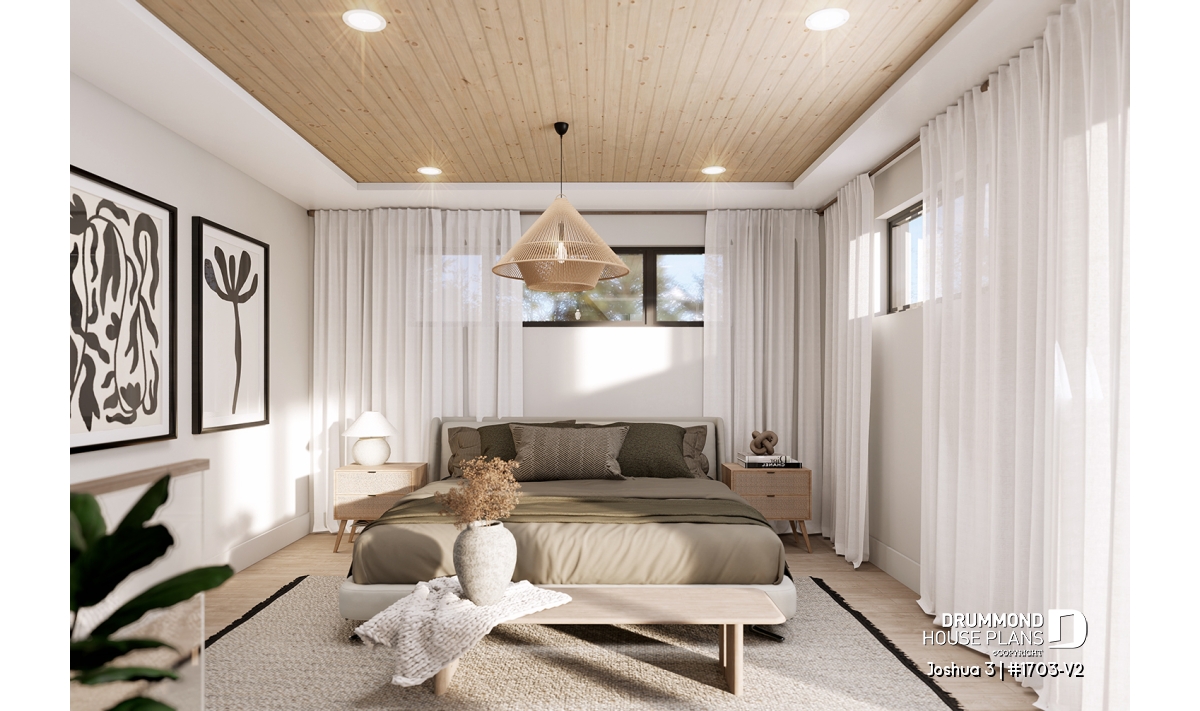

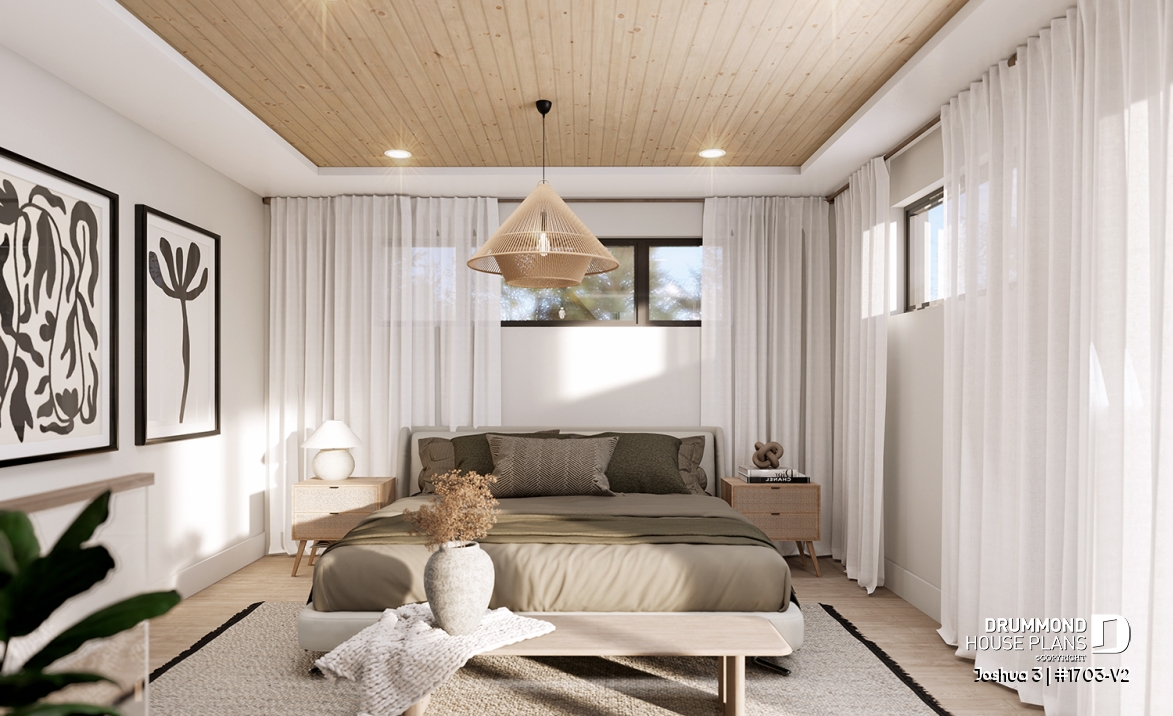

Upstairs is the main bedroom suite. It was designed to ensure good moments of relaxation, with its coffee bar and reading area, as well as private access to the beautiful and large 360 sq. ft. terrace (12' x 30'). In addition, it has a private bathroom with separate bath and shower, and a walk-in closet with stacked washer and dryer.
As a second home or main home, this splendid and compact contemporary house has everything to please with tons of amenities!
Distinctive elements
Compact and modern home with efficient flooring space and large upstairs terrace.
Partially covered front and side porch.
Lots of natural light in the kitchen and dining room via 2 separate patio doors. The latter opens onto an unsheltered portion of the side balcony.
Entrance with seating space and small coat closet (dresser style).
Open concept ground floor.
Walk-in pantry and island in the kitchen.
Guest bedroom #2 planned on the ground floor.
Versatile space in bedroom #3 that can be used as an office or playroom.
Superb master bedroom upstairs with full private bathroom and walk-in closet. It also provides space to add a stacked washer-dryer.
A coffee bar area is also designed in the master bedroom, as well as a reading area.
Large unsheltered terrace upstairs measuring 12' x 30'.
Plan feature(s)
Panoramic view, Balcony 2nd floor, Master suite upstairs, Walk-in master bed., Separate bath and shower, Pantry, Island, Second floor laundry room, Bench seat(s), Open floor layout, Coffee bar, Warparound
Plan architectural style(s)
. Contemporary, . Cottage, chalet, cabin, . Ski chalets, . Cabin plans, . Mid-century, . Modern / Design, . Vacation and waterfront, . Modern rustic
