front - BASE MODEL
1st level

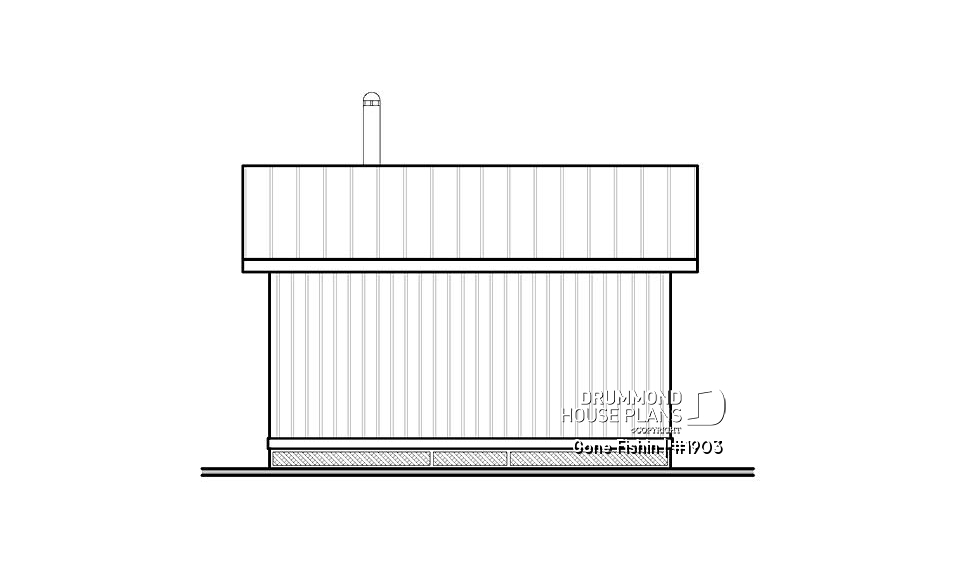

rear elevation
Gone Fishin House plan 1903
Small 3 and 4-season cabin plan, economical, large covered balcony, open concept, micro house
Starting from
1220$
| Technical details summary | Plan #1903 | ||
|---|---|---|---|
| Total living area | 400 sq.ft. | Bedroom | 1 |
| Full baths | 1 | Half baths | - |
| Foundation included | Screw pile | Garage | - |
| Width | 20'0" | Depth | 20'0" |
Additional details
General specifications
Total living area
400 sq.ft.
1st level
400 sq.ft.
Width
20'0"
Depth
20'0"
Ridge height from top of foundation
14'1"
Exterior wall
2 X 4
, 2 X 6
Screw pile
Other available foundations (a fee may apply)
Floating Slab, Crawl space, Monolithic Slab
Builder price code
AA
Rooms specifications
Bedroom(s)
1
Full baths
1
Half baths
-
Garage type
-
Covered porch area
80 sq.ft.
1st level
Rooms
Sizes
Ceiling
Full bathroom
5'8" x 8'4"
~ 8'2"
Bedroom
13'0" x 8'4"
~ 8'2"
Porch
20'0" x 4'0"
N/D
Activity room
19'0" x 10'4"
~ 8'2"
Perfectly simple cabin plan for up to 6 people
Who said you have to rough it in the woods? This charmingly simple 400 sq. ft. recreation cottage cleverly accommodates all creature comforts, including a bedroom, shower room, kitchen with dining area, living room and even space to warm up next to a wood stove.
Of course, the porch is the crowning glory - a perfect place to relax before or after fishing or a hike.
This cottage would be equally as enjoyable as a guest suite or mortgage helper where zoning allows.
In order to respect the building code and also meet the multiple needs of our customers, you will have two (2) versions of the cottage design included in your plan.
A first version will include an uninsulated and unheated version for seasonal use only (3 seasons). The walls are 2 '' x 4 '', the floor joists are 2 '' x 8 '' and the rafters are 2 '' x 8 '' for the roof.
The second version is an isolated and heated version for permanent occupation (4 seasons). For this one the walls are 2 '' x 6 '', the floor joists are 2 '' x 10 '' and the roof is designed with roof trusses.
**BCIN certification for Ontario residents only: as the 2x4 and 2x6 wall versions are included in the plan you will receive, the BCIN certification service is only offered on the 2x6 wall version. Please contact us for details, if needed.
Both versions are provided on screw piles to ensure stability. However we can design other types of foundation for this plan to better suit your needs if necessary. You need simply contact us for details.
The cost of the estimated materials is for the seasonal version and not the isolated version. Except for the screwed piles that are included in our cost, our cost of the estimated materials excludes the expenses related to the foundation specified in the details of the chosen plan (in the line "Type of foundation"), electricity, plumbing, heating and labor. In addition, the price of materials represents a provincial average that can vary from 10% to 30%, depending on the region, the construction season and the quality of your materials. It is also based on the use of everyday quality materials that most contractors use.
Distinctive elements
Simple and affordable 1 bedroom cabin plan.
3-season (not heated) and 4-season (heated) construction options included in the house plan.
Kitchen and family room open concept.
Can accomodate up to 6 people.
Ceiling sloping from 8 'to 12'.
Balcony sheltered at the front of the chalet.
Panoramic view chalet.
Plan feature(s)
Wood stove, Open floor layout, Cathedral ceiling
Plan architectural style(s)
Cottage, chalet, cabin, Country, Vacation and waterfront, Cabin plans
The plan Gone Fishin is protected by the copyright law.
The illustrations shown may differ from the detailed construction plans you will receive, as plans are regularly updated to comply with current building codes.
Photos displayed on this page may reflect modifications made by homeowners and may vary from the original plan.
