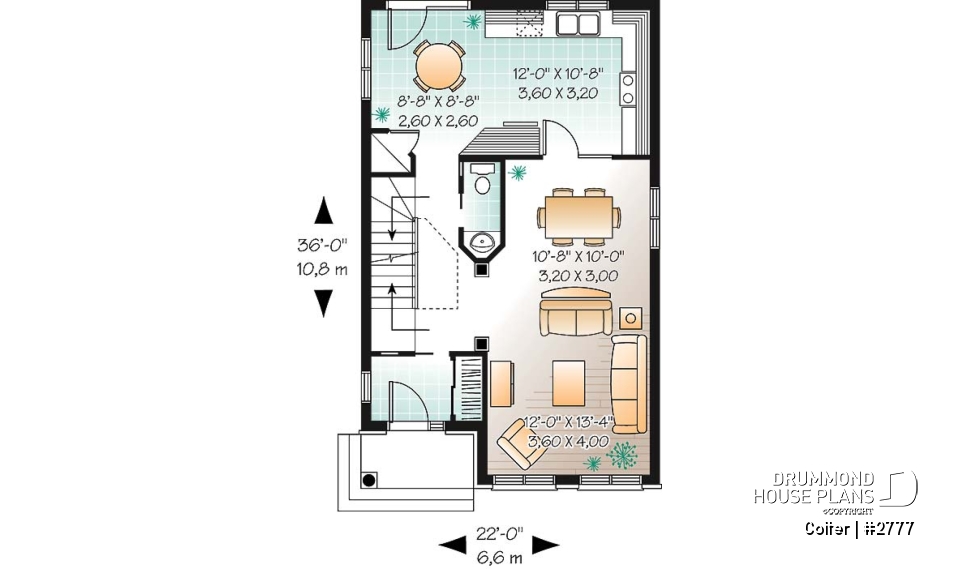

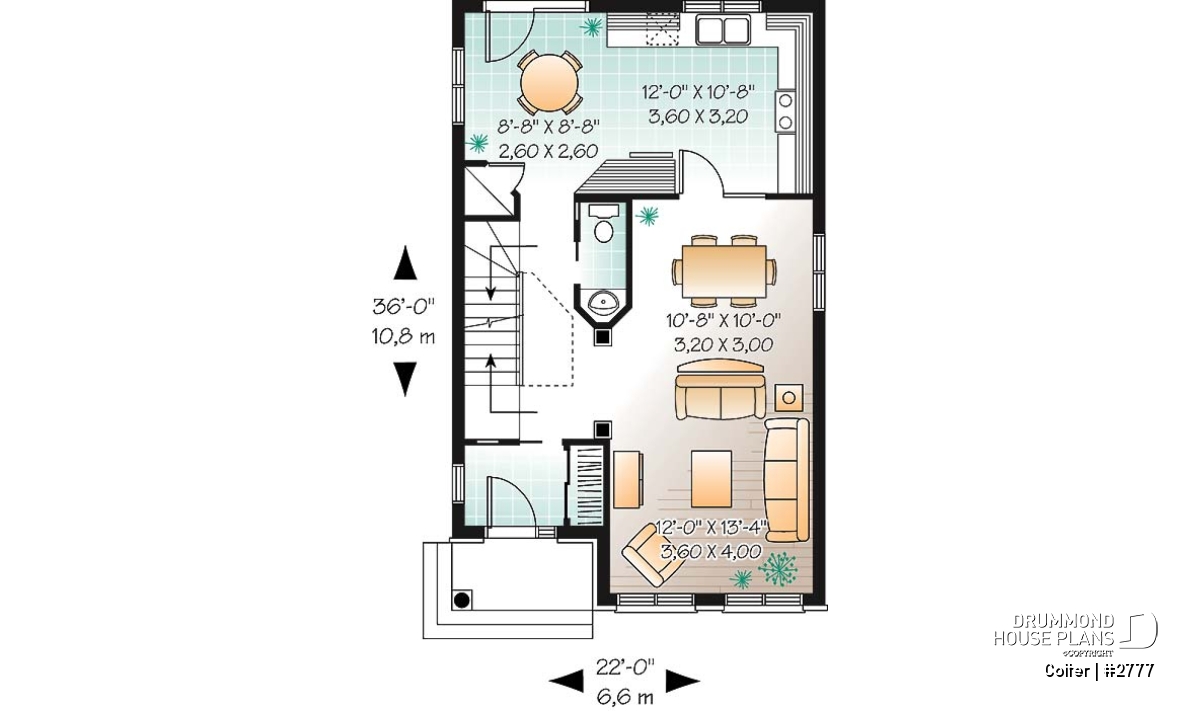

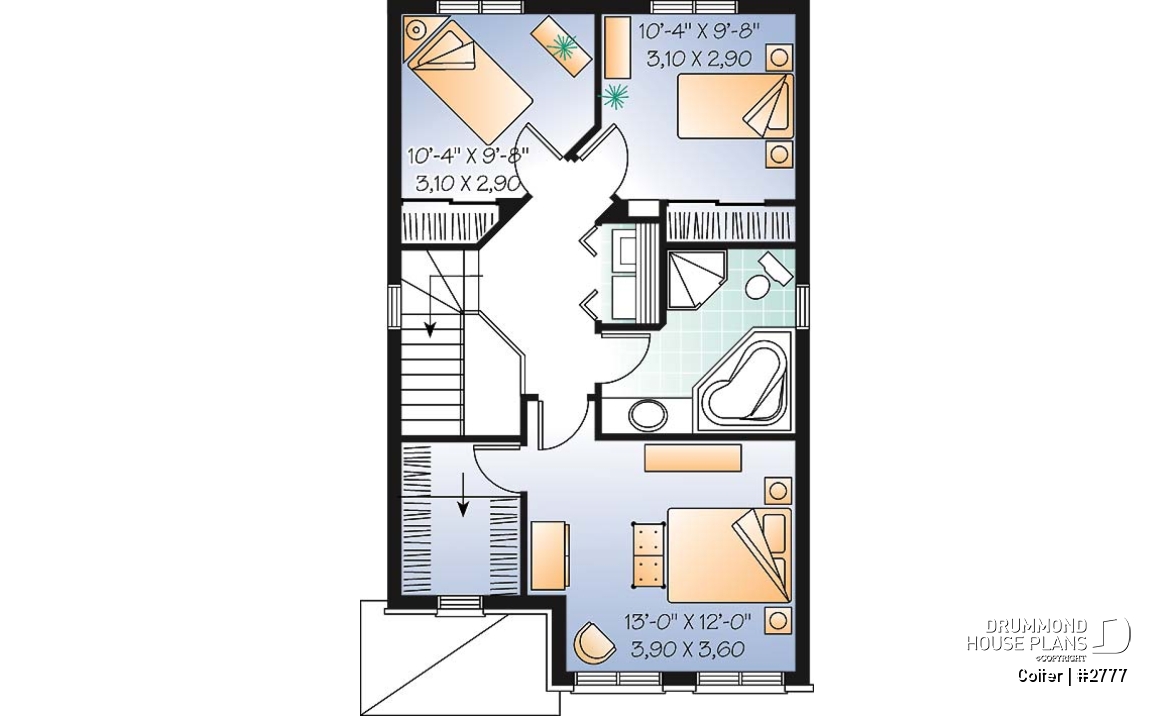

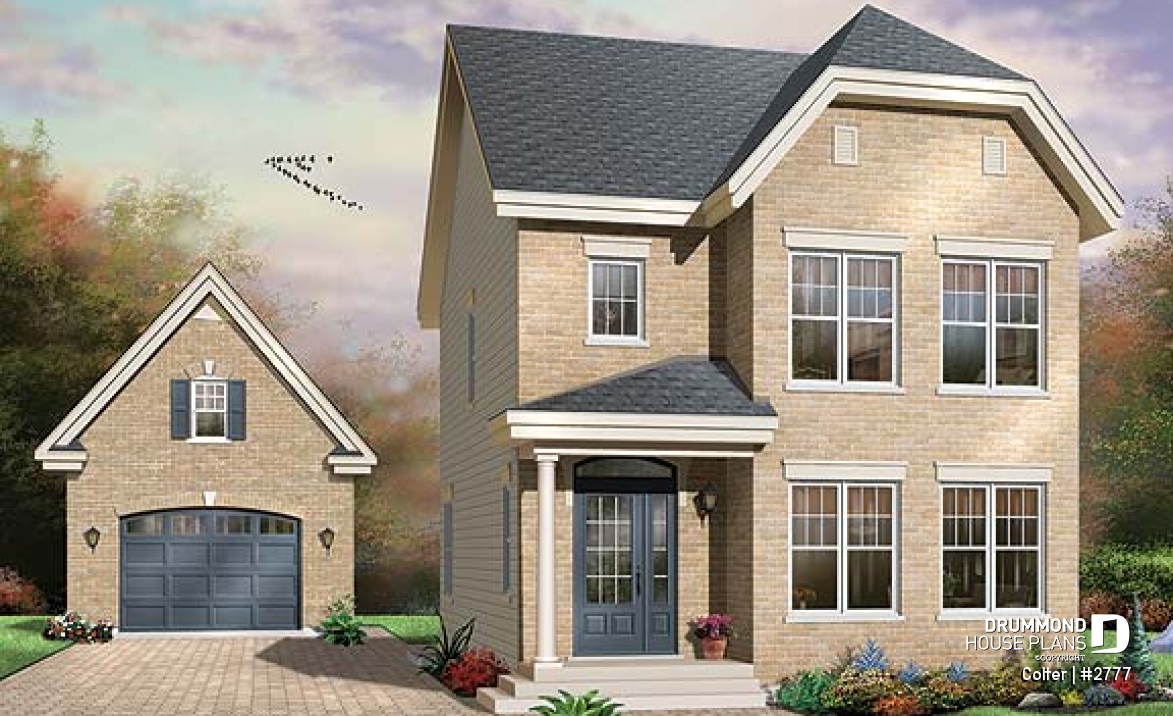

Narrow lot 3 bedroom low-budget house plan with breakfast nook, open concept dining and living room
View the size of the rooms and height of the ceilings
|Half bath or powder room||2'10" x 7'4"||~ 8'0"|
|Kitchen||12'2" x 10'8"||~ 8'0"|
|Dining room||10'8" x 10'0"||~ 8'0"|
|Living room||12'0" x 13'4"||~ 8'0"|
|Foyer||6'0" x 4'10"||~ 8'8"|
|Porch||8'4" x 4'0"||N/A|
|Porch||9'0" x 4'0"||N/A|
|Dinette||8'6" x 8'8"||~ 8'0"|
|Full bathroom||9'8" x 10'2"||~ 8'0"|
|Bedroom||13'0" x 12'0"||~ 8'0"|
|Bedroom||10'2" x 9'8"||~ 8'0"|
|Bedroom||10'2" x 9'8"||~ 8'0"|
|Utility room||5'2" x 3'0"||~ 8'0"|
|Total living area||1501 sq.ft.|

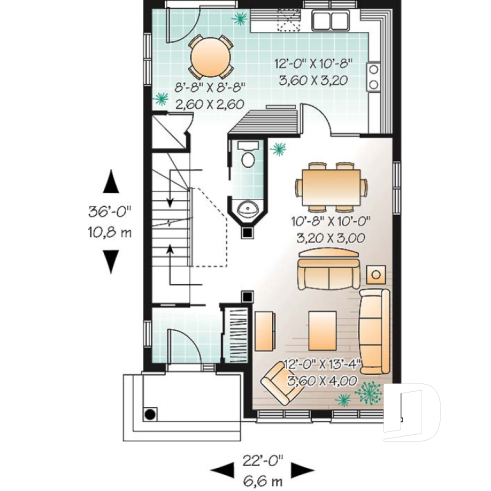

|1st level||759 sq.ft.|

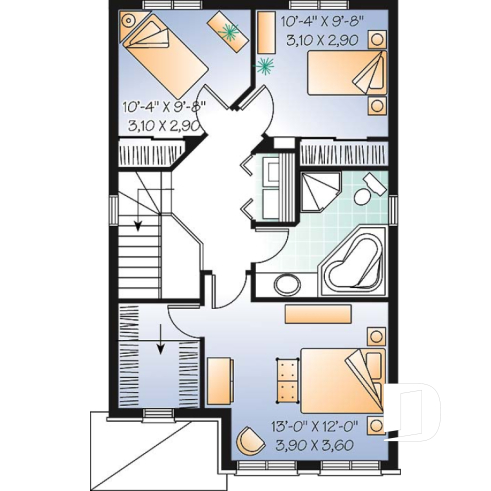

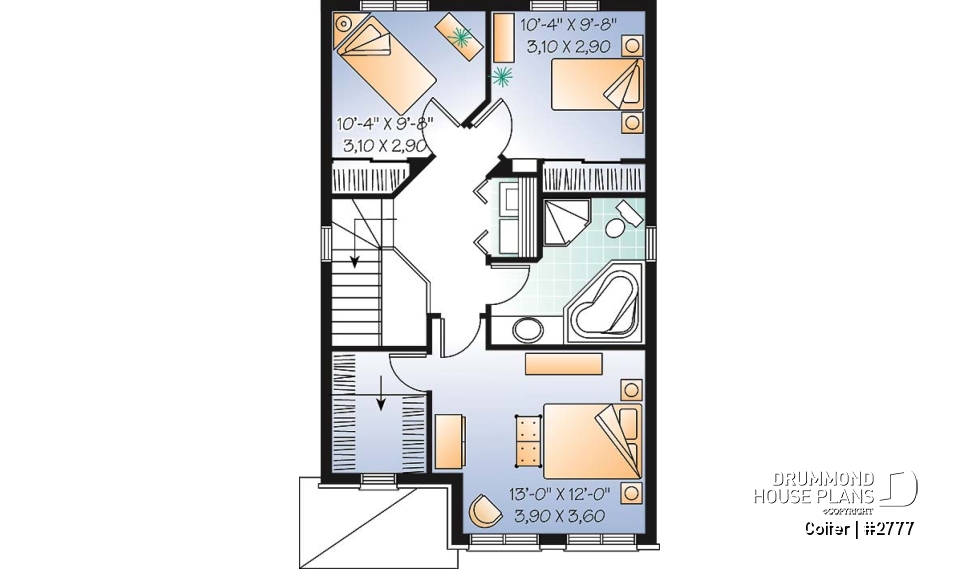

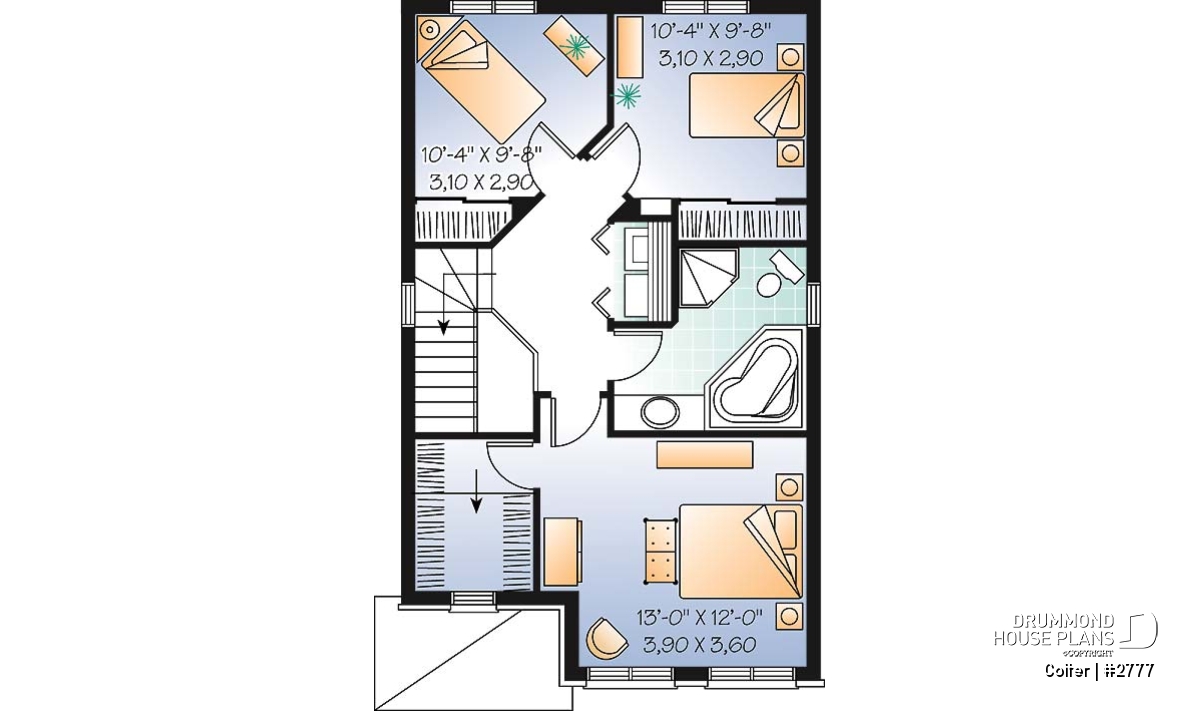

|2nd level||742 sq.ft.|
|Ridge height from top of foundation||31'1"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||D|
|Living bonus space||-|
Other useful information on this plan
