House plan Brinkley (3839)
Somptuous 4 to 5 bedroom manor style house plan, 10' ceiling on main floor, cathedral in living room, library
View the size of the rooms and height of the ceilings

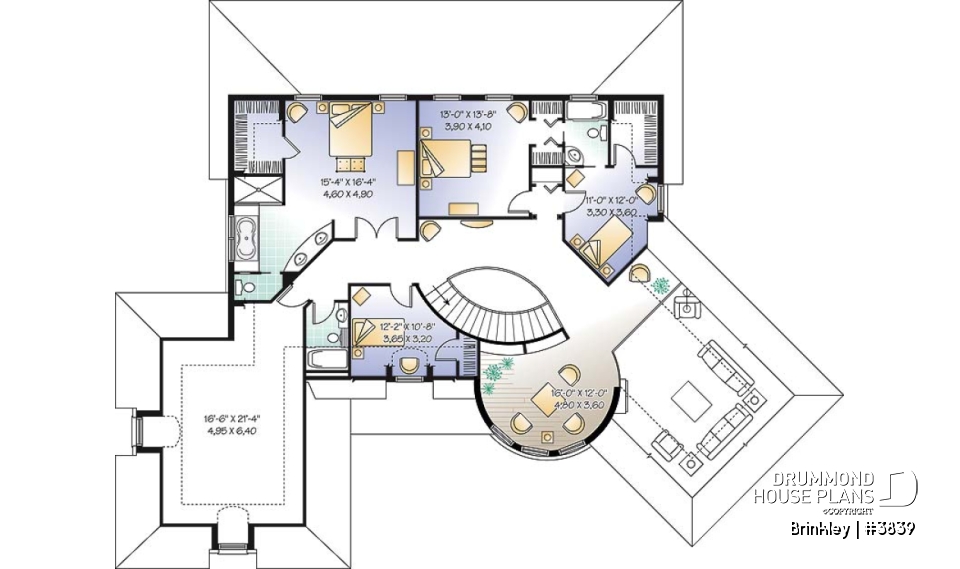

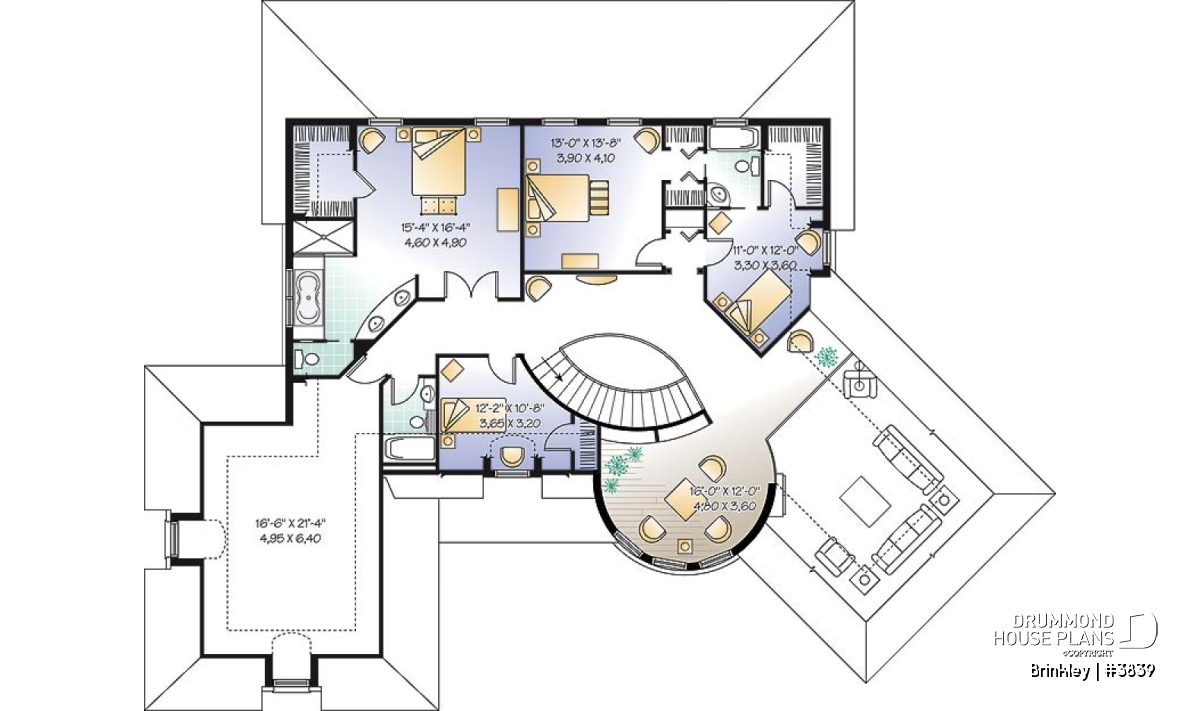

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 5'0" x 7'8" | ~ 9'0" |
| Full bathroom | 5'0" x 7'8" | ~ 9'0" |
| Den | 16'0" x 12'0" | ~ 9'0" |
| Master suite | 15'4" x 16'4" | ~ 9'0" |
| Bedroom | 13'0" x 13'8" | ~ 9'0" |
| Bedroom | 11'0" x 12'0" | ~ 9'0" |
| Bedroom | 12'2" x 10'8" | ~ 9'0" |
| Living bonus room | 16'6" x 21'4" | ~ 9'0" |
| Linen | 3'8" x 2'0" | ~ 9'0" |

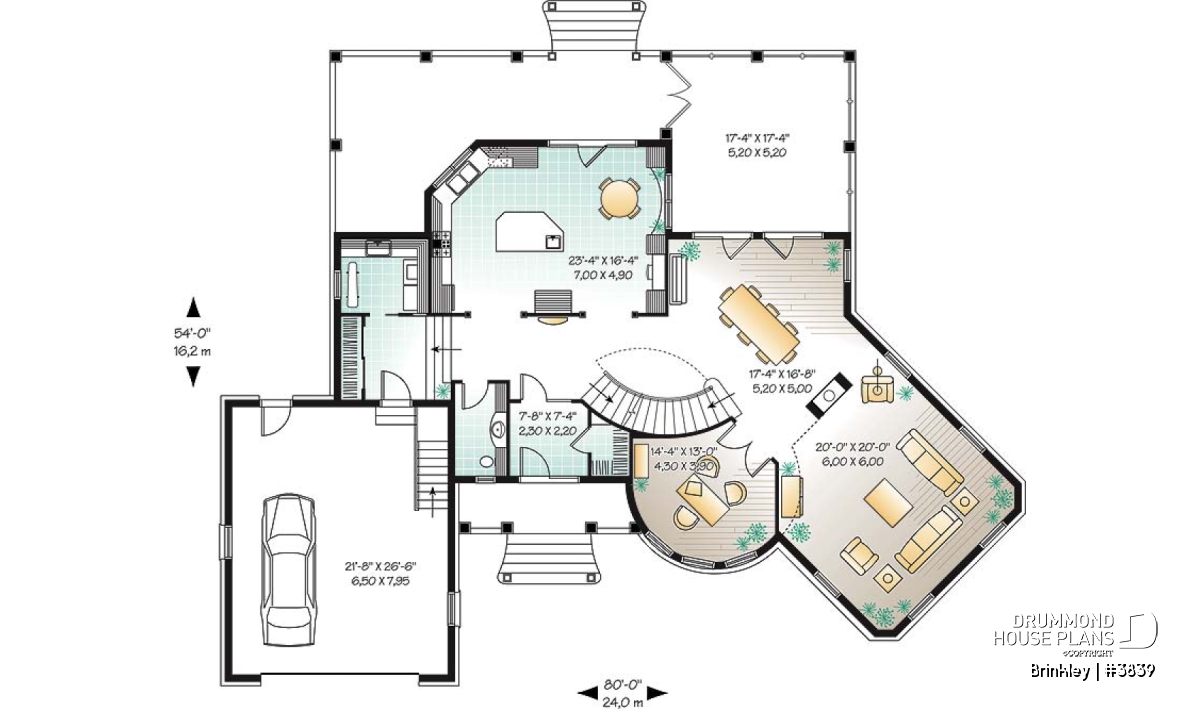

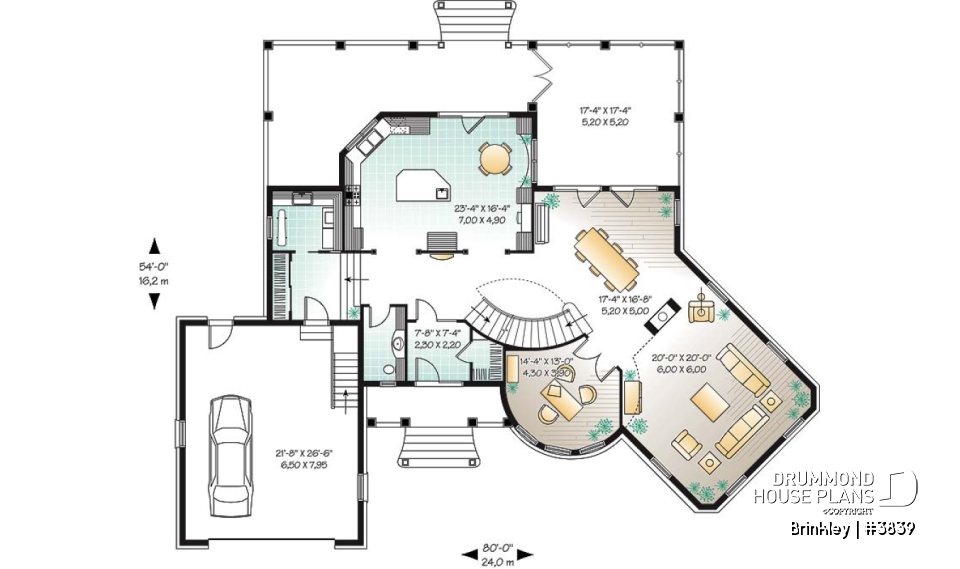

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 5'0" x 9'4" | ~ 10'0" |
| Kitchen/dinette | 23'4" x 16'4" | ~ 10'0" |
| Dining room | 17'4" x 16'8" | ~ 10'0" |
| Living room | 20'0" x 20'0" | ~ 20'6" |
| Home office | 14'2" x 13'0" | ~ 10'0" |
| Foyer | 7'8" x 7'4" | ~ 10'0" |
| Laundry room | 8'8" x 7'4" | ~ 10'0" |
| Garage | 21'8" x 26'6" | ~ 13'4" |
| Closet | 8'6" x 2'0" | ~ 10'0" |
| Covered porch | 18'0" x 5'0" | N/A |
| Covered deck | 33'0" x 18'0" | N/A |
| Mosquito Shelter | 17'4" x 17'4" | N/A |
General specifications
| Total living area | 3649 sq.ft. |
| 2nd level | 1708 sq.ft. |
| 1st level | 1941 sq.ft. |
| Width | 80'0" |
| Depth | 54'0" |
| Ridge height from top of foundation | 50'2" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space |
| Builder price code | J |
Rooms specifications
Other useful information on this plan
Breathtaking 4 to 5 bedrooms house plan with 2-car garage, library and large covered terrace + screened in porch!
A joy to come home to, this grand plan fills 3649 sq. ft. with a minimum of 4 bedrooms, 3.5 baths, formal foyer, entry hall, and far-reaching main-floor ceilings that soar from 10’ to 20’ in the family room. Also find, a home office and mezzanine with built-in library. The exterior features a covered balcony, and spa-style covered terrace. Two-car garage.
Distinctive elements
Nice covered balcony at front. Large covered terrace at rear regrouping the spa, tables and chairs. Ceiling at 10 ft over nearly all of the main level, and at 20 ft in the vast family room. Particularly comfortable and original kitchen with island, secretary desk, storage space as well as independant breakfast area. Possibility of fifth bedroom on second level in mezzanine area instead of library.
Plan feature(s)
Screened porch, Mezzanine, Fireplace, Basement access from garage, Gound floor laundry room, Breakfast nook, Island, Mud room, Office / Study / Den, Ceiling over 8', Cathedral ceiling, Deck, Jack & Jill bath, Master suite upstairs, Walk-in master bed., Living bonus space, Formal dining room, Library
Plan architectural style(s)
Similar plans
Previously Viewed Plans
Questions and comments
April 13
Naji Najdi
I purchased this plan a while ago
I would like to know if you have anyone built this and would want some photos for the interiors
I am just wondering if you have or anyone has shared with you any décor or design for the interior
Thank you so much
Naji Najdi
April 13
Customer service
Good day and thank you for your purchase
There are unfortunately no photos on file for this particular model so I am unable to forward any but we would be delighted to receive your photos once the home is complete!
Please let me know if I can further assist you
Regards
Deb
