House plan The Wheaton (3842)
Luxurious Classical 4 to 5 bedroom house plan, 3-car garage, 2 master suites, home office, large bonus room

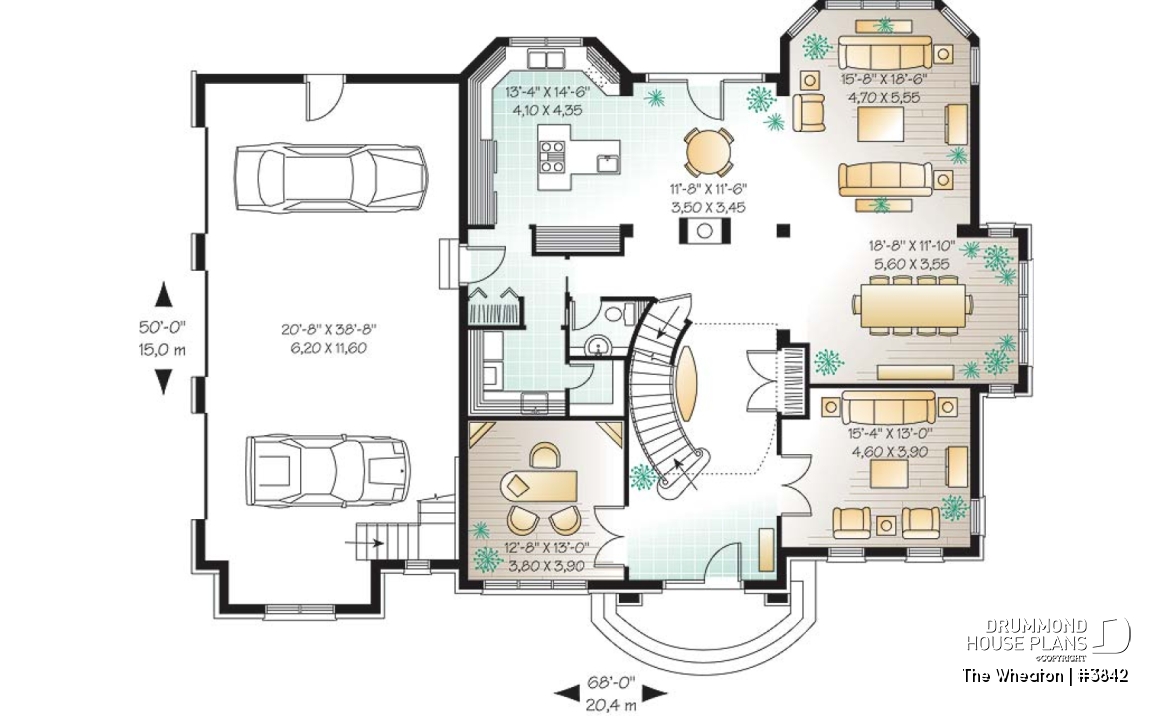

View the size of the rooms and height of the ceilings

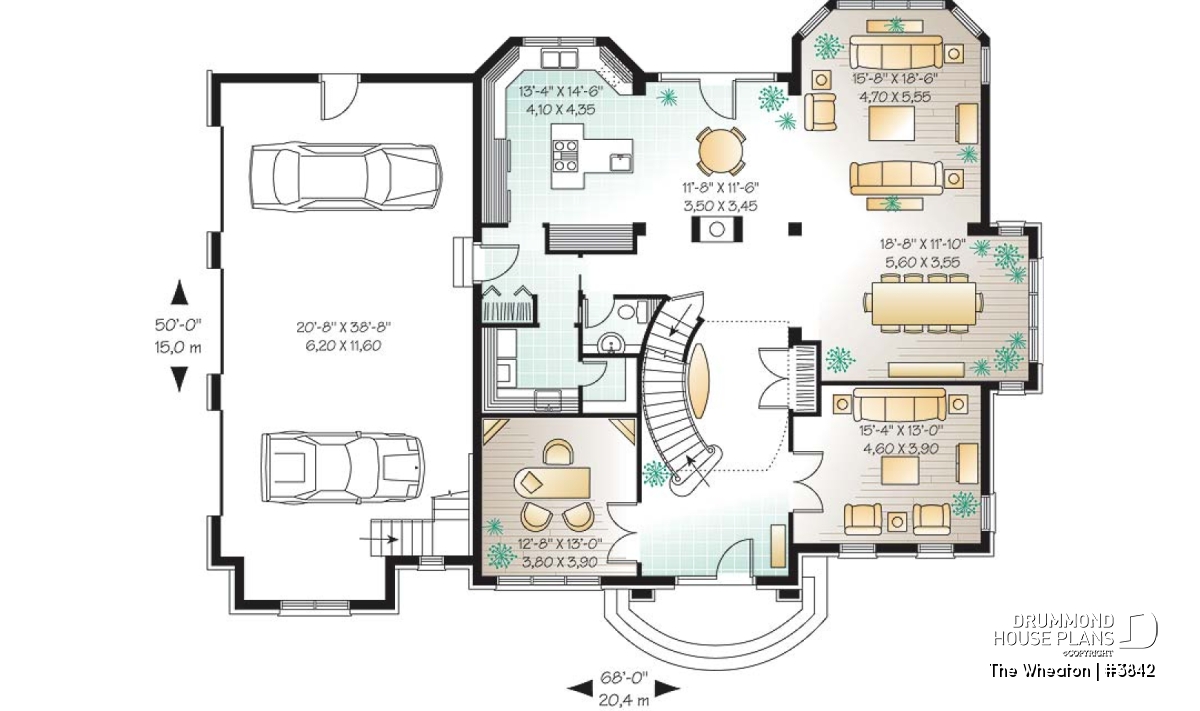

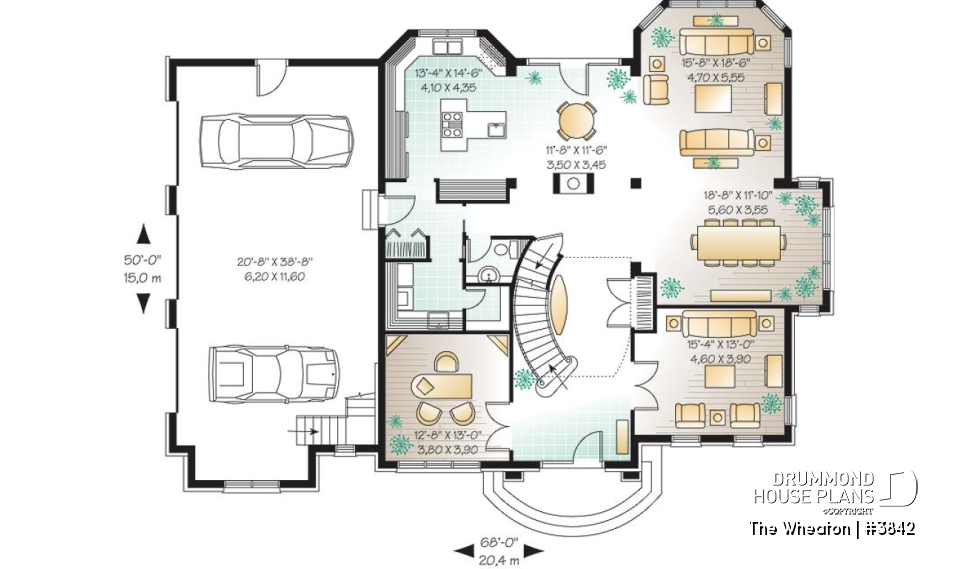

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 4'8" x 4'6" | ~ 10'0" |
| Kitchen | 13'4" x 14'6" | ~ 10'0" |
| Pantry | 6'10" x 2'0" | N/A |
| Breakfast nook | 11'8" x 11'6" | ~ 10'0" |
| Living room | 15'8" x 18'6" | ~ 10'0" |
| Home office | 12'8" x 13'0" | ~ 10'0" |
| Foyer | 12'0" x 6'6" | ~ 9'0" |
| Laundry room | 7'10" x 7'0" | ~ 10'0" |
| Garage | 20'8" x 38'8" | ~ 10'8" |
| Closet | 4'2" x 2'0" | ~ 10'0" |
| Covered porch | 14'0" x 4'8" | N/A |
| Storage | 4'6" x 4'6" | ~ 10'0" |
| Home theater | 15'4" x 13'0" | ~ 10'0" |
| Dining room | 18'8" x 11'10" | ~ 10'0" |

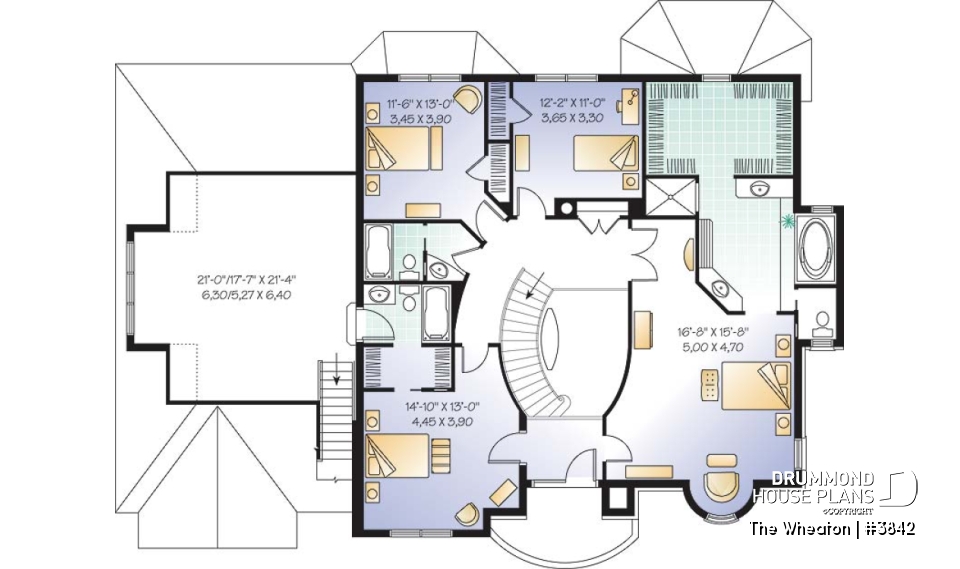

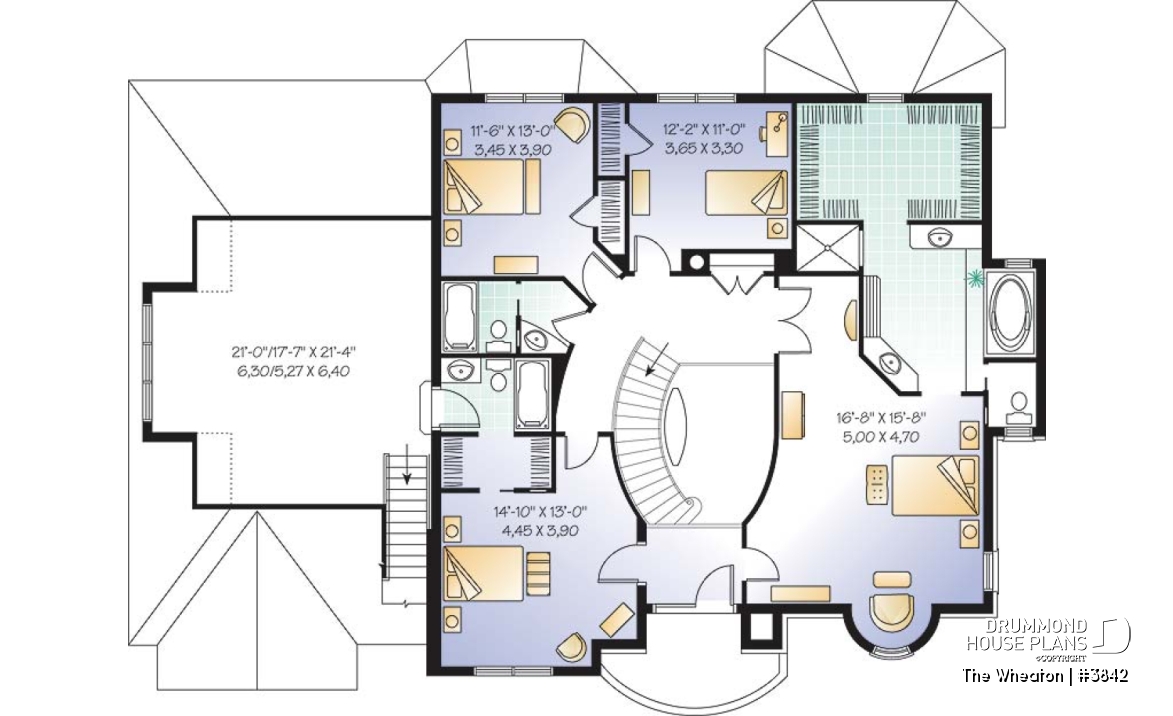

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 10'11" x 5'6" | ~ 9'0" |
| Master suite | 16'8" x 15'8" | ~ 9'0" |
| Bedroom | 14'10" x 13'0" | ~ 9'0" |
| Bedroom | 11'6" x 13'0" | ~ 9'0" |
| Bedroom | 12'2" x 11'0" | ~ 9'0" |
| Linen | 4'10" x 1'4" | ~ 9'0" |
| Living bonus room | 21'0" x 21'4" | ~ 8'0" |
| Balcony | 14'0" x 7'8" | N/A |
General specifications
| Total living area | 3620 sq.ft. |
| 1st level | 1909 sq.ft. |
| 2nd level | 1711 sq.ft. |
| Width | 68'0" |
| Depth | 50'0" |
| Ridge height from top of foundation | 43'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Full Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | J |
Rooms specifications
Other useful information on this plan
Manor style house plan with twelve comfortable rooms + 3-car garage
Quite remarkable with its beautiful exterior bulk, the interior space and natural lighting of this manor is all that and more.
First, on the main level we can appreciate a 10 foot ceiling height over the entire floor, a spacious and well balanced staircase, a most enviable home office, a vast dining room, a more reserved living room at the front and a large family room open to the rear and to the center of activities. The breakfast area for its part is embellished by a fireplace and triple garden doors and blends in well with a very practical kitchen with strategic central island. To this is added a laundry room independent from a half-bath, and a triple garage which is more and more searched for in this type of home.
On the second level, we first notice a 9 foot ceiling throughout the entire floor. We appreciate as well a very comfortable master bedroom suite endowed with a large closet and a spacious bathroom. We discover as well three other very good sized bedrooms sharing two bathrooms, without forgetting a respectably sized storage space accessed mainly from the garage.
Distinctive elements
10 foot ceiling on main floor and 9 foot ceiling on second floor, various versatile spaces on main floor including one office space, spacious kitchen with central island and various storage space, comfortable breakfast space with adjacent foyer, four bedrooms on second floor including one with access to the bonus room. Special ceiling treatments.
Plan feature(s)
Fireplace, Mezzanine, Ceiling over 8', Basement access from garage, Gound floor laundry room, Office / Study / Den, Panoramic view, Side entry garage, Pantry, Island, Open floor layout, Living bonus space, Master suite upstairs, Guest suite, Sloped ceiling, Walk-in master bed., Balcony 2nd floor, Oversized garage, Separate bath and shower, Double sinks, Breakfast nook, Formal dining room
Plan architectural style(s)
Similar plans
Previously Viewed Plans
Questions and comments
March 23
Mark L. Fraser
What is the approximate cost of building this house in Ontario?
March 23
Customer service
Good day Mr. Fraser and thank you for your interest in our plans.
Unfortunately, I do not have access to construction estimates for Ontario but a ball park figure to build this house in Quebec starts at $720,000.
Please let me know if I can be of further assistance.
Regards
Deborah
April 07
Jan
Hi there, how much would the sq ft total be with the basement finished? In the pic, is that stone or bricks?
Can you tell me an approximate price/sq ft for Alberta?
thanks,
will contact to get plan
April 08
Customer service
Dear Jan,
Thank you for your interest in Drummond House Plans.
The square footage, not including the garage and the bonus space would be 5,529 square feet if the basement is finished. The siding is stone-brick and acrylic. We do not have building costs for Alberta. Local builders will be able to provide you with a cost per square foot.
Please contact me again if you need further information or to place an order. I will gladly answer any inquiry you may have.
Regards,
Doreen, Customer Service Department
March 18
randa kharrboutli
I am an architect i got a house plans # 3842 to do some changes on it, i want to know what is the Auto cad version do you use?
How much do you charge to modify the drawing to be matched require VA state?
March 18
Customer service
Hello,
We use Autocad 2003 for our plans. To get a cost estimate for the modifications, you can contact our Modification Department at 1-800-567-5267. They will be able to provide you with the information you need.
Best Regards,
Customer Service Department
