House plan Mt. Meridian 3 (6804A)
Lakefront spectacular house plan, large master suite, breakfast nook, 3 bedrooms, homeoffice, 2-car garage
View the size of the rooms and height of the ceilings

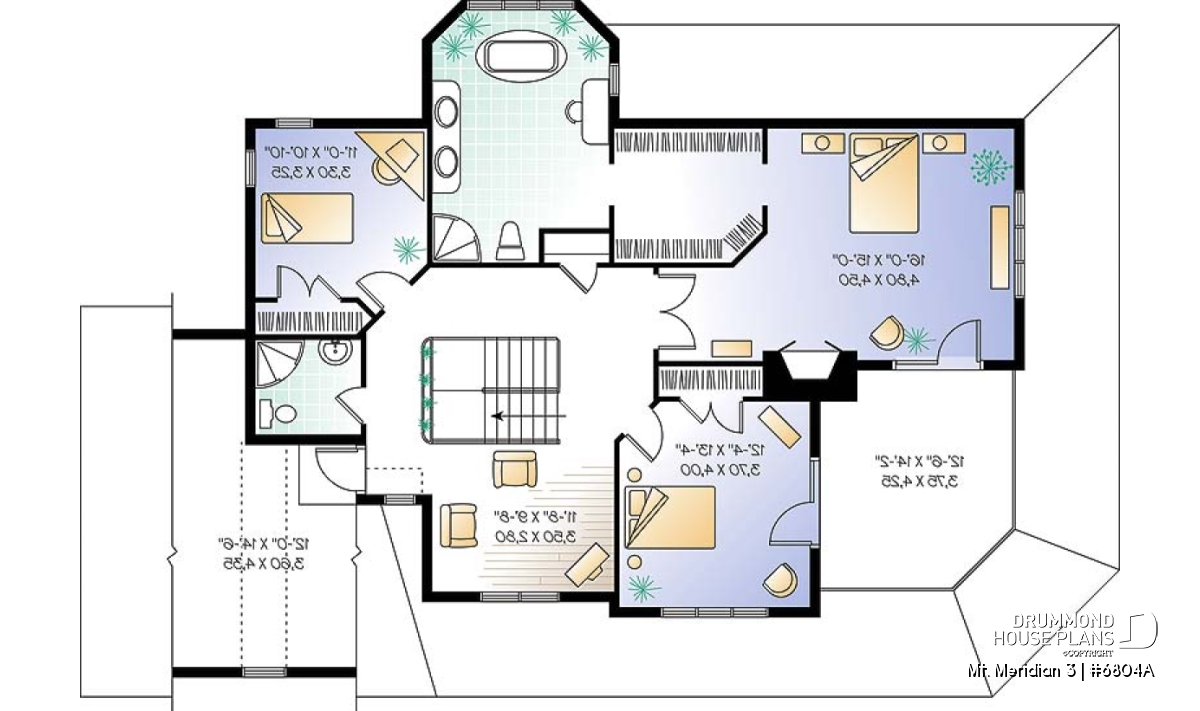

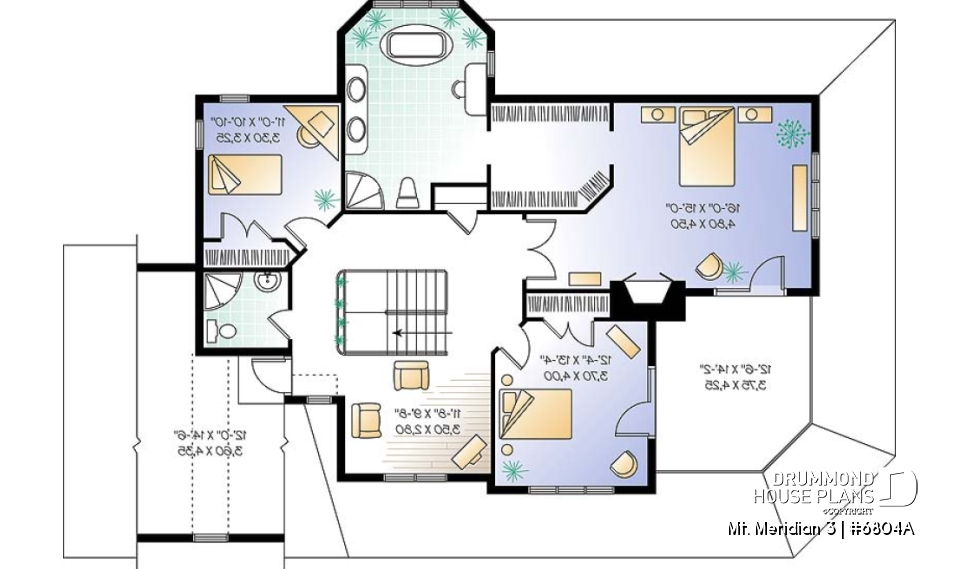

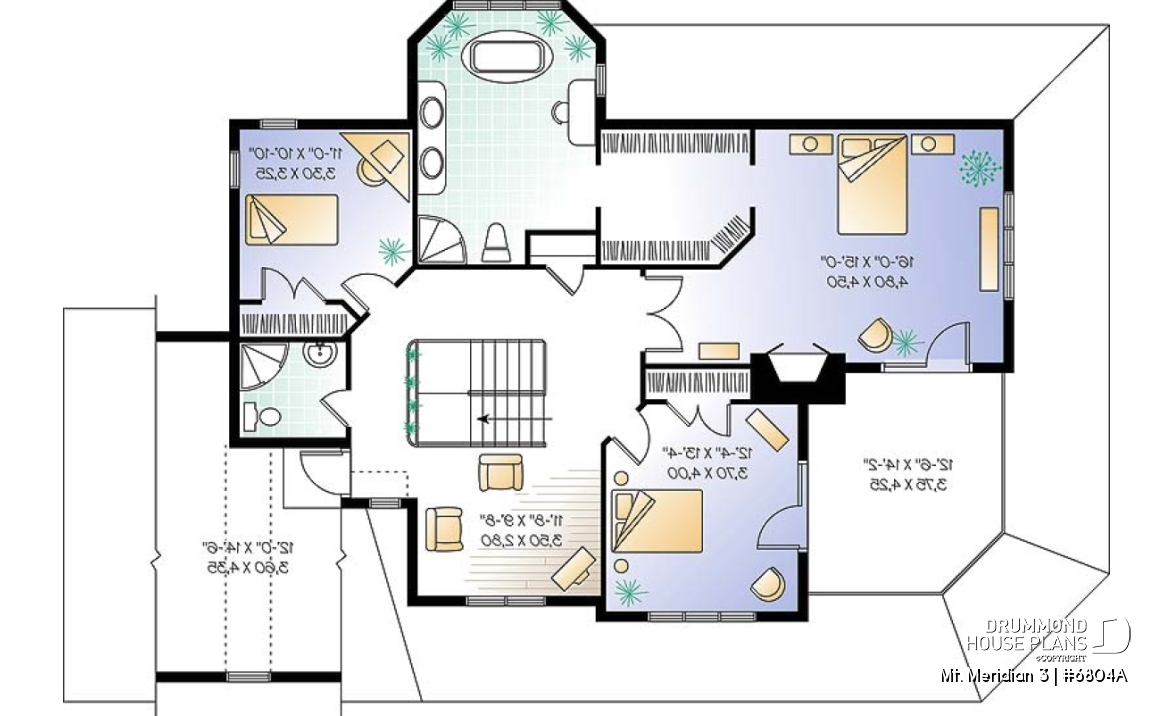

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Shower room or three quarter bath | 6'2" x 6'7" | ~ 8'0" |
| Bedroom | 12'4" x 13'4" | ~ 8'0" |
| Closet | 6'8" x 2'0" | ~ 8'0" |
| Bedroom | 11'0" x 10'10" | ~ 8'0" |
| Closet | 7'4" x 2'0" | ~ 8'0" |
| Living bonus room | 12'0" x 14'6" | ~ 8'0" |
| Master suite | 16'0" x 15'0" | ~ 11'8" |
| Full bathroom | 11'8" x 16'2" | ~ 8'0" |
| Walk-in closet | 9'4" x 8'8" | ~ 8'0" |
| Reading/computer area | 11'8" x 9'8" | ~ 8'0" |
| Linen | 4'4" x 2'0" | ~ 8'0" |
| Balcony | 12'6" x 14'2" | N/A |

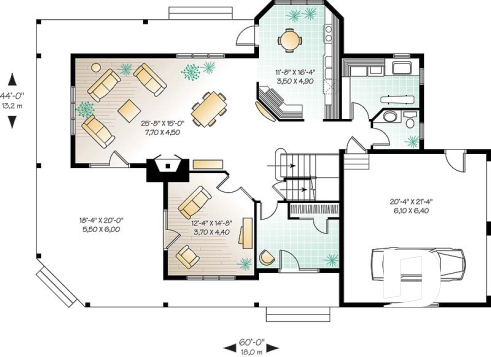

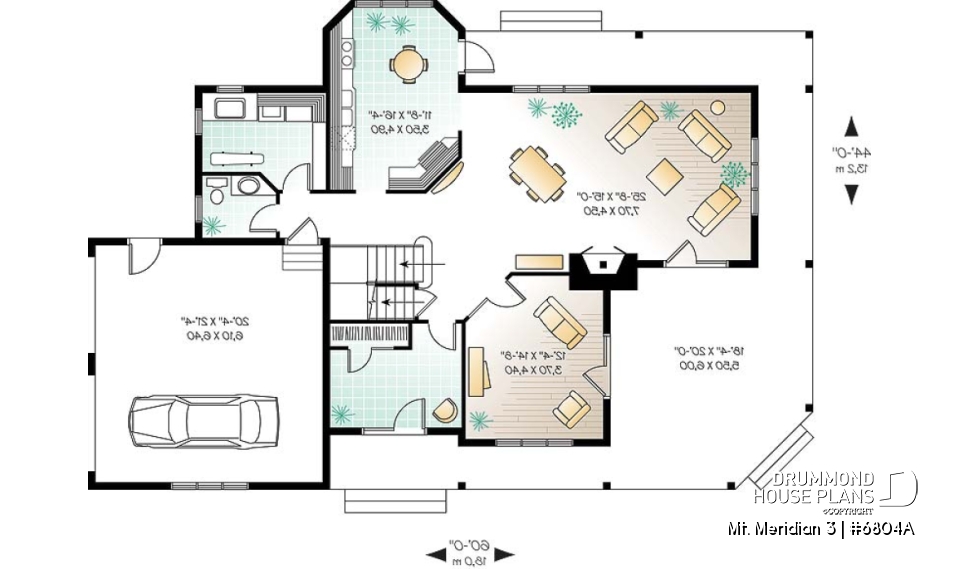

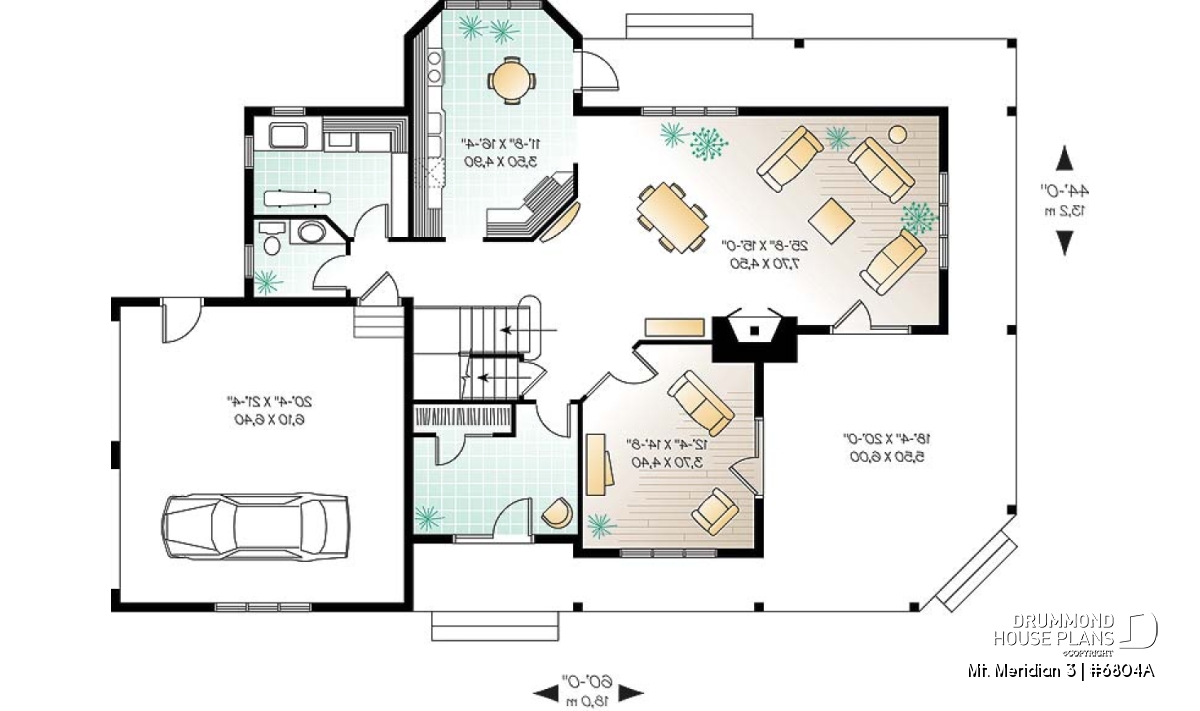

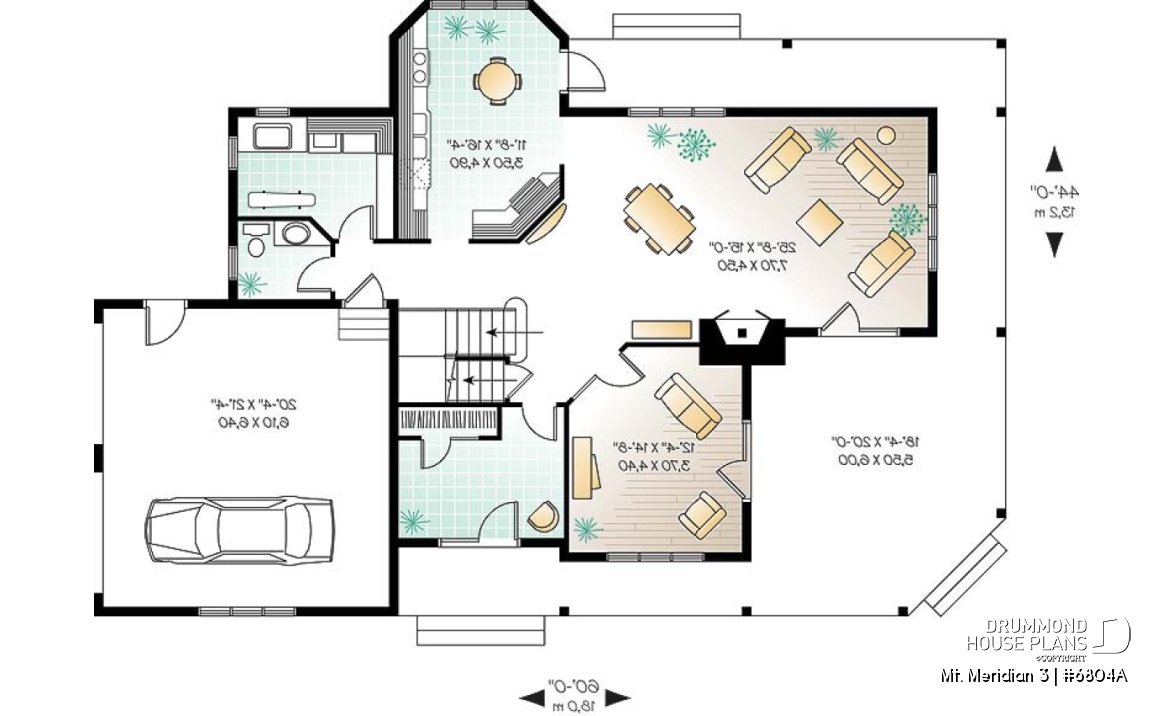

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Foyer | 11'8" x 7'0" | ~ 9'0" |
| Closet | 7'0" x 2'0" | ~ 9'0" |
| Garage | 20'4" x 21'4" | ~ 10'8" |
| Living room/dining room | 25'8" x 15'0" | ~ 9'0" |
| Half bath or powder room | 6'6" x 5'8" | ~ 9'0" |
| Kitchen | 11'8" x 16'4" | ~ 9'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Great room or Family room | 12'4" x 14'8" | ~ 9'0" |
| Porch | 18'4" x 20'0" | N/A |
| Porch | 31'0" x 5'0" | N/A |
| Laundry room | 11'0" x 8'8" | ~ 9'0" |
General specifications
| Total living area | 2687 sq.ft. |
| 2nd level | 1390 sq.ft. |
| 1st level | 1297 sq.ft. |
| Width | 60'0" |
| Depth | 44'0" |
| Ridge height from top of foundation | 33'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | G |
Rooms specifications
Other useful information on this plan
Beautiful lakefront house plan with wraparound porch and great master suite
Here’s an ideal three bedrooms with 2.5 baths. A stylish layout of 2687 sq. ft. offers foyer entrance, 9’ ceilings on the main floor, fireplace to light up the living and dining rooms, and roomy kitchen with special space for breakfast. Upstairs master suite enjoys its own bath, and glamorous balcony. Secondary bedrooms share a bath. Two-car garage.
Distinctive elements
Abundant windowing,
9 foot ceiling on first floor,
Covered porch,
Plan feature(s)
Fireplace, Living bonus space, Panoramic view, Master suite upstairs, Side entry garage, Gound floor laundry room, Deck, Balcony 2nd floor, Walk-in master bed., Breakfast nook, Ceiling over 8', Warparound, Office / Study / Den, Sloped ceiling, Cathedral ceiling, Separate bath and shower, Double sinks
Plan architectural style(s)
. Country, . Farmhouse, . Traditional, . Vacation and waterfront, . American, . Transitional, . Modern rustic, . Cottage, chalet, cabin
Similar plans
Previously Viewed Plans
Questions and comments
September 25
Annmarie
I like the image to this plan #W6804A but it does not match the floor plan that is matched with it. The garage is not in the same location in the floor plan. The garage in the image is in the rear of the home and the floor plan is in the front of the home. Even if you reverse the floor plan it does not match up. Is it possible to contact the architect/designer?
September 25
Customer service
Good day and thank you for taking the time to write.
I am not sure that I understand as the garage does appear to be in the right place but maybe it is confusing because the image has a slight angle to better show the porch and upstairs balcony.
Both the main living/dining room and the second family room have doors that open onto this 18'4" x 20' porch (on the left) and the garage is to the right of the 12'4" x 14'8" family room, just beyond the main entrance foyer (with large closet).
Since the garage doors are accessible only from the right side of the building, they are not visible in the image (but appear as thin lines between the thicker foundation outline of the main level floor plan) which is why only the windows, bottom for the garage and second floor for the bonus space, are visible from the front.

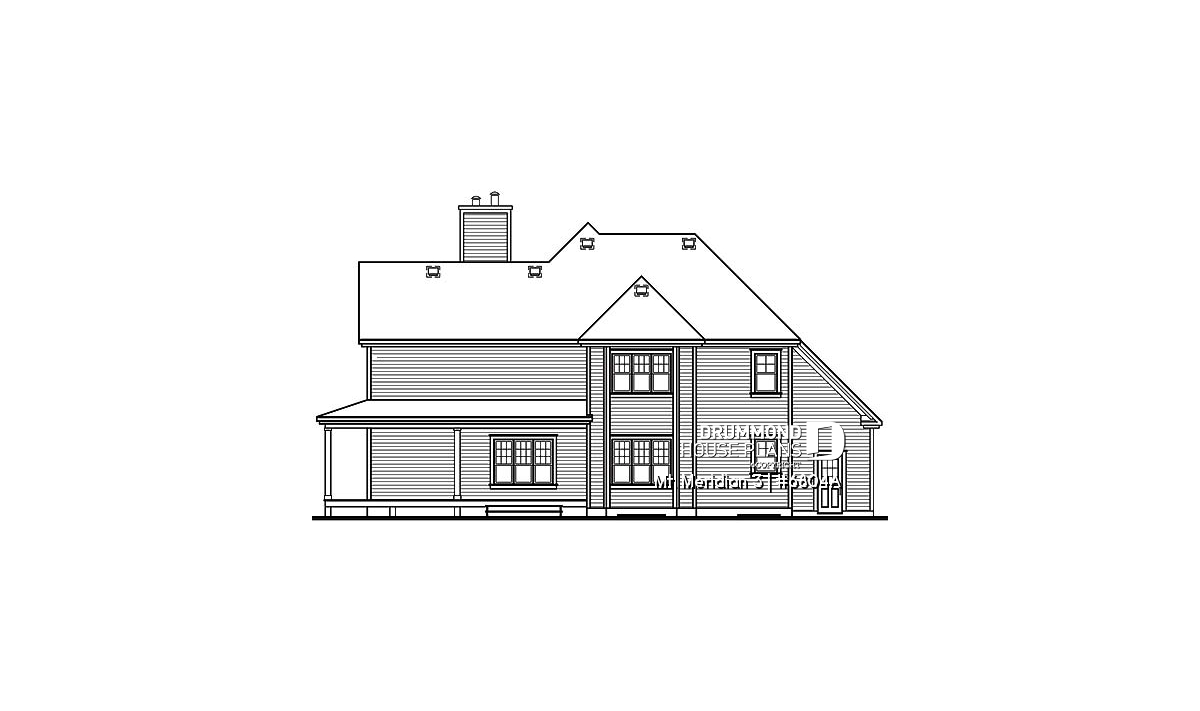

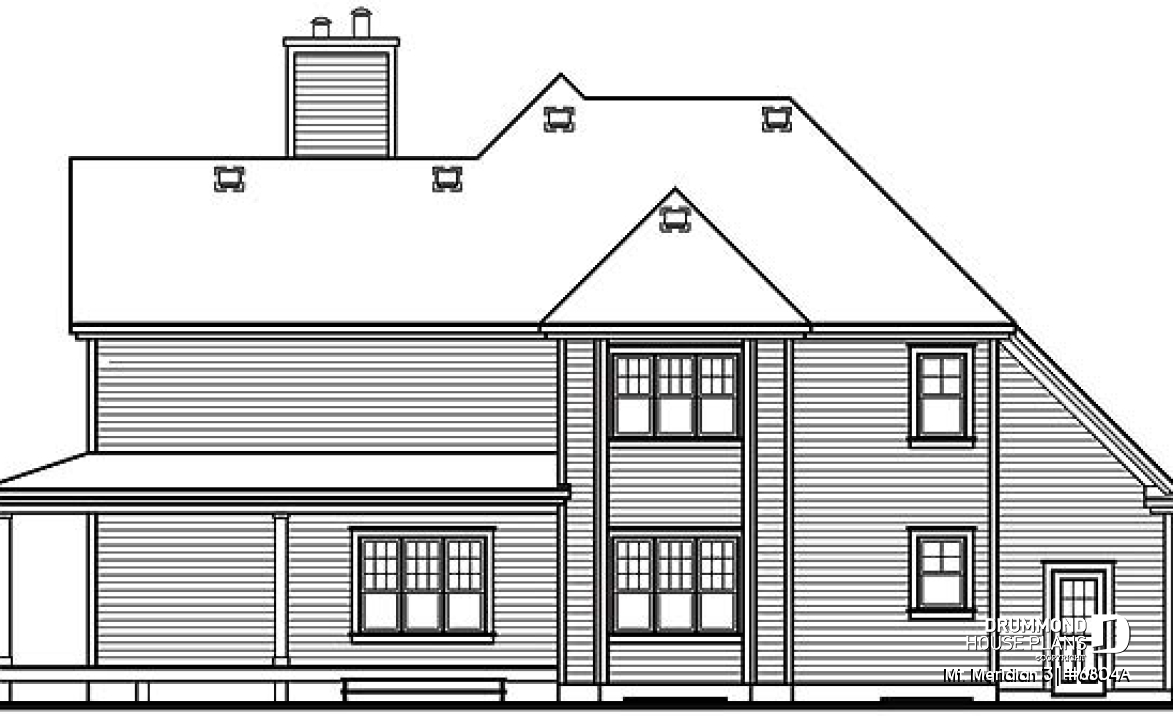

When looking at the rear elevation (black and white image) the porch side is on the right and what is visible from the back is the 31' x 5' wrap around porch which appears in back to the right when viewed from the back of the house and the "man" door which gives direct access to the garage from the back yard is on the left of the elevation image because this profile is as seen from the back of the house.
