House plan Morgan's Walk (3933)
Large two-car garage apartment house plan with 2 bedrooms, open floor plan and balcony, laundry room
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Half bath or powder room | 7'8" x 3'0" | ~ 8'0" |
| Foyer | 7'4" x 6'11" | N/A |
| Garage | 22'8" x 30'8" | ~ 8'6" |
| Storage | 8'0" x 8'2" | ~ 8'6" |
| Balcony | 8'0" x 10'0" | N/A |
| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 6'0" x 9'7" | ~ 8'0" |
| Living room | 22'8" x 14'2" | ~ 8'0" |
| Bedroom | 12'0" x 11'10" | ~ 8'0" |
| Bedroom | 11'10" x 11'10" | ~ 8'0" |
| Utility room | 5'1" x 6'0" | ~ 8'0" |
General specifications
| Total living area | 1068 sq.ft. |
| 1st level | 140 sq.ft. |
| 2nd level | 928 sq.ft. |
| Width | 32'0" |
| Depth | 32'0" |
| Ridge height from top of foundation | 28'8" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Carriage house plan charisma!
Is it a carriage house or a vacation getaway? This tidy little garage with apartment above works well as either!

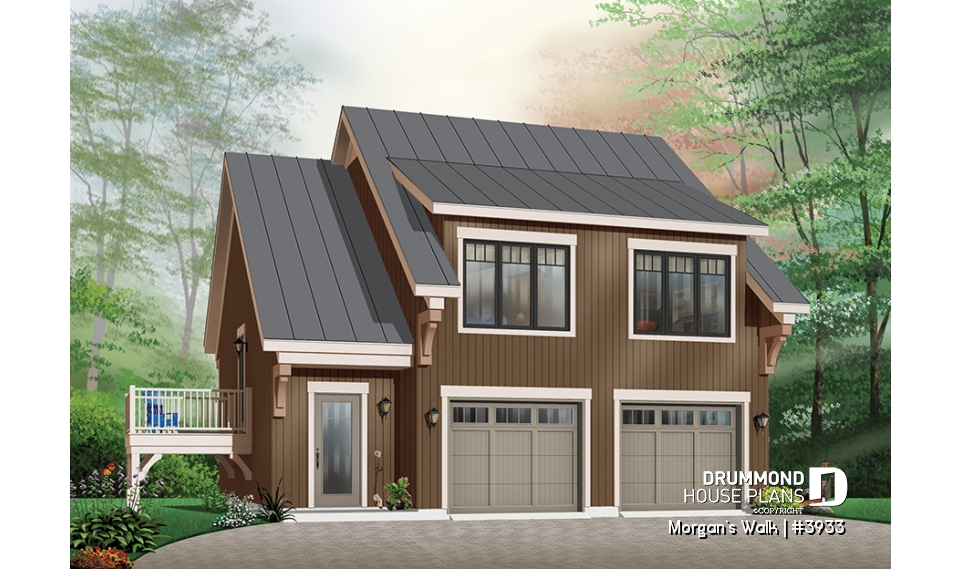

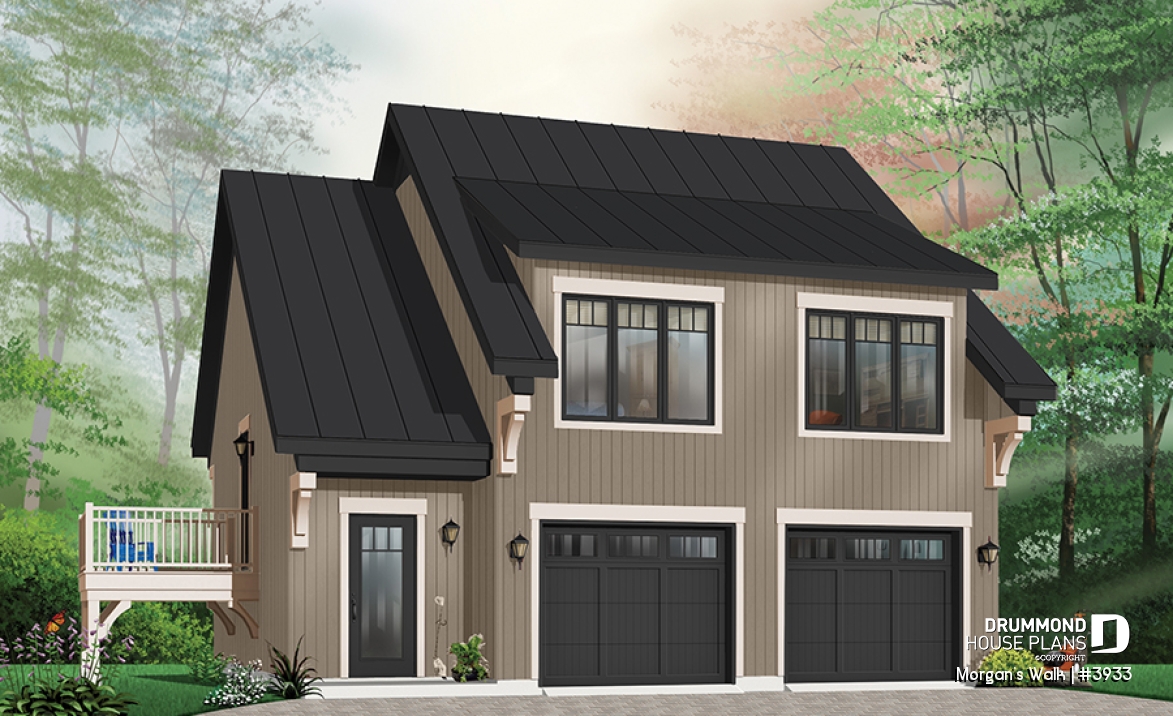

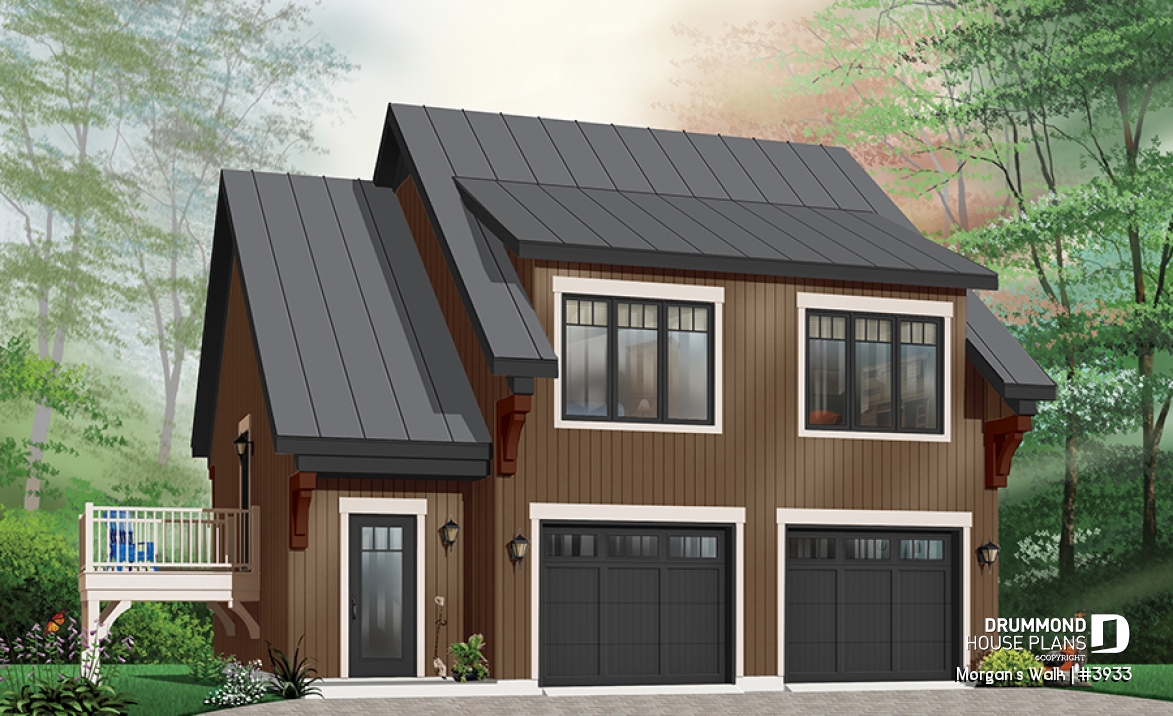

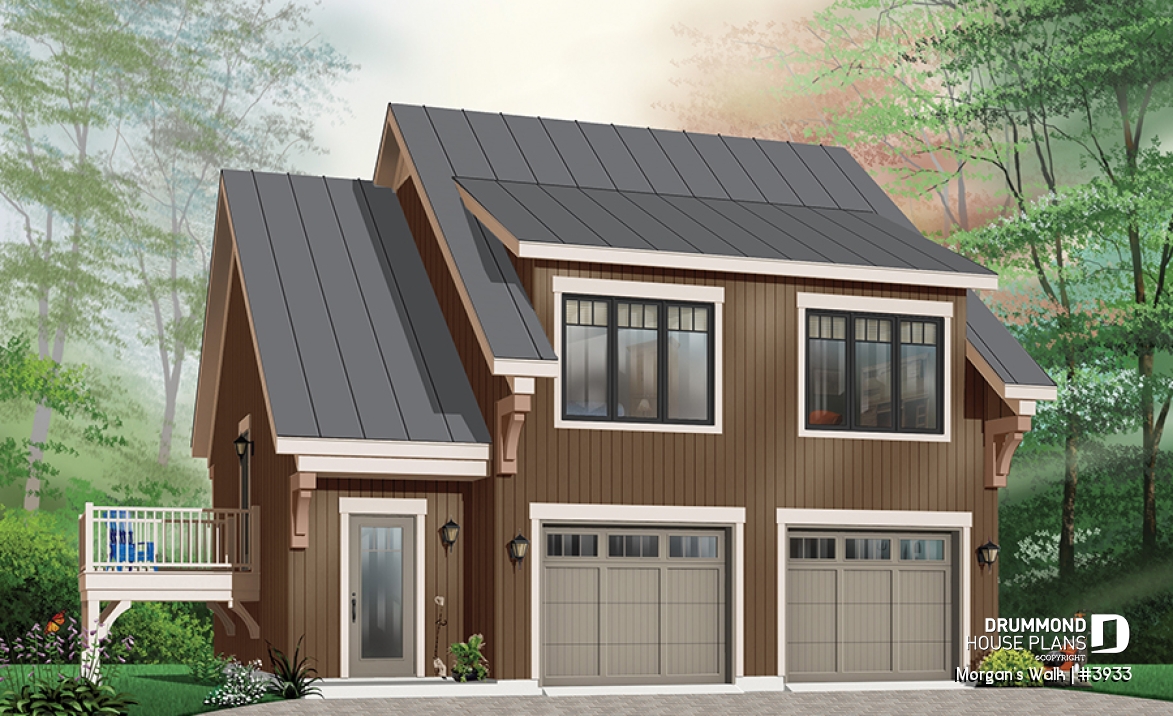

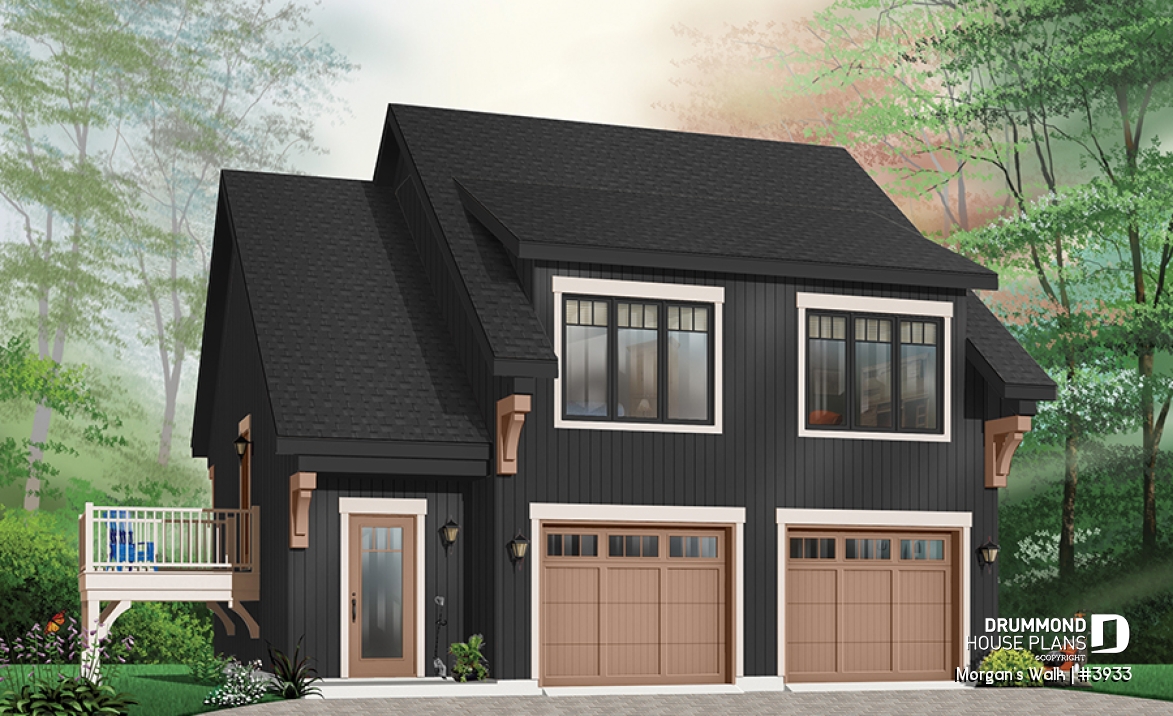

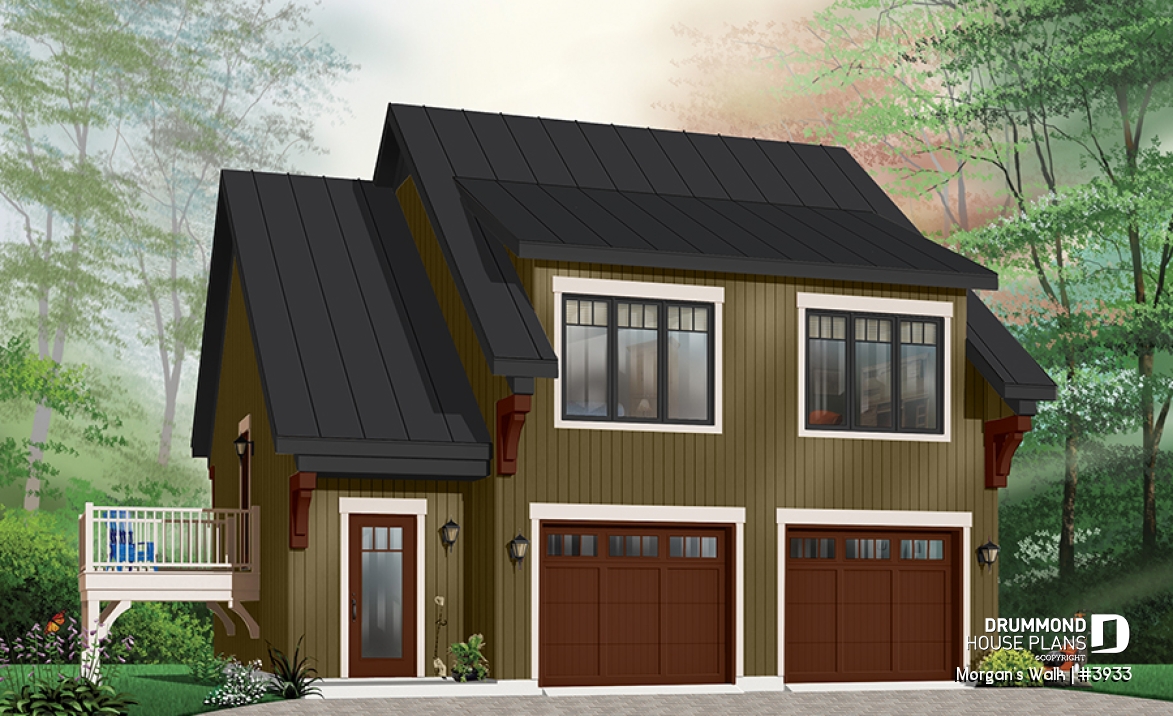

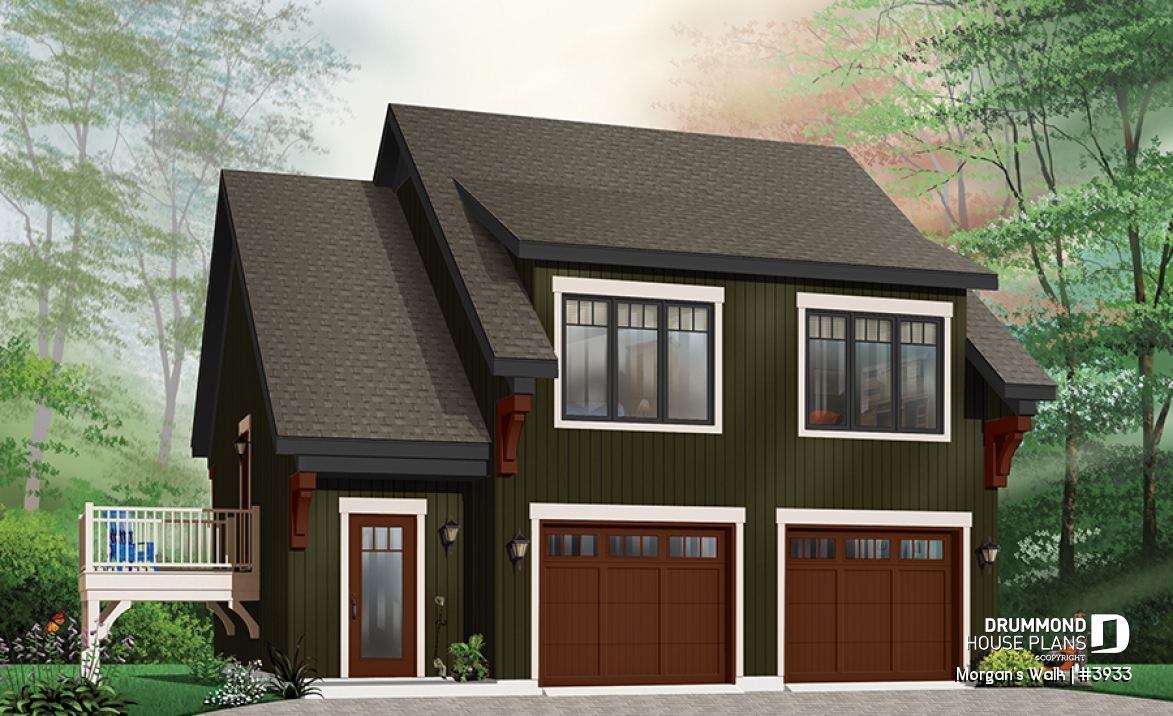

The exterior puts a pleasing face forward with a simple roofline, generous windows and attractive corbel detailing. The main level provides plenty of space for two vehicles (or one and lots of toys!) and the foyer is accessed either from within the garage or by the front entry. Hobbyists and outdoor enthusiasts will love the washroom on the main floor as well.
Upstairs, the main living area features an open concept with country kitchen, adjoining living area, two bedrooms with Jack-and-Jill bathroom, and even a laundry room. A deck off the middle landing of the stairs provides space for outdoor grilling or relaxation.
Models such as this are popular as secondary suites for inlaws, guests or income potential, not to mention as efficient vacation getaways with secure storage.
Distinctive elements
Very nice garage/guest suite combination with storage as well. Open entry over two storys with original access to the lateral deck.
Plan feature(s)
Second floor laundry room, Jack & Jill bath, Open floor layout, Balcony 2nd floor, Panoramic view
Plan architectural style(s)
. Cottage, chalet, cabin, . Country, . Traditional, . Rustic, . Scandinavian, . Transitional, . Modern rustic, . Cabin plans
Similar plans
Previously Viewed Plans
Questions and comments
June 13
Jan Payne
Do these plans call for a stick-built roof or is it prebuilt trusses?
February 24
Shauna Fiddler
what is the floor to ceiling height of the first floor/garage level, and how high are the garage doors. Can this be modified. We are trying to design something to fit our boat! Thanks
February 24
Customer service
Good day Ms. Fiddler and thank you for your interest in this plan.
The floor to ceiling height in the garage is 8'6" and the garage doors are 9' wide and the standard 7' high but this plan could be modified to accommodate your boat and we would be happy to provide a free estimate within two business days after receipt of this on line request.
Please let me know if I can further assist you
Regards
Deb
November 03
Dawn
Hi,
Do you have any actual photos of a completed house? or is there a builder currently building one that I can see on their website?
thanks
November 03
Customer service
Good day and thank you for taking the time to write.
Since we do no actual construction, the only photos that we have are those which our clients have shared with us. There are unfortunately none on file at the present time and there is no model being built at the moment so I am unable to help you for the moment.
Please let me know if you have any other questions or comments.
Regards
Deb
March 31
Jo Hoffman
Hi there:
We are in the process of buying a property In Pemberton BC. This carrage house W3933 Morgan's walk would fit our needs almost exactly to serve as an office space in near future and rentable apartment in distant future. Its design would compliment the design of the house as well.
We need a ball park estimate of how much it would cost to build so we can factor that into our general plans and affordability of the property we are potentially buying.
How would we get a ball park figure for how much this carrage house would cost to build?
Thank you, Jo
March 31
Customer service
Good day and thank you for your interest in this plan.
Although we do no actual construction, we do have a ballpark estimate to build in Quebec (Canada) at around $180,000.
This estimate is based on professional grade materials and includes ceramic in the foyer, the kitchen and the bathrooms with hardwood flooring throughout the common areas and carpet in the bedrooms. The kitchen cabinetry is wood grain melamine. This construction estimate to build in Quebec was updated on January 10th 2014 and is for a turn key project.
The cost of the land and its excavation, taxes and hook-ups to municipal or other services is not included in the calculation and it is highly recommended to consult local contractors and materials suppliers to get a better idea of the actual cost to build in your area.
I hope that this provides some helpful information and I invite you to contact me if you have any other questions or comments
Regards
Deb
