Garage plan Haymaker Bay (2985)
Stylish 2-storey 2-car garage plan
View the size of the rooms and height of the ceilings

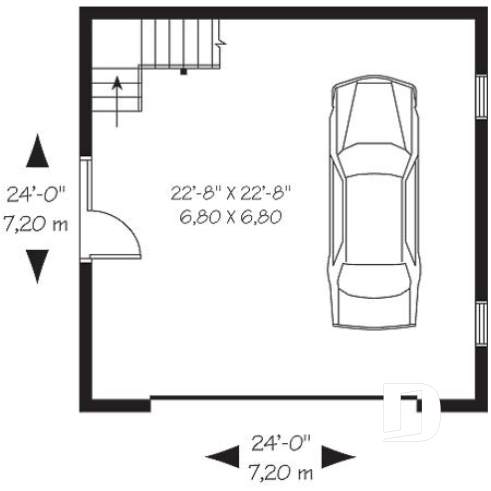

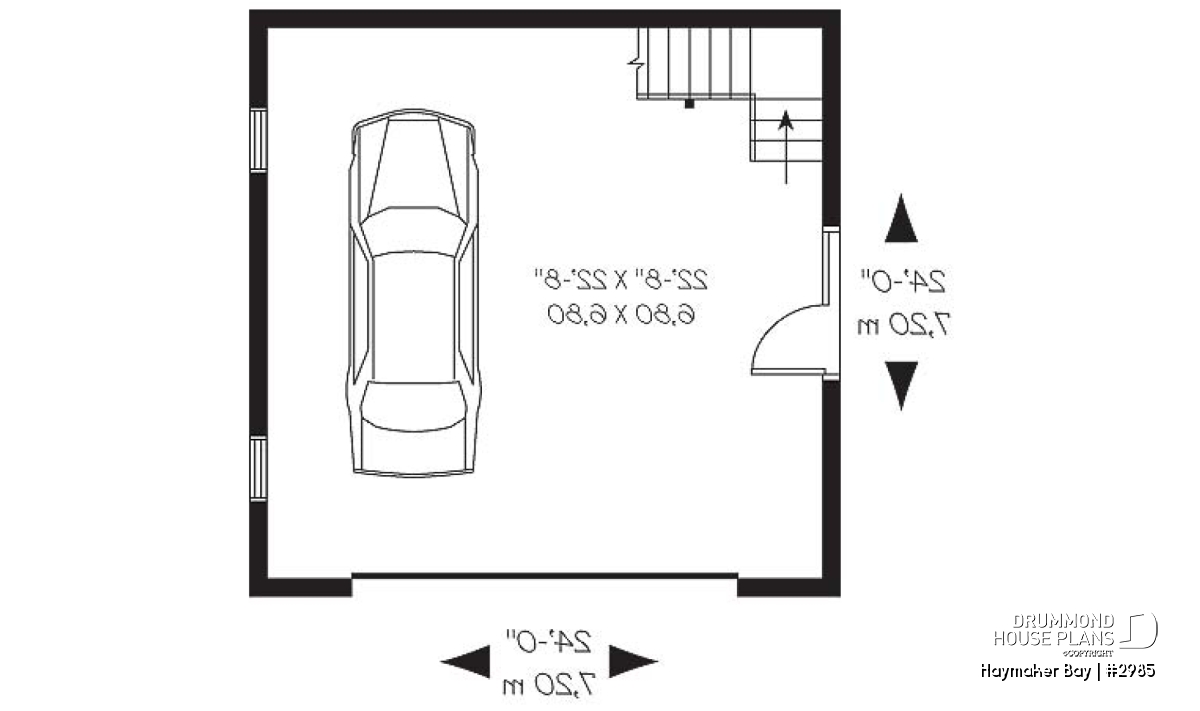

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Garage | 22'8" x 22'8" | ~ 9'6" |

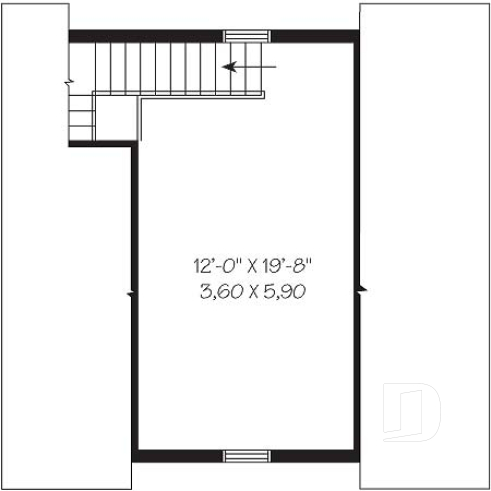

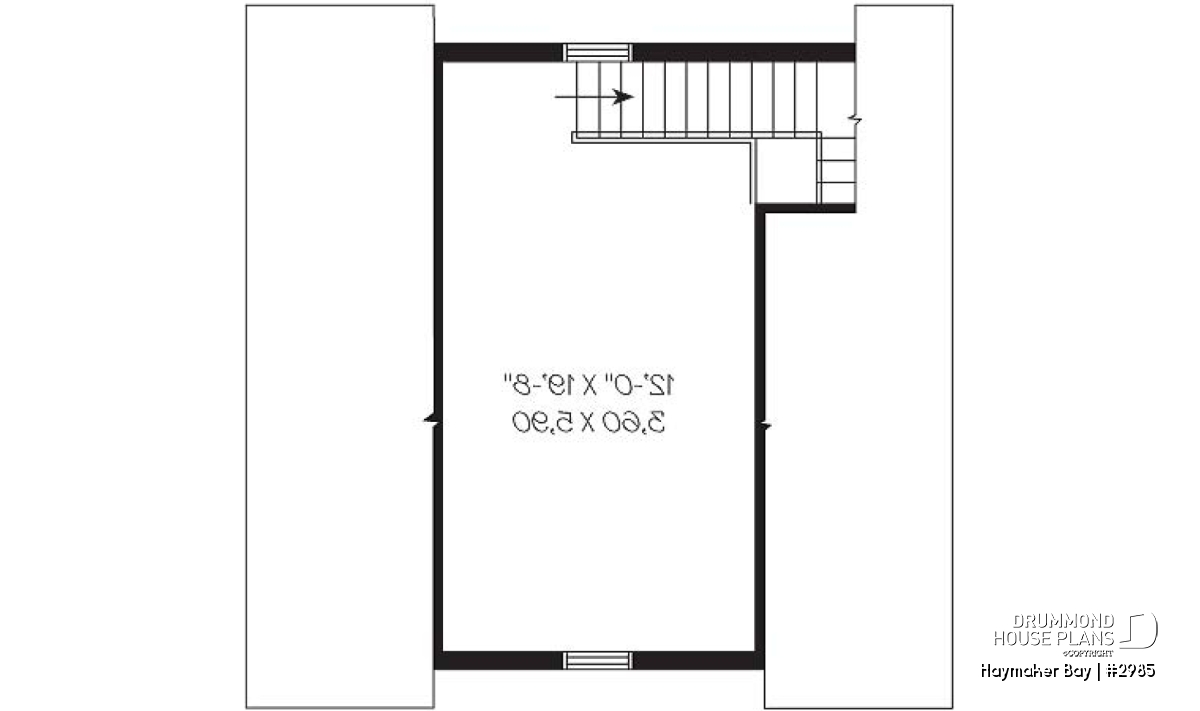

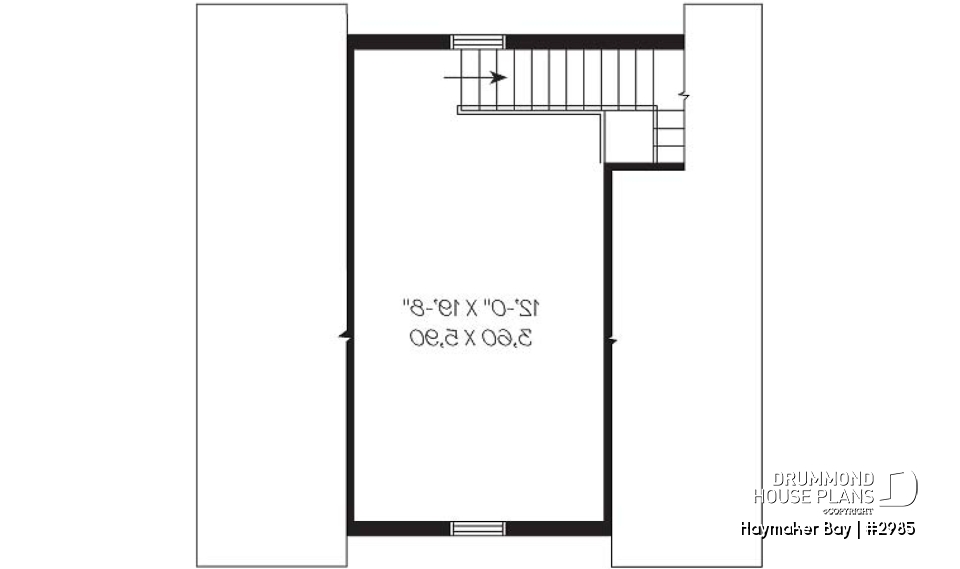

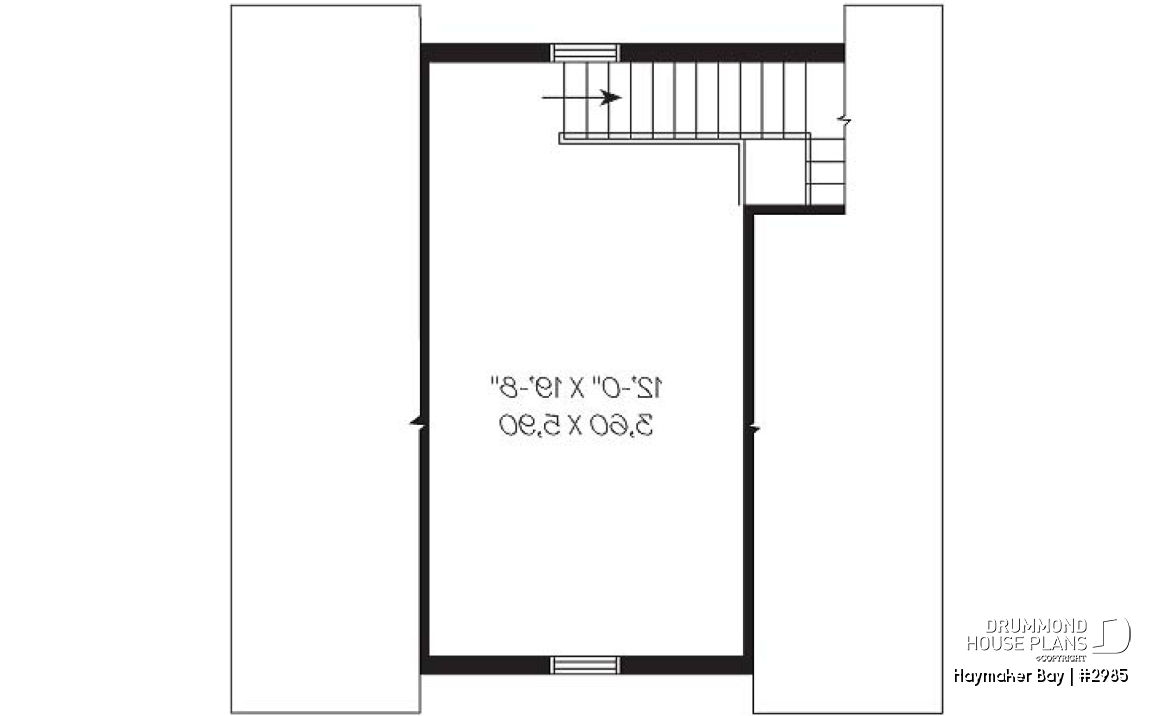

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Storage | 12'0" x 19'8" | ~ 8'2" |
General specifications
| Total living area | 853 sq.ft. |
| 1st level | 576 sq.ft. |
| 2nd level | 277 sq.ft. |
| Width | 24'0" |
| Depth | 24'0" |
| Ridge height from top of foundation | 21'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Floating Slab i |
| Other available foundations (a fee may apply) | Monolithic Slab |
| Builder price code | G2B |
Rooms specifications
Other useful information on this plan

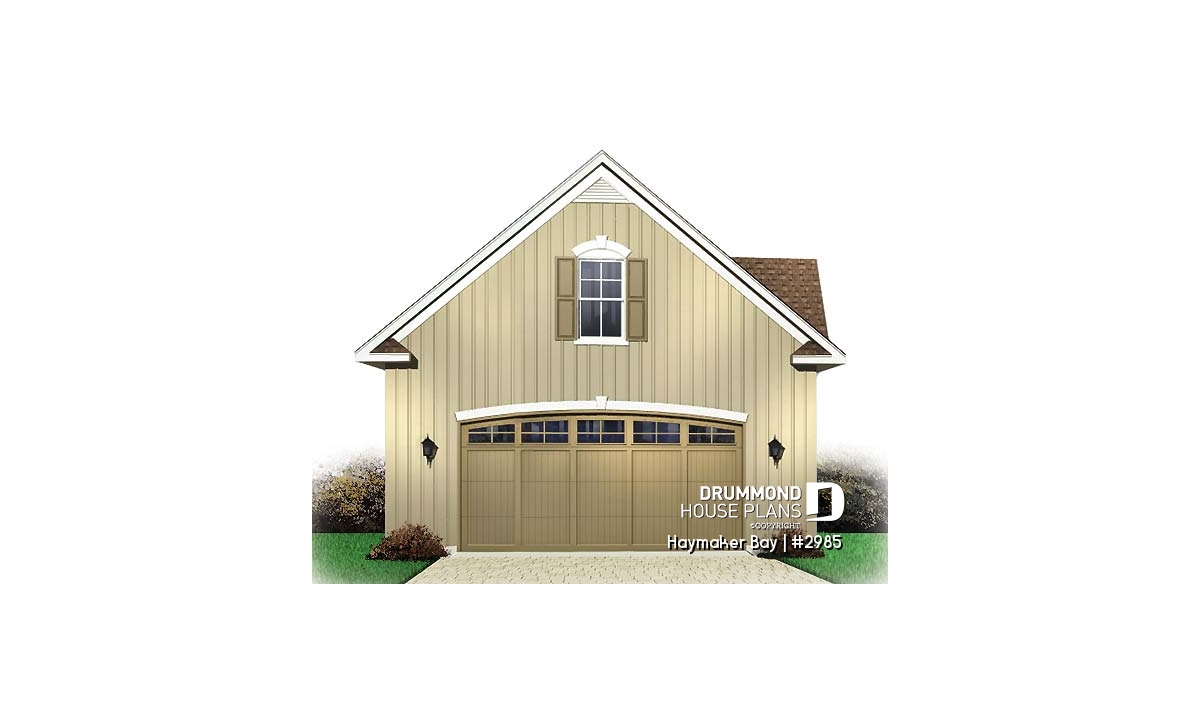

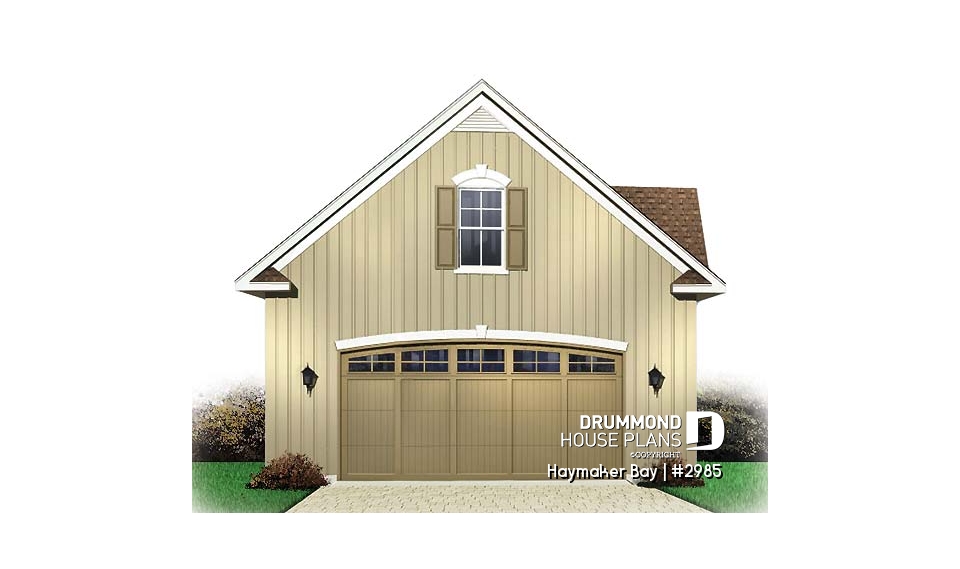

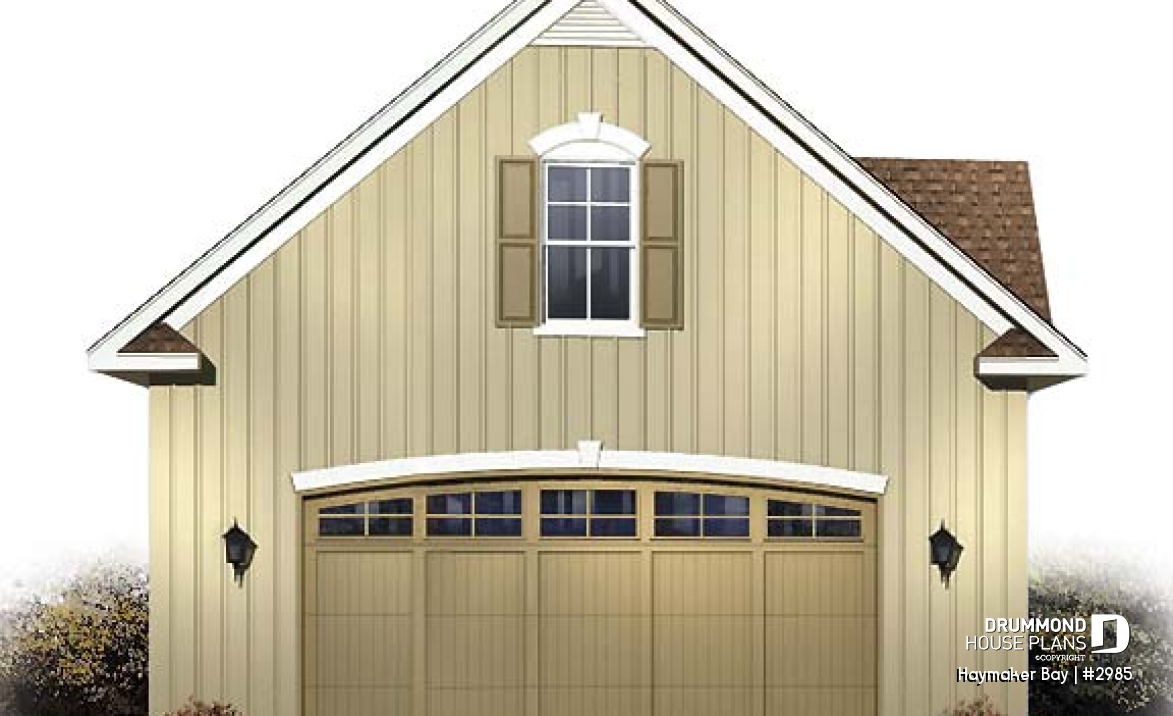

Board and batten beauty!
Board and batten cladding, shutters and quality moldings ensure this garage will be a welcome addition to your home.
A 16 ft. wide door allows generous clearance for parking and you'll appreciate the stair access to the 277 sq. ft. bonus storage space above!
Daylight is provided by windows at both ends.
Distinctive elements
24' x 24' double garage plan
Total of 576 sq.ft. on main floor and 277 sq.ft. on second floor (for storage)
9'2'' ceiling height on main floor
Insulated walls and on floating slab
Side door and windows
Decorative shutters and moldings
Plan architectural style(s)
. Country, . American, . Farmhouse, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
February 21
Jim Barrett
What is the cost to modify this plan for horizontal fiber cement siding (e.g. Hardie Plank), extend the depth to 36 feet, a 16 x 10 foot garage door, and snow load of 70 pounds/ft2.
February 22
Customer service
Dear Mr Barrett,
Thank you for your interest in Drummond House Plans.
All of our plans can easily be modified. To receive a Free Cost Estimate, you can visit the "Plan modification services" section of our website or contact our Modification Department at 1-800-567-5267.
Do not hesitate to contact me again if you need further information.
Best Regards,
Doreen, Customer Service Department
