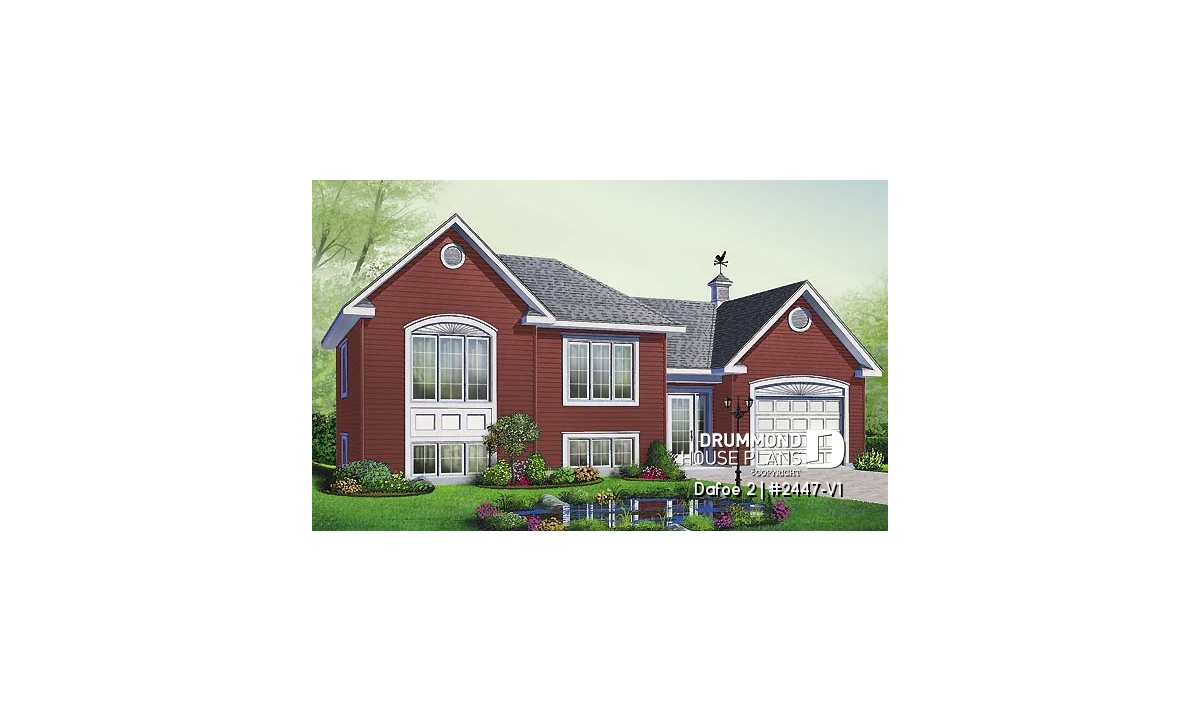

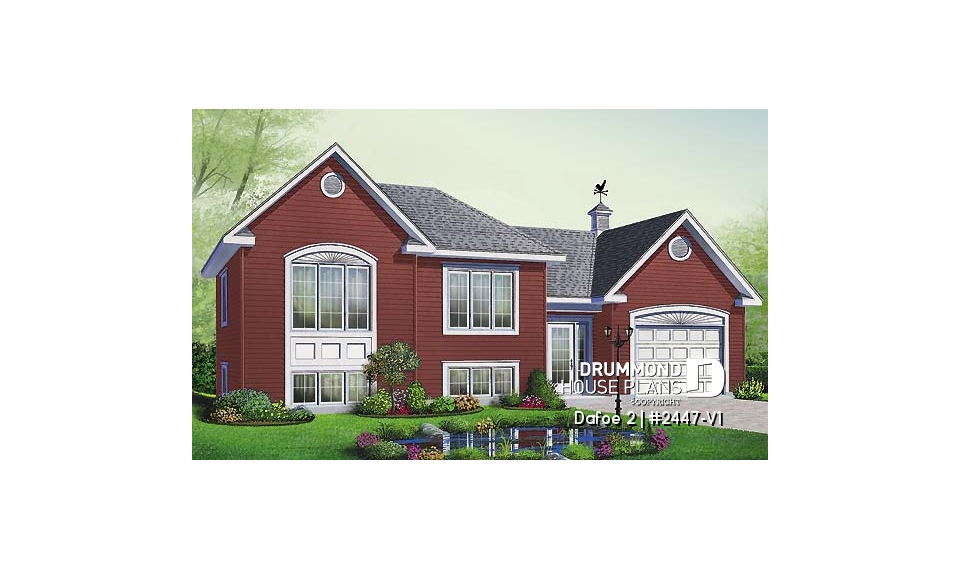

House plan Dafoe 2 (2447-V1)
Split level, 2 bedroom bungalow with large kitchen and a garage
View the size of the rooms and height of the ceilings

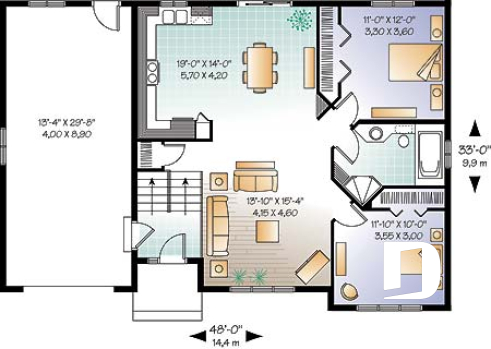

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen | 8'0" x 14'0" | ~ 8'0" |
| Dining room | 11'0" x 14'0" | ~ 8'0" |
| Living room | 13'10" x 15'4" | ~ 8'0" |
| Foyer | 6'8" x 5'0" | ~ 8'6" |
| Full bathroom | 11'10" x 6'6" | ~ 8'0" |
| Bedroom | 11'0" x 12'0" | ~ 8'0" |
| Bedroom | 11'10" x 10'0" | ~ 8'0" |
| Garage | 13'4" x 29'8" | ~ 8'10" |
| Porch | 6'4" x 5'0" | N/A |
| Porch | 8'0" x 5'0" | N/A |
General specifications
| Total living area | 1059 sq.ft. |
| 1st level | 1059 sq.ft. |
| Width | 48'0" |
| Depth | 33'0" |
| Ridge height from top of foundation | 21'1" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Builder price code | B |
Rooms specifications
Other useful information on this plan
Enjoy the light

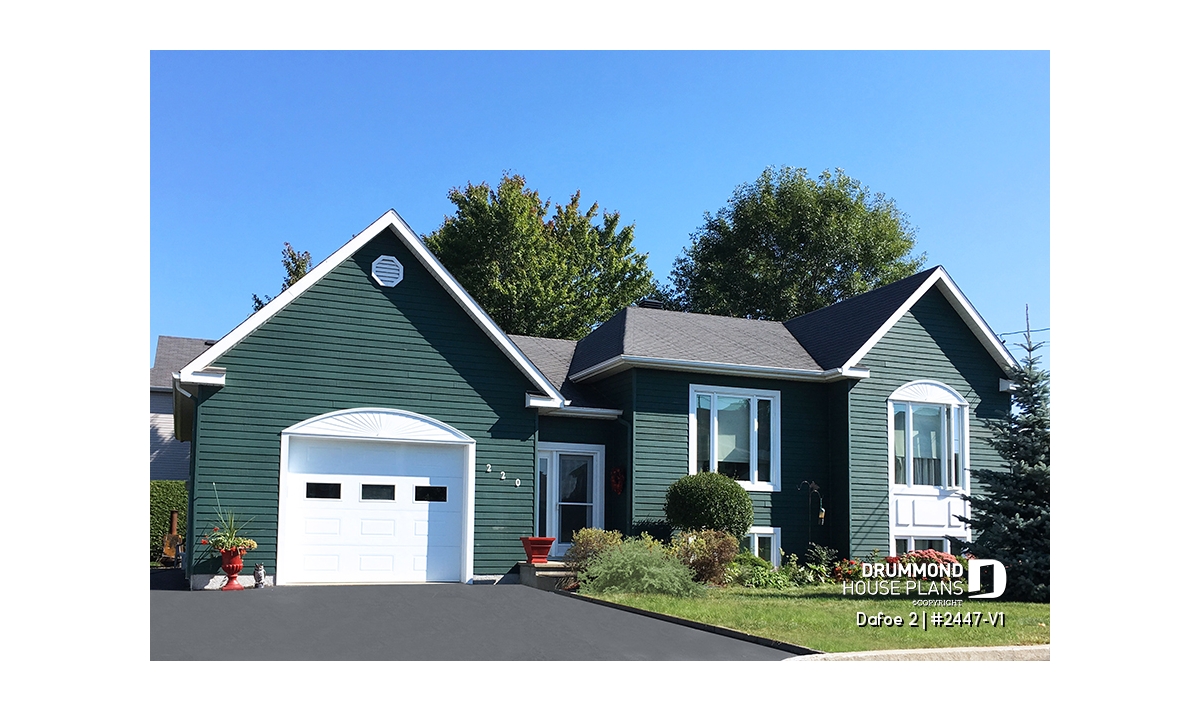

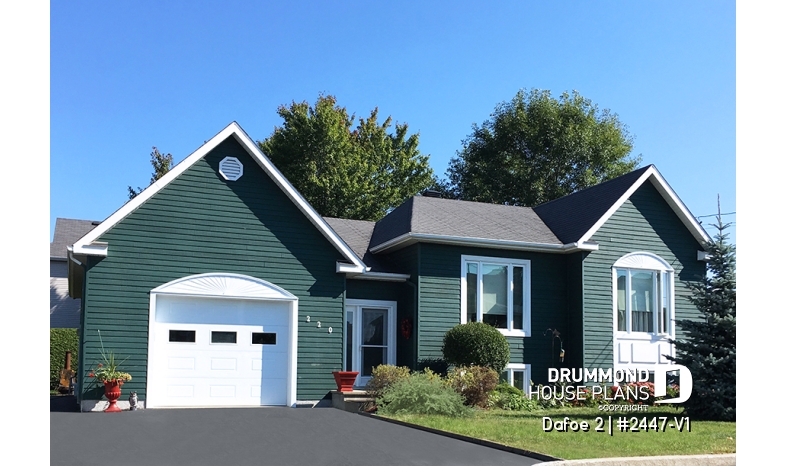

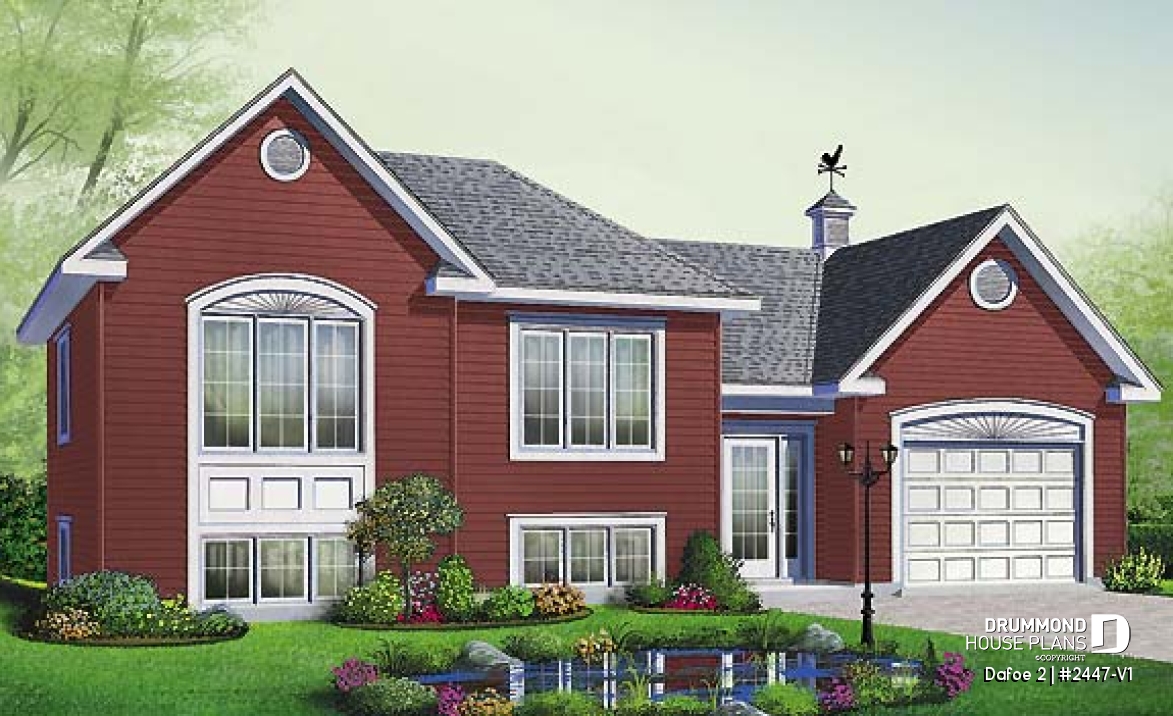

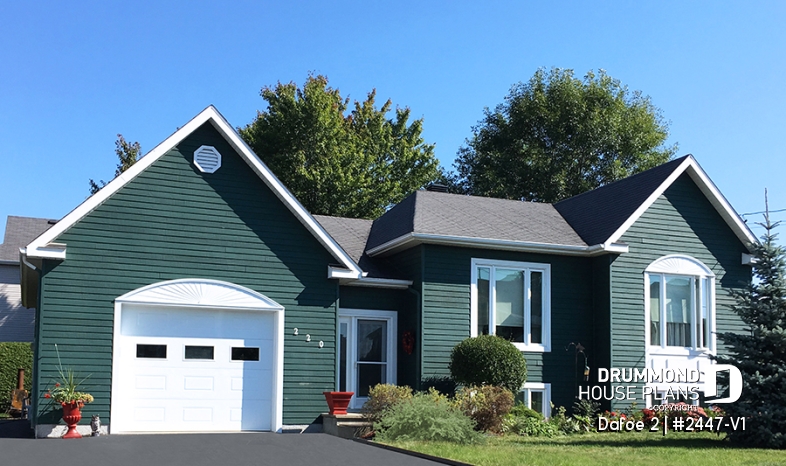

Abundant windows grace this split entry, creating the feeling of more space than the compact 1059 sq. ft.
From the foyer, take a half flight up to the main level and appreciate the open floor plan. Two bedrooms, bathroom, kitchen, dining and living room make efficient use of the available space. The lower level is an open slate for your inspiration.
An attached garage and deck access complete this lovely home.
Plan feature(s)
Separate bath and shower
Plan architectural style(s)
. American, . Traditional, . Country
