House plan Fairfield (3031)
Duplex house plan with 3 bedrooms and laundry closet on each unit and a rear balcony.
View the size of the rooms and height of the ceilings

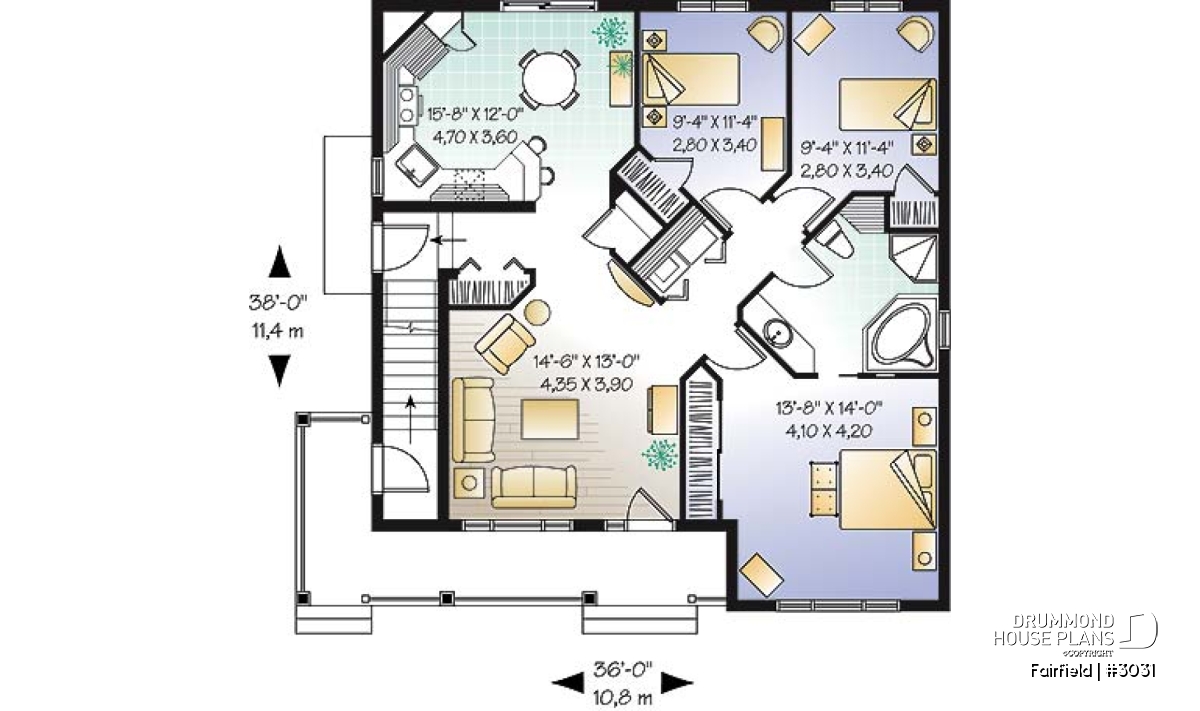

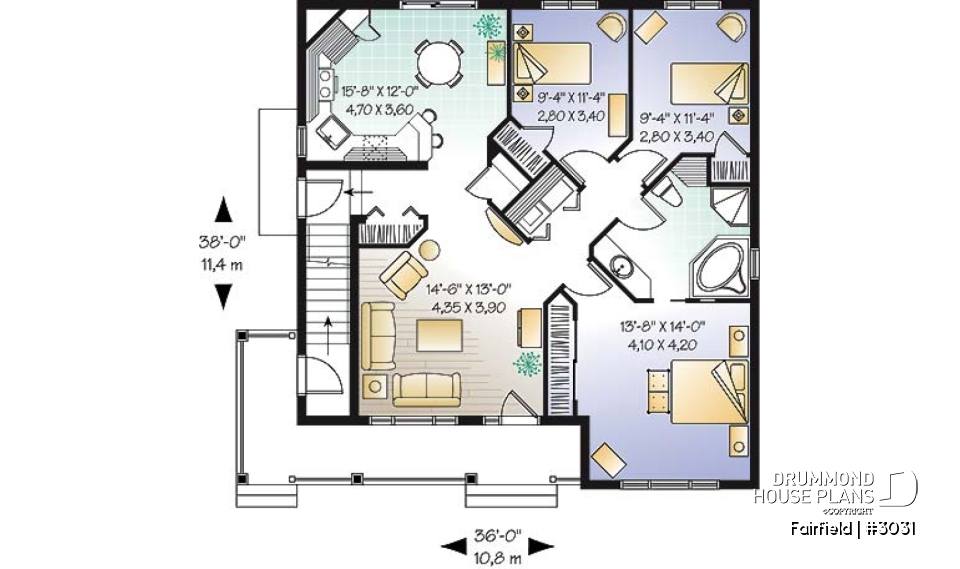

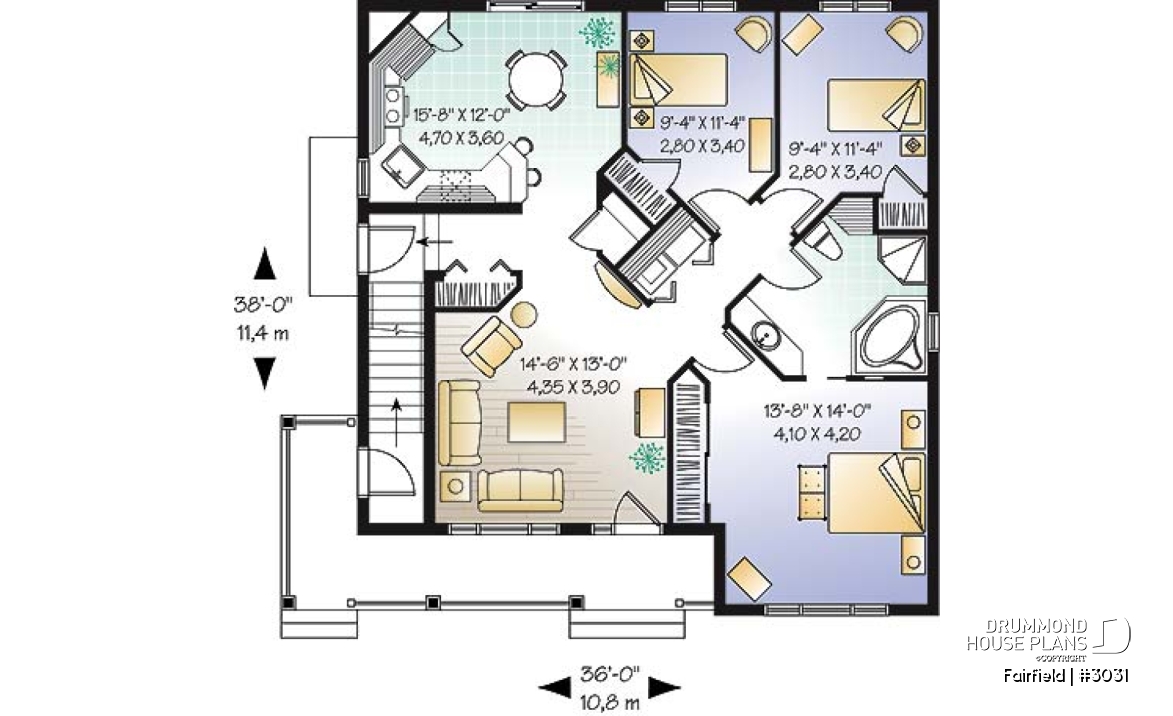

| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Full bathroom | 12'2" x 11'0" | ~ 8'0" |
| Kitchen/dining room | 15'8" x 11'10" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Living room | 14'6" x 13'0" | ~ 8'0" |
| Bedroom | 13'6" x 13'10" | ~ 8'0" |
| Closet | 2'0" x 9'8" | ~ 8'0" |
| Bedroom | 9'2" x 11'2" | ~ 8'0" |
| Closet | 3'2" x 2'0" | ~ 8'0" |
| Bedroom | 9'2" x 11'2" | ~ 8'0" |
| Storage | 3'0" x 4'6" | ~ 8'0" |
| Laundry room | 5'6" x 2'8" | ~ 8'0" |
| Closet | 5'2" x 2'0" | ~ 8'0" |
| Porch | 22'0" x 4'8" | N/A |
| Porch | 4'8" x 12'0" | N/A |
| Covered deck | 10'0" x 3'0" | N/A |

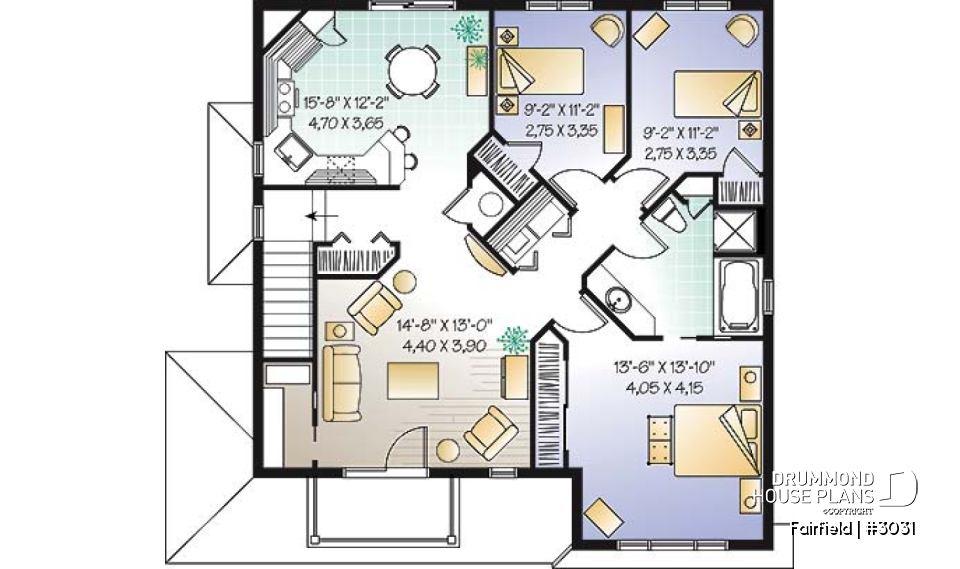

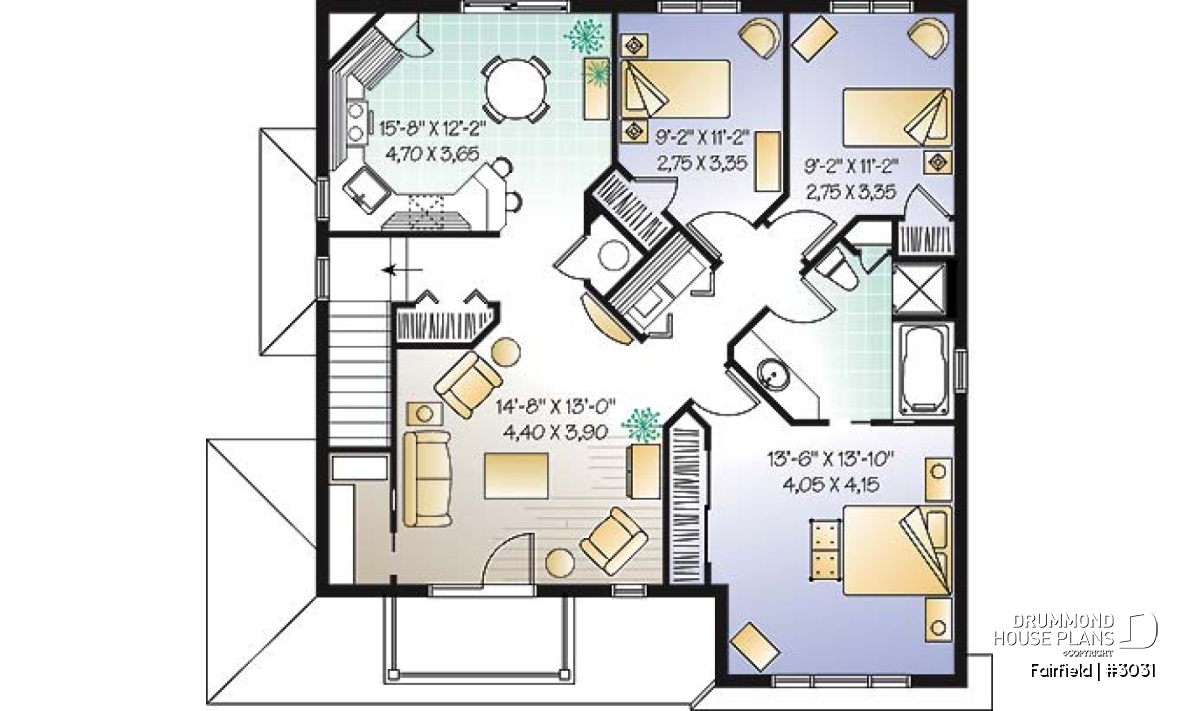

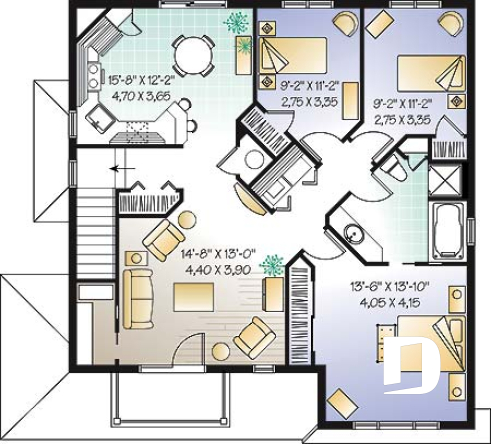

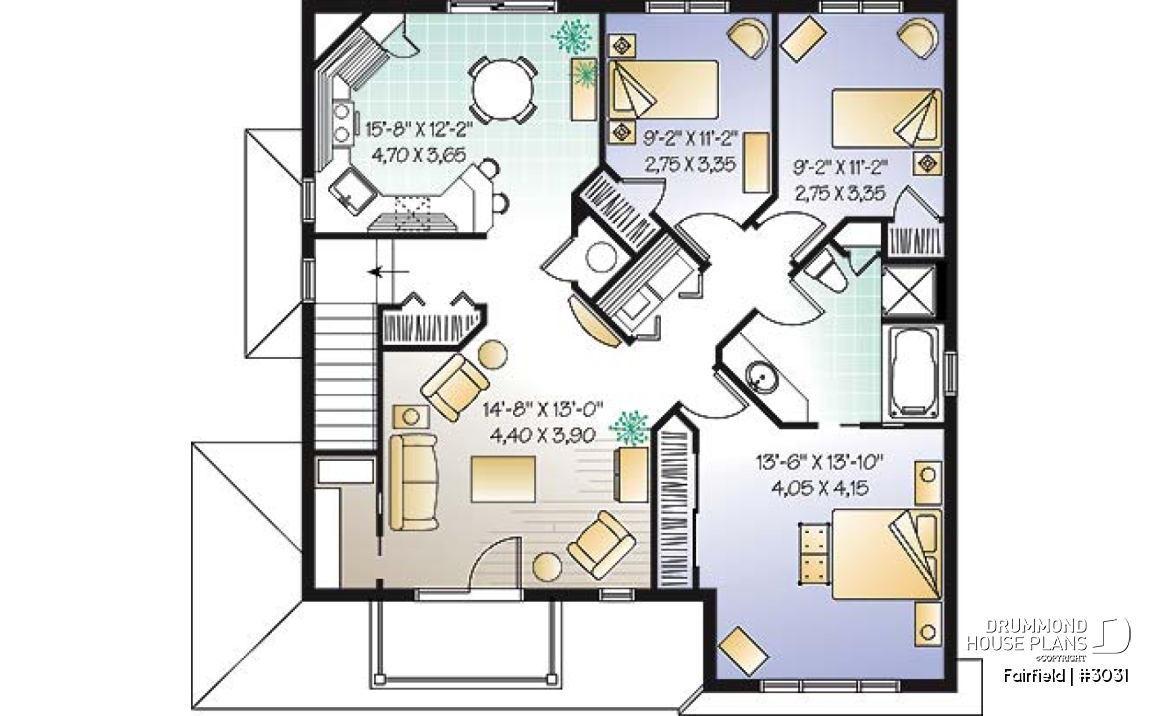

| 2nd level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Kitchen/dining room | 15'8" x 12'2" | ~ 8'0" |
| Pantry | 2'0" x 2'0" | N/A |
| Living room | 14'8" x 13'0" | ~ 8'0" |
| Closet | 5'4" x 2'0" | ~ 8'0" |
| Storage | 3'6" x 6'10" | ~ 8'0" |
| Balcony | 10'6" x 4'8" | N/A |
| Balcony | 10'0" x 3'0" | N/A |
| Storage | 3'0" x 4'6" | ~ 8'0" |
| Laundry room | 5'6" x 2'8" | ~ 8'0" |
| Bedroom | 13'6" x 13'10" | ~ 8'0" |
| Closet | 2'0" x 9'8" | ~ 8'0" |
| Bedroom | 9'2" x 11'2" | ~ 8'0" |
| Closet | 3'2" x 2'0" | ~ 8'0" |
| Bedroom | 9'2" x 11'2" | ~ 8'0" |
| Full bathroom | 12'2" x 11'0" | ~ 8'0" |
General specifications
| Total living area | 2516 sq.ft. |
| 1st level | 1258 sq.ft. |
| 2nd level | 1258 sq.ft. |
| Width | 36'0" |
| Depth | 38'0" |
| Ridge height from top of foundation | 28'0" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MC |
Rooms specifications
| Bedroom(s) | 3 |
| Full baths | 1 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 145 sq.ft. |
Units specifications

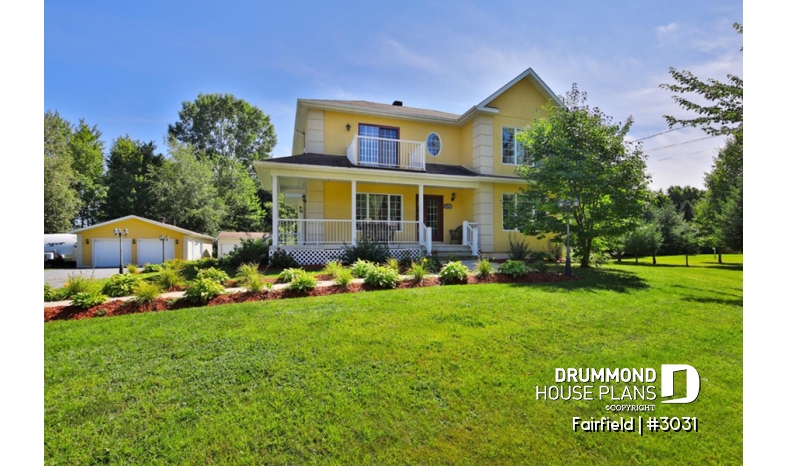

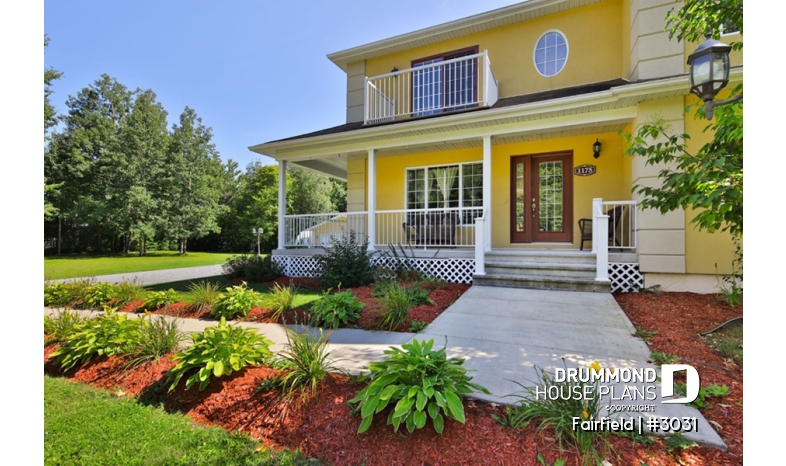

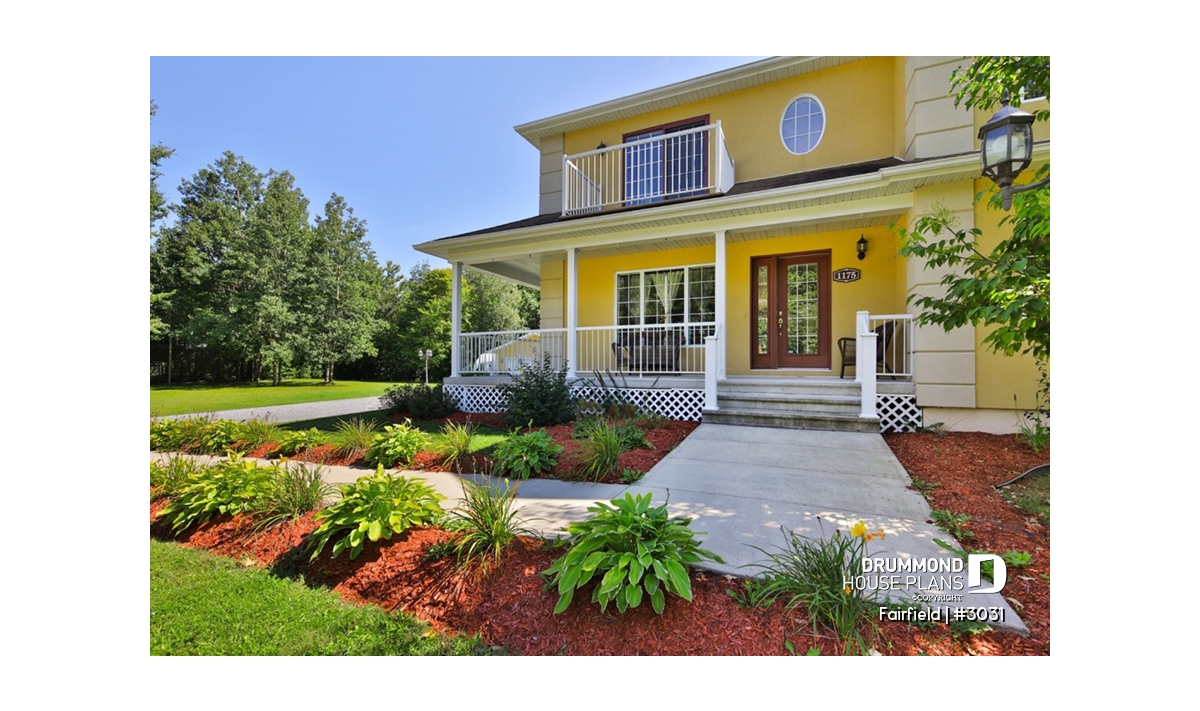

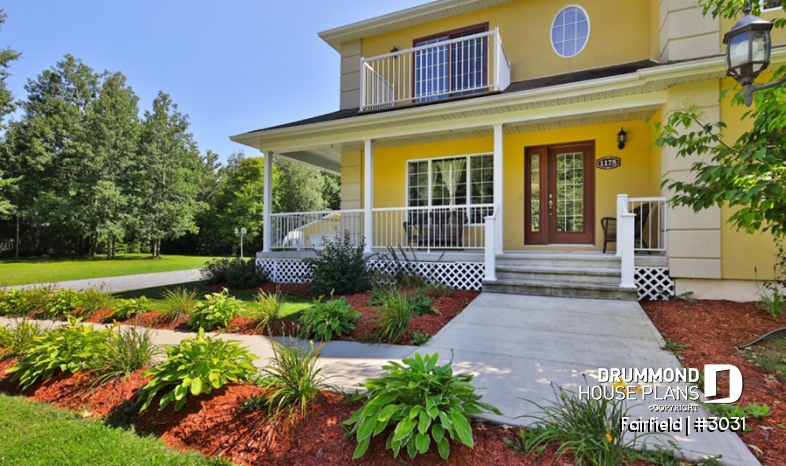

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Photo : remax

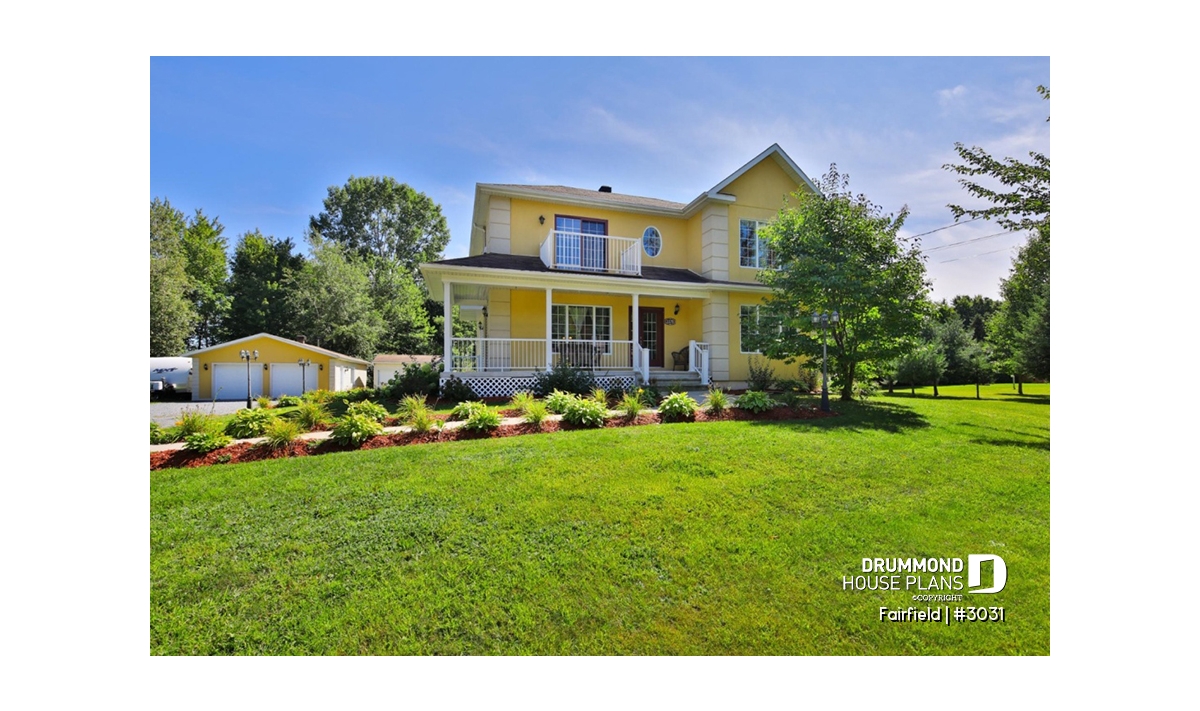

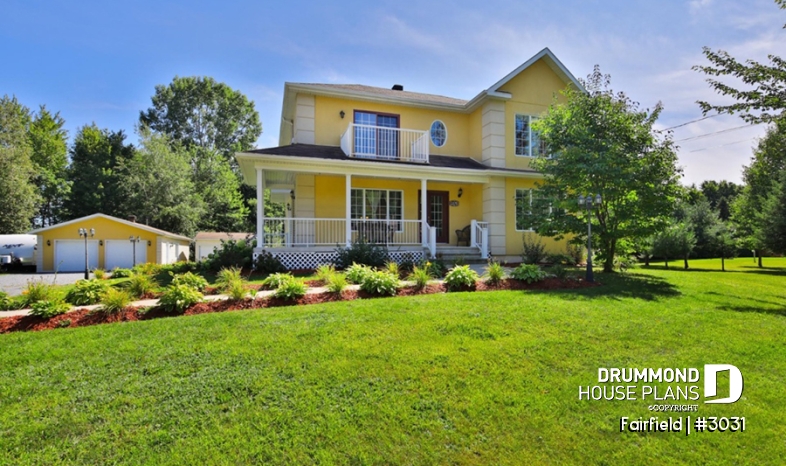

front
Photos represent a modified version of the original plan and are not available for sale. We invite you to get your free plan modification cost estimate if you would like any changes to the original plan.
Photo : remax
Other useful information on this plan
2 unit apartment building plan, duplex house plan with 3 bedrooms per apartment
.
Distinctive elements
Front and rear balconies for each unit, basement level belongs to unit 1, original kitchen for each unit, spacious bathrooms with independant shower in each.
Plan feature(s)
Gound floor laundry room, Second floor laundry room, Lunch counter, Lunch counter, Separate bath and shower, Separate bath and shower, Balcony 2nd floor, Warparound
Plan architectural style(s)
. European, . Mediterranean, . Florida, . English, . Traditional
Similar plans
Previously Viewed Plans
Questions and comments
January 28
Daniel
please advice me i have 160sq.m land ,but i like to build 3badroom similar type of home do you think it work ?
January 28
Customer service
see below
January 28
Daniel
please advice me i have 160sq.mland ,but i like to build similar type of home do you think it work ?
January 28
Customer service
Good day and thank you for taking the time to write
Your best resource for this information is the municipality in which you want to build your home as the size of the home depends largely on the set back and distance between neighbors required and the local town hall would probably be able to give you the details and approve the model if it meets their requirements.
Regards
Deb
