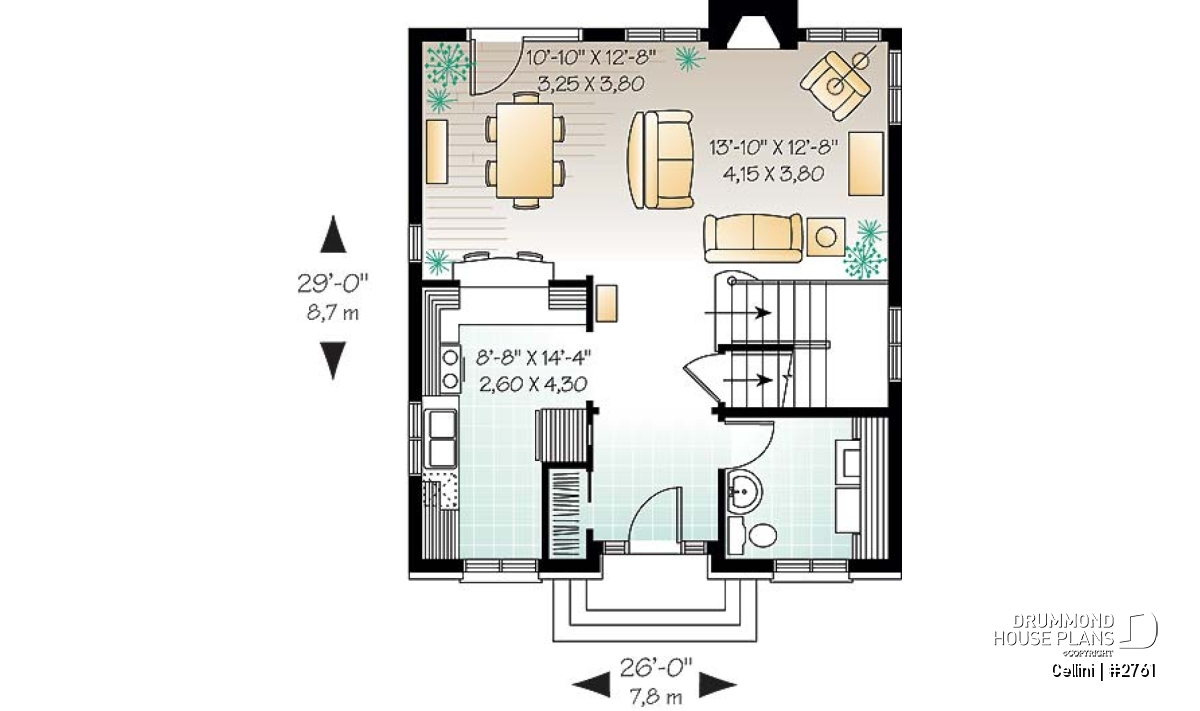

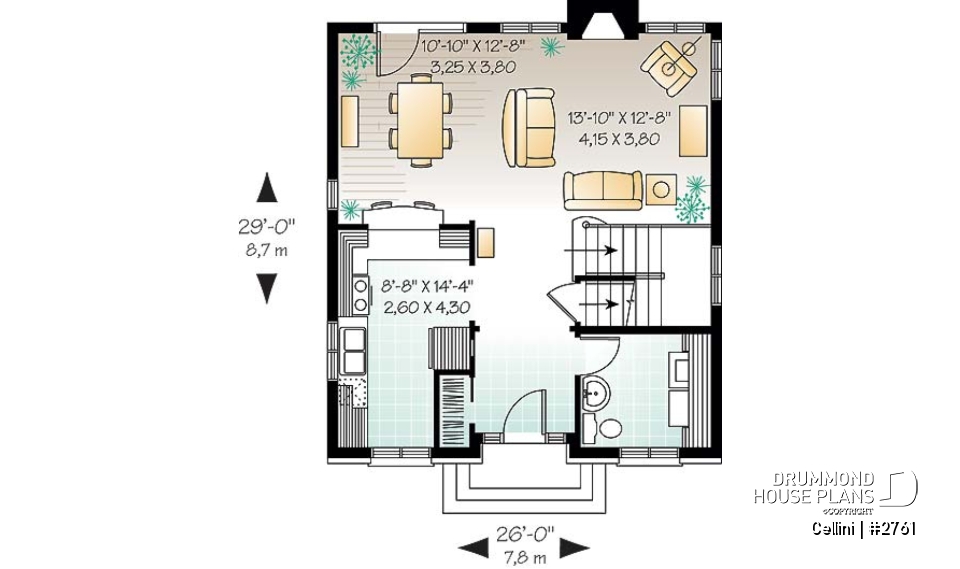

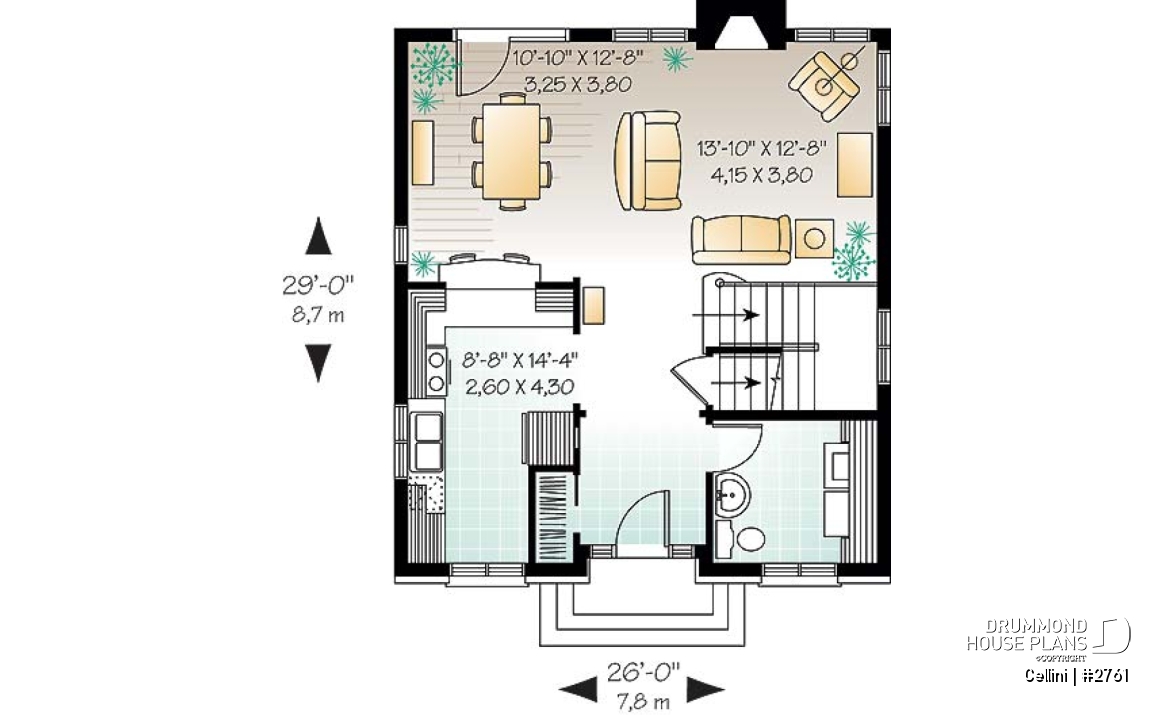

English style house plan, open dining & living w/ fireplace, laundry on first floor, large family bathroom
View the size of the rooms and height of the ceilings

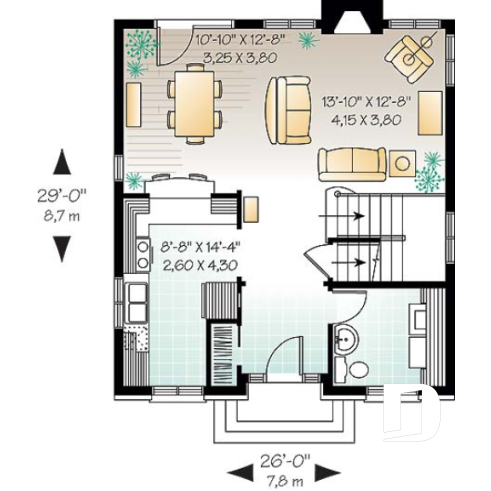

|Kitchen||8'8" x 14'8"||~ 8'0"|
|Dining room||10'10" x 12'0"||~ 8'0"|
|Living room||13'10" x 12'0"||~ 8'0"|
|Foyer||6'8" x 6'8"||~ 8'0"|
|Utility room||7'8" x 8'4"||~ 8'0"|
|Porch||7'4" x 3'0"||N/A|
|Full bathroom||14'6" x 7'8"||~ 8'0"|

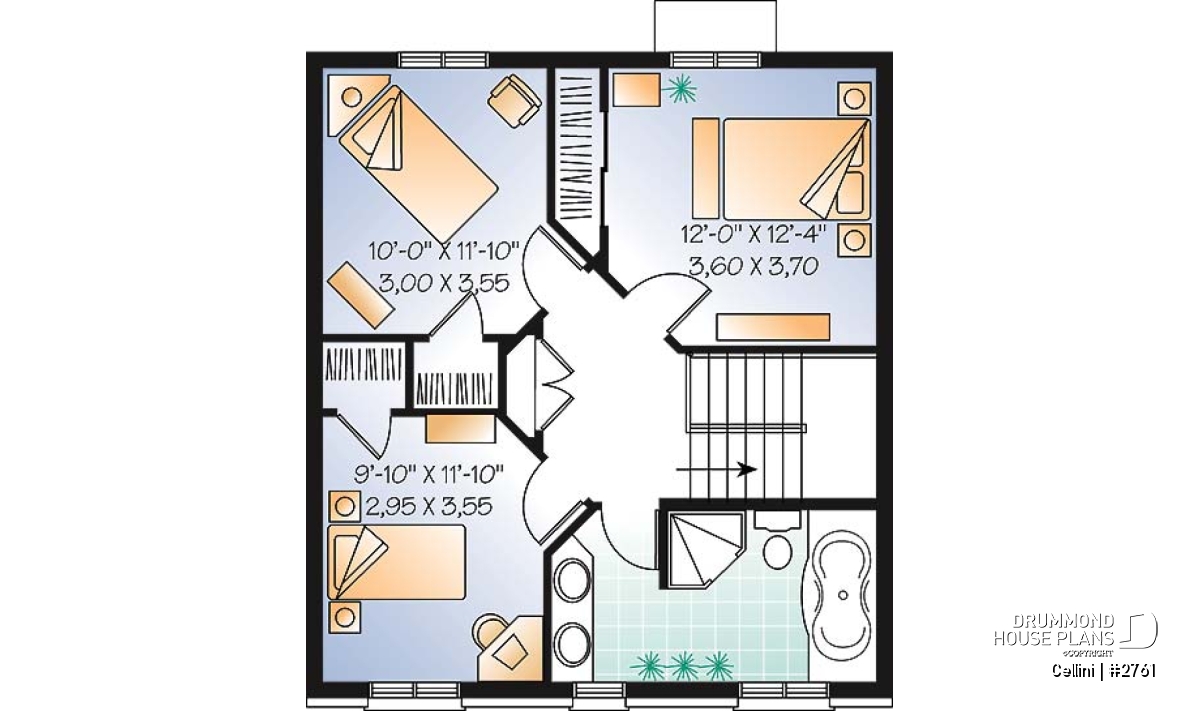

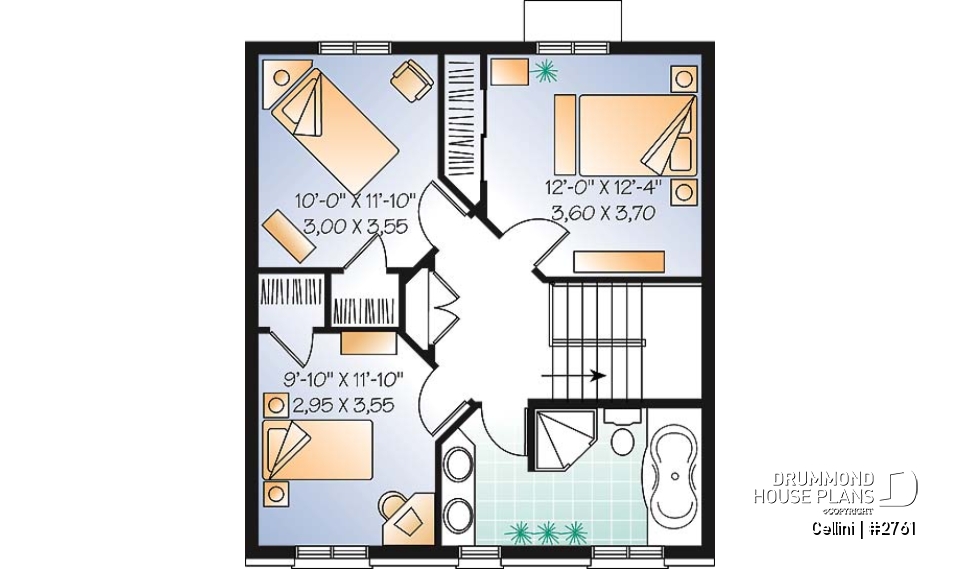

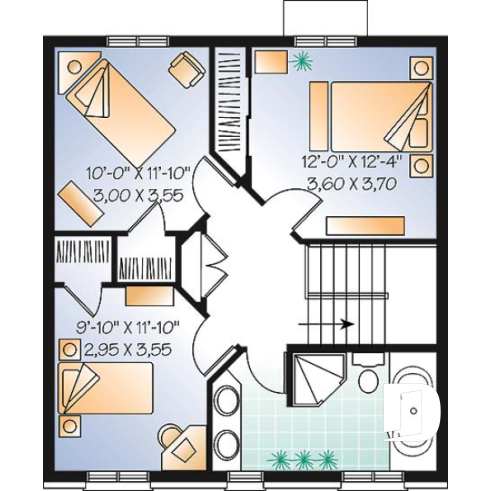

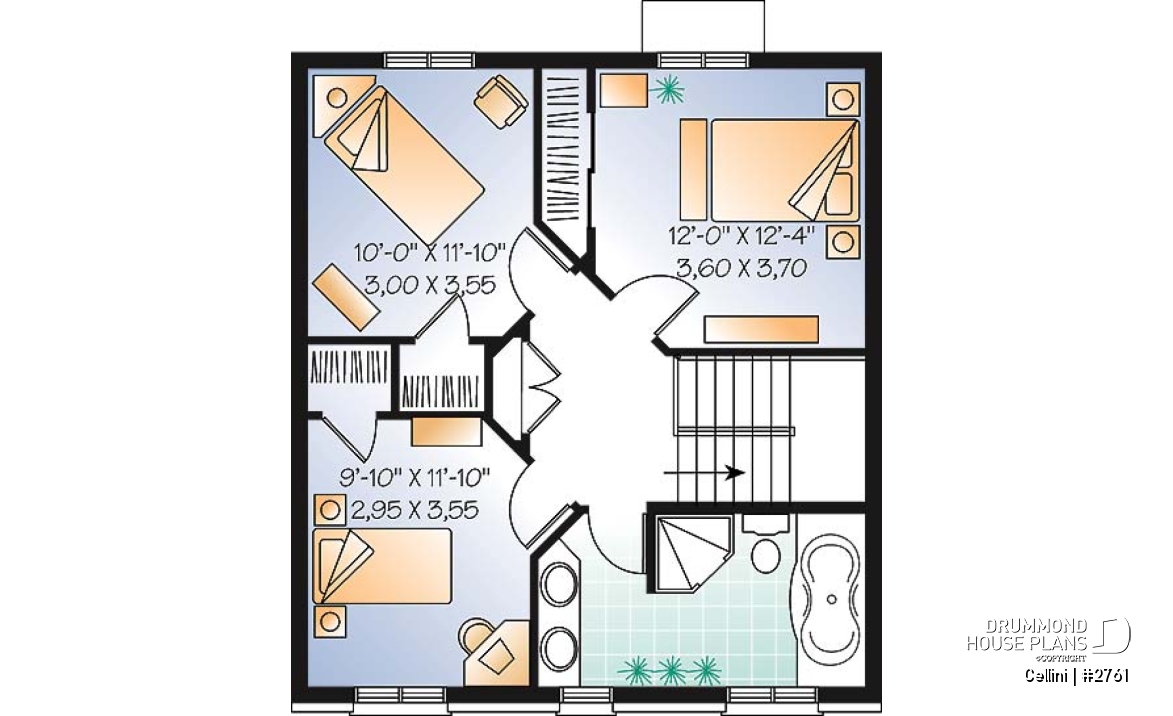

|Bedroom||12'0" x 12'4"||~ 8'0"|
|Bedroom||9'10" x 11'10"||~ 8'0"|
|Bedroom||10'0" x 11'10"||~ 8'0"|
|Linen||4'6" x 1'4"||~ 8'0"|
|Total living area||1500 sq.ft.|
|1st level||746 sq.ft.|
|2nd level||754 sq.ft.|
|Ridge height from top of foundation||29'6"|
|Exterior wall||2 X 6|
|Foundation type included in the plan||Full Basement|
|Other available foundations (a fee may apply)||Floating Slab, Crawl space, Monolithic Slab|
|Builder price code||D|
|Living bonus space||-|
Other useful information on this plan
