House plan Summerwood (3047)

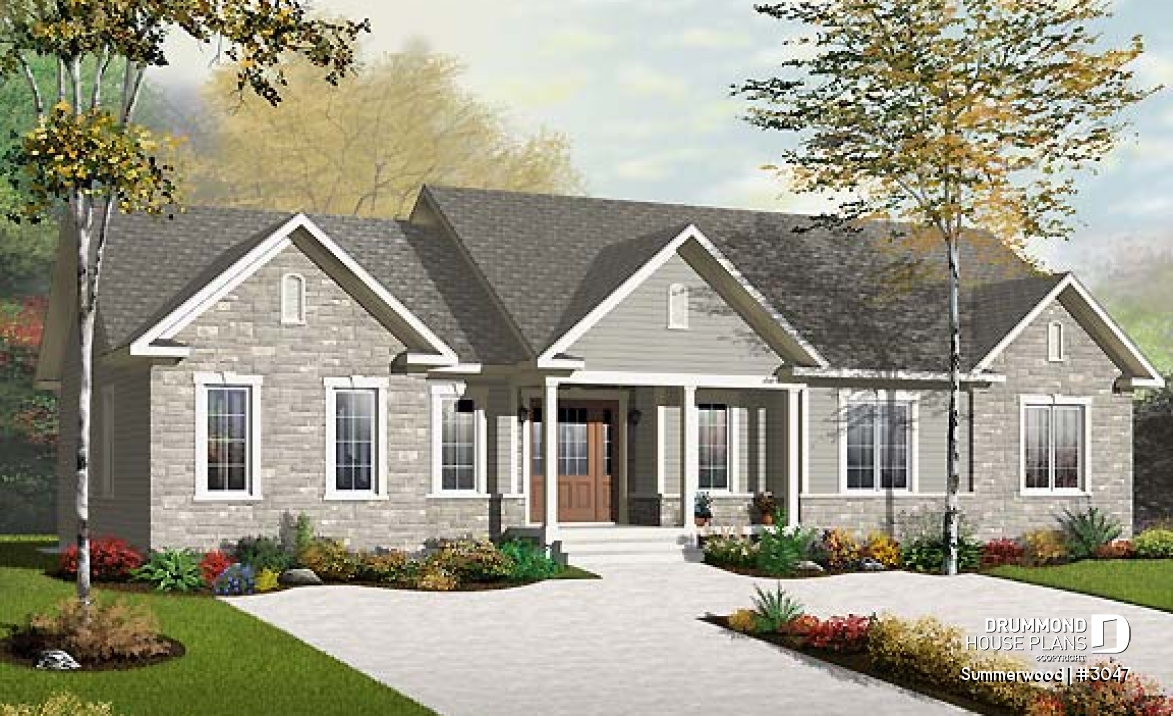

Country style intergenerational house plan with 2 large units, shared entrance, beautiful layout
View the size of the rooms and height of the ceilings
| 1st level | ||
|---|---|---|
| Rooms | Sizes | Ceiling |
| Living room | 14'8" x 14'0" | ~ 8'0" |
| Living room | 12'0" x 13'0" | ~ 8'0" |
| Kitchen/dining room | 20'0" x 11'0" | ~ 8'0" |
| Bedroom | 11'0" x 15'0" | ~ 8'0" |
| Bedroom | 9'0" x 10'0" | ~ 8'0" |
| Full bathroom | 7'0" x 11'2" | ~ 8'0" |
| Deck | 5'0" x 10'0" | N/A |
| Deck | 10'0" x 5'0" | N/A |
| Covered porch | 15'8" x 5'0" | N/A |
| Bedroom | 11'0" x 12'8" | ~ 8'0" |
| Kitchen | 12'0" x 9'4" | ~ 8'0" |
| Dining room | 13'0" x 10'0" | ~ 8'0" |
| Laundry room | 6'0" x 2'10" | ~ 8'0" |
| Foyer | 15'4" x 8'8" | ~ 8'0" |
| Full bathroom | 7'0" x 9'0" | ~ 8'0" |
| Foyer | 4'8" x 9'2" | ~ 8'0" |
| Closet | 2'0" x 5'2" | ~ 8'0" |
| Closet | 5'2" x 2'4" | ~ 8'0" |
| Basement |
|---|
General specifications
| Total living area | 1979 sq.ft. |
| 1st level | 1979 sq.ft. |
| Basement | 1979 sq.ft. |
| Width | 60'0" |
| Depth | 42'0" |
| Ridge height from top of foundation | 21'6" |
| Exterior wall | 2 X 6 |
| Foundation type included in the plan | Unfinished Basement i |
| Other available foundations (a fee may apply) | Floating Slab, Crawl space, Monolithic Slab |
| Builder price code | MA |
Rooms specifications
| Bedroom(s) | 2, 3 |
| Full baths | 2 |
| Half baths | - |
| Garage type | - |
| Living bonus space | - i |
| Bonus storage | - i |
| Covered porch area | 78 sq.ft. |
Units specifications
Other useful information on this plan
Ideal independence with this intergenerational house plan
This charming bi-generational beauty allows multiple generations barrier-free access to both suites. A shared vestibule provides interior access to both suites, private but within easy access for tea and cookies. Each suite enjoys private backyard access.
The family suite has two bedrooms oriented to the front of the home with the activities area oriented to the back yard. The grandparent suite is a single-bedroom unit, complete with its own kitchen, dining room, living room and laundry.

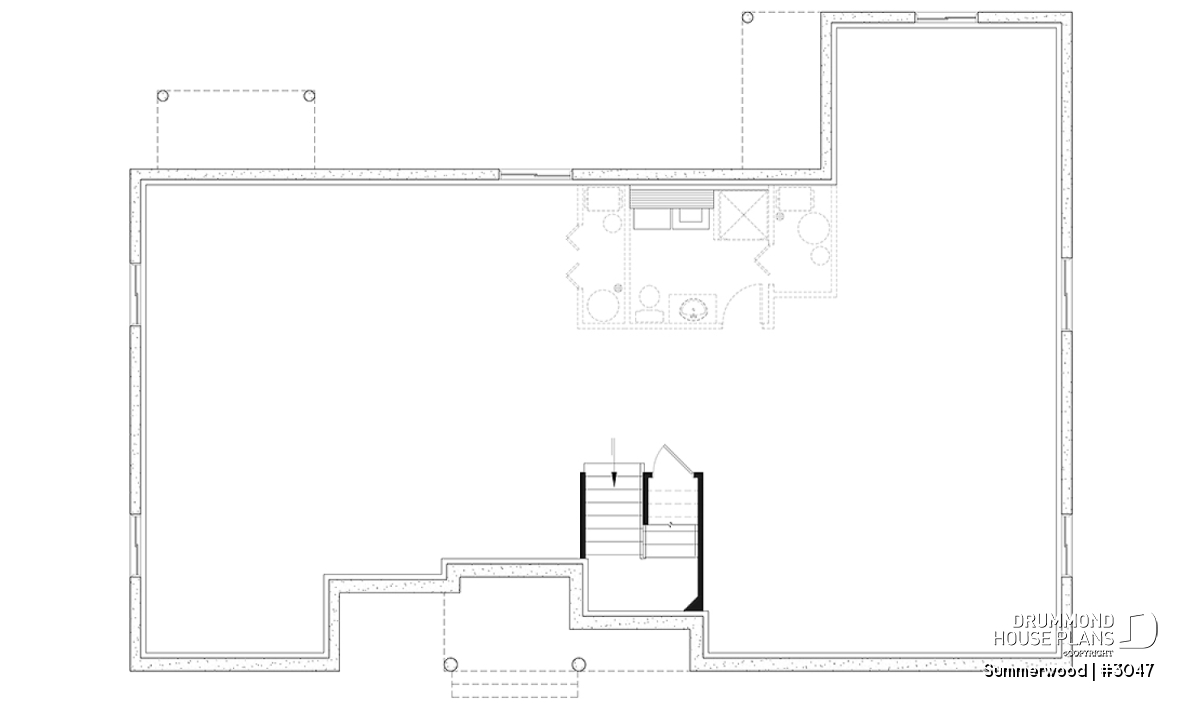

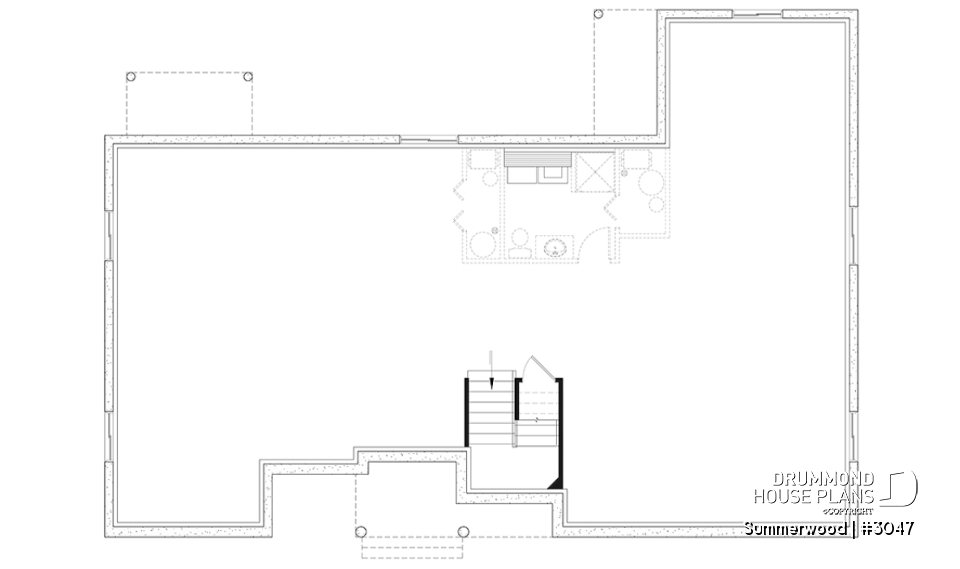

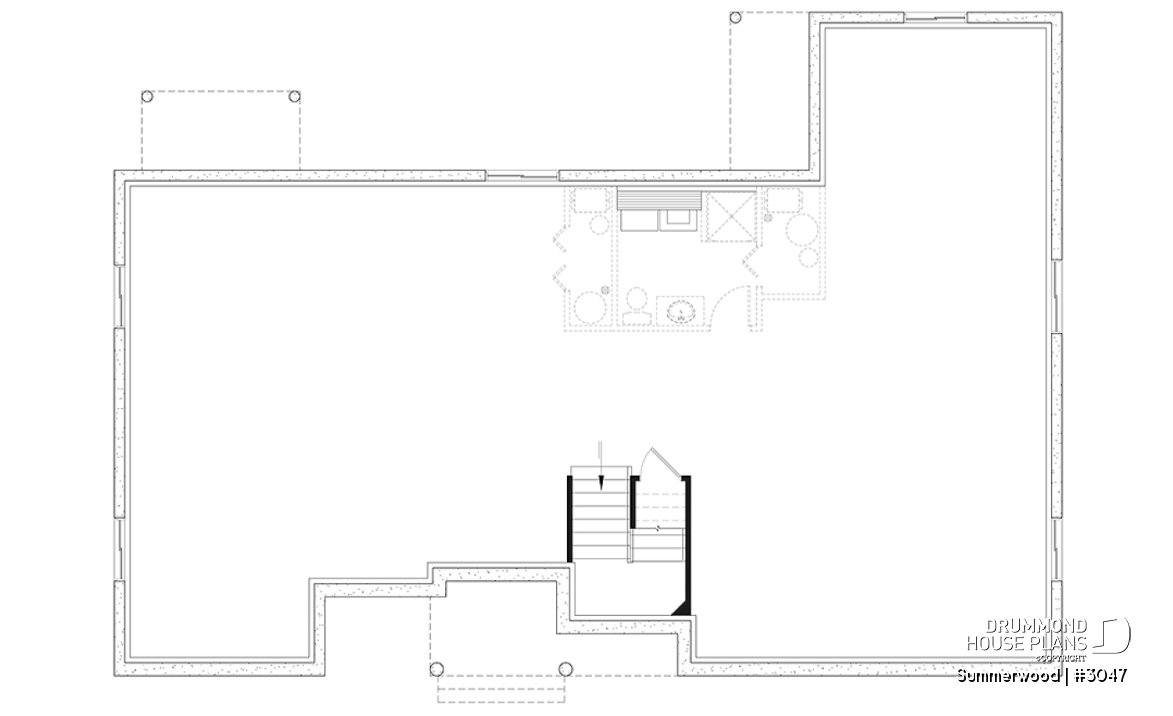

The plan includes an undeveloped basement, ideal for play area, hobbies, or a media room.
Distinctive elements
Large common vestibule for greeting and includes stairs to the basement. Activities area is open and light for each unit. Island kitchen with lunch counter in each kitchen. Laundry area on the ground floor in the grandparent suite.
Plan feature(s)
Separate bath and shower, Island, Open floor layout, Island, Gound floor laundry room
Plan architectural style(s)
. Country, . European, . Ranch, . Craftsman / Northwest
